Herman Miller Ubi Work Tools Installation instructions

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 1
YUbi™Work Tools Work Tools Installation and Disas-
sembly for Recycling Instructions

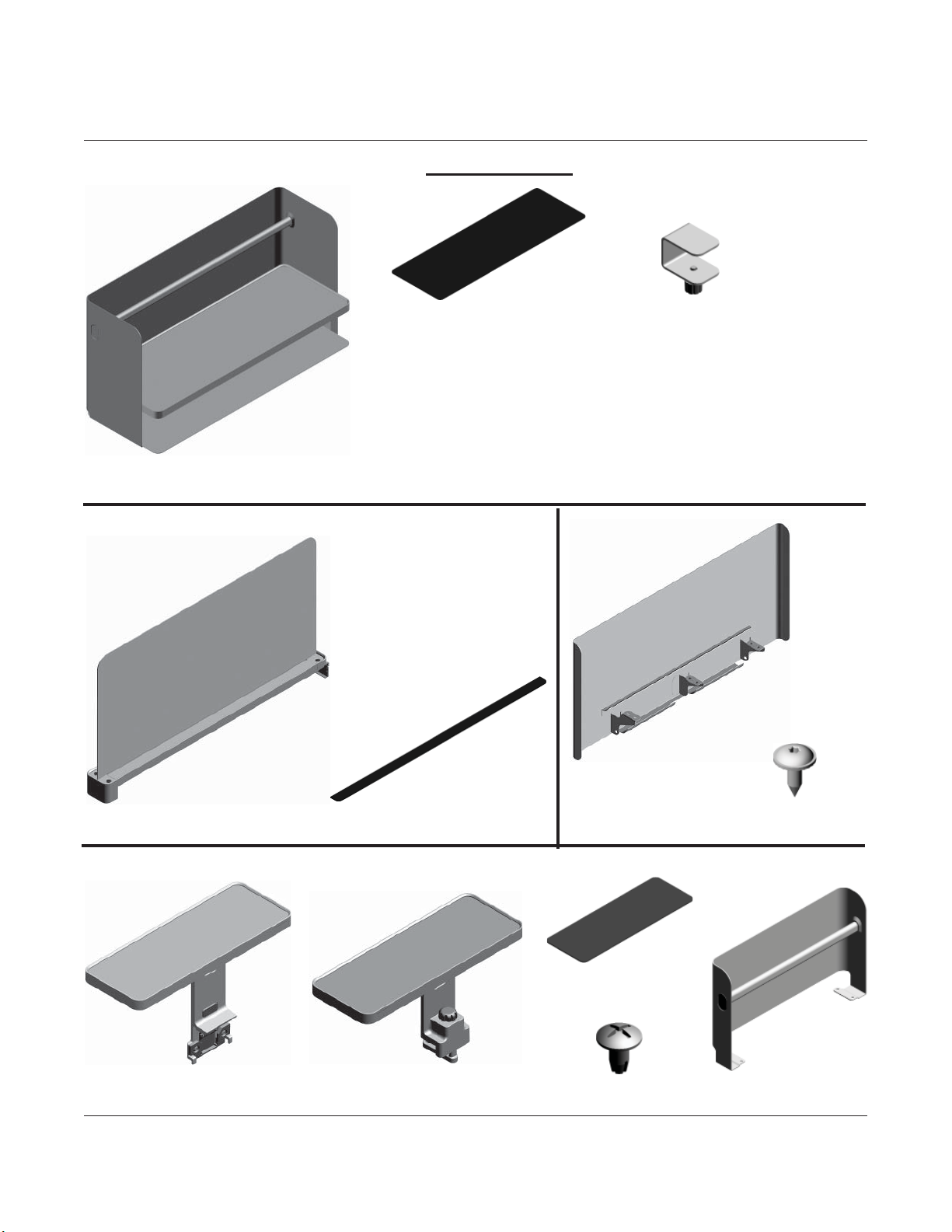

Parts Included:
Organizer
Surface Clamp
Slim Screen
Steel Screen
Liner (2)
Liner
A
BC
D
AN
E
YT460.
YT500.
YT540.
YT100./YT150.
YT200. YT250.
YT300.
Rail Mounted Shelf
14-10 x 5/16 Torx Head
Sheet Metal Screw (6)
8-32 x 5/16 Truss Head
Machine Screw (4)
Surface Mounted Shelf
Liner
Back Drop
F
AP
K
G
H
J
YT510.

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 2
YT320.
YT400. YT410.
YT430. YT440.
YT330.

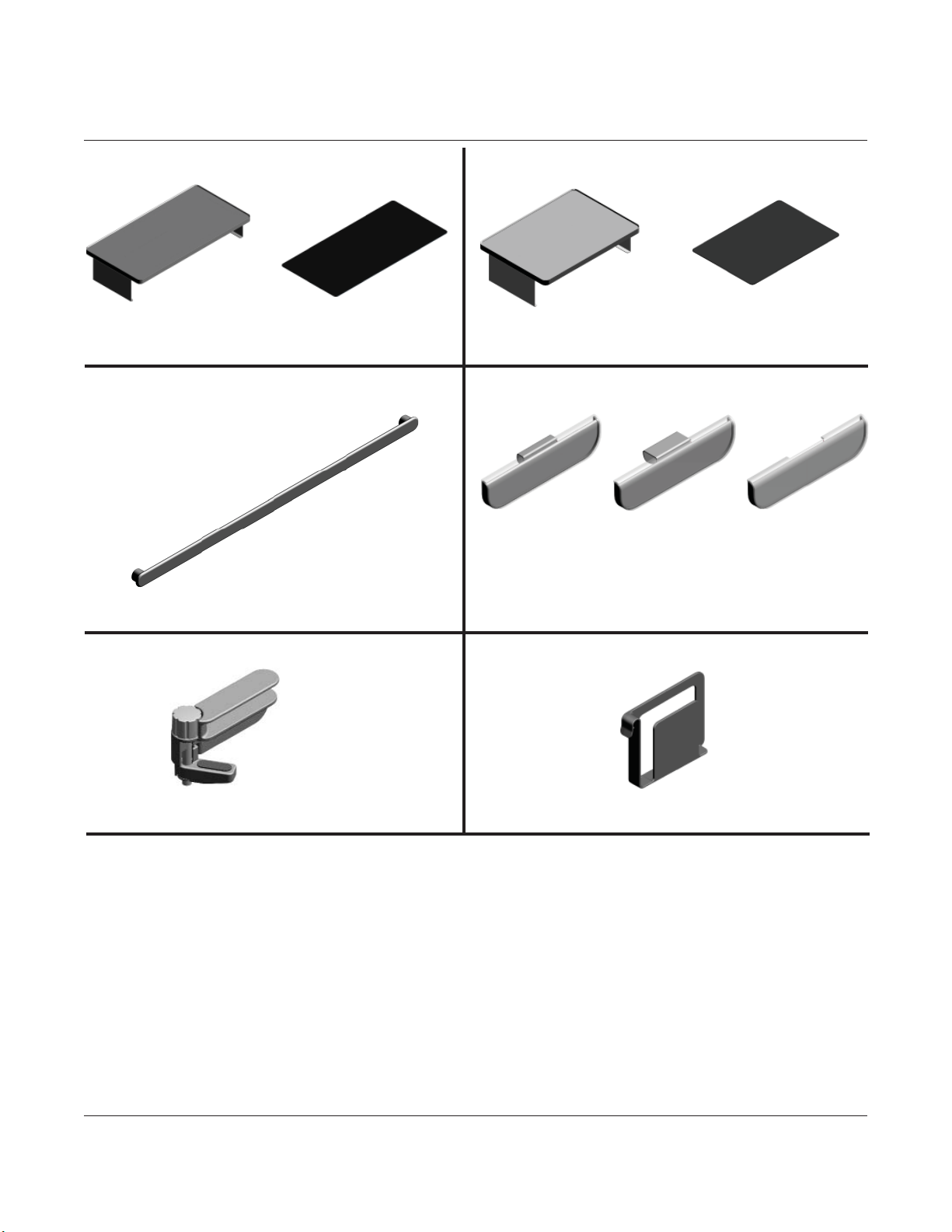

Monitor Platform
Shelf Freestanding Shelf
Document Clip
Liner Liner
Nametag
Cord Cleat Rod Bookend
YT410.P YT410.S YT410.M
LN
P
SAA
MO
R
YT530.
YT500.

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 3

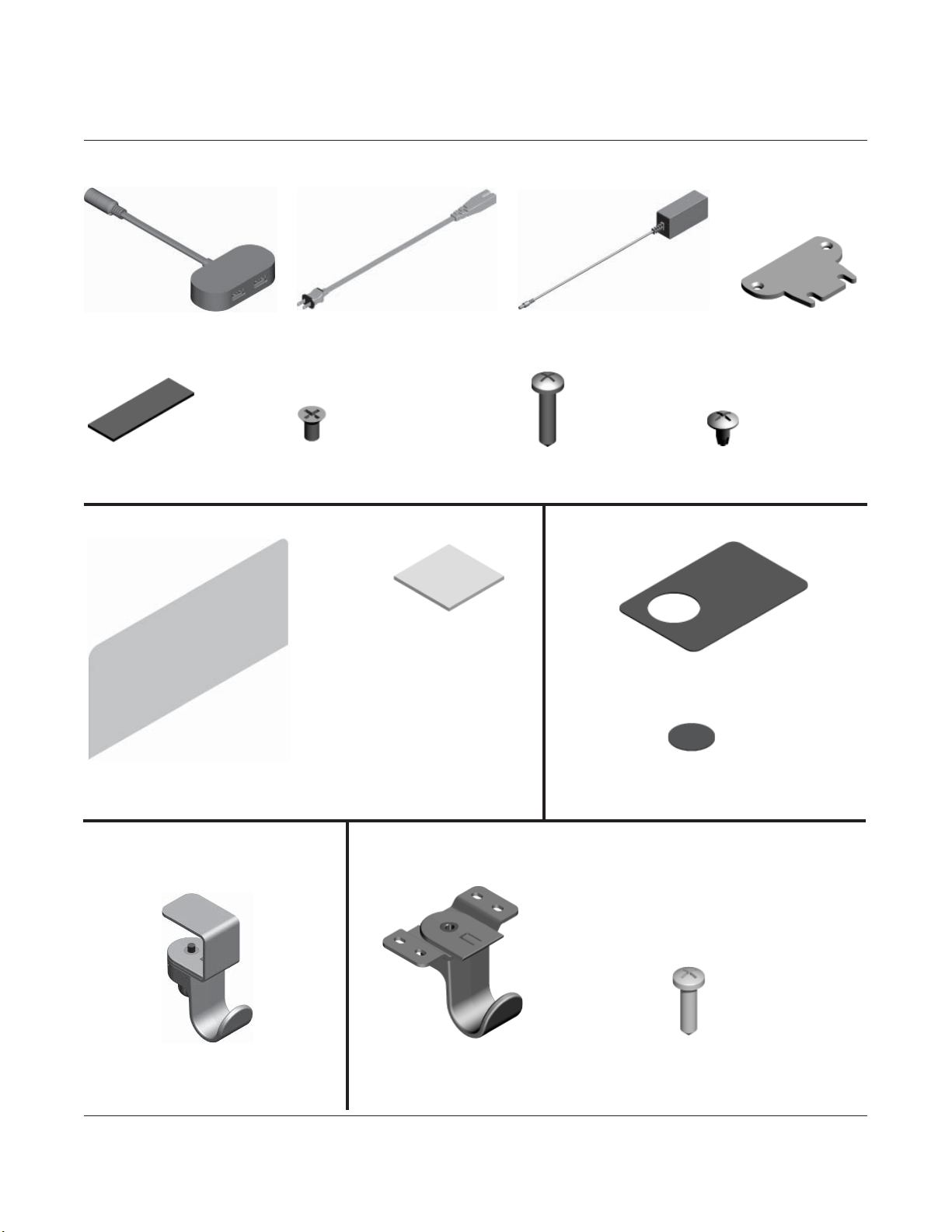

8-32 x 5/16 Truss Head
Machine Screw (2)
#6 x 1/4 Flat Head Thread
Forming Screw (2) #8 x 3/4 Pan Head
Wood Screw (2)
#10-12 x 3/4 Pan
Head Screw (4)
K
YZ
AM
USB Hub Power Cord coverter Puck Plate
Magnetic Marker Board
Alcohol Wipe
Liner
Adhesive Tape Buttons (4)
Clamp Bag Hook Fixed Bag Hook
Double Face
Tape
TUVW
AB
AC AJ
AK
AD AL
X
YT420.
YT450. YT550.
YT700.C YT700.F

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 4
Bag Catch
Shelf
(YT560.)
(YT715.) (YT565.)
Base Liner Shelf Liner
AE
AF AG AH
YT710.

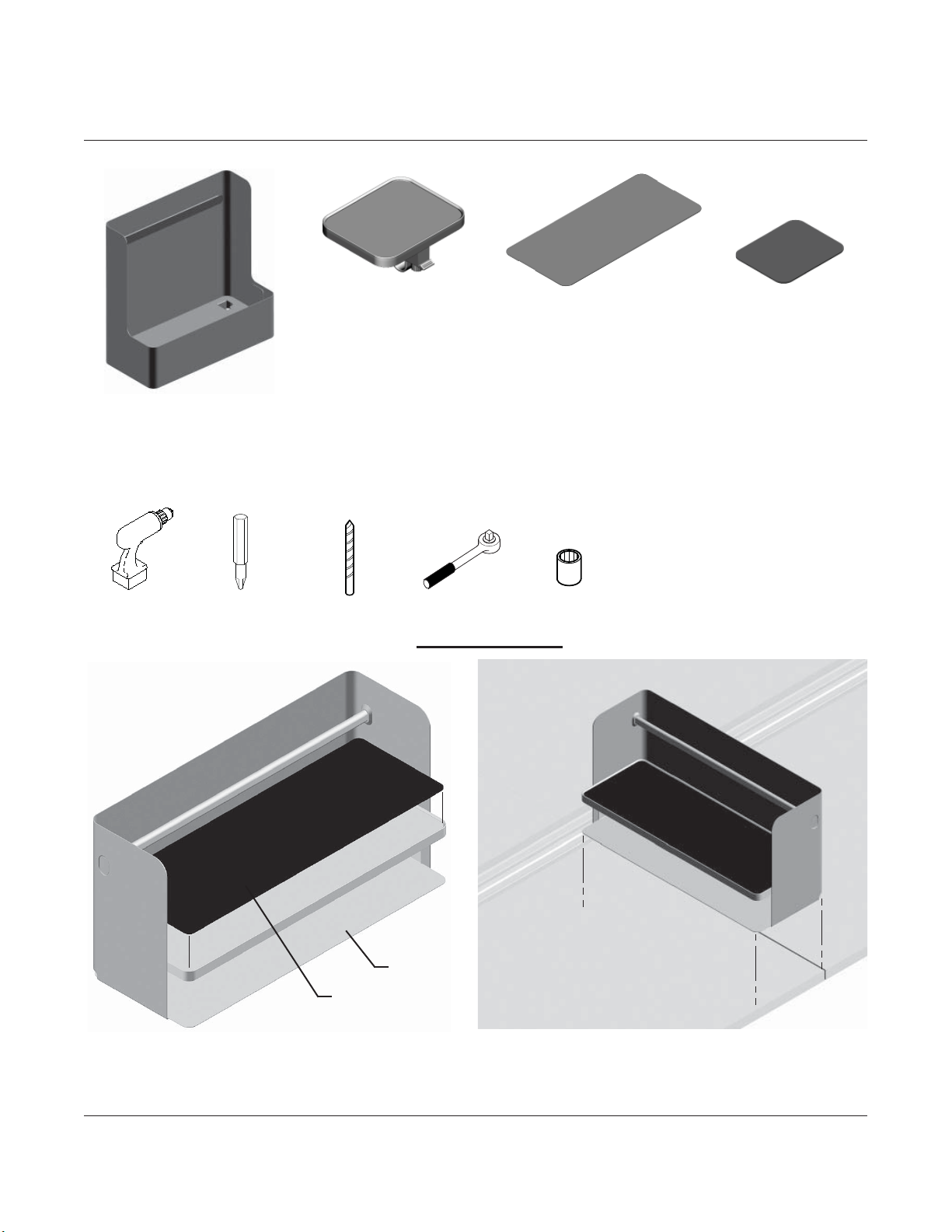

Tools Needed:
#2 Phillips Bit Ratchet Wrench
Power Driver 1/8” Drill Bit 1/4” Socket
1. Remove protective backing from tape on underside of liner (B).
2. Firmly press liner into position on shelf of organizer (A).
3. Set organizer at desired location on work surface.
A
B
YT100./YT150.

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 5

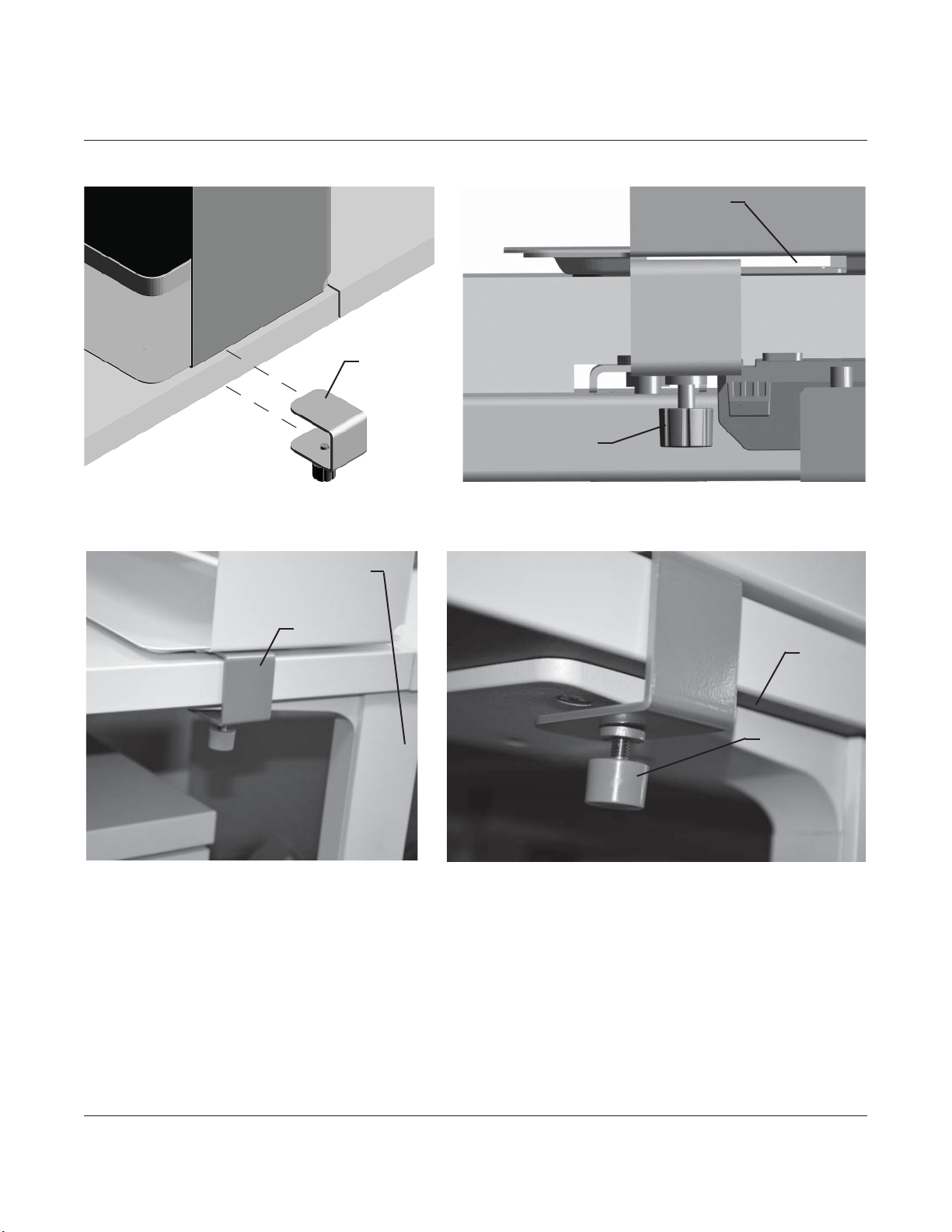

4. If using Surface Clamp (C): Insert top fl ange of clamp into cutout in base of
organizer. Center clamp in cutout. Make sure inside surface of clamp mates
up against edge of work surface. Note: For all applications except above
Canvas Universal Leg, use YT460.1. Bag hook YT700.C may also be used
inplace of YT460.1 only. For use with Canvas Universal Leg, use YT460.2.
5. Tighten clamp with knob.
(Layout Studio Table Shown)
(Canvas Table Shown)
C
C
Cutout
Cutout
Canvas Universal
Leg
Knob
Knob

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 6
YT200.

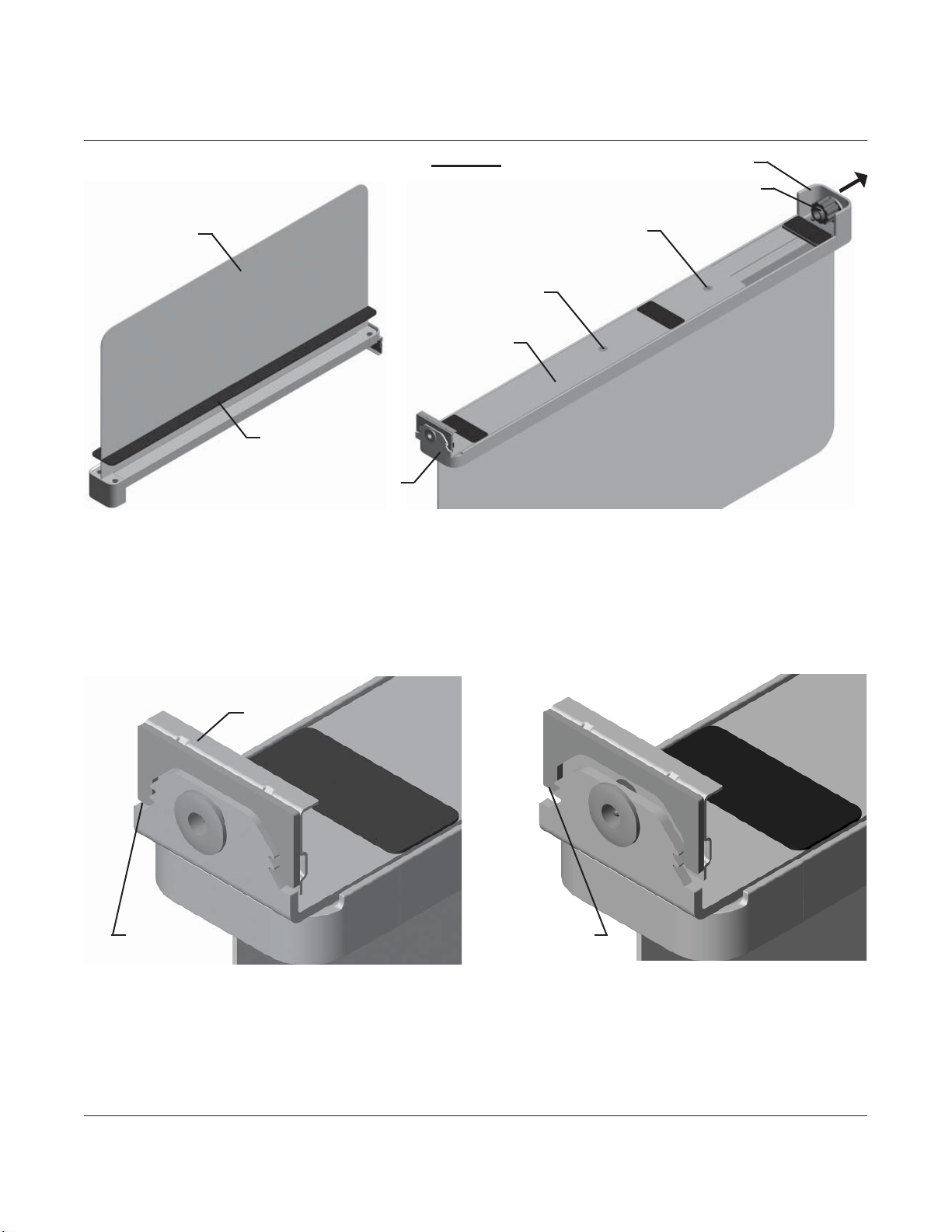

1. Remove protective backing from tape on underside of fi ller (E).
2. Firmly press fi ller into position on Slim Screen (D).
3. Turn screen upside down.
4. Determine work surface thickness where screen will be installed. Adjustment
Bracket is set for 1” thick surface. For 1 1/8” thick surface, Pull back and lift
up on clip on adjustment bracket until clip engages into next notch on bracket.
5. Loosen 2 screws on bottom of screen. (About 1/4 to 1/2 turn so sliding plate
will slide.)
6. Turn knob to end of threads, toward end cap.
E
D
Screw
Sliding Plate
Screw
Knob
End Cap
Adjustment Bracket
Clip
1” Surface
Location
1 1/8” Surface
Location

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 7

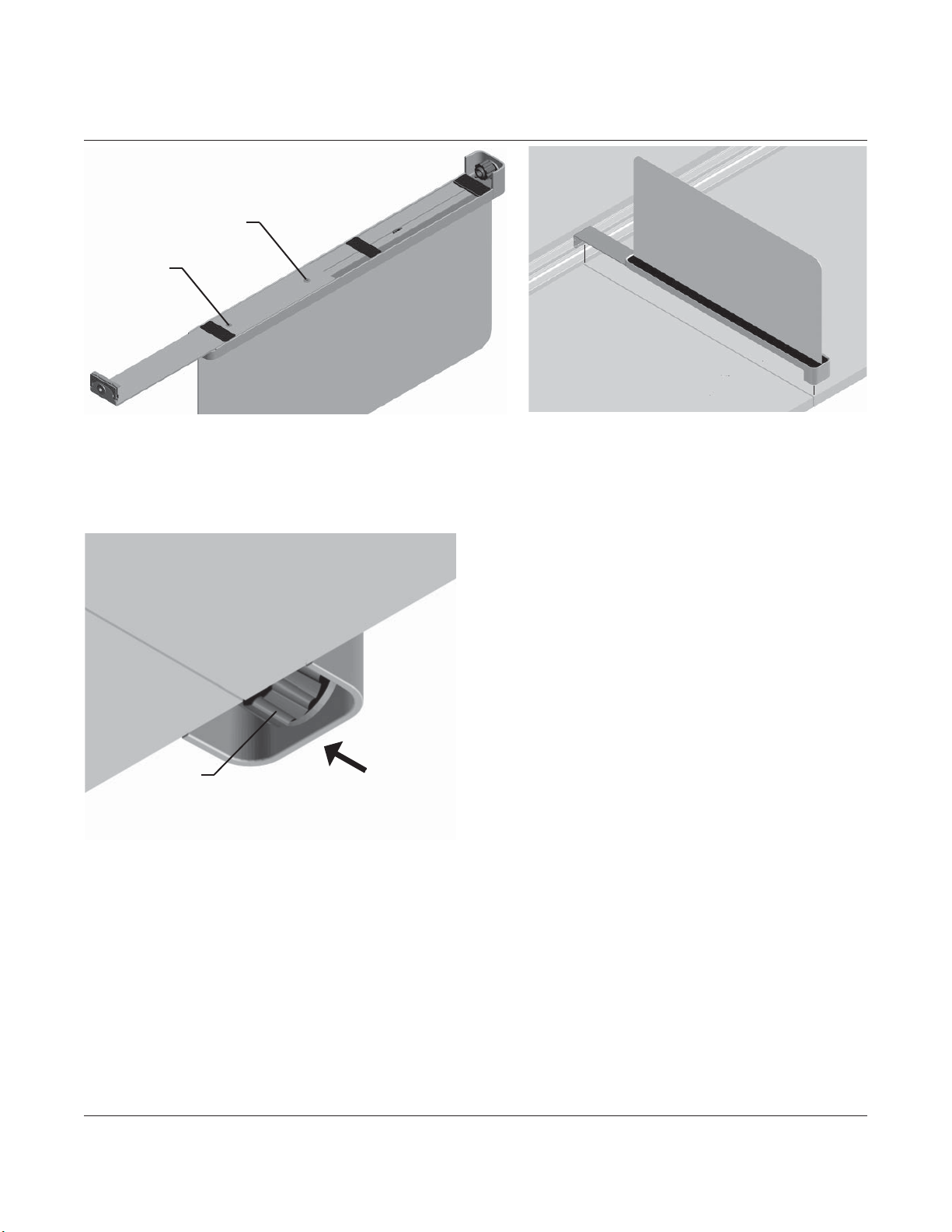

7. Pull out sliding plate.
8. Place screen at desired location.
9. Capture back of work surface with clip on adjusting bracket on sliding plate.
While holding adjusting bracket in place, slide screen assembly toward front
of work surface. Leave 1/16” gap maximum between work surface and end
cap.
10. Hold sliding plate in place. Remove screen assembly from work surface.
Sliding Plate
1/16” Gap
End Cap

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 8
11. Tighten 2 screws on underside of screen assembly.
12. Return screen assembly to work surface. Hook rear bracket over rear edge
of surface. Rotate front of screen down onto surface.
13. Tighten knob against front edge of surface to secure screen assembly to work
surface. Verify that screen is secure.
Screw
Screw
Knob

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 9
YT250.
1. Position Steel Screen (AN) under work surface. Make sure tabs on mounting
brackets are tight against edge of work surface.
2. Mark Hole locations.
3. Drill 1/8” pilot holes. Be sure not to drill through work surface.
4. Secure screen to work surface with torx screws (AP).
AN
AP
Drill Holes
Mounting Bracket
Tab
Work Surface Mark Holes

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 10
YT300.
1. YT300.RNL: Remove protective backing from tape on bottom side of fi ller (H).
2. Align fi ller with shelf surface (F). Firmly press in place.
3. YT300.RBL, YT300.RBM, YT300.SBL, YT300.SBM: Slide brackets on
backdrop assembly (J) under shelf surface.
4. Secure backdrop to shelf surface with 4 truss head screws (K).
5. Place Shelf Assembly into disired location on performance rail. (YT300.SNL
shown).
F
F
HJ

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 11

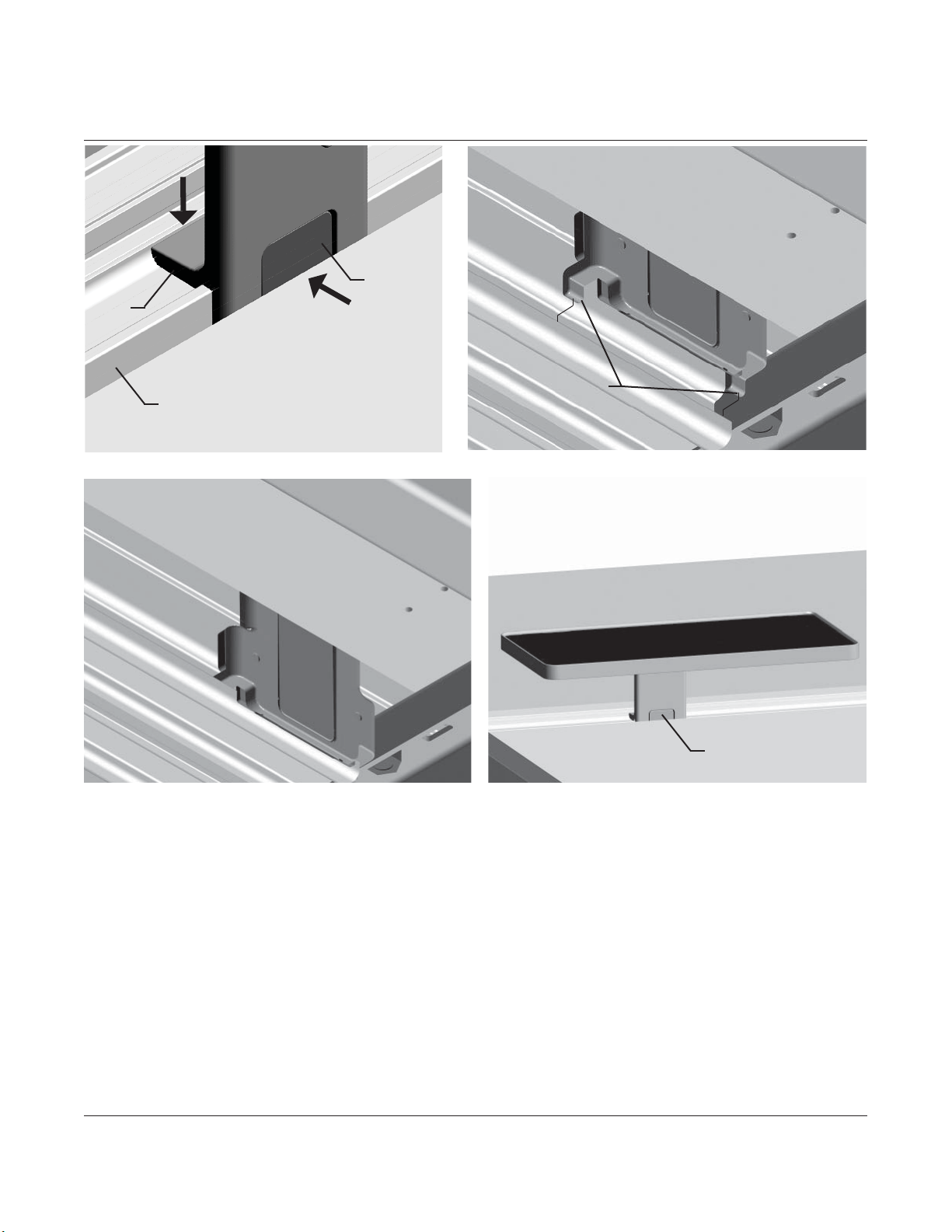

6. Set lip on shelf stanchion onto rail and capturing hooks into groove in rail.
7. Press down on lip. Push in latch to lock onto rail.
8. To reposition shelf, press latch from back side to unlock, lift up and out.
Hooks
Latch
Push In
Press Down
Latch
Lip
Rail

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 12

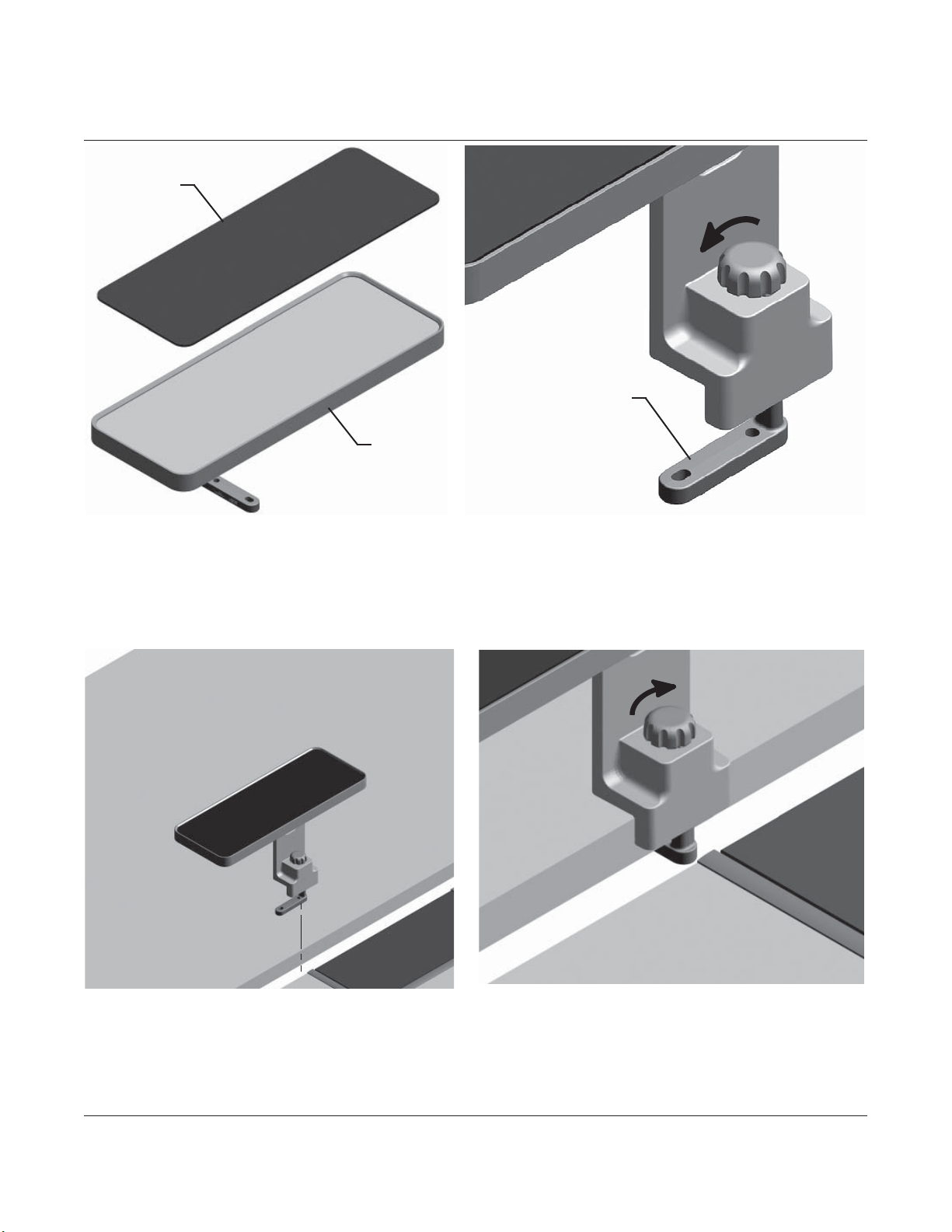

4. Set Shelf assembly at back of work surface. Make sure clamp is tight against
back edge of work surface.
5. Turn clamp knob right to move clamp lever into position. Continue turning
knob to tighten clamp.
1. YT300.SNL: Remove protective backing from tape on bottom side of fi ller (H).
2. Align fi ller with shelf surface (G). Firmly press in place.
3. YT300.SNL, YT300.SNM, YT300.SBL, YT300.SBM: Turn knob left to loosen
clamp lever and position as shown.
G
H
Clamp Lever

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 13
YT320. & YT330.
YT400.
1. Remove protective backing from tape on underside of liner (M) or (O).
2. Firmly press liner into position on shelf (L) or (N).
3. Place platform on surface. It is important that platform set fl at on surface. If
platform rocks, determind which corner is high, then twist platform slightly in
opposite direction until it sets fl at.
1. Attach Document Clip (P) onto back of organizer or any fl at metal surface
where magnets will stick.
LN
O
M
P
or
or

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 14
YT410.
YT410.P
YT410.S

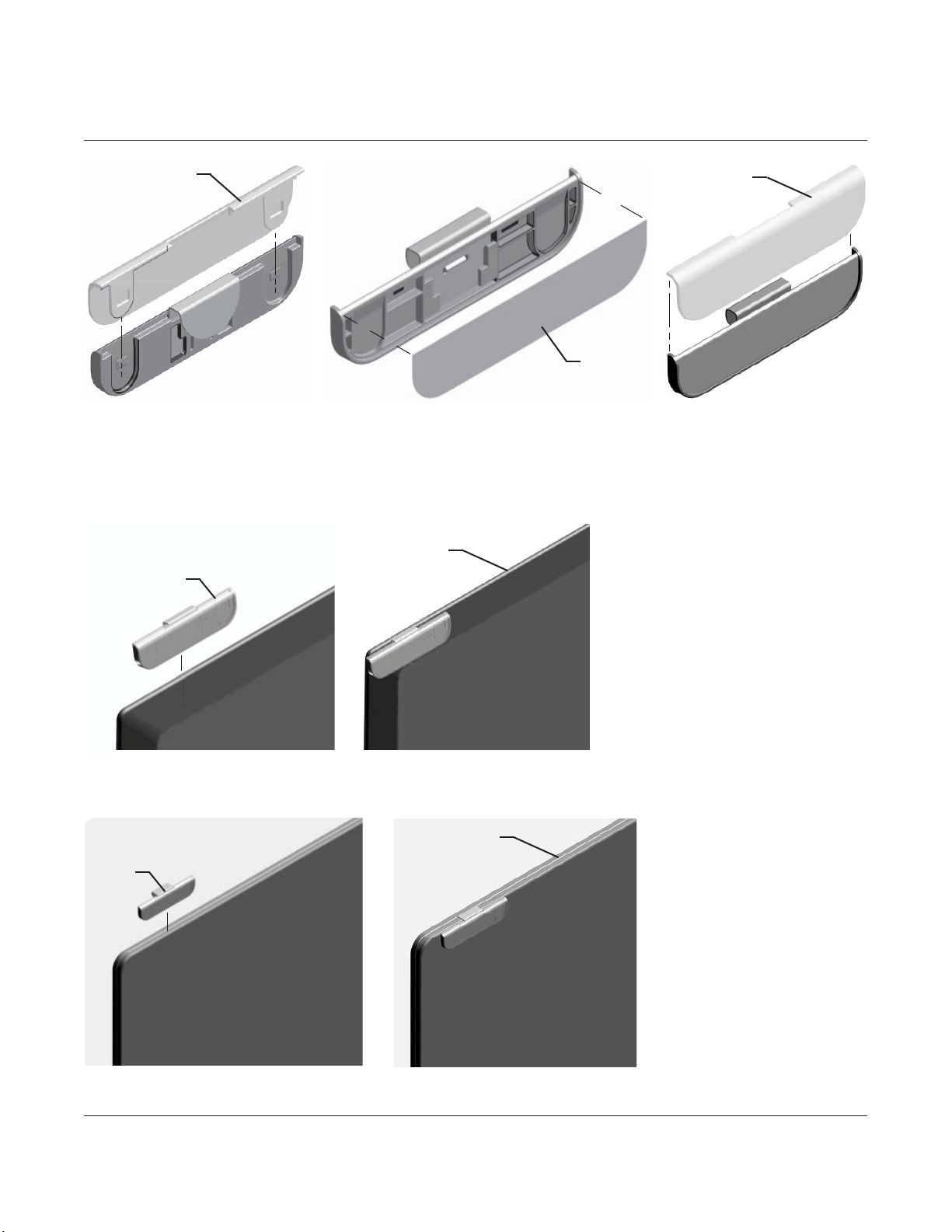

1. Remove shield from nametag (R) by grasping with both hands and pushing up
with thumbs on face of shield at tab locations.
2. Remove insert, return when fi nished printing name or using customized insert.
3. Snap shield back in place.
4. Press clip on nametag into middle of screen edge. Clip fi ts into groove in
screen.
4. Press clip on nametag into middle of screen edge. Clip fi ts into groove in
screen.
R
R
Shield Shield
Groove
Groove
Insert

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 15
YT410.M
4. Place magnetic nametag onto metal backdrop on shelf. Let lip on top of
nametag rest on top edge of backdrop.
R
S
Lip
YT430.

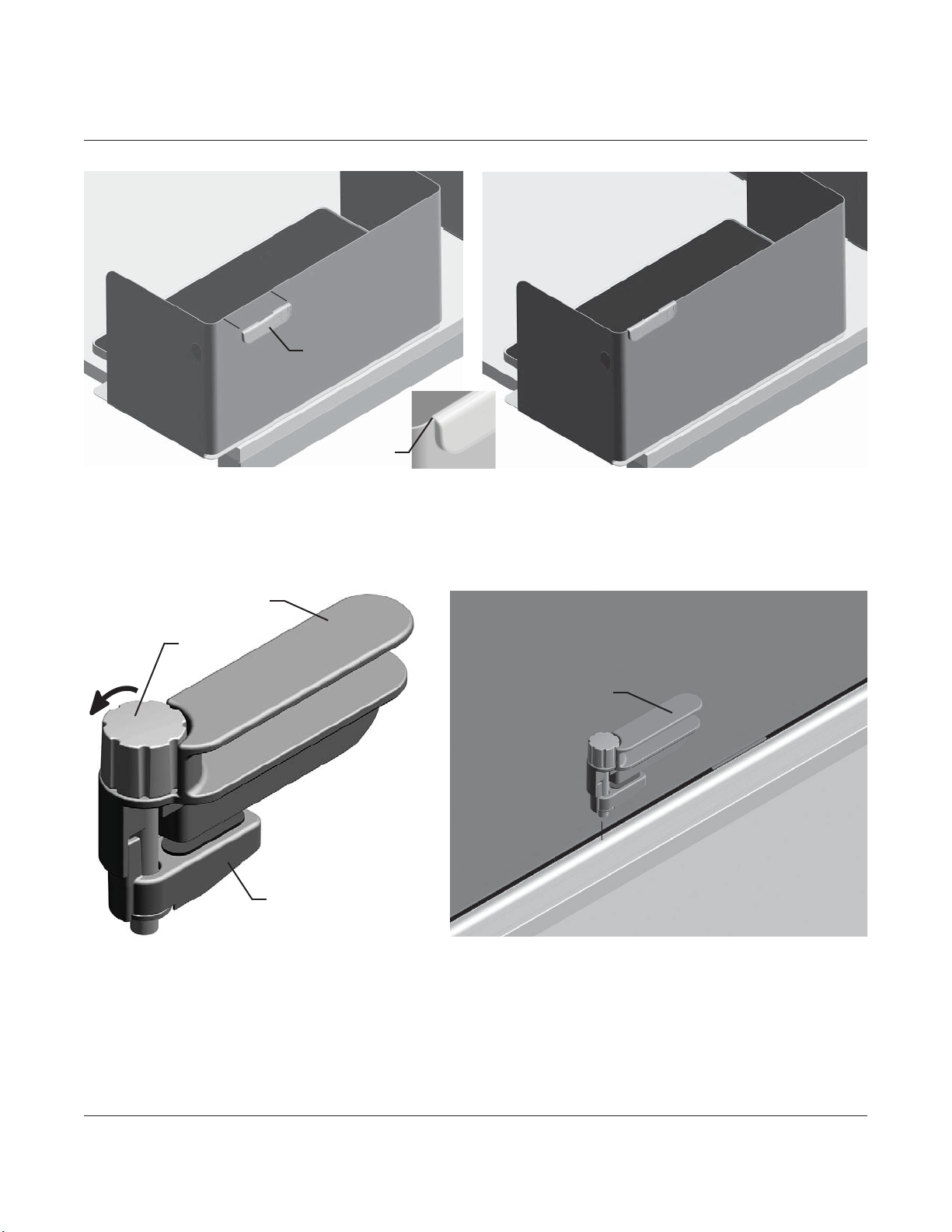

1. Turn Knob while holding foot to open distance between foot and cleat.
2. Align foot with cleat.
3. Position Cord Cleat (S) to back side of work surface.
Cleat
Foot
Knob

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 16

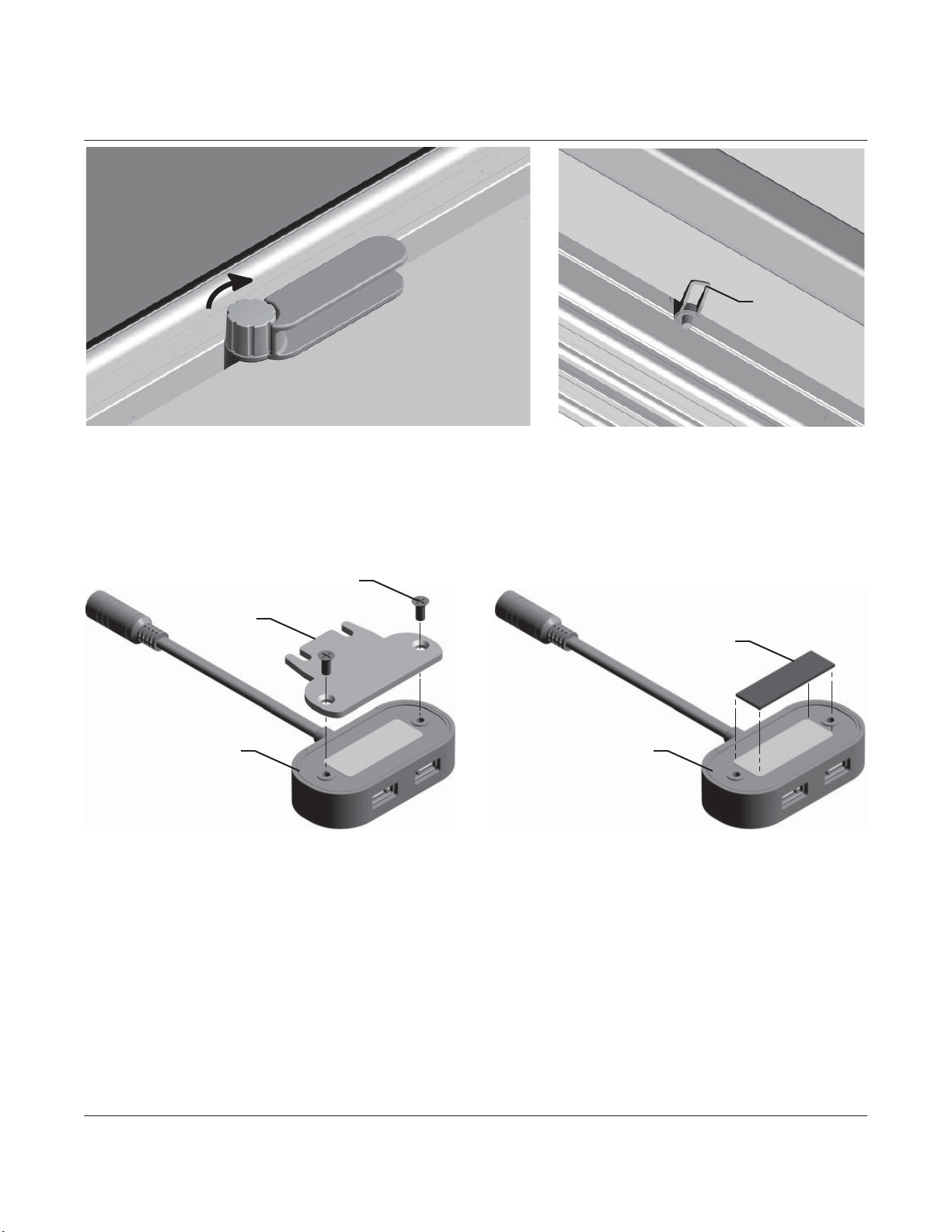

4. Set Cord Cleat onto work surface and up against back edge.
5. Turn knob until foot rotates to face out toward front of work surface.
6. Hold foot in place. Tighten knob.
Foot
YT420.
1a. For mounting USB Power Module onto organizer, shelf or under work surface;
attach Puck Plate (W) to USB Hub (T) with 2 fl at head screws (Y).
1b. For mounting USB Power Module onto top of work surface; remove protective
backing from double sided tape (X). Firmly press tape on middle of underside
of USB Hub (T).
W
Y
T
X
T

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 17

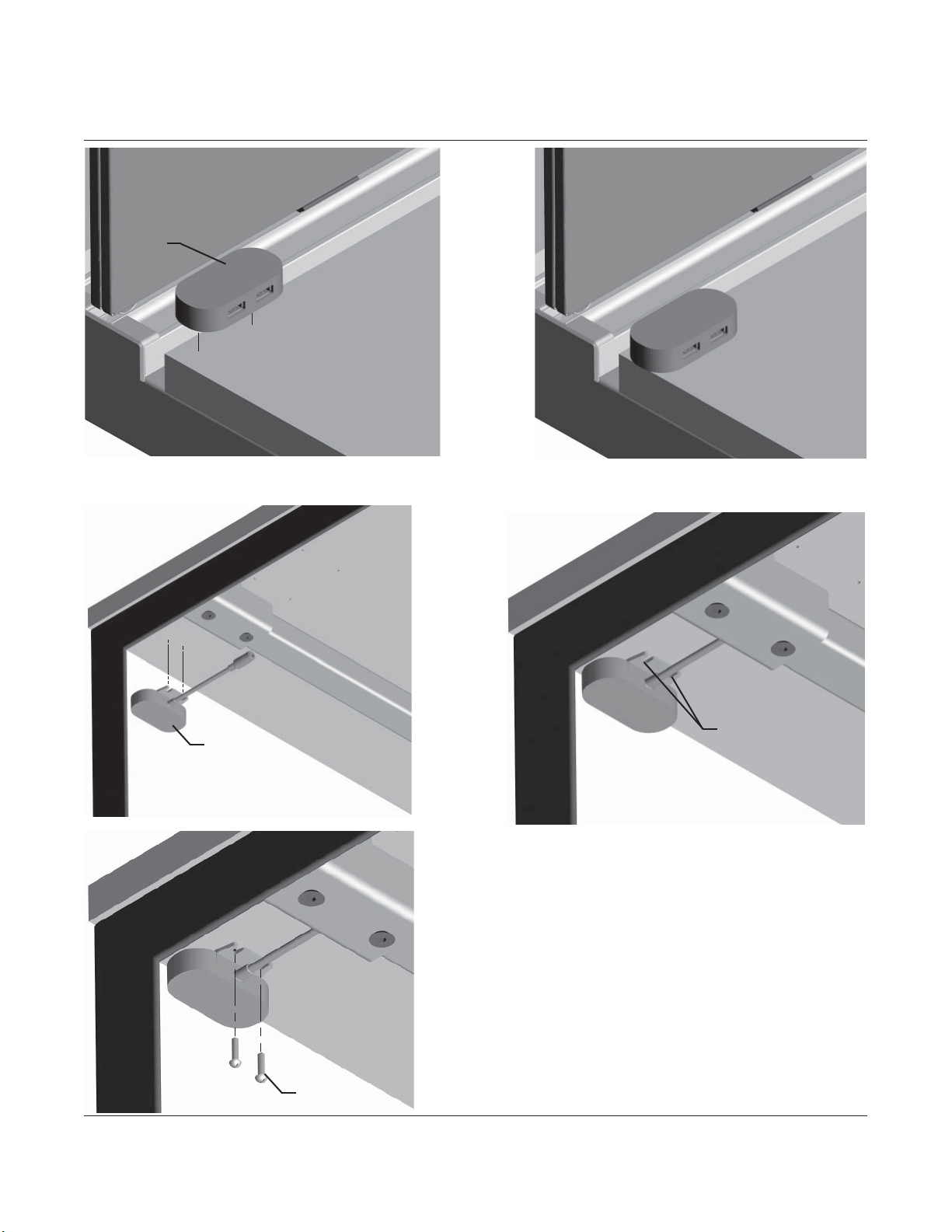

2. For mounting power module to top of work surface; remove protective backing
from tape, feed cord behind back of work surface, fi rmly press in place.
2. For mounting power module under
work surface; position module under
work surface, mark hole locations.
3. Set module aside, drill 1/8” diameter
pilot holes. Make sure not to drill
through work surface.
4. Return module to work surface. Secure
in place with 2 pan head wood screws
(Z).
T
T
Z
Mark Holes

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 18

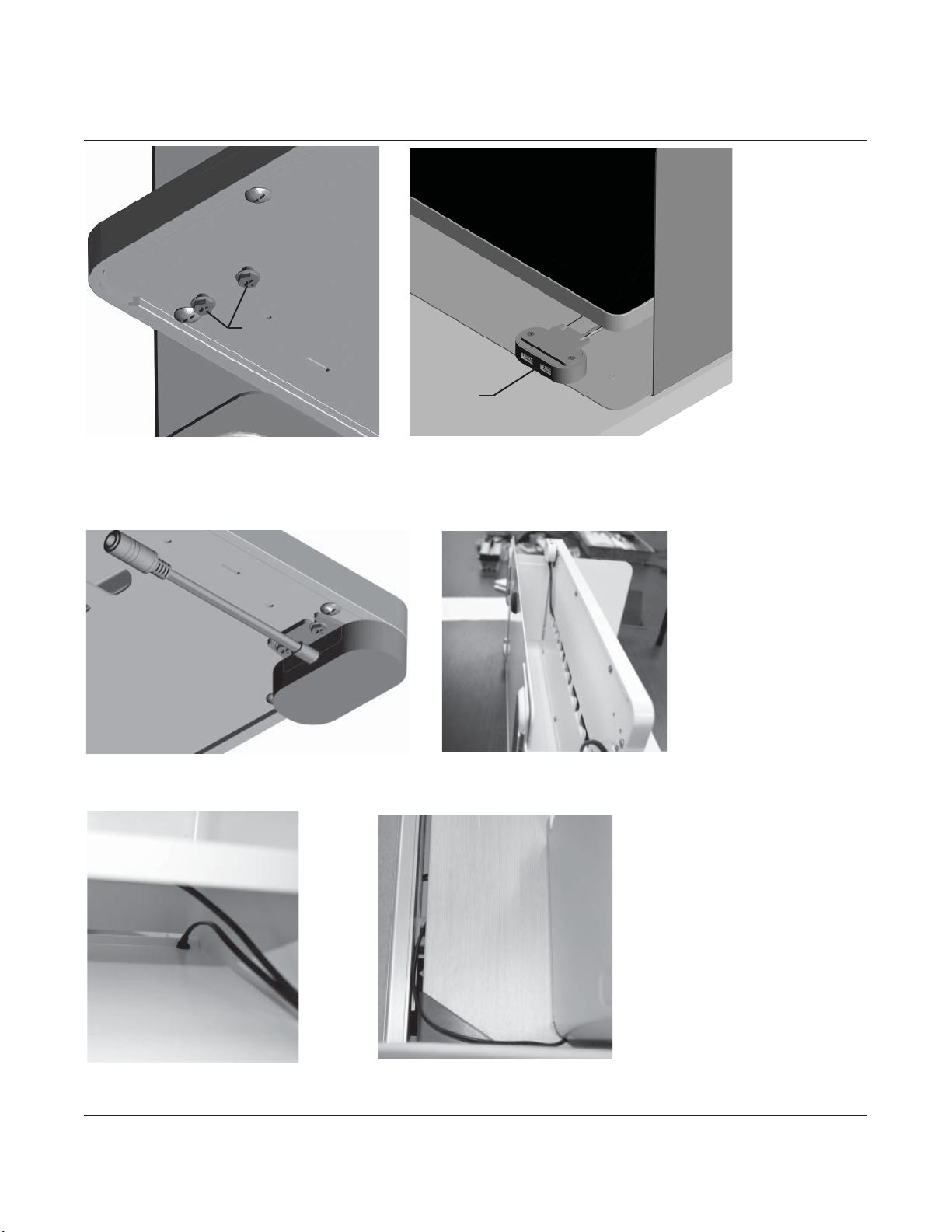

2. For mounting power module to Organizer; loosen (but not remove) existing
screws under shelf with ratchet and 1/4” socket.
3. Slide module in place.
4. Tighten screws.
5. Capture cord in bottom of shelf.
6. Route cord out back corner of organizer.
7. Run cord through gap behind work surface.
Existing Screws
T

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 19
2. For mounting power module to Shelf; position module under shelf, over screw
holes.
3. Secure in place with 2 truss head machine screws (K).
4. Capture cord in bottom of shelf.
5. Route cord through top of post.
6. Pull excess cord through post. Capture cord under fl ange.
7. Run cord behind work surface.
TK

Z
© 2016 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BHH19 rev C.
TM Y, L, Canvas are among the trademarks of Herman Miller, Inc.
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue products. 20
1. Press Rod Bookend (AA) onto rod on organizer or shelf back drop.
2. To move bookend, lift up slightly, slide to desired position.
3. To remove bookend, lift and rotate up.
YT440.
Rod
AA
