Tools Required
HermanMiller
Renew ™ Link Installation
Y
How to assemble
your table

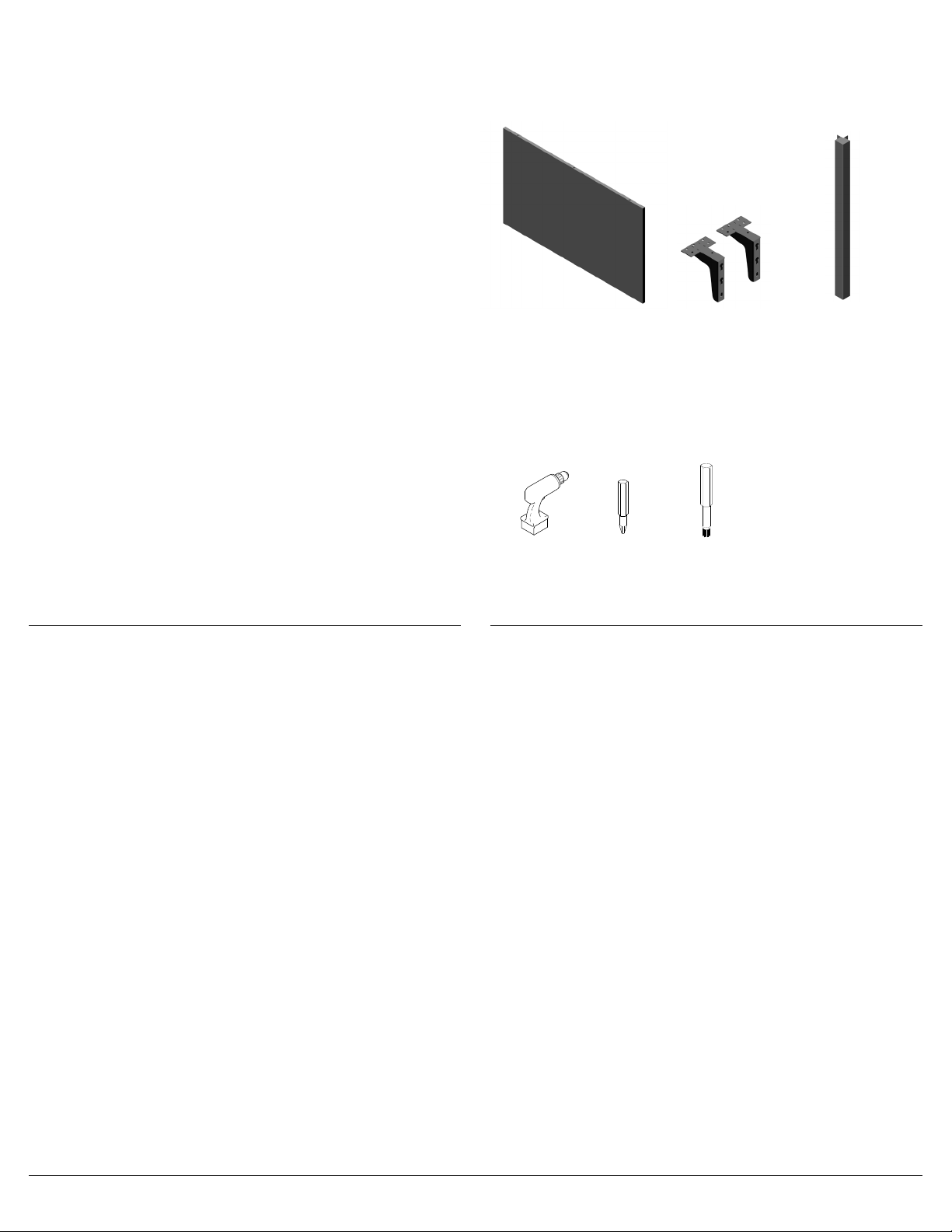

Parts Included
Power Driver Philips-Recess Bit
Size: #2
T-25 Torx Head
© 2015 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1bfnlw - A.
TM Renew is among the trademarks of Herman Miller, Inc.
For more information about our products and services or to see a list of dealers,
For assistance: Please visit us at www.hermanmiller.com/product-instructions or call 888-443-4357
Illustrations and specications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specications at any time, without notice, and also to discontinue
products.
Base product number (DU)
Notice:
Some of the parts have been wrapped to protect them during shipping. Remove the plastic
wrap before assembling the table.
Assemble products on a protective surface.
Note: Not all the parts shown above are applicable for all the tables.
Gallery Panel Brackets Corner Piece
A B C
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed,
including the following:
Read all instructions before using this furnishing.
DANGER - To reduce the risk of electric shock always unplug this furnishing from the
electrical outlet before cleaning.
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons:
Close supervision is necessary when this furnishing is used by, or near children,
invalids, or disabled persons.
Sitting or standing on product may cause risk of personal injury (use for chairs, tables
consider obvious misuse of product).
Use this furnishing only for its intended use as described in these instructions. Do not
use attachments not recommended by the manufacturer.
Never operate this furnishing if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return the
furnishing to a service center for examination and repair.
Failure to fully tighten screws (bolts) may cause injury by causing Renew tables to
collapse. Tighten screws (bolts) until they stop plus a quarter turn.
Periodically check to make sure legs are properly aligned. Failure to do so may
cause risk of personal injury.
If using power drive set on low torque.
Keep the cord away from heated surfaces.
Never drop or insert any object into any opening.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where oxygen is
being
administered.
This furnishing is intended for commercial use
control box rating: 4.8A, 120V
Max FPDU rating: 15A, 120V
Duty cycle: 1min on, 18min o
Use extension bit if required, Magnetic bits are recommended.
Not all tools are used on all tables.
HermanMiller RenewTM Bench (Height Adjustable - Electrical)
Assembly Instructions
1Part no. 1bfnlw rev B.
SAVE THESE INSTRUCTIONS

HermanMiller RenewTM Bench (Height Adjustable - Electrical)
Assembly Instructions
2Part no. 1bfnlw rev B.
WARNING - Risk of Electric Shock – Connect this furnishing to a properly grounded outlet
only. See Grounding Instructions.
For loading always put heavier items in the center and distribute the load.
Maximum load rating is 120 lbs.
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualied electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the product.
if it will not t the outlet, have a proper outlet installed by a qualied electrician.
This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like
the plug illustrated in Sketch A. Make sure that the product is connected to an outlet having
the same conguration as the plug. No adapter should be used with this product.
GROUNDED
OUTLET
GROUNDED
PIN
(A)
Step 1
Step 2
Gallery Panel Installation
1.1 Attach the Gallery panel brackets (B) to the underside of the trough with the provided
hardware and a T25 torx.
2.1 Start the screws in the gallery panels (A) but don’t fully seat using #2 Philips.
2.2 Slide screw heads in the brackets.
3.1 Adjust Gallery panel glides and table glides as needed to fully engage the screws.
3.2 Tighten the screws into the gallery panel with a #2 Philips.
B
Step 3
A

HermanMiller RenewTM Bench (Height Adjustable - Electrical)
Assembly Instructions
3Part no. 1bfnlw rev B.
Step 4
Corner Piece Installation
4.1 Place the Corner Piece between the 2 installed gallery panels.
4.2 Using a #2 philips driver attach the Corner Piece with the provided hardware.
C
C
