HERO GLAMOUR User manual

PREFACE No : IBND
R01 APR15

ŸMAINTENANCE SCHEDULE 29
ŸOIL SCREEN FILTER CENTRIFUGAL FILTER 31
ŸSPARKING PLUG 32
ŸAIR CLEANER 33
ŸTHROTTLE OPERATION 35
ŸVALVE CLEARANCE 35
ŸCARBURETOR 37
ŸCLUTCH 38
ŸDIRVEN CHAIN 41
ŸFRONT BRAKE 41
ŸREAR BRAKE 44
ŸBATTERY 45
ŸSTOP LAMP SWITCH 47
ŸHEADLAMP ADJUSTMENT 48
ŸSUSPENSION 48
ŸFRONT WHEEEL REMOVAL 49
ŸREAR WHEEL ROMVAL 51
ŸWASHING THE MOTORCYCLE 52
ŸCATALYTIC CONVERTER 52
BASIC TROUBLESHOOTING 54
DELIVERY CERTIFICATE
GENUINE PARTS
JOBS APPLICABLE TO PERIODIC SERVICES
SERVICE RECORD SHEET
SERVICE ADVICE SHEET
OWNERSHIP RECORD & DATA
MOTORCYCLE IDENTIFICATION
PRODUCT SPECIFICATION
SAFE RIDING TIPS
ACCESSORIES & MODIFICATIONS
TIPS FOR HEALTHY ENVIRONMENT
DESCRIPTION
PARTS FUNCTION
ŸINSTRUMENTS & INDICATORS
ŸIGNITION SWITCH
ŸFUEL GAUGE
ŸLEFT HANDLE BAR CONTROLS
ŸSTEERING LOCK
ŸSEAT LOCK
ŸHELMET HANGER
ŸFUEL VALVE
ŸFUEL TANK
ENGINE OIL
ENGINE OIL TOP UP PROCESS
ENGINE OIL REPLACEMENT PROCESS
TYRES
PRE-RIDE INSPECTION
STARTING THE ENGINE
RIDING
BRAKING PARKING
ANTI-THEFT TIPS / UTILITY BOX
TOOL KIT
MAINTENANCE
SAFETY PRECAUTIONS
1
2
4
5
6
9
10
10
11
12
13
14
14
15
16
16
17
17
18
19
21
22
23
24
25
26
27
28

1
Model Code.:
Model Frame Engine
AL EJ
Glamour (Electric Start/Disc/Cast Wheel)
MOTORCYCLE IDENTIFICATION
MBLXXXXALYZXYYYYY
MBL
Manufacturer
Code
XXXXAL
Vehicle
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXEJ
Engine
Description
Y
Year of
Mfg.
Z
Assembly
Plant
X
Month of
Mfg.
YYYYY
Serial
Number
XXXXEJYZXYYYYY
VIN
MBLXXXXANYZXYYYYY
X X X XEJY
Z X Y Y Y Y Y
VIN :
VIN
HERO MOTOCORP LTD.
MBLXXXXANYZXYYYYY
Location : Stamped on the VIN plate
revited on the right side of the steering head
tube.

129 kg
13.6 litres (minimum)
1 litre (usable)
2005 mm
1070 mm
0.95 litre at disassembly
5
Saddle Height 790 mm
kW
157 ml

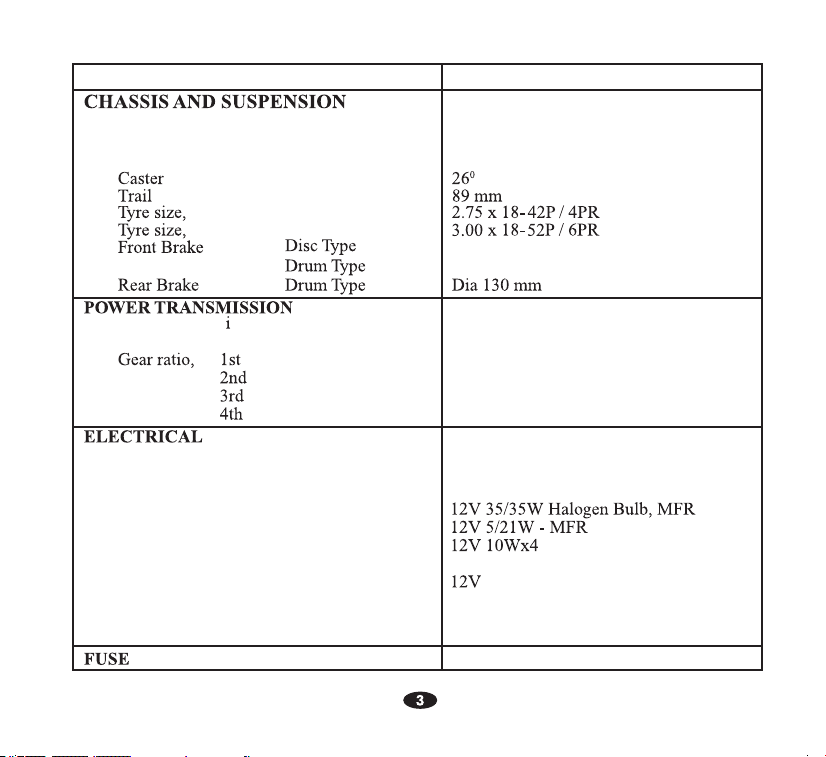

ITEM SPECIFICATIONS
PRODUCT SPECIFICATION
In:0.05 mm
Maximum Torque 10.35 N-m @ 4000 rpm
Maximum Power
Valve Clearance (cold)
DoT 3 or DoT 4

**MF Battery, MF-4:12V 3 Ah
94 W @ 5000 rpm
Telescopic Hydraulic Shock AbsorberFront Suspension
Rear Suspension
(Amber bulb) with clear lens -MFR*
Kick / Electric Start
Rectangular Swingarm with 5 Step
Adjustable Hydraulic Shock Absorber
3.350 (67/20)
3.071 (43/14)
2.769 (36/13)
1.500 (30/20)
1.095 (23/21)
0.913 (21/23)
20A, 15A, 10A
Battery
Alternator
Starting System
Headlamp (High/Low)
Tail/Stop Lamp
Turn Signal Lamp
Meter Illumination
Neutral Indicator
Turn Signal Indicator
Position Lamp
Hi Beam Indicator
*
*
ITEM SPECIFICATIONS
Dia 130 mm
Dia 240 mm (Optional)
Front
Rear
Primary Reduction
Final Reduction
LED
LED
LED
12V 5.0W
1.12W
**MF stands for Maintenance Free
*MFR Stands for Multi-Focal Reflector

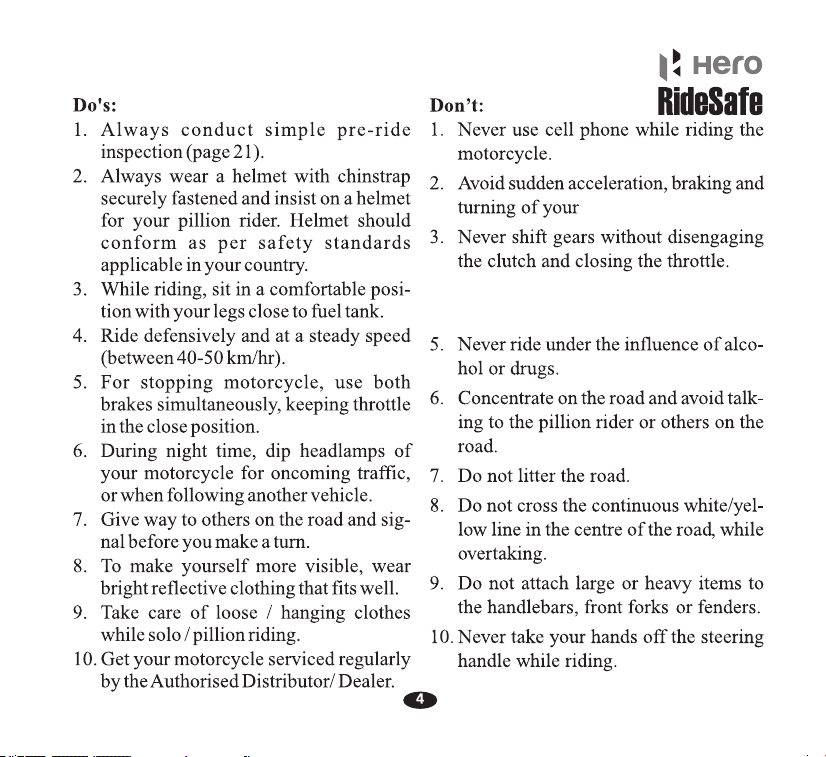

motorcycle.
4. Never touch any part of the hot exhaust
system like muffler.
SAFE RIDING TIPS

Accessories
ACCESSORIES & MODIFICATIONS

6
Regular Servicing: Get your motorcycle serviced at an Authorised Distributor/
Dealer, as per the service schedule, for an optimum performance and keep the
emission level under check.
Genuine Engine Oil: Use Hero 4T Plus SAE 10W 30 SJ grade (JASO MA) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 kms.
(with top up every 3000 kilometres) to keep the engine fit and environment healthy.
The following tips shall ensure a healthy motorcycle, healthy environment, and a healthy you.
Genuine Spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your motorcycle’s
running condition.
Noise Pollution : Noise beyond a certain decibel is pollution. Whether it is from horn
or defective muffler, excessive noise will cause headaches and discomfort.
Fuel Saving & Reduce Pollution : Switch "OFF" the engine while waiting at traffic
signal points to save fuel and reduce pollution, if the waiting period is long.
Healthy Engine: The engine is the lifeline of every vehicle. To keep it healthy, it
should be tuned regularly, which will also help reduce pollution and improve vehicle
performance & fuel efficiency.
TIPS FOR HEALTHY ENVIRONMENT

7
(1) Horn switch
(2) Turn signal switch
(3) Clutch lever
(4) Rear view mirror
(5) Pass lamp switch
(6) Headlamp dimmer switch
(7) High beam indicator
(8) Neutral indicator
(9) Speedometer
(10) Turn signal indicator
(11) LCD panel
(12) Reset button
(13) Master cylinder (optional)
(14) Front brake lever
(15) Throttle grip
(16) Electric starter switch
(17) Ignition switch with steering lock
(18) Fuel tank cap
(19) Leg guard
20
40
60
80 100
120
140
km/h
0
N
TR I P
AV
km
km
1
10
2
3
4
5678912
11 13
17
15
14
16
18
19
DESCRIPTION
*Accessories and features shown may not be part of standard fitment.

8
LEFT SIDE VIEW
(13) Tail/ Stop lamp
(14) Rear grip
(15) Helmet lock
(16) Side cover left
(17) Front turn signal lamp
(18) Front number plate
(1) Reflex reflector
(2) Fuel valve
(3) Carburetor
(4) Starter motor
(5) Gear shift pedal
(6) Rider foot rest
(7) Main stand
(8) Side stand
(9) Pillion foot rest
(10) Women pillion step
(11) Saree guard
(12) Rear number plate
12 4 578911
6 10
18
3
17
16 15
13
14
12
*Accessories and features shown may not be part of standard fitment.

9
RIGHT SIDE VIEW
*Accessories and features shown may not be part of standard fitment.
(6) Brake pedal
(7) Oil filler cap
(8) Utility box
(9) Caliper assembly (optional)
(10) Front brake disc (optional)
(11) Headlamp
(12) Visor
(13) Air suction valve
(14) Rear turn signal lamp
(15) Exhaust muffler
11
13
12
14
15
(1) Pillion foot rest
(2) Battery compartment
(inside)
(3) Kick starter pedal
(4) Rider foot rest
(5) Oil level window
1346710
59
8
2

Sl. No. Description Function
(1) High beam indicator Light glows when headlamp is in Hi Beam
(2) Neutral indicator Light glows when vehicle is in neutral
(3) Speedometer Indicates driving speed
(4) Turn signal indicators Flashes when turn signal switch is operated
Indicates approximate quantity of fuel in the form of
(5) Fuel gauge digital segments. The fuel gauge segments will display
its maximum scale on the fuel gauge LCD panel once
when the ignition switch is turned "ON".
(6) Tripmeter Shows the distance traveled during a trip
(7) Odometer Shows accumulated distance traveled
(8) Reset button To reset the tripmeter to zero before starting a new trip
1
2
3
4
8

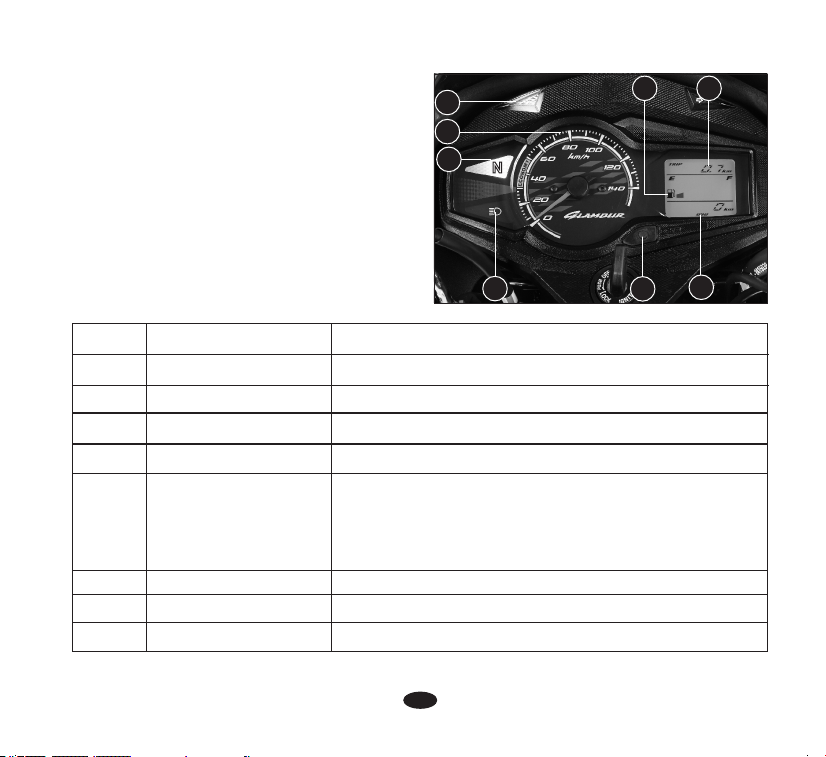

The indicators are in the speedometer
panel above the headlamp. The functions
are as below.
10
7
PARTS FUNCTIONS
INSTRUMENTS AND INDICATORS
5 6

1
The engine can be started. Turn
signal lamps, Horn, Tail/Stop
lamp, Fuel gauge and Pass lamp
will be functional
2
3
“ON”
“OFF”
“LOCK”
Engine cannot be started and no
electrical system will be functional.
Steering can be locked. Key can be removed
11
“OFF” Position /
Lock Open
“LOCK” Position
“ON” Position
IGNITION SWITCH

12

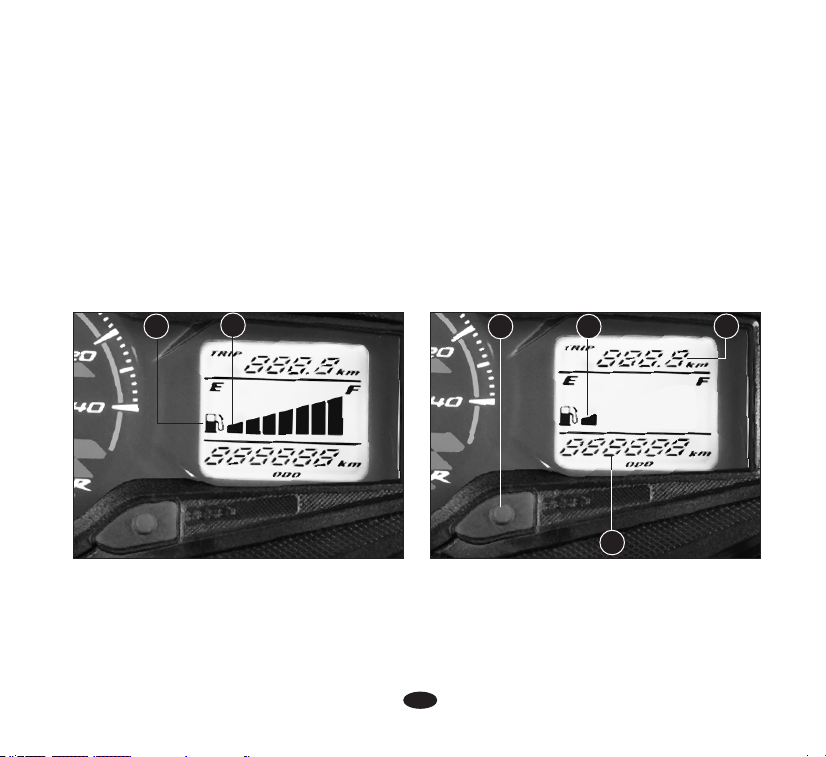

FUEL GAUGE
The fuel gauge (1) is of a Liquid Crystal
Display (LCD) type.
The approximate amount of fuel quantity
available in the fuel tank is indicated by the
number of segments in the display.
If all the segments (2) are displayed it
means fuel quantity in the fuel tank is
litres.13.6
ODOMETER
The Odometer (4) shows accumulated
distance traveled.
TRIPMETER
The Tripmeter (5) shows distance traveled
per trip. The Tripmeter can be reset to zero
by pressing the RESET button (6).
If only one segment (3) is displayed and
blinks, this indicates that the fuel quantity
is low and is in reserve. The fuel tank
should be refilled as soon as possible.
2
16 3 5
4

13
1. Passing switch
Shift the turn signal switch sideways for
Right / Left indications and leave it to come
back to its normal position on its own.
2. Headlamp Dimmer Switch
3. Turn signal lamp switch
IMPORTANT: To switch “OFF” the turn
signal after completing the turn, gently
push the knob inside.

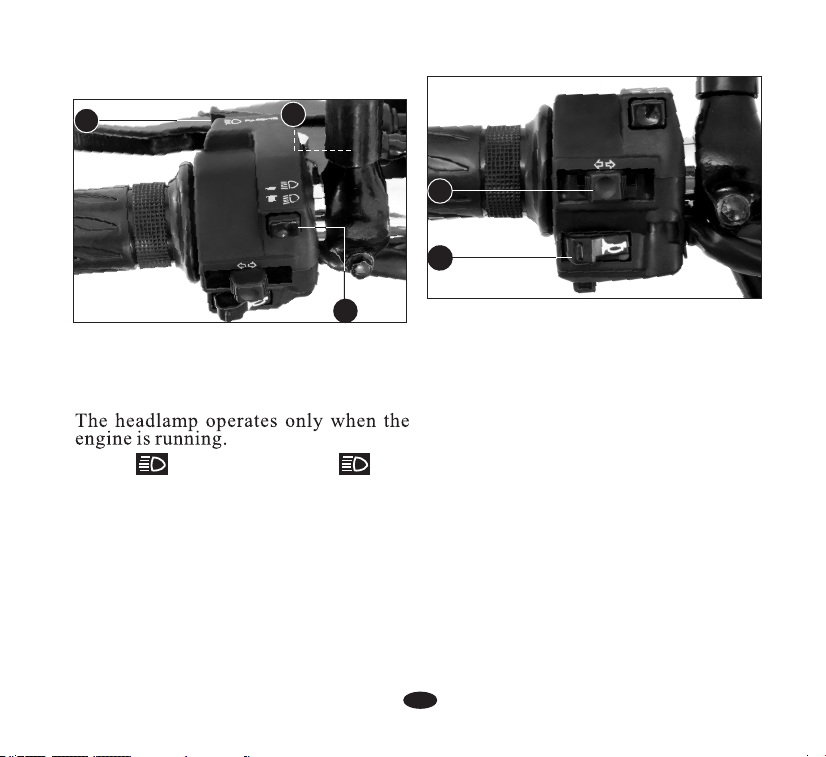

LEFT HANDLEBAR CONTROLS
3
4
1
2
5
Press the passing lamp switch (1) to operate
the passing lamp.
Select “ ” for high beam and “ ” for
low beam.
5. Clutch switch
(For electric start model)
There is a clutch switch provided for the
safety of the rider. The motorcycle cannot
be started by electric starter switch until the
clutch lever is operated when the vehicle is
engaged in gear.
RIGHT HANDLEBAR CONTROLS
Starter switch
(For electric start model)
Ensure starter switch (1) is operated when
the vehicle is in neutral gear. If the vehicle
4. Horn switch
Press the switch to operate the horn.

1
(1) Starter switch
(1) Ignition key
14
STEERING LOCK
Steering lock is with ignition switch, put
the ignition key (1) to “OFF” position &
turn the handle bar towards left or right &
push the key downwards & turn towards
“LOCK” position.
After locking take out the key.
Never hold starter switch continuously for
more than 5 seconds as continuous
cranking of engine will drain the battery.
2
1
is engaged in gear press the clutch lever
before operating the starter switch. Release
starter switch after the engine has started.
(1) Key (2) Knob (3) Helmet hanger
3
1
2
SEAT LOCK
Location : On the rear left side of the seat,
below the rear cowl.

15
Operation : Insert the key (1) and turn it
clockwise. Pull the knob (2) downwards to
release the seat. To install, engage the lug
on the underside of the seat with the frame
and press on the top rear side of the seat
until the lock clicks.
HELMET HANGER
The helmet can be hung and locked in the
helmet hanger (3) provided with the seat
lock by rotating the key.
FUEL VALVE
The three way fuel valve is on the left side
of the carburetor.
OFF
At “OFF”, fuel cannot flow from the tank
to the carburetor. Turn the valve “OFF”
whenever the motorcycle is not in use.
1
RES
OFF
ON
2
supply is 1 litre (usable).
RES
OFF
ON
ON
At “ON”, fuel will flow from fuel tank to
the carburetor.

16
3
RES
OFF
ON
Do not operate the motorcycle with the
fuel valve in the “RES” position after
refilling. You may run out of fuel, with
no reserve.
Do not keep the fuel valve between
“ON” and “OFF” position while
riding, since this may drain reserve fuel
from the Tank.
NOTE
Fuel tank capacity is 13.6 litres
(minimum) including reserve supply of
1 litre (usable).
1. To unlock fuel tank cap (1), lift the key
hole cover (2), insert ignition key (3) turn
it clockwise and remove the cap.
2. Do not over fill the tank. There should
be no fuel (4) in the filler neck (5).
FUEL TANK
3. To lock, position the cap back on the
opening with arrow mark (6) facing the
front and press gently. The ignition key
springs back to the normal position and
cap gets locked.
(1) Fuel tank cap (2) Key hole cover
(3) Ignition key
2
3
1
16
(4) Fuel
(5) Filler Neck
5
(6) Arrow mark
6
