Hilti NURON SMT 6-22 User manual

SMT 622 English 1
Français 21
Español 43
Português 66

1

2
3
4
5

6
7

SMT 622
en Original operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 1
fr Moded'emploioriginal ............................... 21
es Manual de instrucciones original . . . . . . . . . . . . . . . . . . . . . . . 43
pt Manual de instruções original . . . . . . . . . . . . . . . . . . . . . . . . . . 66

*2381016* 2381016 English 1
Original operating instructions
1 Information about the operating instructions
1.1 About these operating instructions
• Read these operating instructions before the product is used or operated
for the first time. This is a prerequisite for safe, trouble-free handling and
use of the product.
• Observe the safety instructions and warnings in these operating instruc-
tions and on the product.
• Always keep the operating instructions with the product and make sure
that the product is accompanied by these operating instructions only,
when the product is given to other persons.
1.2 Explanation of symbols
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the
product. The following signal words are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal
injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious
injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to
personal injury or damage to the equipment or other property.
1.2.2 Symbols in the operating instructions
The following symbols are used in these operating instructions:
Comply with the operating instructions
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household
waste
Hilti Liion battery

2 English 2381016 *2381016*
Hilti charger
1.2.3 Symbols in illustrations
The following symbols are used in illustrations:
These numbers refer to the illustrations at the beginning of these
operating instructions.
The numbering reflects the sequence of operations shown in the
illustrations and may deviate from the steps described in the text.
Item reference numbers are used in the overview illustration and
refer to the numbers used in the key in the product overview sec-
tion.
These characters are intended to specifically draw your attention to
certain points when handling the product.
1.3 Product-dependent symbols
1.3.1 Symbols on the product
The following symbols can be used on the product:
The product supports near-field communication (NFC) technology
compatible with iOS and Android platforms.
Li-ion battery
Never strike the battery with an object and never use the battery as
a striking tool.
Do not drop the battery. Never use a battery that has suffered an
impact or is damaged in any other way.
Diameter
Design no-load oscillation frequency
Direct current (DC)
Wear eye protection
Wear ear protection
Hilti Li-ion battery type series used. Observe the information given in
the section headed Intended use.
If applied on the product, the product has been certified by this cer-
tification body for the US and Canadian markets according to the
applicable standards.
1.4 Product information
products are designed for professional users and only trained,
authorized personnel are permitted to operate, service and maintain the
products. This personnel must be specifically informed about the possible

*2381016* 2381016 English 3
hazards. The product and its ancillary equipment can present hazards if
used incorrectly by untrained personnel or if used not in accordance with
the intended use.
The type designation and serial number are printed on the rating plate.
▶Write down the serial number in the table below. You will be required to
state the product details when contacting Hilti Service or your local Hilti
organization to inquire about the product.
Product information
Multitool SMT 622
Generation 01
Serial no.
2 Safety
2.1 General power tool safety warnings
WARNING Read all safety warnings, instructions, illustrations and
specifications provided with this power tool. Failure to follow all instruc-
tions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
Work area safety
▶Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
▶Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
▶Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
Electrical safety
▶Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
▶Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased risk
of electric shock if your body is earthed or grounded.
▶Do not expose power tools to rain or wet conditions. Water entering
a power tool will increase the risk of electric shock.
▶Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.

4 English 2381016 *2381016*
▶When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
▶If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
Personal safety
▶Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious personal
injury.
▶Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes, hard
hat or hearing protection used for appropriate conditions will reduce
personal injuries.
▶Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool. Carrying power tools with your finger
on the switch or energising power tools that have the switch on invites
accidents.
▶Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.
▶Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
▶Dress properly. Do not wear loose clothing or jewellery. Keep your
hair and clothing away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
▶If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
▶Do not let familiarity gained from frequent use of tools allow you
to become complacent and ignore tool safety principles. A careless
action can cause severe injury within a fraction of a second.
Power tool use and care
▶Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
▶Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.
▶Disconnect the plug from the power source and/or remove the
battery pack, if detachable, from the power tool before making any

*2381016* 2381016 English 5
adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool
accidentally.
▶Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the hands of
untrained users.
▶Maintain power tools and accessories. Check for misalignment or
binding of moving parts, breakage of parts and any other condition
that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
▶Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
▶Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working conditions
and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
▶Keep handles and grasping surfaces dry, clean and free from oil and
grease. Slippery handles and grasping surfaces do not allow for safe
handling and control of the tool in unexpected situations.
Battery tool use and care
▶Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk of
fire when used with another battery pack.
▶Use power tools only with specifically designated battery packs. Use
of any other battery packs may create a risk of injury and fire.
▶When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a
fire.
▶Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
▶Do not use a battery pack or tool that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
▶Do not expose a battery pack or tool to fire or excessive temperature.
Exposure to fire or temperature above 130° C (265 °F) may cause
explosion.
▶Follow all charging instructions and do not charge the battery pack
or tool outside the temperature range specified in the instructions.

6 English 2381016 *2381016*
Charging improperly or at temperatures outside the specified range may
damage the battery and increase the risk of fire.
Service
▶Have your power tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety of the
power tool is maintained.
▶Never service damaged battery packs. Service of battery packs should
only be performed by the manufacturer or authorized service providers.
2.2 Additional safety instructions
▶Use the product and accessories only when they are in perfect working
order.
▶Never tamper with or modify the product or accessories in any way.
▶Risk of injury due to falling tools and/or accessories. Before starting
work, check that the battery and installed accessories are secure.
▶Do not touch oscillating parts - risk of injury!
▶Wear eye protection, a hard hat and ear protection and suitable respira-
tory protection while the product is in use.
▶Dust produced by grinding, sanding, cutting and drilling can contain
dangerous chemicals. Some examples are: lead or lead-based paints;
brick, concrete and other masonry products, natural stone and other
products containing silicates; certain types of wood, such as oak,
beech and chemically treated wood; asbestos or materials that contain
asbestos. Determine the exposure of the operator and bystanders
by means of the hazard classification of the materials to be worked.
Implement the necessary measures to restrict exposure to a safe level,
for example by the use of a dust collection system or by the wearing
of suitable respiratory protection. The general measures for reducing
exposure include:
▶working in an area that is well ventilated,
▶avoidance of prolonged contact with dust,
▶directing dust away from the face and body,
▶wearing protective clothing and washing exposed areas of the skin
with water and soap.
▶Do not look directly into the light source (LEDs) incorporated in the power
tool and do not direct the light at other persons’ faces.
▶Take frequent breaks and do physical exercises to improve the blood
circulation in your fingers. High vibration during long periods of work can
lead to disorders of the blood vessels and nervous system in the fingers,
hands and wrists.
▶Keep the air vents clear at all times. Risk of burn injuries due to blocked
air vents!

*2381016* 2381016 English 7
▶Use clamps or some other suitable means to firmly secure the workpiece
to a stable supporting surface. Holding the workpiece only by hand or
against your body leaves it unstable, which can lead to loss of control.
▶Before beginning work, check the working area for concealed electric
cables or gas and water pipes. External metal parts of the product could
give you an electric shock or cause an explosion if you accidentally
damage an electric cable or a gas or water pipe.
▶Use the product for dry sanding/grinding only. Water entering a power
tool will increase the risk of electric shock.
▶Do not attempt to scrape off moistened materials (e.g. wallpaper) and do
not perform scraping work on damp underlying materials. Water entering
a power tool will increase the risk of electric shock.
▶Do not pretreat the surface to be worked with liquids that contain
solvents. The heat generated in the materials during scraping operations
can result in the production of toxic vapors.
▶Keep your hands away from the cutting area. Do not reach underneath
the workpiece. Risk of injury due to contact with the saw blade.
▶Always hold the product firmly with both hands and keep a firm footing
at all times. The product is guided more safely by two hands.
▶Wear protective gloves when changing the accessory tool. The accessory
tool runs hot when in use and there is a risk of burn injury.
▶Remove dirt, chips and other foreign matter that adheres to the accessory
tool and/or the tool mount. Otherwise the accessory tool cannot be
tightened correctly.
▶Switch the product on only after you have brought it to the working
position. Switch the product on only when the accessory tool is not in
contact with the workpiece.
▶Wait until the product has come to a complete stop before you lay it
down.
▶Do not use accessories not specifically intended and recommended for
this power tool by the tool manufacturer. The fact that an accessory can
be attached to the power tool does not necessarily mean that it can be
used safely.
2.3 Careful handling and use of batteries
▶Comply with the following safety instructions for the safe handling
and use of Li-ion batteries. Failure to comply can lead to skin irritation,
severe corrosive injury, chemical burns, fire and/or explosion.
▶Use only batteries that are in perfect working order.
▶Treat batteries with care in order to avoid damage and prevent leakage
of fluids that are extremely harmful to health!
▶Do not under any circumstances modify or tamper with batteries!
▶Do not disassemble, crush or incinerate batteries and do not subject
them to temperatures over 80 °C (176 °F).

8 English 2381016 *2381016*
▶Never use or charge a battery that has suffered an impact or been
damaged in any other way. Check your batteries regularly for signs of
damage.
▶Never use recycled or repaired batteries.
▶Never use the battery or a battery-operated power tool as a striking tool.
▶Never expose batteries to the direct rays of the sun, elevated tempera-
ture, sparking, or open flame. This can lead to explosions.
▶Do not touch the battery poles with your fingers, tools, jewelry, or other
electrically conductive objects. This can damage the battery and also
cause material damage and personal injury.
▶Keep batteries away from rain, moisture and liquids. Penetrating moisture
can cause short circuits, electric shock, burns, fire and explosions.
▶Use only chargers and power tools approved for the specific battery
type. Read and follow the relevant operating instructions.
▶Do not use or store the battery in explosive environments.
▶If the battery is too hot to touch, it may be defective. Put the battery
in a place where it is clearly visible and where there is no risk of fire,
at an adequate distance from flammable materials. Allow the battery
to cool down. If it is still too hot to touch after an hour, the battery is
faulty. Consult Hilti Service or read the document entitled "Instructions
on safety and use for Hilti Li-ion batteries".
Observe the special guidelines applicable to the transport, storage
and use of lithium-ion batteries. → page 19
Read the instructions on safety and use of Hilti Li-ion batteries
that you can access by scanning the QR code at the end of these
operating instructions.
3 Description
3.1 Product overview 1
@Clamping lever
;On/off switch
=Grip
%Buttons for speed stages
&Installation opening for acces-
sories
(Battery
)Work-area light (LED)
+Tool neck
§Tool holder / clamping jaws
/Parallel guide

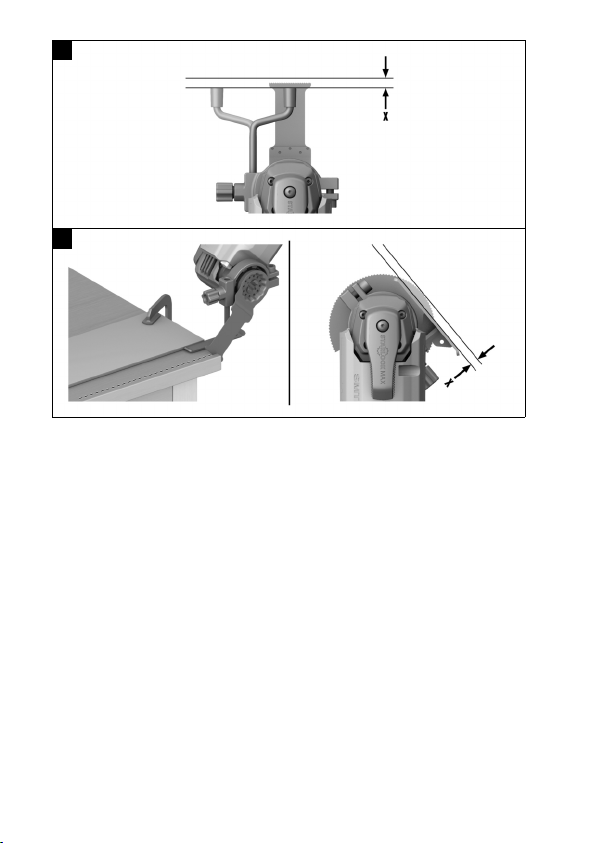

:Depth gauge
∙Saw blade
$Dust removal adapter
£Positioning screw
|Securing collar
¡Clamping screw
QRelease button, battery
WBattery status indicator

*2381016* 2381016 English 9
3.2 Intended use
The product described is a multitool. It is designed for sawing and cutting
wood materials, plastic, plaster, non-ferrous metals and fasteners (e.g.
unhardened nails or clips). It is also suitable for working soft wall tiles and for
dry-sanding/grinding and scraping small surfaces. It is particularly suitable
for working close to and flush with edges.
The product is suitable for dry use only, without water for cooling. Use a
suitable dust extractor for all cutting and grinding/sanding work on mineral
materials and wood-based materials.
• For this product, use only Hilti Nuron lithium-ion batteries of the B 22
series. For optimum performance, Hilti recommends the batteries stated
in the table at the end of these operating instructions for this product.
• For these batteries, use only Hilti chargers of the type series stated in
the table at the end of these operating instructions.
3.3 Items supplied
Multitool, saw blade, operating instructions
Other system products approved for use with this product can be found at
your local Hilti Store or at: www.hilti.group
3.4 Status indicators of the Liion battery
Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and
the battery's state of health.
3.4.1 Indicators for state of charge and fault messages
WARNING
Risk of injury by a falling battery!
▶If the release button is pressed with a battery inserted in the product,
subsequently check that the battery is correctly re-engaged and secure.
Short-press the release button of the battery to get whichever of the following
status indications is applicable at the time.
State of charge and, if applicable, faults are indicated constantly as long as
the connected product is switched on.
Status Meaning
Four (4) LEDs show constantly
green
State of charge: 100 % to 71 %
Three (3) LEDs show constantly
green
State of charge: 70 % to 51 %
Two (2) LEDs show constantly
green
State of charge: 50 % to 26 %

10 English 2381016 *2381016*
Status Meaning
One (1) LED shows constantly
green
State of charge: 25 % to 10 %
One (1) LED slow-flashes green State of charge: < 10 %
One (1) LED quick-flashes green The Li-ion battery is completely
discharged. Recharge the battery.
If the LED again starts
quick-flashing after the battery has
been charged, consult Hilti Service.
One (1) LED quick-flashes yellow The Li-ion battery or the product in
which it is inserted is overloaded,
too hot or too cold, or experiencing
some other fault.
Bring the product and the battery
to the recommended working tem-
perature and do not overload the
product when it is in use.
If the message persists, consult
Hilti Service.
One (1) LED shows yellow The Li-ion battery and the product
in which it is inserted are not com-
patible. Consult Hilti Service.
One (1) LED quick-flashes red The Li-ion battery is locked and
cannot be used. Consult Hilti Ser-
vice.
3.4.2 Indicators showing the battery's state of health
To check the battery's state of health, press the release button and hold it
down for longer than three seconds. The system does not detect a potential
malfunction of the battery due to misuse, for example battery dropped or
pierced, external heat damage, etc.
Status Meaning
All LEDs show in sequence, fol-
lowed by one (1) LED showing con-
stantly green.
The battery can remain in use.
All LEDs show in sequence, fol-
lowed by one (1) LED quick-flashing
yellow.
The check to ascertain the battery's
state of health did not complete.
Repeat the procedure, or consult
Hilti Service.

*2381016* 2381016 English 11
Status Meaning
All LEDs show in sequence, fol-
lowed by one (1) LED showing con-
stantly red.
If a connected product can still be
used, the remaining battery capac-
ity is below 50 %.
If a connected product can no
longer be used, the battery has
reached the end of its useful life
and has to be replaced. Consult
Hilti Service.
4 Technical data
Weight without battery 1.3 kg
(2.9 lb)
Tool holder STARLOCK MAX
No-load oscillation frequency (oscillations per
minute), n0
10,000 /min …
20,000 /min
Arc of oscillation left/right ±2°
Ambient temperature for operation −17 ℃ … 60 ℃
(1 ℉ … 140 ℉)
Storage temperature −20 ℃ … 70 ℃
(−4 ℉ … 158 ℉)
4.1 Battery
Battery operating voltage 21.6 V
Weight, battery See the end of these
operating instructions
Ambient temperature for operation −17 ℃ … 60 ℃
(1 ℉ … 140 ℉)
Storage temperature −20 ℃ … 40 ℃
(−4 ℉ … 104 ℉)
Battery charging starting temperature −10 ℃ … 45 ℃
(14 ℉ … 113 ℉)
5 Preparations at the workplace
WARNING
Risk of injury by inadvertent starting!
▶Before inserting the battery, make sure that the product is switched off.
▶Remove the battery before making any adjustments to the power tool or
before changing accessories.

12 English 2381016 *2381016*
Observe the safety instructions and warnings in this documentation and on
the product.
5.1 Charging the battery
1. Before charging the battery, read the operating instructions for the
charger.
2. Make sure that the contacts on the battery and the contacts on the
charger are clean and dry.
3. Use an approved charger to charge the battery. → page 9
5.2 Inserting the battery
WARNING
Risk of injury by short circuit or falling battery!
▶Before inserting the battery, make sure that the contacts on the battery
and the contacts on the product are free of foreign matter.
▶Make sure that the battery always engages correctly.
1. Charge the battery fully before using it for the first time.
2. Push the battery into the product until it engages with an audible click.
3. Check that the battery is seated securely.
5.3 Removing the battery
1. Press the battery release button.
2. Remove the battery from the product.
5.4 Fitting the accessory tool 4
WARNING
Risk of injury due to unapproved accessory tool. Unsuitable accessory
tools can suffer irreparable damage in operation or lead to loss of control of
the product.
▶Make sure that the accessory tool’s permitted oscillation frequency is
at least as high as the maximum oscillation frequency stated on the
product.
WARNING
Risk of injury due to incorrect alignment of the accessory tool. When in
operation, the accessory tool can cause severe cut injuries.
▶Never position the accessory tool facing toward the grip.
CAUTION
Risk of injury by clamping lever snapping back.
▶When closing the clamping lever, do not allow the clamping lever to snap
back in an uncontrolled manner. Hold the clamping lever firmly and close
it with caution.

*2381016* 2381016 English 13
The STARLOCK MAX tool mount is compatible with STARLOCK PLUS
and STARLOCK accessory tools.
1. Set the accessory tool on a flat surface.
2. Open the clamping lever completely by turning it counter-clockwise past
the first detent to the stop.
▶The clamping jaws of the tool holder are closed.
3. Align the star-shaped tool mount of the product with its counterpart on
the accessory tool and set the product on the accessory tool.
4. Close the clamping lever completely by turning it clockwise in a controlled
manner past the first detent to the stop.
▶The clamping jaws of the tool holder open, holding the accessory
tool securely engaged.
5. Check that the accessory tool is held securely.
5.5 Removing accessory tool
CAUTION
Risk of injury due to accessory tool! The accessory tool might be hot or
have sharp edges.
▶Wear protective gloves when changing the accessory tool.
CAUTION
Risk of injury and damage due to falling accessory tool. The accessory
tool can fall off and lead to injuries and/or damage to accessory tool and
underlying material.
▶Hold the product and the accessory tool above but close to a surface
when you remove the accessory tool.
1. Open the clamping lever by turning it two clicks counter-clockwise.
▶The accessory tool is released and separates from the tool holder.
2. Close the clamping lever by turning it clockwise.
5.6 Fall arrest
WARNING
Risk of injury by falling tool and/or accessory!
▶Use only the Hilti tool tether recommended for your product.
▶Prior to each use, always check the attachment point of the tool tether
for possible damage.
▶Do not secure a tool tether to the belt hook. Do not use a belt hook to lift
the product.
Comply with the national regulations for working at heights.

14 English 2381016 *2381016*
As drop arrester for this product, use only a combination of the Hilti retaining
strap and the Hilti tool tether #2261970.
▶Secure the retaining strap to the installation openings for accessories.
Check that it holds securely.
▶Secure one carabiner of the tool tether to the retaining strap and secure
the second carabiner to a load-bearing structure. Check that both
carabiners hold securely.
Comply with the operating instructions of the Hilti retaining strap
and those of the Hilti tool tether.
6 Operation
Observe the safety instructions and warnings in this documentation and on
the product.
6.1 Switching on
▶Slide the on/off switch forward.
▶The motor runs.
6.2 Switching off
▶Slide the on/off switch back.
▶The engine stops.
6.3 Setting speed stage 5
WARNING
Risk of injury due to change of speed stage when tool is under load.
Loss of control over the product.
▶Change the speed stage setting only when the product is either switched
off or running under no load.
▶Hold the product firmly by the grip while changing the speed stage
setting with the product running under no load.
The product has 6 speed stages; use the +and -buttons to select the speed
stage you want to use.
You can select a speed stage before you switch on the product or change
the speed stage while the product is running.
The LEDs show the current speed stage.
Setting with product switched off
▶Press the +button or the -button.
▶The indicator for speed stages is activated and shows the stage
currently selected.
