Contents
Introduction i
Safety Notes ii
Inspection iv
Notes on Use v
Chapter 1 Summary 1
1.1 Product Summary 1
1.2 Names and Functions of Parts 3
Chapter 2 Prior to Use 9
2.1 Battery Loading and Replacement 10
2.2 Setting the Date and Time 12
Chapter 3 Making Measurements 15
3.1 Start and Complete Measurement 15
3.2 Target Size and Sighting 17
3.3 Setting Emissivity (ε) 18
3.4 Storing the Data 20
3.5 Switching between Fahrenheit and Celsius,
and Erasing All Data from Memory 22
3.6 Turning the Power Off 23
3.7 Using the Temperature HiTESTER
with a Personal Computer 23
Chapter 4 Specification 25
Chapter 5 Maintenance and Service 29
5.1 Troubleshooting 31
5.2 Questions and Answers
about Measurement 32

i
―――――――――――――――――――――――――――
Introduction
――――――――――――――――――――――――
Introduction
Thank you for purchasing this HIOKI "3443-01
TEMPERATURE HiTESTER." To get the
maximum performance from the unit, please read
this manual first, and keep this at hand.

ii
―――――――――――――――――――――――――――
Safety Notes
――――――――――――――――――――――――
WARNING
Incorrect measurement procedures could result in
injury or death, as well as damage to the
equipment. Please read this manual carefully and
be sure that you understand its contents before
using the equipment. The manufacturer disclaims
all responsibility for any accident or injury except
that resulting due to defect in its product.
In the manual, the symbol indicates
particularly important information that the
user should read before using the
product.
Indicates warnings relating to the laser.
Safety Notes
This manual contains information and warnings
essential for safe operation of the product and for
maintaining it in safe operating condition. Before
using it, be sure to carefully read the following
safety precautions.
Safety symbols

iii
―――――――――――――――――――――――――――
Safety Notes
――――――――――――――――――――――――
DANGER
Indicates that incorrect operation
presents extreme danger of accident
resulting in death or serious injury to
the user.
WARNING
Indicates that incorrect operation
presents significant danger of accident
resulting in death or serious injury to
the user.
CAUTION
Indicates that incorrect operation
presents possibility of injury to the user
or damage to the equipment.
NOTE
Denotes items of advice related to
performance of the equipment or to its
correct operation.
The following symbols are used in this Instruction
Manual to indicate the relative importance of
cautions and warnings.
・Accuracy
rdg. (displayed or indicated value)
This signifies the value actually being measured,
i.e., the value that is currently indicated or displayed
by the measuring instrument.

iv
―――――――――――――――――――――――――――
Inspection
――――――――――――――――――――――――
Inspection
・Check before use
Before using the unit, inspect it and check the
operation to make sure that the unit was not
damaged due to poor storage or transport conditions.
If damage is found, contact your dealer or HIOKI
representative.
When you receive this product, before use, please
check that no abnormality or damage has occurred
during delivery. In particular, be sure to check the
accessories, the liquid crystal display, the control
keys, and the lens.
In the unlikely event of damage, or if the unit does
not function according to specification, you should
immediately contact the dealer from whom you
bought the unit, or the nearest HIOKI service
facility.

v
―――――――――――――――――――――――――――
Notes on Use
――――――――――――――――――――――――
DANGER
･Operation of this unit according to any
procedure not specified in this manual may
cause explosion due to dangerous laser
radiation.
･The 3443-01 (field type unit) uses as a light
source a semiconducting laser which emits
visible light, and which conforms to JIS
standard class 2 (JIS C6802). (Wavelength
670nm, maximum power output 1 mW)
Since there is considerable danger of this laser
light causing damage to the eyes, be very
careful not to direct this laser light into your
eyes or those of another person.
･Do not look directly into the laser light from the
optical system.
･When measuring the temperature of an object
which has a mirror finish, be careful not to allow
the laser light beam to be reflected off the
surface into your eyes or those of another
person.
･Do not allow the laser light beam to impinge
upon any gas which can explode.
Notes on Use
In order to ensure safe operation and to obtain
maximum performance from the unit, observe the
cautions listed below.

vi
―――――――――――――――――――――――――――
Notes on Use
――――――――――――――――――――――――
WARNING
･To prevent electric shock, do not allow the unit
to become wet and do not use the unit when
your hands are wet.
･Ensure that protective functions are fail-safe:
that is to say, that if they fail they either prevent
the unit from operating or give an indication to
prevent unwitting operation.
CAUTION
･Do not use the unit near any device which
generates strong electromagnetic radiation or near
a static electrical charge, as these may cause
errors.
･The unit should always be operated indoors in a
range from 32 to 104 (0℃to 40℃) and 35% to
85% RH or less. Do not use the unit in direct
sunlight, dusty conditions, or in the presence of
corrosive gases.
･Do not store or use the unit where it will be
exposed to direct sunlight, high temperatures, high
humidity, or condensation. If exposed to such
conditions, the unit may be damaged, the insulation
may deteriorate, and the unit may no longer satisfy
its specifications.

vii
―――――――――――――――――――――――――――
Notes on Use
――――――――――――――――――――――――
CAUTION
･This unit has been constructed with some degree of
water resistance, but if it is subjected to direct
contact with water for a long period of time, water
may get into the unit. Further, water drops left on
the lens will cause measurement errors. Wipe off
any water drops promptly.
･Do not use the unit where it may be exposed to
corrosive or explosive gases. The unit may be
damaged, or explosion may occur.
･To avoid damage to the unit, do not subject the
equipment to vibrations or shocks during transport
or handling. Be especially careful to avoid dropping
the equipment.
･Do not point the lens at the sun or at any other
source of strong light. If you do, the sensor may be
damaged.
･Do not contact the lens against the object whose
temperature is to be measured, or get it dirty, allow
it to be scratched, or allow any foreign material to
adhere to it. Doing so may cause errors.
NOTE ･Before use, verify that no damage has occurred due
to careless storage or transport, and check the
appearance and operation of the unit.
･When the mark on the display is flashing, the
battery are low. Fit new battery.

viii
―――――――――――――――――――――――――――
Notes on Use
――――――――――――――――――――――――
Front Rear
Laser caution label
Laser specification
and caution label
Warning Labels
Location of labels used in the HIOKI "3443-01
TEMPERATURE HiTESTER" are as follows.

1
―――――――――――――――――――――――――――
Chapter 1 Summary
――――――――――――――――――――――――
Chapter 1
Summary
1.1 Product Summary
1. Theory of Measurement
Every object emits infrared energy in accordance
with its temperature. By measuring the amount of
this radiant energy, it is possible to determine the
temperature of the emitting object.
2. About infrared
Infrared radiation is a form of light (electromagnetic
radiation), and has the property that it passes easily
through air, while it is easily absorbed by solid
matter.
With an emission thermometer which operates by
detecting infrared radiation, accurate measurement is
possible, irrespective of the air temperature or the
measurement distance.
3. Emission Thermometer Structure
Infrared radiation which has been emitted from the
object is focused upon an infrared radiation sensor,
via an optical system which includes a lens which is
transparent to infrared radiation, an 8μmcuton
filter, etc..

2
―――――――――――――――――――――――――――
Chapter 1 Summary
――――――――――――――――――――――――
The output signal from the infrared radiation sensor
is input to an electronic circuit along with the
output signal from a standard temperature sensor.
The electronic circuit calculates the object
temperature while applying standard temperature
compensation, thermal emissivity compensation,
etc., and displays the result.

3
―――――――――――――――――――――――――――
Chapter 1 Summary
――――――――――――――――――――――――
3443-01 field type unit
①Lens
②Laser port
Screw hole for camera tripod
Laser specification (spec.)
and caution label
Battery box
Connector cover
(inside: connector
for interface pack)
1.2 Names and Functions of Parts

4
―――――――――――――――――――――――――――
Chapter 1 Summary
――――――――――――――――――――――――
NOTE
Operating section
⑥MEAS key
⑦Printer key ③Time key
⑤Clear key
④Mode select key
LCD display
･Connect the cable provided with the optional 3909
INTERFACE PACK to the expansion box
connector. For details, please refer to the user
instructions provided with the 3909 INTERFACE
PACK.

5
―――――――――――――――――――――――――――
Chapter 1 Summary
――――――――――――――――――――――――
①Lens
Infrared rays from the object whose temperature is
to be measured are received here.
②Laser marker beam emission openings
The laser marker beams are emitted from here.
③Time key
Used to set the time and to check the time of stored
data.
④Parameter adjust keys
Used to change the date, time, and emissivity, and
to increase/lower the memory data No.
・▼ key: Decreases
・▲ key: Increases
If either of these Parameter adjust keys is held
down, the numerical value changes rapidly in the
appropriate direction.
⑤Clear key
Used to set the date and to clear displayed memory
data.
⑥MEAS key
Performs measurement while MEAS is being
pressed.
Measured value is held when the key is released.
There is no power switch.
Pressing the MEAS key turns ON the power. Power
is cut OFF in about 15 sec. if the key is not pressed,
except output to printer (automatic power OFF).

6
―――――――――――――――――――――――――――
Chapter 1 Summary
――――――――――――――――――――――――
NOTE
LCD display
MEAS indicator
Laser indicator
Memory No.
indicator
Emissivity
indicator
SET indicator
TIME indicator
FULL indicator
℃indicator
Measured value
Battery indicator
indicator
⑦Printer key
Pressing the Pkey outputs the stored data to an
external printer.
･To use the printer output function, an optional 3909
INTERFACE PACK is required. The printer must
be provided by the user.
Printer with RS-232C interface.
Standard printers such as the EPSON PM series and
the CANON BJ series for personal computers
cannot be used.

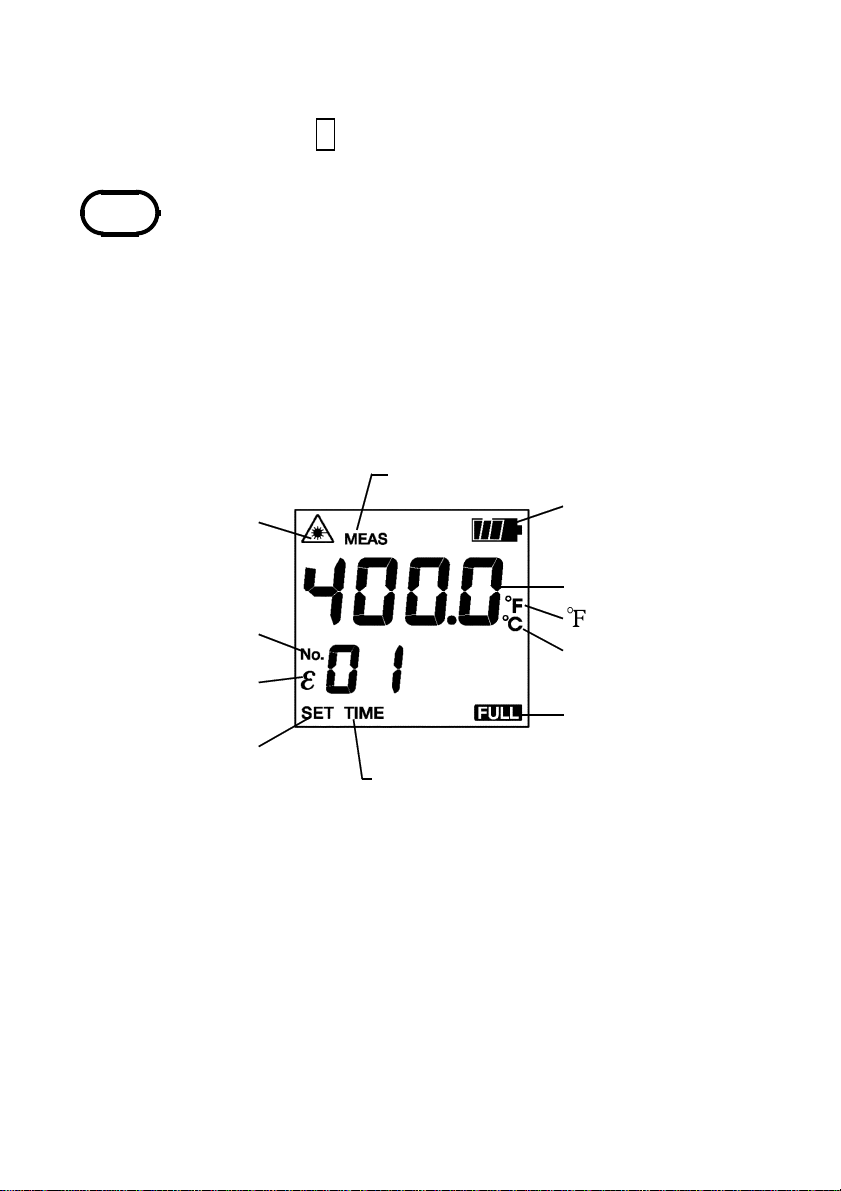

LCD display
・MEAS indicator :Displayed when measurement
is being carried out.
・Laser indicator : Displayed when laser is not
emitted.
Blinks when laser is being
emitted.
・No. indicator : Displayed together with address of
data memory.

7
―――――――――――――――――――――――――――
Chapter 1 Summary
――――――――――――――――――――――――
・εindicator : Appears when the thermal
emissivity is being set.
・SET indicator : Blinks when date, time, and
emissivity are being set.
・TIME indicator : Displayed when time is set and
the time of data memory is
displayed.
Blinks: during time operation.
・FULL indicator : Blinks when data memory is
full. (max. 130)
・indicator : Unit of Fahrenheit.
・℃indicator : Unit of Celsius.
・indicator : Blinks when battery needs to be
replaced.
・Measured value : The entire display blinks when
the measurement value falls
outside the measurement range
(-58.0 to 932.0 , -50.0 to
500.0℃).

8
―――――――――――――――――――――――――――
