HIS HIS-ML15 User manual

Hope Industrial Systems, Inc.
User Manual
15” Industrial LCD Monitor
Model No. HIS-ML15

2
TABLE OF CONTENTS
Safety and Regulation Information ........................... 3
Factory Preset Timing............................................... 4
Panel Controls and OSD Functions.......................... 5
Brightness/Contrast Controls.................................... 6
OSD main menu....................................................... 7
Phase and Pitch Adjustments................................... 8
Horizontal and Vertical Centering ............................. 9
Color and Language Functions............................... 10
Option Function.......................................................11
Option Function...................................................... 10
OSD Information..................................................... 13
Installation Instructions........................................... 14
Cleaning................................................................. 16
Troubleshooting...................................................... 17
Drawings ................................................................ 18
Specifications ......................................................... 20
Warranty Statement................................................ 23

3
Safety and Regulatory Information
Warning
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Dangerously high voltages are present inside the unit. Do not disassemble the
unit. Refer servicing to qualified personnel only.
This equipment is not intended for use in critical applications where its failure
to operate would create immediate life threatening circumstances. Applica-
tions including but no limited to nuclear reactor control, aerospace navigation
systems and life support systems are not appropriate for this product.
This product is intended to be mounted in a suitable cabinet or other enclosure.
The NEMA 4, 4x or 12 ratings are applicable only when properly installed in a
like rated enclosure.
This product is a UL Recognized Component and must be used with a listed
computer.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense. Any changes or modifica-
tions not expressly approved by the grantee of this device could void the user’s authority to operate
the device.

4
Factory Preset Timing
Resolution
Horizontal
Freq. (KHz) Vertical Freq. (Hz) Scan Type
Pixel Frequency
640 x 350 31.469 70 ** N.I. 25.175
720 x 400 31.469 70 N.I. 28.322
640 x 400 24.83 56 N.I. 21.053
640 x 480 31.469 60 N.I. 25.175
640 x 480 35.000 66.67 N.I. 30.24
640 x 480 37.861 72 N.I. 31.50
640 x 480 37.500 75 N.I. 31.50
800 x 600 37.879 60 N.I. 40.00
800 x 600 48.077 72 N.I. 50.00
800 x 600 46.875 75 N.I. 49.50
832 x 624 49.715 74.536 N.I. 57.272
960 x 720 44.80 60 N.I. 56.00
*1024 x 768 48.363 60 N.I. 65.00
1024 x 768 56.476 70 N.I. 75.00
1024 x 768 60.023 75 N.I. 78.75
* Factory recommended timing for best picture quality
** N.I. = non-interlaced

5
Panel Controls and OSD Functions
ControlsDescription
Power On/Off switch* Soft power on/off button.
Adjacent LED is lit when on.
OSD button Press to access On-Screen-Display Main Menu and
save the setting (if any).
Contrast/Adjust button To increase or decrease the panel back light lumin-
ance.
Brightness/Adjust but-
ton To increase or decrease display brightness.
Auto Auto-synchronize and scale down display to any valid
factory preset timings.
Power Indicator
• GREEN .........................................................ON
• ORANGE .........................................................STANDBY
• ORANGE .........................................................SUSPEND
• Off .....................................................................OFF
* Note: This unit has “Energy Star” capability – you can leave device power in the on state when
the computer is powered off.

6
Brightness and Contrast Controls
Instant Brightness Control
• Press the “up” or “down” button to display the “ Brightness” icon.
• Press the “up” or “down” button again to increase or decrease the video raster luminance.
Instant Contrast Control
• Press the “+ ” or “- ” button to display the “ Contrast” icon.
• Press the “+ ” or “- ” button again to increase or decrease the back light luminance, respectively.

7
OSD (On-Screen Display) Main Menu
• Press the OSD button to display the OSD menu icons.
• Press the “up” or “down” button to select a desired function from the menu, then press the OSD
button again to activate the selected function.
• The OSD menu will disappear after 20 seconds if no activity has been detected. To manually
close the OSD menu, select “Exit” from the menu, and then press the OSD button again, or press
the OSD button twice while in any sub menu.
• The OSD main menu includes the following functions: Exit, Phase, Pitch, H-Center, V-Center,
Zoom, Color, Language, and Option. (The Zoom function is not available on the HIS ML-15.)

8

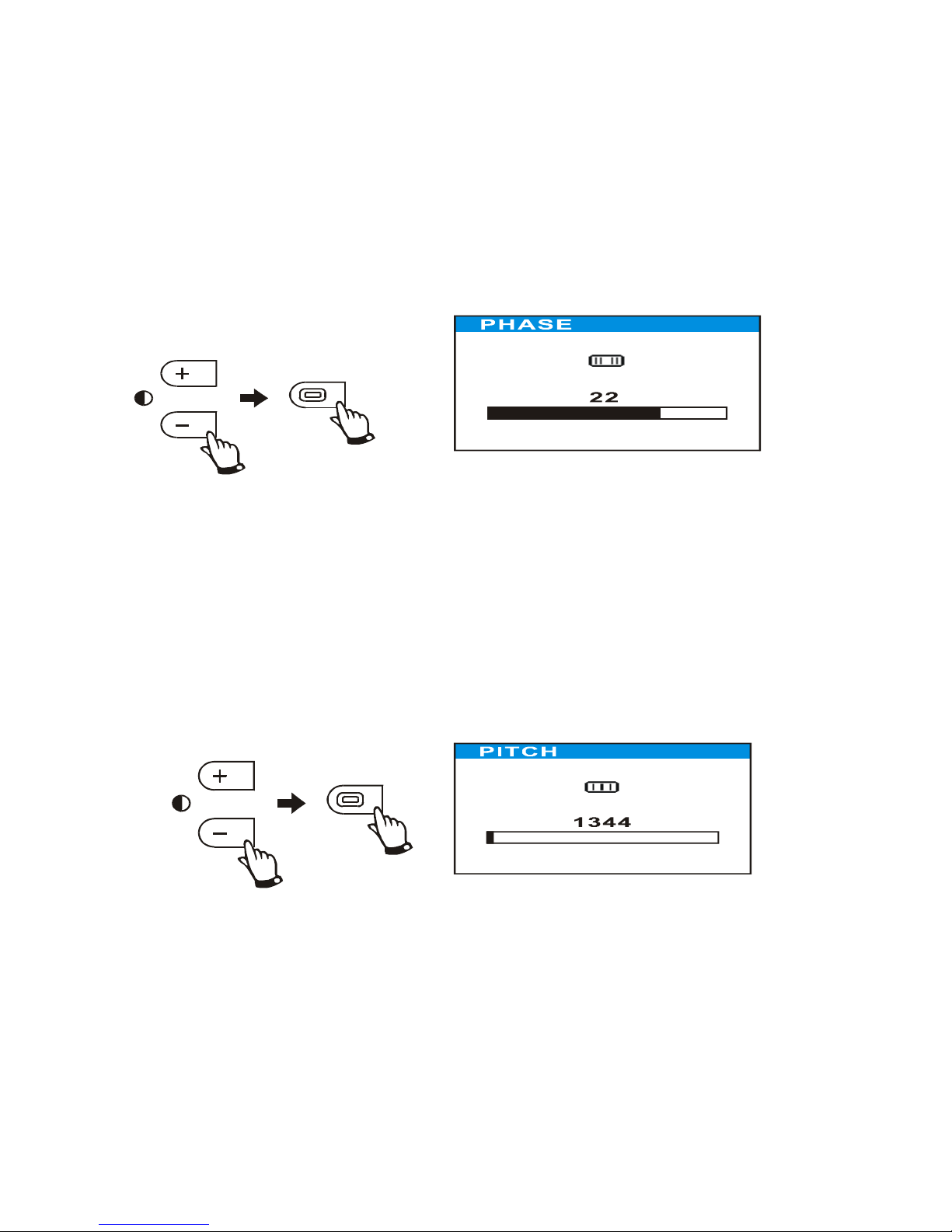

Phase and Pitch Adjustments
Phase Adjustment
• Note: Adjust the “Pitch” function first before adjusting the “Phase” function!
• Select the “Phase” function from the OSD main menu.
• Press the “+” and “-“ buttons to eliminate noise and jitter from the display.
Pitch Adjustment
• Select the “Pitch” function from the OSD main menu.
• In Windows, go to START - “Shut Down Windows”.
• Press the “+” or “-“ buttons on monitor keypad to remove a moving vertical black bar.
• Return to normal computer operation by selecting “Cancel” from the “Shut Down Windows”
dialog box.

9
Horizontal and Vertical Centering
H-Center Adjustment
• Select the “H-Center” function from the OSD main menu.
• Press the “+” or “-” buttons to move the display left or right.
V-Center Adjustment
• Select the “V-Center” function from the OSD main menu.
• Press the “+” and “-” buttons to move the display up or down.

10
Color and Language Functions
Color Function
• Select the “Color” function from the OSD main menu.
• Press the “up” and “down“ buttons to select a desired color temperature for the display.
• Selecting “User Mode” from the color menu will allow individual colors (R, G, B) to be set to
create a desire color coordinate.
• Preset color temperatures are 9300K/6500K/5500K.
Language Selection
• Select the “Language” function from the OSD main menu.
• Select the “up” and “down” buttons to activate the desired default language.
~

11
Option Function
oSelect the “Option” function from the OSD main menu.
oPress the “up” or “down“ buttons to select the desired function from the option menu, then
press the OSD button again to activate the selected function.
oTo manually close the option menu, select “Exit” from the menu, and then press the OSD
button again.
oWhile the “OSD-Position” menu item is selected, press the OSD button again to activate
the OSD-Position sub menu:
Press the “+” and “-“ buttons to move the OSD menu position in horizontal direc-
tions, and press the “up” and “down” buttons to move the OSD menu position in
vertical directions.

12

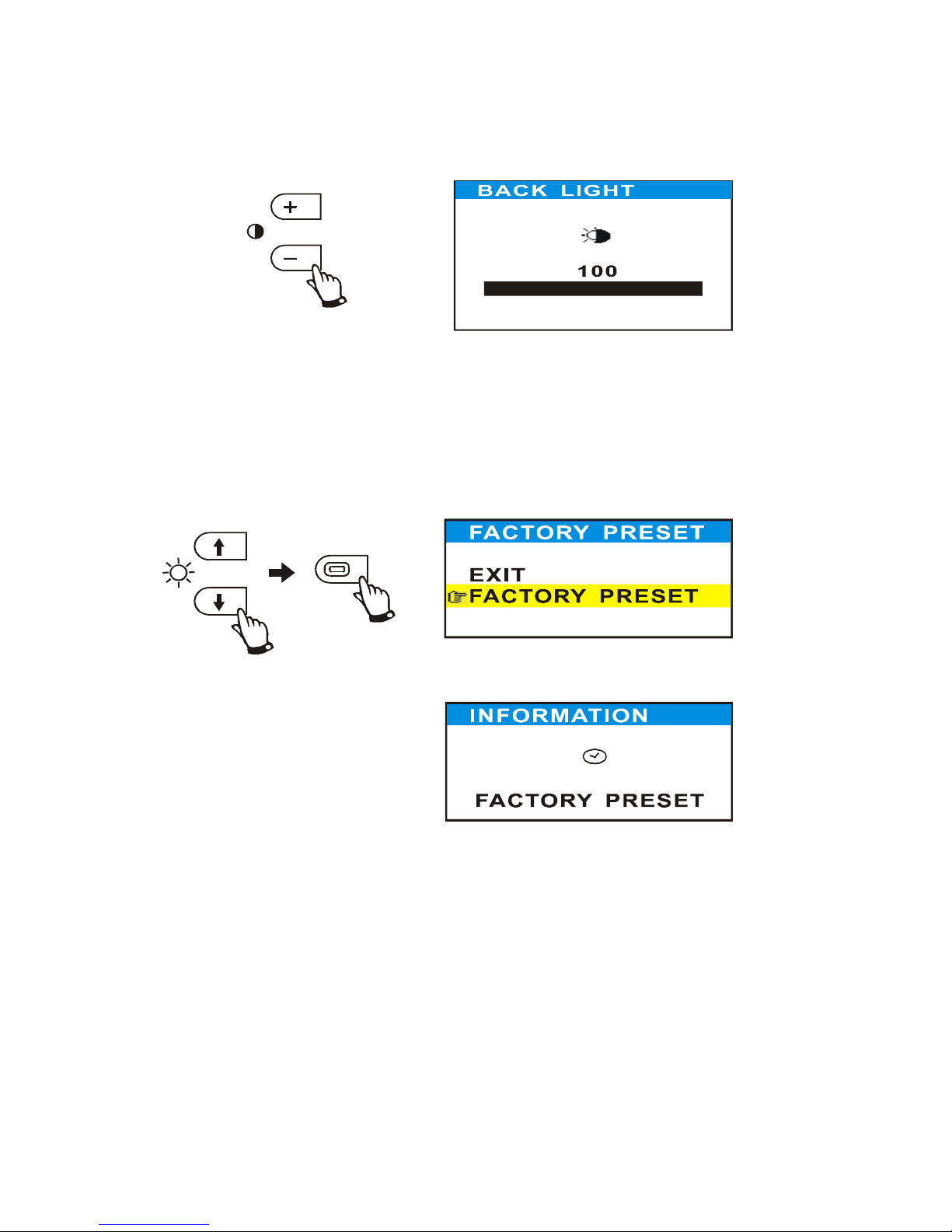

oWhile the “Backlight” menu item is selected press the OSD button again to control the back
light level of the LCD module.
oWhile the “Factory Preset” menu item is selected press the OSD button to recall factory de-
fault parameters. After several seconds all user settings will be replaced by factory default
values.

13
OSD Information
Auto Adjusting Press the “Auto” button to automatically adjust the monitor settings to
accommodate the current video signal. The “Auto Adjusting” message
will appear on the screen during the adjustment process.
No Signal The “No Signal” message appears when the computer stops sending a
video signal. The monitor will automatically enter power saving mode.
Out Of Range The “Out Of Range” message appears when the computer attempts to
output a resolution outside the range of the monitor.Refer to the Factory
Preset Timing Reference Table.

14
Installation Instructions
Preparing for Installation
Important! Perform the following steps BEFORE Installation of the moni-
tor into the panel.
1. Ensure that sufficient power is available.
2. Ensure that sufficient space is available to allow for proper air flow into and
out of the unit.
3. Ensure that the air temperature around the unit (top and bottom) will not ex-
ceed the rated specifications of the unit.
The maximum rated temperature of the HIS-ML15 is 50 ° C (132 ° F)
Remember that heat rises – the temperature at the top of the cabi-
net will be much hotter than at the bottom when the air is not cir-
culating.
Also, remember that even though this product is designed to oper-
ate at 50 ° C, the life span of any electronic device is shortened
when it is consistently operated at high temperatures. Therefore it
is wise to take steps to keep the temperature of the ambient air
around the unit as low as possible.
4. Ensure that the ambient humidity of the air around the unit does not exceed
the rated specifications for the unit
The maximum rated humidity for the HIS-ML15 is 90% non-
condensing

15
Installation into Panel
1. Refer to the drawing below.
2. Locate position in panel for mounting of the monitor. Assure that there
is adequate space begin the panel. Allow extra space (0.5 in. behind and
on each side) for air ventilation.
3. Cut a rectangular hole in the panel. Clean and deburr.
Dimensions: 16.02” (406mm) W x 12.72” (323mm) H ; +/- .020”
4. Separate the rear collar from the unit by removing the 12 nuts.
5. Insert the unit into the front of the panel and re-attach the collar.
6. Tighten all 12 nuts to a torque of 24 inch-pounds to assure a water-tight
seal between the poron bezel gasket on the monitor and equipment panel.
HIS will not assume liability for damage to internal electronics due to
improper installation.

16
Cleaning
Resistive Touchscreen model
Any standard glass cleaner can be used to clean the touchscreen.
Always spray the glass cleaner on the cloth or towel and then clean
the touchscreen. Glass cleaner sprayed directly on the monitor could
possibly leak inside a non-sealed unit and cause damage.
Vinegar or ammonia will not hurt the touchscreen. Again, spray the cloth
and then clean the touchscreen.
Tempered Anti-Reflective Glass Window
Use any standard glass cleaner as long as there is no abrasive or oily con-
tent. The anti-reflective coatings are physically part of the surface of the
glass and resist degradation to the Military Specifications.
Acrylic Bezel
The acrylic front bezel can be cleaned in the same manner as the touch-
screen or glass window.

17
Troubleshooting
Blank Screen After installing the power adapter and connecting I/O cable to a PC, the
monitor displays a blank screen.
•Press the power button and check to see if the power LED is lit.
•If the LED turns green, make sure the PC is powered on. Make sure
all cables are connected.
•If the LED turns orange, check to see if the PC is in the power saving
mode by pressing any keys on the keyboard.
Rolling Screen
•Change PC display resolution to 1024x768 at 60hz.
•Unplug the power adapter to monitor, then plug it in again.
•Press monitor power button again.
•Reset the monitor to the original factory setting.
•Press “Auto” button.
Unstable Screen
•Press the “Auto” button.
•Make sure the PC display resolution is not set greater than 1024x768
at 75hz.
•Make sure the PC display resolution matches one of the factory pre-
set timings in this manual.
•Change the PC display resolution to 1024x768 at 60hz.
•Reset the monitor to the factory setting.
•Press the “Auto” button.
Screen is not perfect
•Make sure the PC display resolution matches one the factory preset
timings shown in this manual.
•Recall factory setting. Refer to panel controls and OSD functions in
this manual.
•Fine tune the picture by performing the following adjustments in this
order – pitch, phase, and position. Refer to OSD functions in this
manual.

18
Drawings
Front and Side Views
Rear View (showing Cutout Dimensions)

19
Bottom View
Rear View
CUS
L
U

20
Specifications
Display
Type
Thin-film transistor (TFT) Active Matrix Liquid Crystal
Size
15.1” diagonal
Image size
12.0” (304mm) x 9.0” (228mm)
Native resolution
XGA (1024 x 768)
Plug and Play
DDC1/2B compatible`
Minimum resolution
VGA (640 x 480)
Pixel pitch
0.297mm x 0.297mm
Number of colors
262,144 (18 bit)
Viewing Angle (Hori/Vert)
140
°
/ 115
°
, typical
Brightness (white)
200 nits (cd/m2) max
Contrast ratio
250:1 (typical)
Back light
Two CCFTs (Cold Cathode Fluorescent Tube); 50,000
hours, half-life; replaceable
Screen protector (when
not shipped with touch-
screen)
Tempered glass to ANSI-Z97.1 SPEC; AR coated on both
sides; 98% Transmission of light; 99% Reduction of glare;
53% UV blocking; 30% NIR Blocking; proprietary hydrophob-
ic coating on outside reduces fingerprint smears, repels liq-
uid spills and makes glass easy to clean.
Video
Input connector
HD-15 (optional BNC input)
Input signal format
RGB Analog video 0 – 0.7V p-p – sep V and H, combined
sync, sync on green
Horizontal scan 24kHz – 60kHz
Supported Video Stan-
dards Std VGA – 640x480 @ 60Hz SVGA – 800x600 @ 60Hz
XGA – 1024x768 @ 60Hz (native)
Vertical scan 50Hz – 75 Hz
Response rate (typical) 10ms rising, 35ms falling
