HIS HIS-ML19-***E User manual

19" PANEL MOUNT INDUSTRIAL MONITOR
USER MANUAL
Model No. HIS-ML19- _ _ _ E
REVISION E

2 ML19E User Manual, February 2011
Table of Contents
Safety and Regulatory Information ��������������������������������������������������������������������������������3
FCC Notice �����������������������������������������������������������������������������������������������������������������������������3
Hazardous Locations �������������������������������������������������������������������������������������������������������������� 4
Waste Electrical and Electronic Equipment Directive (WEEE) �����������������������������������������������4
Mechanical Drawings ������������������������������������������������������������������������������������������������������5
Front and Side Views �������������������������������������������������������������������������������������������������������������� 5
Bottom View ���������������������������������������������������������������������������������������������������������������������������� 5
Installation Instructions ��������������������������������������������������������������������������������������������������6
Step 1: Prepare for Installation ����������������������������������������������������������������������������������������������6
Step 2: Bench-test Conguration ������������������������������������������������������������������������������������������� 7
Install Cable Connections ������������������������������������������������������������������������������������������������������������������ 7
Install Touchscreen ���������������������������������������������������������������������������������������������������������������������������� 8
Step 3: Install into Panel ������������������������������������������������������������������������������������������������������ 10
Video Settings ����������������������������������������������������������������������������������������������������������������12
Setting the Timing Mode ������������������������������������������������������������������������������������������������������� 12
Control Panel Buttons �����������������������������������������������������������������������������������������������������������13
OSD and Power Lock Settings ��������������������������������������������������������������������������������������������� 14
On-Screen Display (OSD) Menus ����������������������������������������������������������������������������������������� 15
Auto Image Adjust Menu ������������������������������������������������������������������������������������������������������������������ 16
Contrast / Brightness Menu�������������������������������������������������������������������������������������������������������������� 16
Input Select Menu ���������������������������������������������������������������������������������������������������������������������������� 16
Color Adjust Menu ���������������������������������������������������������������������������������������������������������������������������� 17
Information Menu ����������������������������������������������������������������������������������������������������������������������������� 18
Manual Image Adjust Menu�������������������������������������������������������������������������������������������������������������� 18
Setup Menu �������������������������������������������������������������������������������������������������������������������������������������� 19
Memory Recall Menu ����������������������������������������������������������������������������������������������������������������������� 19
Cleaning Instructions ����������������������������������������������������������������������������������������������������20
Troubleshooting ������������������������������������������������������������������������������������������������������������21
Video Troubleshooting ���������������������������������������������������������������������������������������������������������� 21
Touchscreen Troubleshooting ����������������������������������������������������������������������������������������������� 23
Specications ����������������������������������������������������������������������������������������������������������������24
Display ���������������������������������������������������������������������������������������������������������������������������������� 24
Environmental �����������������������������������������������������������������������������������������������������������������������24
Video ������������������������������������������������������������������������������������������������������������������������������������� 25
Electrical �������������������������������������������������������������������������������������������������������������������������������25
Functional �����������������������������������������������������������������������������������������������������������������������������25
Physical ��������������������������������������������������������������������������������������������������������������������������������26
Compliances and Certications �������������������������������������������������������������������������������������������� 26
Warranty Statement �������������������������������������������������������������������������������������������������������27

Safety and Regulatory Information
ML19E User Manual, February 2011 3
To prevent re or shock hazard, do not expose live components to rain or moisture�
Dangerously high voltages are present inside the unit� Do not disassemble the unit�
Refer servicing to qualied personnel only�
This equipment is not intended for use in critical applications where its failure
to operate would create immediate life threatening circumstances� Applications
including, but not limited to, nuclear reactor control, aerospace navigation systems
and life support systems are not appropriate for this product�
This product is intended to be mounted in a suitable cabinet or other enclosure�
The NEMA 4, 4X, or 12 ratings are applicable only when properly installed in a like
rated enclosure�
To be covered by UL 60950 3rd Edition, the socket-outlet shall be installed near the
equipment and shall be easily accessible�
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules� These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment� This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications� Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense� Any changes or modications not
expressly approved by the grantee of this device could void the user’s authority to operate
the device�
Safety and Regulatory Information
WARNING!
!

Safety and Regulatory Information
4 ML19E User Manual, February 2011
Hazardous Locations
The following applies only to monitors rated for hazardous locations (model
numbers HIS-ML19- _ _ HE):
This equipment is suitable for use in Class I, II & III, Division 2, Groups A, B, C, D, F, and G
or non-hazardous locations only�
WARNING – EXPLOSION HAZARD – Do not disconnect equipment unless power has
been removed or the area is known to be non-hazardous�
WARNING – EXPLOSION HAZARD – Substitution of any components may impair
suitability for Class I, II & III, Division 2 Locations�
Waste Electrical and Electronic Equipment Directive (WEEE)
The following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and
Electronic Equipment Directive 2002/96/EC (WEEE)�
The mark indicates the requirement NOT to dispose of the equipment as unsorted
municipal waste, but use the return and collection systems according to local law� Users
should contact their supplier and check the terms and conditions of the purchase contract�
When purchased directly from Hope Industrial Systems, you may contact technical support
for disposal arrangements�

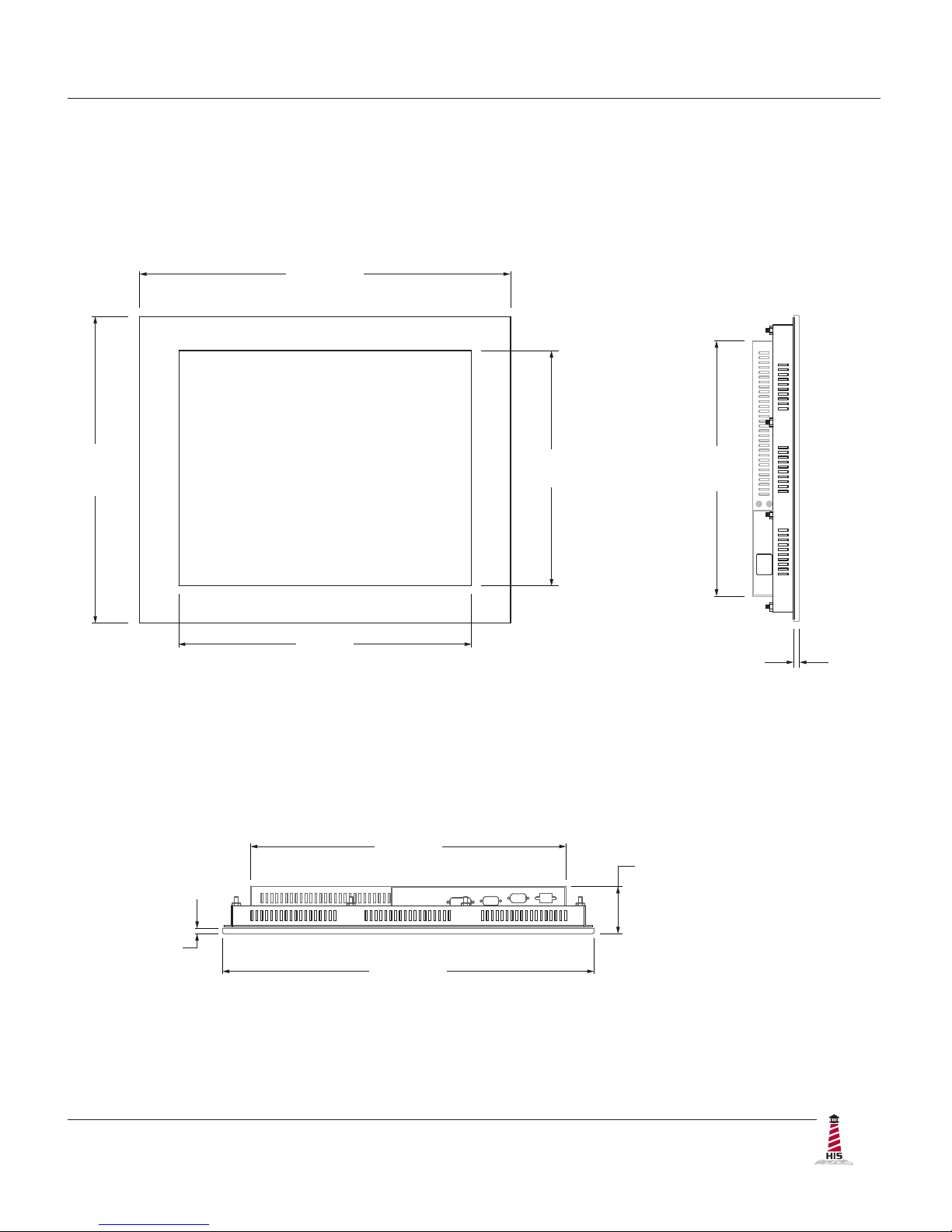

Mechanical Drawings
ML19E User Manual, February 2011 5
Mechanical Drawings

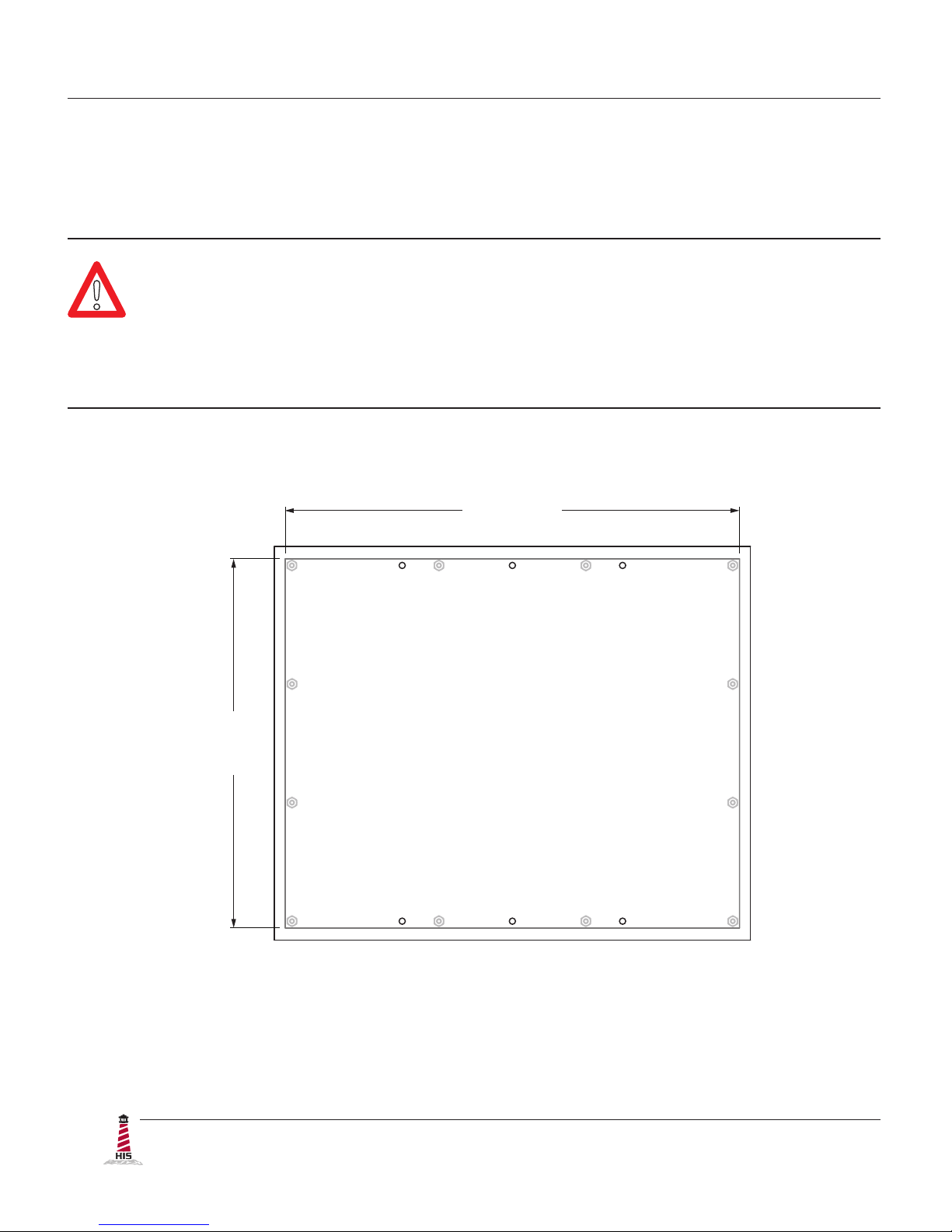

Front and Side Views
Bottom View
332.8 mm
(13.10")
7.1 mm
(0.28")
398.8 mm
(15.70")
482.6 mm
(19.00")
376 mm
(14.8")
301 mm
(11.9")
61.6 mm
(2.43")
409.8 mm
(16.14")
482.6 mm
(19.00")
7.1 mm
(0.28")
(Design to maximum depth
of 69.0 mm to ensure future
compatibility with later revisions
and replacement units.)

Installation Instructions
6 ML19E User Manual, February 2011
Installation Instructions
Step 1: Prepare for Installation
IMPORTANT!
Perform the following steps BEFORE installation of the monitor into the panel�
1� Ensure that sufcient power is available�
2� Ensure that sufcient space is available to allow for proper air ow into and out of the
unit�
3� Ensure that the air temperature around the unit (top and bottom) will not exceed the
rated specications of the unit.
fThe maximum rated temperature for the HIS-ML19 is 50°C (122°F)�
fRemember that heat rises – the temperature at the top of the
cabinet will be much hotter than at the bottom if air inside the
enclosure is not actively circulating� Even in a sealed enclosure,
use of a circulation fan can greatly reduce temperature�
fAlso, remember that even though this product is designed to
operate at 50°C, the life span of any electronic device is shortened
when it is consistently operated at high temperatures� Therefore,
it is wise to take steps to keep the temperature of the ambient air
around the unit as low as possible�
4� Ensure that the ambient humidity of the air around the unit does not exceed the
specications of the unit.
fThe maximum rated humidity for the HIS-ML19 is 90%
non-condensing�
!

Installation Instructions
ML19E User Manual, February 2011 7
Step 2: Bench-test Conguration
Make sure everything works before installing into the production environment�
TIP!
Install Cable Connections
All monitors are shipped with both a 6 ft� VGA video cable and 6 ft� power cable, unless longer
cables were ordered in their place� If you ordered a touchscreen monitor, you also received a 6
ft� Serial (RS-232) cable and 6 ft� USB cable�

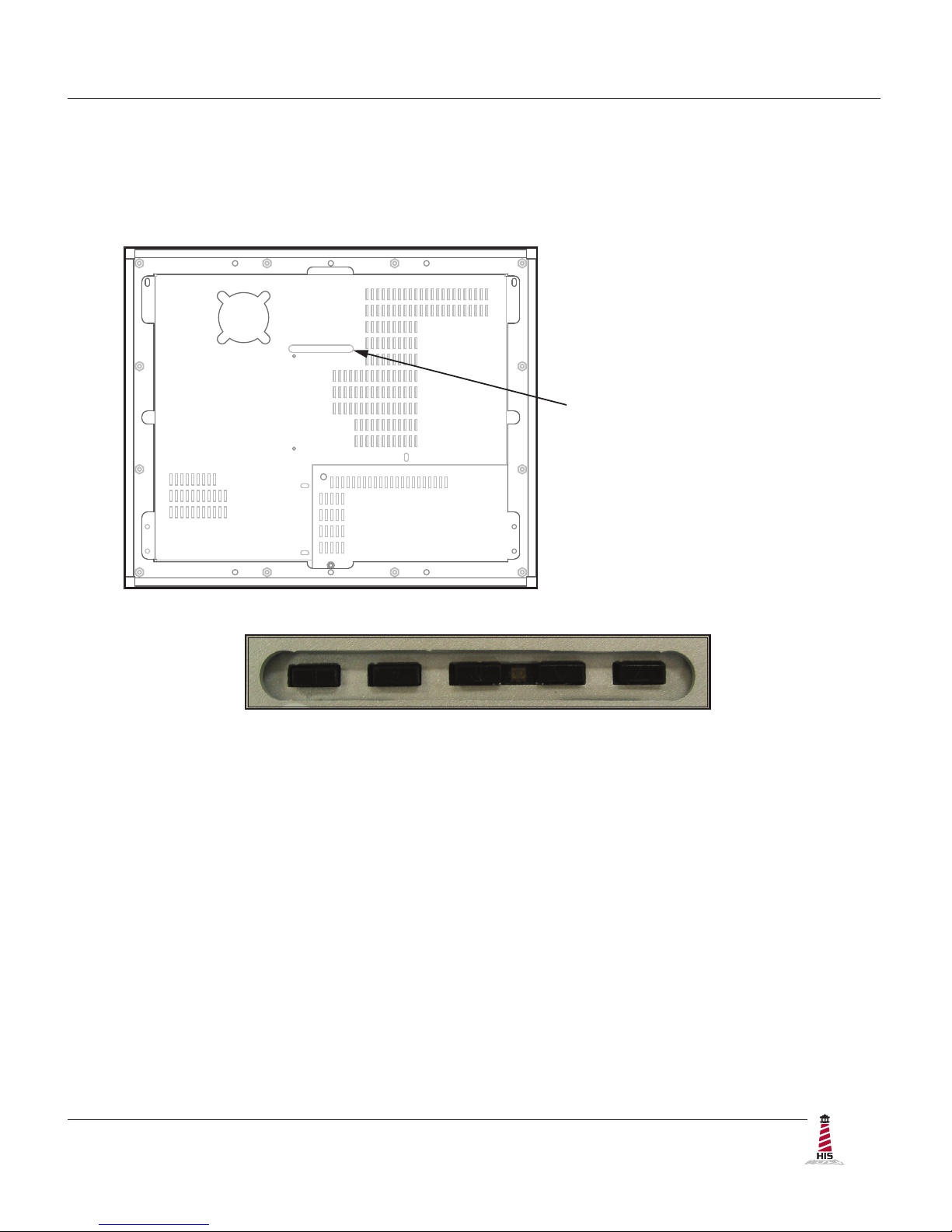

The cable ports are located on the rear of the monitor� Refer to the following diagram and
instructions to connect power, video, and touchscreen (if applicable) to your monitor�
If using a KVM extender, please refer to the installation instructions included with the
KVM extender module� It is particularly important to bench-test the full conguration
prior to nal installation� This will help to identify and troubleshoot any system issues
while conguration changes may still be easily made�
Video Connection
The HIS-ML19 supports analog and digital video�
Analog Video Connection
Connect one end of the VGA video cable to the HD-15 input port on the rear of the
monitor� Connect the other end to the analog video output port on the host computer�
DIGITAL VIDEO
USB
(for Touchscreen option)
SERIAL
(RS-232)
POWER INPUT
ANALOG VIDEO

Installation Instructions
8 ML19E User Manual, February 2011
Digital Video Connection
Connect one end of the DVI video cable to the DVI-D input port on the rear of the
monitor� Connect the other end to the digital video output port on the host computer�
Power Connection
The HIS-ML19 is powered by 120/240 VAC, 1�2/0�6 A, 60/50 Hz�
Connect the AC power cable to the power input port on the rear of the monitor� Connect the other
end into a nearby outlet�
Install Touchscreen
Applies to touchscreen monitors only� Instructions below apply to Windows systems� Both Serial
and USB ports are present on all touchscreen monitors, but only one should be used to connect
the touchscreen interface to the monitor�
All touchscreen monitors are shipped with a CD-ROM that contains documentation and drivers for
all major operating systems� To be sure that you have the most current information, please check
the following Internet address:
http://www�HopeIndustrial�com/Touchscreen_Drivers�htm
IMPORTANT!
If you will be using a Serial connection, connect the Serial cable rst, and then
install the touchscreen driver� If you will be using a USB connection, install the
touchscreen driver rst, and then connect the USB cable�
Serial (RS-232) Connection
1� Connect one end of the Serial cable to the Serial input port on the rear of the monitor�
Connect the other end to the Serial port on the host computer� Tighten the captive
screws on the cable connectors to ensure adequate strain relief�

Installation Instructions
ML19E User Manual, February 2011 9
2� Select the appropriate driver for your operating system�
a� If downloading from the web address listed above, select the appropriate
driver for your operating system�
b� If using the included CD, insert it into the host computer's CD-ROM drive� If
the CD does not automatically run, browse the contents of the CD and open
the ReadMe�htm le in a web browser� Select the appropriate driver�
NOTE: For Windows 7 and Vista operating systems, you must save the driver to
a location on your hard drive, then run using elevated privileges by right-clicking
on the le and selecting "Run as administrator"�
3� Click to "Run" the software when prompted� Follow on-screen instructions to
download and execute the touchscreen driver installation�
USB Connection
1� Select the appropriate driver for your operating system�
a� If downloading from the web address listed above, select the appropriate
driver for your operating system�
b� If using the included CD, insert it into the host computer's CD-ROM drive� If
the CD does not automatically run, browse the contents of the CD and open
the ReadMe�htm le in a web browser� Select the appropriate driver�
NOTE: For Windows 7 and Vista operating systems, you must save the driver to
a location on your hard drive, then run using elevated privileges by right-clicking
on the le and selecting "Run as administrator"�
2� Click to "Run" the software when prompted� Follow on-screen instructions to
download and execute the touchscreen driver installation�
3� A cable retention bracket comes installed on the USB port on the rear of the monitor
and will help to secure the cable and ensure adequate strain relief� Route one end of
the USB cable through the retention bracket and connect it to the USB input port on
the monitor� Connect the other end to the USB port on the host computer�
Calibrate the Touchscreen
Once the driver has nished installing, you are ready to calibrate the touchscreen� Open the
touchscreen's Control Panel, located in the host computer's Control Panel�
NOTE: The latest versions of Windows touchscreen drivers provided by Hope Industrial have an
"Enhanced Calibration Mode" option� If applicable to your particular driver, this setting may be
found in the touchscreen's Control Panel under the "Mode" tab�

Installation Instructions
10 ML19E User Manual, February 2011
1� Refer to the drawing below for the cutout dimensions for the HIS-ML19�
2�
366.8 mm
(14.44")
453.4 mm
(17.85")
Locate position in panel for mounting of the monitor� Ensure that there is adequate
space behind the panel� Allow extra space – 25�4 mm (1�0") behind and on each
side – for air ventilation�
Step 3: Install into Panel
Once you have completed the full bench-test conguration and conrmed that all components are
working properly, you are ready to install the monitor into its panel cutout�
WARNING!
HIS will not assume liability for damage to internal electronics due to improper
installation� Contact HIS if you need additional assistance�
!

Installation Instructions
ML19E User Manual, February 2011 11
3� Cut a rectangular hole in the panel�
fCutout Dimensions (W x H) for the HIS-ML19:
453�4 mm x 366�8 mm (17�85" x 14�44"); ± 0�5 mm (0�020")
4� Clean and deburr the panel hole�
5� Separate the rear collar from the monitor by removing the 12 nuts�
6� Refer to the enclosure mounting diagram below�
7� Insert the unit into the front of the panel and re-attach the collar�
8� Tighten all 12 nuts to a torque of 24 inch-pounds to ensure a watertight seal between
the poron bezel gasket on the monitor and the equipment panel�

Video Settings
12 ML19E User Manual, February 2011
Video Settings
Setting the Timing Mode
Setting the timing mode of your computer graphics adapter (or other video source) is important
for maximizing the quality of the screen image and for minimizing eye strain� The timing mode
consists of the resolution (e�g� 1280 x 1024) and refresh rate (or vertical frequency; e�g� 60 Hz)�
After setting the timing mode, use the On-Screen Display (OSD) controls to adjust the screen
image�
TIP!
For the best picture quality, set your computer graphics adapter timing mode to:
VESA 1280 x 1024 @ 60 Hz
Please refer to the computer graphics adapter manufacturer's manual for instructions on setting
the resolution and timing mode� In Microsoft Windows, these settings may be found at the
following location:
fME, 2000, XP: Control Panel > Display > Settings
fVista: Control Panel > Personalization > Display Settings
fWindows 7: Control Panel > Appearance and Personalization >
Adjust Screen Resolution
WARNING!
Do not set the graphics card in your computer to exceed the maximum refresh rate
of 75 Hz; doing so may result in permanent damage to your display�
!

Video Settings
ML19E User Manual, February 2011 13
Control Panel Buttons
Use the control panel buttons located on the back of the monitor to display and adjust various
settings on the On-Screen Display (OSD) menu�
1� To display the Main Menu, press button [1]�
NOTE: All OSD menus and adjustments screens disappear automatically after
15 seconds� This is adjustable through the OSD timeout setting in the Setup
menu�
2� To select a control to adjust, press the up [▲] or down [▼] button to scroll through the
menu�
3� Press button [2] to open the menu for a selected control�
4� To adjust the control, press the up [▲] or down [▼] button�
5� To save the adjustments and return to the main OSD menu, press button [1] once� To
exit the OSD menu, press button [1] twice�
CONTROL PANEL
BUTTONS

Video Settings
14 ML19E User Manual, February 2011
Button Control Functions
Menu • Opens the OSD menu�
• Exits the OSD menu and saves adjustments�
Enter • Displays the control screen for the highlighted
control�
• Toggles between two controls on some screens�
Power • Turns the monitor on and off�
• The Power Indicator light glows blue during
normal operation and orange when the monitor is
in Power Saving mode�
Down / Brightness When the OSD menu IS NOT displayed:
• Shortcut to Brightness�
When the OSD menu IS displayed:
• Scrolls down and adjusts items in the menu
down�
Up / Contrast Adjust When the OSD menu IS NOT displayed:
• Shortcut to Contrast Adjust�
When the OSD menu IS displayed:
• Scrolls up and adjusts items in the menu up�
OSD and Power Lock Settings
fOSD Lock: Press and hold [1] and the up [▲] button for 10 seconds� If any buttons
are pressed the message OSD Locked will display for 5 seconds�
fOSD Unlock: Press and hold [1] and the up [▲] button again for 10 seconds�
fPower Button Lock: Press and hold [1] and the down [▼] button for 10 seconds�
If the power button is pressed, the message Power Button Locked will display for 5
seconds� With or without this setting, after a power failure, your monitor's power will
automatically turn ON when power is restored�
fPower Button Unlock: Press and hold [1] and the down [▼] button again for 10
seconds�

Video Settings
ML19E User Manual, February 2011 15

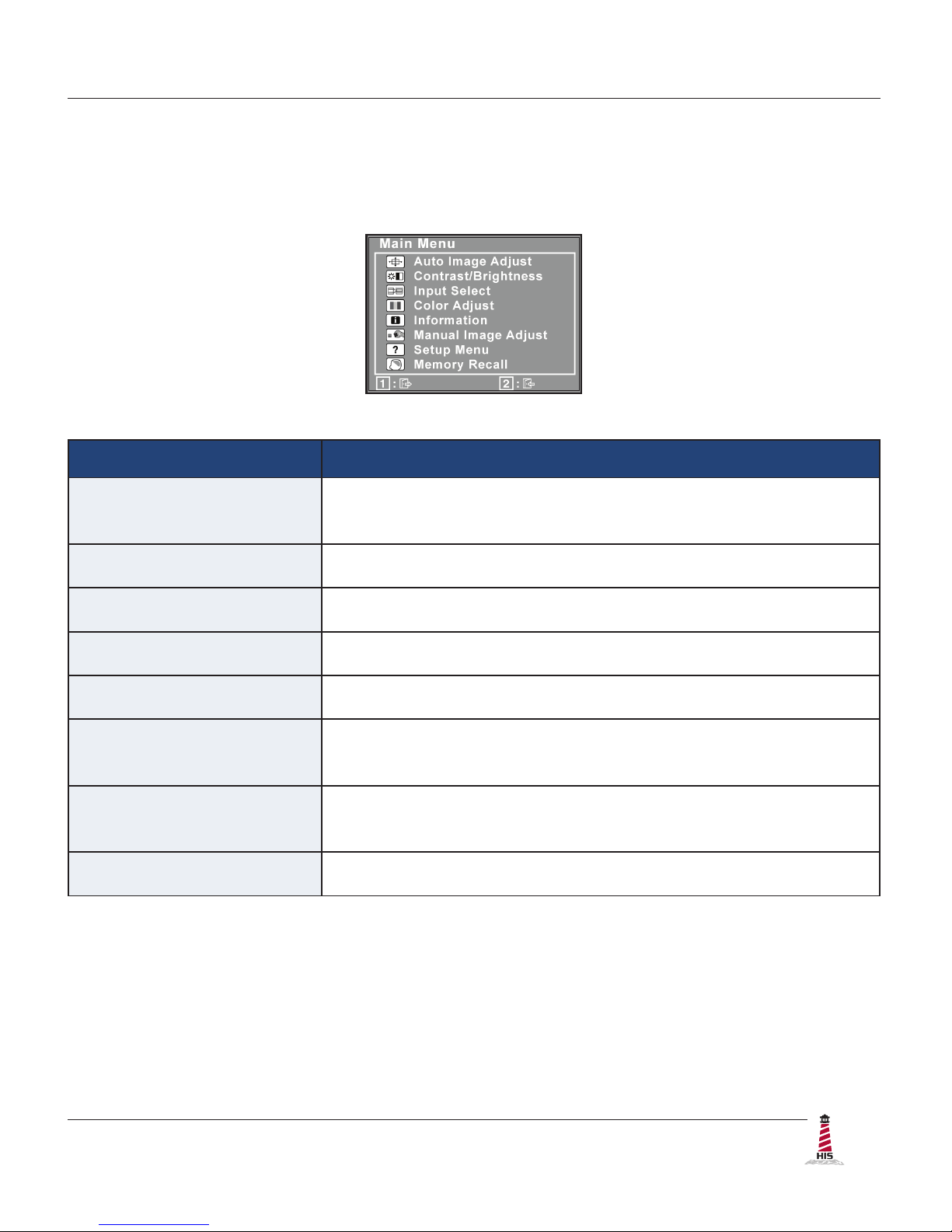

On-Screen Display (OSD) Menus
To open the OSD menu, press button [1] once� The following screen will appear:
Main Menu Description
Auto Image Adjust Automatically sizes, centers, and ne tunes the video signal to
eliminate waviness and distortion�
Contrast / Brightness Includes the Contrast and Brightness functions�
Input Select Allows the user to toggle between inputs�
Color Adjust Provides several color adjustment modes�
Information Displays the timing mode (video signal input)�
Manual Image Adjust Includes the H�/V� Position, Horizontal Size, Fine Tune,
Sharpness, and Eco Mode functions�
Setup Menu Includes the Language Select, Resolution Notice, OSD Position,
OSD Timeout, and OSD Background functions�
Memory Recall Returns adjustments back to factory settings�

Video Settings
16 ML19E User Manual, February 2011
Input Select Menu
The Input Select menu allows the user to toggle between inputs if there is more than one
computer connected to the display�
Contrast / Brightness
Menu Description
Contrast • Adjusts the difference between the image background
(black level) and the foreground (white level)�
• This feature may also be accessed by pressing the up [▲]
button outside of the OSD menu�
Brightness • Adjusts the background black level of the screen image�
• This feature may also be accessed by pressing the down
[▼] button outside of the OSD menu�
Contrast / Brightness Menu
The Contrast/Brightness menu includes the Contrast and Brightness functions�
Auto Image Adjust Menu
The Auto Image Adjust menu automatically sizes, centers, and ne tunes the video signal to
eliminate waviness and distortion�
NOTE: Auto Image Adjust works with most common video cards� If this function does not work
on your display, lower the video refresh rate to 60 Hz and set the resolution to its pre-set value�

Video Settings
ML19E User Manual, February 2011 17
Color Adjust Menu
The Color Adjust menu provides several color adjustment modes, including preset color
temperatures and a User Color mode which allows independent adjustment of red (R), green (G),
and blue (B)� The factory setting for this product is 6500K (6500 Kelvin)�
Color Adjust Menu Description
sRGB This is quickly becoming the industry standard for color
management, with support being included in many of the latest
applications� Enabling this setting allows the LCD to more
accurately display colors the way they were originally intended�
NOTE: Enabling the sRGB setting will cause the Contrast and
Brightness adjustments to be disabled�
9300K Adds blue to the screen image for cooler white (used in most
ofce settings with uorescent lighting)�
6500K Adds red to the screen image for warmer white and richer red�
5400K Adds green to the screen image for a darker color�
User Color Individual adjustments for red (R), green (G), and blue (B)�
1� To select color (R, G, or B) press button [2]�
2� To adjust selected color, press the up [▲] or down [▼]
button�
NOTE: If you select RECALL from the OSD Main Menu when
the product is set to a Preset Timing Mode, colors return to the
6500K factory preset�

Video Settings
18 ML19E User Manual, February 2011

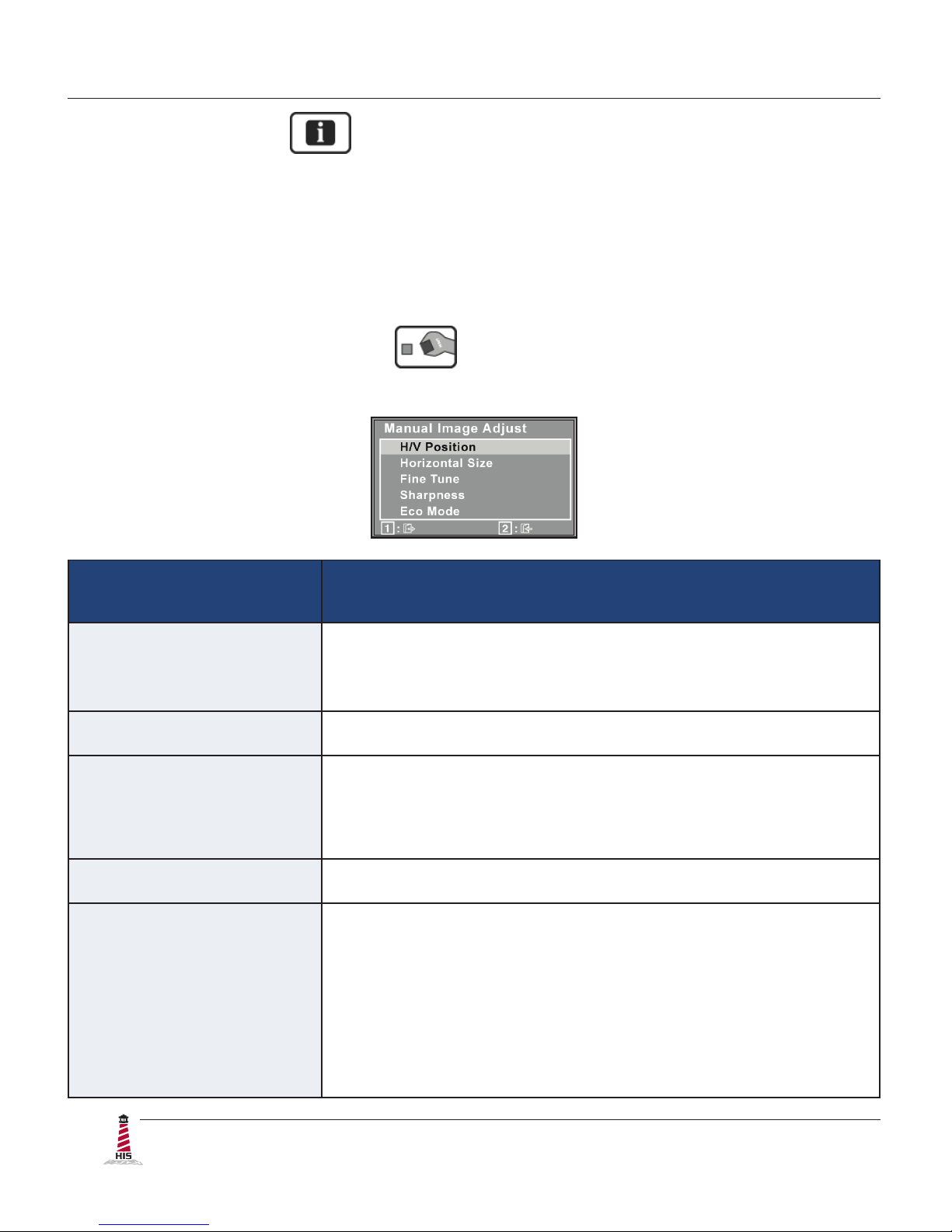

Manual Image Adjust
Menu Description
H�/V� Position
(Horizontal / Vertical
Position)
Moves the screen image left or right and up or down�
H� Size (Horizontal Size) Adjusts the width of the screen image�
Fine Tune Sharpens the focus by aligning text and/or graphics with pixel
boundaries�
NOTE: Try the Auto Image Adjust function rst�
Sharpness Adjusts the clarity and focus of the screen image�
Eco Mode Provides lower power consumption by reducing the brightness�
• Standard is the default brightness setting
• Optimize reduces brightness by 25%
• Conserve reduces brightness by 50%
NOTE: When the Eco Mode is set to "Optimize" or "Conserve",
Brightness and Contrast cannot be adjusted�
Manual Image Adjust Menu
The Manual Image Adjust menu includes the H�/V� Position, H� Size, Fine Tune, Sharpness, and
Eco Mode functions�
Information Menu
The Information menu displays the timing mode (video signal input) coming from the graphics
card in the computer� See your graphics card's user guide for instructions on changing the
resolution and refresh rate (vertical frequency)�
NOTE: VESA 1280 x 1024 @ 60 Hz (recommended) means that the resolution is 1280 x 1024
and the refresh rate is 60 Hz�

Video Settings
ML19E User Manual, February 2011 19
Setup Menu Description
Language Select Allows the user to choose the language used in the menus and
control screens�
Resolution Notice Advises the optimal resolution to use�
OSD Position Allows the user to move the OSD menus and control screens�
OSD Timeout Sets the length of time the OSD screen is displayed� For
example, with a "15 second" time setting, if a control is not
pushed within 15 seconds, the display screen disappears�
OSD Background Allows the user to turn the OSD background On or Off�
Setup Menu
The Setup menu includes the Language Select, Resolution Notice, OSD Position, OSD Timeout,
and OSD Background functions�
Memory Recall Menu
The Memory Recall menu returns adjustments back to factory settings�
NOTE: This control does not affect changes made with the User Color control, Language Select,
or Power Lock setting�

Cleaning Instructions
20 ML19E User Manual, February 2011
Cleaning Instructions
CAUTION!
!
All displays may be cleaned using any standard glass cleaner as long as there is no abrasive or
oily content� Vinegar or ammonia will not hurt the screen�
The anti-reective coatings on glass window-equipped displays are physically part of the surface
of the glass and resist degradation to the Military Specications�
To minimize over-run of cleaning solution, spray the cloth rst and then clean the screen�
DO NOT USE ABRASIVE MATERIALS, SUCH AS PAPER TOWELS OR DIRTY SHOP
RAGS, ON THE DISPLAY AS IT WILL SCRATCH THE PROTECTIVE COATING�
ALWAYS USE A SOFT CLOTH, PREFERABLY MADE OF COTTON�
Table of contents
Other HIS Monitor manuals

HIS
HIS HIS-ML23.8 A Series User manual

HIS
HIS HIS-ML20- *** B User manual

HIS
HIS Rack Mount Industrial Monitor HIS-RL17 User manual

HIS
HIS HIS-UM19-H Series User manual

HIS
HIS HIS-ML17-xxxB Series User manual

HIS
HIS HIS-ML20 C Series User manual

HIS
HIS HIS-RL19.5 A Series User manual

HIS
HIS HIS-RL17 H Series User manual

HIS
HIS HIS-ML12 E Series User manual

HIS
HIS HIS-UM23.8 Series User manual
