Hisense AS-12HR4SVTVC User manual

SPLIT TYPE AIR CONDITIONER
AS-12HR4SVTVC

Type of contents
1.OPERATIONRANGE 1
2.SPECIFICATION 2
3.INSTALLATION 7
4.ELECTRICALDATA 8
5.CONTROLMODE 11
6. TROUBLE SHOOTING 22
7.CHECKINGCOMPONENTS 24
8.PANEL INSTRUCTIONS 28
9.PARTLISTANDEXPLODEVIEW 30
NOTE: The figure,size and parameter of the product may not be identical with the
service manual, please take the actual product as the standard.

1
1. . O OP PE ER RA AT TI IN NG G R RA AN NG GE E
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
1
Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp
Maximum 32 D.B./23 W.B.℃℃ 43 D.B./26 W.B.℃℃
COOLING Minimum 21 D.B./15 W.B.℃℃ 21 D.B./15 W.B.℃℃
Maximum 27 D.B./18 W.B.℃℃ 24 D.B./18 W.B.℃℃
HEATING Minimum 20 D.B/℃≤15 W.B℃-7 D.B./℃-8 W.B.℃

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S A AS S- -1 12 2H HR R4 4S SV VT TV VC
C
2
2-1. Unit specifications
Model No. AS-12HR4SVTVC
Type H/P,ON/OFF
Ratings
Cooling Capacity Btu/h 12200
Heating Capacity Btu/h 13600
Rated Input-Cooling W 1115
Rated Input-Heating W 1104
Moisture Removal L/H.r 1.5
Air Circulation m3/h Max 550
EER for Cooling Btu/h.W, W/W 10.94, 3.21
COP for Heating W/W 3.61
Energy Class Cooling A
Energy Class Heatling A
Refrigerant R410a
Refrigerant charge volume g 1080
High(dB (A)) 37
Indoor Unit Noise Level Low(dB (A)) 32
Outdoor Unit Noise Level dB (A) 54
Power Supply
Voltage, Frequency, Phase V 220-240V~,50Hz,1P
Cooling (A) 5.3
Rated Current Heating (A) 5.1
LRA A 28
System
Compressor type Rotary
Compressor Model No. PA145X2C-4FT
Compressor MFG TOSHIBA
Expansion Device Capillary
Evaporator Copper tube and Aluminum Fin
Condenser Copper tube and Aluminum Fin
Connecting Pipe Diameter
Liquid Pipe inch 1/4
Gas Pipe inch 1/2
Features
Display on Front Panel LED
LCD Wireless Remote Controller Yes
Removable and washable Panel Yes
Washable PP Filter Yes
Active Charcoal Filter Optional
Electrostatic Filter Optional

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S A AS S- -1 12 2H HR R4 4S SV VT TV VC
C
3
HEPA Filter Optional
LTC Filter Optional
Catechin filter Optional
Negative ion filter Optional
Photic Catalyst filter Optional
Vitamin-C filter Optional
24 Hours Timer Yes
3 Speed and Auto Indoor Fan Control Yes
Vertical Auto Swing Louver Yes
Manual Adjustable Horizontal Swing Louver Yes
Sleep Operation Yes
Smart Function Yes
Super Function Yes
Compressor Indicator Yes
Auto Restart Yes
Other
Indoor Unit 818x270x192
NetDimensions
WxHxD (mm) Outdoor Unit 715x482x240
Indoor Unit 10
Net Weight (Kg) Outdoor Unit 32
Indoor Unit 910X380X285
Packing Dimensions WxHxD
(mm) Outdoor Unit 844x531x366
Indoor Unit 12
Gross Weight (Kg) Outdoor Unit 35
Loading Capacity (20'/40'/40'HC ) 106/230/255
Approvals CE, WEEE,RoHS
NOTE :Test conditions：
Cooling : Indoor: DB27℃/ WB19℃ Outdoor: DB35℃/ WB24℃
Heating: Indoor: DB20℃/ WB15℃ Outdoor: DB7℃/ WB 6℃
2-2. Major component specifications
2-2-1.INDOOR FAN MOTOR
ELECTRIC
PERFORMANCE PARAMETER
Motor model DG13G1-05
Rated power source 208V～240V；50Hz～60Hz
Poles 4
Rated load output(W) 12W
Ambient temperature(℃) -5℃～+43℃.

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S A AS S- -1 12 2H HR R4 4S SV VT TV VC
C
4
WIRING DIAGRAM
2-2-2 OUTDOOR FAN MOTOR
ELECTRIC
PERFORMANCE PARAMETER
Motor model +DG13Z1-10
Rated power source 208~240V 50Hz
Poles ----
Rated load output(W) 25W
Ambient temperature(℃) -5℃～+43℃.
WIRING DIAGRAM

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S A AS S- -1 12 2H HR R4 4S SV VT TV VC
C
5
2-2-3. COMPRESSOR
ELECTRIC PERFORMANCE PARAMETER
Compressor model PA145X2C-4FT
Compressor type Rotary
Motor type. PSC
Winding resistance（at 20℃）Main:2.31Ω±5%, aux:3.23Ω±5%
Motor Running capacitor 35uF/450V
Number of cylinder 1
Oil type RB68AF/T68/A68tf
Oil charge (cc) 480
Input power(W) 1195W/1235W (+5%)
Current (A) 5.52A/5.34A (+5%)
Ambient temperature( )℃-5℃～+43 .℃
WIRING DIAGRAM
2-3. Other component specifications
2-3-1. LOUVER MOTOR
ELECTRIC
PERFORMANCE PARAMETER
Stepper Motor model DG13B1-09
Voltage(DC) 12V
Number of phase 4
Drive mode 1-2 phase excitation unipolar drive
Resistance per phase 200Ω±7%
Relative humidity(RH) 45%～85%
Temperature range(℃) -10℃～+40℃.

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S A AS S- -1 12 2H HR R4 4S SV VT TV VC
C
6

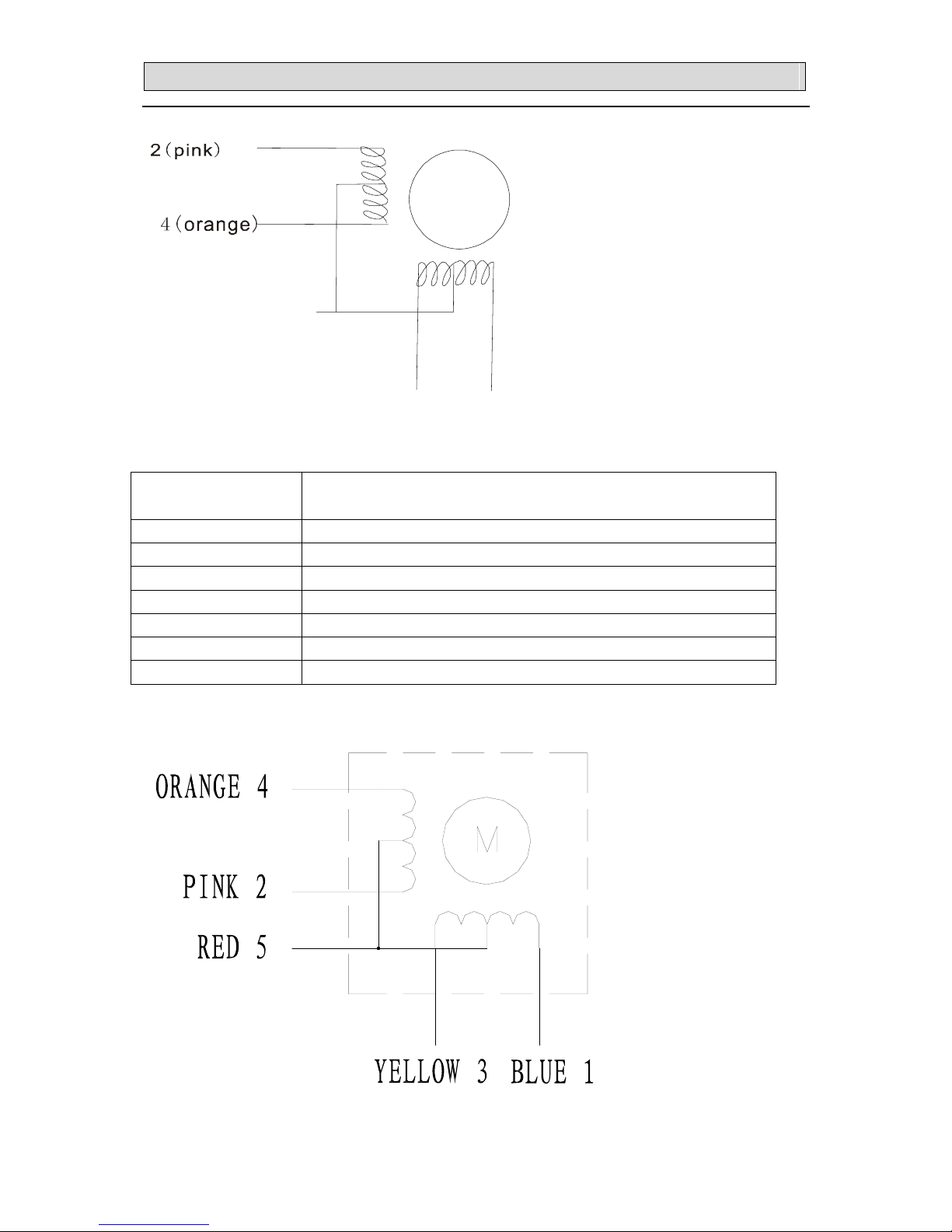

WIRING DIAGRAM
3 yellow ()
1blue ()
5red ()
M
2-3-2. PANEL MOTOR
ELECTRIC
PERFORMANCE PARAMETER
Stepper Motor model DG13B3-02
Voltage(DC) 12V
Number of phase 4
Drive mode 1-2 phase excitation unipolar drive
Resistance per phase 90Ω±7%
Relative humidity(RH) 45%～85%
Temperature range(℃) -10℃～+40℃.
WIRING DIAGRAM

3
3. . I IN NS ST TA AL LL LA AT TI IO ON N
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
7
1、How to choose an air conditioner：
a. Choice for reference: 150-170W/㎡ for average rooms;
b. Choice for reference: 160-200W/㎡ for small size offices;
c. Choice for reference: 220-350W/㎡ for restaurants;
d. Choice for reference: 200-300W/㎡ for entertaining venues;
e. Choice for reference: 220-280W/㎡ for the top floor.
Note:1W = 3.412btu.
2. Indoor Unit:
For indoor unit installation, the distance between its top and the ceiling shall
not be less than 10 cm -20 cm, and the distance from the ground should be between
2m to 2.6m. Also the wallboard must be smooth and straight, with its supporting force
of not less than 60 kg.
The location for installing the indoor unit shall be far away from heat source,
the space between it and the door or window should exceed 0.6m
3. Outdoor Unit:
The air conditioner outdoor unit should not occupy public sidewalks, the
distance between the mounting bracket installed along the road (on condition that
the mounting bracket does not affect the public access, it can be installed
horizontally) and the ground must exceed 2.5m. Also we shall remember that: a. the
air flow must run freely. b. we should protect famous ancient buildings during
installation. c. the installation does not affect the traffic.
The distance between air outlet of outdoor unit and the opposite object should
be more than 1 meter, otherwise the machine would stop running because of overload
by heat yield failure.
If the outdoor unit was opposite the resident's door or window, you should
install the machine as far as possible away from the adjacent doors windows and plants,
and the distance shall not be less than the following values: for the rated cooling
capacity not more than 4.5KW, the distance should be 3m.; for the rated cooling
capacity more than 4.5KW, the distance should be 4m.
It should remember to avoid installing at places where the natural environment
is harsh, such as heavy fumes and wind, direct sunlight or high-temperature and heat,
together with the place where children easily reach.
4. The Unit:
When installing the air conditioner, the outdoor unit should be below the indoor
unit so as to facilitate circle of refrigerant and refrigeration oil .
The height difference between wall mounted indoor unit and the outdoor unit
is generally not more than 5 meters.
The connection pipe can't exceed 5 meters, and the longest is 10 meters. ⑵ when
the length exceeds 5 meters, 15g fluoride is required to be added for each exceeding
1m.

4
4. . E EL LE EC CT TR RI IC CA AL L D DA AT TA A A
AS S- -1 12 2H HR R4 4S SV VT TV VC C
8

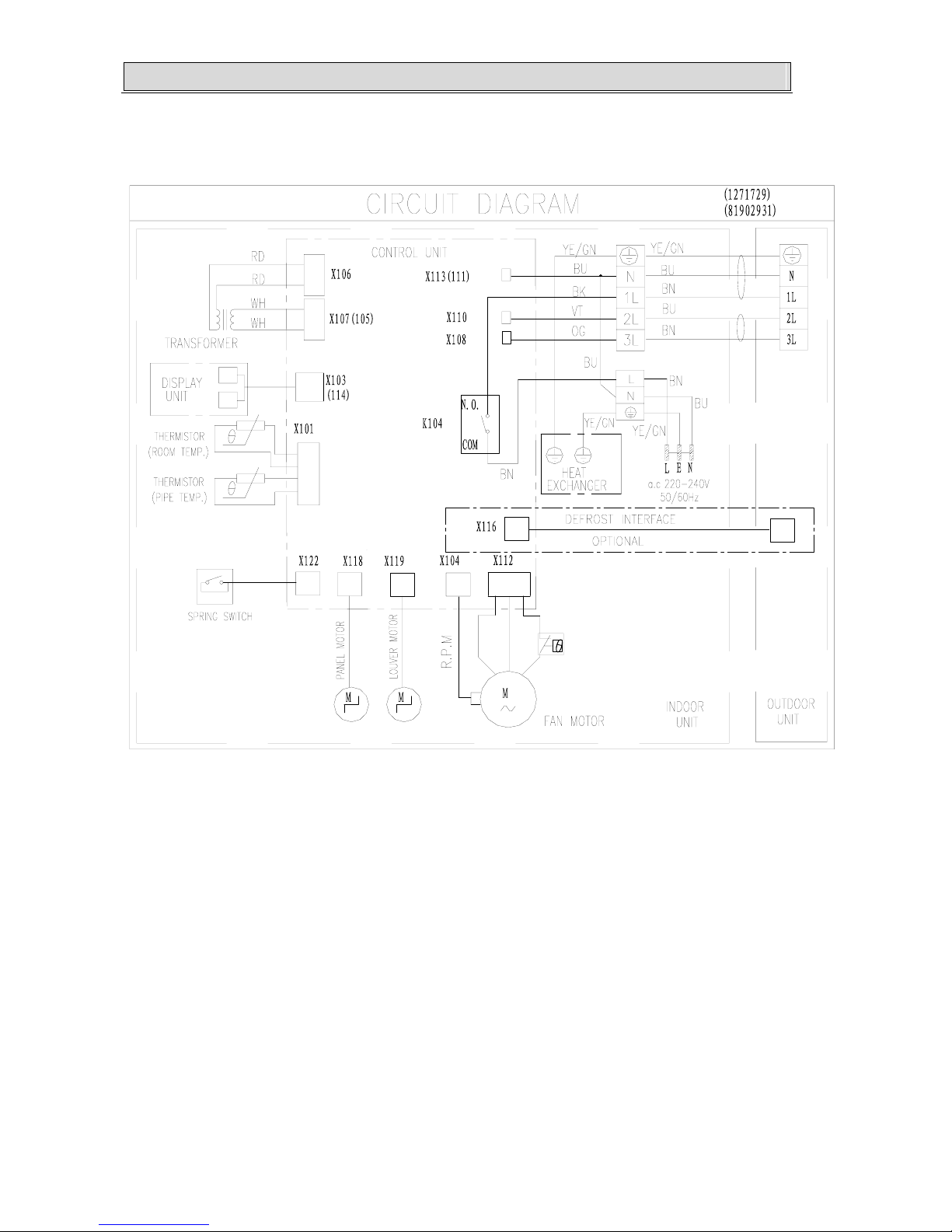

4-1.Electrical wiring diagrams
4-1-1.INDOOR
4-1-1 AS-12HR4SVTVC

4
4. . E EL LE EC CT TR RI IC CA AL L D DA AT TA A A
AS S- -1 12 2H HR R4 4S SV VT TV VC C
9
4-1-2. OUTDOOR
4-1-2-1. AS-12HR4SVTVC
4-2-1.THE PARAMETER OF SENSOR:
1. THE PARAMETER OF THE COILAND INDOOR AND OUTDOOR SENSOR：（R0=15K±2%）
T(℃) R(KΩ) V(v) A/D T(℃) R(KΩ) V(v) A/D
-20 152.5 4.5522388 E8 30 11.99 2.221193 71
-19 143.9 4.528005 E7 31 11.47 2.1666037 6E
-18 135.8 4.5026525 E6 32 10.98 2.113164 6C
-17 128.3 4.4766225 E4 33 10.51 2.0599765 69
-16 121.1 4.4489346 E3 34 10.06 2.0071828 66
-15 114.5 4.4208494 E1 35 9.634 1.9554275 64
-14 108.2 4.3912338 E0 36 9.229 1.9045359 61
-13 102.3 4.3606138 DE 37 8.842 1.8542907 5F
-12 96.73 4.3287389 DD 38 8.474 1.8049757 5C
-11 91.51 4.2958408 DB 39 8.123 1.7564762 5A
-10 86 4.2574257 D9 40 7.789 1.7089385 57
-9 81.97 4.2265649 D8 41 7.47 1.6622163 55
-8 77.62 4.1902397 D6 42 7.165 1.6162869 52
-7 73.52 4.1527338 D4 43 6.875 1.5714286 50
-6 69.05 4.107674 D1 44 6.597 1.5272955 4E

4
4. . E EL LE EC CT TR RI IC CA AL L D DA AT TA A A
AS S- -1 12 2H HR R4 4S SV VT TV VC C
10
-5 66.01 4.0741884 D0 45 6.333 1.4843201 4C
-4 62.58 4.033256 CE 46 6.08 1.4421252 4A
-3 58.34 3.9773657 CB 47 5.838 1.4008062 47
-2 56.29 3.947959 C9 48 5.608 1.3606366 45
-1 53.41 3.9036691 C7 49 5.387 1.3211851 43
0 50.69 3.8582737 C5 50 5.177 1.2828964 41
1 48.12 3.8117871 C2 51 4.976 1.2454946 40
2 45.7 3.7644152 C0 52 4.783 1.2088662 3E
3 43.41 3.7159733 BE 53 4.599 1.1732741 3C
4 41.25 3.6666667 BB 54 4.423 1.1385986 3A
5 39.2 3.6162362 B8 55 4.255 1.1049078 38
6 37.27 3.5651425 B6 56 4.093 1.0718588 37
7 35.44 3.5130849 B3 57 3.939 1.0399176 35
8 33.71 3.4602751 B0 58 3.792 1.00894 33
9 32.08 3.4069669 AE 59 3.65 0.9785523 32
10 30.63 3.3563445 AB 60 3.515 0.9492304 30
11 29.06 3.2977758 A8 61 3.385 0.9205874 2F
12 27.68 3.2427366 A5 62 3.261 0.8928865 2E
13 26.36 3.1866538 A3 63 3.142 0.8659464 2C
14 25.12 3.1306082 A0 64 3.028 0.8398047 2B
15 23.84 3.069001 9D 65 2.918 0.814265 2A
16 22.82 3.0169223 9A 66 2.813 0.7895919 28
17 21.76 2.9597388 97 67 2.713 0.7658217 27
18 20.75 2.9020979 94 68 2.618 0.7429901 26
19 19.79 2.8442081 91 69 2.524 0.7201552 25
20 18.88 2.7863046 8E 70 2.436 0.6985547 24
21 18.03 2.729337 8B 71 2.36 0.6797235 23
22 17.21 2.6715306 88 72 2.268 0.656706 21
23 16.44 2.6145038 85 73 2.189 0.6367444 20
24 15.7 2.5570033 82 74 2.114 0.617623 1F
25 15 2.5 80 75 2.041 0.5988498 1F
26 14.33 2.4428912 7D 76 1.971 0.5806965 1E
27 13.7 2.3867596 7A 77 1.905 0.5634428 1D
28 13.1 2.3309609 77 78 1.84 0.5463183 1C
29 12.53 2.2756992 74 79 1.778 0.5298605 1B
80 1.719 0.5140858 1A

5
5. . C CO ON NT TR RO OL L M MO OD DE E
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
11
Chapter 1 System Description
1. System control diagram
2. Function Description
a) Operation Mode: Cooling, Heat, Dry, Fan only.
b) Intake air temperature sense, Indoor coil pipe temperature sensor .
c) Indoor Fan mode Selector: Auto, High, Medium, Low.
d) Air flow direction control
e) Display function
f) Panel switch function
g) 4-way reversing valve control
h) Compressor ON/OFF control
i) Outdoor fan motor control
j) Error inquiry
k) Ceased delay protection for compressor
l) Room temperature display(optional)
3. System Signal Input
Remote control signal, room temperature signal, coil pipe temperature signal,
“ON/OFF” signal, Jiggle Switch signal.
4. System Signal Output
1.1 H/C split unit: louver motor(step motor), panel motor(step motor), indoor fan
Remote control Remote Display
Room temperature sensor
Indoor pipe temp. sensor
Indoor PCB
circuit Indoor fan motor
louver motor
Outdoor fan motor
4-way reversing valve
Compressor Outdoor control circuit
Panel moto
r
Ji
gg
le Switch

5
5. . C CO ON NT TR RO OL L M MO OD DE E
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
12
motor(PG regulating motor or tapped regulating motor), 7-segment tube and LED
display, Buzzer, Outdoor fan motor, Coil of the 4-way reversing valve, Compressor( or
AC contactor).
1.2 Cooling only split unit: louver motor(step motor), panel motor(step motor),
indoor fan motor(PG regulating motor or tapped regulating motor),7-segment tube and
LED display, Buzzer, Outdoor fan motor, Compressor( or AC contactor).
5. Operation Mode
5.1 Operation mode
Cooling mode: Heat mode, Dry mode, Fan only mode.
5.2 Mode and function combination
These 4 modes contain the combination of the hereinbefore functions, and run these
operations control by remote control also.
5.3 Emergent start
If the appliance under the Stand-by state, all the Operation Mode, Air volume,
Temperature Setting , Delay time of Real Time Setting(High end) and Forced Cooling
function will be restored as the last time setting when you press on the “ON/OFF”
button, but lost the Air flow direction setting, Delay time of Non-real Time
Setting(Low end), and sleep function.
If the appliance was connected to the power at first time, it would operate
in smart mode, and set the mode, swing louver angle and the Air volume when you
press the “ON/OFF” button. It will keep in stand-by state if you press the
“ON/OFF” button during the normal operation.
5.4 Other control mode
（1） When the PCB circuit was connected to the power at first time, the buzzer
triggered and beep.
（ 2 ） The compressor responded the variation of temperature after the
compressor operated in 3 min, and it will be ceased for 3 min then re-start.
When the operation mode changed or power off, the compressor turned off
immediately. For the other normal operation, the compressor has a 3 min delay
protection. If the compressor Power ON or OFF, the outdoor fan motor will be
ON or OFF correspondingly.
（3）
The appliance is ceased for 3 min delay protection when the auto-restart
after blankout.
（4）The appliance is ceased for 5 sec delay protection to perform the other
operation after it receive the signal of specific operation, but no any delay
for the response.
（5）When the appliance power OFF, the indoor fan motor operated as below
condition:
a．Cooling and Dry mode: After the compressor power off, it will be operated in 30
sec under the presetting speed then turn off.
b．Fan only mode: it will be stopped immediately after the compressor power off.
c．Heating mode: After the compressor stopped, the indoor fan motor will stop if the
indoor coil pipe lower than 33℃, otherwise the indoor fan motor would operate on the

5
5. . C CO ON NT TR RO OL L M MO OD DE E
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
13
Low air speed setting to cool down the coil pipe, and it would stop for the max 30 sec.
（6）When the Heating mode set at first time or turn to the Heating mode from other mode,
the 4-way reversing valve will be triggered after the compressor power ON. If the
appliance turn off under the Heating mode, the 4-way reversing valve would be OFF after
3 min delay.
Chart 2 System Function Design
1. Function description
1.1 The appliance could be operate by Manual and Remote control, and the Remote
control could be set all the smart, Cooling, Dry, Heating and Fan only functions.
1.2 The temperature setting range from 18℃ to 32℃; and the indoor air temperature
sensor working range from 15℃ to 33℃.
1.3 Indoor air volume setting:
RPM High Medium Low
Heat Refer to the parameter list
Cooling Refer to the parameter list
Dry According to the Dry mode
Fan only the RPM same as Heating mode
1.4 Indoor louver swing control
1.5 Overcooling protection control(only available for Cooling)
1.6 Anti-cold air system(only available for Heat Pump)
1.7 Auto-Defrost(only available for Heat Pump)
1.8 Overheating protection of heater exchange (only available for Heat Pump)
1.9 3 minutes delay protection for compressor
1.10 Timer operation
1.11 Self-diagnosis
1.12 Display function
1.13 Panel switch function
1.14 Auto-restart after blankout
1.15 Error inquiry
1.16 Super
1.17 Room temperature display(optional)
2. General protection system
General protection system means the appliance would be protected when overloading,
high temperature and high pressure occurs during the each operation mode(Cooling,
Heat, Dry and the smart mode). If the appliance works under some special mode, the
specific protection system would be triggered respectively.
2.1 Compressor delay protection

5
5. . C CO ON NT TR RO OL L M MO OD DE E
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
14
The compressor is ceased for 3 minutes to balance the pressure in the refrigeration
cycle in order to protect the compressor.(This protection include the Cooling or
the exchange Dry and Heat mode, but the unit has no this function after it restored.
If the unit restored and turn ON, then this protection would be functioned.)
2.2 Fan motor(PG motor) protection
When the Fan motor(PG motor) receive the signal, it will be stopped after it
detected the speed less than 200RPM.
3. Display function
Running status indication light and dual-bit digital tube should be lighted after
the opening of panel, Strip lights will turn bright and dark softly in a certain
frequency(concrete frequency will change freely according to the effect).
Compressor lights(blue, normal brightness): wlii be lighted when compressor is
running. Under special mode,they will follow the corresponding pattern rules.
Run light(blue, normal brightness): wlii be lighted when the machine is in the
running state . Under special mode,they will follow the corresponding pattern rules.
Timer light(blue, normal brightness): wlii be lighted when the machine is in the
timer state . Under special mode,they will follow the corresponding pattern rules.
Sleep light(blue, normal brightness): wlii be lighted when the machine is in the
sleep state .
Decorative strip lights (blue, high brightness): lighted when the machine is
open,and change from bright to dark,and then from dark to bright, repeatedly change
gradually.
Digital display (blue, normal brightness): LED tubes will shown set temperature when
running, and shown “- -” on dehumidification mode and air distribution mode . When
on timer mode, the LED tubes will show the set temperature for 10 seconds and then
show the time(without the real-time timier state).
4.Panel Switch Function
When air-conditioning is on power,the panel is reset through the feedback signal
of jiggle switch. If the signal sent by jiggle switch is disconnect signal,it means
the panel is open, then close the panel;If the signal is jiggle switch closed signal ,
the panel is closed , the panel does not move.
When the air-conditioning is open,step motor of panel will open from 0º to the
open-angle (VC is 80 º temporary, VC2 is 103 º temporary); When the air-conditioning
is closed,the panel will reset to the closed state according to the closed angle
(VC is 92 º temporary, VC2 is 76 º temporary),step motor of the panel stop immediately
when the controller reads the closed signal of panel switch.
If the jiggle switch state have not changed after the panel starts move for 20
seconds,then the micro-switch will be identified damage,then the panel actions

5
5. . C CO ON NT TR RO OL L M MO OD DE E
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
15
according to the following rules:
After on power, the panel will reset(means closed) according to the closed angle,in
open state the panel will open according to the open angle,closed state will
according to the closed angle,the base is the closed angle.When the operation
comeback valid after on power,the status of the panel keeps the same as the status
before power
5. Operation Mode
The appliance could be operated under Heat, Cooling, Dry and Fan Only mode, and
also the super, smart operation mode
5.1 Fan Only Mode Operation
During the appliance run in this mode, the compressor and outdoor fan stop, the
indoor fan operate under the pre-setting of air volume, and the louver swing, and
the indoor fan speed same as the Heating Mode.
5.2 Cooling Mode Operation
5.2.1 This mode could be selected by the remote control
5.2.2 The 4-way reversing valve will be stopped under this mode.
5.2.3 During this mode, the temperature setting, air volume and air flow
direction could be adjusted.
During the appliance run in normal condition, the compressor’s temperature
can only be adjusted by 1℃ up and down base on the setting temperature, the
compressor operation diagram is shown as following.
When the temperature dropped, the compressor will be power on.
5.2.4 Overcooling protection control
When the indoor coil pipe temperature is lower than 3℃ and higher than -7
℃
during Cooling or Dry operation for 3 min, indoor fan speed turns to high
and outdoor fan turn off. After the temperature recovers to 7℃, the air
conditioner turn to run in normal condition. When the indoor coil pipe
temperature falls below –7℃
during COOLING or DRY operation for 3 minutes,
Tem
p
erature fall
Tem
p
erature rise
Compressor power ON
The setting temp. minus 1℃
The setting temp. plus 1℃
Compressor power OFF
Compressor power OFF
Compressor power ON

5
5. . C CO ON NT TR RO OL L M MO OD DE E
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
16
the compressor and outdoor fan motor turn OFF. When the indoor pipe
temperature recovers to 5℃
and the compressor has been stopped for 3 minutes,
the compressor and outdoor fan motor will be turned ON.
5.2.5 Indoor fan operation
(1) When room temperature is higher than 35℃, the compressor is ceased
for 1 min then turn on, (when the compressor ceased for 3 min protection,
the indoor fan should be turn on immediately
(2）When the indoor fan keep in running condition, this operation state could
be controlled by the remote control with High, Median, Low and Automatic
setting.
(3）When the appliance is set Automatic condition in the Cool mode for the first time,
the fan speed will run at Low setting. After that, temperature and fan speed is shown as
following.
5.2.6 Air flow direction control
The louver is derived by a step motor, and it swings the horizontal louver automatically.
Press the SWING button to swing or stop the louver.
During the louver swing in normal operation, the current position will be stored. When
the appliance turn off and louver swing automatically to the default position, it will
position at the stored position plus 5º.
5.3 Dry mode operation
When the appliance run into the Dry mode, it starts as Cooling mode operation. If 3 minutes
elapses after starting, the appliance will sense the intake air temperature and minus 2℃as the
setting temperature and operate in Cooling mode, and the indoor motor speed is low. During this
operation, the air flow direction could be set but the air volume is unavailable, and the setting
temperature can only be adjusted by 2℃ up and down(the minimum accuracy is 1℃).
When the appliance run in this mode, it will not influenced by under the 18℃ limit.
5.4 Heating mode operation
5.4.1 The 4-way reversing valve is turn ON under the Heating mode.
5.4.2 During this mode operation, the setting temperature and air volume
Tem
p
erature fall
High
Th
e
sett
in
g
te
m
p.
p
l
us
2
℃
Median
The setting temp.
Low
low
Median
Th
e
sett
in
g
te
m
p.
p
l
us
1
℃
Th
e
sett
in
g
te
m
p.
p
l
us
3
℃

5
5. . C CO ON NT TR RO OL L M MO OD DE E
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
17
can be adjusted, and the air flow direction could be swang.
When the appliance run in normal condition, the compressor’s temperature
can only be adjusted by 1℃ up and down base on the setting temperature,
the compressor operation diagram is shown as following.
When the temperature rose, the compressor will be power ON.
5.4.3 Indoor fan motor operation
Anti-cold air system
When the appliance run in Heat mode condition, the indoor fan motor operation
is shown as following to prevent the cooling air come out during the appliance
operation.
When the appliance turn in the anti-cold air system in the Extra-LOW (Tapped
motor set in LOW, sic passim) during the compressor operation, the louver swang to the
Cool air protection position, the louver recovers to the original position after the air
volume change to LOW. When the room temperature reach to the setting temperature,
the compressor will be turn off, and the air flow change to LOW, the louver swang to
the Cool air protective position to prevent the air drop into human body directly; when
the indoor pipe coil temperature drop continuously, it will turn in the Cooling air
5.4.4 The indoor fan motor will operate according to the different
setting(High, Median, Low and Automatic) by the remote control, but the
anti-cold air system is prior.
When the appliance run in the Heat mode with the Automatic setting at first time, the
fan speed will be in the LOW setting, and the operation diagram is shown as following
Tem
p
erature fall
Tem
p
erature rise
30℃
(
#27
)
The set
ting
air flow
The setting
air flow
35℃
(
#26
)
25℃
(
#28
)
Low
Extra-low
Sto
p
Sto
p
Tem
p
erature fall
Tem
p
erature rise
Compressor power OFF
The setting temp. minus 1℃
The setting temp. plus 1℃
Compressor power ON
Compressor power ON
Compressor power OFF

5
5. . C CO ON NT TR RO OL L M MO OD DE E
A AS S- -1 12 2H HR R4 4S SV VT TV VC C
18
5.4.5 Overheating protection control
When overloading occurs during the heating operation, this system controls
the outdoor fan motor and compressor according to the indoor coil pipe
temperature to prevent the overloading of the compressor and restrict the
pipe pressure to rise up. When the indoor pipe temperature exceeds 53℃, the
outdoor fan motor will be turned OFF, and when the indoor pipe temperature
falls below 49℃, the outdoor fan motor recovers to ON; When the indoor pipe
temperature exceeds 63℃, the appliance will be turned OFF .
4.4.6 Air flow direction control
The horizontal louver is controlled by a step motor, press the SWING button to swing or
stop the louver.
During the louver run in normal operation, the current position will be stored. When the
appliance turn off and louver swing automatically to the default position, it will position
at the stored position plus 5º.
5.5 Smart control
When the appliance operates at smart, the air flow direction can be adjusted.
(1) H/C appliance
a. When the setting temperature is 26℃, the appliance will be ran in the
Cool if the room temperature exceeds 26℃.
b. When the room temperature exceeds 23℃, but below 26℃, it will be ran
in the Dry mode(It will turn in Automatic setting After 3 min LOW air volume
running.).
c. When the room temperature exceeds 21℃, but below 23℃, it will be
operated in the Fan only, the air volume is set by LOW and the fan speed
can be adjusted
d. When the room temperature is not more than 21℃, it will be operated in
Heat mode, and the temperature is set to 22℃.
(2) Cool only appliance
a. When the room temperature exceeds 26℃, it will be ran in Cool mode, and
the temperature is set to 22℃.
b. When the room temperature exceeds 23℃, but not more than 26℃, it will
Tem
p
erature fall
low
Th
e
sett
in
g
te
m
p.
min
us
1
℃
Median
The setting temp minus 3℃
high
high
Median
Th
e
sett
in
g
te
m
p
min
us
2
℃
The setting temp.
Temperature rise
low
