Hisense GBF18H-S User manual

We,
Hisense International Co., Ltd
Hisense（Shandong) Air-conditioning Co.,Ltd.
No.8 Ronggang Road, Ronggui, Shunde,Foshan, Guangdong, P.R.China
No.1 Hisense Road, Nancun, Pingdu,Qingdao, Shandong Province, P.R.China
( Supplier Address & Factory Address )
declare under our sole responsibility that the product
AIR CONDITIONER
(Category Name)
GBF18H-S GDF18H-S GFF18H-S GCF18H-S
GBF24H-S GDF24H-S GFF24H-S GCF24H-S
GBF36H-S GDF36H-S GFF36H-S GCF36H-S
GBF48H-S GDF48H-S GFF48H-S GCF48H-S
GBF60H-S GDF60H-S GFF60H-S GCF60H-S
(Model Name)
to which this declaration relates is in conformity with the technical requirements of the
following standard(s)
EMC Directive- 2014/30/EU
Low Voltage Directive-2014/35/EU
CE Marking Directive-93/68/EEC
LVD standard EMC standard
EN 60335-1:2012+A11:2014 EN 55014-1:2006
EN 60335-2-40:2003 +A1:2009+A2:2011
+A11:2004+A12:2005+A1:2006+A2:2009 EN 55014-2:1997 +A1:2001+A2:2008
+A13:2012 EN 61000-3-2:2014
EN 62233:2008 EN 61000-3-2:2014
EN 61003-3-3:2013

We, hereby further declare that the following products (Product catalog) are exactly the same,
only difference being the art work.
Factory Model No. Client Model
No. Brand Type/Description/Feature
AUC-18HR4SAA GBF18H-S Galactic R410a, On/Off, 18000Btu,CASSETTE type indoor unit
AUC-24HR4SGA GBF24H-S Galactic R410a, On/Off, 24000Btu,CASSETTE type indoor unit
AUC-36HR4SGA GBF36H-S Galactic R410a, On/Off, 36000Btu,CASSETTE type indoor unit
AUC-48HR4SHA GBF48H-S Galactic R410a, On/Off, 48000Btu,CASSETTE type indoor unit
AUC-60HR4 SHA GBF60H-S Galactic R410a, On/Off, 60000Btu,CASSETTE type indoor unit
AUD-18HX4SNL GDF18H-S Galactic R410a, On/Off, 18000Btu,DUCT type indoor unit
AUD-24HX4SLH GDF24H-S Galactic R410a, On/Off, 24000Btu,DUCT type indoor unit
AUD-36HX4S1HH GDF36H-S Galactic R410a, On/Off, 36000Btu,DUCT type indoor unit
AUD-48HX4SHH GDF48H-S Galactic R410a, On/Off, 48000Btu,DUCT type indoor unit
AUD-60HX4SHH GDF60H-S Galactic R410a, On/Off, 60000Btu,DUCT type indoor unit
AUV-18HR4SA GFF18H-S Galactic R410a, On/Off, 18000Btu,FLOOR-CEILING type indoor unit
AUV-24HR4SA GFF24H-S Galactic R410a, On/Off, 24000Btu,FLOOR-CEILING type indoor unit
AUV-36HR4SB GFF36H-S Galactic R410a, On/Off, 36000Btu,FLOOR-CEILING type indoor unit
AUV-48HR4SC GFF48H-S Galactic R410a, On/Off, 48000Btu,FLOOR-CEILING type indoor unit
AUV-60HR4SC GFF60H-S Galactic R410a, On/Off, 60000Btu,FLOOR-CEILING type indoor unit
AUW-18H4SU1 GCF18H-S Galactic R410a, On/Off, 18000Btu,universal outdoor unit
AUW-24H4SZ1 GCF24H-S Galactic R410a, On/Off, 24000Btu,universal outdoor unit
AUW-36H6S1A1 GCF36H-S Galactic R410a, On/Off, 36000Btu,universal outdoor unit
AUW-48H6SE1 GCF48H-S Galactic R410a, On/Off, 48000Btu,universal outdoor unit
AUW-60H6SP1 GCF60H-S Galactic R410a, On/Off, 60000Btu,universal outdoor unit
King Huang Product Manager
Name of authorized officer Title of authorized officer
2017-03-12Date of issue Signature & company seal

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 1
1-1 Features
Duct Type Air Conditioner
Features
➢Save Installation Space
The indoor unit can be installed inside the ceiling conveniently.
➢Optional Static Pressure
18k: optional 10Pa /30Pa, 24K/36K 50Pa/80Pa 48K/60K: 80Pa/120Pa static Pressure.
One unit, mute optional installation method.
➢High Efficiency and Environment Friendly New Refrigerant-R410A
R410A can protect the environment and do not harm to the ozone layer.
➢24-hour Timer ON and OFF
This Timer can be set to automatically turn the unit on or off within a 24-hour period.
➢Mute Operation
The excellent fan design enable the airflow to be quiet and smooth with minimum
noise.
➢Meeting Various Installation Requirements
The back-air-inlet type is usually to be adopted according to the actual installation
space.
The unit is also installed with down-air-inlet type and the noise will increase about 5-6
dB.

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 2
➢Self Recovery of Power Break
When the power supply is recovered after break, all preset are still effective and the
air-conditioner can run according to the original setting.
➢Fault Self-diagnose Function
When there is something wrong with the air-conditioner，the micro computer could
diagnose the faults, which can be read from the display and is convenient for
maintenance.

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 3

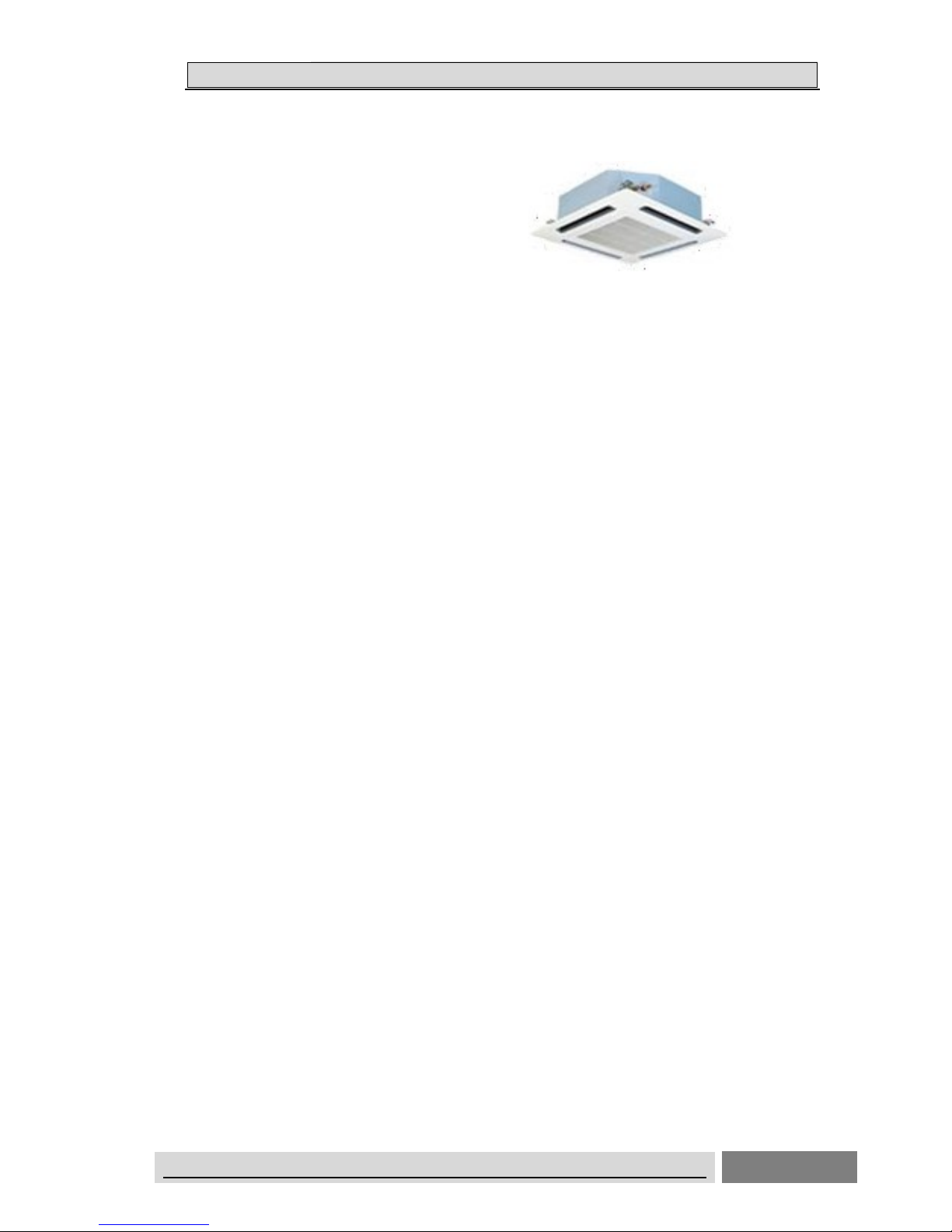

Cassette Type Air Conditioner
Features
➢Save Installation Space
The indoor unit can be installed inside the ceiling conveniently.
➢High Efficiency and Environment Friendly New Refrigerant-R410A
R410A can protect the environment and do not harm to the ozone layer.
➢24-hour Timer ON and OFF
This Timer can be set to automatically turn the unit on or off within a 24-hour period.
➢Mute Operation
The excellent fan design enable the airflow to be quiet and smooth with minimum noise.
➢Self Recovery of Power Break
When the power supply is recovered after break, all preset are still effective and the
air-conditioner can run according to the original setting.
➢Fault Self-diagnose Function
When there is something wrong with the air-conditioner, the micro computer could
diagnose the faults, which can be read from the display and is convenient for maintenance.

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 4
Ceiling &Floor Air Conditioner
Features
➢Save Installation Space
The indoor unit’s thickness is only 230mm,can be installed inside the ceiling conveniently.
➢Flexible Installation Options
According to the actual installation space,The indoor unit can be installed in the ceiling
or on the floor. One unit, Two installation method.
➢High Efficiency and Environment Friendly
New Refrigerant-R410A
R410A can protect the environment and do not harm to the ozone layer.
➢24-hour Timer ON and OFF
This Timer can be set to automatically turn the unit on or off within a 24-hour period.
➢Mute Operation
The excellent fan design enable the airflow to be quiet and smooth with minimum noise.
➢Various Refrigerant Pipe Connect Methods
The refrigerant pipe can be connect from 3 different directions(rear,right or top) .More methods,
more conveniently.
➢Self Recovery of Power Break
When the power supply is recovered after break, all preset are still effective and the
air-conditioner can run according to the original setting.
➢Fault Self-diagnose Function

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 5
When there is something wrong with the air-conditioner, the micro computer could diagnose the
faults, which can be read from the display and is convenient for maintenance.

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 6
1-2 Product Lineup
Type Model 18 24 36 48 60
Duct Type AUD- ●●●●●
Cassette Type AUC- ●●●●●
Ceiling&Floor
type AUV- ●●●●●

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 7
1-3 MODEL IDENTIFICATION
A U C -18 U R 4 S Z A A 1
G:Indoor Unit Indetification
S:Refrigerant R410A F:Refrigerant R22
4:220V-240V/50HZ/1P 6:380V-415V/50HZ/3P
X: Wire Remote Controller R:Wireless Remote Controller
Cool Capacity:18x10 Btu/h
Air Conditioner
Unit
K:Outdoor Unit Indetification
Serial Number
U:DC-Invert Heat Pump Type H:Heat Pump Type C:Cooling Only
Type:D-Duct Type,C-Cassette Type,V-Ceiling&Floor Type,W-Outdoor Unit
3

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 8
1-4 Product Picture
Duct Type
Model AUD-18HX4SUNL
AUD-18HX4SUNL1
AUD-24HX4SZLH
AUD-24HX4SZLH1
AUD-36HX6SAHH
AUD-36HX6SAHH1
AUD-36HX6S1A1HH1
AUD
Indoor
Outdoor
Model AUD-48HX6SEHH1
AUD-48HX6SPHH
AUD-60HX6SPHH
AUD-60HX6SPHH1
Indoor
Outdoor

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 9

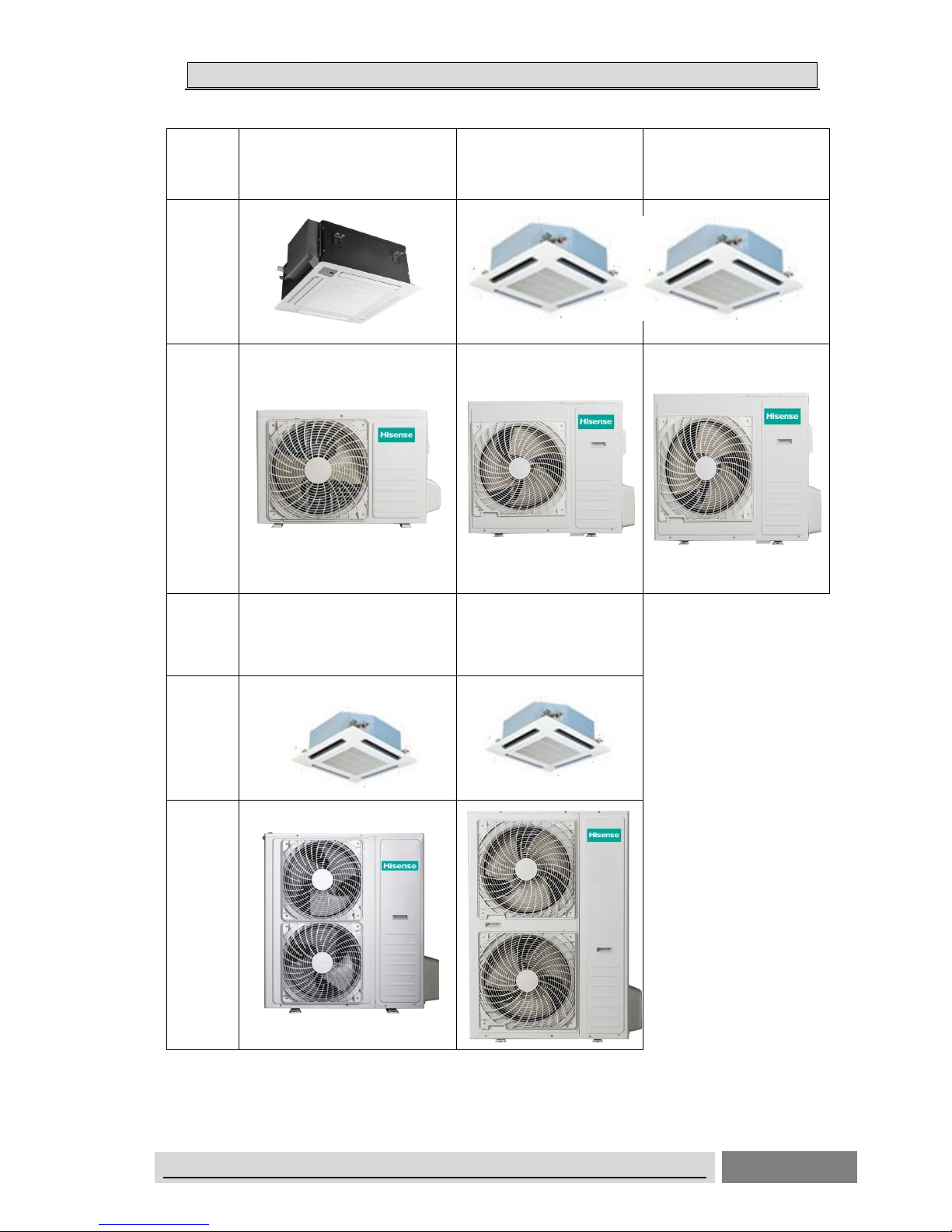

Cassette Type
Model AUC-18HR4SUAA
AUC-18HR4SUAA1
AUC-24HR4SZGA
AUC-24HR4SZGA1
AUC-36HR6SAGA
AUC-36HR6SAGA1
AUC-36HR6S1AGA1
Indoor
Outdoor
Model AUC-48HR6SEHA1
AUC-48HR6SPHA
AUC-60HR6SPHA
AUC-60HR6SPHA1
Indoor
Outdoor

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 10
Ceiling&Floor Type
Model AUV-18HR4SUA
AUV-18HR4SUA1
AUV-24HR4SZA
AUV-24HR4SZA1
AUV-36HR6SAB
AUV-36HR6SAB1
AUV-36HR6S1AB1
Indoor
Outdoor
Model AUV-48HR6SEC1
AUV-48HR6SPC
AUV-60HR6SPC
AUV-60HR6SPC1
Indoor
Outdoor

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 11
DISPLAY PANEL
Cassette Type
18k
24K，36K，48K，60K

1
1. . G GE EN NE ER RA AL L
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 12
Ceiling&Floor type

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 13
2. Specifications
2.1Duct Type
On/Off Unitary Indoor Unit
AUD-18HX4SUNL AUD-24HX4SZLH AUD-36HX6SAHH AUD-48HX6SPHH AUD-60HX6SPHH
Indoor model：AUD-18HX4SNL AUD-24HX4SLH AUD-36HX4SHH AUD-48HX4SHH AUD-60HX4SHH
Outdoor model：AUW-18H4SU AUW-24H4SZ AUW-36H6SA AUW-48H6SP AUW-60H6SP
Performance
Cooling Capacity (W) 5000 7400 10200 14000 16000
Heating Capacity (W) 5500 7900 11250 15000 17500
Rated
Input (w)
Cooling 1550 2450 3625 4651 5694
Heating 1600 2190 3295 4532 5814
Air Circulation (m3/h) 710 1100 1800 2000 2000
EER for Cooling (w/w) 3.23 3.02 2.81 3.01 2.81
Energy Class A B C B C
COP for Heating (w/w) 3.44 3.61 3.41 3.31 3.01
Energy Class B A B C D
ESP (Pa) 10(30) 50(80) 50(80) 80(120) 80(120)
Power Supply
Volt/Phase/Hz
220-240V~/1P/50
Hz
220-240V~/1P/50
Hz
220-240V~/1P/50
Hz
220-240V~/1P/50
Hz
220-240V~/1P/50
Hz
Rated
Current
(A)
Cooling 7.1 11.5 6.5 8.8 10.0
Heating 7.3 11.0 6.1 8.6 10.3
Noise
Level
(dB (A))
Indoor
Unit
H/M/
L
37/35/32 40/38/36 40/38/36 46/44/42 46/44/42
Piping
Diameter(Liquid) Inch 1/4 3/8 3/8 3/8 3/8
Diameter(Gas) Inch 1/2 5/8 5/8 3/4 3/4
Max Length m 20 30 30 50 50
Max Height m 15 15 20 30 30
System
Compressor type Rotary Rotary SCROLL SCROLL SCROLL
Compressor MFG GMCC GMCC SANYO SANYO SANYO
Expansion Device capillary capillary capillary CAPILLARY CAPILLARY
Evaporator
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Condenser
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Other

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 14
AUD-18HX4SUNL AUD-24HX4SZLH AUD-36HX6SAHH AUD-48HX6SPHH AUD-60HX6SPHH
Indoor model：AUD-18HX4SNL AUD-24HX4SLH AUD-36HX4SHH AUD-48HX4SHH AUD-60HX4SHH
Outdoor model：AUW-18H4SU AUW-24H4SZ AUW-36H6SA AUW-48H6SP AUW-60H6SP
Dimensions
WxHxD
(mm)
Indoor
Unit
900×190×447 900×270 ×720 1386×350×800 1386×350×800 1386×350×800
Net Weight
(Kg)
Indoor
Unit
19
32
54 54 54
Packing
Dimensions
WxHxD
(mm)
Indoor
Unit
1070X236X580 1170X340X870 1550×410×940 1550×410×940 1550×410×940
Gross
Weight (Kg)
Indoor
Unit
24 37 62 62 62

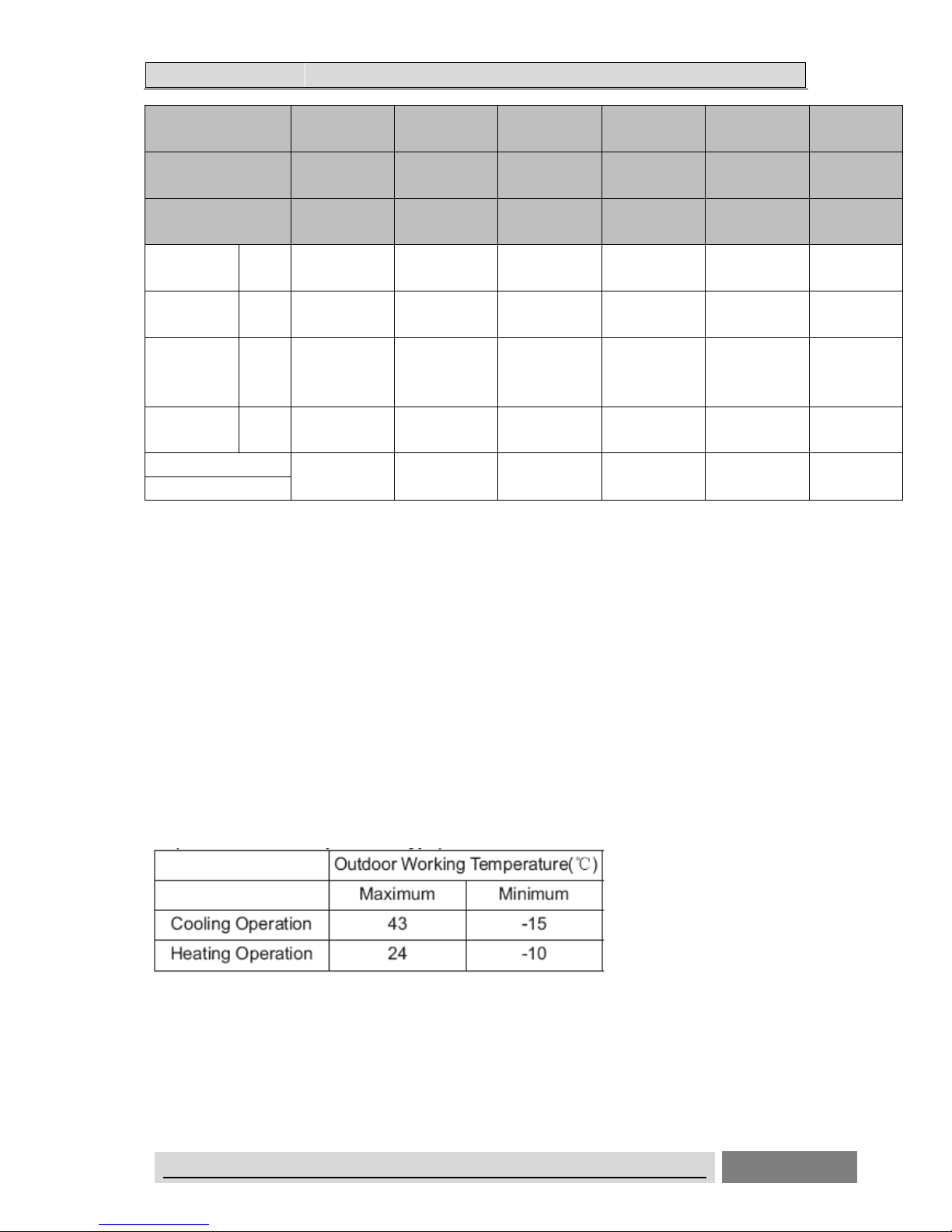

Test conditions：
Cooling : Indoor: DB27℃/ WB19℃Outdoor: DB35℃/ WB24℃
Heating: Indoor: DB20℃/ WB15℃Outdoor: DB7℃/ WB 6℃
Remarks:
1. The above design and specifications are subject to change without prior notice for product
improvement.
2.The values given in the table for noise level reflect the levels in anechoic chamber.
This heat pump air conditioner has been designed for the following temperatures.
Operate the heat pump air conditioner within this range.
Storage condition: Temperature -20~65℃
Humidity 30%~80%

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 15
On/Off Unitary Indoor Unit (Low temp.)
AUD-18HX4SU
NL1
AUD-24HX4SZL
H1
AUD-36HX6SA
HH1
AUD-36HX6S1A
1HH1
AUD-48HX6SE
HH1
AUD-60HX6S
PHH1
Indoor model：
AUD-18HX4SN
L
AUD-24HX4SL
H
AUD-36HX4SH
H
AUD-36HX4S1H
H
AUD-48HX4SH
H
AUD-60HX4S
HH
Outdoor model：AUW-18H4SU1 AUW-24H4SZ1 AUW-36H6SA1
AUW-36H6S1A
1
AUW-48H6SE1
AUW-60H6SP
1
Performance
Cooling Capacity (W) 5000 7400 10200 10200 14000 16000
Heating Capacity (W) 5500 7900 11250 11250 15000 17500
Rated
Input (w)
Cooling 1550 2450 3625 3625 4651 5694
Heating 1600 2190 3295 3295 4532 5814
Air Circulation (m3/h) 710 1100 1800 1800 2000 2000
EER for Cooling (w/w) 3.23 3.02 2.81 2.81 3.01 2.81
Energy Class A B C C B C
COP for Heating (w/w) 3.44 3.61 3.41 3.41 3.31 3.01
Energy Class B A B B C D
ESP (Pa) 10(30) 50(80) 50(80) 50(80) 80(120) 80(120)
Power Supply
Volt/Phase/Hz
220-240V~/1P/5
0Hz
220-240V~/1P/5
0Hz
220-240V~/1P/5
0Hz
220-240V~/1P/5
0Hz
220-240V~/1P/5
0Hz
220-240V~/1P
/50Hz
Rated
Current
(A)
Cooling 7.1 11.5 6.5 6.5 8.8 10.0
Heating 7.3 11.0 6.1 6.1 8.6 10.3
Noise
Level
(dB (A))
Indoor
Unit
H/M/
L
37/35/32 40/38/36 40/38/36 40/38/36 46/44/42 46/44/42
Piping
Diameter(Liquid) Inch 1/4 3/8 3/8 3/8 3/8 3/8
Diameter(Gas) Inch 1/2 5/8 5/8 5/8 3/4 3/4
Max Length m 20 30 30 30 50 50
Max Height m 15 15 20 20 30 30
System
Compressor type Rotary Rotary SCROLL Rotary Rotary Rotary
Compressor MFG GMCC GMCC SANYO Highly Highly Highly
Expansion Device capillary capillary capillary CAPILLARY CAPILLARY CAPILLARY
Evaporator
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube
and Aluminum
Fin
Condenser
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube and
Aluminum Fin
Copper tube
and Aluminum
Fin
Other

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 16
AUD-18HX4SU
NL1
AUD-24HX4SZL
H1
AUD-36HX6SA
HH1
AUD-36HX6S1A
1HH1
AUD-48HX6SE
HH1
AUD-60HX6S
PHH1
Indoor model：
AUD-18HX4SN
L
AUD-24HX4SL
H
AUD-36HX4SH
H
AUD-36HX4S1H
H
AUD-48HX4SH
H
AUD-60HX4S
HH
Outdoor model：AUW-18H4SU1 AUW-24H4SZ1 AUW-36H6SA1
AUW-36H6S1A
1
AUW-48H6SE1
AUW-60H6SP
1
Dimensions
WxHxD (mm)
Indoor
Unit
900×190×447 900×270 ×720 1386×350×800 1386×350×800 1386×350×800
1386×350×80
0
Net Weight
(Kg)
Indoor
Unit
19
32
54 54 54 54
Packing
Dimensions
WxHxD (mm)
Indoor
Unit
1070X236X580 1170X340X870 1550×410×940 1550×410×940 1550×410×940
1550×410×94
0
Gross Weight
(Kg)
Indoor
Unit
24 37 62 62 62 62
Loading Capacity
76/160/180 36/80/94 23/50/56 23/50/56 23/50/56 19/40/42
(20/40’/40’ HC)
Test conditions：
Cooling : Indoor: DB27℃/ WB19℃Outdoor: DB35℃/ WB24℃
Heating: Indoor: DB20℃/ WB15℃Outdoor: DB7℃/ WB 6℃
Remarks:
1.The above design and specifications are subject to change without prior notice for product
improvement.
2.The values given in the table for noise level reflect the levels in anechoic chamber.
This heat pump air conditioner has been designed for the following temperatures.
Operate the heat pump air conditioner within this range.
Storage condition: Temperature -20~65℃
Humidity 30%~80%

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 17
2.2 Cassette Type
On/Off Unitary Indoor Unit
AUC-18HR4SUA
A
AUC-24HR4SZ
GA
AUC-36HR6SA
GA
AUC-48HR6SP
HA
AUC-60HR6SPHA
Indoor model：AUC-18HR4SAA
AUC-24HR4SG
A
AUC-36HR4SG
A
AUC-48HR4SH
A
AUC-60HR4SHA
Outdoor model：AUW-18H4SU AUW-24H4SZ AUW-36H6SA AUW-48H6SP AUW-60H6SP
Performance
Cooling Capacity (W) 5000 7450 10000 14000 16000
Heating Capacity (W) 5500 7500 11000 14800 17500
Rated Input (w)
Cooling 1550 2320 3550 4650 5694
Heating 1550 2080 3225 4853 5814
Air Circulation (m3/h) 800 1100 1800 2000 2000
EER for Cooling (w/w) 3.23 3.21 2.81 3.01 2.81
Energy Class A A C B C
COP for Heating (w/w) 3.55 3.61 3.41 3.05 3.01
Energy Class B A B D D
ESP (Pa)
Power Supply
Volt/Phase/Hz
220-240V~/1P/50
Hz
220-240V~/1P/5
0Hz
220-240V~/1P/5
0Hz
220-240V~/1P/5
0Hz
220-240V~/1P/50
Hz
Rated Current
(A)
Cooling 7.1 10.8 6.0 8.9 10.0
Heating 7.1 10.0 5.7 9.3 10.3
Noise
Level
(dB (A))
Indoor
Unit
H/M/L 46/42/39 43/38/30 50/47/44 50/45/40 50/45/40
Piping
Diameter(Liquid) Inch 1/4 3/8 3/8 3/8 3/8
Diameter(Gas) Inch 1/2 5/8 5/8 3/4 3/4
Max Length m 20 30 30 50 50
Max Height m 15 15 20 30 30
System
Compressor type Rotary Rotary SCROLL SCROLL SCROLL
Compressor Model
No.
PA190M2CS-4K
TL
PA290G2CS-4
MUL1 C-SBN303H8D C-SBN373H8D C-SBN453H8D
Compressor MFG GMCC GMCC SANYO SANYO SANYO
Expansion Device capillary capillary capillary CAPILLARY CAPILLARY
Evaporator Copper tube and
Aluminum Fin
Copper tube
and Aluminum
Fin
Copper tube
and Aluminum
Fin
Copper tube
and Aluminum
Fin
Copper tube and
Aluminum Fin

2
2. . S SP PE EC CI IF FI IC CA AT TI IO ON NS S
ON/OFF UNITARY AIR CONDITIONER TECHNICAL& SERVICE MANUAL V6.0 18
AUC-18HR4SUA
A
AUC-24HR4SZ
GA
AUC-36HR6SA
GA
AUC-48HR6SP
HA
AUC-60HR6SPHA
Indoor model：AUC-18HR4SAA
AUC-24HR4SG
A
AUC-36HR4SG
A
AUC-48HR4SH
A
AUC-60HR4SHA
Outdoor model：AUW-18H4SU AUW-24H4SZ AUW-36H6SA AUW-48H6SP AUW-60H6SP
Condenser Copper tube and
Aluminum Fin
Copper tube
and Aluminum
Fin
Copper tube
and Aluminum
Fin
Copper tube
and Aluminum
Fin
Copper tube and
Aluminum Fin
Other
Dimensions
WxHxD (mm)
Panel 650x30x650 950x37x950 950x37x950 950x37x950 950x37x950
Indoor
Unit
650x270x570 840x248x840 840x248x840 840x298x840 840x298x840
Net Weight
(Kg)
Panel 2.4 6 6 6 6
Indoor
Unit
20 28 30 33 33
Packing
Dimensions
WxHxD (mm)
Panel 730x130x730 990x115x1010 990x115x1010 1010x115x990 1010x115x990
Indoor
Unit
770x310x750 930x290x930 930x290x930 930x340x930 930x340x930
Gross Weight
(Kg)
Panel 5 7.5 7.5 7.5 7.5
Indoor
Unit
27 34 36 39 39
Loading Capacity
56/115/130 43/90/104 32/66/77 23/48/53 23/48/53
(20/40’/40’ HC)
Test conditions：
Cooling : Indoor: DB27℃/ WB19℃Outdoor: DB35℃/ WB24℃
Heating: Indoor: DB20℃/ WB15℃Outdoor: DB7℃/ WB 6℃
Remarks:
1.The above design and specifications are subject to change without prior notice for product
improvement.
2.The values given in the table for noise level reflect the levels in anechoic chamber.
This heat pump air conditioner has been designed for the following temperatures.
Operate the heat pump air conditioner within this range.
Storage condition: Temperature -20~65℃
Humidity 30%~80%
