Hodedah HID8020-G(MOP-SP) User manual

Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
HODEDAH ®
ITEM # HID8020-G(MOP-SP)
3 DOOR WARDROBE
2 people
120 mins
1 YR LTD
2 Boxs
FRONT VIEW BACK VIEW
www.Hodedah.com 1| Page
Product Dimensions: Height 72.01" x Width 35.98" x Depth 20.98"
Weight Capacity Per Drawer 25lbs
Weight Capacity Per Shelf 25lbs

HODEDAH ®
www.Hodedah.com 2| Page
DO NOT RETURN PRODUCT TO THE STORE
Phone WebsiteEmail
Questions, need parts, we are here to help!
WARRANTY
WARNING
If parts are missing or damaged please contact our customer service team and we will
gladly ship your replacement parts FREE of charge within ONE YEAR of purchase!
Hodedah warrants this product to be free from defects in materials and workmanship and agrees to
remedy any such defect. This warranty covers one year from the date of original purchase. This is solely
limited to replacement of defective parts and no assembly for labor is included. This warranty does not
apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been
altered or repaired in any way. To obtain warranty service, original purchaser must present the following;
original bill of sale, date of purchase, where the product was purchased and images if applicable.
Components replaced warranted through the remainder of the original warranty only. The defective part
will be replaced without charge, subject to the terms and conditions described above.
Mon - Fri | 9:30 am to 5pm EST Send us an email
FOR PROMPT, RELIABLE SERVICE PLEASE HAVE YOUR INSTRUCTION MANUAL READY
Visit our website to open a case
1 - 855 - HODEDAH
1 - 855 - 463 -3324
[email protected] www.Hodedah.com
·This product contains small parts, keep away from children.
·This product contains plastic bags, keep away from children.
·Serious or fatal crushing injuries can occur from furniture tip-over. To help
prevent this, place heaviest items on the lower shelves and drawers. Do not set
heavy objects on top shelves and drawers.
·Never allow children to climb or hang on drawers, shelves and doors.
·Never open more than one drawer at a time.
·The use of tip-over restraints may reduce but not eliminate the risk of tip-over.

HODEDAH ®
www.Hodedah.com 3| Page
Product Care and Maintenance
Let's get started…
·Never open more than one drawer at a time.
·The use of tip-over restranits may reduce but not eliminate the risk of tip-over.
·Make sure you receive all boxes. If your item is packed in one box, box count will read 1
of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second
box will read 2 of 2.
·Read each step carefully. It is very important that each step is performed in the correct
order. If these steps are not followed in sequence, assembly difficulties will occur.
·Work in a spacious level area, preferably carpet, near the place the unit will be used.
·DO NO USE power tools to assemble your furniture, it will strip and damage parts.
·Your package should include the following hardware and parts. Parts are labeled or
stamped on the raw edge. Please inspect contents to ensure you have received all
components. If you are missing any hardware or parts please contact customer
service right away before assembly.
Helpful hints, read before beginning assembly
Assembly Tools Required (not supplied)
·Wipe clean with dry soft cloth, never use chemicals or cleaning products they will
damage the finish.
·Avoid placing your furniture in direct sunlight, as sunlight causes fading.
·Never push, drag or pull your furniture, to move to a new location carefully with
two or more people carry the unit to its new location.
·Avoid extreme changes in temperature by arranging furniture away from radiators,
heat and air vents and air conditioning units.
Hammer Phillips Screwdriver No Power Tools NeededTape Measure

AIM
HODEDAH ®
www.Hodedah.com 4| Page

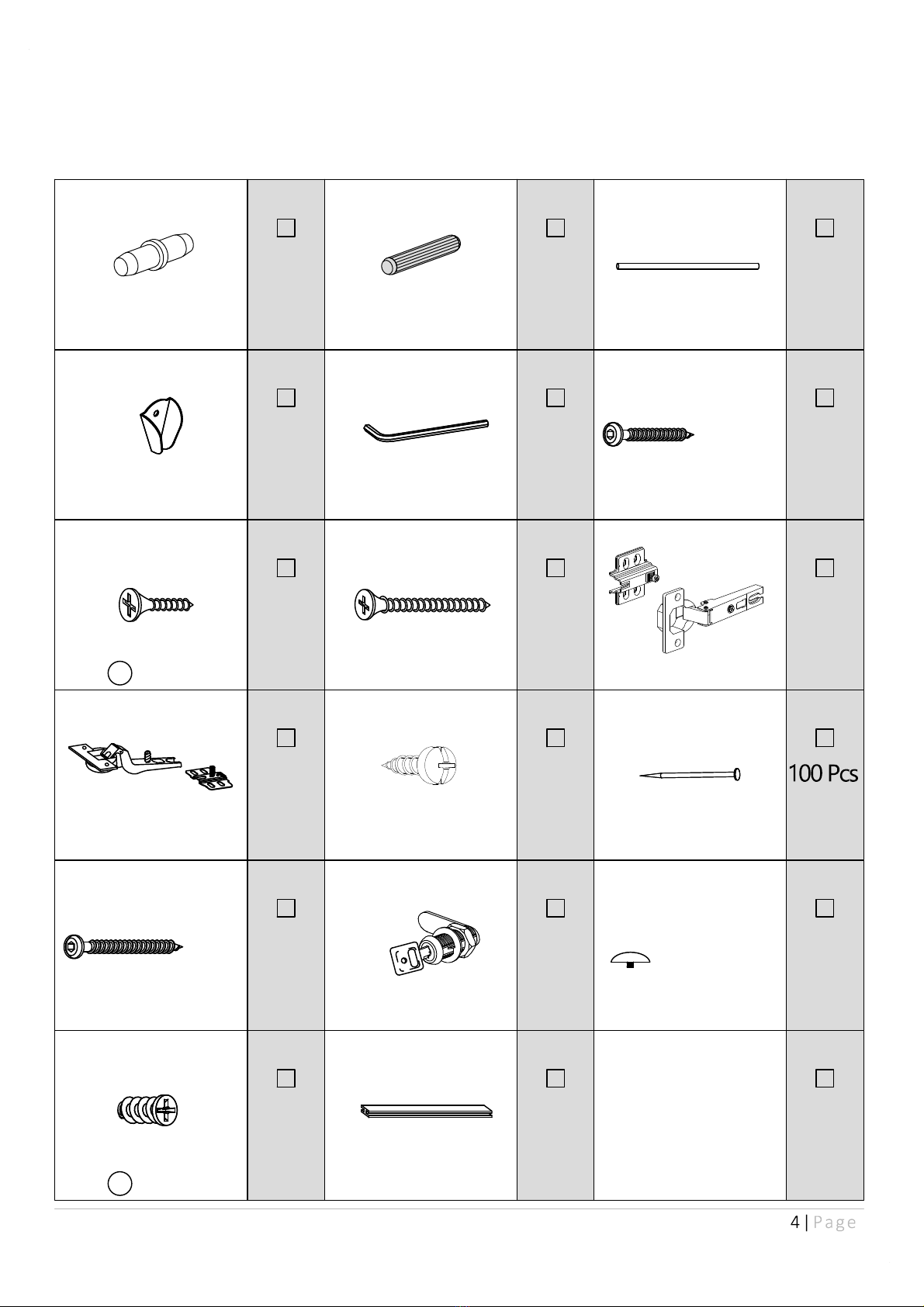

Hardware List
2QTY 3QTY 4QTY
QTY 6QTY 7QTY
Pvc Dowel
34 Pcs
8QTY 9QTY
Nail
100 Pcs
10 QTY
Allen Key
1 Pc
12
QTY
11 QTY
Hinges
13 QTY
Lock
5
8 Pcs
Shelf Support
14 QTY 15 QTY 16 QTY
V-Bracket
18 Pcs
Screw M 10 X 1/2 MM
2 Pcs
17 QTY 20 QTY 21 QTY
2 Pcs
Screw M6 x 40mm
22 Pcs
Screw M3.5 x 14mm
56 Pcs
*For # 19 Drawer Slides
Screw M4 x 32mm
20 Pcs 6 Sets
Hinges
3 Sets
H-Profile
8 Pcs
Screw M6.2 x 10mm
1 Pc
*For # 18 Drawer Slides
Hanging Rod
1 Pc
Screw M6 x 50mm
4 Pcs 26 Pcs
Pvc Cap
(separate from
hardware pack)
Anti-Tip Kit
1 PK

HODEDAH ®
www.Hodedah.com 5| Page
Accessories
1QTY
Handle 5 Pcs
10 Pcs
18
19
Drawer Slide - A
*Fix On Side Panels
QTY
2 Sets
QTY
2 Sets
*Fix On Side Panels Q
Drawer Slide - B
Important
1. Before you throw the package, please use the
Check Box to identify the parts and hardware to
ensure that you have everything you need.
2. Check and measure the bolts before applying them
to parts.
3. Do not completely fasten all hardware until the entire
assembly is complete, unless indicated otherwise.
A & G
Screw M4 X 32mm
* Fix On Side Panels Ⓐ
* Fix On Side Panels Ⓖ
* Fix On Drawer Side Panels Ⓠ
* Fix On Drawer Side Panels Ⓠ

HODEDAH ®
www.Hodedah.com 6| Page
AQTY
1 Pc
BQTY B1 QTY
QTY E QTY
F
QTY
G
QTY QTY
I
QTY
Parts List
J
QTY
Stand Panel
1712 x 494 x 15mm
Back Strengthening Panel
570 x 76 x 15mm
Kick Panels
860 x 89 x 15mm
Top Panel
902 x 527 x 30mm
Partition Panel
570 x 493 x 15mm
Left Side Panel
1816 x 495 x 15mm
Right Side Panel
1816 x 495 x 15mm
Partition Panel
275 x 394 x 15mm
Bottom Panel
860 x 494 x 15mm
QTY QTY
Left Door
1207 x 293 x 15mm
D
H
KMid Door
1207 x 293 x 15mm
1 Pc
1 Pc 1 Pc 1 Pc
1 Pc1 Pc
1 Pc
2 Pcs
Kick Panels
432 x 76 x 15mm
C
1 Pc
1 Pc 1 Pc

HODEDAH ®
www.Hodedah.com 7| Page
M
QTY N QTY
O
QTY
QTY Q QTY QTY
QTY

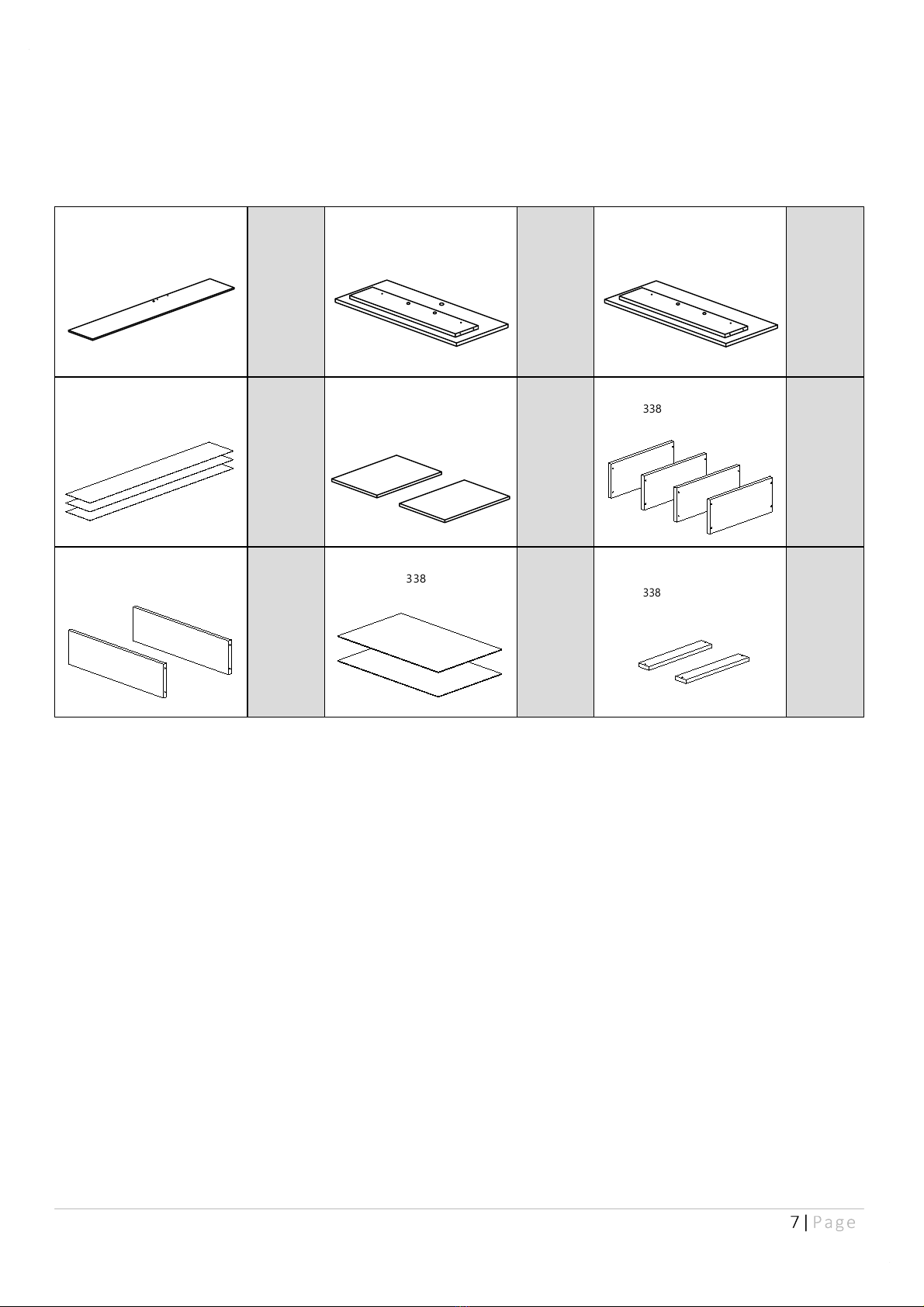

Parts List
Adjust Panels
275 x 394 x 15mm
Upper Drawer Front Panel
590 x 253 x 15mm
Drawer End Panels
513 x 138 x 15mm
Back Panels
1739 x 295 x 3mm
Right Door
1722 x 293 x 15mm
Left Drawer Side Panels
338 x 140 x 15mm
Lower Drawer Front Panel
590 x 253 x 15mm
P
L
1 Pc 1 Pc 1 Pc
TQTY
Drawer Base Panels
540 x 338 x 3mm
3 Pcs 2 Pcs 4 Pcs
2 Pcs 2 Pcs
RQTY
2 Pcs
S
Drawer Base Supporting
Panels
338 x 5 1 x 15mm

HODEDAH ®
www.Hodedah.com 8| Page
The Breakdown
x2

HODEDAH ®
www.Hodedah.com 9| Page

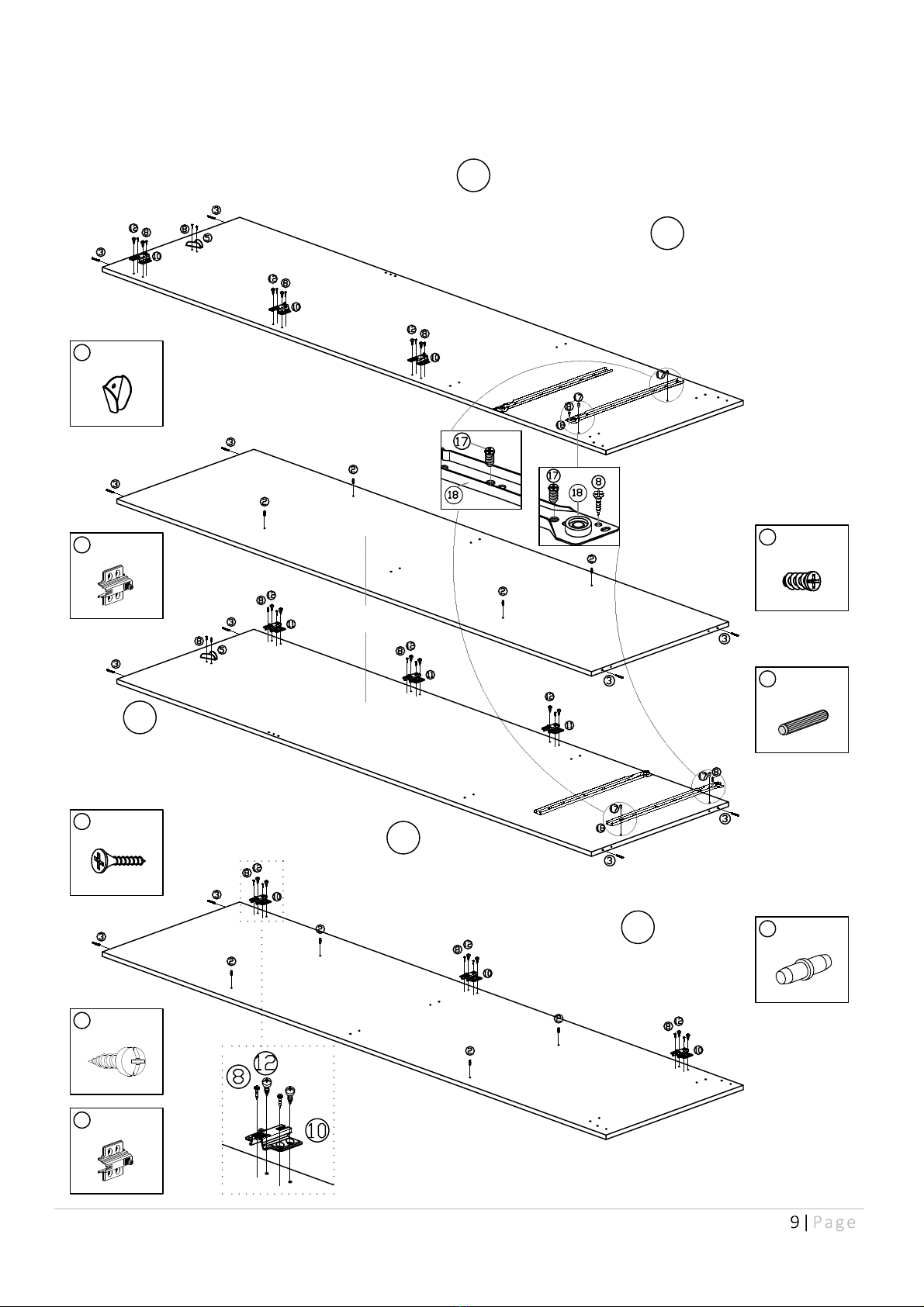

Pre - Assembly
PANEL A
2
SCREW M 10 X 1/2 MM
18 Pcs.
12
8
10
3
Screw M3.5 x 14mm
26 Pcs.
Pvc Dowel
8 Pcs.
HINGES
6 Pcs.
SHELF SUPPORT
8 Pcs.
V-BRACKET
2 Pcs.
5
PANEL I
11 HINGES
3 Pcs.
PANEL G
Screw M6.2 x 10mm
8 Pcs.
17
Place the drawer slide A ⑱
onto the 2 holes area
shown at side panel A and G.
Then fasten it with
2 screws ⑰ and 1 screw ⑧.
Insert the PVC dowels ③to
panels A, Iand G ’s
non-thru holes , using
hammer gently to tap them in.
fasten V-Bracket ⑤on
panels Aand Gby using
2 screws ⑧.
Insert 4 shelf supports ② into
panels Gand I’s non thru
holes .
Place hinge ⑩ ⑪ at the panels A,G
and I. Then fasten the hinge ⑩ ⑪
with 2 screws ⑧and 2 screws ⑫.
1
2
3
4
5

HODEDAH ®
www.Hodedah.com

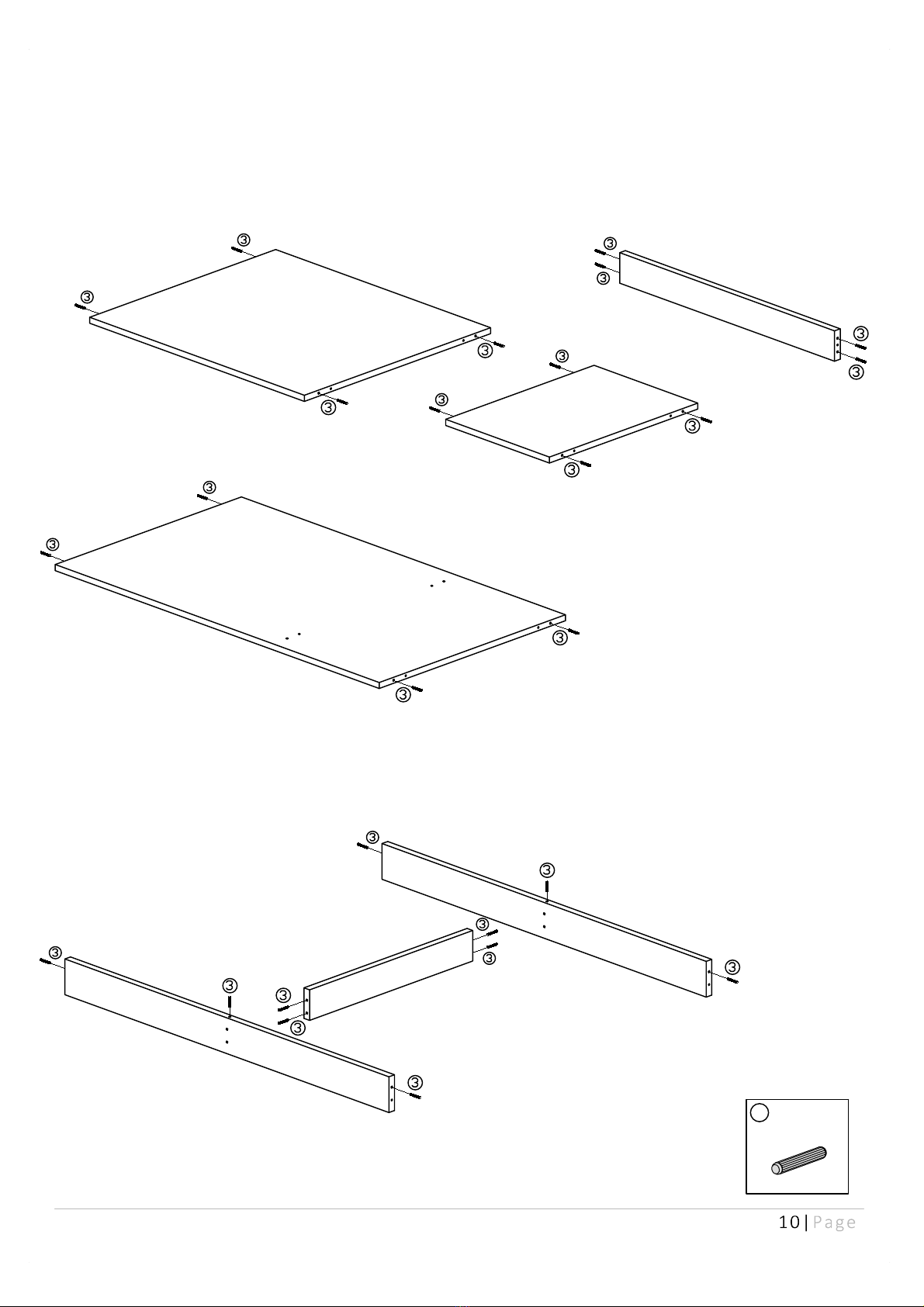

Pre - Assembly
10| Page
PANEL B
PANEL E
PANEL D
PANEL H
PANEL C
PANEL B
PANEL B1
Insert PVC dowels ③to
panels
B, B1, C, D, E, H, Q, R
and U ’s non-thru
holes , using hammer to
gently tap them in.
3Pvc Dowel
26 Pcs.

HODEDAH ®
www.Hodedah.com

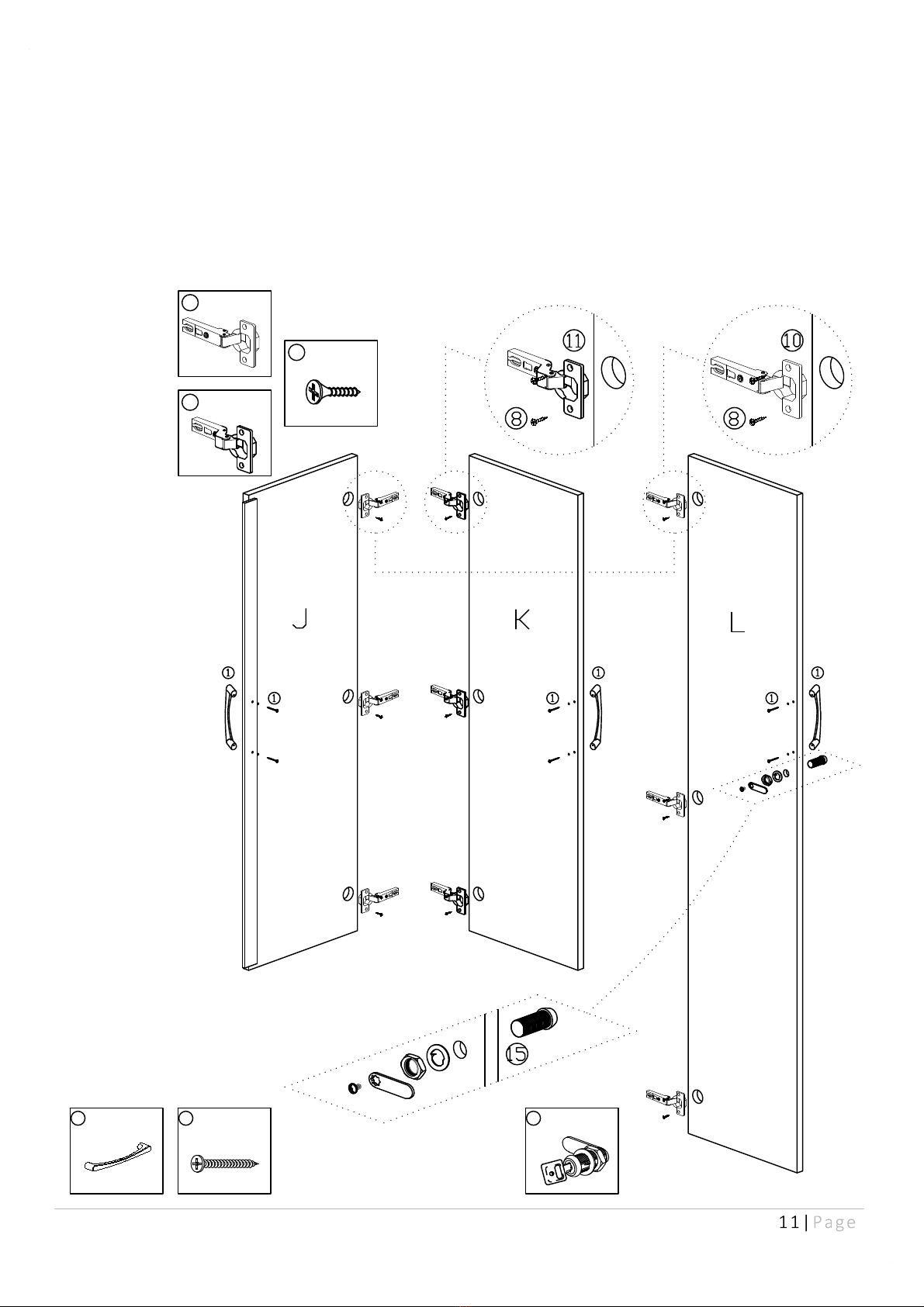

Door Panel Assembly
11| Page
15 Lock
1 Set.
AIM
Handle
3 Pcs.
1SCREW
M4 X 32mm
6Pcs.
1
10 HINGES
6 Pcs.
11 HINGES
3 Pcs.
8
Screw M3.5 x 14mm
18 Pcs.
* Insert 6 Hinges ⑩and 3 hinges ⑪into door panels J,Kand L's non-thru
hole , then fasten screws ⑧through hinges ⑩and ⑪'s thru hole.
-Fasten 2
screws ①from
inner side of
panels J,Kand
Linto the
handle ①
holes.
Disassemble
the lock ⑮into
5 parts ,then
install the lock
⑮by insert the
lock ⑮'s
cylinder into
middle thru hole
of door panel L,
then fix the lock
up.

HODEDAH ®
www.Hodedah.com

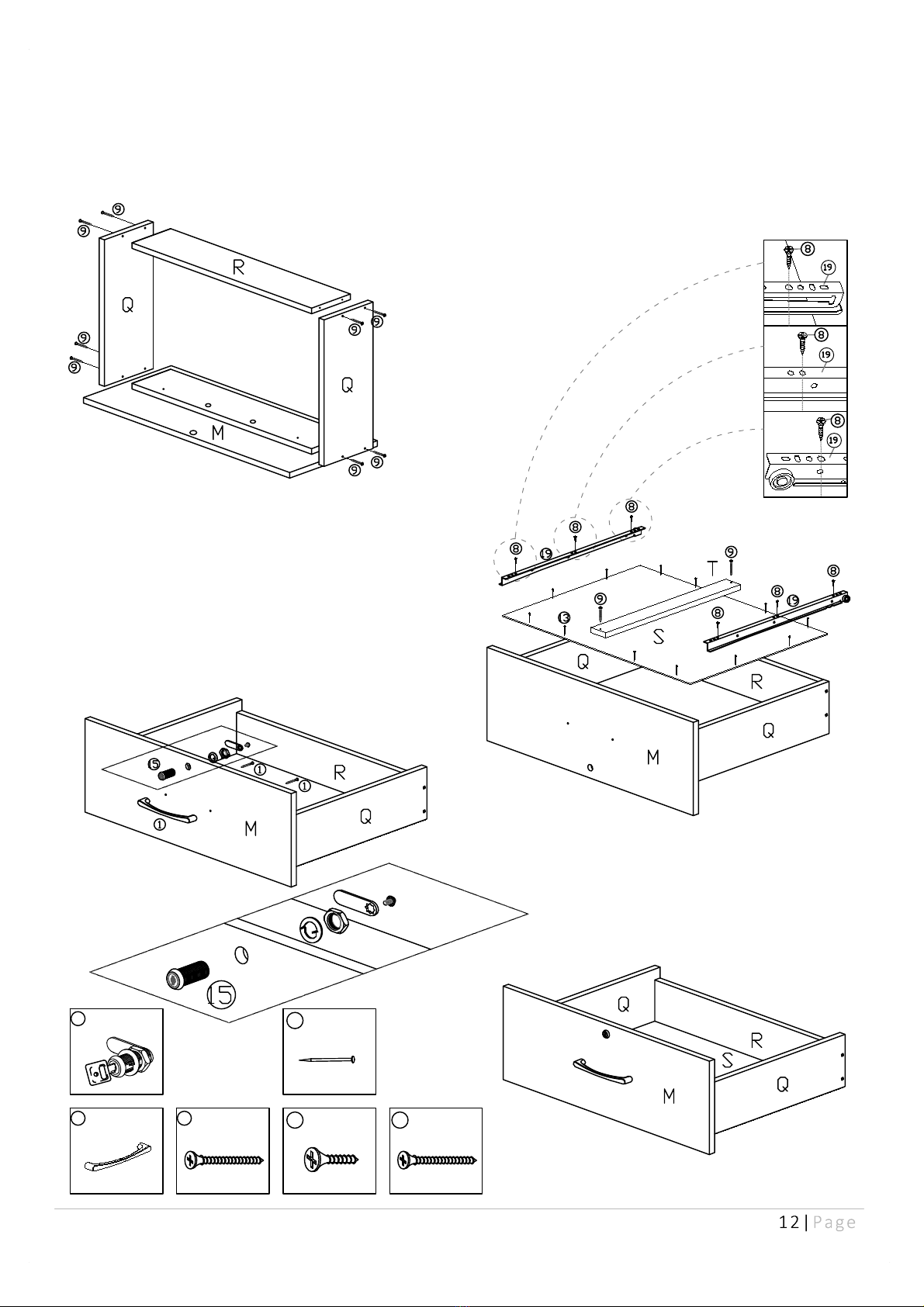

Assembly Of Top Drawer
12| Page
(1)
(2)
COMPLETED
(4)
(3)
15 Lock
1 Set.
AIM
Handle
1 Pc.
1 1 8
Screw M3.5 x 14mm
6 Pcs. 9Screw M4 x 32mm 10 Pcs.
13 Nail
12 Pcs.
Screw M4 x 32mm
2 Pcs.
-Place panel Qon each
side of panel M.
-Then, fasten screw ⑨to
panel Q's lower thru holes
to fix them onto panel M.
-Next fasten screw ⑨ to
panel Q's upper thru holes
to fix up to the panel R.
-Flip the drawer over.
-fasten 2 screw ①from inner side of panel Minto the
handle ①holes.
-Flip drawer with bottom side up, place panel Sonto the
drawer and align properly. Then nail the nails provided
with hammer on the border of panel S.The gap
between 2 nails is about 100mm.
-After that, place a drawer slide B ⑲with the small white
roller facing outward and with other end tip touching
panel M onto each bottom side (angle) edge of panel Q.
Then fasten 3 screws ⑧on each drawer slide B ⑲.
-Then tighten screw ⑨to panels T 's thru holes to fix
them onto panels S, M and R.
-Disassemble the lock ⑮into 5 parts ,then
install the lock ⑮by insert the lock ⑮'s
cylinder into middle thru hole of panel M,
then fix the lock up.
-Then tighten screw ⑨to panels
T 's thru holes to fix them onto
panels S, M and R.

HODEDAH ®
www.Hodedah.com
Assembly Of Bottom Drawer
13| Page
(1)
(2)
(3)
Handle
1 Pc.
1 1 8
Screw M3.5 x 14mm
6 Pcs. 9Screw M4 x 32mm 10 Pcs.
(4)
COMPLETED
13 Nail
12 Pcs.
Screw M4 x 32mm
2 Pcs.
-Place panel Qon each
side of panel N.
-Then, fasten screw ⑨to
panel Q's lower thru holes
to fix them onto panel N.
-Next fasten screw ⑨ to
panel Q's upper thru holes
to fix up to the panel R.
-Flip drawer with bottom side up, place panel Sonto the
drawer and align properly. Then nail the nails provided with
hammer on the border of panel S.The gap between 2 nails
is about 100mm.
-After that, place a drawer slide B ⑲with the small white
roller facing outward and with other end tip touching panel
Nonto each bottom side (angle) edge of panel Q. Then
fasten 3 screws ⑧on each drawer slide B ⑲.
Then tighten screw ⑨to panels T 's thru holes to fix them
onto panels S, N and R.
-Flip the drawer over.
-fasten 2 screw ①from inner side of panel Ninto the
handle ①holes.
(2)

HODEDAH ®
www.Hodedah.com

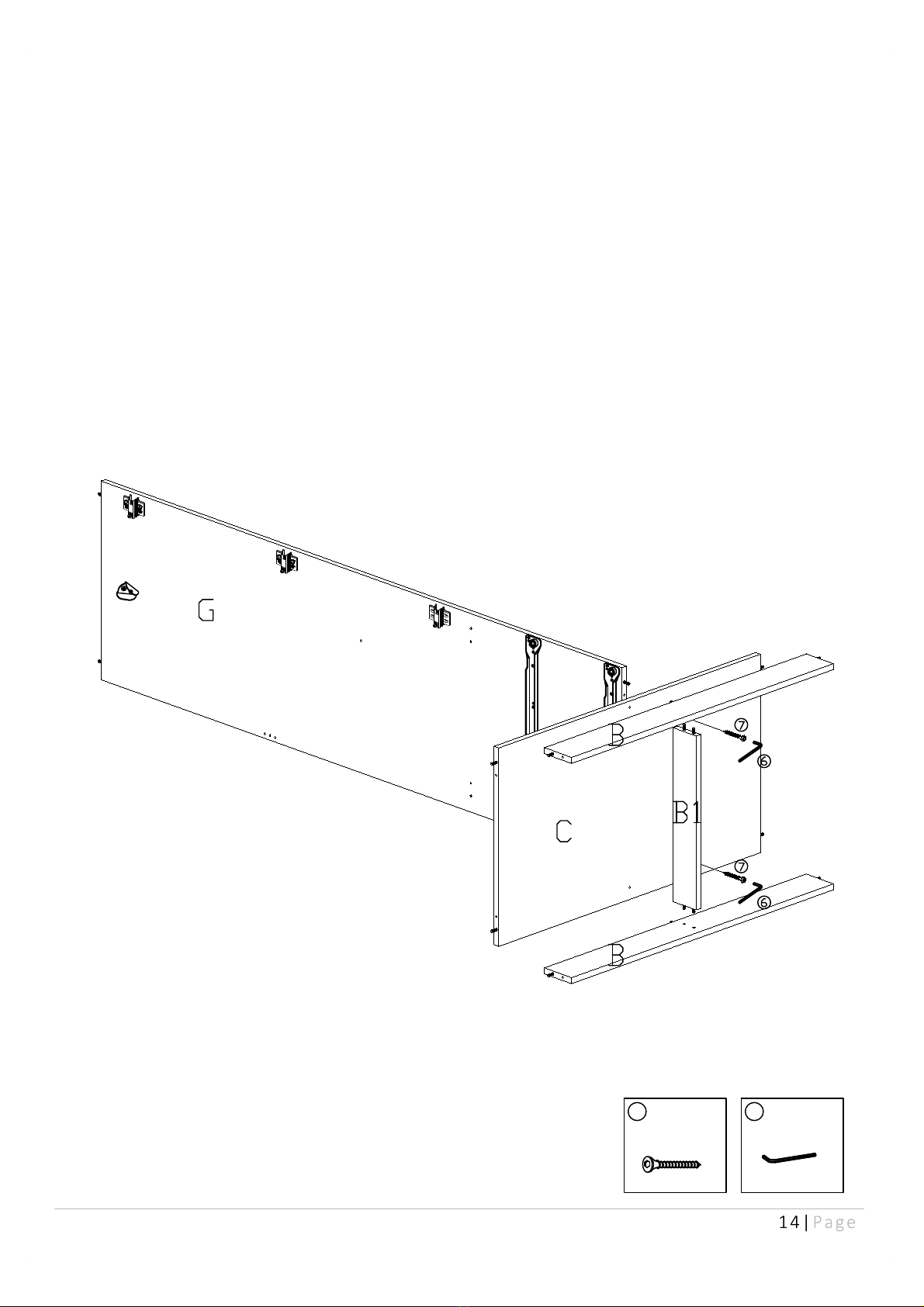

Step 1
14| Page
Screw
M 6 x 40mm
2 Pcs.
7Allen Key
1 Pc.
6
Fix Panel B1 onto 2 Panels Bby inserting the dowels onto the respective non-thru holes at Panel B.
Next, fix Panel B1 and 2 Panels Bonto panel Cby inserting the dowels onto the non-thru holes at Panel C.
Use allen key ⑥ to fasten 2 screws ⑦ from the thru-holes of panel Cto non-thru hole of panel G.
Fix panel Gonto panel Cby inserting panel G's lower dowel onto non thru holes of panel G.

HODEDAH ®
www.Hodedah.com
Step 2
15| Page
Screw
M 6 x 40mm
10 Pcs.
7
Allen Key
1 Pc.
6
360°
1
Fix Panel Dand Eonto Panels Gby inserting the dowels onto the non-thru holes at Panel G.
Using allen key ⑥to fasten screw ⑦from the 3 thru holes of panel G, one by one.
Fix Panel Aonto Panels B, C, Dand Eby inserting the panel B, C, Dand E's dowels onto non-thru holes at
Panel G.
Using allen key ⑥to fasten screw ⑦from the 5 thru holes of panel G, one by one.

HODEDAH ®
www.Hodedah.com
Step 3
16| Page
Screw
M 6 x 40mm
8 Pcs.
7Allen Key
1 Pc.
6
360°
Place and fix Panel Honto Panel Gby inserting the (Left) dowels onto the non-thru holes at Panel G.
Using allen key ⑥to fasten screw ⑦from the 2 thru holes of panel G.
Fix Panel Ionto Panels B, C, and Hby inserting the panel B, Cand H's dowels onto non-thru holes at Panel I.
Using allen key ⑥to fasten screw ⑦from the 4 thru holes of panel I.

HODEDAH ®
www.Hodedah.com
Step 4
17| Page
Screw
M 6 x 40mm
2 Pcs.
7Allen Key
1 Pc.
6
Screw
M 6 x 50mm
4 Pcs.
14

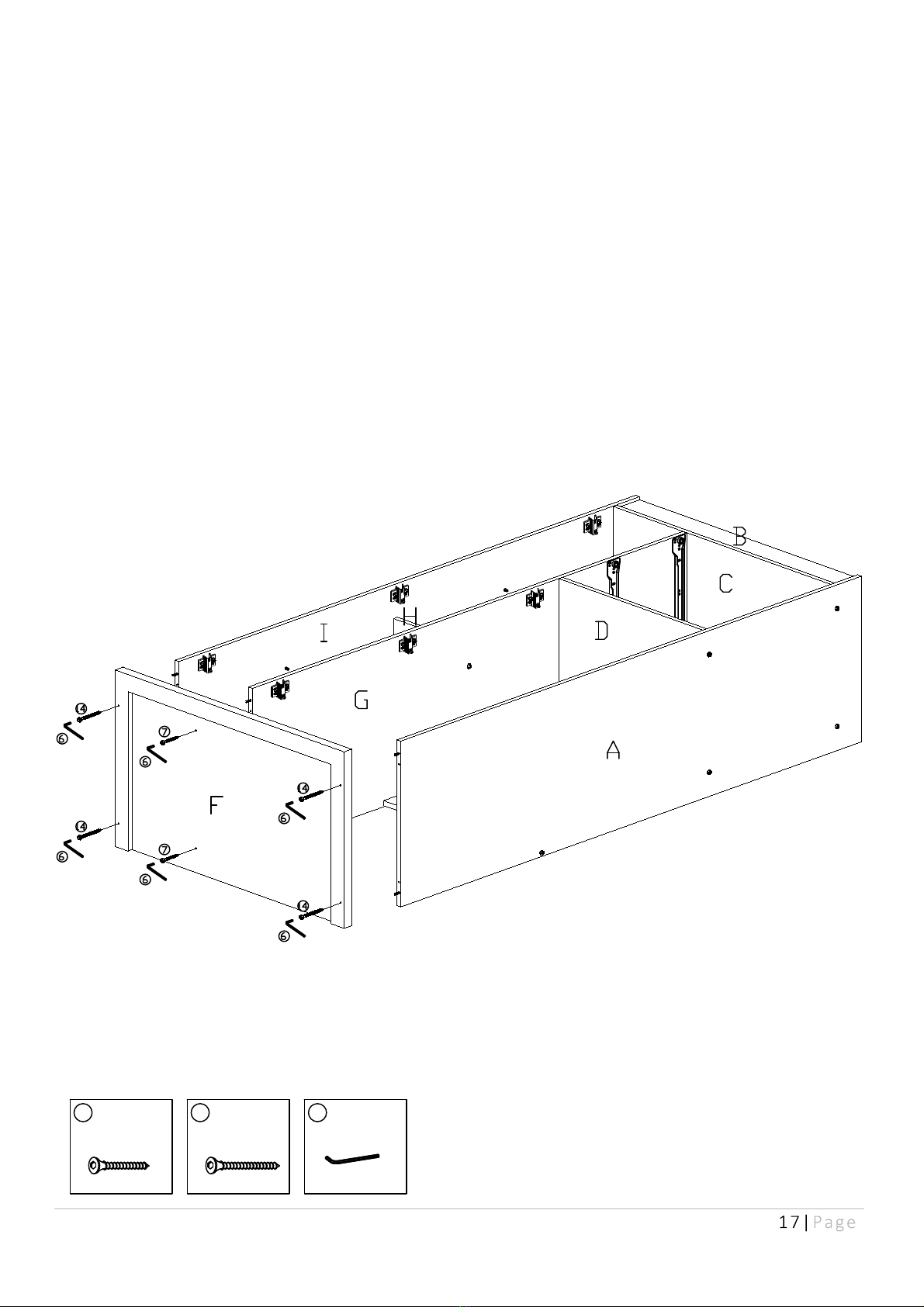

Fix panel Fonto panels A, Gand Iand align properly by inserting the 6 dowels of panels A,Gand I
onto the non thru holes of panel F.
Pushing and light tapping of panel Fto have panel F, panel A, panel Gand panel Ifix tightly.
Use allen key ⑥to fasten screws ⑦from the thru-holes of panel F.

HODEDAH ®
www.Hodedah.com
Step 5
18| Page
4HANGING ROD
1 Pc
-Lift up the main unit carefully and let it stand up properly.
-Place iron tube onto both panels Aand G's V-bracket.
-Put adjusting panels P onto shelf supports .
-Take drawers (drawers Mand N), and slide them (the white rollers at drawer slide at both side of drawers are
to go into the track of the slides at each side panel.) all the way gently, one drawer by one drawer starting
from bottom one.

HODEDAH ®
www.Hodedah.com
Step 6
19| Page
Adjust
Adjust
360°

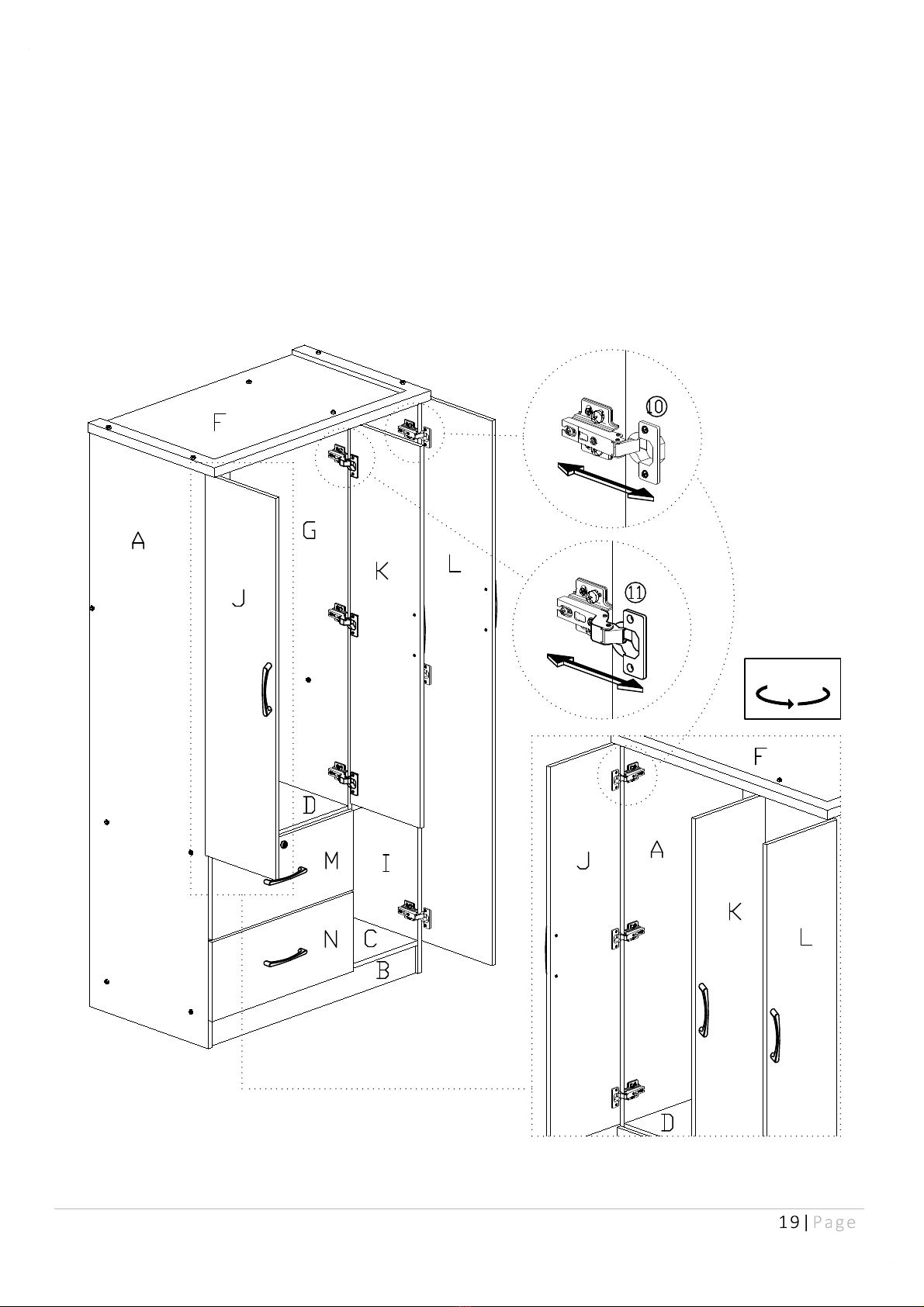

Join the door panels J, Kand L's hinges with panels A, Gand I's hinges .
You can align the door by fastening and loosening the screws .

HODEDAH ®
www.Hodedah.com
Step 7
20| Page
13 16
20 H-PROFILE (PVC)
1 Pc.
Nail
78 Pcs.
Pvc Dowel

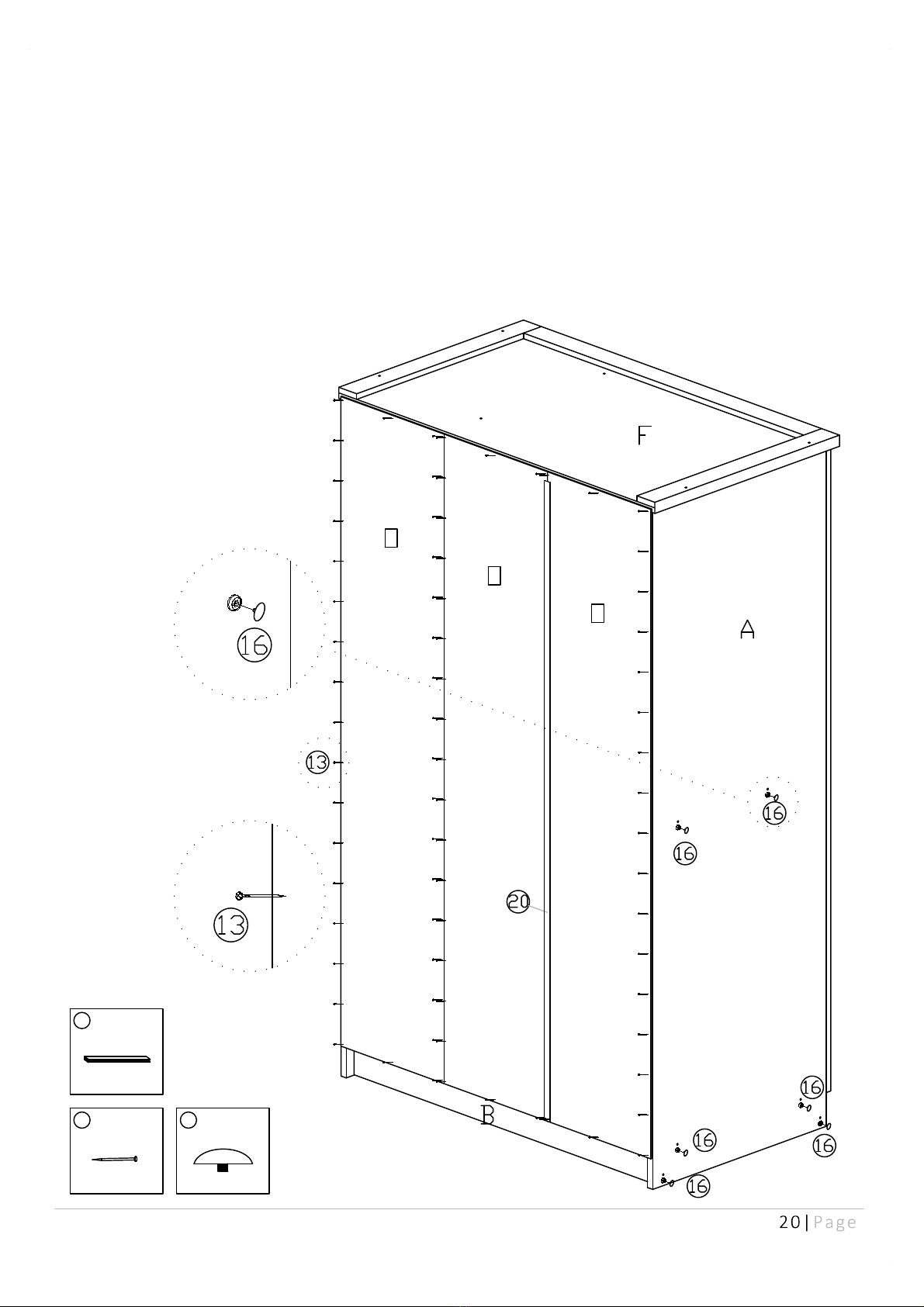

Place 2 back Panels Oonto the back of the main unit, and join 2 panels Otogether with
H-profile by slotting one side each of panel Ointo the track of H-profile. Then align them
properly for nailing.
Then use hammer to nail the nails one by one and at center of 4 side edges. Gap between 2
nails should be about 100mm for all.
Cover all the screws ⑦and
screws⑭ ’s head with PVC
cap ⑯provided by pushing
cover’s stem onto the hole of
screw heads one by one for
all screws.
