Hoggi SUPRA 2.0 Operating instructions

en
SUPRA 2.0
Service instructions
Partnerschaft für mobile Kinder

SUPRA 2.0 - Service and maintenance instructions
Content Page
1 Modelidentication&basicconguration
 1.1 Modelidentication(label)_____________________________________________________ 4
 1.2 Basicconguration___________________________________________________________ 5
 1.3 Environmentalconditions _____________________________________________________ 5
2 Overview SUPRA 2.0_____________________________________________________________ 6
3 Common information ____________________________________________________________ 7
 3.1 Preface ___________________________________________________________________ 7
 3.2 Application_________________________________________________________________ 8
 3.3 Declarationofconformity______________________________________________________ 8
 3.4 Termsofwarranty___________________________________________________________ 8
 3.5 Customerservice ___________________________________________________________ 8
 3.6 Serviceandrepairs__________________________________________________________ 9
 3.7 Packingandshippinginstructions_______________________________________________ 9
4 Safety Instructions _____________________________________________________________ 10
 4.1 Meaningofsymbols ________________________________________________________ 10
 4.2 Commonsafetyinstructions __________________________________________________ 10
5 Required tools and maintenance schedule _________________________________________ 11
 5.1 Requiredtools_____________________________________________________________ 11
 5.2 Maintenanceschedule ____________________________________________________12-13
6 6Seatsettings ________________________________________________________________ 14

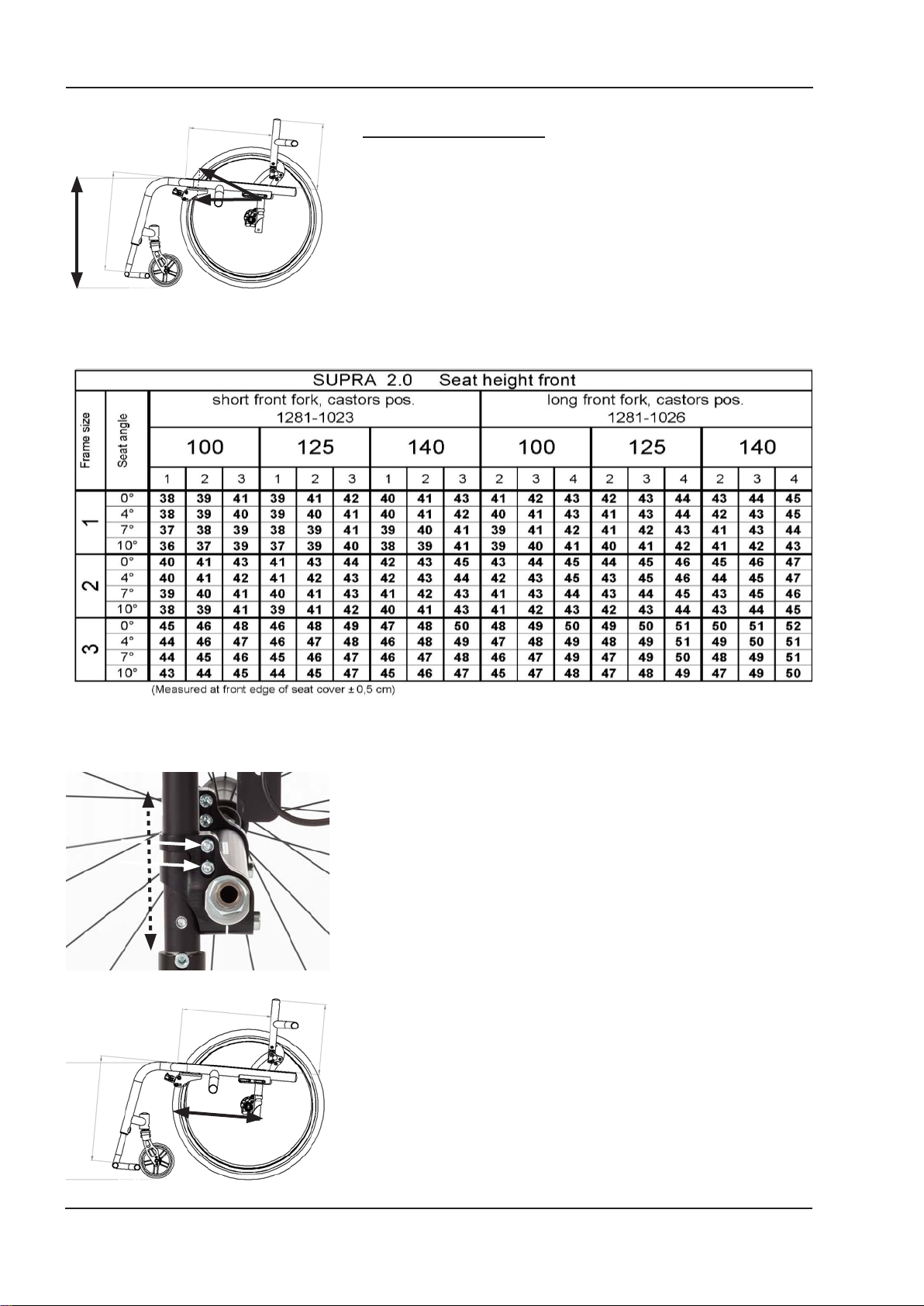

6.1 SeatheightandSeatangle___________________________________________________ 14

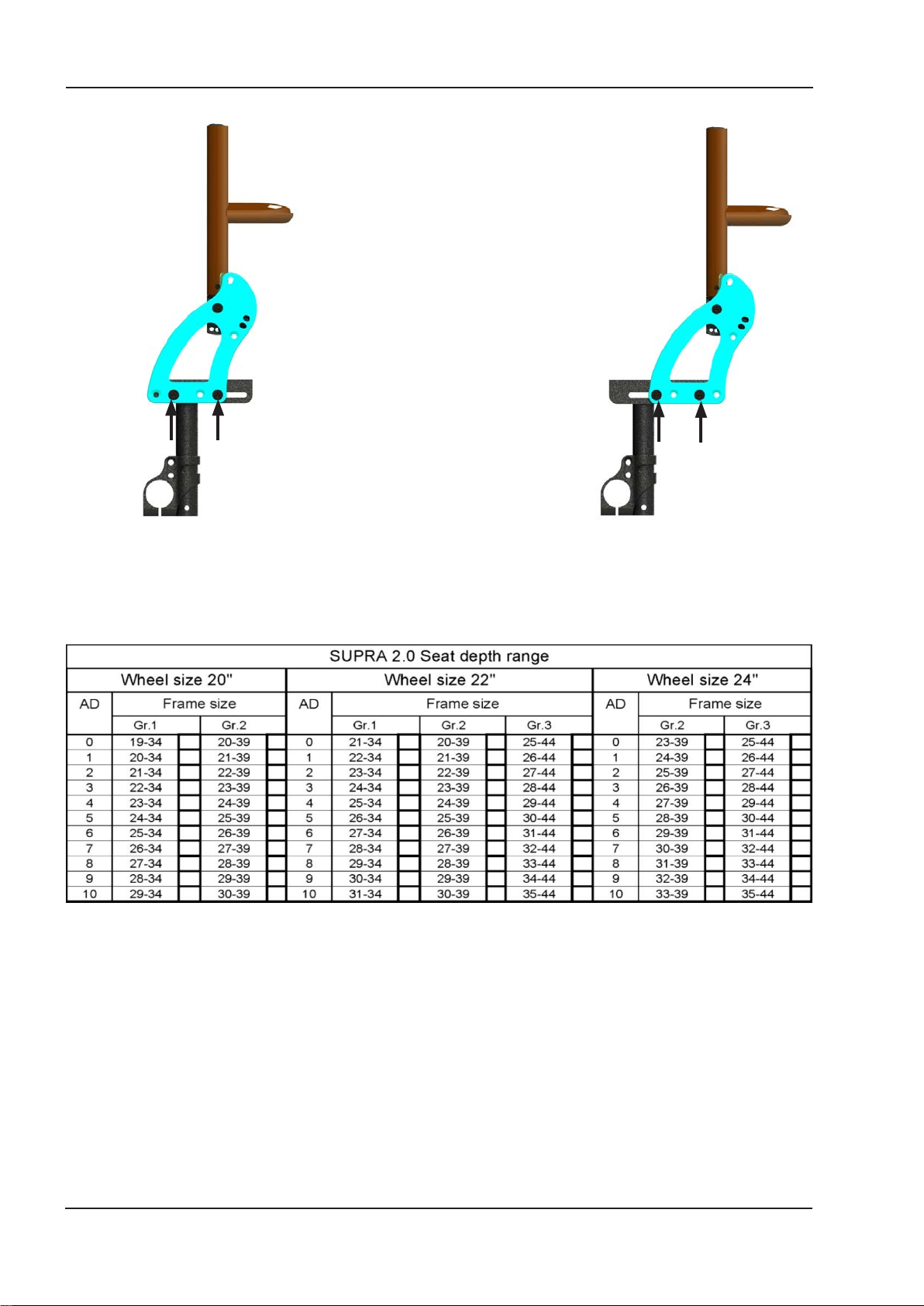

6.2 Seatdepth______________________________________________________________14-15
6.3 Activedegree ___________________________________________________________15-19
6.4 Backheight_______________________________________________________________ 20
6.5 Backangleadjustment ______________________________________________________ 21
6.6 Lowerleglength ___________________________________________________________ 22
6.7 Footrestangleanddepth ____________________________________________________ 22
6.8 Armrestheight_____________________________________________________________ 23
6.9 Wheelforkadjustment_______________________________________________________ 24
7 Maintenance schedule __________________________________________________________ 25
7.1 Frameandseatunit ________________________________________________________ 25
7.2 Backsectionandlatchingunit_________________________________________________ 25
7.3 Bearingplateandaxlemount_________________________________________________ 25
7.4 Axletube_________________________________________________________________ 26
7.5 Brakingsystem__________________________________________________________27-28
7.6 Wheelforkholder ________________________________________________________28-29
7.7 Frontwheels______________________________________________________________ 29
7.8 Rearwheels ______________________________________________________________ 29
7.9 Pushrims ________________________________________________________________ 29

7.10 Pushbarandhandles,Onehandpush-handle____________________________________ 30
7.12 Tiedownkit_______________________________________________________________ 31
7.13 Backextension ____________________________________________________________ 31
7.14 Footrestbracket _________________________________________________________31-32
7.15 Clothesguard&fender____________________________________________________32-33
7.16 Therapytray ______________________________________________________________ 33
7.17 Spokeguards _____________________________________________________________ 33
7.18 Calfstrap_________________________________________________________________ 33
7.19 Anti tip and tip assist________________________________________________________ 34
7.15 Abductionblock____________________________________________________________ 34
7.16 Seatandbackcushion ______________________________________________________ 34
7.17 Headrest_________________________________________________________________ 35
7.18 Backcover&edgeprotection_________________________________________________ 35
7.19 Beltxations ______________________________________________________________ 36
8 Operatinglife _________________________________________________________________ 37
9 Specications_________________________________________________________________ 37

4
1Modelidentication
1.1Modelidentication(label)
(Thelabelisattachedtotheaxletube)
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3281-00SB-XXX
SUPRA 2.0
Gr. X
2021178999
2021/05/03
max. load
XXkg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3281-00SB-XXX
SUPRA 2.0
Gr. X
2021178999
2021/05/03
max. load
XXkg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3281-00SB-XXX
SUPRA 2.0
Gr. X
2021178999
2021/05/03
max. load
XXkg
Size
Serialnumber
Classication/Productname
Yearofmanufacture
UDI Code
Manufacturer
Placeofmanufacture
Dateofmanufacture
Maximumload/loadcapacity
CElabel
Colourcode
Articlenumber

5
1.2Basicconguration
-Rigidframeactivewheelchairinaluminiumconstruction,
powder-coated;seatdepthgrowswiththeuser
-3framesizes:
Framesize1:SW24-34cmin2cm-Steps,SD23-35cm
Framesize2:SW28-38cmin2cm-Steps,SD24-44cm
Framesize3:SW28-38cmin2cm-Steps,SD29-49cm
-HOGGIlightrearwheelsinclusivepushrims
(removableviaquick-releaseaxle)
-Clothecoversidepanelsstraight
-Camber6°,9°or12°
-Backrestangle:70°upto105°adjustable
-adjustablebackcover
-Frontseatheights:38cmupto51cm
-Seatangle:0°bisca.10°
-Convertibletootherseatwidths
-Footrest:Standard
-Loadcapacity:60kg(SW24-32),80kg(SW34-38),100kg(SW40-44)
Environmentalfactorssuchastemperatureandhumiditycandamagethewheelchair.The
manufacturerrecommendsnotcondensingtheSUPRA2.0atambienttemperaturesbet-
ween-20°Cand+40°Candahumidityof5to100%.
Caution:Prolongedexposuretothesunmaycausepartsofthewheelchairtobecomehot.
Besureto!
1.3 Environmental conditions

6

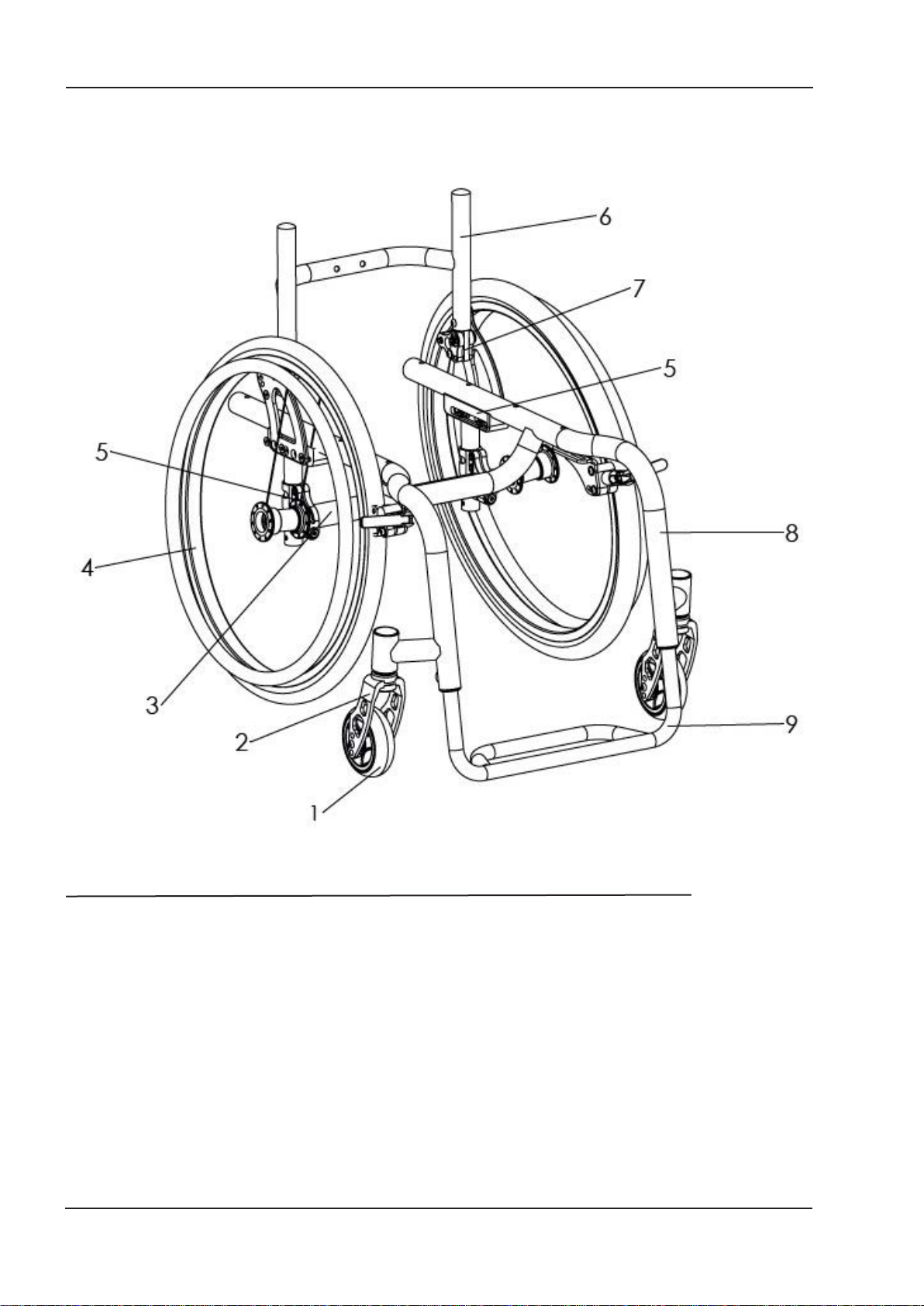

2 SUPRA 2.0 Overview
Pos Articlenumber  Articledescription
1 Front wheels
2 1281-002x Wheel fork
3 321011SB   Axletubeandadapterhousing
4 Tires
5 3281-12SB   Rearaxlemounting
6     Backbase
7 3201-340x   Mountingpartsforbackbase
8 3218 xxxx Frame SUPRA 2.0
9 32xx-4xxx   Footresthanger

7
3 Common Information
3.1 Preface
ThankyouforselectingtheSUPRA 2.0 wheechair.Wehavedesignedthishigh-qualitypro-
ducttomakeyourlifesaferandeasier,andwe’veincludedthismanualtohelpyouuseand
careforit.Pleasereadthefollowinginstructionstomakesureyouusethisproductasre-
commended.Ifyouhaveanyfurtherquestions,orifyouhaveanyproblems,pleasecontact
yourhealthcareprovider.
WehopethatSUPRA 2.0meetsyourexpectations.
Wereservetechnicalmodicationsregardingthespeciedmodelinthismanual.Before
usingthewheechairthersttime,thismanualhastobereadandunderstoodbypatient
andsupportpersonnelinodertoensureasafehandlingwiththewheelchair.
Regularmaintenanceisimportant-itincreasessafetyandprolongsthelifeoftheproduct.
Everyrehabproductshouldbecheckedandservicedonceayear.
However,itisrecommendedtocheck,readjustand,ifnecessary,serviceproductswith
ahighfrequencyofuse,withusersingrowthoruserswithachangingclinicalpictureat
6-monthintervals.
Onlyoriginalsparepartsshouldbeusedforallserviceandmaintenancework.
Theserviceandmaintenanceworkdescribedhereshouldonlybecarriedoutbytrained
specialistpersonnelandnotbytheuseroftheaid.
Theseserviceandmaintenanceinstructionsrefertotherespectivesparepartscatalogs
andoperatinginstructionsoftheproductsdescribed.Pleaseusealldocumentstogether.
Usethemaintenanceschedule(Chapter5.2,Checklisttotickoff)asacopytemplate.
Retaincompletedmaintenanceschedulesandprovideacopytothecustomer.
SUPRA 2.0 Usermanual 1910-0049-EN

8
3.2 Application
SUPRA 2.0wheelchairisdesignedsolelyforindividualindoorandoutdoorusebychildern
andadolescentswhoareunabletowalkorwhohaveawalkingimpediment,andcanbe
operatedbythepatientorbyanotherperson.
Assistancemayberequireddueto:
-Paralysis(paraplegia/tetraplegiaortetraparesis)
-Lossoflimbs(dysmelia/lowerlimbamputation)
-Infantile/spasticcerebralpalsy
-SpinaBida
-Muscleandnervedisorders
-OsteogenesisImperfecta
-Poliomyeliti
SUPRA 2.0 wheelchairisabletobeusedforfurtherservice.Forfurtherservicethe
producthastobecleanedandsanitisedefciently.Afterwardstheproducthastobe
checkedconcerningcondition,wearoutanddamagebyanauthorisedtechnician.All
damagedandinapropptiatepartsneedtobechanged.Somecomponentscanbeused
again,e.g.Rearwheels,steeringwheelsorpushhandles.Pleaseseealsotheservice
manualfordetailledinformation.
3.3 Declaration of Conformity
HOGGIGmbHasmanufacturerdeclaresundersoleresponsibilitythattheSUPRA 2.0
activewheelchairmeetsthegeneralsafetyandperformancerequirementstoAnnexIof
theRegulation(EU)2017/745oftheEuropeanParliamentandoftheCouncil.Applicable
harmonizedstandardshavebeenapplied.SUPRA 2.0meetstherequirementsofISO
7176-8,DINENISO12182andDINENISO12183.
3.4 Terms of Warranty
Warrantyappliesonlywhentheproductisusedaccordingtothespeciedconditions
andfortheintendedpurposes,followingallmanufacturer’srecommendations.The
manufacturerisnotresponsiblefordamagescausedbycomponentsandspareparts
notapprovedbythemanufacturer.Seealso§8oftermsandconditionson:
www.hoggi.de
3.5 Customer service
Ourcustomerservicewillbehappytoansweranytechnicalquestionsyoumayhave.
Pleaserefertothelastpageforcontactaddressesandtelephonenumbers.

9
3.6 Service and repairs
ServiceandrepairsontheSUPRA 2.0wheelchairmayonlybecarriedoutbyyourspeci-
alistdealer.Incaseofproblems,contactyourresponsiblespecialistdealer.Incaseofre-
pairs,youwillonlyreceiveoriginalsparepartsthere.
Sparepartsandreplacementunitsareavailableduringtheentireservicelifeofthepro-
duct,butonlyforamaximumof2yearsafterthesaleofthelastproductinthisseries.
Thewheelchairiscustommadeforthersttimeuser.Therefore,noreplacementwheel-
chairisavailableintheinitialconguration.Inordertoensureacorrectsparepartsdelive-
rytheserialno.ofyourwheelchairisrequired.
Wearehappytohelpyoundadealernearyou.
Youcanreachusat:[email protected]
3.7Packingandshippinginstructions
IfSUPRA 2.0hastobesentbacktothemanufacturerforrepairorexchangetheproduct
mustbethoroughlycleaned/disinfectedbeforehandandputinahygienicallysafeconditi-
on.
Packagingisdonebywrappingtheproductinacleanlm,ideallywithaircushionsand
thesubsequentuseofasufcientlylargecardboardbox,sothatnotransportdamagecan
occur.

10
4 Safety instructions
4.1Meaningofsymbols
Caution!
Warningofpossibledangerofaccidentandinjury.Warningofpossibletechnical
damage.
Information!
Aboutuseofproduct.
Information!
Forservice-personnel.
Attention!
Readmanualbeforeuse!
4.2 Common safety instructions
Forallmaintenanceandrepairwork,youshouldgenerallyobserveafewpoints:
Attention!
Familiarizeyourselfwiththefunctionsoftheproduct.Ifyouarenotfamiliarwiththe
product,studytheusermanualbeforetesting.Ifnousermanualsareavailable,request
themfromus.Youcanalsodownloaddocumentsfromourhomepageat:www.hoggi.de
Attention!
Studytheserviceandmaintenanceinstructionsbeforestartingwork.
Attention!
Usesuitabletools(seepage4ff.).
Attention!
Wearsuitableclothingand,ifnecessary,glovesandprotectivegoggles.
Attention!
Securetheproductfromtippingoverorfallingdown,e.g.fromtheworkbench.
Attention!
Clean/disinfecttheproductbeforestartingthetest.Ifnecessary,observetheinstructions
intheusermanualandproduct-specictestinstructions.
Note!
Screwsandnutswiththreadlockingareusedforalargenumberofscrewconnections.
Ifyouhavetoopensuchscrewconnections,replacetherespectivenutorscrewwith
onewithnewthreadlocking.Ifnewnutsorboltswiththreadlockingarenotavailable,
useliquidthreadlockingcompoundwithmediumstrength(e.g.Loctite241orEuroLock
A24.20).

11
5 Required tools and maintenance schedule
5.1 Required tools
Thefollowinglistshowsthetoolsandutilitiesrequiredforservice.
Reversibleratchetandsockets
size 8-24 Torquewrench
Measuringranges5-50Nm
Wrench
Size 6 - 24
Hexagonwrench
Gr.3-6
Screwdriver
Bladewidth2.53.5and5.5
Phillipsscrewdriver
Size 2
Plastichammer Hammerapprox.300g Carpetknifewithsickleand
standardblade
Sidecutter Liquidthreadlocking
„mediumstrength
Rivetingpliersforrivetsupto
5mm

12
Maintenanceschedule
forregularinspection SUPRA 2.0
Activewheelchair
Customer:
...............................................
Pos. Area Check(Checklisttotickoff )
Serialnumber:
.......................................
1.)
Function/Setting
(seeinstructionmanual)
2.)
none
damage/defor-
mation
3.)
Screwconnections
1.Basicproduct
1.1 Frameandseatunit -Damages o o o
1.2 Backsectionandlatchingunit -Backrestangle
-Backrestheight
o
o
o o
o
1.3 Bearingplateandaxlemount -Seatdepth
-Activedegree
o
o
o
o
o
o
1.4 Axletube -Seatheight
- Seat angle
-Camber
o
o
o
o
o
o
o
o
o
1.5 Brakingsystem -Brakes o o o
1.6 Wheelforkholder -Swivellingthewheelforks o o o
1.7 Frontwheels -Tires
-Airpressure
-Runningbehaviorofthewheels
o
o
o
o o
1.8 Rearwheels -Tires
-Airpressure
-Runningbehaviorofthewheels
-Quickrelease
o
o
o
o
o
o
o
1.9 Pushrim -Mountingposition
-Cover
o
o
o
o
o
Dothesettingsonthewheelchair
meettheuser‘srequirements? o
Notes:

13
1.)
Function/Setting
(seeinstructionmanual)
2.)
none
damage/defor-
mation
3.)
Screwconnections
2.Accessories
2.1 Pushbar/pushhandles
Onehandpushhandle
-Höhenverstellung
-WinkelverstellungGriffhalter
-Abnehmen
o
o
o
o
o
o
o
2.2 Tiedownkit -Bracket o o o
2.3 Backrestextension -Heightadjsutment
-Cushion
o
o
o
o
o
2.4 Footresthanger&footrest -Lowerleglength
-Foldingawaythefootrest
-Angleadjustment
o
o
o
o
o
o
o
o
2.5 Clothecover&wheelcovers -Removal
-Heightadjustment
-Cushion
o
o
o
o
o
o
o
2.6 Therapytray -Clampingunit o o o
2.7 Spokeguard -Spokeguard o o o
2.8 Calfstrap -Tensionandhold o o
2.9 Anti tip and tip assist - Anti tip
-Swivelaway
-Angleadjustment
o
o
o
o o
2.10 Abductionblock -Bracket
-Swivelmechanism
o
o
o
o
o
2.11 Seat/backcushion -Cushion o o
2.12 Headrests -Removal
-Heightadjustment
-Angleadjustment
-Cushion
o
o
o
o
o
o
o
o
2.13 Backcover&edgeprotection - Pads
-Velcro
o
o
o
o
2.14 Beltxings:
Lapbelt,4-pointlapbelt,ankle
hugger
-Closures o o o
Notes:
Themaintenancewasperformedby:.............................................................. on:......................................

14
6.Seatsettings
6.1Seatheight&seatangle
TheseatheightandangleoftheSUPRA2.0canbeadjustedvia
differentsteeringwheelandcasterforksizesandbymovingthedrive
wheelaxleinrelationtotherearwheelaxlemount.
Seatheight:38-51cm
Seatangle:0°-10°
Tomovetherearwheelaxle,thecorrespondingscrewsmustbe
loosened.
Theaxlecanthenbemovedalongtheaxlemountings.
Whenthedesiredpositionisreached,tightentheboltsagain.
6.2 Seat depth
TheseatdepthofSUPRA2.0isrealisedbyshiftingtherearaxleframe
inrelationtotheseatframe.
Size1:23-35cm
Size2:24-44cm
Size3:29-49cm

15
Afterlooseningthescrewconnectionoftherearaxleframeandthe
clampingstrutintheframetube,theentirerearaxlemountcanbe
moved.
6.3Activedegree
Theactivedegreedescribestheratioofthepositionofthebackrest
relativetothedrivewheelaxis.Thefurtherthebackrestissetbehind
thethedrivewheelaxle,themoreactiveSUPRA 2.0canbedriven.
Conversely,asettingabove,orinfrontof,thedriveaxlemeansamore
stabledrivingposition.
Caution.Settingswithahighdegreeofactivityrequire
an experienced driver and the use of an anti-tippers!
SUPRA2.0offersanadjustmentrangeof0-10cm.
Foradjustment,thecorrespondingscrewconnectionsofthebackrest
basetotherearaxlemountmustbeloosened,movedintheslotted
holesormoved.
Activedegreesetting0-3cm
and2-5cm.
Alignmentoftherearaxle
frametothefront
0 - 3 cm 2 - 5 cm

16
Activedegreesetting5-8cm
and7-10cm.
Alignmentoftherearaxle
frametotherear
5 - 8 cm 7 - 10 cm
Dependingontheseatdepthanddegreeofactivity,the3framesizesareasfollows:

17
Conversionrearaxleframe
Ifachangefrom<=5cmto>=5cmismadewhensettingtheactivede-
greeto>=5cm,therearaxlemountmustbeconvertedandalignedwith
thelongendtothefront.
Therststepistoremovethetwoscrewstothebearingplateonboth
sides,sothatthecompletebackbasecanberemoved.
Thescrewconnectionsfromtherearaxlemounttotheupperframemust
nowbeloosenedandremovedonbothsides.
Loosenthescrewconnectionsfromtheaxlemounttotherearaxle
frame.
Arearaxleframecannowbepulledoutoftheclamp
Replacetheaxleframeintheneworientationandrotatetheaxleby
180°.

18
Loosenthescrewconnectiontotheaxlemountandremovethescrews
completely.Thenremovethecamberadaptersandpulltheaxleoutof
theholder.
Ontheoppositeside,alsoaligntherearaxleframeinthenewposition
andscrewitinplace.
Puttheclampbackontherearaxleframewiththealignmenttothefront.
Inserttheaxleandscrewthecamberadapterstightagain.Theexact
alignmenttowardsthegroundmustbecheckedwithaspiritlevel.
Important,regardlessofwhetherthealignmentistothefrontor
rear,therearaxleframemustalwaysbemountedasshownwith
thenarrowsidefacingoutwards!
Outside
Inside

19
Position 3 and 4
Dependingonhowtheseatdepthorthedegreeofactivityhasbeench-
anged,readjustmentofthebrakesand/orthewheelcoversisnecessary.
Thesidepartscanbescrewedin4positionswiththelockingsword.This
meansthatthecovercanalwaysbealignedcentrallyoverthewheel.
Position 1 and 2

20
6.4Backheight
SUPRA2.0isequippedeitherwithanadaptablebackrestcoveringor
withabackplate.
Thebasicbackrestheightsare20/25/30/35cm.
Adjustablebackrestcovering
Backpanel
Thefasteningisdoneviaclampstothebackframe.
Bylooseningthescrewconnections,theheightofthebackplatecanbe
adjusted.
Adifferentbackrestheightcanalsobeachievedbymovingthescrews
intootherslottedholes.
Toobtainacorrespondingadjustmentrange,telescopictubesfor
backheightadjustmentorsinglepushhandlesmustbeadditionally
equipped.Theseoffer10cmlength(backheight20cmonly5cm
possibleforconstructionalreasons.)
Thisresultsinthefollowingadjustmentrange:
Telescopictubes
Singlepushhandles
Heightadjustmentbylooseningthescrewonthebackframe.
-20upto25cm
-25upto35cm
-30upto40cm
-35upto45cm
