SWINGBO VTi-XL Service and maintenance instructions
Content Page
1 Model identication & basic conguration
 1.1 Model identication (label)_____________________________________________________ 4
 1.2 Basic conguration __________________________________________________________ 5
2 Overview SWINGBO VTi-XL_______________________________________________________ 6
3 Common information ____________________________________________________________ 7
 3.1 Preface ___________________________________________________________________ 7
 3.2 Application_________________________________________________________________ 8
 3.3 Declaration of conformity______________________________________________________ 8
 3.4 Terms of warranty ___________________________________________________________ 8
 3.5 Customer service ___________________________________________________________ 8
 3.6 Service and repairs __________________________________________________________ 9
 3.7 Packing and shipping instructions _______________________________________________ 9
4 Safety Instructions _____________________________________________________________ 10
 3.1 Meaning of symbols ________________________________________________________ 10
 3.2 Common safety instructions __________________________________________________ 10
5 Required tools and maintenance schedule _________________________________________ 11
 5.1 Required tools _____________________________________________________________ 11
 5.2 Maintenance schedule ____________________________________________________12-13
6 Seat settings __________________________________________________________________ 14
6.1 Seat height _____________________________________________________________14-16
6.2 Seat depth ______________________________________________________________16-17
6.3 Active degree _____________________________________________________________ 17
6.4 Back height _____________________________________________________________17-18
6.5 Seat angle______________________________________________________________18-19
6.6 Back angle adjustment ____________________________________________________19-21
6.7 Lower leg length _________________________________________________________21-22
6.8 Footrest angle and depth ____________________________________________________ 22
6.9 Armrest height & angle ____________________________________________________22-23
7 Maintenance schedule __________________________________________________________ 24
7.1 Frame ___________________________________________________________________ 24
7.2 Base plate and cross tube____________________________________________________ 24
7.3 Rear axle _________________________________________________________________ 24
7.4 Seat unit _________________________________________________________________ 25
7.5 Back system & push bar/handle variant _______________________________________25-26
7.6 Braking system __________________________________________________________27-28
7.7 Wheel fork holder ________________________________________________________28-29
7.8 Steering wheel_____________________________________________________________ 29
7.9 Rear wheel _______________________________________________________________ 29
7.10 Push rim _________________________________________________________________ 29

7.11 Fender ___________________________________________________________________ 30
7.12 Anti tip ___________________________________________________________________ 30
7.13 Footrest hange ____________________________________________________________ 31
7.14 Footrest bracket _________________________________________________________31-32
7.15 Footrests _________________________________________________________________ 32
7.16 Seat and back cushion ______________________________________________________ 33
7.17 Tie down kit _______________________________________________________________ 33
7.18 Spoke guards _____________________________________________________________ 33
7.19 Headrest Standard _________________________________________________________ 34
7.20 Headrest with occiput upholstery ______________________________________________ 34
7.21 Thoracic support ___________________________________________________________ 34
7.22 Chest-/ thoracic support _____________________________________________________ 34
7.23 Hip supports ______________________________________________________________ 35
7.24 Abduction block ____________________________________________________________ 35
7.25 Armrests _________________________________________________________________ 35
7.26 Therapy tray ______________________________________________________________ 35
7.27 Belt xations ______________________________________________________________ 36
8 Operating life _________________________________________________________________ 37
9 Specications _________________________________________________________________ 37

4
1Model identication
1.1 Model identication (label)
(The label of SWINGBO VTi XL is attached to the rear axle tube)
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3249-10SB-XXX
SWINGBO VTi XL
Kantelbarer Rollstuhl
2021178999
2021/05/15
max. load
75kg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3249-10SB-XXX
SWINGBO VTi XL
Kantelbarer Rollstuhl
2021178999
2021/05/15
max. load
75kg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3249-10SB-XXX
SWINGBO VTi XL
Kantelbarer Rollstuhl
2021178999
2021/05/15
max. load
75kg
Size / Variante
Serial number
Classication / Product name
Year of manufacture
UDI Code
Manufacturer
Place of manufacture
Date of manufacture
Maximum load / load capacity
CE label
Colour code
Article number

5
- Aluminium rigid frame with centre of gravity tilt in space
- Wheel base adjustable
- Wheel locks integrated in side panels with HOGGI light brakes
- HOGGI light rear wheels incl. push rims (removable via quick release axle)
- Seat depth adjustable by apx. 12 cm
- Choice of seat widths 36 -44 cm
- Push-handle or push-bar included
- Adjustable front seat height: 41 cm up to 51cm
- Adjustable tilt in space: -5° to +45°
- Back angle adjustable
- Camber 3°, 6° or 9°
- Load capacity: 75 kg
1.2 Basic conguration

6

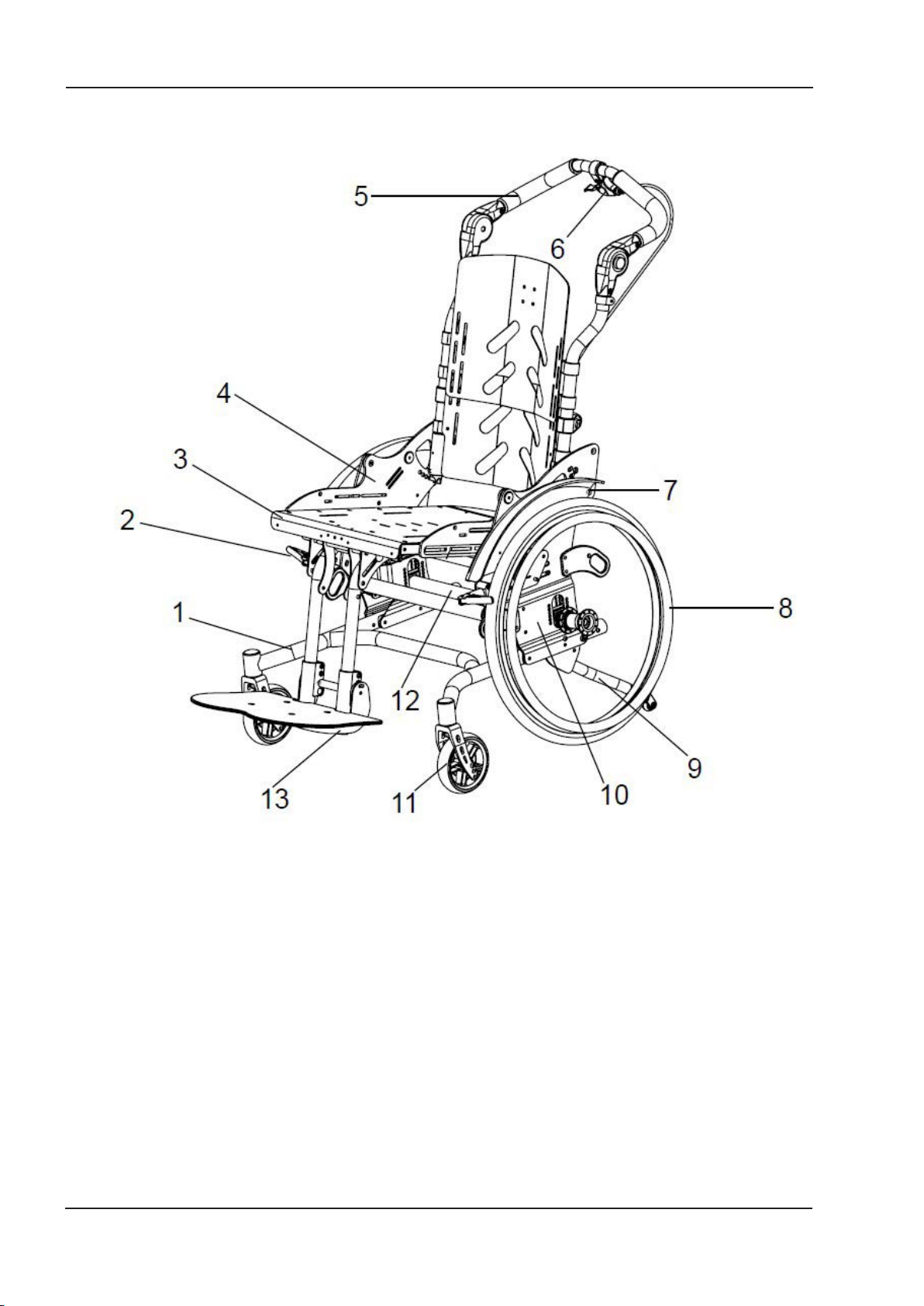

2 SWINGBO VTi-XL Overview
Pos  Article number  Article description
1  3249-11SB-000  Base frame
2  ???    HOGGI Light
3  3245-22SB-015  Seat frame
4  3249-15XX-015  Seat adapter
5  324X-XXSB   Push bar and push handles
6   3246-1900   Tilt adjustment
7  3248-16XX   Fender
  3248-16XX   Fender with integrated brake
8  12XX-XXXX   Rear wheels and push rims
93248-1800 Anti tip
10  3249-1200   Central operating element
11  12xx-XXXX   Steering wheels
12  3246-12SB   Cross tube
  3240-14SB   Axle tube

7
3 Common Information
3.1 Preface
Thank you for selecting the SWINGBO-VTi XL wheelchair. We have designed this
high-quality product to make your life safer and easier, and we’ve included this manual to
help you use and care for it. Please read the following instructions to make sure you use
this product as recommended. If you have any further questions, or if you have any pro-
blems, please contact your healthcare provider.
We hope that SWINGBO-VTi XL meets your expectations.
We reserve technical modi cations regarding the speci ed model in this manual. Before
using the wheechair the  rst time, this manual has to be read and understood by patient
and support personnel in oder to ensure a safe handling with the wheelchair.
Regular maintenance is important - it increases safety and prolongs the life of the product.
Every rehab product should be checked and serviced once a year.
However, it is recommended to check, readjust and, if necessary, service products with
a high frequency of use, with users in growth or users with a changing clinical picture at
6-month intervals.
Only original spare parts should be used for all service and maintenance work.
The service and maintenance work described here should only be carried out by trained
specialist personnel and not by the user of the aid.
These service and maintenance instructions refer to the respective spare parts catalogs
and operating instructions of the products described. Please use all documents together.
Use the maintenance schedule (Chapter 5.2, Checklist to tick off) as a copy template.
Retain completed maintenance schedules and provide a copy to the customer.
SWINGBO VTi-XL User manual    1910-0035-EN
SWINGBO VTi-XL Spare parts catalog   1910-1012-EN

8
3.2 Application
SWINGBO VTi-XL wheelchair is designed solely for individual indoor and outdoor use by
childern and adolescents who are unable to walk or who have awalking impediment, and
can be operated by the patient or by another person.
Assistance may be required due to:
- Paralysis (paraplegia / tetraplegia or tetraparesis)
- Loss of limbs (dysmelia/lower limb amputation)
- Infantile/spastic cerebral palsy
- Spina Bida
- Muscle and nerve disorders
- Osteogenesis Imperfecta
- Poliomyeliti
SWINGBO VTi-XL wheelchair is able to be used for further service. For further service the
product has to be cleaned and sanitised efciently. Afterwards the product has to be
checked concerning condition, wearout and damage by an authorised technician. All
damaged and inapropptiate parts need to be changed. Some components can be used
again, e.g. rear wheels, steering wheels or push handles. Please see also the service
manual for detailled information.
3.3 Declaration of Conformity
HOGGI GmbH as manufacturer declares under sole responsibility that the SWINGBO VTi-
XL system wheelchair meets the general safety and performance requirements to Annex
I of
the Regulation (EU) 2017/745 of the European Parliament and of the Council. Applicable
harmonized standards have been applied. SWINGBO VTi-XL meets the requirements of
ISO 7176-8, DIN EN ISO 12182 and DIN EN ISO 12183.
3.4 Terms of Warranty
Warranty applies only when the product is used according to the specied conditions
and for the intended purposes, following all manufacturer’s recommendations.The
manufacturer is not responsible for damages caused by components and spare parts
not approved by the manufacturer. See also § 8 of terms and conditions on:
www.hoggi.de
3.5 Customer service
Our customer service will be happy to answer any technical questions you may have.
Please refer to the last page for contact addresses and telephone numbers.

9
3.6 Service and repairs
Service and repairs on the SWINGBO VTi-XL wheelchair may only be carried out by your
specialist dealer. In case of problems, contact your responsible specialist dealer. In case of
repairs, you will only receive original spare parts there.
Spare parts and replacement units are available during the entire service life of the pro-
duct, but only for a maximum of 2 years after the sale of the last product in this series.
The wheelchair is custom made for the rst time user. Therefore, no replacement wheel-
chair is available in the initial conguration. In order to ensure a correct spare parts delive-
ry the serial no. of your wheelchair is required.
We are happy to help you nd a dealer near you.
You can reach us at: [email protected]
3.7 Packing and shipping instructions
If SWINGBO VTi-XL has to be sent back to the manufacturer for repair or exchange the
product must be thoroughly cleaned/disinfected beforehand and put in a hygienically safe
condition.
Packaging is done by wrapping the product in a clean lm, ideally with air cushions and
the subsequent use of a sufciently large cardboard box, so that no transport damage can
occur.

10
4 Safety instructions
4.1 Meaning of symbols
Caution!
Warning of possible danger of accident and injury. Warning of possible technical
damage.
Information!
About use of product.
Information!
For service-personnel.
Attention!
Read manual before use!
4.2 Safety instructions
For all maintenance and repair work, you should generally observe afew points:
Attention!
Familiarize yourself with the functions of the product. If you are not familiar with the
product, study the user manual before testing. If no user manuals are available, request
them from us. You can also download documents from our homepage at: www.hoggi.de
Attention!
Study the service and maintenance instructions before starting work.
Attention!
Use suitable tools (see page 4 ff.).
Attention!
Wear suitable clothing and, if necessary, gloves and protective goggles.
Attention!
Secure the product from tipping over or falling down, e.g. from the workbench.
Attention!
Clean / disinfect the product before starting the test. If necessary, observe the instructions
in the user manual and product-specic test instructions.
Note!
Screws and nuts with thread locking are used for alarge number of screw connections.
If you have to open such screw connections, replace the respective nut or screw with
one with new thread locking. If new nuts or bolts with thread locking are not available,
use liquid thread locking compound with medium strength (e.g. Loctite 241 or Euro Lock
A24.20).

11
5 Required tools and maintenance schedule
5.1 Required tools
The following list shows the tools and utilities required for service.
Reversible ratchet and sockets
size 8-24 Torque wrench
Measuring ranges 5-50 Nm
Wrench
Size 6 - 24
Hexagon wrench
Gr. 3-6
Screwdriver
Blade width 2.5 3.5 and 5.5
Phillips screwdriver
Size 2
Plastic hammer Hammer approx. 300 gCarpet knife with sickle and
standard blade
Side cutter Liquid thread locking
„medium strength“
Riveting pliers for rivets up to
5mm

12
Maintenance schedule
for regular inspection SWINGBO-VTi-XL
System wheelchair
Customer:
...............................................
Pos. Area Check (Checklist to tick off )
Serial number:
.......................................
1.)
Function / Setting
(see instruction manual)
2.)
none
damage / defor-
mation
3.)
Screw connections
1. Basic product
1.1 Frame - Damages o o o
1.2 Base plates and Cross tube - Active degree
- Seat height
o
o
o o
1.3 Rear axle - Seat height o o o
1.4 Seat unit - Tilt
- Seat depth
o
o
o o
1.5 Back system & push bar/ handle
variant
- Height adjustment back
- Angle adjustment back
- Height adjustment for push bar/
handles
- Angle adjustment for push bar
- Remove
- Fold down
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
1.6 Braking system - Brakes o o o
1.7 Wheel fork holder - Swivelling of the wheel forks o o o
1.8 Steering wheels - Tires
- Air pressure
- Running behavior of the wheels
o
o
o
o o
1.9 Rear wheels - Tires
- Air pressure
- Running behavior of the wheels
- Camber
- Quick release
o
o
o
o
o
o o
1.10 Push rim - Mounting position o o o
Do the settings on the wheelchair
meet the user‘s requirements? o
Notes:

13
1.)
Function / Setting
2.)
none
damage / defor-
mation
3.)
Screw connections
2. Accessories
2.1 Fender - Height adjustment o o o
2.2 Anti tip and tip assist - Anti tip
- Swivel away
- Angle adjustment
o
o
o
o o
2.3 Footrest hanger - Angle adjustment o o o
2.4 Footrest bracket - Lower leg length
- Folding away the footrest
- Footrest lock
o
o
o
o o
2.5 Footrests - Footrest angle o o o
2.6 Seat / back cushion - Cushion o o
2.7 Tie down kit - Support of the anchorages o o o
2.8 Spoke guards - Spoke guards o o o
2.9 Headrest standard with cushion - Height adjustment
- Padding
o
o
o
o
o
2.10 Headrest with occiput upholstery - Height adjustment
- Angle adjustment
- Padding
o
o
o
o
o
o
o
o
2.11 Thoracic support - Height adjustment
- Width adjustment
- Depth adjustment
- Padding
o
o
o
o
o
o
o
o
o
o
o
2.12 Chest-/ thoracic support - Height adjustment
- Width adjustment
- Depth and angle adjustment
- Padding
o
o
o
o
o
o
o
o
o
o
o
2.13 Hip support - Width adjustment
- Depth adjustment
- Padding
o
o
o
o
o
o
o
o
2.14 Abduction block - Pivot
- Removing
- Padding
o
o
o
o
o
o
o
o
2.15 Armrests - Height adjustment o o o
2.16 Therapy tray - Clamping unit o o o
2.17 Belt xings:
Lap belt, 4-point lap belt, ankle
hugger
- Closures o o o
Do the settings of the accessoires
meet the user‘s requirements? o
Notes
The maintenance was performed by: .............................................................. on: ......................................

14
6. Seat settings
6.1 Seat height
SWINGBO VTi-XL offers seat height adjustment from 41 -51 cm.
The adjustment is inuenced by 4things: the wheel fork and the
correspondingly selected hole position, the axle position and the seat
position.
Axle position
Zuletzt besteht die Möglichkeit die Achse auf verschiedenen Höhen
zu positionieren. Die Basisplatte bietet hier 6Positionen zu je 7,5 mm.
Hierraus ergibt sich ein Verstellbereich von insgesamt 3,75 cm
Seat position
The seat unit can basically be inserted into the upper or lower slotted
hole of the base plate. This results in aseat height difference of 2 cm.
To loosen the seat unit completely, remove the marked screws on both
sides. Then the base plates can be carefully moved apart and the seat
can be removed.
Steering wheel fork and hole position
2different fork types are available. Short or long.
The short fork offers 3hole positions, the long 4.
The holes are spaced 12.5 mm apart, giving an adjustment range of
2.5 cm for the short fork and 3.75 cm for the long fork.
Frame alignment
The frame of SWINGBO VTi-XL can be aligned in two ways. This results
in different adjustment ranges.

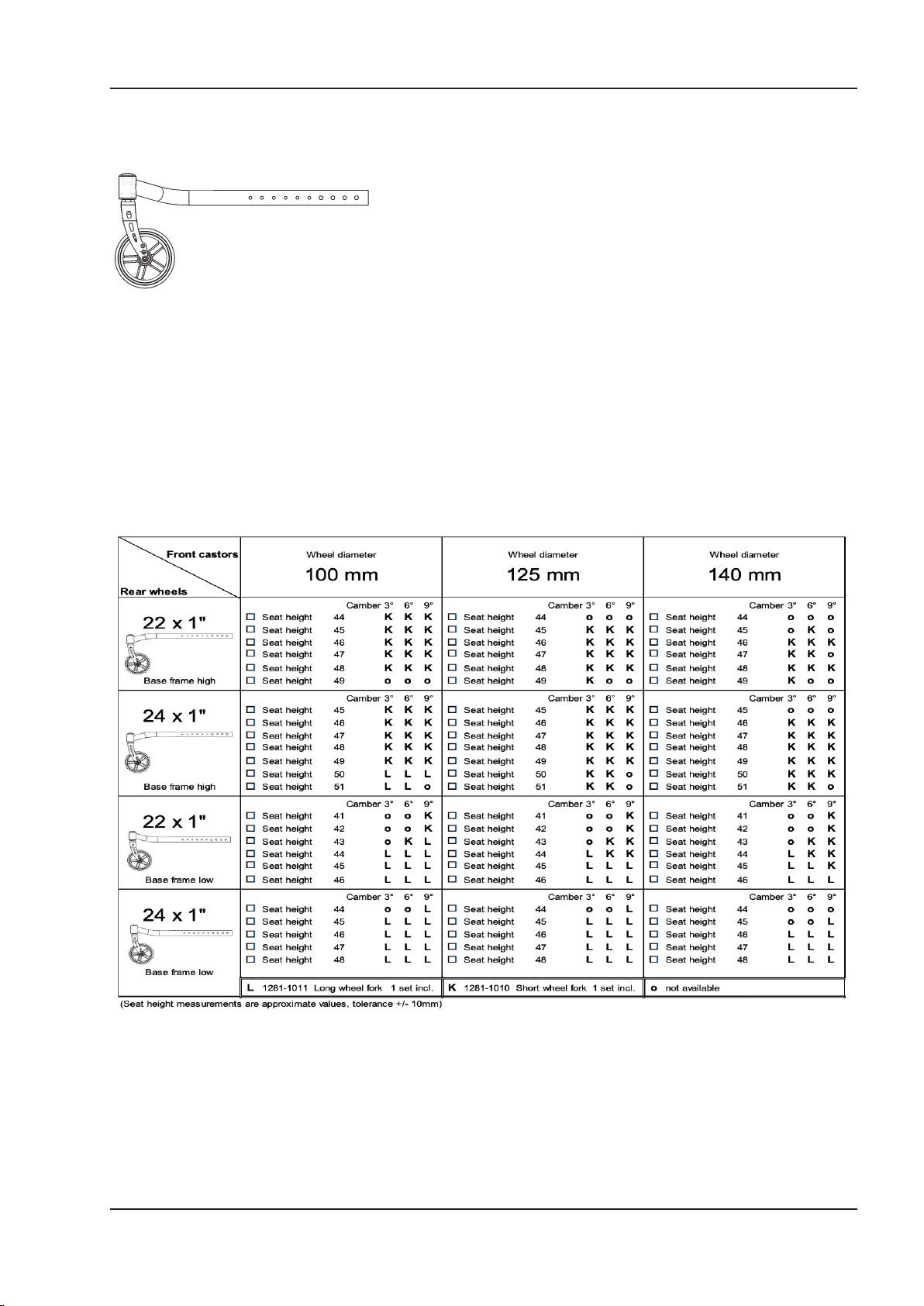

Frame alignment high

15
Dependingonthewheelcamberandindividualrequirements,thefollowingguidelinesresult:
Framealignmentlow

16
6.2 Seat depth
SWINGBO VTi-XL offers a seat depth adjustment range of 12 cm.
Measured from the outer edge of the backrest plate to the front edge of
the seat plate.
To adjust the seat depth, a total of 4 screws must be loosened.
First, the chair is tilted to 45° to reach and loosen the front screw
connections.

17
After the front screw connections have been loosened, the rear screw
connections must be found.
Due to the design of the SWINGBO VTi XL and the individual seat
height settings, the rear screw connections are not always directly
visible.
In this case, the seat unit may have to be moved to adifferent seat
angle position in order to make the screw connection between the
oblong holes visible.
Here it is also possible to work through the hole on the pressure plate
with a4mm Allen key.
The seat plate can then be moved forwards and backwards.
6.3 Active degree
The active degree describes the ratio of the position of the backrest
relative to the drive wheel axis. The further the backrest is set behind
the the drive wheel axle, the more active SWINGBO VTi XL can be
driven.
SWINGBO VTi offers a total active degree adjustment range of 10 cm.
Setting active degree 0-5cm:
If the pressure plate is attached to the base plate as shown, moving the
seat unit results in an adjustment range of 0-5cm.
Setting active degree 6-10 cm:
If alarger active degree range is to be set, both pressure plates must
be loosened and removed.
Then the plates are exchanged from the left side of the chair to the right
and vice versa.
The resulting attachment is shown in the picture.
0 - 10 cm
6.4 Back height
First of all, a distinction must be made between a trough-shaped back-
rest and an angle-adjustable backrest.

18
6.5 Seat angle
The tilt in space of SWINGBO VTi can be adjusted between -5° and
+45°.
13 positions of 4° each can be individually adjusted.
After loosening the indicated screw connections, the back can be
pulled out or pushed in.
After loosening the indicated screw connections, the back can be
pulled out or pushed in.
The angle-adjustable back offers the following ranges:
The trough back offers the following adjustment ranges depending
on the seat width:
Seat width (SW) 32 36 40 44
Backrest height for
trough shaped back 40-50 43-55 45-57 48-60
Seat width (SW) 32 36 40 44
Backrest height for
angle adjustable back 41-50 45-54 50-59 54-63

19
The tilt is triggered by alocking pin pull, which is controlled by arelease
lever on the push bar or push handle.
6.6 Back angle adjustment
The back angle adjustment on the SWINGBO VTi XL depends on the
selected push bar/push handle variant and the corresponding back.
A distinction must be made here:
Push bar/handles removable with back angle adjustable
The angle of the push handles themselves cannot be adjusted, but they
can be removed for small transport dimensions via clamping levers and
tripod springs.
Depending on how the back plate is screwed to the base, the
adjustment range is either 75°-115° or 80°-120°
If the back plate is screwed in the positions shown on the left,
the adjustment range is 80°-120°.
If the backrest plate is screwed into the positions shown on the right
the adjustment range is 75°-115°.
The back itself offers a total adjustment range of 40° and can be
operated via the release strap on the back.
In addition, the back can be folded forwards for small transport
dimensions.
1. Push bar/handles removable with
angle adjustable back
2. Push bar/handles foldable with back in
trough shape
3. Angle-adjustable and foldable push
bar with trough-shaped backrest
The back sits here in front of the of the
push handles or the push bar and remains
unaffected by their function.
!!

20
The back angle can be set to 5 different angles depending on how it is
screwed to the seat mount.
Front hole: 105°
Second hole: 100°
Third hole: 95°
Fourth hole: 90°
Rear hole: 85°
In addition, the back can also be folded down with the push handles/bars
to achieve a small transport size.
To do this, the releases on the left and right are pushed upwards and
then the back is folded down.
Angle-adjustable and foldable push bar with trough-shaped
backrest
As with the foldable push handles/ bar, only the moulded backrest can
be used!
Push bar/handles foldable with trough-shaped backrest
In contrast to the detachable push handles, the back is directly attached
to the foldable push handles. In addition, the back is always used in the
shape of a trough.
The back with the push handles/bars offers an adjustment range of of
40° and can be operated via the release strap on the back.
