Hoggi SWINGBO 2 Operating instructions

en

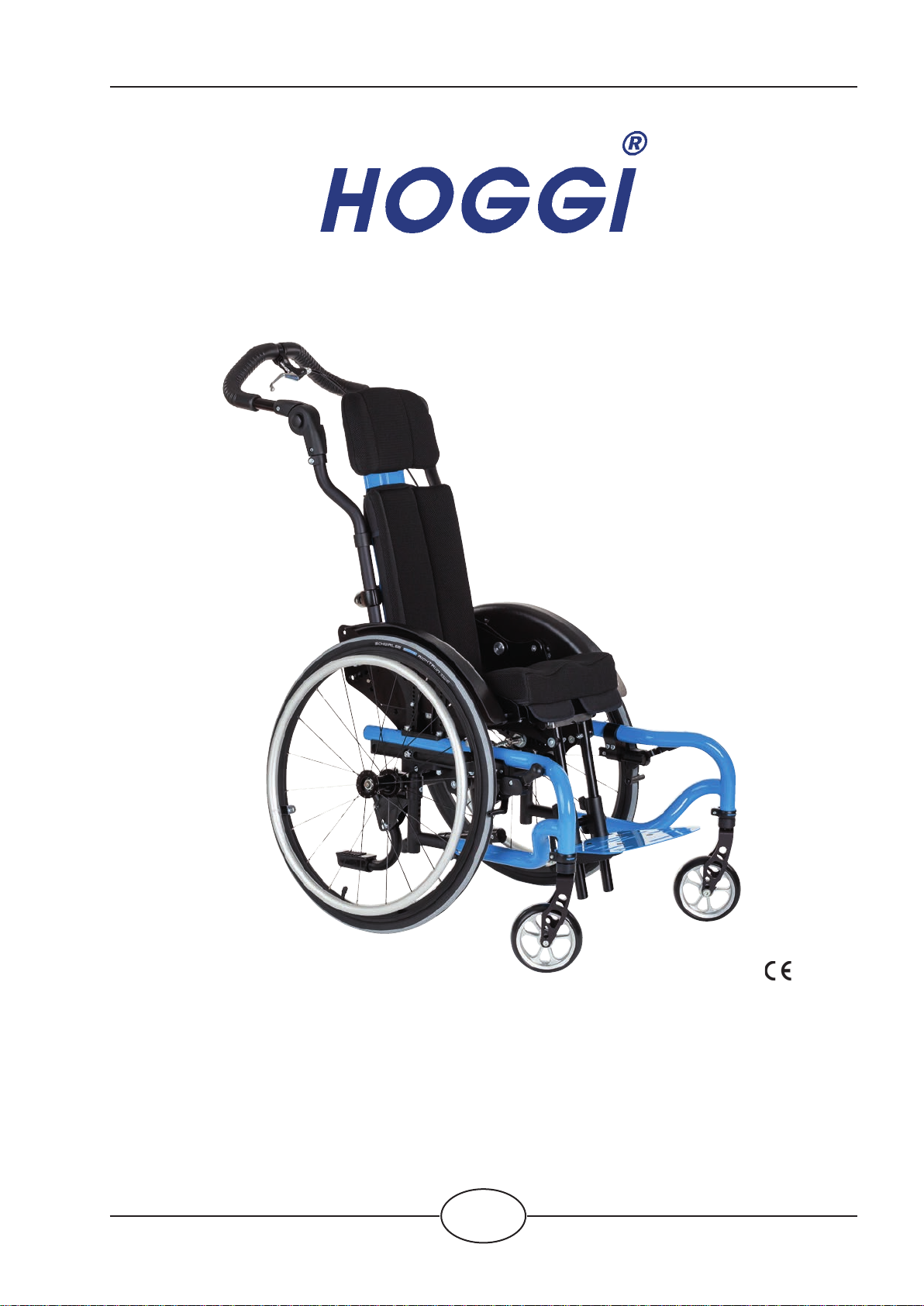

SWINGBO 2 & 2XL
Service instructions

SWINGBO 2 Service and maintenance instructions
Content Page
1 Model identication & basic conguration
 1.1 Model identication (label)____________________________________________________4-5
 1.2 Basic conguration_ ________________________________________________________4-5
2 Overview SWINGBO 2 & 2XL ______________________________________________________ 6
3 Common information ____________________________________________________________ 7
 3.1 Preface ___________________________________________________________________ 7
 3.2 Application_________________________________________________________________ 8
 3.3 Declaration of conformity______________________________________________________ 8
 3.4 Terms of warranty ___________________________________________________________ 8
 3.5 Customer service ___________________________________________________________ 8
 3.6 Service and repairs __________________________________________________________ 9
 3.7 Packing and shipping instructions _______________________________________________ 9
4 Safety Instructions _____________________________________________________________ 10
 3.1 Meaning of symbols ________________________________________________________ 10
 3.2 Common safety instructions __________________________________________________ 10
5 Required tools and maintenance schedule _________________________________________ 11
 5.1 Required tools _____________________________________________________________ 11
 5.2 Maintenance schedule ____________________________________________________12-13
6 Seat settings __________________________________________________________________ 14
6.1 Seat height _____________________________________________________________14-15
6.2 Seat depth ______________________________________________________________16-17
6.3 Active degree ___________________________________________________________17-18
6.4 Back height _____________________________________________________________18-19
6.5 Seat angle______________________________________________________________19-20
6.6 Back angle adjustment ____________________________________________________20-22
6.7 Lower leg length _________________________________________________________22-23
6.8 Footrest angle and depth ____________________________________________________ 23
6.9 Armrest height & angle ____________________________________________________23-24
7 Maintenance schedule __________________________________________________________ 25
7.1 Frame ___________________________________________________________________ 25
7.2 Base plate and cross tube____________________________________________________ 25
7.3 Rear axle _________________________________________________________________ 25
7.4 Seat unit _________________________________________________________________ 25
7.5 Back system & push bar/handle variant _______________________________________26-27
7.6 Braking system __________________________________________________________28-29
7.7 Wheel fork holder ________________________________________________________29-30
7.8 Steering wheels____________________________________________________________ 30
7.9 Rear wheel _______________________________________________________________ 30
7.10 Push rim _________________________________________________________________ 30

7.11 Fender ___________________________________________________________________ 31
7.12 Anti tip ___________________________________________________________________ 31
7.13 Footrest hanger ____________________________________________________________ 32
7.14 Footrest bracket _________________________________________________________32-33
7.15 Footrests _________________________________________________________________ 33
7.16 Seat and back cushion ______________________________________________________ 34
7.17 Tie down kit _______________________________________________________________ 34
7.18 Spoke guards _____________________________________________________________ 34
7.19 Headrest Standard _________________________________________________________ 35
7.20 Headrest with occiput upholstery ______________________________________________ 35
7.21 Thoracic support ___________________________________________________________ 35
7.22 Chest-/ thoracic support _____________________________________________________ 35
7.23 Hip supports ______________________________________________________________ 36
7.24 Abduction block ____________________________________________________________ 36
7.25 Armrests _________________________________________________________________ 36
7.26 Therapy tray ______________________________________________________________ 36
7.27 Belt xations ______________________________________________________________ 37
8 Operating life _________________________________________________________________ 38
9 Specications _________________________________________________________________ 38

4
- Aluminium rigid frame with centre of gravity tilt in space
- Wheel base adjustable
- Knee lever wheel lock
- Rear wheels incl. push rims (removable via quick release axle)
- Seat depth adjustable by apx. 8 cm
- Choice of seat widths 24 -36 cm
- Push-handle or push-bar included
- Adjustable front seat height: 36 cm up to 47cm
- Adjustable tilt in space: -5° up to +45°
- Back angle adjustable
- Camber 3°, 6° or 9°
- Load capacity: 50 kg
1.2 Basic conguration
1Model identication

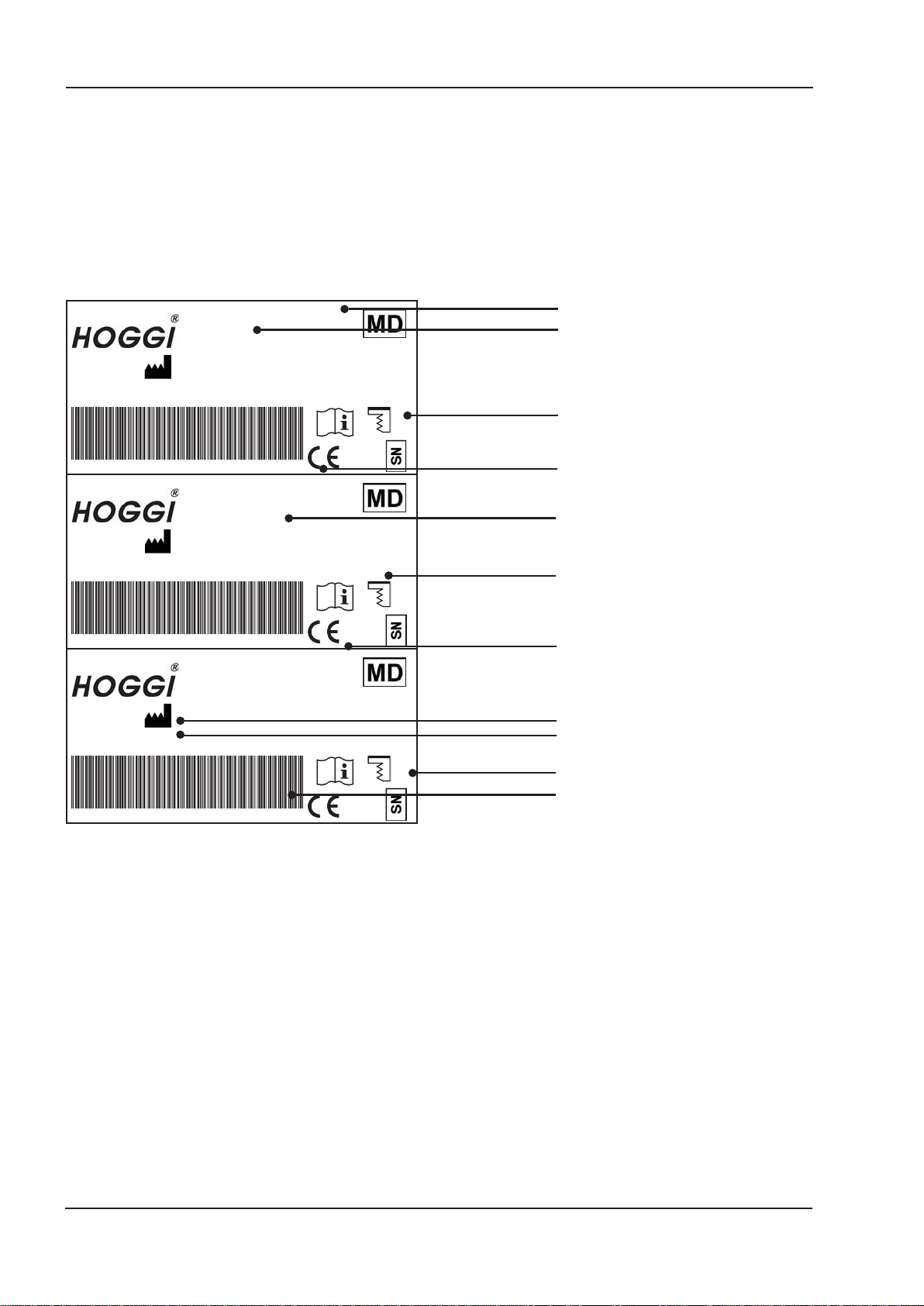

1.1 Model identication (label)
(The label is attached to the axle tube)
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3346-10SB-XXX
SWINGBO 2
Kantelbarer Rollstuhl
2021178999
2021/05/15
max. load
50kg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3346-10SB-XXX
SWINGBO 2
Kantelbarer Rollstuhl
2021178999
2021/05/15
max. load
50kg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3346-10SB-XXX
SWINGBO 2
Kantelbarer Rollstuhl
2021178999
2021/05/15
max. load
50kg
Serial number
Classication / Product name
Year of manufacture
UDI Code
Manufacturer
Place of manufacture
Date of manufacture
Maximum load / load capacity
CE label
Colour code
Article number

5
1Model identication
1.1 Model identication (label)
(The label is attached to the axle tube)
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3247-10SB-XXX
SWINGBO 2 XL
Kantelbarer Rollstuhl
2021178999
2021/05/15
max. load
100kg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3247-10SB-XXX
SWINGBO 2 XL
Kantelbarer Rollstuhl
2021178999
2021/05/15
max. load
100kg
Hoggi GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
MADE IN GERMANY
(01)04047349096062(21)202178999
3247-10SB-XXX
SWINGBO 2 XL
Kantelbarer Rollstuhl
2021178999
2021/05/15
max. load
100kg
Serial number
Classication / Product name
Year of manufacture
UDI Code
Manufacturer
Place of manufacture
Date of manufacture
Maximum load / load capacity
CE label
Colour code
Article number
1.2 Basic conguration
Mobility base:
- Aluminium rigid frame with centre of gravity tilt in space
- Wheel base adjustable
- Wheel lock integrated in side panel
- HOGGI light rear wheels incl. push rims (removable via quick release axle)
Seat system:
- Seat height adjustable
- Push-handle or push-bar included
- Adjustable tilt in space: -5° up to +45°
With low seat heights, a low degree of activity and low armrests, the tilt may be limited.
- Seat depth adjustable by apx. 8 cm
- hoice of seat widths 32 - 44 cm
- Load capacity: 100 kg

6
2OverviewSWINGBO2&2XL
1
2
4
5
6
7
8
9
3
11
10

7
3 Common Information
3.1 Preface
Thank you for selecting the SWINGBO 2 / 2XL wheelchair. We have designed this
high-quality product to make your life safer and easier, and we’ve included this manual to
help you use and care for it. Please read the following instructions to make sure you use this
product as recommended. If you have any further questions, or if you have any problems,
please contact your healthcare provider.
We hope that SWINGBO 2 / 2XL meets your expectations.
We reserve technical modi cations regarding the speci ed model in this manual. Before
using the wheechair the  rst time, this manual has to be read and understood by patient
and support personnel in oder to ensure a safe handling with the wheelchair.
Regular maintenance is important -it increases safety and prolongs the life of the product.
Every rehab product should be checked and serviced once ayear.
However, it is recommended to check, readjust and, if necessary, service products with
ahigh frequency of use, with users in growth or users with achanging clinical picture at
6-month intervals.
Only original spare parts should be used for all service and maintenance work.
The service and maintenance work described here should only be carried out by trained spe-
cialist personnel and not by the user of the aid.
These service and maintenance instructions refer to the respective spare parts catalogs and
operating instructions of the products described. Please use all documents together.
Use the maintenance schedule (Chapter 5.2, Checklist to tick off) as acopy template.
Retain completed maintenance schedules and provide acopy to the customer.
SWINGBO 2 User manual    1910-0034-EN
SWINGBO 2 Spare parts catalog   1910-1003-EN
SWINGBO 2 XL User manual    1910-0035-EN
SWINGBO 2XL  Spare parts catalog   1910-1005-EN

8
3.2 Application
SWINGBO 2 /2XL wheelchair is designed solely for individual indoor and outdoor use by
childern and adolescents who are unable to walk or who have awalking impediment, and
can be operated by the patient or by another person.
Assistance may be required due to:
- Paralysis (paraplegia / tetraplegia or tetraparesis)
- Loss of limbs (dysmelia/lower limb amputation)
- Infantile/spastic cerebral palsy
- Spina Bida
- Muscle and nerve disorders
- Osteogenesis Imperfecta
- Poliomyeliti
- There are no known contraindications when used as directed.
SWINGBO 2 / 2XL wheelchair is able to be used for further service. For further service the
product has to be cleaned and sanitised efciently. Afterwards the product has to be checked
concerning condition, wearout and damage by an authorised technician. All damaged and
inapropptiate parts need to be changed. Some components can be used again, e.g. rear
wheels, steering wheels or push handles. Please see also the service manual for detailled
information.
3.3 Declaration of Conformity
HOGGI GmbH as manufacturer declares under sole responsibility that the SWINGBO
2 / 2XL system wheelchair meets the general safety and performance requirements to
Annex I of the Regulation (EU) 2017/745 of the European Parliament and of the Council.
Applicable harmonized standards have been applied. SWINGBO 2 / 2XL meets the
requirements of ISO 7176-8, DIN EN ISO 12182 and DIN EN ISO 12183.
3.4 Terms of Warranty
Warranty applies only when the product is used according to the specied conditions
and for the intended purposes, following all manufacturer’s recommendations.The
manufacturer is not responsible for damages caused by components and spare parts
not approved by the manufacturer. See also § 8 of terms and conditions on:
www.hoggi.de
3.5 Customer service
Our customer service will be happy to answer any technical questions you may have.
Please refer to the last page for contact addresses and telephone numbers.

9
3.6 Service and repairs
Service and repairs on the SWINGBO 2 / 2XL wheelchair may only be carried out by your
specialist dealer. In case of problems, contact your responsible specialist dealer. In case of
repairs, you will only receive original spare parts there.
Spare parts and replacement units are available during the entire service life of the pro-
duct, but only for a maximum of 2 years after the sale of the last product in this series.
The wheelchair is custom made for the rst time user. Therefore, no replacement wheel-
chair is available in the initial conguration. In order to ensure a correct spare parts delive-
ry the serial no. of your wheelchair is required.
We are happy to help you nd a dealer near you.
You can reach us at: [email protected]
3.7 Packing and shipping instructions
If SWINGBO 2 / 2XL has to be sent back to the manufacturer for repair or exchange the
product must be thoroughly cleaned/disinfected beforehand and put in a hygienically safe
condition.
Packaging is done by wrapping the product in a clean lm, ideally with air cushions and
the subsequent use of a sufciently large cardboard box, so that no transport damage can
occur.

10
4Safety instructions
4.1 Meaning of symbols
Caution!
Warning of possible danger of accident and injury. Warning of possible technical
damage.
IInformation!
About use of product.
Information!
For service-personnel.
Attention!
Read manual before use!
4.2 Safety instructions
For all maintenance and repair work, you should generally observe afew points:
Attention!
Familiarize yourself with the functions of the product. If you are not familiar with the
product, study the user manual before testing. If no user manuals are available, request
them from us. You can also download documents from our homepage at: www.hoggi.de
Attention!
Study the service and maintenance instructions before starting work.
Attention!
Use suitable tools (see page 4 ff.).
Attention!
Wear suitable clothing and, if necessary, gloves and protective goggles.
Attention!
Secure the product from tipping over or falling down, e.g. from the workbench.
Attention!
Clean / disinfect the product before starting the test. If necessary, observe the instructions
in the user manual and product-specic test instructions.
Note!
Screws and nuts with thread locking are used for alarge number of screw connections.
If you have to open such screw connections, replace the respective nut or screw with
one with new thread locking. If new nuts or bolts with thread locking are not available,
use liquid thread locking compound with medium strength (e.g. Loctite 241 or Euro Lock
A24.20).

11
5Required tools and maintenance schedule
5.1 Required tools
The following list shows the tools and utilities required for service.
Reversible ratchet and sockets
size 8-24
Torque wrench
Measuring ranges 5-50 Nm
Wrench
Size 6-24
Hexagon wrench
Gr. 3-6
Screwdriver
Blade width 2.5 3.5 and 5.5
Phillips screwdriver
Size 2
Plastic hammer Hammer approx. 300 gCarpet knife with sickle and
standard blade
Side cutter Liquid thread locking
„medium strength“
Riveting pliers for rivets up to
5mm

12
Maintenance schedule
for regular inspection
SWINGBO 2 / 2XL
System wheelchair
Customer:
...............................................
Pos. Area Check (Checklist to tick off )
Serial number:
.......................................
1.)
Function / Setting
(see instruction manual)
2.)
none
damage / defor-
mation
3.)
Screw connections
1. Basic product
1.1 Frame - Damages o o o
1.2 Base plates and Cross tube - Active degree
- Seat height
o
o
o o
1.3 Rear axle - Seat height o o o
1.4 Seat unit - Tilt
- Seat depth
o
o
o o
1.5 Back system & push bar/ handle
variant
- Height adjustment back
- Angle adjustment back
- Height adjustment for push bar/
handles
- Angle adjustment for push bar
- Remove
- Fold down
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
1.6 Braking system - Brakes o o o
1.7 Wheel fork holder - Swivelling of the wheel forks o o o
1.8 Steering wheels - Tires
- Air pressure
- Running behavior of the wheels
o
o
o
o o
1.9 Rear wheels - Tires
- Air pressure
- Running behavior of the wheels
- Camber
- Quick release
o
o
o
o
o
o o
1.10 Push rim - Mounting position o o o
Do the settings on the wheelchair
meet the user‘s requirements? o
Notes:

13
1.)
Function / Setting
2.)
none
damage / defor-
mation
3.)
Screw connections
2. Accessories
2.1 Fender - Height adjustment o o o
2.2 Anti tip and tip assist - Anti tip
- Swivel away
- Angle adjustment
o
o
o
o o
2.3 Footrest hanger - Angle adjustment o o o
2.4 Footrest bracket - Lower leg length
- Folding away the footrest
- Footrest lock
o
o
o
o o
2.5 Footrests - Footrest angle o o o
2.6 Seat / back cushion - Cushion o o
2.7 Tie down kit - Support of the anchorages o o o
2.8 Spoke guards - Spoke guards o o o
2.9 Headrest standard with cushion - Height adjustment
- Padding
o
o
o
o
o
2.10 Headrest with occiput upholstery - Height adjustment
- Angle adjustment
- Padding
o
o
o
o
o
o
o
o
2.11 Thoracic support - Height adjustment
- Width adjustment
- Depth adjustment
- Padding
o
o
o
o
o
o
o
o
o
o
o
2.12 Chest-/ thoracic support - Height adjustment
- Width adjustment
- Depth and angle adjustment
- Padding
o
o
o
o
o
o
o
o
o
o
o
2.13 Hip support - Width adjustment
- Depth adjustment
- Padding
o
o
o
o
o
o
o
o
2.14 Abduction block - Pivot
- Removing
- Padding
o
o
o
o
o
o
o
o
2.15 Armrests - Height adjustment o o o
2.16 Therapy tray - Clamping unit o o o
2.17 Belt xings:
Lap belt, 4-point lap belt, ankle
hugger
- Closures o o o
Do the settings of the accessoires
meet the user‘s requirements? o
Notes
The maintenance was performed by: .............................................................. on: ......................................

14
6. Seat settings
6.1 Seat height
SWINGBO 2offers seat height adjustment from 36 -47 cm.
SWINGBO 2XL 45 -53 cm
The seat height can be adjusted by screwing the connectors with the
bolting the connectors to the axle in different hole positions of the axle
mount.
Steering wheel fork and hole position
2different fork types are available. Short or long.
The short fork offers 3hole positions, the long 4.
Depending on how the rear seat height is adjusted, the hole position of
the steering wheel in the fork must be adjusted.
Front and rear seat height must always be identical for SWINGO 2and
2XL so that the steering wheels have full have full contact with the
ground.
On SWINGBO 2, the rear axle mounting offers 7 hole positions. The The
distances are 1 cm each, giving a total adjustment range of of 6 cm in
total.
SWINGBO 2 XL offers 10 hole positions, giving a total adjustment range
of 9 cm.

15
Dependingonthewheelcamber,steeringwheelsanddrivewheels,thefollowingguidelinesresultforSWINGBO2:
Dependingonthewheelcamber,steeringwheelsanddrivewheels,thefollowingguidelinesresultforSWINGBO2:

16
6.2Seatdepth
SWINGBO2offersaseatdepthadjustmentrangeof26-42cm.
SWINGBO2XL30-50cm.
Toadjusttheseatdepth,atotalof4screwsmustbeloosened.
First,thechairistiltedto45°toreachandloosenthefront
screwconnections.
ThefollowingadjustmentrangesresultforSWINGBO2accordingtotheseatwidth:
ThefollowingadjustmentrangesresultforSWINGBO2XLaccordingtotheseat
width:
Thentherearscrewsontherightandleftcanbeloosened.
Theseatpanelcannowbemovedaccordingtothespeciedinformati-
on.

17
If the SWINGBO 2is equipped with awheel cover, this must be
removed before to expose visibly the two rear screws.
To do this, the marked screws must be completely removed. The wheel
cover can then be pulled out upwards.
6.3 Active degree
The active degree describes the ratio of the position of the backrest
relative to the drive wheel axis. The further the backrest is set behind
the the drive wheel axle, the more active SWINGBO 2and 2XL can be
driven.
SWINGBO 2and 2XL offer an active degree adjustment range of
level 0/1/2/3/4, each 2.5 cm
Total adjustment range is 10 cm
To adjust the active degree, remove the two screws xing the wheel
cover and loosen the screw of the saddle clamping ring.
Setting active degree 0
The axle mount is completely extended and the rear screw connection
of the wheel cover is screwed into the rearmost hole of the frame.
This means passive driving.
Setting active degree 1
The axle mount is not completely extended and the rear screw
connection of the wheel cover is screwed into the penultimate hole of
the frame.

18
6.4 Back height
First of all, a distinction must be made between a trough-shaped back-
rest and an angle-adjustable backrest.
Setting active degree 2
The axle mount is extended relatively far and the rear wheel cover
wheel cover is screwed into the third last hole of the frame.
Setting active degree 3
The axle mount is extended relatively short and the rear wheel cover
is screwed into the fourth last hole of the frame. frame.
Setting active degree 4
The axle mount is only extended ashort distance and the rear wheel
cover is screwed into the fth last hole of the frame.
This means active driving

19
6.5 Seat angle
The tilt in space of SWINGBO 2 and 2XL an be adjusted between -5°
and +45°.
13 positions of 4° each can be individually adjusted.
After loosening the indicated screw connections, the back can be
pulled out or pushed in.
After loosening the indicated screw connections, the back can be
pulled out or pushed in.
The angle-adjustable back offers the following ranges:
The trough back offers the following adjustment ranges depending
on the seat width for SWINGBO 2 and SWINGBO 2XL:
Seat width (SW) 24 26 28 30 32 34 36
Backrest height,
back trough shaped 36 - 44 37 - 45 38 - 48 39 - 49 40 - 50 42 - 54 43 - 55
Seat width (SW) 32 36 40 44
Backrest height,
back trough shaped 40 - 50 43 - 55 45 - 57 48 - 60
Seat width (SW) 24 26 28 30 32 34 36
Backrest height,
panel angle adjustableped 33 - 42 35 - 44 37 - 46 39 - 48 41 - 50 43 - 52 45 - 54
Seat width (SW) 32 36 40 44
Backrest height,
panel angle adjustable 41 - 50 45 - 54 50 - 59 54 - 63

20
The tilt is triggered by alocking pin pull, which is controlled by arelease
lever on the push bar or push handle.
6.6 Back angle adjustment
The back angle adjustment on the SWINGBO 2 and 2XL depends on
the
selected push bar/push handle variant and the corresponding back.
A distinction must be made here:
Push bar/handles removable with back angle adjustable
The angle of the push handles themselves cannot be adjusted, but they
can be removed for small transport dimensions via clamping levers and
tripod springs.
Depending on how the back panel is screwed to the base, the
adjustment range is either 75°-115° or 80°-120°.
If the back plate is screwed in the positions shown on the left,
the adjustment range is 80°-120°.
If the backrest panel is screwed into the positions shown on the right
the adjustment range is 75°-115°.
The back itself offers a total adjustment range of 40° and can be
operated via the release strap on the back.
In addition, the back can be folded forwards for small transport
dimensions.
1. Push bar/handles removable with
angle adjustable back
2. Push bar/handles foldable with back in
trough shape
3. Angle-adjustable and foldable push
bar with trough-shaped backrest
The back sits here in front of the of the
push handles or the push bar and remains
unaffected by their function.
!!
