Installation Instructions for the ISSUE 3
FSL Series Force Sensor PK 80091

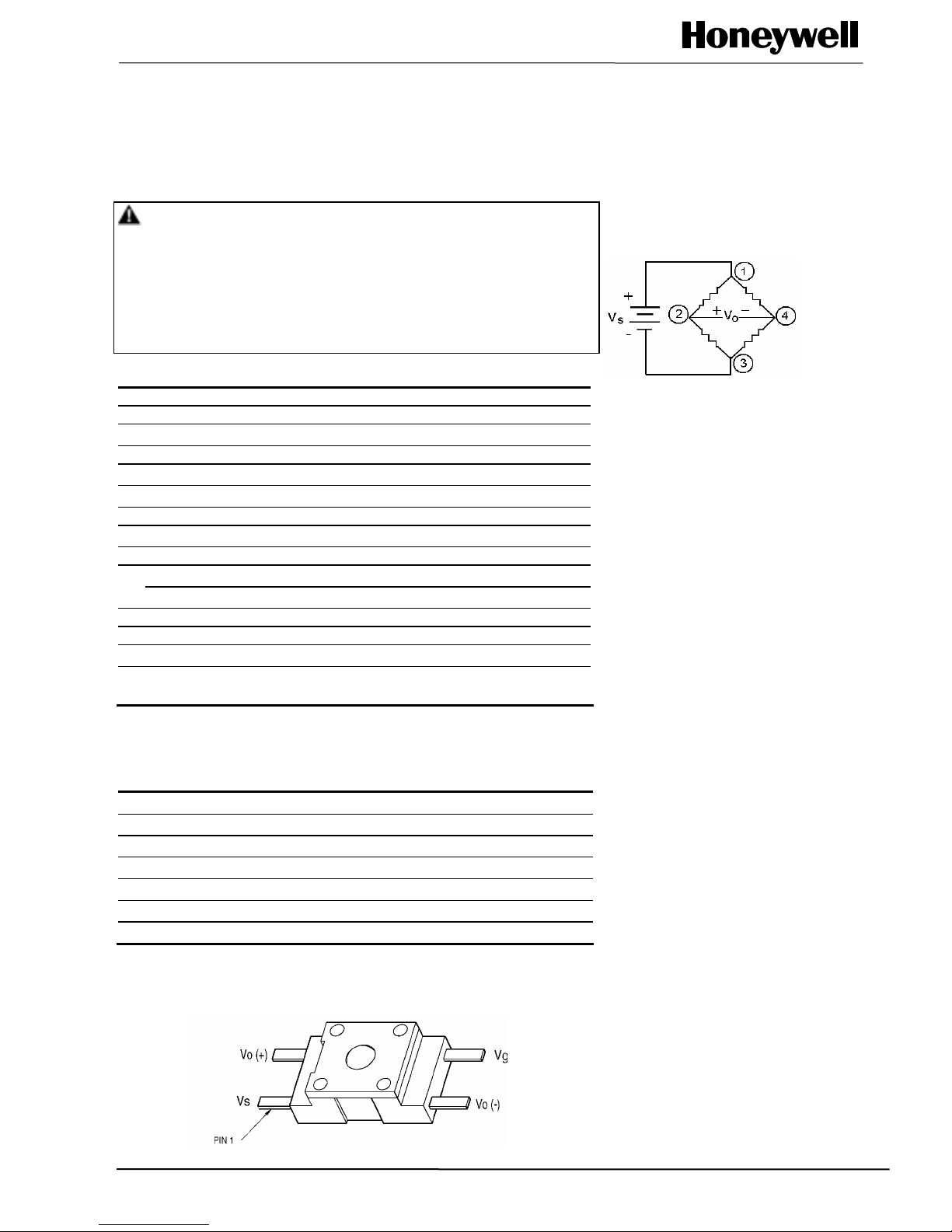

EXCITATION SCHEMATIC
Excitation (Vdc) 5 Typ., 12 Max.
WARNING
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop devices,
or in any other application where failure of the product could result in
personal injury.
Failure to comply with these instructions could result in death
or serious injury.
PERFORMANCE CHARACTERISTICS @ 5.0 ±0.01 Vdc Excitation, 25 °C
Parameter Min. Typical Max. Units
Null Offset -15 0 +15 mV
Operating Force 0 500 grams
Sensitivity 0.1 0.12 0.14 mV/gram
Linearity (B.F.S.L.)** ±10 grams
Repeatability @ 300 g ±10 grams
Null Shift
25 °C to 2 °C, 25 °C to 40 °C ±0.5 mV
Sensitivity Shift
25 °C to 0 °C+0.006 mV/gram
25 °C to 40 °C -0.006 mV/gram
Input Resistance 4.0 K 5.0 K 6.0 K Ohms
Output Resistance 4.0 K 5.0 K 6.0 K Ohms
Overforce 4,500 grams
ESD (direct contact,
terminals and plunger) 8
 
kV
FS SERIES CIRCUIT
1.Circled numbers refer to sensor
terminals (pins).
Pin 1 = Supply VS(+)
Pin 2 = Output (+)
Pin 3 = Ground (-)
Pin 4 = Output (-)
2.The force sensor may be powered
by voltage or current. Maximum
supply voltage is not to exceed 12
volts. Maximum supply current is
not to exceed 1.6 mA. Power is
applied across Pin 1 and Pin 3.
3.The sensor output should be
measured as a differential voltage
across Pin 2 and Pin 4 (VO= V2-
V4). The output is ratiometric to the
supply voltage. Shifts in supply
voltage will cause shifts in output.
Neither Pin 2 nor Pin 4 should be
tied to ground or voltage supply.
* Non-compensated force sensors, excited by constant current (1.5 mA)
instead of voltage, exhibit partial temperature compensation of Span.
**BFSL: Best Fit Straight Line.
ENVIRONMENTAL SPECIFICATIONS
Operating temperature -40 °C to 70 °C [-40 °F to 158 °F]
Storage temperature -40 °C to 70 °C [-40 °F to 158 °F]
Shock Qualification tested to 150 g
Vibration Qualification tested to 0 to 2 kHz, 20 g sine
MCTF 13 million at 50 °C [122 °F]
Solderability 5 sec at 315 °C per lead
Output ratiometric Within supply range
CLEANING
Proper cleaning fluids should be
selected, based on the type of
contaminants to be removed.
Honeywell recommends alcohols.
Note: All force related specifications are established using dead weight or
compliant force.
SENSOR PINOUT
Sensing and Control © Honeywell 2003, All Rights Reserved

FSL Series Force Sensor ISSUE 3 PK 80091
MOUNTING DIMENSIONS (for reference only) mm/in
DESCRIPTION
Force Sensitivity Span Overforce
Catalog Range mV/V/gram mV grams
Listing (grams) Min. Typ. Max. Typ. Max.
FSL05N2C 500 .02 .024 .028 60 (@ 5 Vdc) 4,500
* Span: the algebraic difference between the output end points.
