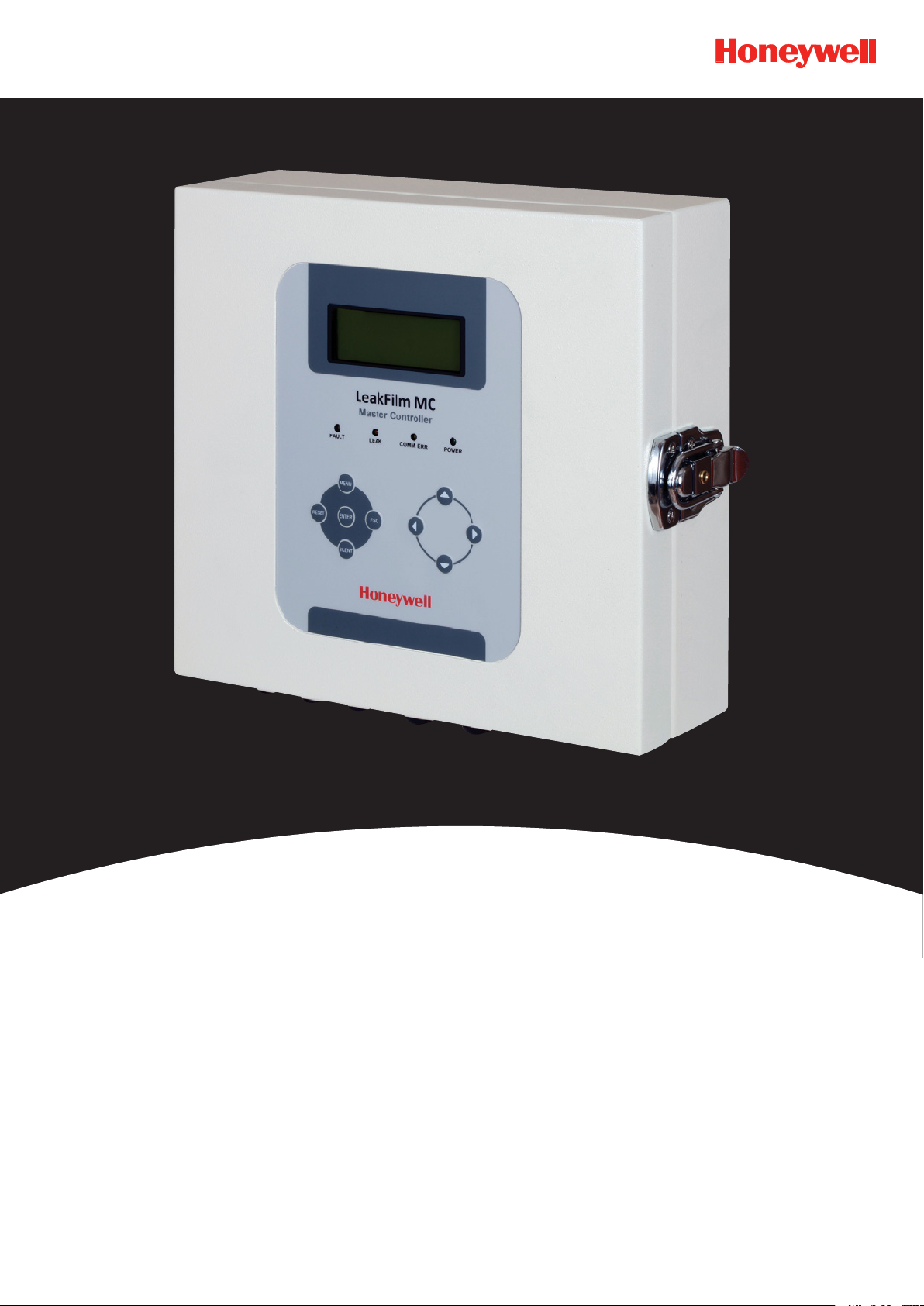

Honeywell LeakFilm MC User manual

LeakFilm MC
Master Controller with RS-485 MODBUS
Technical Manual

2
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
Ensure that this Operating Manual is read and understood BEFORE installing / operating /
maintaining the equipment. Pay particular attention to Warnings and Cautions. All document
Warnings are listed here and repeated where appropriate at the start of the relevant chapter(s)
of this Operating Manual. Cautions appear in the sections/sub-sections of the document where
they apply.
WARNINGS
LeakFilm controllers and sensors are designed for installation and use in ordinary
areas only. Do not install the controllers and the sensors in hazardous areas.
Installation must be in accordance with the recognized standards of the
appropriate authority in the country concerned.
Access to the terminal block for wiring and switches for conguration of the
controller, when carrying out any work, must only be conducted by trained
personnel.
Before carrying out any work ensure local regulations and site procedures
are followed. Appropriate standards must be followed to maintain the overall
certications.
Never attempt to open a plastic enclosure or connector or replace/ret the wire of
the sensor while power is still applied to the controller.
LeakFilm controllers must be earthed/grounded for electrical safety and to limit the
effects of radio frequency interference. Earth/ground points are provided “F.G.” or
“SHIELD” terminal of the controllers.
Ensure that all screens/instrument earth/clean earth wiring is earthed/grounded
at a single point (either at the controller or master controller - BUT NOT BOTH)
to prevent false readings or alarms that may occur due to potential earth/ground
loops.
The plastic enclosure of the controllers is a potential electrostatic charging
hazard. Avoid any conditions that could result in the controllers becoming
electrostatically charged.
Take care when handling LeakFilm sensors as they may be damaged by sharp
tools.
LeakFilm controllers should be handled with care to avoid mechanical shock and
impact.
Do not expose to temperatures, humidity and other conditions beyond the storage
and operating ranges.
LeakFilm controllers must have a suitably rated fuse.
LeakFilm controllers and sensors should be installed in a location free from dust,
direct sunlight, temperature extreme, strong magnetic eld and heavy vibration.
1. Safety

3
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
2. Information
This manual is for use with LeakFilm Sensors and Controllers range only.
Honeywell Analytics can take no responsibility for installation and/or use of its equipment if not
done so in accordance with the appropriate issue and/or amendment of the Technical Manual.
The reader of this Operating Manual should ensure that it is appropriate in all details for the exact
equipment to be installed and/or operated. If in doubt, contact Honeywell Analytics for advice.
The following types of notices are used throughout this Operating Manual:
WARNING
Identies a hazardous or unsafe practice which could result in severe injury or
death to personnel.
Caution: Identies a hazardous or unsafe practice which could result in minor
injury to personnel, or product or property damage.
Note: Identies useful/additional information.
Every effort has been made to ensure the accuracy of this document, however,
Honeywell Analytics can assume no responsibility for any errors or omissions in this
document or their consequences.
Honeywell Analytics would greatly appreciate being informed of any errors or omissions that
may be found in the content of this document.
For information not covered in this document, or if there is a requirement to send
comments/corrections about this document, please contact Honeywell Analytics using the
contact details given on the back page.
Honeywell Analytics reserve the right to change or revise the information supplied
in this document without notice and without obligation to notify any person or
organisation of such revision or change. If information is required that does not
appear in this document, contact the local distributor/agent or Honeywell Analytics.

4
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
3. Table of Contents
1 Safety 2
2 Information 3
3 Table of contents 4
4 Introduction 5
4.1 Package Contents 6
4.2 LeakFilm Controller 7
5 Installation 8
5.1 Mounting and Location 9
5.2 Standalone installation of LeakFilm MC 9
5.3 LeakFilm MC with Host System 11
6 Electrical connections and power on 13
6.1 Terminal connections 13
6.2 Power on (Commissioning) 16
7Conguration 17
7.1 Menu Mode 17
7.2 Alarm Mode 18
8Characteristic and specication 20
9 Ordering Information 21
10 MODBUS Register Map 22
11 Warranty statement 24
12 Installation Drawing 25

5
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
4. Introduction
LeakFilm MC is a master controller to monitor the status of controllers connected to its
communication line. LeakFilm Pro, 5 and HC controllers can be connected to the
LeakFilm MC.
The controller features a buzzer, and 9 push buttons UP, DOWN, LEFT, RIGHT, ENTER,
MENU, RESET, ESC, SILENT for conguration. 4 LEDs indicate the status of fault, leak,
communication error and power and a 20x4 character LCD gives status indication and
conguration.
The master controller also provides 3 relays (fault, leak and communication error) for
controlling external equipment such as alarms, sirens, valves or switches.
LeakFilm MC has been designed to be mounted through 4 mounting holes, so that the user
can easily install the controller on a wall or in the interior of an electrical control panel.
Caution: LeakFilm Mini cannot be connected to LeakFilm MC because it does not
have the appropriate communication feature. LeakFilm 5 should be used instead
to connect to LeakFilm MC.

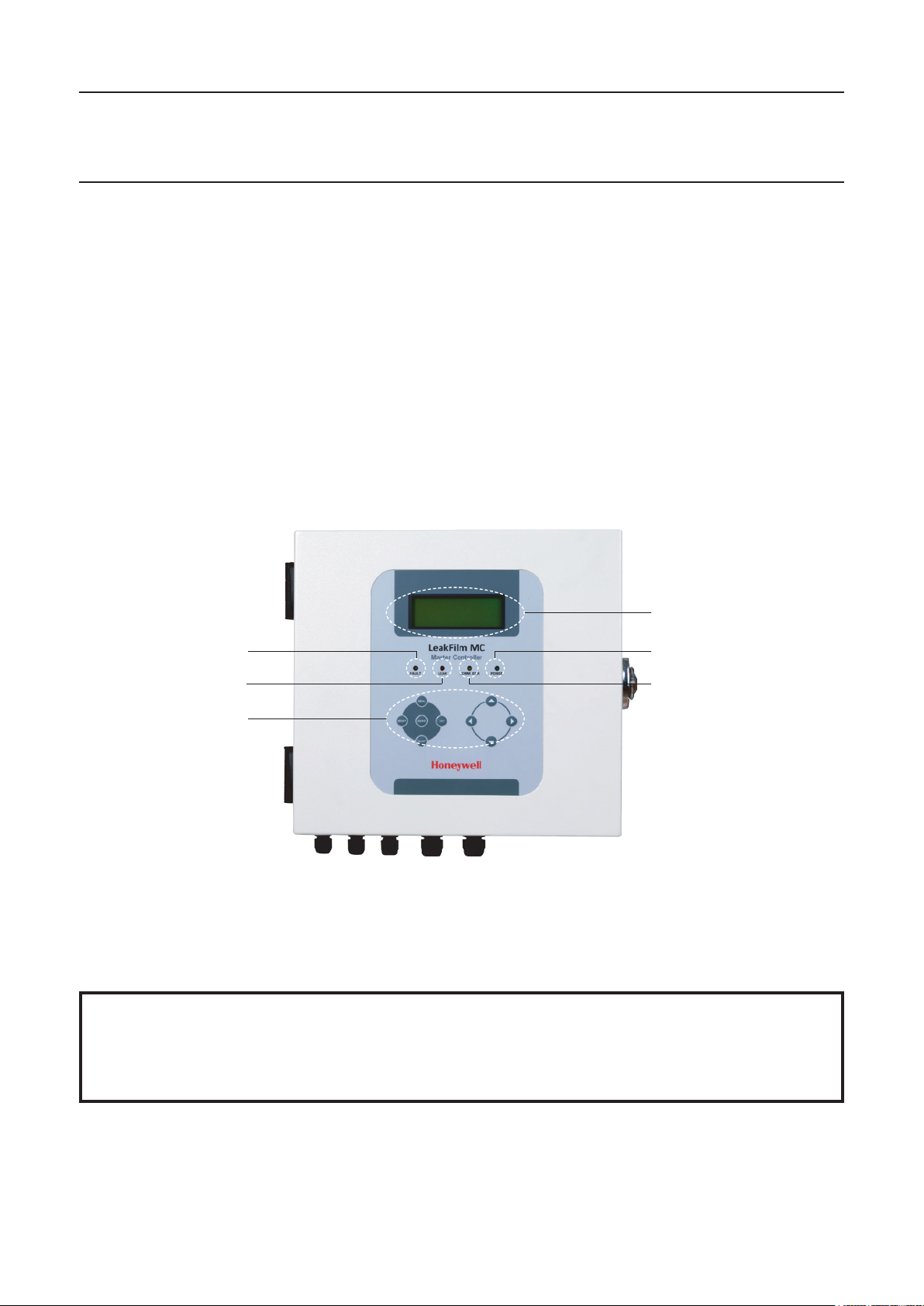

Diagram 1: LeakFilm MC Overview
20 X 4 Character LCD
Power LED: Green
Comm. Error LED: Yellow
Fault LED: Yellow
Leak LED: Red
Push Buttons

6
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
4. Introduction
4.1 Package Contents
LeakFilm MC is supplied with pre-congured and 100% tested controller, manual CD-ROM
and package box as shown in below.
The CD-ROM should run automatically when put into a computer CD-ROM player. If the
CD-ROM does not start, click on ‘My Computer’, locate the CD-ROM and double click the le
‘start.exe’.
Diagram 2: Package Box Contents
WARNINGS
When unpacking the product, handle with care to avoid any damage to the product.
Do not throw away the box, which may be required for product storage or
transport, and keep it together with the manual.
LeakFilm MC Manual CD

7
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
4. Introduction
4.2 LeakFilm Controller
LeakFilm MC can be used with LeakFilm Pro, 5 and HC.
Part number Product Name Description
HLFC1DRD LeakFilm Pro 1 Channel Conductive_D & Chemical Controller with Leak
Location Detection
HLFC5CRN LeakFilm 5 5 Channel Conductive Controller with Broken Sensor Detection
HLFC1HRN LeakFilm HC 1 Channel Hydrocarbon Controller with Broken Sensor Detection
Diagram 3: Applicable LeakFilm controllers
Table 1: Applicable LeakFilm controllers

8
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
5. Installation
WARNINGS
LeakFilm controllers and sensors are designed for installation and use in ordinary
areas only. Do not install the controllers and the sensors in hazardous areas.
Installation must be in accordance with the recognized standards of the
appropriate authority in the country concerned.
Access to the terminal block for wiring and switches for conguration of the
controller, when carrying out any work, must only be conducted by trained
personnel.
Before carrying out any work ensure local regulations and site procedures
are followed. Appropriate standards must be followed to maintain the overall
certications.
Never attempt to open a plastic enclosure or connector or replace/ret the wire of
the sensor while power is still applied to the controller.
LeakFilm controllers must be earthed/grounded for electrical safety and to limit the
effects of radio frequency interference. Earth/ground points are provided “F.G.” or
“SHIELD” terminal of the controllers.
Ensure that all screens/instrument earth/clean earth wiring is earthed/grounded
at a single point (either at the controller or master controller - BUT NOT BOTH)
to prevent false readings or alarms that may occur due to potential earth/ground
loops.
The plastic enclosure of the controllers is a potential electrostatic charging
hazard. Avoid any conditions that could result in the controllers becoming
electrostatically charged.
Take care when handling LeakFilm sensors as they may be damaged by
sharp tools.
LeakFilm controllers should be handled with care to avoid mechanical shock and
impact.
Do not expose to temperatures, humidity and other conditions beyond the storage
and operating ranges.
LeakFilm controllers must have a suitably rated fuse.
LeakFilm controllers and sensors should be installed in a location free from dust,
direct sunlight, temperature extreme, strong magnetic eld and heavy vibration.

9
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
5. Installation
5.1 Mounting and Location
LeakFilm MC has been designed to be mounted through 4 mounting holes, so that the user
can easily install the controller on a wall or in the interior of an electrical control panel easily.
The following points should be noted when locating the controllers.
• When locating the controllers, consider the possible damage caused by natural events
e.g. rain or ooding. LeakFilm MC provides only IP43, limited water proof feature.
• Consider ease of access to the controller for repair and maintenance.
• Avoid any location mentioned in the above warnings.
See the installation drawing at the end of this manual for mechanical dimensions.
5.2 Standalone installation of LeakFilm MC
Diagram 4: LeakFilm MC with LeakFilm Pro
ID: 1 ID: 2 ID: 3 ID: 200
Max. 200 units

10
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
5. Installation
LeakFilm MC (master controller) can be connected to LeakFilm Pro, 5 and HC (slave
controllers) using RS-485 as shown in the above diagram. For LeakFilm Pro or HC
controllers, up to 200 units can be connected to the master controller while LeakFilm 5
is limited to 15 units. When the slave controllers communicate with the master controller,
each slave controller should have a unique ID. See the manual of each slave controller for
instructions on how to set the communication ID.
Caution: Each slave controller connected to LeakFilm MC should have a unique
communication ID, otherwise incorrect data can be transmitted to the master
controller.
Once the LeakFilm MC turns on, it starts to scan all IDs to check the slave controllers
connected to it. The user can determine the maximum ID number (MaxMD) of slave
controllers which is used for scanning from 1 to MaxMD. The acceptable range is 1 to 200
and the default value is 200. See “6.1 Electrical connections” for instructions on how to set
MaxMD.
When you use LeakFilm 5 together with LeakFilm Pro & HC, set the ID of LeakFilm 5
between 1 and 15 rst and then set the IDs for LeakFilm Pro and HC later to the rest of the
numbers, because LeakFilm 5 ID can be set only from 1 to 15 while LeakFilm Pro & HC can
be set from 1 to 200.
It takes around 20-25ms for the master controller to scan 1 slave controller, so it requires
at least 5 seconds (cycle time) to scan 200 slave controllers. If the cycle time is too long for
the application, the number of slave controllers connected to the master controller should
be limited. For example if the cycle time needs to be less than 1 second, a maximum of 40
slave controllers should be connected to one master controller.
Caution: Each slave controller connected to LeakFilm MC should have a unique
communication ID, otherwise incorrect data can be transmitted to the master
controller.
Caution: The number of slave controllers connected to the master controller should
be limited based on the required cycle time.

11
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
5. Installation
5.3 LeakFilm MC with Host System
LeakFilm MC can also be connected to a host system as shown in the below diagram. Up
to 32 LeakFilm MC controllers can be connected to a host system using RS-485 MODBUS
communication. See “10. MODBUS Register Map” for detail.
A communication ID is required for LeakFilm MC to communicate with the host system.
The acceptable range of the ID is from 1 to 32 and the default value is 1. The ID of each
master controller should be unique otherwise it cannot communicate with the host system
properly due to ID conict. See “6.1 Terminal connections” for instructions on how to set the
communication ID.
ID: 1 ID: 2 ID:32
Max. 32 units
Max. 200 units Max. 200 unitsMax. 15 units
ID:1 ID:2 ID:15 ID:1 ID:2 ID:200 ID:1 ID:2 ID:200
Diagram 5: LeakFilm MC with host system

12
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
5. Installation
Caution: Caution: Honeywell Analytics does not provide any software tool to log
the data from LeakFilm MC. The user should create a tool based on the MODBUS
register map or should purchase a commercial tool suitable for the purpose.
Caution: Each master controller connected to the host system should have a unique
communication ID, otherwise incorrect data can be transmitted to the host system.

13
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
6. Electrical connections and power on
6.1 Terminal connections
WARNINGS
All electrical connections should be made in accordance with any relevant local or
national legislation, standards or codes of practice.
LeakFilm controllers must be earthed/grounded for electrical safety and to limit the
effects of radio frequency interference. Earth/ground points are provided “F.G.” or
“SHIELD” terminal of the controllers.

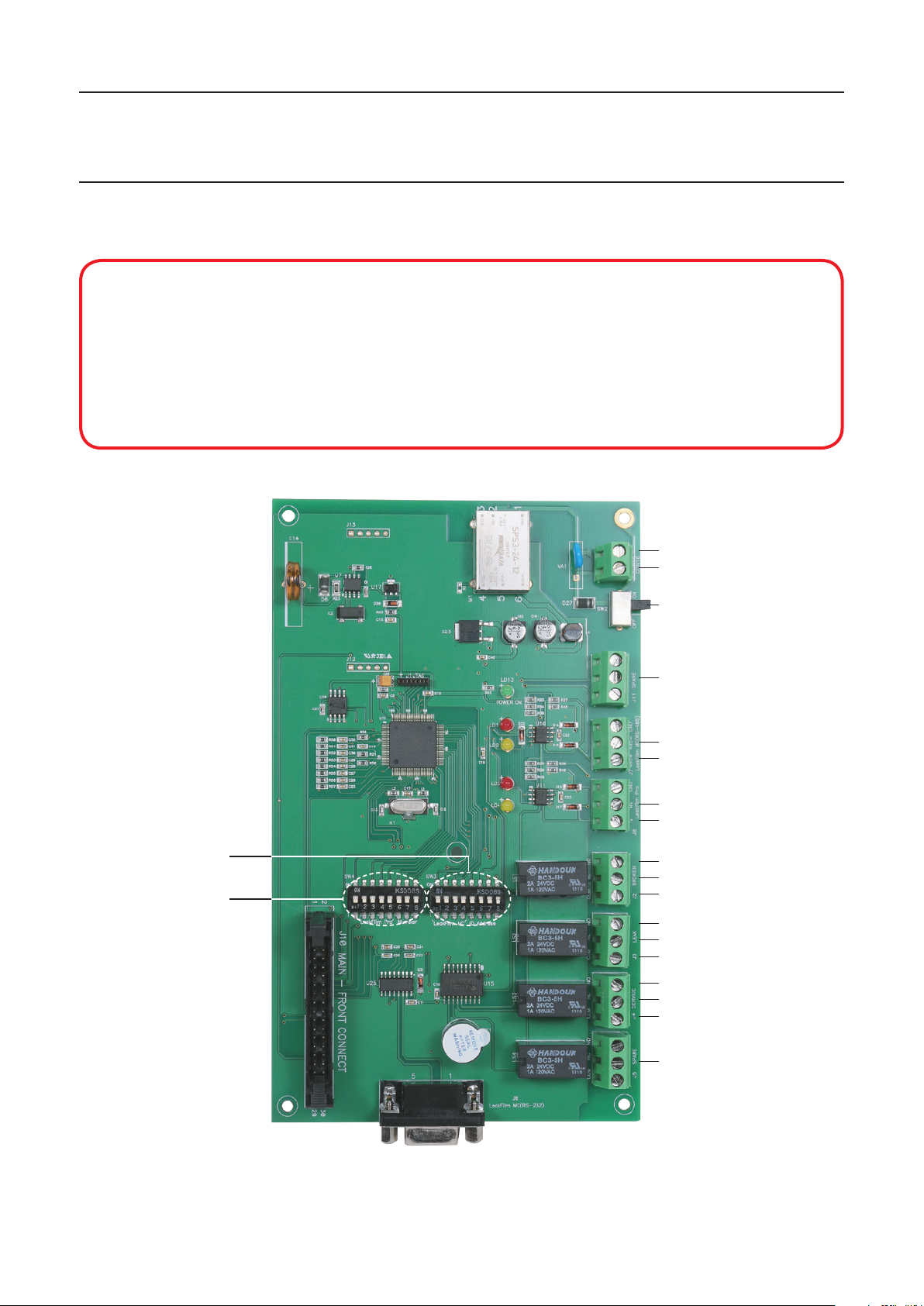

Diagram 5: Wiring Diagram
-V from SMPS
+V from SMPS
Power S/W
Spare Terminal (Not used)
MODBUS RS485- to host system
MODBUS RS485+ to host system
Rx to slave controllers
Tx to slave controllers
Sensor Broken Relay Output (NO)
Leak Relay Output (NO)
Comm. Error Relay Output (NO)
Sensor Broken Relay Output (NC)
Leak Relay Output (NC)
Comm. Error Relay Output (NC)
Sensor Broken Relay Output (COM)
Leak Relay Output (COM)
Comm. Error Relay Output (COM)
Maximum ID number
(MaxMD) of the slave
controllers
Communication ID of
master controller
Spare Relay (Not used)
Version
1.0
ID:001 MaxMD:200
Version
1.0
ID:255 MaxMD:200
LeakFilm
Master Module
2010-01-0806:12:16
Leak System Normal

14
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
6. Electrical connections and power on
Marking Group Description
Power - Power supply
(CON16)
-V from power supply (SMPS).
Power + +V from power supply (SMPS).
Spare Terminal (J11)
Not used
Not used
Not used
GND RS-485 MODBUS
Communication (J7)
Not used
RS485- MODBUS RS485- to host system
RS485+ MODBUS RS485+ to host system
GND RS-485
Communication
to Controller (J8)
Not used
Rx Rx of LeakFilm MC, Connected to Rx of slave controllers
Tx Tx of LeakFilm MC, Connected to Tx of slave controllers
NO
Sensor Broken
Relay (J2)
Normal open of the relay. NO and COM closed when sensor
broken signal detected.
NC Normal close of the relay. NC and COM open when sensor
broken signal detected.
COM Common of the relay
NO
Leak Relay (J3)
Normal open of the relay. NO and COM closed when leak
signal detected.
NC Normal close of the relay. NC and COM open when leak
signal detected.
COM Common of the relay
NO
Communication Error
Relay (J4)
Normal open of the relay. NO and COM closed when
communication error detected.
NC Normal close of the relay. NC and COM open when
communication error detected.
COM Common of the relay
NO Spare Relay (J5) Not used
NC Not used
COM Not used
Table 2: LeakFilm MC Controller Terminal Connections
AC mains voltage supply cables should meet local and national regulations. LeakFilm MC
power supplies will accept wire sizes in the range 0.5 – 6 mm2(solid core), 0.5 – 4 mm2
(stranded core), or 22 – 12 AWG. Wire temperature ratings should be minimum 80 °C and
wires should be tightened to 11.9lb-in torque.
For terminals (CON16, J11, J7, J8, J2, J3, J4 and J5), LeakFilm MC will accept wire size in
the range 0.13 ~ 2.0 mm2(stranded) or 26 – 14 AWG. Wire temperature ratings should be
minimum 80 °C and wires should be tightened to 3.5lb-in torque.

15
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
6. Electrical connections and power on
The communication ID of LeakFilm MC is set by SW3 dip switch. See in the below table how
to set the ID using the SW3 dip switch.
SW3 1 2 3 4 5 6 7 8 ID
Value
On Off Off Off Off Off Off Off ID = 1 (Default value)
On Off Off On Off Off Off Off ID = 1 + 2x0 + 4x0 + 8x1 = 9
Off Off Off Off Off On Off Off ID = 0 + 2x0 + 4x0 + 8x0 + 16x0
+ 32x1 = 32 (Max. value)
Table 3: Examples of communication ID setting of LeakFilm MC
User can set MaxMD using the SW4 dip switch as shown in the below table. If MaxMD is
7, LeakFilm MC scans from 1 to 7 only. In this case any controller with an ID of more than
7 will not be scanned, so it will not be monitored by the LeakFilm MC. To avoid missing any
controllers that are connected to the LeakFilm MC, leave MaxMD set to the default value
of 200.
SW4 1 2 3 4 5 6 7 8 MaxMD
Value
On Off On Off On Off Off Off MaxMD = 1 + 4x1 + 16x1 = 21
Off Off Off Off Off On On Off MaxMD = 32x1 + 64x1 = 96
Off Off Off On Off Off On On MaxMD = 8x1 + 64x1 + 128x1
= 200 (Default value)
Table 4: Examples of MaxMD setting of LeakFilm MC

16
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
6. Electrical connections and power on
6.2 Power on (Commissioning)
Caution: The following procedure should be followed carefully and only performed
by suitably trained personnel
1. Check that all electrical connections are terminated correctly as per the wiring diagram.
2. Switch on the power supply to the controller.
3. Using a Digital Multi Meter (DMM), check the supply voltage of power+ and power- at
CON16. The measured voltage should be in the range of 24VDC±5%.
4. Switch off and on again.
5. The LCD displays the software version, communication ID and MaxMD, and the power
light turns on.
6. LeakFilm MC enters normal monitoring mode.
LCD & LED Display Description
Version
1.0
ID:001 MaxMD:200
Software version display.
“ID:001” shows the communication ID of LeakFilm MC
set by SW3 dip switch.
“MaxMD:007” shows MaxMD set by SW4 dip switch.
2 seconds delay
LeakFilm
Master Controller
2010-01-08 06:12:16
Leak System Normal
Normal monitoring mode.
Display date & time at normal (no alarm) status.
Table 5: LeakFilm MC power on
The user can set the ID of LeakFilm MC using the SW3 dip switch on the PCB and MaxMD
using the SW4 dip switch. See “6.1 Terminal connections” for details.
Caution: The ID of LeakFilm MC should be unique to communicate with a host
system, otherwise it cannot communicate properly due to ID conict.
Caution: MaxMD does not have to be adjusted by the user. Just check that the
default value (200) is set correctly.

17
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
7. Conguration

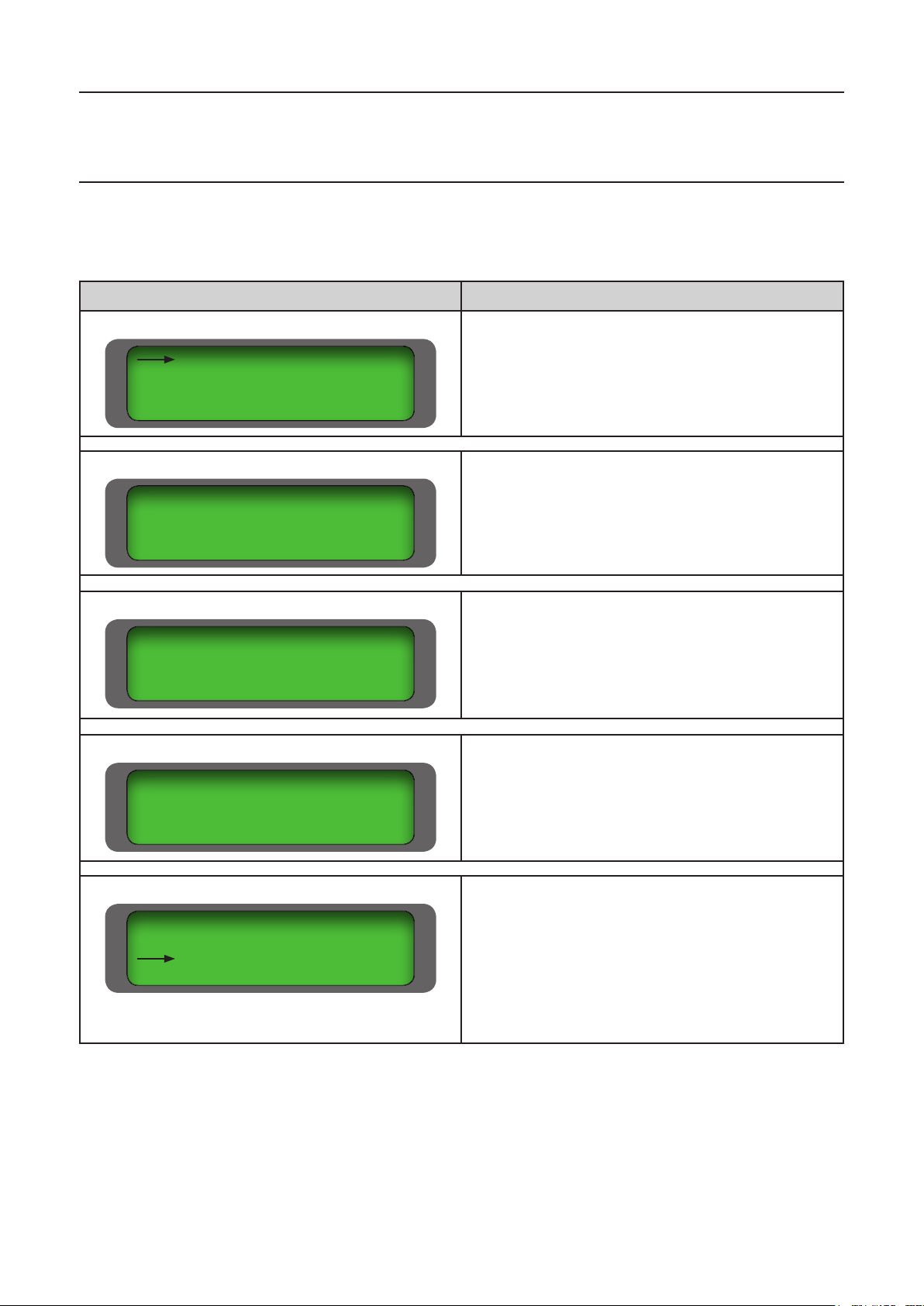

7.1 Menu Mode
7.1.1 User can enter the menu mode by pushing the “MENU” button.
LCD & LED Display Description
[MENU]
1. Status Monitor
2. Status History
3. Re Scan Module
4. Date/Time Set
User can select a menu by moving “→” cursor with
the “UP” and “DOWN” buttons and by pushing the
“ENTER” button. Exit the menu by pushing the “ESC”
button.
[1. Status Monitor]
Normal :1
Leak: :0
Broken :0
Com Err :0
This menu shows the current status of the slave con-
trollers connected to LeakFilm MC, how many slave
controllers are in normal and how many slave control-
lers are in alarm status.
[2. Status History]
2. Status History
392-Module 002:
Leak Clear
2010-01-08 16:12:16
User can view the event log using the “UP” and
“DOWN” buttons. A maximum of 999 events can be
logged in LeakFilm MC.
[3. Re Scan Module]
3. Re Scan Module
Re Scan start ?
This function rescans all the controllers connected to
LeakFilm MC. Once a new controller is connected to
the system, user must execute a rescan to detect the
new controller.
[4. Date/Time Set]
4. Date/Time Set
DATE : 10-01-08
TIME : 17:48:19
Move cursor using the “LEFT” and “RIGHT” buttons
and set date and time using the “UP”, “DOWN” and
“ENTER” buttons. Date and time is changed only
when the user pushes the “ENTER” button. Exit the
menu using the “ESC” button once the setting is
completed.

18
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
7. Menu and Advanced Conguration
LCD Display & Button Operation Description
[5. Silent Control]
5. Silent Control
Switch Off
Auto Off
Mute
The user can congure how the buzzer works in alarm
status. The master controller provides three options.
- Switch Off: Once an alarm occurs, the user can mute
the buzzer using the “SILENT” button.
- Auto Off: User cannot mute the buzzer. The buzzer
will stop only when the alarm is removed.
- Mute: The buzzer is not activated in alarm status.
Select an option by moving “→” cursor using the “UP”
and “DOWN” buttons and exit using the “ESC” button.
[6. Modbus Set]
6. Modbus Set
Baud Rate : 9600
Set the communication speed between the master
controller and the host system.
Normal monitoring mode.
Display date and time at normal (no alarm) status.
Table 6: Menu Mode of LeakFilm MC
7.2 Alarm Mode
Once the alarm occurs in one of slave controllers connected to LeakFilm MC, it displays as
below.
LCD & LED Display Description
[Comm. Error]
LeakFilm
Master Controller
2014-03-10 21:24:10
Module 001 : ComErr
FAULT LEAK COMM.ERR POWER
When communication error occurs, LeakFilm MC
displays “ComErr” and the “COMM. ERR” LED turns
on. The buzzer sounds as set by the “Silent Control”
menu.
[Sensor Broken]
LeakFilm
Master Controller
2014-03-10 21:24:10
Module 001 : Broken
FAULT LEAK COMM.ERR POWER
When a communication error occurs, LeakFilm MC
displays “Broken” and the “FAULT” LED turns on.
The buzzer sounds as set by the “Silent Control”
menu.

19
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
7. Menu and Advanced Conguration
LCD & LED Display Description
[Leak]
LeakFilm
Master Controller
2014-03-10 21:24:10
Module 001 : 0.0m
FAULT LEAK COMM.ERR POWER
When a leak occurs, LeakFilm MC displays the
module number and location of the leak, and the
“LEAK” LED turns on.
The buzzer sounds as set by the “Silent Control”
menu.
Table 7: Alarm Mode of LeakFilm MC
Caution: If LeakFilm MC detects multiple alarms from the slave controllers, it
displays all alarms by controller (module) ID sequentially.

20
LeakFilm MC Technical Manual 3013M5005 Issue 3
MAN0966 04-15
8. Characteristic and specications
LeakFilm MC
Item Specication
Applicable controller LeakFilm Pro, 5, HC
Display 20x4 Character LCD / LED back light
Power supply 100 to 240VAC 50/60 Hz
Power consumption Max 10 Watt
LED indication Green - Power On
Yellow - Fault
Red - Leak
Sound level Over 80dB @ 10cm
Output Relay (NC, NO) 24VDC 2A or 120 VAC 1A
(Max. Switching voltage 60VDC or 240VAC)
LEAK Relay (NC, NO)
BROKEN Relay (NC, NO)
Com err Relay (NC, NO)
Communication RS485(MODBUS®)
Communication Function
(Status transmission)
• Leak Detection
• Leak Location
• Leak Clearance
• Broken Detection
• Broken Clearance
• Communication error and clearance
Data Recording 999 events - Detector ID/ Leak and Leak location or
Broken or Communication error/ year - month - day
hour : min : sec /
Storage Temperature -10 to 65 °C
Operating Temperature -10 to 55 °C
Operating humidity 5 to 85 %RH
ID setting 1 - 32
IP rating IP43
EMC Directive 2004/108/EC EN61000-6-4/A1:2011, EN61000-6-2:2005,
EN61000-3-2/A2:2009, EN61000-3-3:2008,
Electrical Safety 1) Low Voltage Directive 2006/95/EC: EN 61010-
1:2010
2) US: UL 61010-1 3rd Edition
3) Canada: CAN/CSA-C22.2 No.61010-1 3rd Edition
