Honeywell BW Icon User manual

USER
MANUAL
M05-4002-001 Rev-A ENG ©July 14, 2020

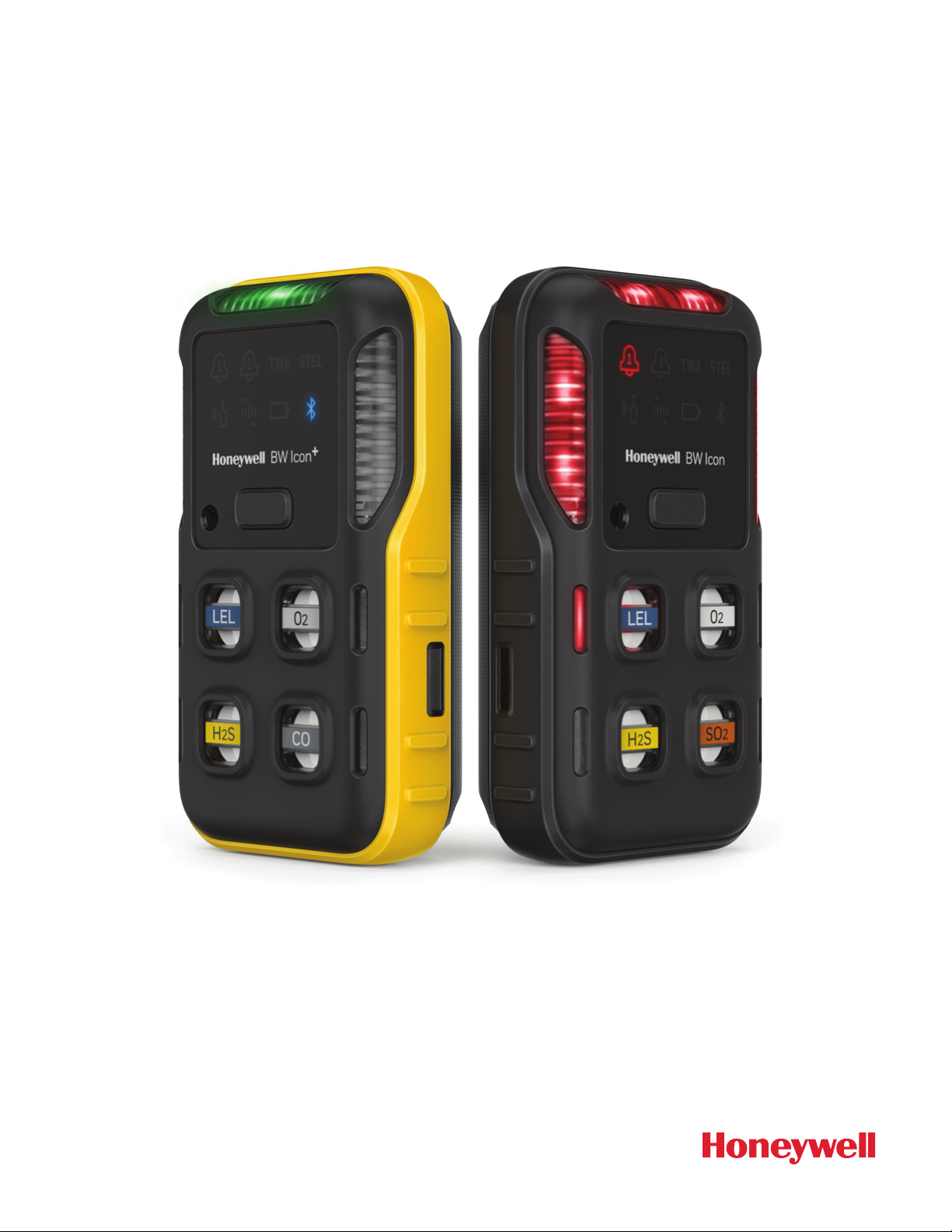

Honeywell BW ™ Icon &BW ™ Icon +
Portable Multiple Gas Detector

TOC
Introduction 5
Product Description 5
Safety 5
Standards and Certifications 6
What's in the Box 7
Overview 7
Operations 9
Activate the Detector 9
Self Test 9
Deactivate the Detector 9
Common Button Operations 10
Bluetooth Pairing 10
Calibration 10
Bump Test 13
Capture Real Time Reading 16
Set the Detector via Device Configurator 16
Maintenance 17
Charge the Battery 17
Firmware Update 20
Additional Information 21
Sensor Poisons and Contaminants 21
Sensor Specifications 22
General Specifications 23
Time Out Events 24
Troubleshooting 24
DataLogs and Event Logs 27
Alarms 28
BW Icon 2 User Manual

Certified Labels 29
Replacement Parts 30
Security Information 31
Contact Us 33
BW Icon 3 User Manual

CHAPTER
1Introduction
Learn what you need to know about the Honeywell BW™ Icon Gas Detector before operating.
Product Description
The Honeywell BW™ Icon & Honeywell BW™ Icon+ gas detectors warns of hazardous gas at levels
above user-defined alarm setpoints. The detector can monitor up to four gases at a time.
Safety
CAUTION
• The detector is a personal safety device. It is your responsibility to respond properly to
the alarm.
• For safety reasons, this equipment must be operated and serviced by qualified personnel only.
• The lithium battery in this product presents a risk of fire, explosion, and chemical burn if
misused. Do not disassemble, incinerate, or heat above 212°F (100°C). Batteries exposed to heat
at 266°F (130°C) for 10 minutes can cause fire and explosion. Batteries must only be charged in a
safe area free of hazardous gas.
• Deactivating the detector by removing the battery pack may cause improper operation and harm
the detector.
• Use only Honeywell approved battery chargers such as the vehicle Charger.
• Do not use the apparatus if it is damaged. Inspect the apparatus before use. Look for cracks and
missing parts.
BW Icon 5 User Manual

Standards and Certifications
IECEx: IECEx SIR 20.0020X
Ex ia op is I Ma Ex ia op is IIC T4 Ga, -40°C≤ Tamb ≤ 60°C (with IR sensor installed)
Ex ia I Ma Ex ia IIC T4 Ga, -40°C≤ Tamb ≤ 60°C
2813
ATEX: Sira 20ATEX2012X
I M1 Ex ia op is I Ma, -40°C ≤ Tamb ≤ 60°C (with IR sensor installed)
II 1G Ex ia op is IIC T4 Ga, -40°C ≤ Tamb ≤ 60°C (with IR sensor installed)
I M1 Ex ia I Ma, -40°C ≤ Tamb ≤ 60°C
II 1G Ex ia IIC T4 Ga, -40°C ≤ Tamb ≤ 60°C
RE-D Directive 2014/53/EU
EMC Directive 2014/30/EU
ROHS Directive (EU) 2015/863 amending 2011/65/EU
IP: IP66, IP68 (1.2 meters for 45 minutes)
Contains FCC ID: SU3RMBLED
Contains IC: 20969-RMBLED
CAN ICES-3(A)/NMB-3(A)
FCC Compliance statement
This device complies with part 15 of the FCC Rules. operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his
own expense.
BW Icon 6 User Manual

What's in the Box
1 Honeywell BW™ Icon gas detector
1 Battery (factory-installed)
1 USB charger
1 Calibration cap
1 Klick Fast stud
1 Quick Reference Guide
1 Tubing

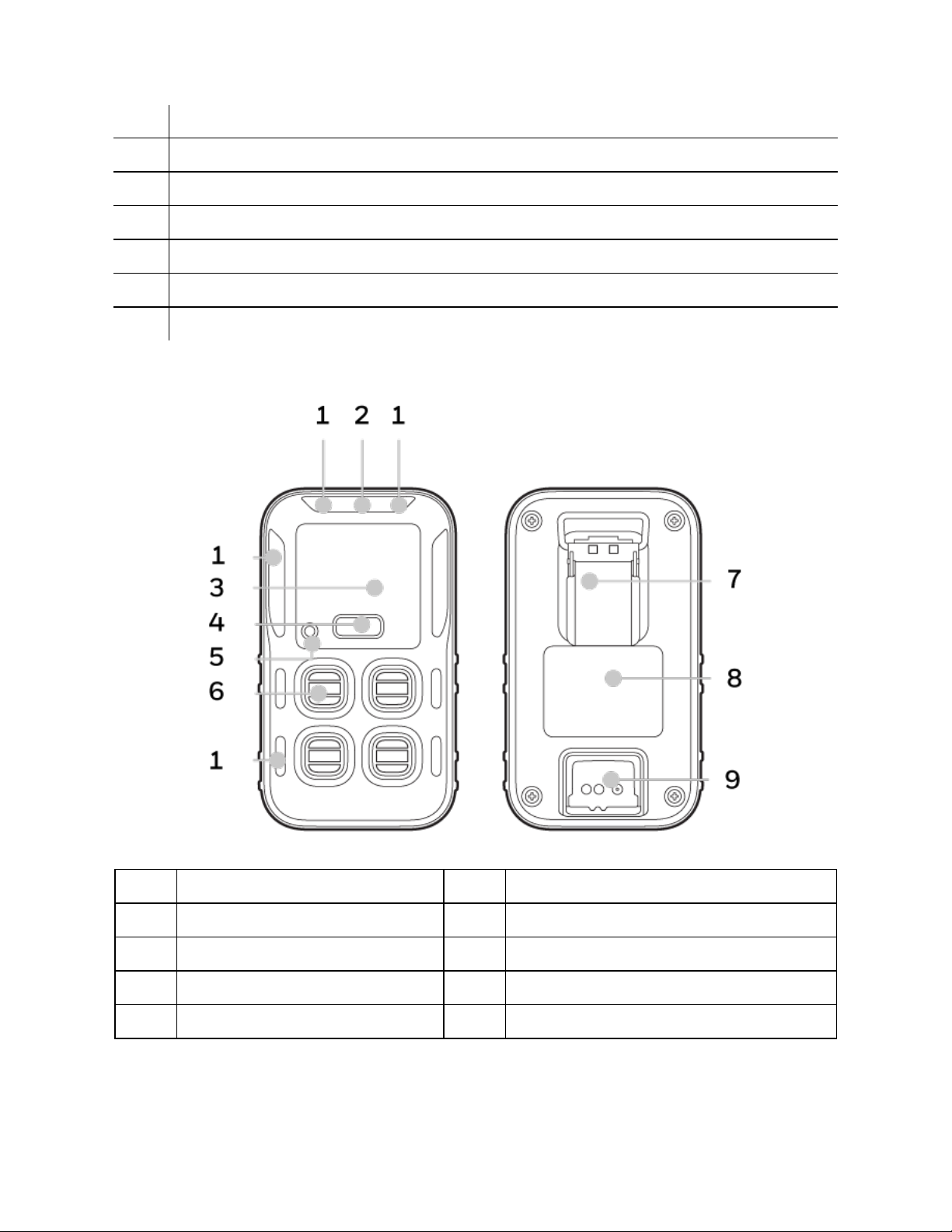

Overview
1 LED Alarm 6 Sensor
2 IntelliFlash 7 Clip
3 Display 8 Battery
4 Button 9 Charging Port
5 Beeper
BW Icon 7 User Manual

User Interface
Alarm One — Shows when alarm one is breached and gas highlighted next to
sensor
Alarm Two — Shows when alarm two is breached. Alarm two will over write any
alarm one status.
Time Weighted Average — Settable in Safety Suite DC for each toxic sensor.
Short Term Exposure Limit — Settable in Safety Suite DC for each toxic
sensor.
Bump — Shows when bump is due and you can configure to have a count
down.
Calibration — Shows when bump is due and you can configure to have a count
down.
Battery status — Shows battery status and when on charge will show charging
status.
Bluetooth — All devices have Bluetooth – double click to enter menu. for
search mode
BW Icon 8 User Manual

CHAPTER
2Operations
Learn what you can do with your Honeywell BW™ Icon Detector, from commissioning to
Calibration.
Activate the Detector
To turn the detector on, press and hold the button for four seconds. LEDs turn on, and the
detector vibrates and beeps.
Self Test
When the detector is activated, it performs several start-up tests.
lBattery
lData Flash
lRTC. Real Time Clock
lTemperature sensor.
lBLE module
lSensors
lBump and Calibration due date
When the detector has passed all the start-up self-tests, it enters the regular operation mode.
Deactivate the Detector
To turn the detector off, press and hold the button for four seconds. LEDs turn on, and the
detector beeps four times.
BW Icon 9 User Manual

Common Button Operations
Feature Operation
Power On 4-second hold
Power Off 4-second hold
Enter or Exit menu Double-Press
Switch Menu (bump, cal, & BLE) Single-Press
Initiate selected 3-second hold
Acknowledge latched alarm 1-second hold
Bluetooth Pairing
The user can pair the Honeywell BW™ Icon to a mobile device via built-in Bluetooth Low Energy
(BLE). The Honeywell Device Configurator app, installed on the mobile device, can then show
gas readings and alarms from the BW Icon unit that is connected.
Readings and alarms can then be sent to Honeywell remote monitoring software
On the Honeywell BW™ Icon, the Bluetooth connection is on by default.
1. Turn On the BW Icon.
2. In your mobile device, open the Device Configurator app
3. In your BW Icon:
lDouble press to enter the menu
lSingle press until the BLE icon is displayed
lHold press 3 secs to initiate the pairing mode.
4. In the Device list screen from the Device Configurator app, select the BW Icon Serial
Number to start pairing.
Calibration
Perform a calibration to adjust the sensitivity levels of sensors and ensure accurate responses to
gases.
The detector can be calibrated in two ways:
• Apply gas from a cylinder to the sensors manually through the calibration cap, and using the
Safety Suite Device Configurator (SSDC) software or the Device Configurator (DC) app.
• Use an IntelliDoX module.
BW Icon 10 User Manual

CAUTION
Move to a normal atmosphere (20.9% v/v O2) that is free of hazardous gas. Use 50% LEL for
test gas.
Details for calibration and maintenance:
lRecommendations for calibration of the equipment on a routine basis including the
maximum time interval between calibrations.
lCalibrate the apparatus before first-time use and then on a regular schedule, depending on
use and sensor exposure to poisons and contaminants. Honeywell recommends that the
sensors be calibrated regularly and at least once every 180 days (6 months).
lThe combustible sensor is factory calibrated to 50% LEL methane. If monitoring a different
combustible gas in the % LEL range, calibrate the sensor using the appropriate gas.
Procedure to calibrate the detector via the calibration cap and the DC app on a
mobile device
1. Turn On the BW Icon. Place the cap over the detector, and then press down on both tabs
to snap it into place.
BW Icon 11 User Manual

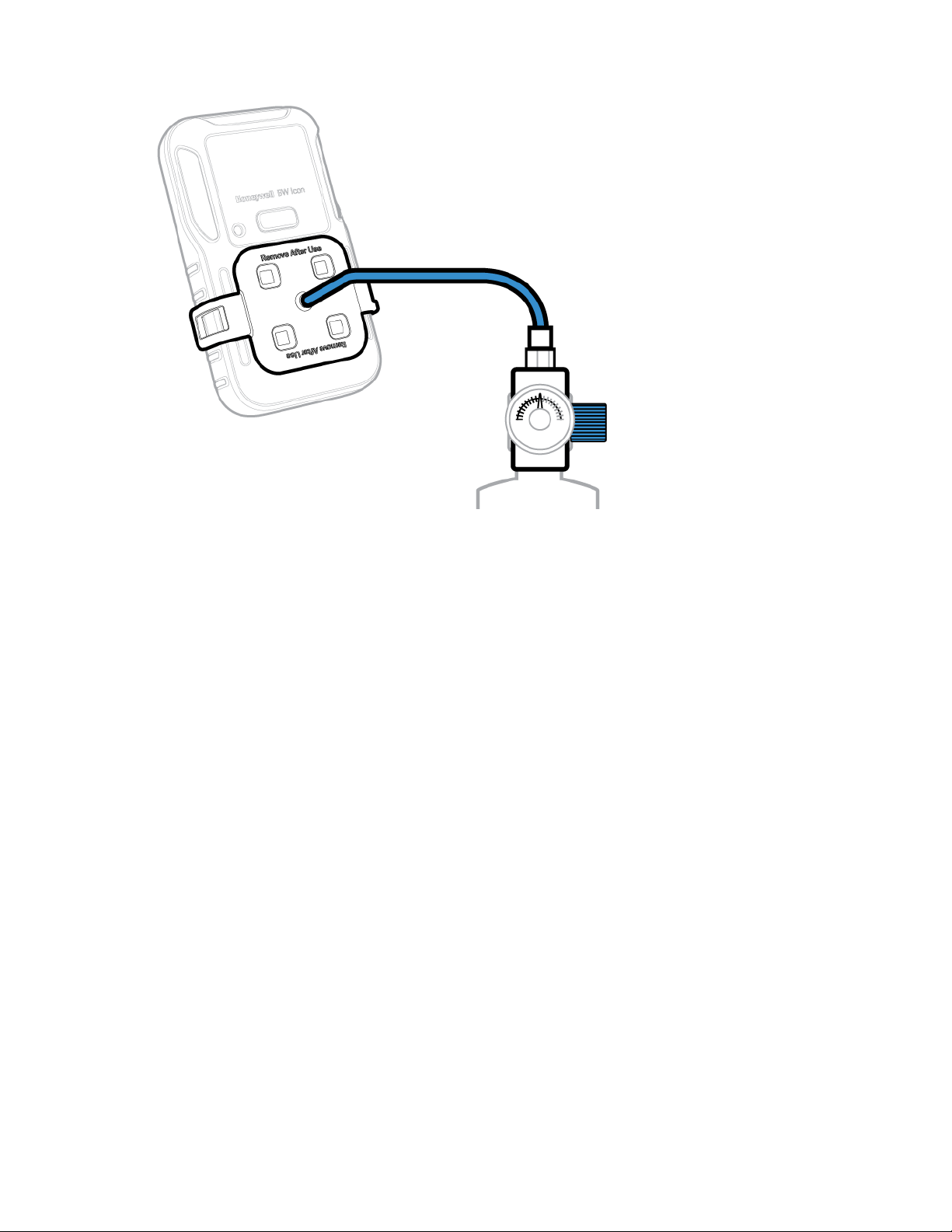

2. Attach the hose.
3. In your mobile device, open the Device Configurator app
4. In your BW Icon:
lDouble press to enter the menu
lSingle press until the BLE icon is displayed
lHold press 3 secs to initiate the pairing mode.
5. In the Device list screen from the Device Configurator app, select the BW Icon Serial
Number to start pairing.
6. In your Mobile device:
lTap on the Menu button
lSelect Remote Calibration
lFollow onscreen instructions.
7. In the mobile device, open the Device Configurator App, and then go to the main menu and
select Remote Calibration.
8. Enter the Operator Name, and then Tap Save. The IntelliFlash LED flashes amber to indicate
the calibration process has started.
9. In the Input Gas level screen, check the sensor that you want to calibrate and enter the Span
gas concentration, and then tap OK.
BW Icon 12 User Manual

10. Open the cylinder valve by turning the pressure regulator knob clockcounterwise. The Zero
process starts and a message is displayed when succeeded.
11. Follow onscreen instructions to know when to apply gas and when the calibration process is
complete.
12. The process is complete when the results are displayed on your mobile device. You can now
remove the cap by pulling on the tabs.
Bump Test
The detector can be tested in two ways:
• Apply gas from a cylinder to the sensors manually through the calibration cap, and using the
Safety Suite Device Configurator (SSDC) software or the Device Configurator (DC) app.
• Use an IntelliDoX module.
CAUTION
Move to a normal atmosphere (20.9% v/v O2) that is free of hazardous gas. Use 50% LEL for
test gas.
Details for Bump Test and maintenance:
lRecommendations for initial checking of the equipment on a routine basis including the
maximum time interval between calibrations.
lPerform a functional check with gas before each day of use.
lHoneywell recommends bump testing the sensors before each day’s use to confirm their
ability to respond to gas by exposing the apparatus to a gas concentration that exceeds the
alarm setpoints. Manually verify that the audible and visual alarms activate.
lThe combustible sensor is factory calibrated to 50% LEL methane. If monitoring a different
combustible gas in the % LEL range, calibrate the sensor using the appropriate gas.
BW Icon 13 User Manual

Procedure to Bump Test the detector via the calibration cap and the DC app on
a mobile device

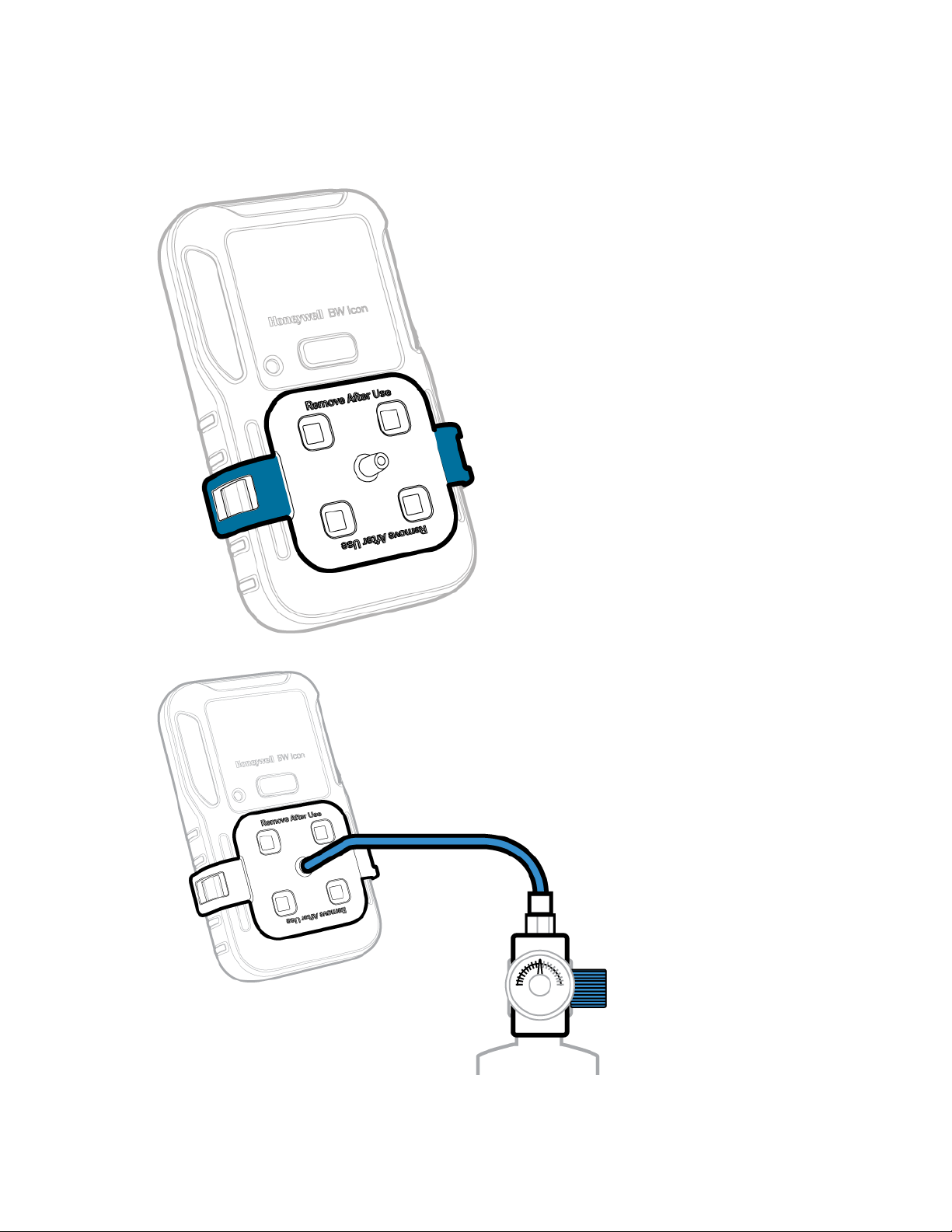

1. Turn On the BW Icon. Place the cap over the detector, and then press down on both tabs
to snap it into place.
2. Attach the hose.
BW Icon 14 User Manual

3. In your mobile device, open the Device Configurator app
4. In your BW Icon:
lDouble press to enter the menu
lSingle press until the BLE icon is displayed
lHold press 3 secs to initiate the pairing mode.
5. In the Device list screen from the Device Configurator app, select the BW Icon Serial
Number to start pairing.
6. In your Mobile device:
lTap on the Menu button
lSelect Bump
lFollow onscreen instructions.
7. In the mobile device, open the Device Configurator App, and then go to the main menu and
select Bump.
8. Enter the Operator Name, and then Tap Save. The IntelliFlash LED flashes amber to indicate
the calibration process has started.
9. In the Input Gas level screen, check the sensor that you want to calibrate and enter the Span
gas concentration, and then tap OK.
10. Open the cylinder valve by turning the pressure regulator knob clockcounterwise. The Zero
process starts and a message is displayed when succeeded.
11. Follow onscreen instructions to know when to apply gas and when the bump test process is
complete.
12. The process is complete when the results are displayed on your mobile device. You can now
remove the cap by pulling on the tabs.
BW Icon 15 User Manual

Capture Real Time Reading
1. Pair your BW Icon with a mobile device.
2. In your mobile device, open the Device Configurator app.
3. Tap Menu
4. Tap Measurements .
5. Tap Start Recording.
Set the Detector via Device Configurator
1. Pair the BW Icon with the Device Configurator App on your mobile device.
2. Tap the menu button
3. Tap Device Setup
4. Tap Download, to get the configuration table.
5. Confirm the value of the setting: 1 to turn on, 0 to turn off.
Multiply 100 times for the value of the concentration. For example, for 50ppm, you need
to input 5000. Finally, tap Upload to apply changes.
BW Icon 16 User Manual

CHAPTER
3Maintenance
Charge the Battery
You can charge the battery via an IntelliDox module, the charger adaptor & USB Charger, and the
Multi-unit Cradle Charger.
Note:
The lithium battery may require 5 hours to full capacity. While charging, the battery icon will flash
amber once per second. The time needed to charge will increase if the apparatus is activated. The
detector may be warm during charging; this is normal. To preserve the life of the battery,
deactivate the device when not in use.
The battery operating temperature is -40°C~ +60°C.
WARNING
The Icon uses a lithium battery that may present a risk of fire or chemical burn hazard if misused.
Do not disassemble, heat above 100°C, or incinerate.
CAUTION
lTo avoid personal injury and property damage, adhere to the following:
lCharge the battery immediately when the apparatus emits a low battery alarm.
lCharge the battery in a safe area that is free of hazardous gas in a temperature range from
0~45°C.
lIf the device is out of charging range, the battery icon flashes in blue.
lCharge the battery using Honeywell charger adapters designed for this apparatus only. Do not
use any other charger adapters. Failure to adhere to this caution can lead to fire and explosion.
lIf replacing the battery, use only approved lithium polymer cells that are available through
Honeywell. User of any other cell can cause fire and explosion.
BW Icon 17 User Manual

lDispose of used lithium cells immediately. Do not disassemble and do not dispose
of in fire. Do not mix with the solid waste stream. Spent batteries must be disposed of by a
qualified recycler or hazardous materials handler.
lKeep lithium cells away from children.
Battery Capacity Indicator
Satus Duration Indication or Alarm
Battery
low
Less than 5
hours IntelliFlash and the battery icon flashes in amber every 15 seconds.
Battery
critical
Less than 20
minutes
IntelliFlash LED is amber, The battery icon LED is red, and the
alarm LED flashes every 15 seconds.
Battery
depleted
The battery icon LED is solid red for five seconds, and then the
detector powers off.
Status Percentage Indication or Alarm
Charging Less than 100% Battery icon LED flashes amber.
Fully charged 100% Battery icon LED flashes green.
Note: The Auto-power is on if the device is inserted into an IntelliDox module, and if the battery
is low, the device will auto power on after the battery capacity exceed. The auto-power is off if
there is no communication with the IntelliDox for five minutes.
Charge the battery via the USB Charger
1. Press and hold the button to deactivate the detector.
2. Plug the USB charger into an USB port.
3. Attach the charging adapter to the charging Port.
BW Icon 18 User Manual

Charge the battery via the Multi-Unit Cradle Charger
1. Deactivate the detector.
2. Insert the detector into the detector bay and press down firmly on the detector to ensure
contact between the detector and the contact pins. The detector can be activated during
charging.
3. After charge is complete, the battery icon LED flashes green.
4. Remove the detector.
Note: For further information, refer to the Multi-Unit Cradle Charger User Manual.
BW Icon 19 User Manual
