Honeywell RAEGuard Lite User manual

Copyright © 2022 Honeywell International Inc. All rights reserved.
快速操作指南
D07-6005-000
RevA1.0
在安装、操作或维护该产品前，请详细阅读和理解 RAEGuard Lite 的用户使用手册。
请登录 https://sps.honeywell.com/cn/zh 下载，也可以通过 Honeywell 网站或扫描本手
册中的二维码下载。
1安全及注意
气体探测器是应用于危险环境中的防爆产品，请在安装、操作及维护中确保该产品的
整体隔爆性能，并严格遵守产品使用地所在国家或地区的相关法律、法规。
为避免电击或可能引起的爆炸危险，在危险环境中对仪器进行任何开盖操作前请先关
闭电源，只有在确认周围环境安全的情况下，才可以对仪器进行开盖维护、操作。
2 安装前
当你收到探测器后，应该首先对照仪器包装箱中的“包装清单”，对照你所订购的仪器
及其配件是否正确。

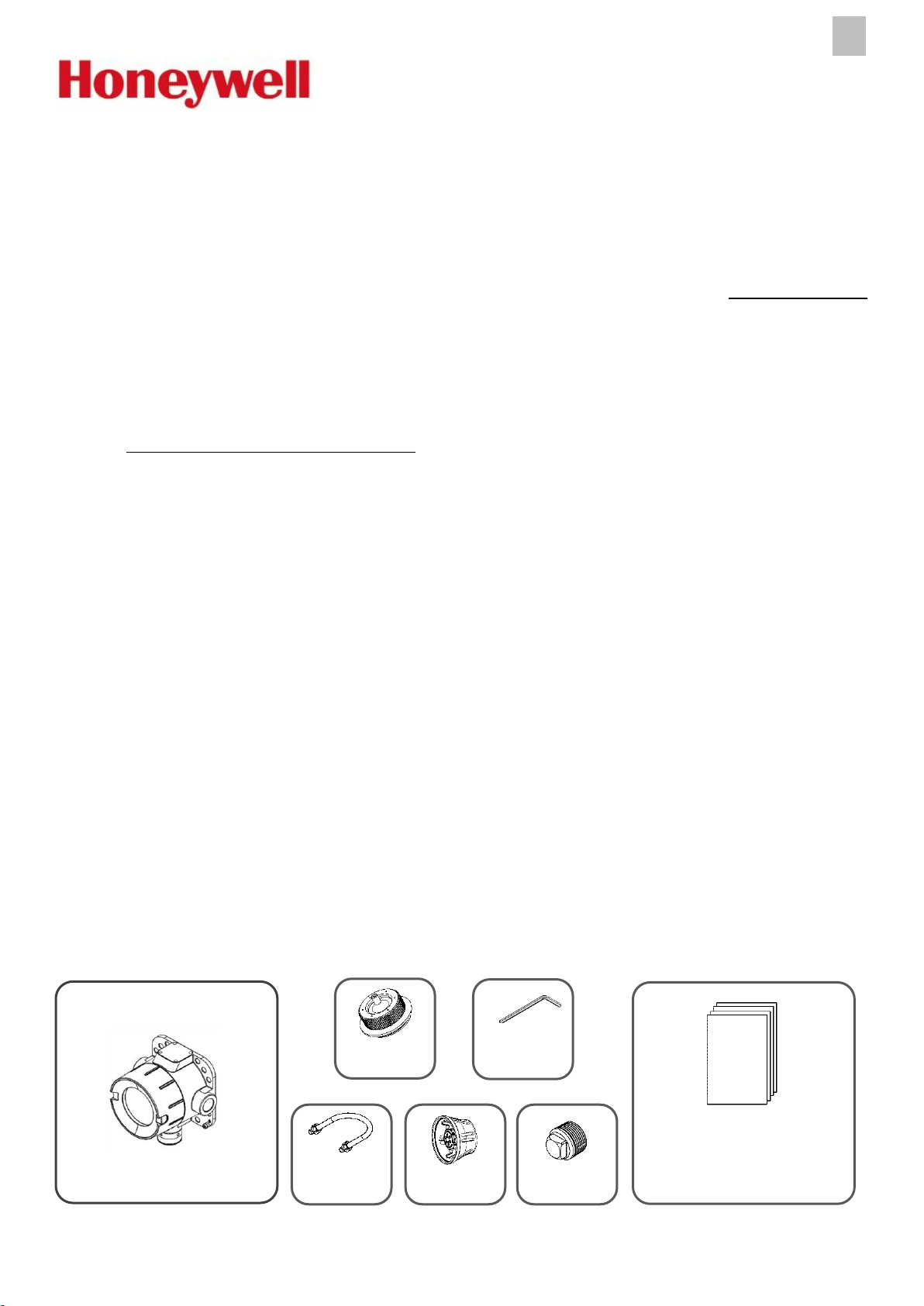

包装箱中标准清单：
“L”型工具
x2
标定帽 x1
RoHS 证书、标定测试证
书、快速操作指南、仪器
装箱单 各x1
RAEGuard Lite
固定式
气体探测器 x1
U型抱箍
x2
防雨罩 x1
堵头 x1
RAEGuard Lite
工业及商业用途点型可燃气体探测器
固定式气体探测器
GTYQ-FGM-7100/FGM-7300
1

Copyright © 2022 Honeywell International Inc. All rights reserved.
如果你还订购了如下配件：
其中，本地声光报警器会随探测器一起放置在包装箱中，但是请注意：防雷模块和蓝
牙模块会直接被安装在探测器中，继电器模块和 HART 模块会包含在 PCB 电路板
上。RAEGuard Lite 气体探测器还为用户提供更多配件，方便您的不同应用，它们将
于探测器分开发货，也请核对：
3 尺寸
为了满足用户的多样应用环境及需求，RAEGuard Lite 提供丰富多样的附件，下图探
测器物理尺寸不包括配接其他附件，仅含变送器、传感器及遮阳罩等最基本单元。
RAEGuard Lite
遮阳罩
集气罩
本地声光器
SP-07PLUS
格兰头
继电器模块
防雷模块
蓝牙模块
HART 模块
2
磁棒 x1

Copyright © 2022 Honeywell International Inc. All rights reserved.
4安装
Honeywell 新一代气体探测器 RAEGuard Lite 提供 1种标准安装附件。
4.1 使用标准安装附件安装：

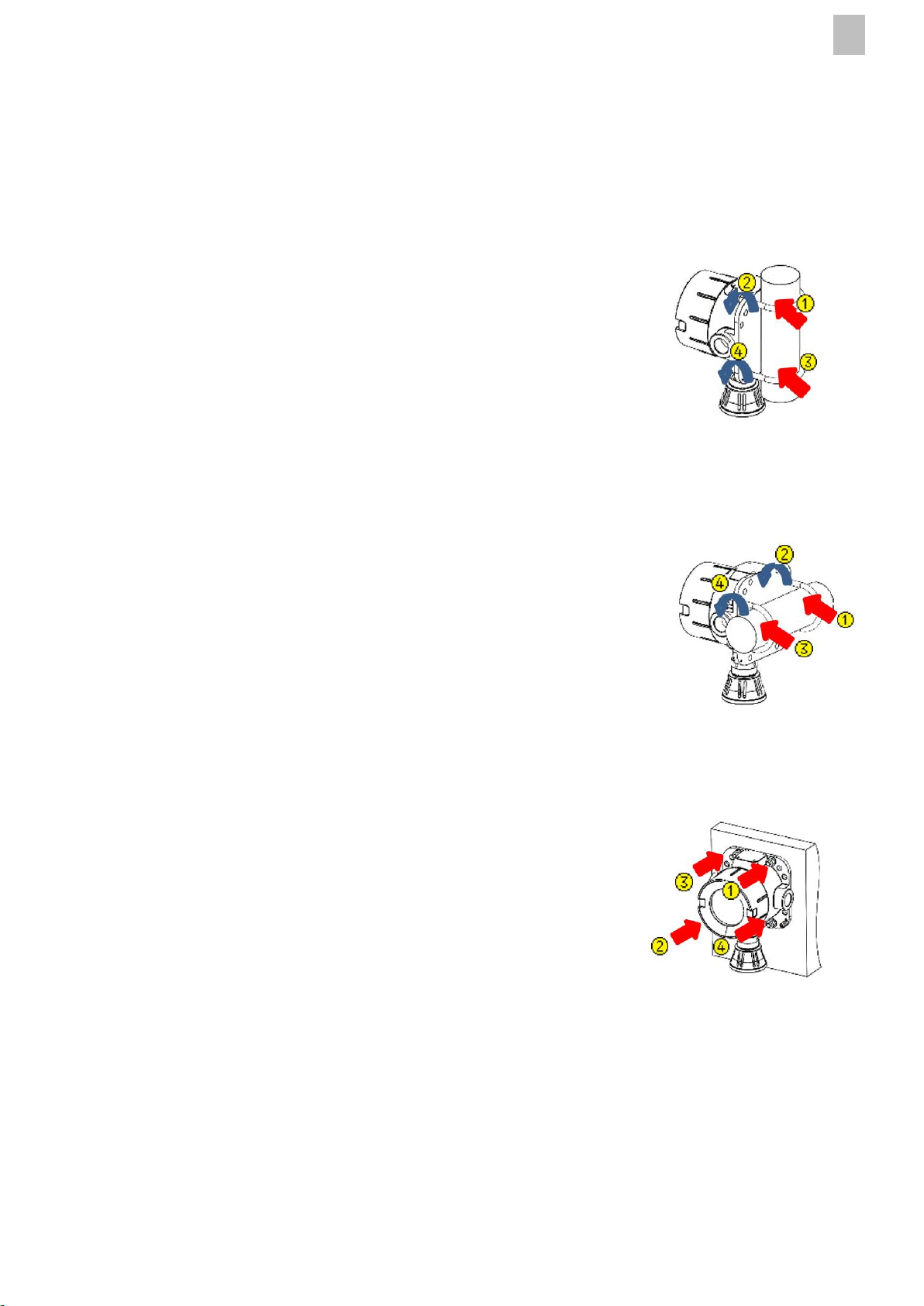

安装方式 1：
•准备好探测器和 2个U型抱箍
•找到合适的安装位置，预先将立管（尺寸规格：直径
38mm～60mm）埋好
•先将其中 1个U型抱箍环绕立管再穿入探测器上相对应的
条形孔，用自带组合螺母顺时针紧固
•再将另 1个U型抱箍按相应的方法安装
安装方式 2：
•准备好探测器和 2个U型抱箍
•找到合适的安装位置，预先将横管（尺寸规格：直径
38mm～60mm）放置好
•先将其中 1个U型抱箍环绕立管再穿入探测器上相对应的条
形孔，用自带组合螺母顺时针紧固
•再将另 1个U型抱箍按相应的方法安装
安装方式 3：
•准备好探测器和 4个M8 膨胀螺钉（用户根据实际安装条
件自备）
•找到合适的安装位置
•按右图示意，依次将 4个膨胀螺钉紧固
安装方式 1
安装方式 2
安装方式 3
3

Copyright © 2022 Honeywell International Inc. All rights reserved.
标准安装方式如何安装“遮阳罩”：
•准备好订购的“遮阳罩”及自带的 2个组合螺钉 M8*25
•参考右图，将“遮阳罩”上的 2个固定孔与 RAEGuard Lite 的
上面 2个条形孔分别对齐
•先将 1个M8*25 组合螺钉按右图中的①位置穿入固定孔，顺
时针固定；再将另 1个组合螺钉穿入右图②位置的固定孔，
顺时针固定
5 电气连接
RAEGuard Lite 变送器根据连接的传感器原理不同，可连接 2种类型传感器。
RAEGuard Lite LEL
GTYQ-FGM-7100
RAEGuard Lite EC
FGM-7300
可燃气传感器
毒气及氧气传感器
5.1 变送器接线
注意：所有的电气连接必须遵循当地的相应法规和标准。

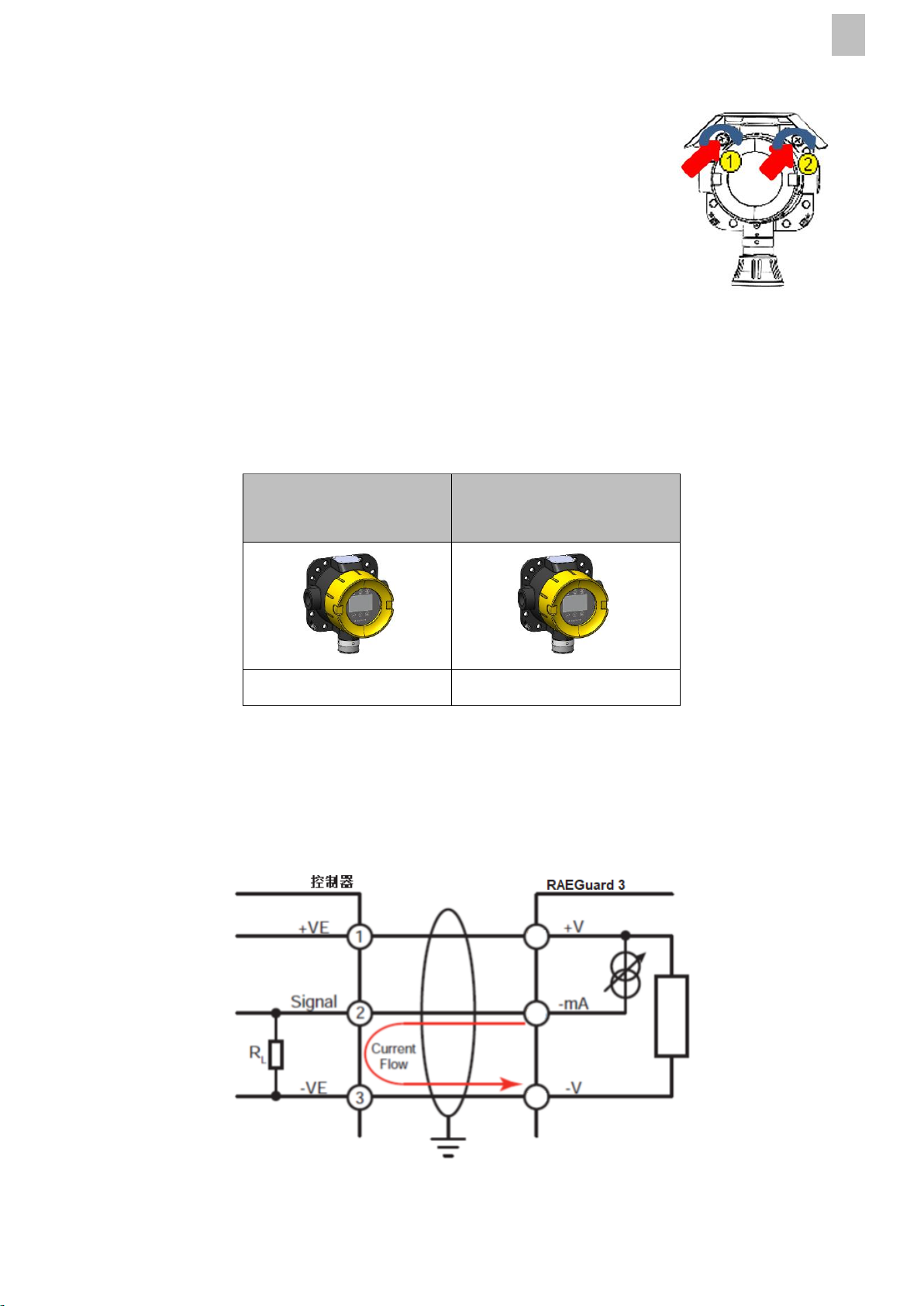

RAEGuard Lite 变送器仅支持源电流输出，接线方法如下：
注意：请务必确认探测器的屏蔽和接地都是单点接地（可以在控制器或探测器一端，
遮阳罩标准安装
4

Copyright © 2022 Honeywell International Inc. All rights reserved.
但不能是同时接到地）。出厂时，探测器端子之间连接了一个 270 欧姆的电阻 (RL) ，
与控制器连接时，请取下该电阻。
如你购买了支持 HART 功能的 RAEGuard Lite 变送器，与 HART 终端连接，可参考
下图：

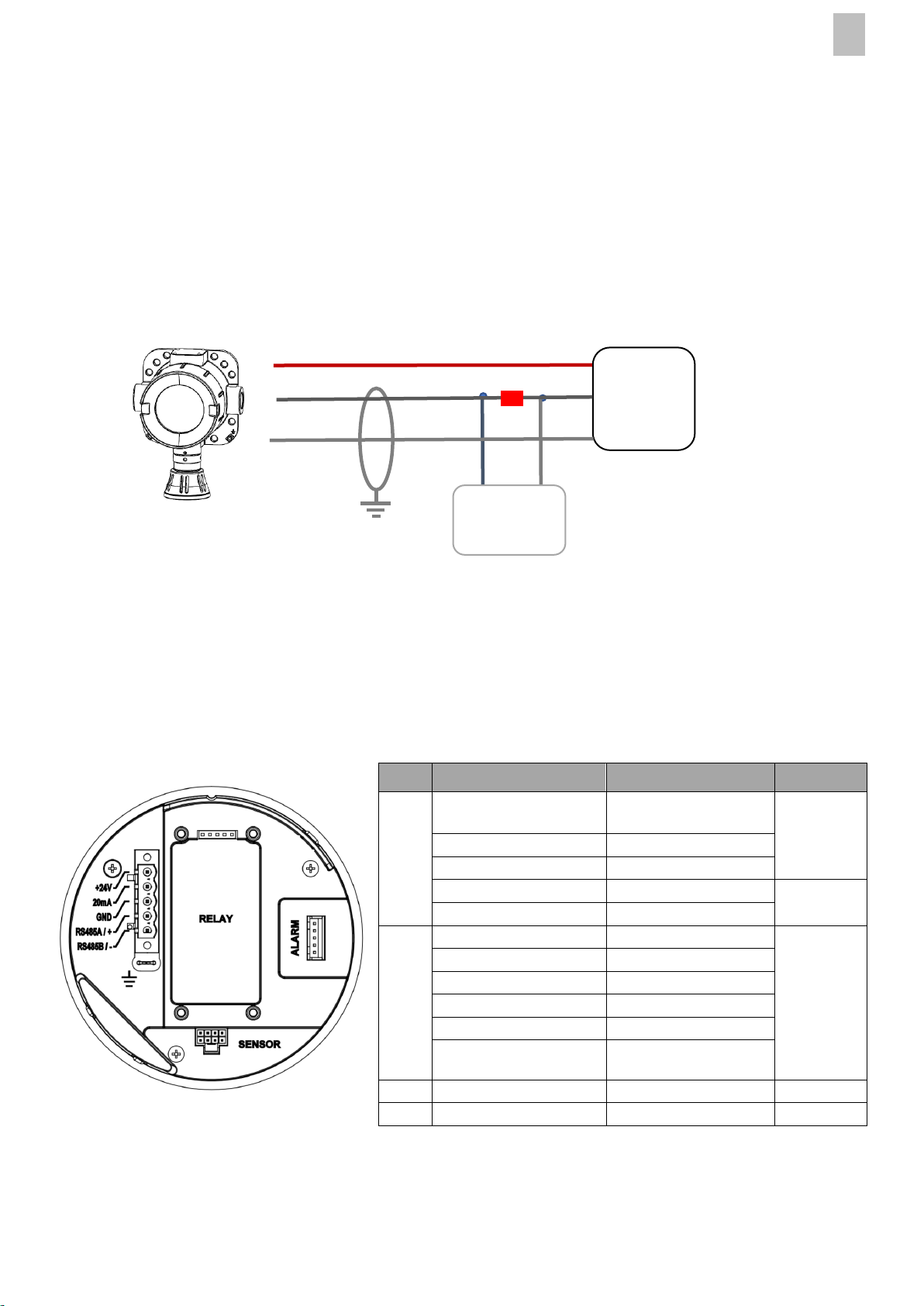

5.2 端子接线
注意：在进行接线时，请提前将探测器的上盖打开，拉出显示及主板等电路模块。
端子
标识
定义
备注
A
+24V
电源正(16～
32VDC)
控制器
4-20mA
4～20mA 电流信号
GND
电源负
RS485A/+
数据+（A）
MODBUS
RTU
RS485B/-
数据-（B）
B
LOW ALARM-NO
低报-常开触点
注意：如
没购买该
功能，则
没有该端
子
LOW ALARM-COM
低报-公共触点
HIGH ALARM-NO
高报-常开触点
HIGH ALARM-COM
高报-公共触点
FAULT ALARM-NO
故障-常开触点
FAULT ALARM-
COM
故障-公共触点
C
ALARM
外接 SP-07PLUS
选配
D
SENSOR
接传感器
5
上位机或
控制器
HART
终端
250Ω
+24VDC
4-20mA
GND
A
B
C
D

Copyright © 2022 Honeywell International Inc. All rights reserved.
5.3 电缆连接
注意：变送器上的所有电缆或连接口必须用经过认证的堵头或格兰头进行密封！
RAEGuard Lite 的连接电缆建议使用工业级的铠装电缆。
RAEGuard Lite 气体探测器需要控制器或上位机提供 16VDC～32VDC 之间的工作电
源，对于电缆连接距离时，请详细阅读 “用户使用手册” ，确保探测器的最小电压不小
于16VDC。
5.4 接地连接
为了确保仪表的电磁兼容性以及抗干扰的能力，良好的接地至关重要。详细使用及连
接，请参阅“用户使用手册”。
电缆的屏蔽层必须遵循“单点接地”原则。通常，电缆在变送器端的屏蔽层都和仪表的
公共点连接，即屏蔽层导线接入仪表外部或内部的一个空端子上。
6 系统状态
RAEGuard Lite 提供清晰、明确的、友好的人机界面，包含 3个磁性按键、1个主
LCD 屏和 3个系统 LED 指示灯。为了用户方便快速的使用该仪表，下表列出系统状
态LED 灯指示及相应的电流输出值，更多信息，请见 “用户使用手册” 。
系统状态
红灯
LED
绿灯
LED
黄灯
LED
电流输出值
备注
低报警
常亮
闪烁/1s
4-20(±0.1) mA
实时检测气体浓度对应的电流值
高报警
闪烁/1s
闪烁/1s
4-20(±0.1) mA
低报警锁存
常亮
闪烁/1s
4-20(±0.1) mA
高报警锁存
闪烁/1s
闪烁/1s
4-20(±0.1) mA
超量程
闪烁/1s
闪烁/1s
22(±0.5) mA
气体浓度超过设定量程
抑制模式
闪烁/1s
常亮
2(±0.5) mA
抑制状态为 2mA。
警告
闪烁/1s
闪烁/2s
3(±0.5) mA
警告状态为 3mA。
故障
闪烁/1s
闪烁/1s
1(±0.5) mA
故障状态为 1mA。
正常
闪烁/1s
4-20(±0.1) mA
实时检测气体浓度对应的电流值
BLE 已连接
保持
常亮
保持
4-20(±0.1) mA
实时检测气体浓度对应的电流值
6

Copyright © 2022 Honeywell International Inc. All rights reserved.
7 技术规格
RAEGuard Lite 气体探测器
用途
3线，4-20mA，通用变送器适用于催化燃烧和电化学多种传感器，用于室内外可
燃、有毒等危险环境的气体检测
电气参数
输入电压
16～32VDC（额定：24VDC）
典型功耗
电化学<1W；催化燃烧 2W（最大 5W）
电流输出
标配的完全可配置的 4～20mA（源型），可选载波独立 HART 7.2 输出（选配）
1mA 故障 2mA 抑制（配置或设置期间）
3mA 警告 4mA～20mA 正常气体检测
22mA 超量程
注意：当电流输出 <3mA 时 ,HART 通讯将不能正常工作。
接线端子
5个接线端子（带继电器输出的型号为 11 个），线径：0.5mm2（20AWG）～
2.5mm2（13AWG）
继电器
可选 3个继电器（30VDC 5A）
通讯
RS485, Modbus RTU；可选项：蓝牙/Hart（敬请期待）
结构
变送器材质
铝合金
传感器材质
316 不锈钢
重量(大约)
铝合金：2.3kg；
安装方式
墙面或管道安装
接头
2个3/4’’ NPT 现场进线接口，1个M25 传感器接头
性能****
重复性
<2%
响应时间
根据检测气体而定
认证
中国
LEL: Ex db IIC T6 Gb，Ex tb IIIC T80°C Db Ta = -40°C ~ +65°C
Ex db IIC T5 Gb，Ex tb IIIC T90°C Db Ta = -40°C ~ +75°C
EC: Ex db IIC T6 Gb，Ex tb IIIC T80°C Db Ta = -20°C ~ +55°C
防雷性能
可选防雷模块:
浪涌(冲击)抗扰度等级 4，符合 GB/T17626.5-2008/IEC61000-4-5:2005
环境
IP 防护等级
IP66
工作温度***
-40°C～70°C
工作湿度
LEL：0～95%RH（无凝露）
毒气及氧气：15%～95%RH（无凝露）
工作压力
90～110kPa
储藏条件
-20°C～50°C, 45-75%RH, 洁净空气中
备注：
*RAEGuard Lite 未来还将提供给用户更加丰富的通讯接口及气体种类，如：无线等，可用性请联
系 Honeywell 。
*** 可燃气传感器可连续工作于 -40°C ～ +70°C; 毒气及氧气传感器可连续工作于 -20°C ～ +55°C ，间
歇工作于 -40°C ～ 70°C （工作于该温度范围的传感器精度和响应时间等性能会受影响，长时间工
作可能导致传感器灵敏度下降甚至损坏。）
**** 上述产品性能特征是在温度为 20°C 、湿度为 50%RH 的环境下测试的典型结果。标定时，请
使用标定罩及推荐的流量进行检测，如果使用遮阳罩及在低温等环境其响应速度将有减缓。
7

Copyright © 2022 Honeywell International Inc. All rights reserved.
请注意：
尽管我们已经尽了最大努力确保该出版物的精确性，但若仍存在任何错误或缺漏，我们将无需对此负责。资料和法规可
能随时会改变，所以，我们强烈建议您获取最新发布的法规、标准用指导的副本。该出版物不构成合同基础。
该手册中的产品、部件等图片仅供参考，请以实物为准。
扫描下 方 二 维 码 或 登录
https://sps.honeywell.com/cn/zh 可获取用
户使用手册及更多产品信息
8

Copyright © 2022 Honeywell International Inc. All rights reserved.
Quick Start Guide
D07-6005-000
Before installing, operating or maintaining this product, please read and understand the user
manual [https://sps.honeywell.com/cn/zh] of RAEGuard Lite in detail. Please download it
from the Honeywell website or by scanning the QR code in this manual.
1) Safety and Caution
Gas detector is an explosion-proof product used in hazardous environment. Please ensure
the overall flameproof performance of the product during installation, operation and
maintenance, and strictly do abide by the relevant laws and regulations of the countries or
regions where the product is used.
In order to avoid possible electric shock or explosion hazard, please mandatorily turn off the
power supply before any open operation of the instrument in dangerous environment. Only
when the safety of the surrounding environment is ensured, the open maintenance and
operation of the instrument must be carried out.
2) Before Installation
Upon receiving the package, check it against the “packing list” to make sure that the
instrument and all its accessories you ordered are correctly provided.

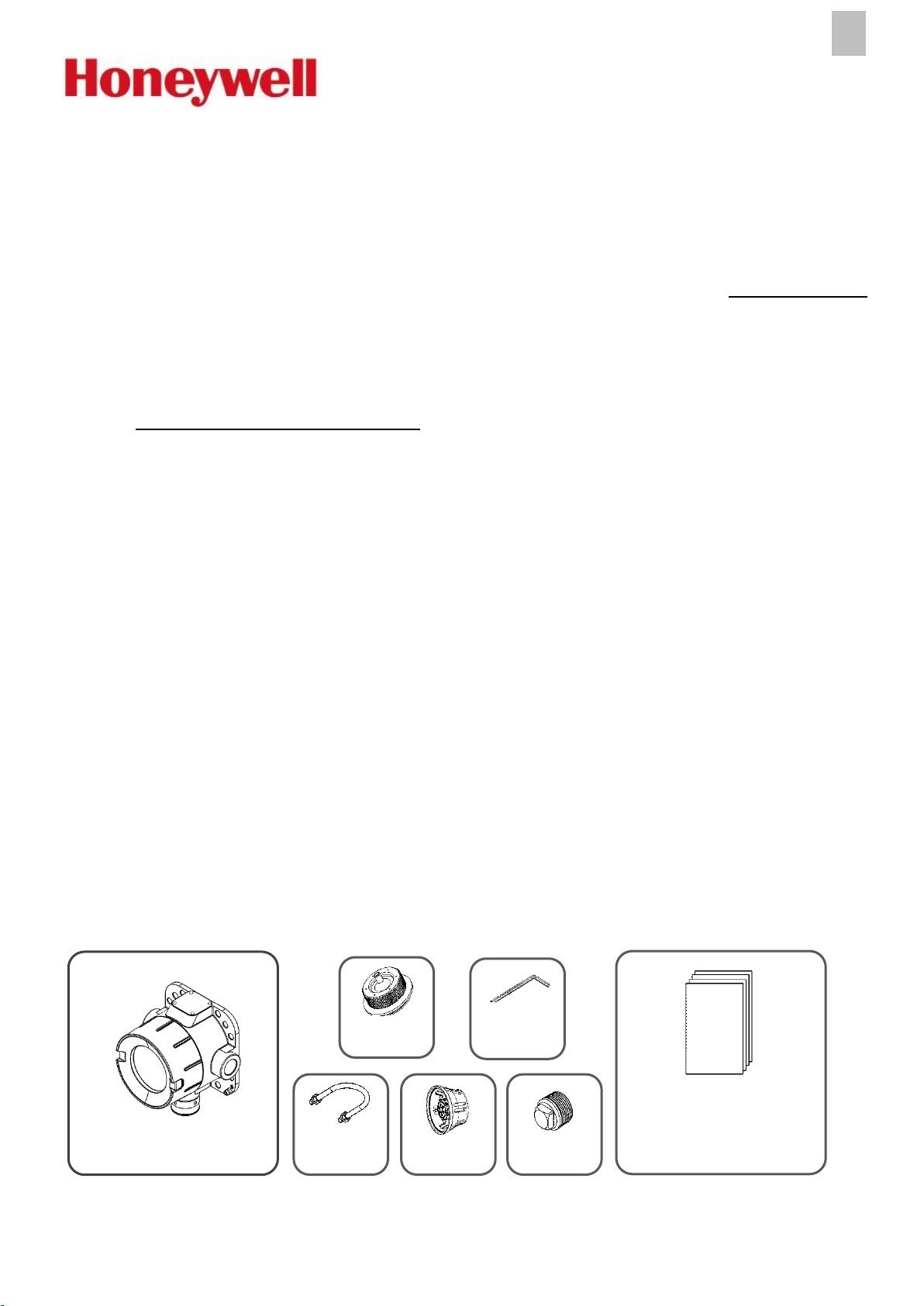

Standard packing list: (Excluding Stopping Plug for ATEX and IECEx version)
RAEGuard Lite
Fixed Gas Detector
GTYQ-FGM-7100/FGM-7300
L-type tool
x2
Calibration
cap x1
RoHS certificate,
calibration and test
certificate, quick start guide,
packing list each x1
RAEGuard Lite Fixed
Gas Detector x1
U-type bolt
x2
Plug x1
Waterproof
cap x1
1
RevA1.0

Copyright © 2022 Honeywell International Inc. All rights reserved.
If you have also ordered the following accessories:
Among them, the local visual and audible alarm will be placed in the packing box with the
detector, but please Note: the surge protection device and the Bluetooth module will be fitted
directly in the detector, and the relay module and the HART module will be included on the
PCB. RAEGuard Lite Gas Detector also provides users with more accessories to facilitate
different applications. They will be shipped separately from the detector. Please also check:
3) Physical Dimension
In order to meet the users' diverse application environments and needs, RAEGuard Lite
offers a wide range of accessories. The physical dimensions of the detector below do not
include other accessories, but only contains only the most basic units such as the transmitter,
sensor and waterproof cap.
RAEGuard Lite
Sunshade/deluge
protection
Collecting cone
2
Magnetic
wand x1
Bluetooth
module
Surge Protection
Device
HART module
Cable gland
Relay module
Local visual and
audible
alarm SP-07Plus

Copyright © 2022 Honeywell International Inc. All rights reserved.
4) Installation
Unlike other detectors, Honeywell's new generation gas detector—the RAEGuard Lite offers
a standard mount accessory and a fast,simple and efficient mounting plate kit fitting (to be
ordered separately).
4.1) Install using standard mount accessories:

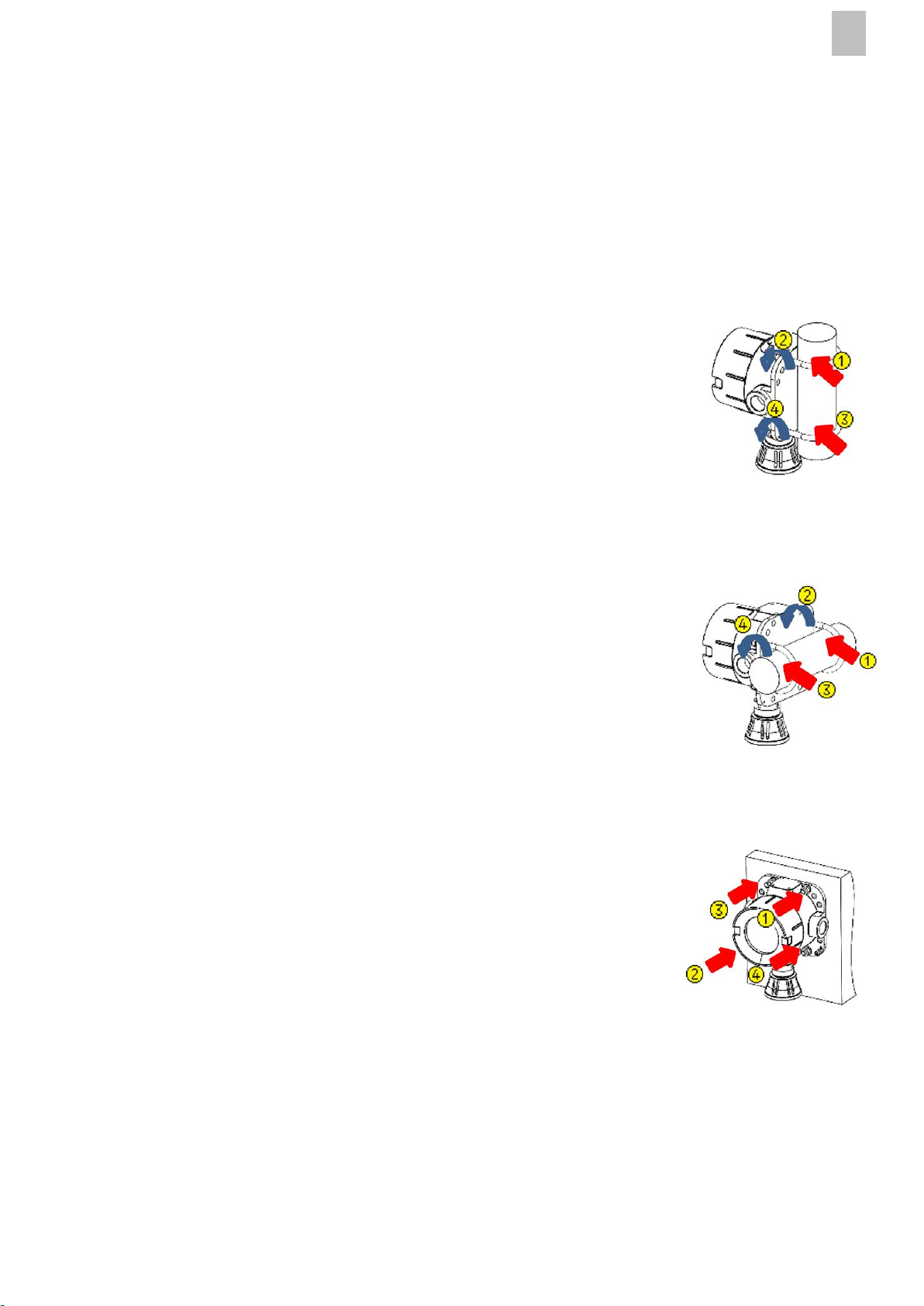

Vertical Pipe Mounted:
•Prepare the detector and 2 x U-type bolts.
•Find the suitable installation position and bury
the pipe (diameter: 38mm ~ 60mm) in advance.
•First, let one U-type bolt surround the pipe and
then pierce into the corresponding strip hole
on the detector. Fasten it clockwise with
self-contained combination nuts.
•Then, install another U-type bolt with the
same method.
Horizontal Pipe Mounted:
•Prepare the detector and 2 x U-type bolts.
•Find the suitable installation position and bury
the pipe (diameter: 38mm ~ 60mm) in advance.
•First, let one U-type bolt surround the pipe and
then pierce into the corresponding strip hole
on the detector. Fasten it clockwise with self-
contained combination nuts.
•Then, install another U-type bolt with the
same method.
Wall Mounted:
•Prepare the detector and four M8 expansion
screws (prepared by users according to the
actual installation conditions).
•Find the proper installation position.
•As shown in the right figure, tighten the
four expansion screws in turn.
Vertical Pipe Mounted
Horizontal Pipe Mounted
Wall Mounted
3

Copyright © 2022 Honeywell International Inc. All rights reserved.
How to install “Sunshade/deluge” by the standard installation method:
•Prepare the ordered "Sunshade/deluge" and
two self-contained combination bolts M8*25.
•Referring to the right figure, align the two fixed
holes on the "sunshade/deluge" with the two
strip holes on RAEGuard Lite, respectively.
•First insert one M8*25 combination screw into
the fixed hole ①, and fix it clockwise; then,
insert another combination screw into the fixed
hole ②, and fix it clockwise, as shown in the
figure on the right.
5) Electrical
The RAEGuard Lite transmitter can be connected to three types of sensors depending on
the operating principle of the connected sensor.
RAEGuard Lite LEL
FGM-7100
RAEGuard Lite EC
FGM-7300
Combustible gas
sensor locality
Toxic gas and oxygen
sensor locality
5.1) Wiring
Note: All electrical connections must comply with local regulations and standards.
RAEGuard Lite transmitter only supports source current output. The connection method is
as follows:
Note: Make sure that the shielding and grounding of the detector are grounded at a single
Sunshade/deluge Mounted
4

Copyright © 2022 Honeywell International Inc. All rights reserved.
point (it can be at one end of the controller or detector, but not at the same time). By default,
a resistance of 270 ohm (RL) is connected between the detector terminals. Before
connecting with the controller, remove the resistor.
If the RAEGuard Lite transmitter you purchase supports the HART function, connect it to the
HART terminal by referring to the following figure:
5.2) Terminals
Note: When wiring, open the top cover of the detector in advance and pull out the circuit
modules such as the display and the mainboard.
5.3) Cable connection
Note: All cables or connections on the transmitter must be sealed with certified plugs or
glands!
Industrial grade armored cables are recommended for RAEGuard Lite connection cables.
RAEGuard Lite gas detector needs the power supply between 16VDC and 32VDC provided
by the controller or upper system. For the cable connection distance, please read the “User’s
Terminal
Identification
Definition
Remarks
A
+24V
+VE Supply (16-32VDC)
Controller
4-20mA
4-20mA current&HART output
GND
-VE Supply
RS485A/+
MODBUS A(+)
MODBUS
RTU
RS485B/-
MODBUS B(-)
B
LOW ALARM-NO
Low alarm - Normally Open
Note: If the
function
is not
purchased
at the time
of ordering,
there is no
terminal.
LOW ALARM-COM
Low alarm - Common
LOW ALARM-NC
Low alarm - Normally Closed
HIGH ALARM-NO
High alarm - Normally Open
HIGH ALARM-COM
High alarm – Common
HIGH ALARM-NC
High alarm - Normally Closed
FAULT ALARM-NO
Fault - Normally Open
FAULT ALARM-COM
Fault – Common
FAULT ALARM-NC
Fault - Normally Closed
C
ALARM
External SP-07PLUS
Optional
D
SENSOR
Connect with sensor
Host
computer or
controller
HART
Terminal
250Ω
+24VDC
4-20mA
GND
5

Copyright © 2022 Honeywell International Inc. All rights reserved.
Manual” carefully to ensure that the minimum voltage of the detector is not less than 16VDC.
5.4) Grounding connection
In order to ensure the electromagnetic compatibility and anti-interference ability of the
instrument, good grounding is essential. For detailed use and connection, please refer to the
User's Manual.
The shielding layer of cable must follow the principle of "single point grounding" Usually, the
shielding layer of the cable at the transmitter end is connected to the common point of the
instrument, that is, the shielding layer wire is connected to an empty terminal outside or
inside the instrument.
6) System Status
RAEGuard Lite provides a clear, definite and user-friendly human-machine interface with
three magnetic keys, one main LCD screen and three system status LED indicators. For
user's convenience and quick use of the instrument, the following table lists the system
status LED light indicators and corresponding current output values. For more information,
see "User's Manual".
System status
Red LED
Green LED
Yellow LED
Current
output value
Remarks
Low alarm
Solid
Flashing /1s
4-20(±0.1)mA
Real-time detection of the current value
corresponding to the gas concentration
High alarm
Flashing /1s
Flashing /1s
4-20(±0.1)mA
Low alarm latch
Solid
Flashing /1s
4-20(±0.1)mA
High alarm latch
Flashing /1s
Flashing /1s
4-20(±0.1)mA
Overrange
Flashing /1s
Flashing /1s
22(±0.5)mA
Gas concentration exceeds the set range
Inhibit
Flashing /1s
Solid
2(±0.5)mA
Inhibit status defaults to 2mA
Warning
Flashing /1s
Flashing /2s
3(±0.5)mA
Warning status defaults to 3mA
Fault
Flashing /1s
Flashing /1s
1(±0.5)mA
Fault status defaults to 1mA
Normal
Flashing /1s
4-20(±0.1)mA
Real-time detection of the current value
corresponding to the gas concentration
BLE connected
Keeping
Solid
Keeping
4-20(±0.1)mA
Real-time detection of the current value
corresponding to the gas concentration
Note: Fault, inhibit, and warning current set to: 1mA, 2mA, 3mA; overrange current set to 22 mA. And can’t be modified.
6

Copyright © 2022 Honeywell International Inc. All rights reserved.
7) Technical Specifications
RAEGuard Lite gas detector
Use
Universal transmitter with standard configuration of 3-wire, 4-20mA and RS485 MODBUS output
for use with a wide range of applications for the detection of flammable, toxic and Oxygen gas
hazards.
Electrical parameters
Input Voltage Range
16-32VDC (24VDC nominal)
Typical Power Consumption
Electrochemical Cells: <1watts; catalytic:2 watts(Max:5w)
Current Output
Completely configurable 4-20mA (source type) with optional HART® 7.2 protocol as following as
default configurations of current output.
1mA Fault 2mA Inhibit (during configuration or setup)
3mA Warning 4mA~20mA Normal
22mA overrange
Note: When the current output is <3mA, HART communication will not work properly.
Terminals
5 terminals (11 terminals for use with relay output), wire diameter 0.5mm2（20AWG）to 2.5mm2
（13AWG）
Relays
3 Relays （30VDC 5A,optional)
Communication
RS485, Modbus RTU
Optional Bluetooth /Hart (coming soon)
Construction
Transmitter Housing
Material
Aluminum Alloy
Sensor Housing Material
316 Stainless Steel
Weight (approx.)
Aluminum Alloy: 2.3kg;
Mounting
Integral mounting plate with 4 x mounting holes suitable for M8 to fit onto Wall or Pipe
Entries
2 x 3/4'' NPT cable/conduit entries and 1 x M25 sensor entry. 1 x plug supplied f for only 1 entry
used. Seal to maintain IP rating
Performance****
Repeatability
<2%
Response Time(T90 sec)
Depending on sensor
Certification
China
LEL: Ex db IIC T6 Gb，Ex tb IIIC T80°C Db Ta = -40°C ~ +65°C
Ex db IIC T5 Gb，Ex tb IIIC T90°C Db Ta = -40°C ~ +75°C
EC: Ex db IIC T6 Gb，Ex tb IIIC T80°C Db Ta = -20°C ~ +55°C
EMC
EN50270:2015, IEC 61000-4-5
Surge Immunity
Optional Surge Protection Device, Compliance with GB/T17626.5-2008/IEC61000-4-5:2005,
Meets “Installation Class 4”
Environmental
IP Rating
IP66
Operating Temperature***
-40°C to +70°C
Operating Humidity
LEL: 0~95%RH (Non-condensing)
Toxic & Oxygen: 15%~95%RH (Non-condensing)
Operating Pressure
90~110kPa
Storage Conditions
-20°C to +50°C, 45-75%RH(Non-condensing), in clean air
Remarks:
* RAEGuard Lite will provide users more communication interfaces and gas types in the future, such as wireless etc. For
availability, please contact Honeywell Analytics.
*** Catalytics sensor can work continuously at -40°C ~ +70°C; toxic and Oxygen sensor can work continuously at -20°C ~ +55°C,
intermittently at -40°C ~ +70°C (The accuracy and response time of sensors operating in this temperature range will be affected,
and long-term operation may lead to sensor sensitivity decline or even damage.)
**** The performance characteristics of the products mentioned above are typical results tested in an environment with a
temperature 20°C and a humidity of 50% RH. When calibrating, use the calibration cap and recommended flow for detection. If
the sunshade/deluge is used instead or the detection is carried out at low temperature, the response time will be slowed down.
7

Copyright © 2022 Honeywell International Inc. All rights reserved.
Please note:
While every effort has been made to ensure accuracy in this publication, no responsibility can be accepted for errors or omissions. Data may change, as well as legislation,
and you are strongly advised to obtain copies of the most recently issued regulations, standards, and guidelines. This publication is not intended to form the basis of a
contract. Honeywell, its subsidiaries, affiliates, directors, officers, agents, employees, shall not be responsible for the accuracy of, including, without limitation, all information,
statements, estimates, and statistics that may be contained within this quick start guide. Such statements or information may involve known and unknown risks and
uncertainties which may cause actual events or results to differ materially from the estimates or the content or the results implied or expressed in this quick start guide.
Nothing in this quick start guide shall be construed as a representation and/ or warranty by Honeywell. Honeywell, its subsidiaries, affiliates, directors, officers, agents,
employees, shall not be held responsible for any loss, injury, claim, liability, or damage of any kind resulting from, arising out of, or in any way related to (a) any errors in
or omissions from this quick start guide, including but not limited to inaccuracies and typographical errors, (b) any third party web sites or content therein directly or indirectly
accessed through reference links provided in this quick start guide, including but not limited to any errors in or omissions in such reference sources links, (c) the unavailability
of the access to or use of the quick start guide or any portion thereof, (d) a user’s use of this quick start guide or the information accessible therefrom, the product and/ or
any decision made using the quick start guide and (e) any other reason.
Scan the QR code below or login onto https://sps.honeywell.com/cn/zh to
obtain Users’ Manual and more product information.
8
