ERX350 User Manual
FD-583 | 1.5 | 2023
Honeywell Process Solutions
Mercury Instruments, 2101 Citywest Boulevard Houston, TX 77042 USA
855 251-7065 – United States & Canada
302 669-4253 – Outside the United States
https://process.honeywell.com
|ERX350

Copyright 2023 . Honeywell Process Solutions. All rights reserved. 
Information in this document is subject to change without notice. The software described in
this document is furnished under a license agreement or non- disclosure agreement. The
software may be used or copied only in accordance with the terms of those agreements. No
part of this publication may be reproduced, stored in a retrieval system, or transmitted in any
form or any means electronic or mechanical, including photocopying and recording for any
purpose other than the purchaser's personal use without the written permission of Honeywell
Process Solutions.
Mercury Instruments, 2101 Citywest Boulevard Houston, TX 77042 USA

About this document
This document is for operators and technicians working in the natural gas industry. This
document provides an overview of ERX350 and instructions to install ERX350. It also describes
how to connect to the instrument via MasterLink software, configure, calibrate pressure &
temperature and retrieve various types of stored data. In addition, this document provides
information on how to navigate through the Human Machine Interface (HMI) menus and
introduces the user to different communication mechanisms featured in this device.
The Honeywell ERX350 is a microprocessor-based, stand-alone, self-powered data recorder
that measures gas pressure(s), gas temperature, case temperature, and power supply voltages.
Sampled measurements, logged audit trail data, alarms entries, user change events, and
operating parameters are stored in non-volatile memory. The stored data may be retrieved
directly with a laptop computer, PC, mobile devices, or remotely via modem. ERX350 recorder is
capable of recording audit trail data into (up to five) independent loggers. Each of the loggers
can be configured for; number of items, logging interval and record size. Using the display and
keypad, the user can configure the recorder and perform various other activities. The ERX350
offers a large feature set along with a path forward to support new technologies.

Terms and definitions
The following table lists some special terms that are used across this document and provides their
definitions.
Term Definition
Opto-isolators Devices that prevent unwanted current flow or possible
damage from high voltage or/and from external devices
connected to the instrument.
Honeywell 2023

1 About ERX350 1
1.1 ERX350 Specifications 2
1.1.1 Certifications 2
1.1.2 Power supply 2
1.1.3 Environmental 3
1.1.4 Temperature Measurement 3
1.1.5 Pressure Measurement 3
1.2 Safety Instructions 4
1.2.1 Things to Remember 5
1.2.1.1 Usage of ERX350 in Hazardous Areas 5
1.2.1.2 Service, Maintenance, and Troubleshooting ERX350 5
1.3 Theory of Operation 6
1.3.1 Sample Mode 6
1.3.2 HMI Mode 6
1.3.3 Serial Link Mode 8
1.4 Main Interfaces of ERX350 9
1.4.1 IrDA Port 9

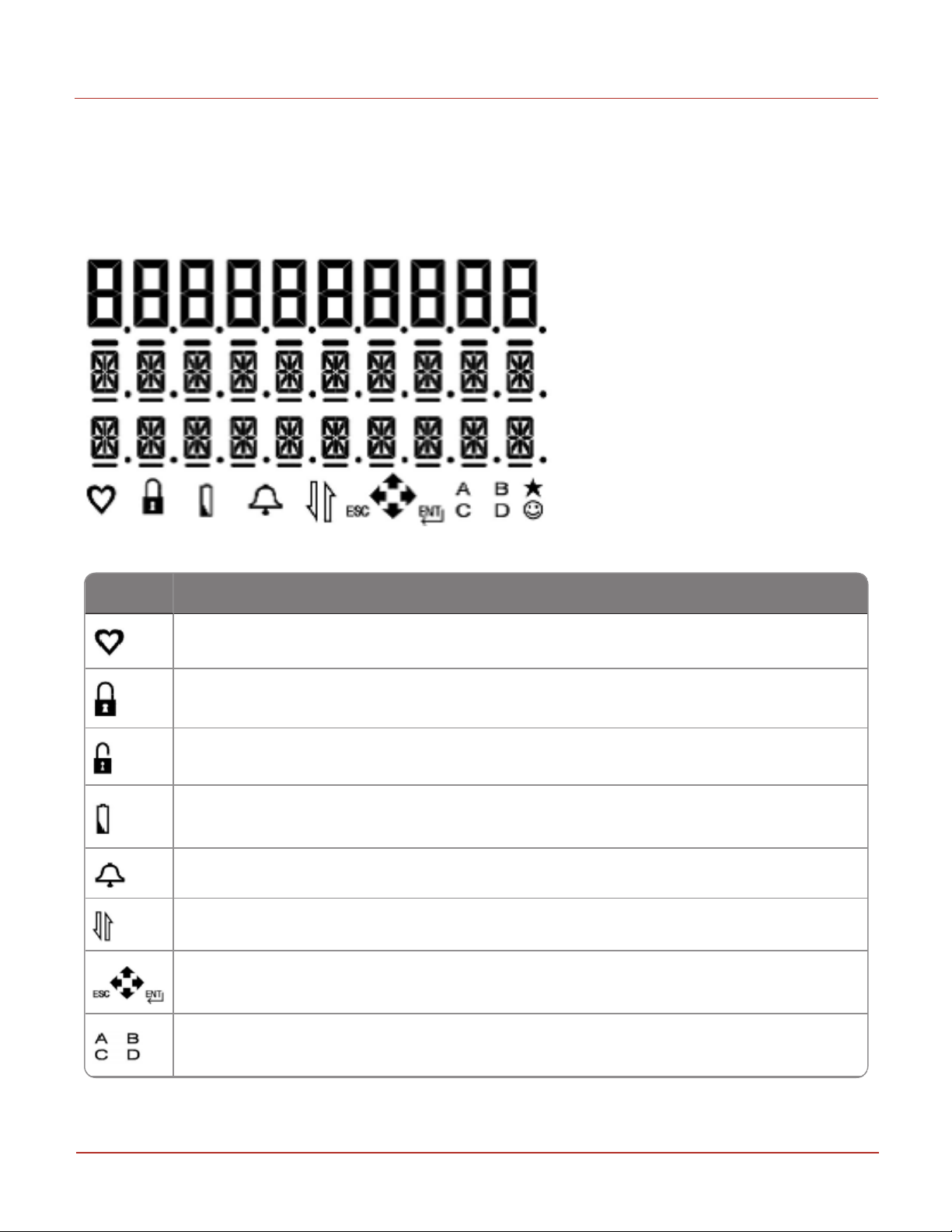

1.4.2 LCD 10
1.4.3 Keypad 11
1.4.4 External connections 12
2 ERX350 Installation 13
2.1 ERX350 Contents Verification 14
2.2 Overview of Installation 15
2.3 Model Number Interpretation 16
2.4 Prerequisites 17
2.5 Installing ERX350 18
2.5.1 Mounting 18
2.5.1.1 Front / Rear Views: 18
2.5.1.2 Side View (Right) 19
2.5.1.3 Top View (Showing Door Swing) 20
2.5.2 Pressure Line Connections 20

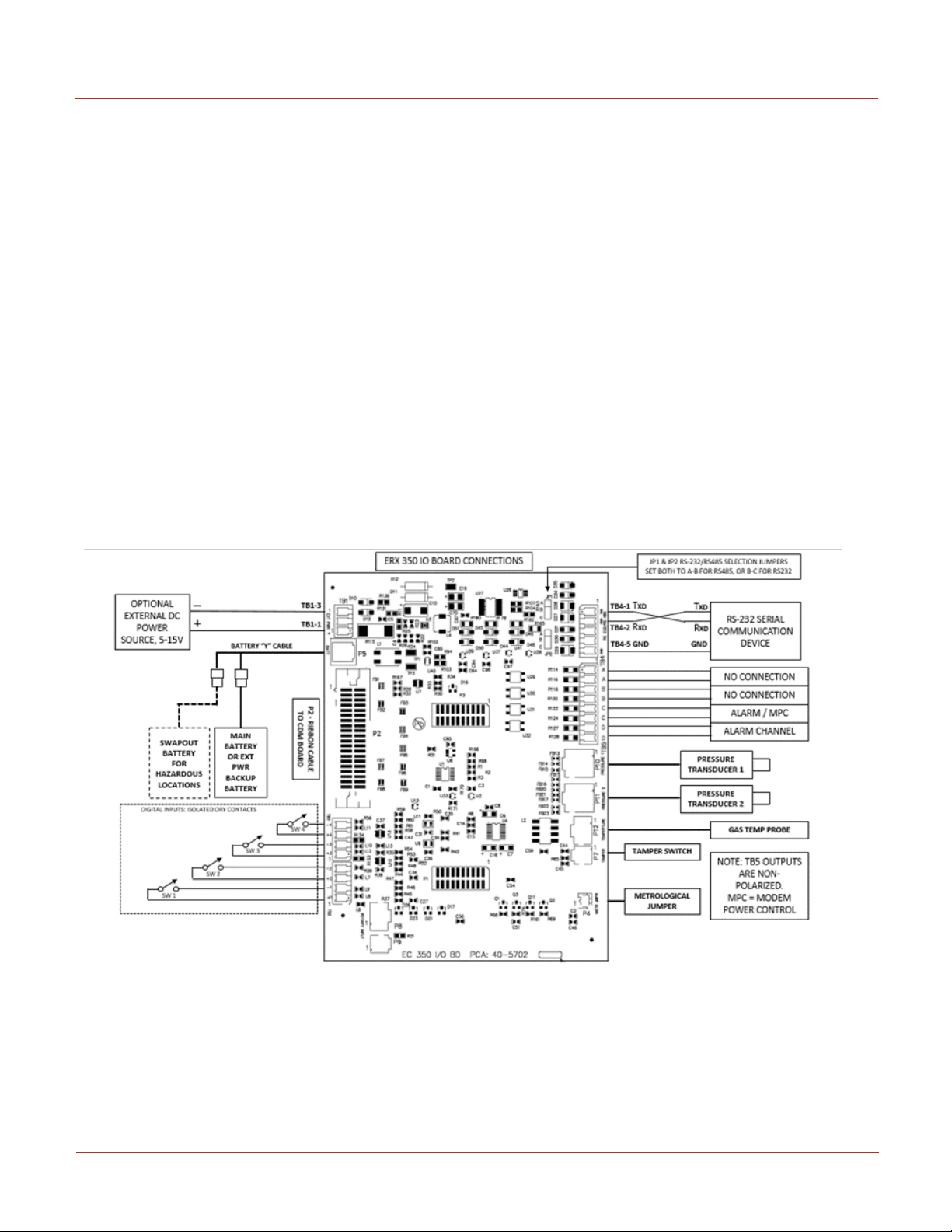

2.6 Electrical Connections 22
2.7 Power Supply Options 24
2.7.1 Battery Powered 24
2.7.1.1 Alkaline Battery Pack 24
2.7.1.2 Lithium Battery Pack 25
2.7.2 External Power Supply 26
2.7.2.1 External Supply with Battery Backup: 26
2.7.2.2 Item 1061 – Battery Type 26
2.7.3 Power System Measurement 27
2.8 Digital Input / Output Wiring 28
2.8.1 Digital Inputs 28
2.8.1.1 Digital Input 1 29
CONTENTS

2.8.1.2 Digital Input 2 29
2.8.1.3 Digital Input 3 29
2.8.1.4 Operations: 30
2.8.2 Digital Outputs 30
2.8.3 Modem Power Control 33
2.8.4 Serial RS-232 / RS-485 33
2.8.4.1 RS-232 33
2.8.4.2 RS-485 (2-wire) 34
2.8.5 Pulse Output Specification 34
2.8.6 Pulse Outputs via the Case Connector Option 35
2.9 Installation Drawings 36
3 Securing the Device 41
3.1 Case 42
3.2 Defining Access Privileges 43
3.2.1 Default User Table 43
3.2.2 Creating a User Table File 44
3.2.3 Sending a User Table File 46
3.3 Validating Setup Configuration 48
4 Key Features 49
4.1 P-T Measurement 50
4.1.1 Gas Pressure 50
4.1.1.1 Gas Pressure Statistics 50
4.1.2 Gas Temperature 52
4.1.2.1 Temperature Statistics 53
4.2 Alarms 54
4.3 Logging 58
4.3.1 Audit Trail Logging Configuration 58
4.3.2 Reading Audit Trail from the ERX350 62
4.3.2.1 Displaying/Viewing Audit Trail reports 63
4.3.3 Event Logger 63
4.3.3.1 Supported Event Codes 64
4.3.3.2 Clearing Event Log 64
4.3.4 Log Record Integrity Verification 65
4.4 Battery Life/ Usage Tracking 66
4.5 Display ON/OFF 67
5 User Access 68
5.1 Getting Started with the Keypad 69
5.1.1 Unlocking the Keypad 69
5.1.2 Human Machine Interface (HMI) 69
5.1.2.1 Level 0 Mode 70
5.1.2.2 Level 1 Mode 72
5.1.2.3 Level 2 Mode 81
5.1.2.4 Level 3 Mode 89
CONTENTS

5.2 Working with HMI 99
5.2.1 Verifying Pressure 99
5.2.2 Verifying Temperature 100
5.2.3 Entering the Site ID 101
5.2.4 Setting the Date and Time 102
5.2.4.1 Setting the Date 102
5.2.4.2 Setting the Time 103
5.2.4.3 Auto set date and time 105
5.2.5 Selecting the Unit of Measure 105
5.2.5.1 Selecting the Unit of Measurement for Pressure 105
5.2.5.2 Selecting the Unit of Measurement for Temperature 106
5.2.6 Single Point Temperature and Pressure Calibration 108
5.2.6.1 Calibrating Temperature 108
5.2.6.2 Calibrating Pressure 109
5.3 Connecting to ERX350 via MasterLinkR515
& MasterLinkSQL 111
5.3.1 About MasterLinkR515 &MasterLinkSQL Software 111
5.3.2 Connecting the IrDA Communication USB Dongle to the
Computer 111
5.3.3 Connecting the IrDA communication USB dongle to ERX350 111
5.3.4 Signing on to the ERX350 112
Updating ERX350 Firmware 112
5.3.5 Force schedule Call-In Time After FW Update 116
5.4 Working with MasterLinkR515 & MasterLinkSQL 117
5.4.1 Items by Function 117
5.4.2 Setting Time and Date 118
5.4.3 Item Files 118
5.4.3.1 Reading/Creating Item Files 118
5.4.3.2 Displaying/Viewing Item Files 119
5.4.4 Calibrating Pressure 119
5.4.5 Calibrating Temperature 121
5.4.6 Configuring the Scroll List 123
5.4.7 Configuring Call in Feature 123
5.5 Working with PowerSpring 128
5.5.1 Adding ERX350 to PowerSpring 128
6 Remote Communications 130
6.1 RS232/ 485 131
6.1.1 Application 131
6.1.2 Connections 131
6.1.3 Jumpers 132
6.1.4 Configuration Parameters 132
6.2 Connecting ERX350 with Modems 133
6.2.1 Configure ERX350 using MasterLink 133
6.2.2 Configure ERX350 in PowerSpring 137
CONTENTS

6.3 Call-In and Call-Out 160
6.3.1 Call-In 160
6.3.1.1 Call-In 160
6.3.1.2 Scheduled Call-In 161
6.3.1.3 Alarm Call-In 161
6.3.1.4 Force schedule Call 161
6.3.1.5 Management of Multiple Phone Numbers 161
6.3.1.6 Retry Timing 162
6.3.1.7 Display Indications 162
6.3.1.8 Forcing a Test Call 163
6.3.2 Call-Out 163
6.3.2.1 Set Call-Out Time 163
6.3.2.2 Set a Call-Out Stop Time 164
6.4 Modbus Communication 166
7 Maintenance 168
7.1 Temperature Probe Measurement Kits 169
7.2 Transducer Replacement Kits 170
7.3 Metrological Sealing Cover (MC) 172
7.4 Replacing the Battery Pack 173
7.5 Removing and Re-Installing Modem Mounting Cover Plate 174
7.5.1 Replacing the Battery in a Hazardous DIV-1/ZONE-0
Environment 174
7.5.2 Replacing the Battery in a Non-Hazardous Environment 175
7.6 Low battery/ External Power Shutdown Mode 176
7.7 User Shelf/ Shutdown mode 178
7.7.1 To Enter User Shutdown Mode Using HMI Mode 2 or 3 178
7.7.2 To Enter User Shutdown Mode Using MasterLinkR515
&MasterLinkSQL 178
CONTENTS

1 About ERX350
The Honeywell ERX350 is a microprocessor-based, stand-alone, self-powered data
recorder that measures gas pressure(s), gas temperature, case temperature, and power
supply voltages. Sampled measurements, logged audit trail data, alarms entries, user
change events, and operating parameters are stored in non-volatile memory. The stored
data may be retrieved directly with a laptop computer, PC, mobile devices, or remotely
via modem. ERX350 recorder is capable of recording audit trail data into (up to five)
independent loggers. Each of the loggers can be configured for; number of items,
logging interval and record size. Using the display and keypad, the user can configure
the recorder and perform various other activities. The ERX350 offers a large feature set
along with a path forward to support new technologies.
This section provides information about the main interfaces and its theory of operation.
It also lists the safety instructions that must be followed while installing and
commissioning ERX350.
lSafety instructions
lTheory of Operation
lMain interfaces of ERX350
CHAPTER 1

1.1 ERX350 Specifications
This section provides the specifications and certifications for ERX350.
lCertifications
lPower supply
lEnvironmental
lTemperature measurement
lPressure measurement
1.1.1 Certifications
lElectrostatic Discharge Immunity Test (EN61000-4-2)
lRadiated, Radio-Frequency Electromagnetic Field Immunity Test (EN61000-4-3)
lElectrical Fast Transient/Burst Immunity Test (EN61000-4-4)
lConducted Radio-Frequency Electromagnetic Field Immunity Test (EN61000-4-6)
lRadiated Emissions (EN 61000-6-4)
lFCC Part 15
lMeasurement Canada
lCSA C/US--- Class I, Div 1/Zone 0
lCSA C/US Class I, Division 2, Groups C and D, T3C
lIECEx --- Class I, Zone 0 (pending)
lIECEx --- Class I, Zone 2 (pending)
lIEC-Ex ec [ia Ga] ic nC IIB T4 Gc
1.1.2 Power supply
lBattery
l7 Volt 2 cell lithium battery pack
l6 Volt 4 cell alkaline battery pack
lExternal power supply
lDC supply 5 - 15 Volts
1 About ERX350
1.1  ERX350 Specifications
Honeywell 2023 2

1 About ERX350
1.1  ERX350 Specifications
Honeywell 2023 3
Note: Battery can optionally serve as back-up for external DC voltage.
1.1.3 Environmental
lAmbient Temperature Range:
l-40 °F to +158 °F (-40 °C to +70 °C).-without Modem
Note: If using an ERX350 device with a modem, it is recommended to consider the
operational temperature range of the modem. The temperature system will continue
providing accurate measurements even if the modem is unable to operate because
of environmental conditions.
l-13 °F to +158 °F (-25 °C to +70 °C) when used with Cloud Link 4G modem
lHumidity:
l0-95% non-condensing
1.1.4 Temperature Measurement
lHighly stable, solid state temperature sensor (thermistor)
lRange: -40 °F to +158 °F (-40 °C to +70 °C).
1.1.5 Pressure Measurement
Ambient temperature range: -40°F to +158°F (-40° to +70°C)

1.2 Safety Instructions
ERX350 complies with the general safety standards and regulations. However, failure to operate ERX350
as per the safety instructions available in this document may lead to hazards.
ERX350 is approved for use in hazardous areas (Class I Division 1 or Class I Division 2). Different
versions of ERX350 are available depending on the operating conditions. The permitted operating
conditions are marked on each ERX350. Check the operating condition limits of ERX350 before installing.
You must be familiar with the currently applicable electrical installation standards and regulations before
installing and operating ERX350 in hazardous areas.
Warning: Denotes an explosion hazard. Ensure you follow all instructions described in the warning
notification.
To avoid explosion hazard, ensure to note the following:
lInstall ERX350 depending on the operating conditions permitted for that particular ERX350 unit.
lERX350 device for Class I Division 1 is intrinsically safe and must be connected to other circuits
as per the installation drawing specified on each ERX350.
lERX350 device for Class I Division 2 must be connected to other circuits as per the installation
drawing specified on each ERX350.
lSubstitution of components may impair suitability for use in a hazardous location.
Caution: The caution warns you of possible damage to property and provides instructions to avoid
damage to ERX350.
Honeywell recommends you to observe the warning information described in this document and other
generally applicable safety rules.
lNo warranty claims can be asserted if there is an unauthorized interference with the device.
lYou can use ERX350 in hazardous areas, under some permitted operating conditions. Ensure to
comply with the applicable laws and regulations, and company policies for the usage of
ERX350.
lInstallation and commission of ERX350 in hazardous areas must only be done by specially
trained and qualified staff. The device is designed in accordance with the IP 65 degree of
protection as per EN60529. The installation of the intrinsically safe circuits must comply with
the applicable local laws or regulations. Operate ERX350 only if the instrument is completely
intact.
lThe service, maintenance and troubleshooting of ERX350 device operating in hazardous areas
must be performed only by specially trained and qualified staff.
1 About ERX350
1.2 Safety Instructions
Honeywell 2023 4

1 About ERX350
1.2 Safety Instructions
Honeywell 2023 5
lTo maintain acceptability of use in hazardous locations, replacement of ERX350 battery packs
must use replacement batteries supplied by Honeywell. For further information about changing
the ERX350 battery pack, refer to the section, “Installing or Replacing Battery”.
1.2.1 Things to Remember
1.2.1.1 Usage of ERX350 in Hazardous Areas
You can use ERX350 in hazardous areas, under some permitted operating conditions. Ensure to comply
with the applicable laws and regulations, and company policies for the usage of ERX350.
Installation and commission of ERX350 in hazardous areas must only be done by specially trained and
qualified staff. The device is designed in accordance with the IP 65 degree of protection as per EN60529.
The installation of the intrinsically safe circuits must comply with the applicable local laws or
regulations. Operate ERX350 only if the instrument is completely intact.
1.2.1.2 Service, Maintenance, and Troubleshooting ERX350
The service, maintenance and troubleshooting of ERX350 device operating in hazardous areas must be
performed only by specially trained and qualified staff.
To maintain acceptability of use in hazardous locationsreplacement of ERX350 battery packs must use
replacement batteries supplied by Honeywell. For further information about changing the ERX350 battery
pack, refer to the section, “Installing or Replacing Battery”.

1.3 Theory of Operation
This section provides information about the modes of operation of the instrument and the functions
performed in each of the modes. ERX350 has three operating modes. Each mode is well defined and
suited to a particular purpose.
The three operating modes are:
Sample Mode
HMI Mode
Serial Link Mode
1.3.1 Sample Mode
In Sample Mode, the instrument obtains, stores and compares pressure(s), temperature(s), and power
supply voltage readings with alarm limit set points. If a reading exceeds its alarm limit set points, the
instrument transmits a single pulse out the alarm channel and shows the ‘Alarm Bell’ icon on the LCD. If
the instrument is equipped with a modem and configured for Alarm Call-in, the ERX350 will dial a pre-
defined phone number or IP address, presumably to a host computer system waiting to receive such calls.
1.3.2 HMI Mode
The table below shows the default display items and live enable.
Instrument Configuration
Item Code P PP PPP PT PPT PPPT T
Display List 1 Items 1-6
530 580 580 580 580 580 580 580
531 582 582 582 582 582 582 582
532 583 583 583 583 583 583 583
533 503 503 503 503 503 503 503
534 521 521 521 521 521 521 521
535 255 255 255 255 255 255 255
Live Display Enable
536 P PP PPP PT PPT PPPT T
1 About ERX350
1.3 Theory of Operation
Honeywell 2023 6

1 About ERX350
1.3 Theory of Operation
Honeywell 2023 7
Instrument Configuration
Display List 2 Items 1-12
537 631 631 631 631 631 631 635
538 637 637 638 637 638 638 645
539 638 638 632 638 632 632 646
540 632 632 640 632 640 640 636
541 639 640 633 639 633 633 647
542 640 670 642 640 642 642 648
543 651 633 634 635 634 634 657
544 650 641 644 645 644 644 656
545 649 642 426 646 635 426 655
546 255 634 428 636 646 428 255
547 255 644 429 647 636 429 255
548 255 673 431 648 648 431 255
Display List 2 Items 1-12 P3 with Voltage Monitor
537 255 255 255 255 255 255 255
538 255 255 255 255 255 255 255
539 255 255 255 255 255 255 255
540 255 255 255 255 255 255 255
541 255 255 255 255 255 255 255
542 255 255 255 255 255 255 255
543 255 255 255 255 255 255 255
544 255 255 255 255 255 255 255
545 255 255 255 255 255 255 255
546 255 255 255 255 255 255 255

Instrument Configuration
547 255 255 255 255 255 255 255
548 255 255 255 255 255 255 255
1.3.3 Serial Link Mode
To operate in Serial Link Mode, the ERX350 requires an IrDA cable & dongle, modem, or a Smart device
with Bluetooth, along with MasterLink R510+ software app. During Serial Link Mode, the, the ERX350
may be configured, calibrated, or download of various types of logged data i.e., Audit Trail logs, Event
logs, Alarm log.
1 About ERX350
1.3 Theory of Operation
Honeywell 2023 8

1 About ERX350
1.4 Main Interfaces of ERX350
Honeywell 2023 9
1.4 Main Interfaces of ERX350
The main interfaces of the ERX350 are:
lLCD
lKeypad
lDigital Inputs
lDigital Outputs
lIrDA
lRS-232 / RS-485
lExternal Supply Voltage
lBattery Pack
1.4.1 IrDA Port
Connect the IrDA communication USB cable to ERX350 as shown in the image below. Connect the other
end of the cable to a USB port on the computer where MasterLink is installed. Second image shows PC
side of USB connector.

1.4.2 LCD
ERX350 provides a ten character, configurable, alphanumeric display with icons to show the status
information and alarm conditions. The display can be configured to on or off at different times of day.
Following is a display illustration, showing all segments ON.
The following table lists the icons on the display.
Icon Description
Heart Beat: Flashes every 3 seconds to indicate normal operation.
Lock: Indicates that the instrument is in a metrologically protected mode.
Unlock: Indicates that the instrument is not in a metrologically protected mode.
Battery: Indicates a low battery condition. Refer to the section Installing or replacing
battery. Battery alarm is also indicated by this icon
Alarm: Indicates one or more alarm conditions such as low pressure or high temperature
IrDA: Indicates that communication with the device via the front panel IR port is enabled.
Navigation key function indicator: As you navigate through the options in each operating
mode, this icon indicates the keys that are active for the selected option.
Pulse output channel indicator: Indicates which of the 4 pulse output channels are enabled,
and flashes when a pulse is transmitted.
1 About ERX350
1.4 Main Interfaces of ERX350
Honeywell 2023 10

1 About ERX350
1.4 Main Interfaces of ERX350
Honeywell 2023 11
Icon Description
Smile: Indicates the HMI is unlocked. The navigation keys are functional.
Star: The Star icon turns on during pressure and temperature measurement.
1.4.3 Keypad
The keypad is used for scrolling through the menu options. The following table lists the keys.
Icon Description
Use these keys for unlocking the keypad and activating the display. To unlock the
keypad, press and hold ESC and UP arrow at the same time until display text appears.
Up and Down Arrow Keys.
Navigate (scroll) Up or Down through the HMI menus Increase or decrease a digits
value during edit/entry modes.
Note: For convenience – the HMI main menus allow scrolling both forward and
backwards (reverse direction)
Left and Right Arrow Keys.
Use these keys for navigating to the next and/or previous digit. Use these keys to move
the cursor one character at a time, in forward or backward directions.
OK (Enter) Key. Used to accept the user’s input.
Use this key to access the main menu or display the submenu of the current menu. It is
also used for accepting an input value.
ESCAPE (Exit) Key.
Use this key to display the Home screen, cancel an entry, or go back to the previous
menu.
Note: Pressing the ESC key repeatedly brings user back to highest (starting pint) of
the HMI main menu screen – but it cannot completely exit the HMI.

To conserve battery power, after each processing cycle the ERX350 keypad is locked, if there is no input
received within the time out period (1 to 10 minutes).
1.4.4 External connections
The external connections from ERX350 are:
lDigital Inputs
lDigital Outputs
lIrDA
lRS232/RS485
lExternal Supply Voltage
lBattery Pack
The figure below illustrates the purpose of different jumpers and other connections on an ERX350 IO
board:
1 About ERX350
1.4 Main Interfaces of ERX350
Honeywell 2023 12
