Horizon Fitness HORIZON 7.0AE ELLIPTICAL User manual

Read the ELLIPTICAL GUIDE before using this OWNER’S MANUAL.
Lire le GUIDE D’UTILISATION DE L’EXERCISEUR ELLIPTIQUE avant de se référer au présent MANUEL DU PROPRIÉTAIRE.
Lea la GUÍA DE LA MÁQUINA ELÍPTICA antes de utilizar este MANUAL DEL PROPIETARIO.
ELLIPTICAL OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE DE L’EXERCISEUR ELLIPTIQUE
MANUAL DEL PROPIETARIO DE LA MÁQUINA ELÍPTICA

2
3 ENGLISH
36 FRANÇAIS
70 ESPAÑOL

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all
instructions before using this elliptical. It is the responsibility of the owner to ensure that all users of this incline trainer
are adequately informed of all warnings and precautions. If you have any questions after reading this manual, contact
Customer Tech Support at the number listed on the back panel.
This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.

4
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the elliptical from the electrical outlet immediately after using, before cleaning, performing maintenance and putting
on or taking off parts.
DANGER
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising
immediately and consult your physician before continuing.
•When exercising, always maintain a comfortable pace. Do not sprint above 80 RPMs on this machine.
•To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or dismounting the machine.
•Do not turn pedal arms by hand.
•Make sure handlebars are secure before each use.
•Keep the topside of the foot support clean and dry.
•Care should be taken when mounting or dismounting the equipment. Before mounting or dismounting, move the pedal on the mounting
or dismounting side to its lowest position and bring the machine to a complete stop.
•Do not wear clothes that might catch on any part of the elliptical.
•Always wear athletic shoes while using this equipment.
•Do not jump on the elliptical.
•At no time should more than one person be on the elliptical while in operation.
•This elliptical should not be used by persons weighing more than the specified user capacity in the OWNER’S MANUAL WARRANTY
SECTION. Failure to comply will void the warranty.
•This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
•Do not use elliptical in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
•To prevent electrical shock, never drop or insert any object into any opening.
•Connect this exercise product to a properly grounded outlet only.
WARNING

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
•Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
•Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
•Use the elliptical only as described in the owner’s manual.
•Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth only;
never use solvents. (See MAINTENANCE)
•The elliptical should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking
off parts.
•Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
•At NO time should pets or children under the age of 13 be closer to the elliptical than 10 feet.
•At NO time should children under the age of 13 use the incline trainer.
•Children over the age of 13 or disabled persons should not use the elliptical without adult supervision.
•Never operate the elliptical if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
or immersed in water. Return the elliptical to a service center for examination and repair.
•To disconnect, turn all controls to the off position, then remove plug from outlet.
•Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized service
technician.
It is essential that your elliptical is used only indoors, in a climate controlled room. If your elliptical has been exposed
to colder temperatures or high moisture climates, it is strongly recommended that the elliptical is warmed up to room
temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING

6
GROUNDING INSTRUCTIONS
If your elliptical has power incline with a 3-prong plug, you must follow these grounding instructions.
This product must be grounded. If a elliptical should malfunction or break down, grounding provides a path of least resistance for electrical
current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes
and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working properly.
Never operate any product if it appears damaged, or has been immersed in water.
Contact Customer Tech Support for replacement or repair.
3-POLE
GROUNDED
OUTLET
GROUNDING PIN
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician
or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product.
If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make sure
that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and
observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one circuit.
This elliptical should be used with a minimum 15-amp circuit.

7
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow
the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not
followed correctly, the incline trainer could have frame parts that are not tightened and will seem loose and may cause
irritating noises. To prevent damage to the elliptical, the assembly instructions must be reviewed and corrective actions
should be taken.
Before proceeding, find your elliptical’s serial number located on a white barcode
sticker on the front stabilizer tube and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER IN THE BOX BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
WARNING
SERIAL NUMBER:
EP
MODEL NAME: HORIZON 7.0AE ELLIPTICAL

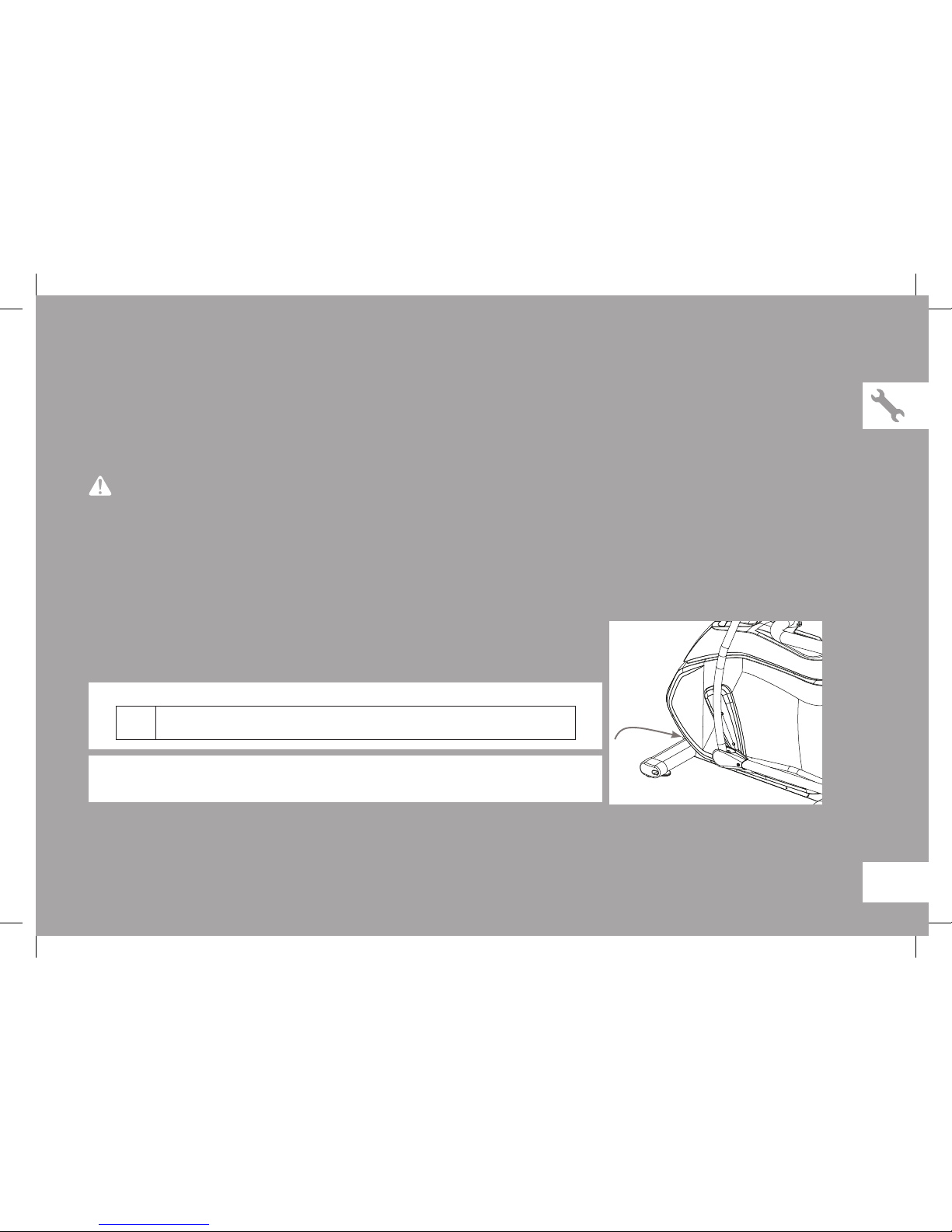

SERIAL NUMBER LOCATION

8
12,4
CONSOLE
SPEAKERS
UPPER HANDLEBAR
PULSE GRIPS WATER BOTTLE HOLDER
FOOT PADS
GUIDE RAIL SET
TABLET/READING RACK
CONTROLS AND
DISPLAY WINDOWS
USB, AUDIO IN/OUT PORTS
CONSOLE MAST
LOWER HANDLEBAR
POWER CORD
SOCKET
REAR COVER
PEDAL ARM
STABILIZER TUBE
CRANK ARM
CAUTION ATTENTION PRECAUCIÓN
KEEP HANDS AND
FEET AWAY FROM
THIS AREA.
GARDEZ VOS MAINS ET
VOS PIEDS À L’ÉCART
DE CET ENDROIT.
MANTENGA LAS MANOS
Y LOS PIES ALEJADOS
DE ESTA ÁREA.
WARNING
CONSULT A PHYSICIAN PRIOR TO
USING ANY EXERCISE EQUIPMENT.
POSSIBILITY OF SERIOUS INJURY IF
EQUIPMENT IS USED IMPROPERLY.
READ INSTRUCTION MANUAL BEFORE
USING. KEEP CHILDREN OFF AND AWAY
FROM THIS EQUIPMENT. FOR
CONSUMER USE ONLY.
AVERTISSEMENT
CONSULTEZ UN MÉDECIN AVANT
D’UTILISER UN APPAREIL D’EXERCICE.
DES BLESSURES SÉRIEUSES PEUVENT
SURVENIR SI L’ÉQUIPEMENT N’EST PAS
UTILISÉ CORRECTEMENT. LISEZ LE
MANUEL D’INSTRUCTION AVANT D’UTILISER
L’EXERCISEUR. GARDEZ LES ENFANTS À
L’ÉCART DE CET ÉQUIPEMENT. POUR USAGE
PAR LE CONSOMMATEUR SEULEMENT.
ADVERTENCIA
CONSULTE CON UN MÉDICO ANTES
DE UTILIZAR CUALQUIER EQUIPO PARA
HACER EJERCICIOS. SI EL EQUIPO SE
UTILIZA INDEBIDAMENTE, EXISTE LA
POSIBILIDAD DE LESIONES GRAVES. LEA
EL MANUAL DE INSTRUCCIONES ANTES
DE UTILIZAR EL EQUIPO. MANTENGA
A LOS NIÑOS ALEJADOS DE ESTE
EQUIPO. PARA USO POR PARTE DEL
CONSUMIDOR ÚNICAMENTE.

9
TOOLS INCLUDED:
F5mm L Wrench
F8mm L Wrench
F13/15mm Flat Wrench
PARTS INCLUDED:
F1 Console
F1 Console Mast
F1 Water Bottle Holder
F1 Main Frame
F1 Audio Adaptor Cable
F2 Handlebar Caps
F2 Upper Handlebars
F2 Lower Handlebars
F2 Link Arms
F2 Pedal Arms
F1 Power Cord
F1 Stabilizer Tube
F1 Guide Rail Set
F1 Rear Cover
F1 Top Cap of Frame
F1 Rear Top Cap of Frame
F1 Hardware Kit
UNPACKING
Unpack the product where you will be using it. Place the incline trainer
carton on a level flat surface. It is recommended that you place a protective
covering on your floor. Never open box when it is on its side.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in
place and partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
If you have questions or
if there are any missing
parts, contact Customer
Tech Support. Contact
information is located on the
back panel of this manual.
NEED HELP?
PRE ASSEMBLY

10

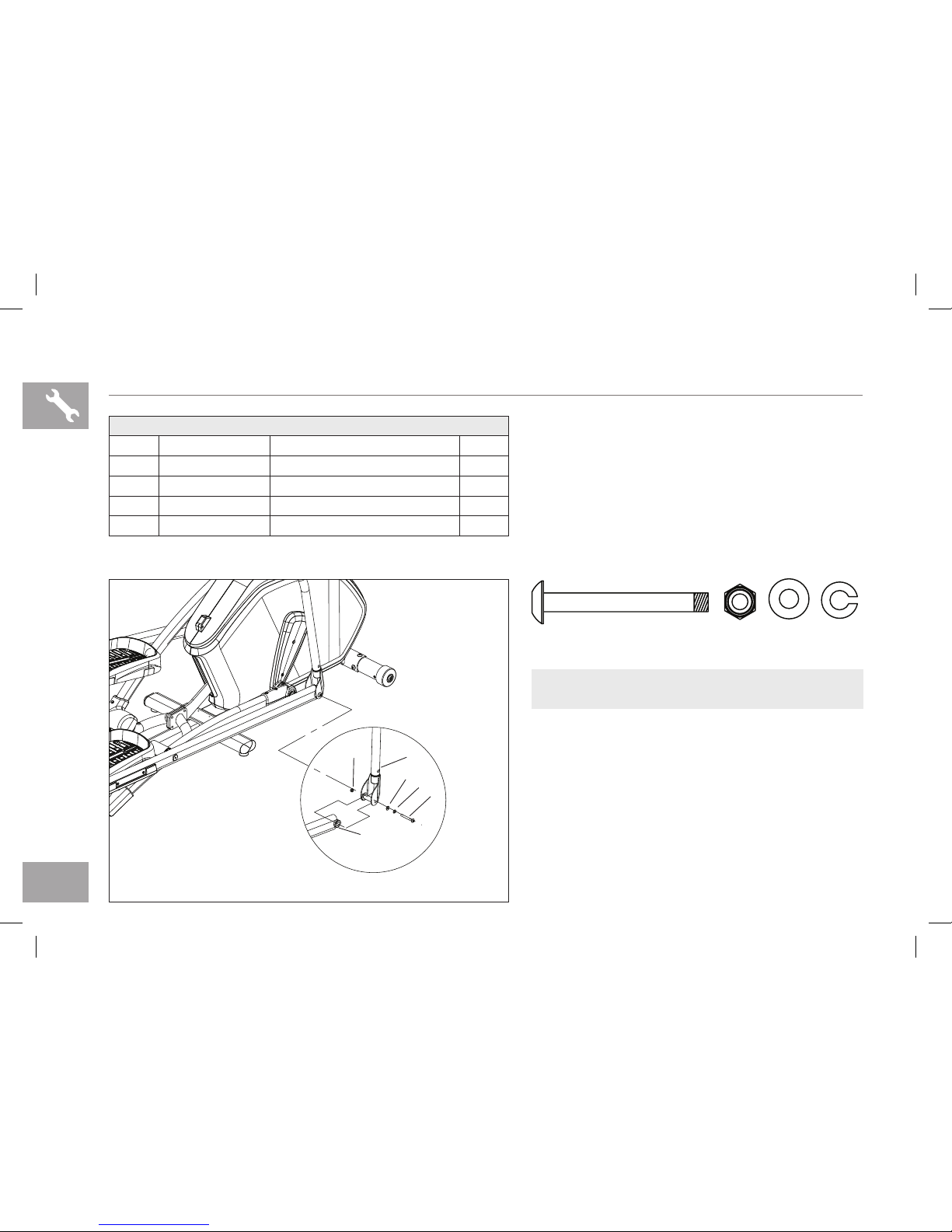

A Open HARDWARE FOR STEP 1.
B Attach the STABILIZER TUBE (1) to the MAIN FRAME (2)
using 2 BOLTS (A), 2 SPRING WASHERS (B) and 2ARC
WASHERS (C) on each side.
ASSEMBLY STEP 1
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M8X1.25PX30L 4A BOLT
4B SPRING WASHER 8.2X15.4X2.0T
8.4X17X1T 4C ARC WASHER
A
B
C
1
A
B
C
2
A B C
AB C

11

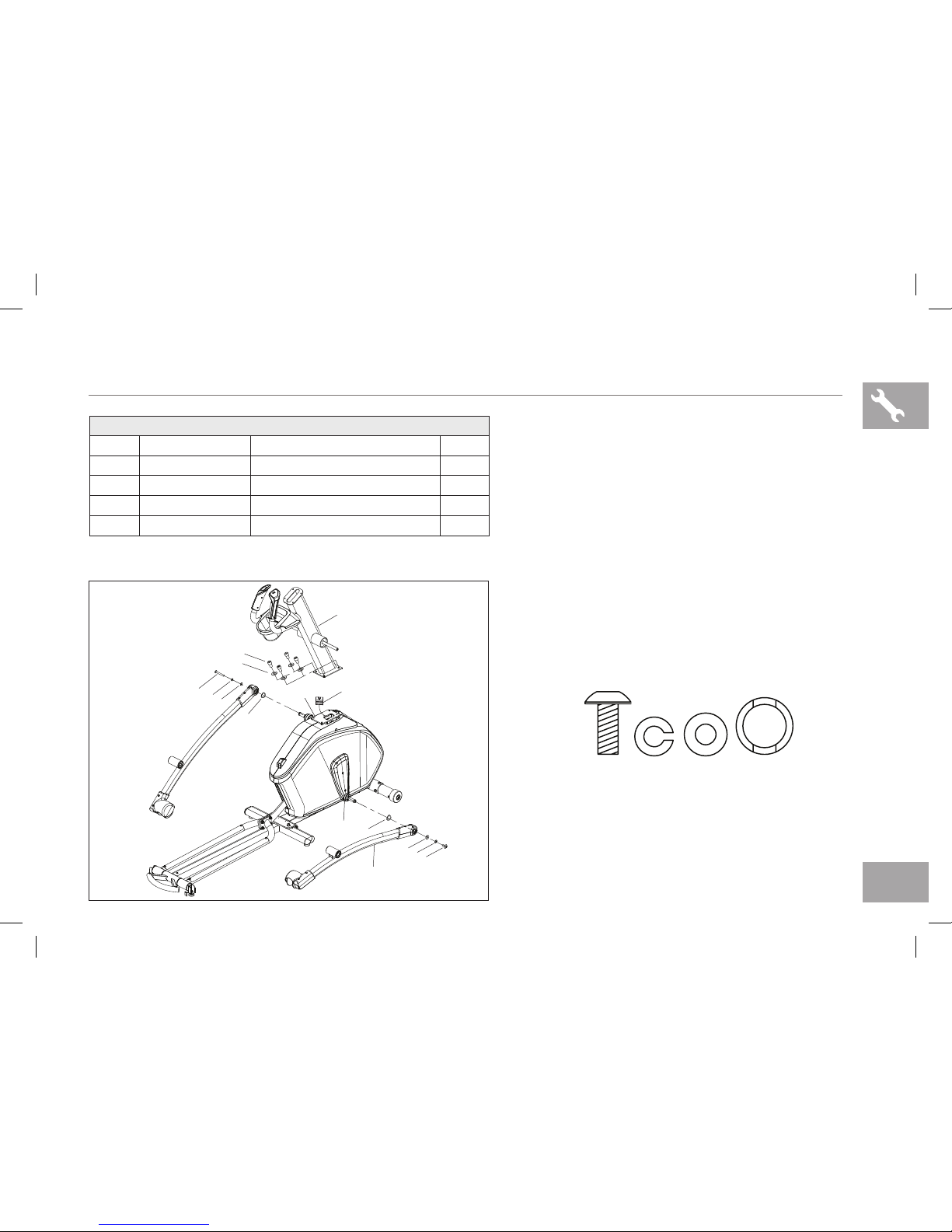

ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.
B Align GUIDE RAIL SET (3) with MAIN FRAME (2)
as shown.
C Attach the GUIDE RAIL SET (3) to the INCLINE
BRACKET (4) using 4 BOLTS (E), 4 FLAT WASHERS (F),
4 SPRING WASHERS (D) and 4 NUTS (D).
F
D G
E
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
8.2X15.4X2T 4D SPRING WASHER
M8X1.25PX35L-20L 4E BOLT
8.2X16X2T 4F FLAT WASHER
M8X1.25P 4G NUT
3
4
2
E G F D

12
ASSEMBLY STEP 3

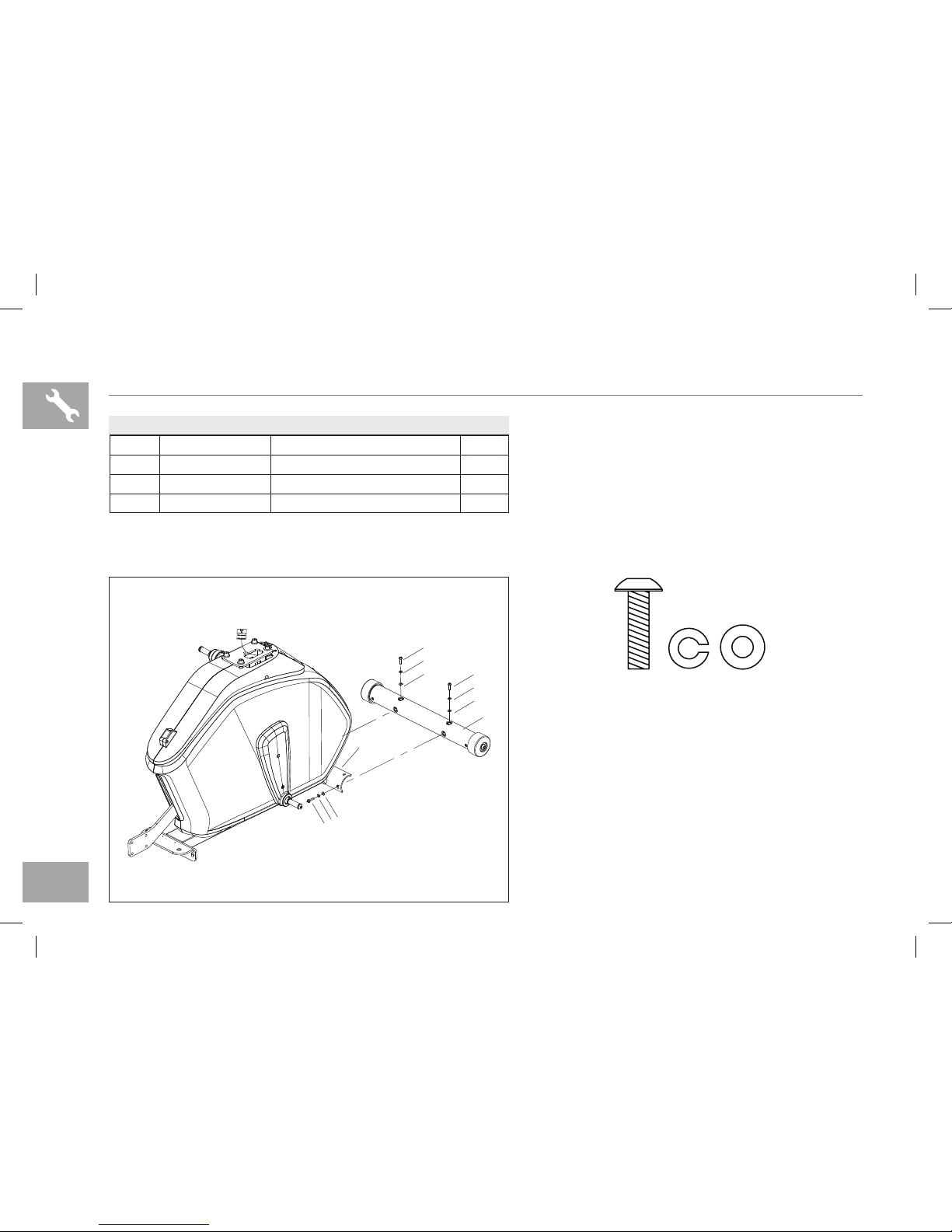

A Open HARDWARE FOR STEP 3.
B Attach the GUIDE RAIL SET (3) to the MAIN FRAME (2)
using 4 BOLTS (H), 4 SPRING WASHERS (I) and 4 FLAT
WASHERS (J).
IH J
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
M10X1.5PX20L 4H BOLT
4I SPRING WASHER 10.2X18.4X2.5T
10.2.X20X1.5T 4J FLAT WASHER
H
I
J
3
H
I
J
2

13

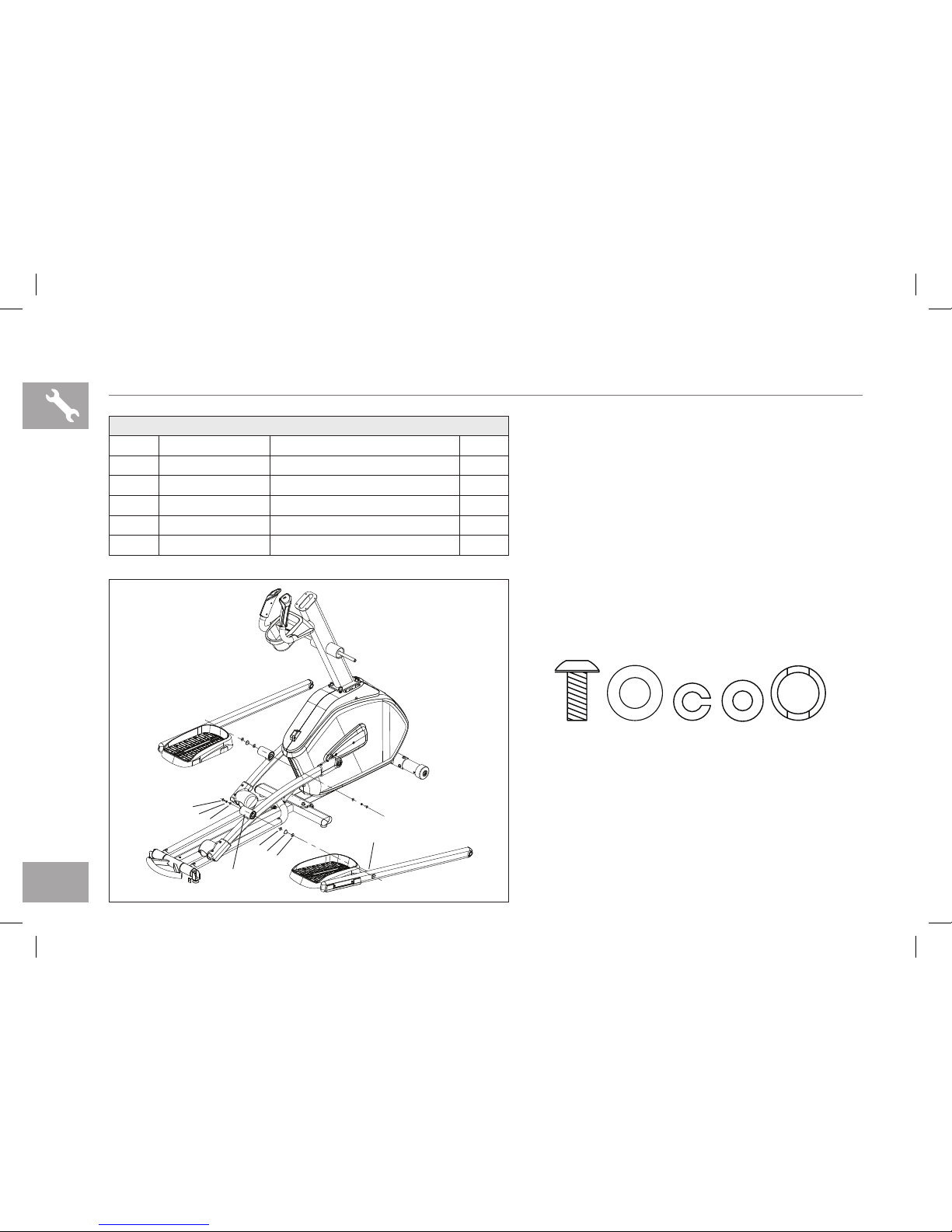

ASSEMBLY STEP 4
N
A Open HARDWARE FOR STEP 4.
B Carefully pull the CONSOLE CABLE (5) through the
CONSOLE MAST (6) using the twist tie located inside
the CONSOLE MAST (6).
C Attach CONSOLE MAST (6) to MAIN FRAME (2)
using PRE-INSTALLED BOLTS AND WASHERS (7).
D Slide WAVY WASHER (K) over CRANK (8) followed by
LOWER LINK ARM (9) as shown. Rest pedal arm wheel
on guide rail.
E Attach the LOWER LINK ARM (9) to the CRANK (8)
using 1 FLAT WASHER (L), 1 SPRING WASHER (M)
and 1 BOLT (N).
F Repeat steps D–E on the opposite side of the elliptical.
NML
K
K
LMN
7
7
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
17.2X22.5X.5T 2
KWAVY WASHER
8.2X20.0X1.5T 2
LFLAT WASHER
8.2X15.4X2.0T 2M SPRING WASHER
M8X1.25PX20T 2N BOLT
6
5
2
8
9
M L K

14
A Open HARDWARE FOR STEP 5.
B Slide 1 FLAT WASHER (S), 1 WAVY WASHER (R)
and another FLAT WASHER (S) onto the pivot shaft
of the PEDAL ARM (10).
C Slide the pivot shaft of the PEDAL ARM (10) into
the LOWER LINK ARM (9).
D Attach the LOWER LINK ARM (9) to the PEDAL
ARM(10) using 1 FLAT WASHER (Q), 1 SPRING
WASHER (P) and 1 BOLT (O).
E Repeat steps B–D opposite side.
ASSEMBLY STEP 5
HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
M8X1.25PX20L 2O BOLT
8.2X15.4X2T 2
PSPRING WASHER
8.2X20X1.5L 2Q FLAT WASHER
20.7X29.1X0.5T 2R WAVY WASHER
20.2X27.2X1.5T 4S FLAT WASHER
S R S
O P Q
9
10
PO S Q R

15

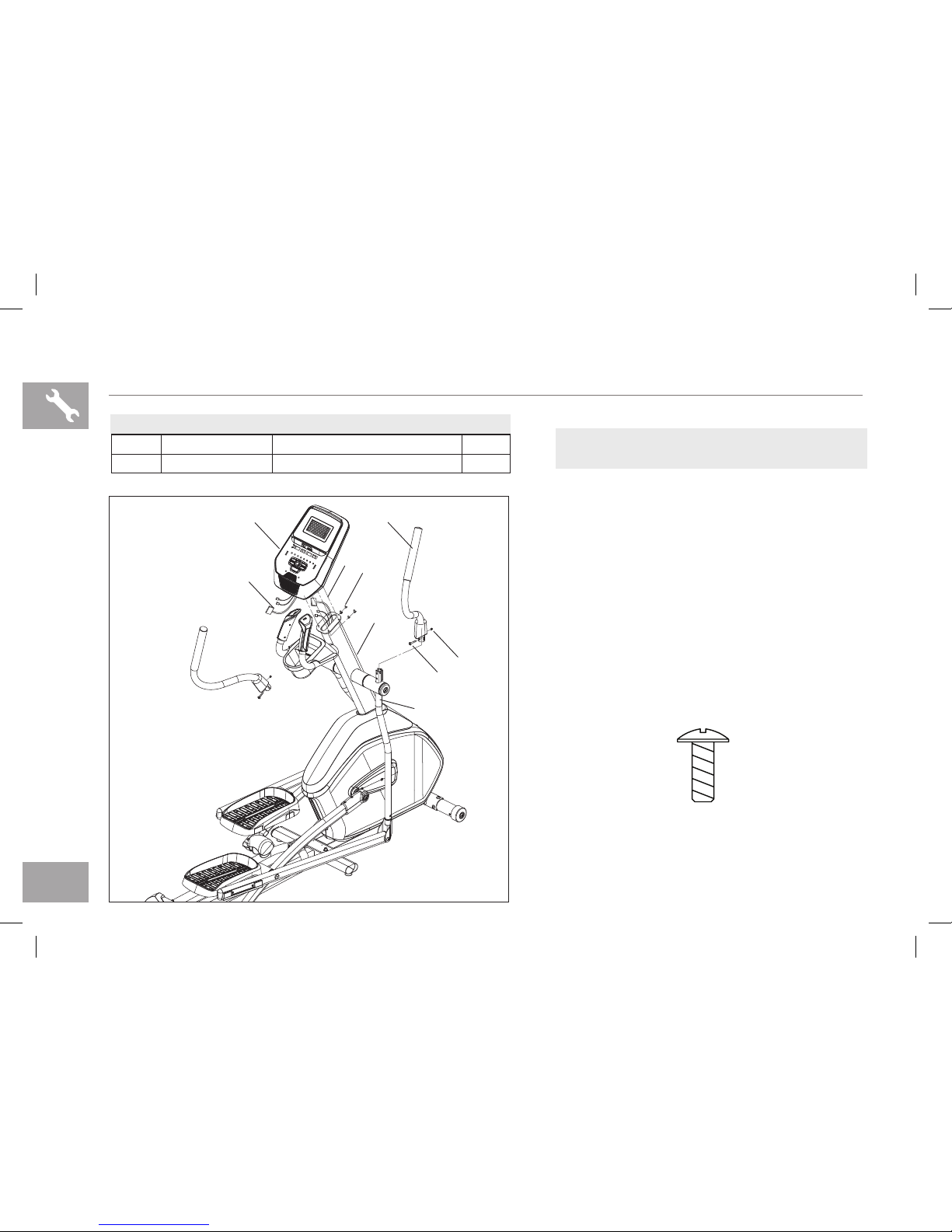

A Open HARDWARE FOR STEP 6.
B Slide 1 RUBBER WASHER (W) and 1 FLAT
WASHER (V) onto the CONSOLE MAST PIVOT
SHAFT (11).
C Slide LOWER HANDLEBAR (12) onto CONSOLE
MAST PIVOT SHAFT (11) and attach using
1FLAT WASHER (V), 1 FLAT WASHER (U)
1HANDLEBAR CAP (13), 1 FLAT WASHER (U),
1SPRING WASHER (X) and 1 BOLT (T).
D Repeat step Aon the opposite side.
ASSEMBLY STEP 6
11
W
HARDWARE FOR STEP 6
PART TYPE DESCRIPTION QTY
M8X1.25PX20L 2T BOLT
8.6X26X2T 4
UFLAT WASHER
16X25X1.5L 4V FLAT WASHER
16.2X26.2X11.5T 2W RUBBER WASHER
8.2X15.4X2T 2X SPRING WASHER
V
12
VU
13 U
XT
12
T W V U X

16
A Open HARDWARE FOR STEP 7.
B Slide PEDAL ARM (10) into bottom end of LOWER
HANDLEBAR (12).
C Secure the joint with 1 BOLT (Z), 1 SPRING WASHER
(AA),1 FLAT WASHER (BB) and 1 NUT (CC)
D Repeat steps B–C on the other side.
ASSEMBLY STEP 7
HARDWARE FOR STEP 7
PART TYPE DESCRIPTION QTY
M8X1.25PX70L-12L 2
ZBOLT
8.2X15.4X2T 2
AA SPRING WASHER
8.2X20X1.5T 2BB FLAT WASHER
M8X1.25P 2CC NUT
CC
10
12
BB
AA
Z
CCZ BB AA
NOTE: At this time pleae tighten all bolts and screws.

17
A Open HARDWARE FOR STEP 8.
B Slide TOP CAP REAR COVER (14) around
CONSOLE MAST (6) and on top of side
coversand attach using 2 SCREWS (DD).
C Snap TOP CAP FRONT COVER (15) in the front
of TOP CAP REAR COVER (14).
D Slide REAR CAP (16) over REAR STABILIZER (17)
and attach using 3 SCREWS (EE).

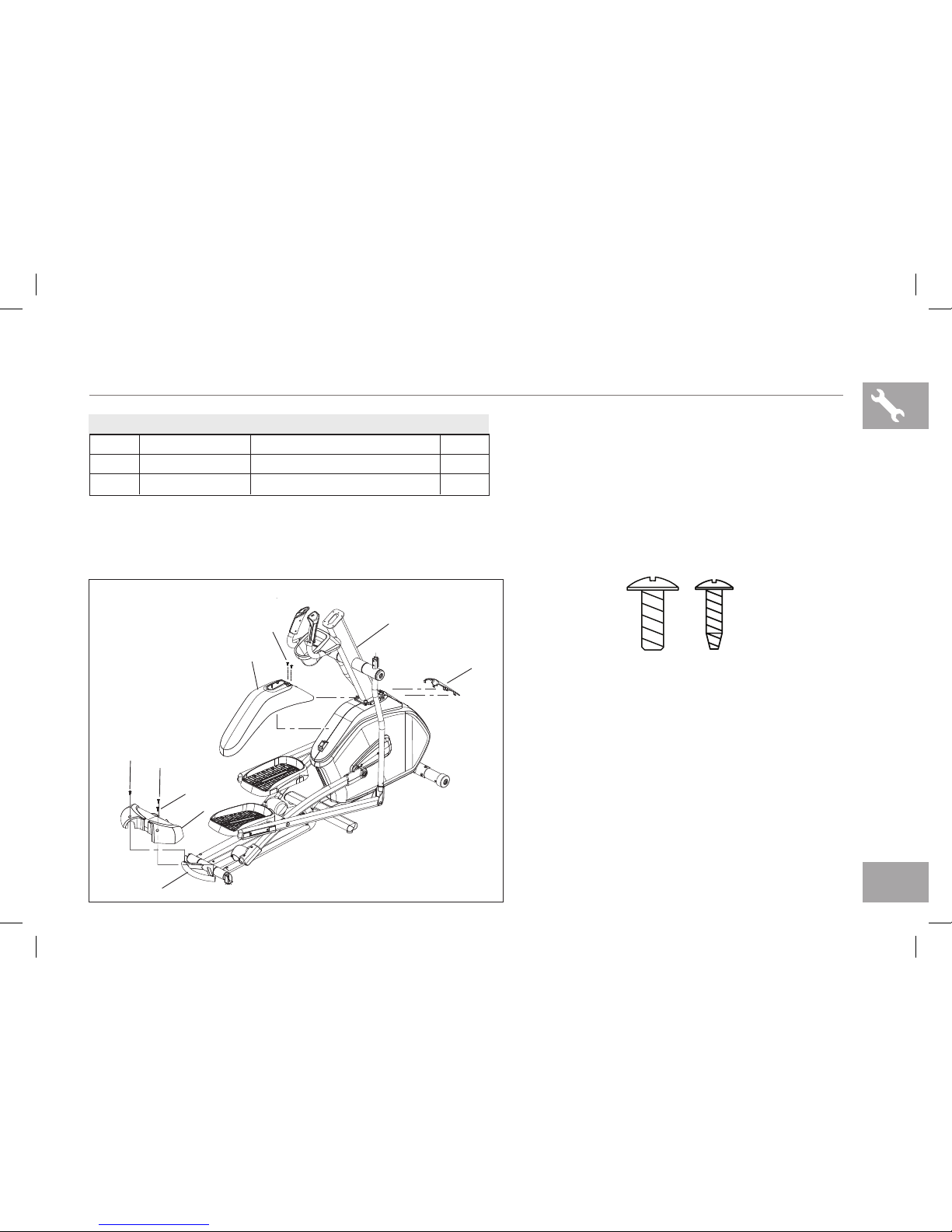

ASSEMBLY STEP 8
HARDWARE FOR STEP 8
PART TYPE DESCRIPTION QTY
M5X0.8PX12L
3
DD SCREW
EE
16
15
14
6
17
EE
EE
EE
4X15L
2
EE SCREW
DD
DD

18
A Slide the RIGHT UPPER HANDLEBAR (17) onto the
LEFT LOWER HANDLEBAR (12). Using pre-attached
1 BOLT and 1 SET SCREW (18) connect the UPPER
AND LOWER HANDLEBARS (17&12) as shown in
the diagram. Do not tighten set screw until the bolt is
installed
B Repeat step Aon the opposite side.
C Connect the 3 CONSOLE CABLES (5).
D Carefully tuck the CONSOLE CABLES (5) into the
CONSOLE MAST (6) before attaching the CONSOLE(19).
Attach CONSOLE (19) to CONSOLE MAST (6) using
4SCREWS (FF).
NOTE:
All hardware for this step is pre-installed.
ASSEMBLY STEP 9
18
19
FF
18
12
17
6
5
5
HARDWARE FOR STEP 9
PART TYPE DESCRIPTION QTY
M5X0.8PX12L 4FF SCREWS
FF

19
ASSEMBLY STEP 10
CONGRATULATIONS.
ASSEMBLY COMPLETE!
12,4

20
