Horizon Fitness PAROS 2.0 User manual

OWNER’S MANUAL
Read the BIKE GUIDE before using this OWNER’S MANUAL.
PAROS 2.0

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
Read this EXERCISE BIKE GUIDE before using the OWNER’S MANUAL. When using an electrical product, basic precautions should
always be followed, including the following: Read all instructions before using this exercise bike. It is the responsibility of the owner
to ensure that all users of this exercise bike are adequately informed of all warnings and precautions. If you have any questions
after reading this guide, contact Your local dealer.

4
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the exercise bike from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or
taking off parts.
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or dismounting the machine.
• Keep hands and feet clear at all times from moving parts to avoid injury. Never turn the pedal cranks by hand.
• Do not wear clothes that might catch on any part of the exercise bike.
• Do not use the exercise bike without proper footwear. NEVER operate the exercise bike with bare feet.
• Do not jump on the exercise bike.
• Do not dismount the exercise bike until the pedals are at a complete STOP.
• At no time should more than one person be on the exercise bike while in operation.
• This exercise bike should not be used by persons weighing more than the specified user capacity in the OWNER’S MANUAL
WARRANTY SECTION. Failure to comply will void the warranty.
• This exercise bike is intended for in-home use only. Do not use this exercise bike in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.
• The exerciser complies with the EN957-1/-5 standard, class of exerciser: HB; braking system is adjustable.
• Do not use exercise bike in any location that is not temperature controlled, such as but not limited to porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• To prevent electrical shock, never drop or insert any object into any opening.
• Ensure that adjustment levers (seat and handlebar fore-and-aft) are properly secured and do not interfere with range of motion
during exercise.
WARNING

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Connect this exercise product to a properly grounded outlet only.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• Use the exercise bike only as described in the exercise bike guide and owner’s manual.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth
only; never use solvents. (See MAINTENANCE)
• The exercise bike should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or
taking off parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• At NO time should children under the age of 13 or pets be within 3m /10 feet of the machine.
• At NO time should children under the age of 13 use the exercise bike.
• Children over the age of 13 or disabled persons should not use the exercise bike without adult supervision.
• Never operate the exercise bike if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or
immersed in water. Return the exercise bike to a service center for examination and repair.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not remove the console covers unless instructed by Your local dealer. Service should only be done by an authorized service
technician.

6
It is essential that your exercise bike is used only indoors, in a climate controlled room. If your exercise bike has been exposed
to colder temperatures or high moisture climates, it is strongly recommended that the exercise bike is warmed up to room
temperature before first time use. Failure to do so may cause premature electronic failure.
GROUNDING INSTRUCTIONS
If an exercise bike should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the
risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it
will not fit the outlet, have a proper outlet installed by a qualified electrician.

7
BASIC OPERATION
CONGRATULATIONS ON CHOOSING YOUR EXERCISE BIKE!
You’ve taken an important step in developing and sustaining an exercise program! Your exercise bike is a tremendously effective
tool for achieving your personal fitness goals. Regular use of your exercise bike can improve the quality of your life in so many ways.
Here are just a few of the health benefits of exercise:
• Weight loss
• A healthier heart
• Improved muscle tone
• Increased daily energy levels
The key to reaping these benefits is to develop an exercise habit. Your new exercise bike will help you eliminate obstacles that
prevent you from exercising. Inclement weather and darkness won’t interfere with your workout when you use your exercise bike
in the comfort of your home. This guide provides you with basic information for using and enjoying your new machine.

8
LOCATION OF THE EXERCISE BIKE
Place the exercise bike on a level surface. There should be 3 feet of clearance behind the
exercise bike, 3 feet on each side and one foot in front for the power cord. Do not place
the exercise bike in any area that will block any vent or air openings. The exercise bike
should not be located in a garage, covered patio, near water or outdoors.
MOVING THE EXERCISE BIKE
Your exercise bike has a pair of transport wheels built into the front stabilizer tube.
Remove the power supply before attempting to move the bike.
WARNING
Our exercise bikes are heavy, use care and additional help if necessary
when moving. Failure to follow these instructions could result in injury.
UPRIGHT BIKES : firmly grasp
the handlebars, carefully tip
toward you, and roll on the
transport wheels.
LEVELING THE EXERCISE BIKE
Your exercise bike should be level for optimum use. Place
your exercise bike where you intend to use it. Adjust the
two rear levelers so that the bike is level on the floor.
Then adjust the third leveler located under the base
frame tube just so it is snug with the floor. Once you have
leveled your exercise bike, lock the levelers in place by
tightening the nuts against the frame. Actual levelers may
differ from image below and may not include the lock.
ADJUST HEIGHT
1 ft 31 cm
3 ft
92 cm
3 ft
92 cm
3 ft 92 cm

9
SEAT POSITIONING
To determine proper seat position, sit on the seat and position the ball of your foot on the center of the pedal. Your knee should bend
slightly at the furthest pedal position. You should be able to pedal without locking your knees or shifting your weight from side to side.
NOTE: It is recommended that you do not sit on the seat while adjusting its position.
UPRIGHT BIKES - SEAT ADJUSTMENT
Upright Bikes feature a locking seat adjustment pin to easily and safely adjust the seat height. To adjust, get off the bike seat and
loosen the adjustment knob by turning it two half turns counter-clockwise. Pull out the knob to unlock the post, and adjust the post up
or down to the desired setting. Release the knob to lock in place. Turn the knob clockwise until tightened. Please check to be sure seat
post is locked in place before each use.

10
USING THE HEART RATE FUNCTION
Your exercise bike could be equipped with either heart rate pulse grips or a thumb pulse sensor. To find out what your model has,
refer to the beginning of the ASSEMBLY section of your OWNER’S MANUAL.
The heart rate function on this product is not a medical device. While heart rate grips or a thumb pulse sensor can provide a
relative estimation of your actual heart rate, they should not be relied on when accurate readings are necessary. Some people,
including those in a cardiac rehab program, may benefit from using an alternate heart rate monitoring system like a chest or
wrist strap. Various factors, including movement of the user, may affect the accuracy of your heart rate reading. The heart rate
reading is intended only as an exercise aid in determining heart rate trends in general. Please consult your physician.
PULSE GRIPS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart rate to register.
It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping the pulse handlebars, do not grip
tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose, cupping hold. You may experience an erratic readout
if consistently holding the grip pulse handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.
WARNING
Never operate product if it has a damaged cord or plug, if it is not
working properly, if it has been damaged, or immersed in water.
Contact Your local dealer for examination and repair.
POWER
Your exercise bike is powered by a power supply. The
power must be plugged into the power jack, which is
located near the stabilizer tube. Unplug cord when
not in use.

11
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the exercise
bike could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the
exercise bike, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your bike’s serial number located on the front stabilizer tube and enter it in the space provided below. Also
locate the model name which is next to the serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
SERIAL NUMBER:
MODEL NAME: HORIZON BIKE
WARNING

12
SEAT POST TUBE
PULSE GRIP HANDLEBARS
SEAT HEIGHT ADJUSTMENT KNOB
SEAT
CRANK
POWER CORD SOCKET
SEAT POSITION ADJUSTMENT KNOB
CONSOLE MAST GROMMET
SHROUD
FRONT STABILIZER TUBE
PEDALS
CONSOLE
CONSOLE MAST
REAR STABILIZER TUBE

13
TOOLS INCLUDED:
F5mm L Wrench
FFlat Wrench
PARTS INCLUDED:
F1 Main Frame
F1 Front Stabilizer Tube
F1 Rear Stabilizer Tube
F1 Console
F1 Console Mast
F1 Console Mast Grommet
F1 Handlebar
F1 Left & Right Handlebar Covers
F1 Seat
F1 Seat Post
F2 Pedals with Straps
F1 Power Cord
F1 Hardware Kit
UNPACKING
Unpack the product where you will be using it. Place the bike carton on a level
flat surface. It is recommended that you place a protective covering on your floor.
Never open box when it is on its side.
PRE ASSEMBLY
•It is recommended that two people work together for ease and efficiency
while assembling an bike.
•During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded. It is recommended you complete the full assembly of
your unit before completely tightening any ONE bolt.
•Several parts have been pre-lubricated to aid in assembly and usage. Please
do not wipe this off. If you have difficulty, a light application of lithium bike
grease is recommended.
If you have questions or if there are any missing parts, contact Customer
Tech Support.
WARNING
NEED HELP?

14
ASSEMBLY STEP 1
A Attach the REAR STABILIZER TUBE (47) to MAIN
FRAME (19) using 2 BOLTS (49) & WASHERS (48 & 51).
B Attach the FRONT STABILIZER TUBE (59) to MAIN
FRAME (19) using 2 BOLTS (49) & WASHERS (48 & 51).
NOTE: There is no hardware for this step.
HARDWARE PARTS:
FLAT WASHER (48)
Φ8 X Φ19 X 1.5T
QTY: 4
BOLT (49)
M8 X 55
QTY: 4
SPRING WASHER (51)
Φ8
QTY: 4

15
ASSEMBLY STEP 2
B
NOTE: Be careful not to pinch any wires while attaching
the console mast.
A Slide CONSOLE MAST GROMMET (57) from bottom up
the CONSOLE MAST (63).
B Attach CONSOLE CABLES (2) to FRAME CABLE (16)
and tuck cables into MAIN FRAME (19) carefully.
C Slide CONSOLE MAST (63) into MAIN FRAME (19)
using 4 BOLTS (61), 4 SPRING WASHERS (51), 4 FLAT
WASHERS (48) from both sides and 2 BOLTS (61), 2
SPRING WASHERS (51), 2 ARC WASHERS (62) from
front side.
D Slide CONSOLE MAST GROMMET (57) down over
MAIN FRAME (19).
HARDWARE PARTS:
BOLT (61)
M8 X 20
QTY: 6
ARC WASHER (62)
Φ8 X Φ19 X 1.5T
QTY: 2
SPRING WASHER (51)
Φ8
QTY: 6
FLAT WASHER (48)
Φ8 X Φ19 X 1.5T
QTY: 4

16
ASSEMBLY STEP 3

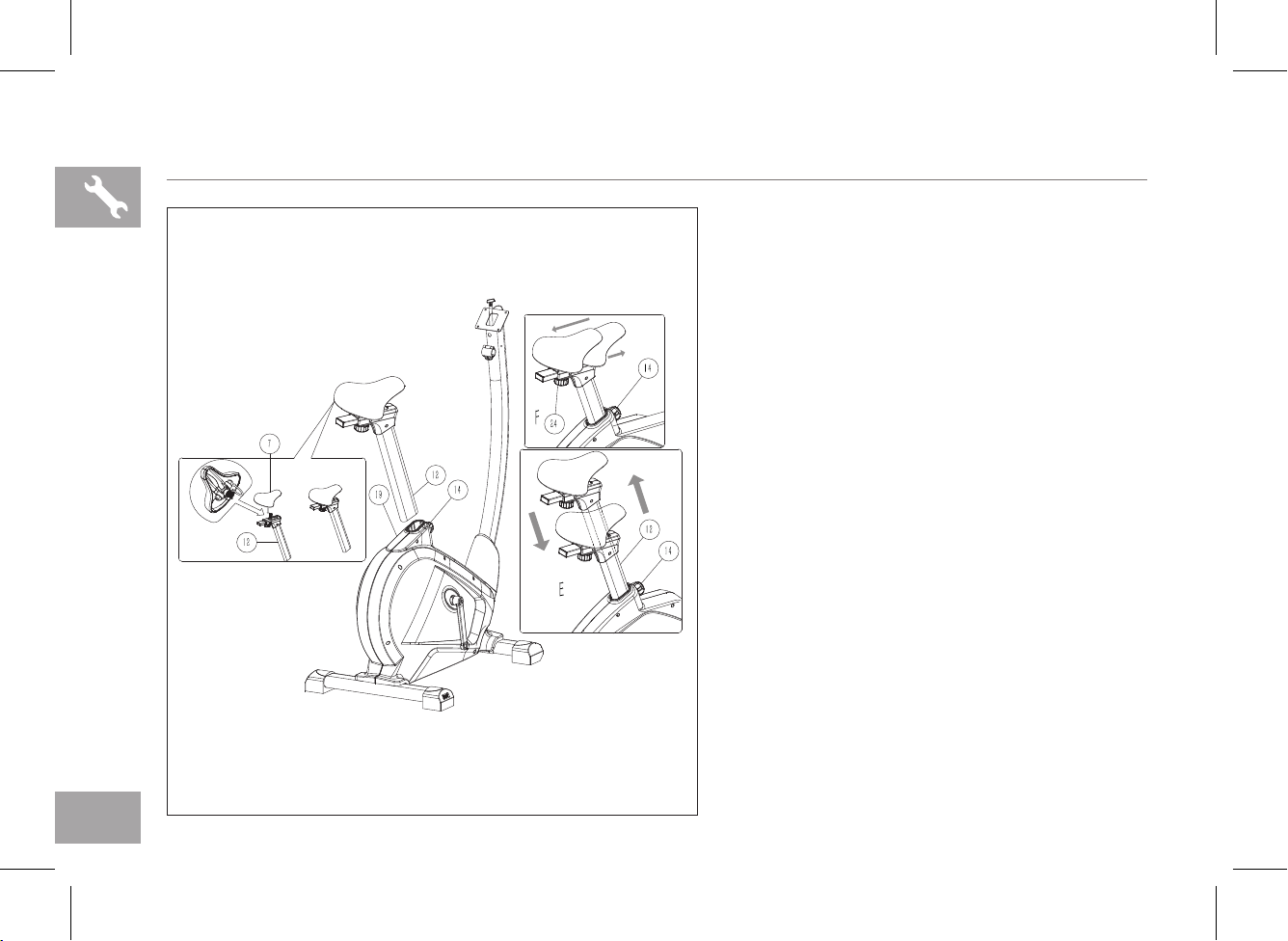

A Attach SEAT (7) to SEAT POST (12).
B Pull the SEAT HEIGHT ADJUSTMENT KNOB (14)
outward while sliding the SEAT POST into MAIN
FRAME (19).
C Adjust SEAT (7) horizontally by SEAT ADJUSTMENT
KNOB (24) .
NOTE: There is no hardware for this step.

17
ASSEMBLY STEP 4

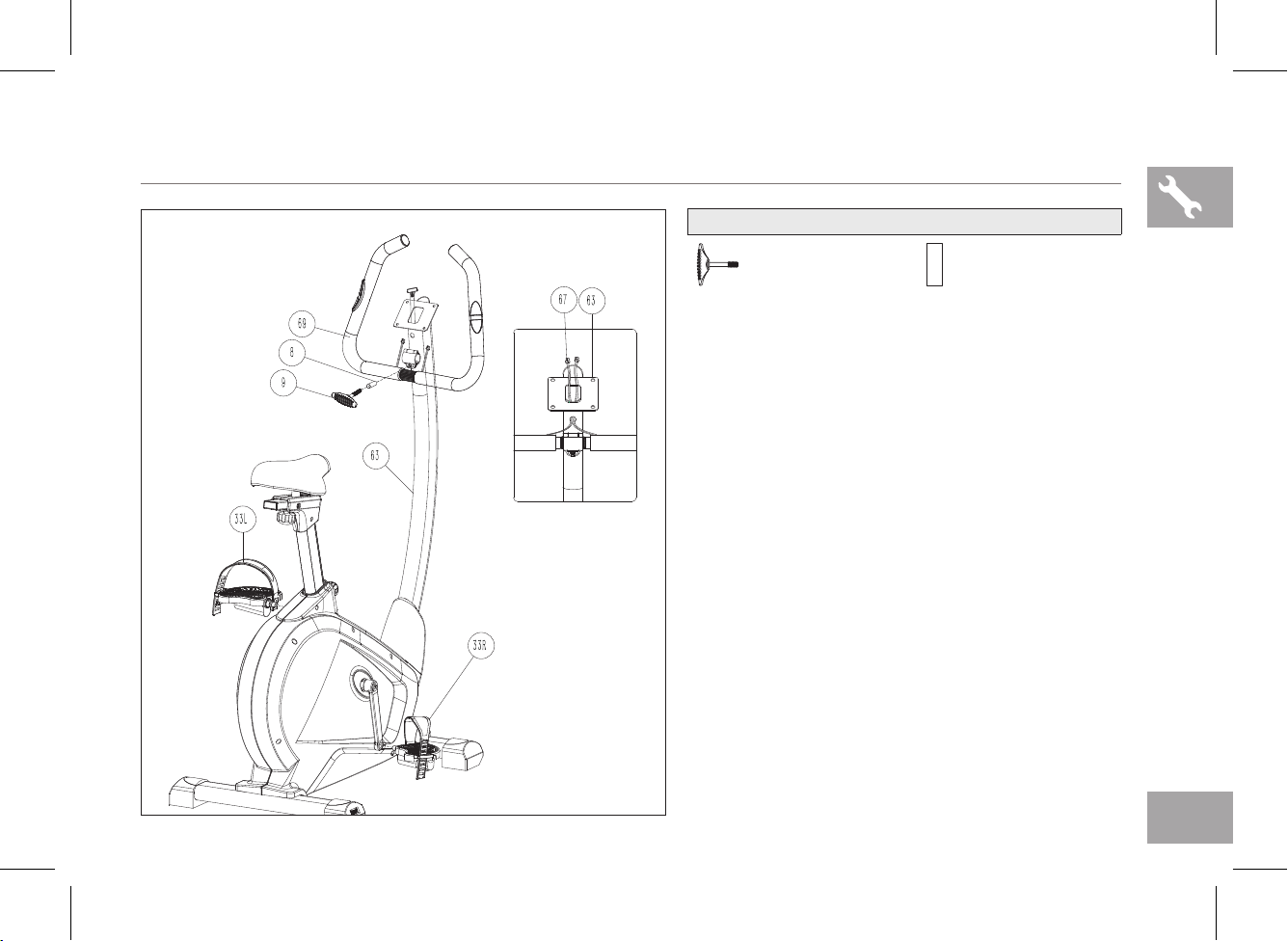

A Attach the RIGHT PEDAL (33R) to the RIGHT CRANK
ARM, tightening it CLOCKWISE with the provided flat
wrench.
B Attach the LEFT PEDAL (33L) to the LEFT CRANK ARM,
tightening it COUNTER-CLOCKWISE with the provided
flat wrench.
C Feed the HANDLBAR WIRES (67) through the hole
in the CONSOLE MAST (63) and out the top of the
CONSOLE MAST (63).
D Attach the HANDLEBAR (69) to CONSOLE MAST (63)
using 1 BUSHING (8) and 1 T KNOB (9).
HARDWARE PARTS:
T KNOB (9)
M8 X 64MM
QTY: 1
BUSHING (8)
Φ8 X Φ13 X 35MM
QTY: 1

18
ASSEMBLY STEP 5
A Connect the CONSOLE CABLES (2) and HANDLEBAR
WIRES (67). Carefully tuck the CONSOLE CABLES (2)
and HANDLEBAR WIRES (67) into the CONSOLE MAST
(63).
B Attach the CONSOLE (1) to the CONSOLE MAST (63)
using 4 PRE-INSTALLED BOLTS (3).
NOTE: There is no hardware for this step.

19
ASSEMBLY STEP 6
A Attach the LEFT & RIGHT CONSOLE MAST COVERS
(4R & 4L) to the CONSOLE MAST (63) using 4
PREINSTALLED BOLTS (5) and SCREWS (6).
B Plug in POWER ADAPTER.
HARDWARE PARTS:
BOLT (6)
M4 X 15
QTY: 1

20
ASSEMBLY STEP 7

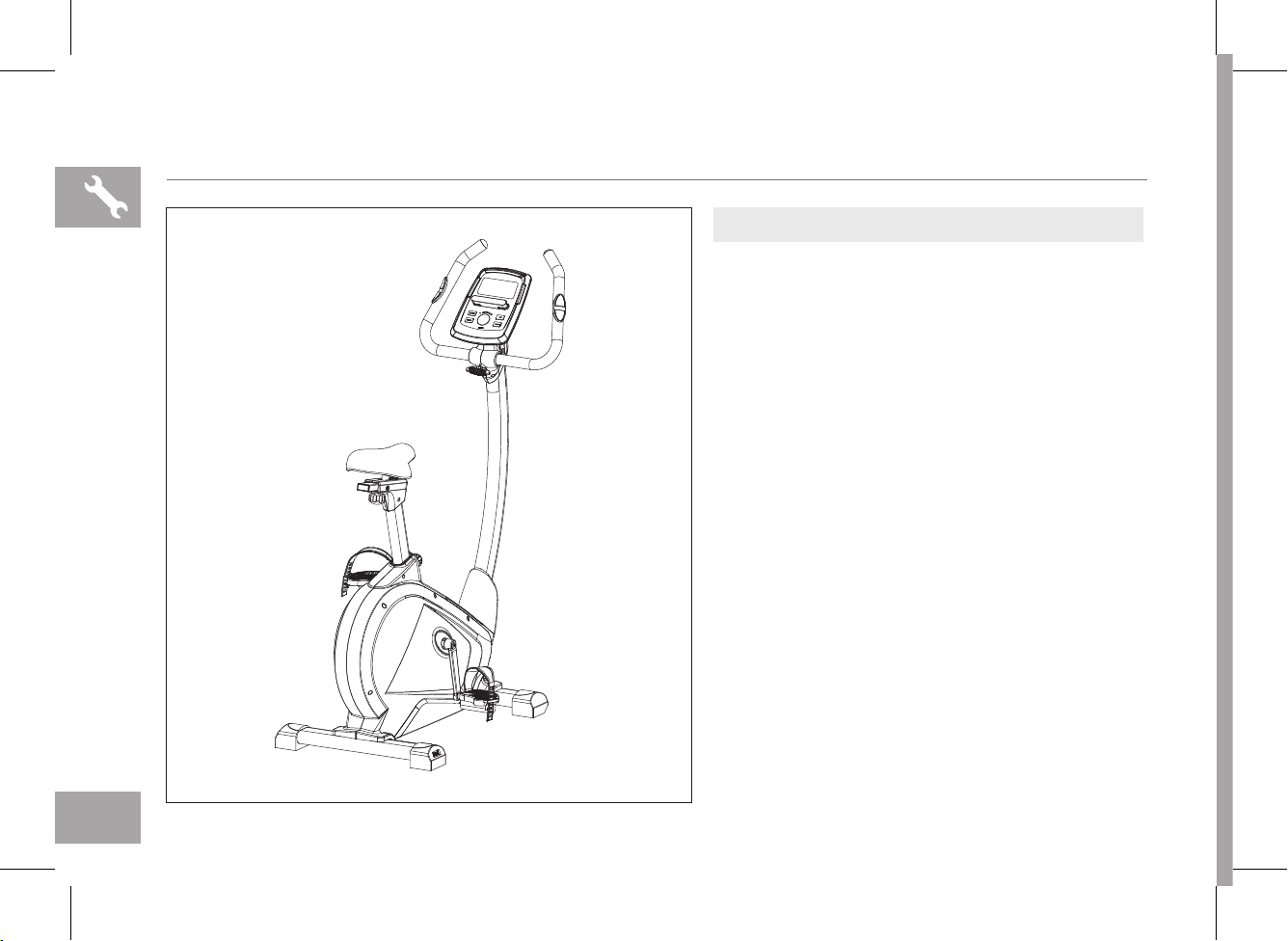

PAROS 2.0
Max. User Weight: 136 kg / 300 lbs.
Overall Dimensions: 127 x 55 x 146 cm / 50” x 21.7” x 57.5”
ASSEMBLY COMPLETE!
