HP 5355A Service manual

5355A
AUTOMATIC
FREQUENCY
CONVERTER
5356A/B/C
FREQUENCY
CONVERTER
HEADS
fW " ■ jwtWT ewmiSiwir
HEWLETT
PACKARD
.''%k

MANUAL CHANGES MODEL 5355A (05355-90013)
SERIAL PREFIX OR
SERIAL NUMBER CHANGES
Page 1-2, Table 1-1. Model 5355A Specifications:
All Serials Maximum Input:
>Add two asterisks (*«) to "+5 dBm" for the 5356C.
>Add the following footnote:
** In Pulse Mode 1.5 to 5.0 GHz, 0 dBm (+5 dBm typical).
>Add two asterisks (**) to the "+15dBm" on all ranges
for the 5356c.
>Change the two-asterisk footnote to read as follows:
In Pulse Mode, OdBm (+5dBm typical)."
Page 1-3, Table 1-1, Model 5355A Specifications:
All Serials >Delete the asteriskC*) next to 5355A, under PULSE MODE
column.
>Delete the Min Pulse Width, in the 5355A column, to IDOns.
>Delete, at bottom of page, "Specifications apply only to
external gating of 53^5/5355".
2132A >Change the MAN MODE specification from "60ns" to "75ns" in
the area labeled "PULSE MODE" "Pulse Width" "MIN".
>Change the "PULSE MODE" "Accuracy" specification (lower
right-hand corner) from "(,08EXT GATE WIDTH)" to
"(.12/EXT GATE WIDTH)".
Page 1-M, Table 1-1. Model 5355A Specifications:
All Serials >Change maximum Operating Temperature to 55 degrees.
2132A >Change 40ns to 65ns under DEFINITIONS, rms jitter=.
Page 1-5. General Information:
All Serials >Add the following paragraph after Table 1-2:
OPTION W30 (Extended Hardware Support) provides two addi¬
tional years of return-to-HP hardware-service support.
Option W30 is available only at time of purchase. Service
contracts are available from Hewlett-Packard for instruments
which did not include Option W30 at time of purchase. For
more information, contact your nearest Hewlett-Packard
Sales and Support office (offices are listed at the back of
this manual).

MANUAL CHANGES MODEL 5355A (05355-90013)
SERIAL PREFIX OR
SERIES NUMBER CHANGES
Page 3-7 t C^eratlon and Programming:
All Serials Paragraph 3-29:
>Add the following sentence between "simultaneously (in
CW auto mode)." and "The special FM mode":
"A signal must be present before the 5355A signal light
flashes,"
>Add to the end of paragraph 3-29:
"It should be noted that the 5355A, when used in conjunc¬
tion with the 5356C Frequency Converter Head, will always
be in the special FM mode. Use of the special FM mode with
the 5356C head is necessary to ensure proper harmonic
number determination at frequencies above 26.5 Ghz,
Page 3-18. Operation and Programming:
All Serials >Add note following paragraph 3-54:
MOTE
The 5355A, when used in conjunction with the 5356C
Frequency Converter Head, will always be in the
special FM mode.
2242A >Replace the Display/Error Condition table with the
following table:
DISPLAY
_OD
J J -I J J J
(CW Automatic only)
_ I I _
_l _/ II _l J _}
I iQ
_l I / “1 UU
ERROR CONDITION
5345A rear panel GATE CONTROL INPUT switch
in wrong position. Should be in INTERNAL
position.
Harmonic number (n)=0 due to a low input fre¬
quency or due to the CHECK/COM A/SEP
switch on 5345A front panel in CHECK position.
Should be in COM A or SEP.
Indicates the CHECK/COM A/SEP switch on
5345A front panel in CHECK position. Should be
in COM A or SEP.

MANUAL CHANGES MODEL 5355A (05355-90013)
SERIAL PREFIX OR
SERIES NUMBER CHANGES
Page 3-19, Paragraph 3-56. CONVERTER CODES:
22^2A >Replace the Display/Head Installed table with the following
table:
DISPLAY
n
J J J -1 D D D D
_ I
_i _i J I J J __t
_ ” _
J J _i I _I J J __t
D D D D D W 3 D D 3
_r_
I I 3 3 f -I _* 3 3 I
HEAD INSTALLED
5356A (1.5—18 GHz)
5356B (1.5—26.5 GHz)
5356B Option 001 (18-26.5 GHz)
5356C (1.5—40 GHz)
5356C Option 001 (26.5-40 GHz)
Page 4-17- Performance Tests;
All Serials Paragraph 4-30. TEST 2. MANUAL MODE:
>Change "60 ns PULSE WIDTH" to "75 ns PULSE WIDTH".
Step a. waveform figure:
>Change "60" to "75" in both occurences.
>Change "-9.2 dB" to "-8.2 dB".
Page 4-20. Performance Tests:
All Serials Table 4-2. Maximum Input Specifications, HP Model 5356A, B,
and C Frequency Converter Heads:
>Add two asterisks (**) to "+ 5 dBm" for the 5356C.
>Add the following footnote:
**In Pulse Mode 1,5 to 5.0 GHz, 0 dBm (+5 dBm typical).
Page 5-4. Adjustments:
All Serials >Change display from ====rlc==== to ====IC====
in paragraph f.

Model 5355A
General Information
53
(1.5 to
>356
26.!
Figure 1-1. HP 5355/A Automatic Frequency Converter and Accessories
5356C
(1.5 to 40 GHz)
EQUIPMENT SUPPLIED
1-0

Model 5355A
General Information
SECTION I
GENERAL INFORMATION
1-1, INTRODUCTION
1-2. This manual provides information pertaining to the installation, operation, testing, adjust¬
ment, and maintenance of the HP Model 5355A Automatic Frequency Converter and accessories.
1-3. Figure 1-1 shows the HP 5355A and accessories. The5355A isa piug-in unit for the HP5345A
Electronic Counter. The 5356A, 5356B, or 5356C Frequency Converter Head extends the
frequency range of the 5355A.
1-4. SPECIFICATIONS
1-5. Instrument specifications are listed in Table 1-1. These specifications are the performance
standards or limits against which the instrument may be tested. Specifications are based on
operation with the HP 5345A Electronic Counter.
1-6, INSTRUMENTS COVERED BY MANUAL
1-7. This instrument has a two-part serial number. The first four digits and the letter comprise
the serial number prefix. The last five digits form the sequential suffix that is unique to each
instrument. The contents of this manual apply directly to instruments having the same serial
number prefixfes) as listed under SERIAL PREFIX on the title page.
1-8. An instrument manufactured after the printing of this manual may have a serial prefix that is
not listed on the title page. This unlisted serial prefix indicates that the instrument is different
from those documented in this manual. The manual for this instrument is supplied with a yellow
Manual Changes supplement that contains change information that documents the differences.
1-9. OPERATING MANUAL
1-10. Packaged with this manual is an Operating Information Supplement. This is simply a copy
of the first three sections of this manual. This supplement should be kept with the instrument for
use by the operator. Additional copies of the Operating Information Supplement or the
Operating and Service Manual can be ordered through your nearest Hewlett-Packard Sales and
Service Office (a list of these offices is provided at the end of this manual). The part numbers are
listed on the title page of this manual.
1-11. MICROFICHE
1-12. Also listed on the title page of this manual following the Operating and Service Manual
and Operating Information Supplement part numbers are Microfiche part numbers for these
publications. These numbers can be used to order 4- X 6-inch microfilm transparencies of these
publications. The Microfiche package Includes the latest Manual Changes supplement and all
pertinent Service Notes.
1-1

Mode! 5355A
General Information

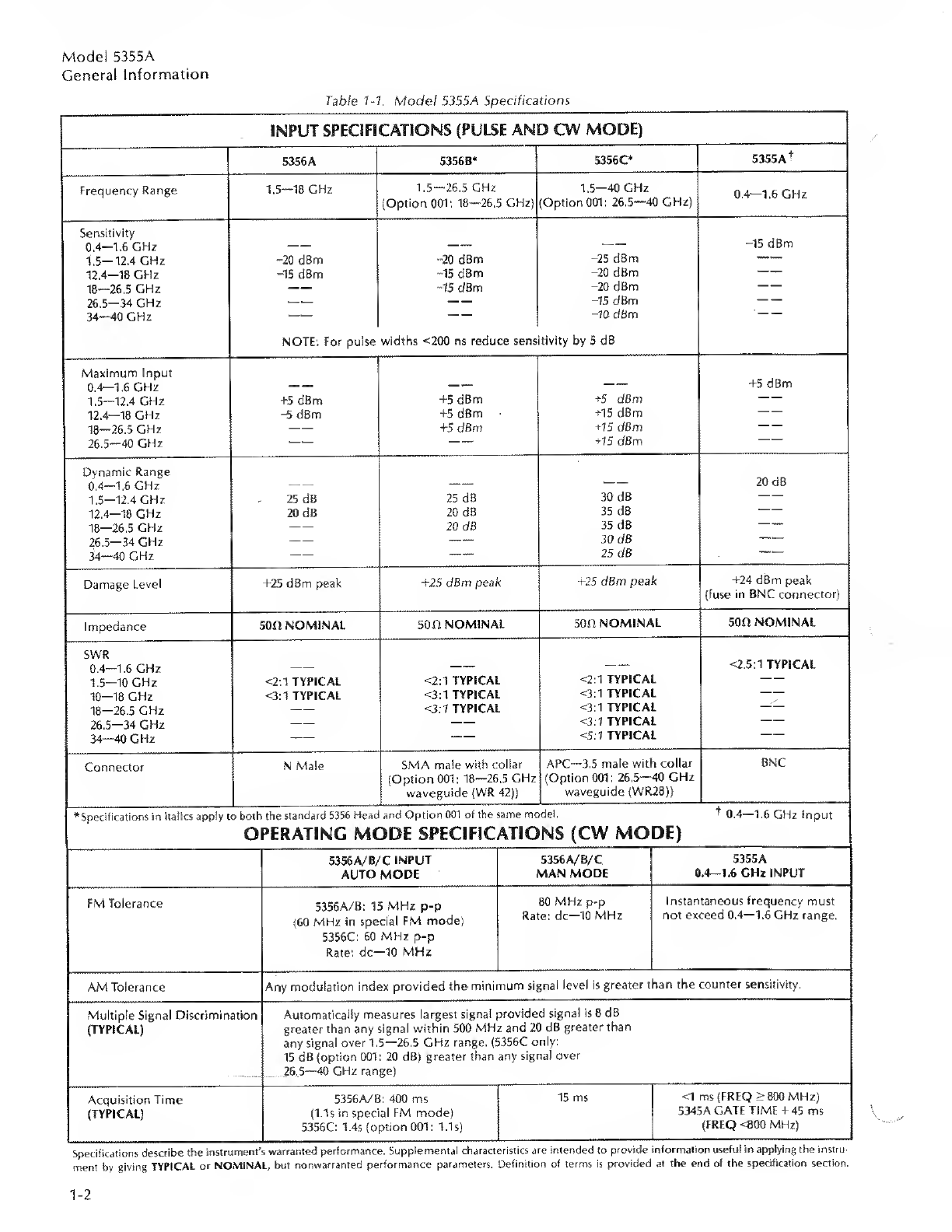

Table 1-1. Model 5355A Specifications
INPUT SPECIFICATIONS (PULSE AND CW MODE)
5356 A
5356B*
5356C*
5355Af
Frequency Range
1.5—18 GHz
1.5-26..5 GHz 1.5-40 GHz
0.4—1.6 GHz
(Option 001: 18—26.5 GHz)
(Option 001: 26.5—40 GHz)
Sensitivity
0,4—1.6 GHz
—
—
—
-15 dBm
1.5—12.4 GHz
-20 dBm
-20 dBm
-25 dBm
—
12.4—18 GHz
-15 dBm
-15 dBm
-20 dBm
—
18-26,5 GHz
—
-15 dBm
-20 dBm
—
26.5—34 GHz
.-
—
-75 dBm
—
34-40 GHz
—
—
-10 dBm
—
NOTE: For pulse widths <200 ns reduce sensitivity by 5 dB
Maximum Input
0.4—1.6 GHz
—
—
—
+5 dBm
1.5—12.4 GHz
+5 dBm
+5 dBm
+5 dBm
“
12.4—18 GHz
-5 dBm
+5 dBm
+15 dBm
—
18—26.5 GHz
—
+5 dBm
+75 dBm
—
26.5—40 GHz
—
—
+75 dBm
Dynamic Range
0.4—1,6 GHz
— —
—
20 dB
1,5—12.4 GHz
25 dB
25 dB
30 dB
—
12.4—18 GHz
20 dB
20 dB
35 dB
—
18—26,5 GHz
—
20 dB
35 dB
—
26.5—34 GHz
— —
30 dB
—
34—40 GHz
—
—
25 dB
Damage Level
+25 dBm peak
+25 dBm peak
+25 dBm peak
+24 dBm peak
(fuse in BNC connector)
Impedance
son NOMINAL
son NOMINAL
son NOMINAL
son NOMINAL
SWR
0.4—1,6 GHz
— —
——
<2.5:1 TYPICAL
1.5—10 GHz
<2:1 TYPICAL
<2:1 TYPICAL
<2:1 TYPICAL
—^
10—18 GHz
<3:1 TYPICAL
<3:1 TYPICAL
<3:1 TYPICAL
—
18-26.5 GHz
—
<3:7 TYPICAL
<3:1 TYPICAL
—
26.5—34 GHz
—
—
<3,7 TYPICAL
—
34—40 GHz
—
—
<5:1 TYPICAL
N Male
SMA male with collar
APC—3.5 male with collar
BNC
(Option 001: 18-26,5 GHz
(Option 001: 26,5—
40 GHz
waveguide (WR 42)j
waveguide {WR28))
1 *Specifications in italics apply to both the standard 5356 Heac
and Option 001 of the same model.
t 0.4—1.6 GHz Input
OPERATING MODE SPECIFICATIONS (CW MODE)
5356A/B/C INPUT
5356A/B/C
5355A
AUTO MODE
MAN MODE
0.4—1.6 GHz INPUT
FM Tolerance
5356A/B: 15 MHz p-p
80 MHz p-p
Instantaneous frequency must
(60 MHz in special FM mode)
Rate: dc—10 MHz
not exceed 0.4—1.6 GHz range.
5356C: 60 MHz p-p
Rate: dc-
-10 MHz
AM Tolerance
Any modulation index provided the minimum signal level is greater than the counter sensitivity.
Multiple Signal Discrimination
Automatically measures largest signal provided signal is 8 dB
(TYPICAL)
greater than any signal within 500 MHz and 20 dB greater than
any signal over 1.5—26.5 GHz range. (5356C only:
15 dB (option 001
20 dB) greater than any signal over
26.5—40 GHz range)
Acquisition Time
5356A/B: 400 ms
15 ms
<1 ms (FREQ >800 MHz)
(TYPICAL)
(1.1s in special FM mode)
5345A CATE TIME + 45 ms
5356C: 1.4s {option 001: 1,1s)
(FREQ <800 MHz) |
Specifications describe the instrument’s warranted performance. Supplemental characteristics are intended to provide information useful in applying the instru¬
ment by giving TYPICAL or NOMINAL, but nonwarranted performance parameters. Definition of terms is provided at the end of the specification section.
1-2

Table 1-1. Model 5355A Specifications (Continued)
Model 5355A
General Information
OPERATING MODE SPECIFICATIONS (CW MODE) (Continued)
5356A/B/C INPUT
AUTO MODE
5356A/B/C
MAN MODE
5355A
0.4—1.6 GHz INPUT
Measurement Time
Gate Time < 100 ms: Acquisition time + 4 X 5345A GATE TIME
+ 5345A Sample Rate + 125 ms.
Cate Time > 100 ms: Acquisition time + 5345A GATE TIME
+5345A Sample Rate + 35 ms
Acquisition time
+5345A CATE TIME
+ 5345A SAMPLE RATE
+ 35 ms
LSD Displayed
1 Hz
5345A CATE TIME
Resolution ± 2 X LSD ± 1 X 10--10 rmsXFREQ
±5 X LSD
Accuracy "I Resolution ± (time base error X FREQ)
Resolution
± (time base error X FREQ)
PULSE MODE
5356A/B/C INPUT
AUTO MODE
5356A/B/C INPUT
MAN MODE
5355A*
0.4—1.6 GHz INPUT
FM Tolerance
(TYPICAL)
50 MHz p-p chirp
80 MHz p-p chirp
Instantaneous frequency must
not exceed 0.4—1.6 GHz range
Acquisition Time
(TYPICAL)
5356A/B/C MAN MODE; 0
5356A/B AUTO MODE:
100fis/(EXT. GATE WIDTH X PRF) +650 ms for EXT CATE <100 mS-
(2/PRF) + 650 ms for EXT GATE > 100 ms.
5356CAUTO MODE;
100 ms/{EXT GATE WIDTH X PRF) + 1.55s (Option 001; 1.255)
f 8 (Option 001; 7)/PRF for EXT GATE < 100 ms.
10 (Option 001: 9)/PRF+1.55s {Option 001; 1.25s)
for EXT GATE >100 ms-
0 (FREQ >800 MHz)
5345A GATE TIME
EXT GATE WIDTH X PRF
+ 45 ms (FREQ <800 MHz)
Calibration Time 5345AGATETiME
■ ..... J C
EXT GATE WIDTH X PRF
Performed during 10 consecutive measurements when PULSE Mode is selected, after any front
panel change, or when the EXTERNAL CATE width changes by more than 12%. Only calibrates
if External Gate is < 100 fxs.
Measurement Time
(TYPICAL)
Acquisition Time
+ Calibration Time
+5345A SAMPLE RATE
+ 5345A CATE TIME or 100 isS
(whichever is greater)
EXT GATE WIDTH X PRF
+ 100ms
Acquisition Time + Calibration Time + 5345A SAMPLE RATE
+ 60 ms
+ (1 MS+5345A GATE TIME)
EXT GATE WIDTH X PRF
Pulse Width:
Min:
Max;
100 ns
20 ms
60 ns
20 ms
100 ns
1 s
Pulse Repetition Frequency
Min:
Max;
NOTE; Minimum of
50 Hz
2 MHz
time is 400 ns (i.e., 2 MHz PRF t
50 Hz
2 MHz
vith 100 ns pulses)
100 Hz
2 MHz
Minimum ON/OFF RATIO
25 dB (TYPICAL)
Maximum Video Feedthrough
15 mV p-p (TYPICAL) for rf burst rise and fall times > 10 ns
LSD Displayed 1 HZ/5345A GATE TIME
Resolution ±2X LSD + rms jitter**
±10XLSD±5Xrmsjitter**
Accuracy^
Rpsniufinn + -0"^
EXT GATE WIDTH
± 3 KHz ± (Time base error X FREQ)
(± 16 X LSD) ± (5 X rms jitter**)
± (.08/EXT GATE WIDTH)
± 24 KHz
± (Time base error X FREQ)
Specifications apply only to external gating of 5345/5355 ** See jitter specification on following page. -f After one minute warm-up.
1-3

Mode! 5355A
General Information
Table 1-1. Model 5355A Specifications (Continued)
5356A OPTION 001 HIGH PASS FILTER
SPECIFICATIONS
DEFINITIONS
Insertion Loss:
<1 dB from 1.5—18 GHz
LSD Displayed:
Unit value of least significant digit.
insertion Loss below 100 MHi: >35 dB
Resolution:
Maximum deviation (or rms deviation)
between successive measurements under
constant environmental and constant input
conditions.
GENERAL
Accuracy:
Deviation from the true value as fixed by
universally accepted standards for frequency
and time.
IF OUT:
Down converted signal in range of
80—375 MHz available at 5355 rear panel
IF OUT connector. 0 dBm NOMINAL level.
Minimum
ON/OFF Ratio:
For a pulsed rf input, the required minimum
difference, in dB, between the pulse ON signal
level and pulse OFF signal level which will
CATE OUT:
0 to -1 volt detected IF signal used to drive enable the 5355 to distinguish a pulse input.
5345A EXTERNAL GATE CONTROL INPUT,
Width of CATE OUT is approximately 30 ns
less than rf burst width.
Maximum Video
Feedthrough:
For a pulse rf input, the maximum peak-to-
peak voltage caused by the superposition of
video components above 75 MHz, which the
PULSE OUT:
Detected IF signal: TTL levels; TTL low
5355/56 can tolerate in the burst.
indicates signal present; +1 to 0V TYPICAL
rms jitter =
1 I V
into 50ft.
V(5345A GATE TIME) (EXT GATE WIDTH)
X = 100 Hz rms
Operating
0° to 55°C
For EXT GATE signals generated by the 5355A,
Temperature:
the EXT GATE WIDTH equals the input PULSE
WIDTH minus 30 ns (TYPICAL) for the
Weight:
5355A: 3.75 kg f8 lb., 4 oz.) net
5356A/B/C: 0.54 kg (1 ib., 3 oz.) net
5356A/B/C input and equals input PULSE
width minus 40 ns (TYPICAL) for the
5355 0.4—1.6 GHz input.
5356A/B/C
27.4 mm, 138 mm,56.6 mm (1.08 ,5.43 ,2.23 )
Dimensions:
Cable length: 1.68 metres (66"j
1-13. SAFETY CONSIDERATIONS
”1-14. This product is used as part of a Safety Class I instrument (provided with a protective earth
terminal). Safety Information pertinent to the operation and servicing of this instrument is
included in appropriate sections of this manual.
1-15. EQUIPMENT SUPPLIED
1-16. The only equipment supplied with the 5355A plug-in unit is the BNC Cable (HP Part No.
05355-60101) shown in Figure 7-7.
1-17. ACCESSORIES
1-18. Accessories available for use with the 5355A are as follows (connector and filter options
listed in Tabfe 1-2):
5356A Frequency Converter Head (1.5—18 GHz)
5356B Frequency Converter Head (1.5—26.5 GHz)
5356C Frequency Converter Head (1.5—40 GHz)
Extender Board Service Kit, HP Part No. 05355-60100 (See paragraph 1-19)
APC 7 to N(f) Adapter, HP 11524A
1-4

Model 5355A
General Information
Table 1-2. 5356 Frequency Converter Head Options
Connector Options 5356A (1.5—18 GHz)
5356B (1.5—26.5 GHz)
5356C (13-40 GHz)
TYPE N MALE
Standard or
H10 for 24 GHz
N/A
N/A
SMA MALE
W/COLLAR
Option HOI
Standard
APC 3.5 MALE
W/COLLAR
N/A
Option HOI
Standard
WAVEGUIDE
N/A
Option 001 (WR-42) Option 001 (WR-28)
FILTER OPTION
High Pass Filter
Option 001
N/A N/A
1-19. DESCRIPTION
1-20. The 5355A plug-in unit, when used with a 5345A Electronic Counter provides measure¬
ments of CW or burst frequencies from 400 MHz to 1.6 GHz. Since the 5345A has a range of Oto
500 MHz, the 5345A/5355A combination offers frequency measurement capability from 0—1.6
GHz. Frequencies up to 40 GHz may be measured by use of the accessories described in the
following paragraph.
1-21. For higher frequency measurements, the 5356A, 5356B, or 5356C Frequency Converter
Head is used. The heads use the single sampler, harmonic heterodyne technique to downconvert
the Input signal frequency. The 5356A allows measurements from 1.5 to 18 GHz,the5356B allows
measurements from 1.5 to 26.5 GHz, and the 5356C allows measurements from 1.5 to40 GHz. The
head connects to the signal source and the attached 5V2 foot cable connects to the multipin
connector on the front panel of the 5355A.
1-22. Signals in the 0.4 to 1.6 GHz range are sent through a prescaier (divider) in the5355A to the
IF circuits. Signals in the 1.5 to 40 GHz range are sent through the down-converter head to the IF
circuits. The 5355A automatically acquires the input CW or pulsed rf signal and under control of
its microprocessors algorithm, routes the down-converted signal to the 5345A mainframe to be
counted and displayed.
1-23. SERVICE EQUIPMENT AVAILABLE
1-24. A kit of extender boards is available to allow servicing printed circuit assemblies while
extended from the instrument. The extender boards allow the assemblies to be extended from
their pi ug-in connectors for monitoring with appropriate test equipment. The HP part number of
the kit is 05355-60100. Refer to paragraph 8-183 for detailed information.
1-25. RECOMMENDED TEST EQUIPMENT
1-26. The test equipment listed in Table 1-3 is recommended for use during performance tests,
adjustments, and troubleshooting. Substitute test equipment may be used if it meets the required
) characteristics listed In the table.
1-5

Mode! 5355A
General Information
Table 1-3. Recommended Test Equipment
Instrument
Required Characteristics
Recommended Model
Oscilloscope
dc to 275 MMz
HP 1725A
Oscilloscope
dc to 1 GHz
HP 180A/1810A
Oscilloscope
dc to 200 MHz
HP 183C/1830A/1840A
Oscilloscope Probe Kit
HP 10020A
Signal Generator
.1 to 4,3 GHz
.4 to 2.0 GHz
2 to 18 GHz
18 to 26.5 GHz
26.5 to 40 GHz
HP 062OC/8621B
HP 8620C/86222B
HP 8620C/86290B
HP 8690B/8696A
HP 8690A/8697A
Digital Multimeter
20V range
HP 3465A
AC Voltmeter
10 to 375 MHz
HP 3406A
Power Splitter
dc to 18 GHz
HP 11667A
Signature Analyzer
HP 5004A
Power Meter
10 MHz to 18 GHz
HP 436A
Power Sensor
10 MHz to 18 GHz
HP 8481A
-30 dBm to 4-20 dBm
Spectrum Analyzer
10 MHz to 500 MHz
HP 8565A
Resistive Divider Probe Set
son, 20:1 Attenuation
HP 10020A
Sweep Analyzer
100 MHz to 1 GHz
HP 8755A/182T
Detector
100 MHz to 1 GHz
HP 11664A
Crystal Detector
18 to 26.5 GHz
26.5 to 40 GHz
HP K422A
HP R422A
Power Meter
18 to 26.5 GHz
HP 432A
Thermistor Mount
18 to 26.5 GHz
26.5 to 40 GHz
HP K486A
HP R486A
Directional Coupler
18 to 26.5 GHz
26.5 to 40 GHz
HP K752A
HP R752A, R752C
Step Attenuator
10 dB step, dc to 26.5 GHz, APC-3.5
HP 8495D (With Option 004)
Attenuator
3 dB, 100 MHz to 1 GHz
HP 8491A
Variable Attenuator
18 to 26.5 GHz
26.5 to 40 GHz
HP K382A
HP R382A
Adapter
Waveguide (WR-42} to SMA
OSM P/N 2000-6256-00
Model #20188AJ
Adapter
Waveguide to OSM, 26.5 to 40 GHz
Maury Microwave, U223A
Adapter
Waveguide (WR-42) to APC-3.5
Narda 4608B
Waveguide, Straight Section
26.5 to 40 GHz
Maury Microwave, U101A4
Waveguide, Bend
26.5 to 40 GHz
Maury Microwave, U135A
Logic Probe
TTL Compatibility
HP 545A
Logic Pulser
TTL Compatibility
HP 546A
Current Tracer
1 mA to 1A range
HP 547A
AP Clips
Clip for 14/16 pin IC's
HP P/N 705-0048
1-6

Mode! 5355A
General Information
Table 7-3,
instrument
Pulse Modulator
Pulse Generator
Extender Board Kit
Power Supply
Modulator
Signal Generator
Pulse Generator
Frequency Counter
Frequency Counter
HP-IB Bus Analyzer
Active Probe
Probe Power Supply
Mixer
Recommended Test Equipment (Continued)
Required Characteristics
2 to 18 GHz
General purpose
5355A Compatibility
1 to 15V
Sweep Analyzer Compatibility
Pulse Modulation Capability
50 to 400 MHz
1 to 20 fis Pulse Width
1 to 20 MS Pulse Repetition Rate
0 to 5V Output
To 225 MHz CW
To 1200 MHz CW
HP-IB Compatibility
500 MHz
1120A Compatibility
•2 to 2 GHz (WJMli)
Recommended Model
HP n720A
HP 8012A
05355-60100
HP 6284A
HP 11665B
HP 8640B
HP 8013A
HP 5382A
HP 5340A
HP 59401A
HP 1120A
HP 1122A
HP P/N 0960-0455

Model 5355A
Installation
SECTION II
INSTALLATION
2-1. INTRODUCTION
2-2. This section provides instructions for unpacking, inspection, preparation for use, storage,
and shipment of the 5355A plug-in.
2-3. UNPACKING AND INSPECTION
2-4. If the shipping carton is damaged, inspect the 5355A for visible damage (scratches, dents,
etc.). If the 5355A is damaged, notify the carrier and the nearest Hewlett-Packard Sales and
Service Office immediately (offices are listed at the back of this manual). Keep the shipping
carton and packing material for the carrier's inspection. The HP Sales and Service Office will
arrange for repair or replacement of your instrument without waiting for the claim against the
carrier to be settled.
2-5. PREPARATION FOR USE
2-6. Power Requirements
2-7. The 5355A does not require external ac power. Ail necessary power is supplied by the5345A
when the 5355A Is plugged in.
2-8. Operating Environment
2-9. The operating temperature range is 0°C to 55°C. If these limits are exceeded at the
installation site, auxiliary cooling or heating should be used to keep environment within limits.
2-10, Installation
2-11. To install the 5355A, proceed as follows:
a. On the 5345A, set POWER switch to STANDBY.
b. Pull the locking handle on the left side of the 5355A up to the horizontal position.
c. Slide the 5355A into the 5345A. Use caution to prevent damage to interface con¬
nectors at rear of unit.
d. Push locking handle down and toward the Instrument until it is parallel with the front
panel.
e. For operating Information, address switch settings, and connections to rear panel BNC
connectors, refer to Section 111.
2-12, Compatibility with 5345A
2-13. The 5345A must be in EXT GATE mode when the 5355A is in PULSE mode and must be in
INT GATE mode when the 5355A is in CW mode. If the GATE CONTROL switch on the rear panel
of the 5345A is left in INT position, then the proper gating mode is selected automatically in
5345A's that have Serial Prefix 1808A or higher. Older 5345A's with serial prefix 1744A and below
require manual selection of EXT GATE mode (for PULSE) and INT GATE mode (for CWl. However,
a minor modification can be added (see paragraph 8-13) which updates these units.
2-1

Mode! 5355A
installation
2-14. HP-IB Interconnections
2-15. HEWLETT-PACKARD interface BUS.,
HP-IB connector is provided in interconnection of up to 15 (including the controller)
C/D HPdB cables. The HPdB system anowsin ™ -'piggyback” connectors on
HP-IB compatible instruments. The H cineie source without special adapters or
both ends so that several ® be connected in virtually any configuration
switch boxes. System ""°,hlom.hecalculator(or other controller) toeverydevice
desired. There must, of course, be a pat stacking more than three or four cables on any
operating on the bus. As ^ produces great leverage which
::: dTage t^V^nror ^urn^.l^st each connector is firmly (finger tight, screwed m
place to keep it from working loose during use.
CABLi U.O,H BESTBICOMS. l-g"
voBag. levels end timing „t|| fgH ,o perform properly. Theretore. rvhen
a The total cable length for the system must be less than or equal to 20 metres ,65 feet),
b The total cable length for the system must be equal to or less than 2 metres (6,6fee.) trmes
the total number of devices connected to the bus.
C. The total number of instruments connected to the bus must not exceed 15.
2-17. 5355A Listen Address
HP m instrument address selection switch. There are five
2-18. The 5355A contains a rear ' , I ^ address. Instructions for
:rranSStrn ad^^^ at'^^deTin Section of this manual along with
programming codes.
2-19. HP-IB Descriptions
2-20. A description of the HP-IB P ™ ^^HP-fB'concepT Additional information
mation is necessary if the user 'y^'.bfb.s is available in IEEE Standard 488-1975,
tnd^rDfta "interface for Programmable Instrumentation”.
2-21. Operational Check
2 - 22 .
Operational c,neLK
Sect,oJtt^rr.ttn:trtrp\":ita^n?tvic^^
mation relative to warranty claims.
2-23. PACKAGING FOR RESHIPMENT
2-24. Original Packaging
container FRAGILE to assure careful handling.
2-2
