Operating and Service Manual
HP 85058D 1.85 mm
Economy Calibration Kit
SERIAL NUMBERS
This manual applies directly to HP 85058D calibration kits with serial number prex 3101A.
The calibration devices in this kit are individually serialized. Record the device serial
numbers in the table provided in this manual (see \Device Serial Numbers" in Chapter 1).
ABCDE
HP P
art No
.85058{90002
Printed in US
AJanuary 1997
Edition 2.1

Notice
The information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this material, including,
but not limited to, the implied warranties of merchantability and tness for a particular
purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
Restricted Rights Legend.
Use, duplication, or disclosure by the U.S. Government is subject to restrictions as set forth
in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at
DFARS 252.227-7013 for DOD agencies, and subparagraphs (c) (1) and (c) (2) of the Commercial
Computer Software Restricted Rights clause at FAR 52.227-19 for other agencies.
c

Copyright 1994, 1996, 1997 Hewlett-P
ackard Company
.All Rights Reserved. Reproduction,
adaptation, or translation without prior written permission is prohibited, except as allowed
under the copyright laws
.
Santa Rosa Systems Division, 1400 F
ountaingrove Pkwy
,Santa Rosa, CA 95403-1799

CERTIFICATION
Hewlett-Packard Company certies that this product met its published specications at the
time of shipment from the factory. Hewlett-Packard further certies that its calibration
measurements are traceable to the United States National Institute of Standards and
Technology (NIST, formerly NBS), to the extent allowed by the institute's calibration facility,
and to the calibration facilities of other International Standards Organization members.
WARRANTY
This Hewlett-Packard instrument product is warranted against defects in material and
workmanship for a period of one year from date of delivery. During the warranty period,
Hewlett-Packard Company will, at its option, either repair or replace products which prove to
be defective.
For warranty service or repair, this product must be returned to a service facility designated by
HP. Buyer shall prepay shipping charges to HP and HP shall pay shipping charges to return the
product to Buyer. However, Buyer shall pay all shipping charges, duties, and taxes for products
returned to HP from another country.
HP warrants that its software and rmware designated by HP for use with an instrument will
execute its programming instructions when properly installed on that instrument. HP does not
warrant that the operation of the instrument, or software, or rmware will be uninterrupted or
error free
.
LIMIT
A
TION OF W
ARRANTY
The foregoing warranty shall not apply to defects resulting from improper maintenance by
Buyer
,Buyer-supplied software or interfacing, unauthorized modication or misuse
,operation
outside of the environmental specications for the product, or improper site preparation or
maintenance
.
NO OTHER W
ARRANTY IS EXPRESSED OR IMPLIED
.HP SPECIFICALL
YDISCLAIMS
THE IMPLIED W
ARRANTIES OR MERCHANT
ABILITY AND FITNESS FOR AP
ARTICULAR
PURPOSE.
EXCLUSIVE REMEDIES
THE REMEDIES PRO
VIDED HEREIN ARE BUYER'S SOLE AND EXCLUSIVE REMEDIES.
HP SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENT
AL, OR
CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER
LEGAL THEORY.
ASSISTANCE
Product maintenance agreements and other customer assistance agreements are available for
Hewlett-P
ackard Products
.
F
or any assistance
,contact your nearest Hewlett-P
ackard Sales and Service Oce.A
ddresses
are provided at the back of this manual.
iii

Contents
1. General Information
Calibration Kit Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Equipment Required but Not Supplied .................... 1-2
Serial Numbers ............................... 1-2
Calibration Kits Documented in this Manual . . . . . . . . . . . . . . . . . 1-2
DeviceSerialNumbers........................... 1-2
Incoming Inspection ............................. 1-3

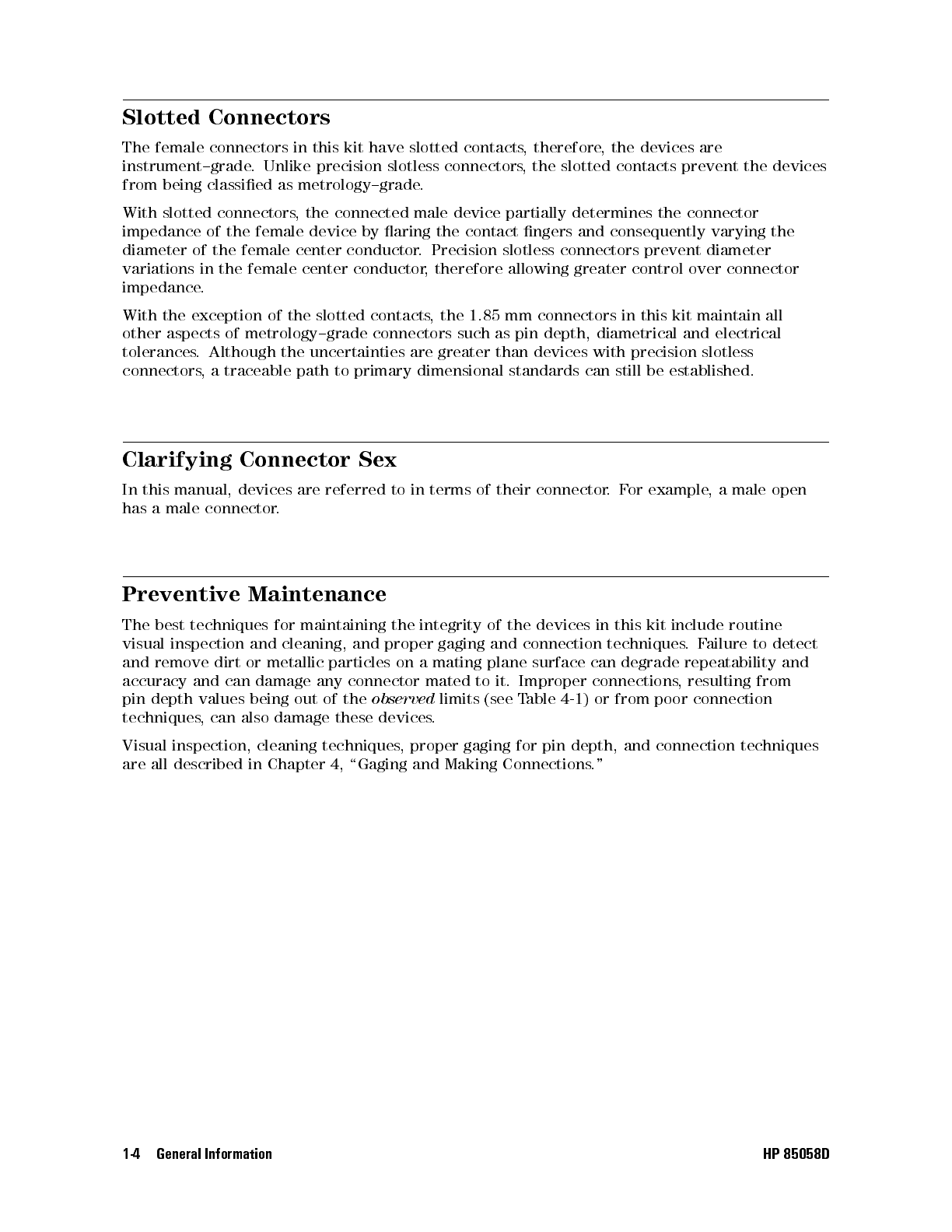

SlottedConnectors.............................. 1-4
Clarifying Connector Sex . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Preventive Maintenance .. .. .. .. .. .. .. .. .. .. .. .. .. . 1-4
2. Specications
Environmental Requirements .... .. ................... 2-1
T
emperature { What To W
atch Out F
or ..................
. 2-1
Mechanical Characteristics ..
..
......................2-2
Center Conductor Protrusion and Pin Depth .................2-2

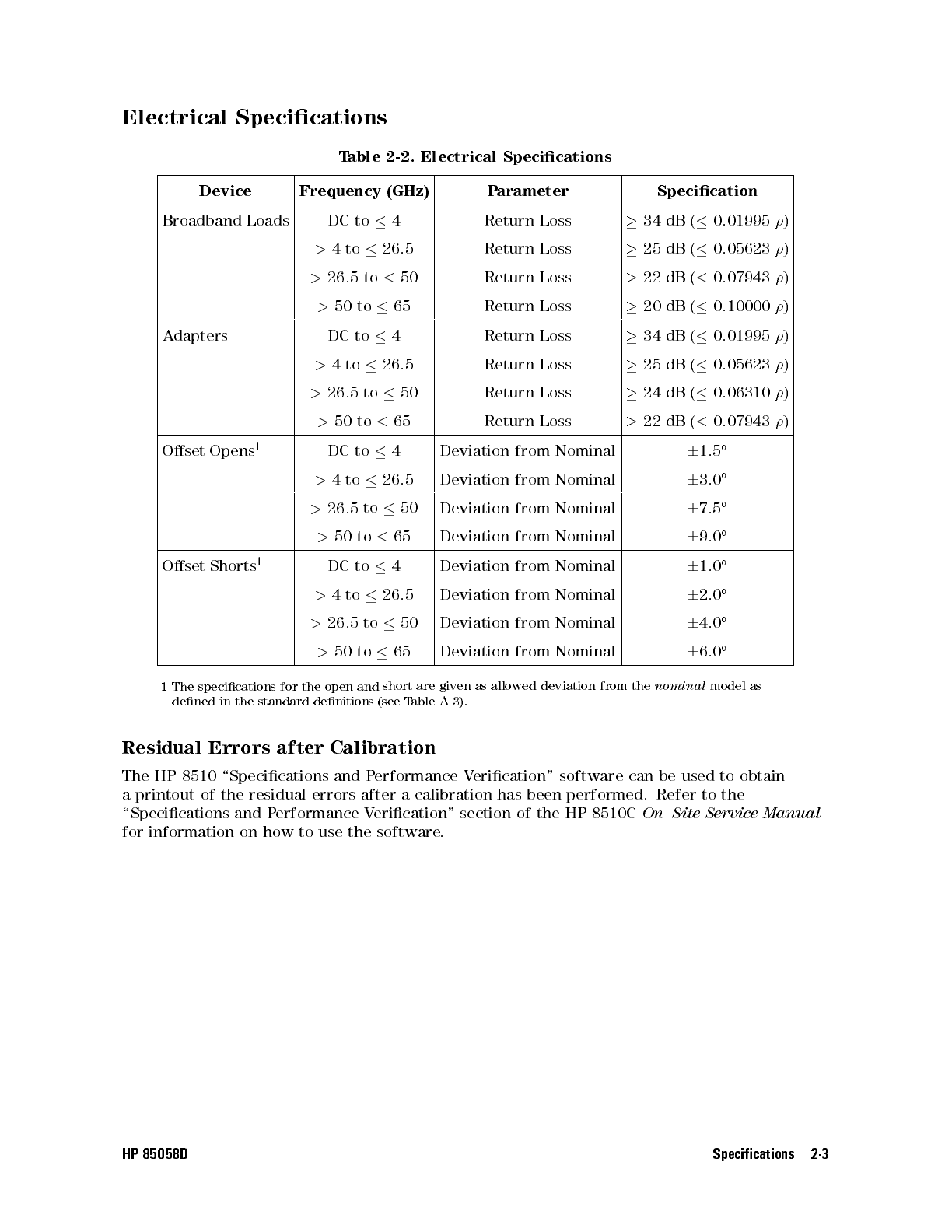

Electrical Specications ...........................2-3
Residual Errors after Calibration ......................2-3
3. User Information
The Calibration Devices and Their Use ........
............3-1
Broadband Loads ...................... .......3-1
Oset Opens and Shorts .................... ......3-1
A
dapters ....................
..
...........3-1
HP 8510 Information ................... .. .. ......3-2
Loading Calibration Constants ................... .. .. 3-2
For HP 8510A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
For HP 8510C .............................. 3-2

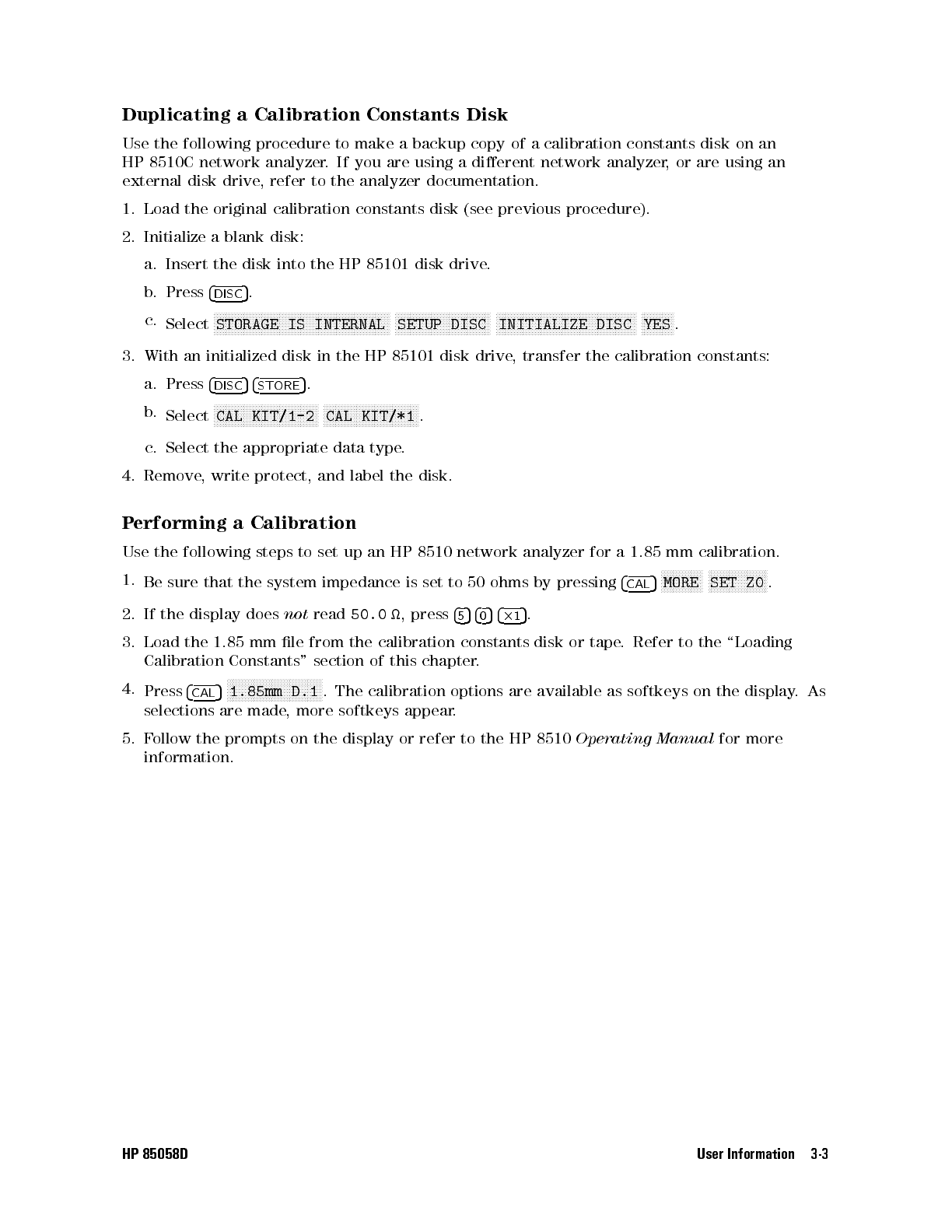

Duplicating a Calibration Constants Disk .... .. .. .. .. .. .. .. 3-3
Performing a Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Examining Calibration Constants .... .. .. .. .. .. .. .. .. .. 3-4
Changing Calibration Constants ....................... 3-5
4. Gaging and Making Connections
Electrostatic Discharge . . . . . . . . . . .................. 4-1
Visual Inspection ............... .. .. .. .. .. .. .. . 4-2
Obvious Defects or Damage . . .. .. .. .. .............. 4-2
Mating Plane Surfaces .. .. .. .. .. .. .. .. .. .. .. .. .. . 4-2
Slotted Connectors . . . . . . . .. .. .. .. .. .. .. .. .. .. .. 4-2
Connector Wear .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4-2
Cleaning Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Pin Depth .......................
...........4-3
Gaging Connectors ......
........................ 4-4
Gage Intent ......
..........................4-4
Gage A
ccuracy ............................... 4-4
When to Gage Connectors .....
....................4-5
HP 85058D Contents-1

Zeroing the Gage .... .. .. .. .. .. .. .. .. .. .. .. . .. 4-6
Measuring the Connector . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Male 1.85 mm Connectors ........................ 4-8
Female 1.85 mm Connectors ....................... 4-10
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Connection Procedure ........................... 4-12
Using the Torque Wrench . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Disconnection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Handling and Storage ............................ 4-15
5. Performance Verication
What Recertication Provides ........................ 5-1
How Often to Recertify ........................... 5-1
Where to Send a Kit for Recertication .................... 5-2
How Hewlett{Packard Veries the Devices in this Kit ............. 5-2
6. Troubleshooting
Returning a Kit or Device to HP .... .. .. .. .. .. .. .. .. .. . 6-1
Where To Look ForMoreInformation..................... 6-1
7. Replaceable P
arts
A. Standard Denitions
Electrical Characteristics ................
..
.........A
-1
Standard Class Assignments ...............
..
.......A
-1
Nominal Standard Denitions ........................A
-1
Setting System Impedance ......................... A
-1
V
ersion Changes ......................... .....A
-1
Index
Contents-2 HP 85058D

Figures
1-1. Typical Kit Serial Number Label ... . .. .. .. .. .. .. .. .. .. 1-2
4-1. Connector Pin Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4-2. Zeroing a Connector Gage .... .. .. .. .. .. .. .. .. .. . .. 4-7
4-3. Gaging a 1.85 mm Male Connector ..................... 4-9
4-4. Gaging a 1.85 mm Female Connector .................... 4-11
4-5. Correct Wrench Position .... .. .. .. .. .. .. .. .. . .. .. . 4-13
4-6. Incorrect Wrench Position ......................... 4-13
4-7. Using the TorqueWrench.......................... 4-14
6-1. Troubleshooting Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
7-1. Replaceable Parts ............................. 7-3
T
ables
1-1. Kit and Device Serial Number Record .................... 1-3
2-1. Environmental Requirements ........................ 2-1
2-2. Electrical Specications ..........................2-3
4-1. Pin Depth Limits ..............................4-5
4-2. T
orque Wrench Information ........................4-13
7-1. Replaceable P
arts ......
..
.....................7-2
A
-1. Standard Class Assignments for the HP 8510 . ..
.............A
-2
A
-2. Standard Class Assignments Blank F
orm ..
..
...............A
-3
A
-3. Standard Denitions for the HP 8510 .... .. ..............A
-4
A
-4. Standard Denitions Blank F
orm . ..
..
..
...............A
-5
HP 85058D Contents-3

1
General Information
Calibration Kit Overview
The HP 85058D 1.85 mm economy calibration kit is used to calibrate HP 8510 systems (such as
the HP 85109B) for measurements of components with 1.85 mm connectors up to 65 GHz. The
1.85 mm connector is designed such that it may be mated with 2.4 mm connectors.
The calibration kit consists of the following:
Oset opens and shorts, and broadband load terminations.
Three adapters.
A 5/16 inch, 90 N{cm (8 in{lb) torque wrench for use on the 1.85 mm connectors.
An open{end wrench for the 7mm ats on some of the components
.
Adata disk and tape that contain the calibration constants for the devices in the kit.
Option 002 adds the following:
Adata tape that contains the calibration constants of the devices in the kit for HP 8510A/B
systems
.
The standards in this calibration kit allow you to perform simple 1{ or 2{port and TRM
(thru{reect{match) calibrations
.
This manual describes the HP 85058D calibration kit and provides replacement part numbers
,
specications
,and procedures for using, maintaining and troubleshooting the kit.
Note
This manual assumes you know proper connector care
.If not, refer to
\Principles of Microwave Connector Care{Quick Refernece Card" located in the
back of this manual, refer to Chapter 7, \Replaceable P
arts", for the HP part
number if another copy is needed.
Or, contact your nearest HP sales oce for the customer training course:
\Understanding Connectors Used With Network Analyzers".
HP 85050A +24A (on site)
HP 85050A +24D (at HP sales oce)
HP 85058D General Information 1-1

Equipment Required but Not Supplied
Gage sets are required for measuring the connector pin depth. Gages and various connector
cleaning supplies are not supplied with this kit. (Refer to Chapter 7, \Replaceable Parts", for
ordering information.)
Serial Numbers
A serial number label is attached to this calibration kit. A typical kit serial number label
is shown in Figure 1-1. The rst four digits followed by a letter comprise the serial number
prex; the last ve digits are the sux, unique to each calibration kit.
Figure 1-1. Typical Kit Serial Number Label
Calibration Kits Documented in this Manual
This manual applies to any HP 85058D calibration kit whose serial prex is listed on the title
page
.
Device Serial Numbers
In addition to the kit serial number
,the devices in this kit are individually serialized (serial
numbers are either labeled on or scribed onto the body of each device). Record these serial
numbers in Table 1-1. This can help you avoid confusing the devices in this kit with similar
devices from other kits. Kit integrity is an important part of compliance with U.S. MIL{STD
45662A, should you need to comply with this standard. The adapters, though they are
serialized, are for measurement convenience only and are not regarded as devices requiring a
traceable path in order to comply with MIL{STD 45662A.
1-2 General Information HP 85058D

Table 1-1. Kit and Device Serial Number Record
Device Serial Number
Calibration Kit
Broadband Load (m)
Broadband Load (f)
Open (m)
Open (f)
Short (m)
Short (f)
Adapter (m/f)
Adapter (m/m)
Adapter (f/f)
Incoming Inspection
Refer to Figure 7-1 to verify acomplete shipment. Use T
able 1-1 to record the serial numbers
of all serialized devices in your kit. T
overify the electrical performance of the devices in this
kit, see Chapter 5, \P
erformance V
erication."
The foam{lined storage case provides protection during shipping. If the case or any device
appears damaged, contact the nearest Hewlett{P
ackard sales and service oce (see inside
the back cover of this manual). Hewlett{P
ackard will arrange for repair or replacement of
incomplete or damaged shipments without waiting for a settlement from the transportation
company
.When you send the kit or device to Hewlett{Packard, include aservice tag (found at
the end of this manual) on which you provide the following information:
Your company name and address.
A technical contact person within your company, and the person's complete phone number.
If you are returning a complete kit, include the model number and serial number.
If you are returning one or more devices
,include the part numbers and serial numbers
.
Indicate the type of service required.
Include any applicable information.
HP 85058D General Information 1-3

Slotted Connectors
The female connectors in this kit have slotted contacts, therefore, the devices are
instrument{grade. Unlike precision slotless connectors, the slotted contacts prevent the devices
from being classied as metrology{grade.
With slotted connectors, the connected male device partially determines the connector
impedance of the female device by aring the contact ngers and consequently varying the
diameter of the female center conductor. Precision slotless connectors prevent diameter
variations in the female center conductor, therefore allowing greater control over connector
impedance.
With the exception of the slotted contacts, the 1.85 mm connectors in this kit maintain all
other aspects of metrology{grade connectors such as pin depth, diametrical and electrical
tolerances. Although the uncertainties are greater than devices with precision slotless
connectors, a traceable path to primary dimensional standards can still be established.
Clarifying Connector Sex
In this manual, devices are referred to in terms of their connector
.F
or example
,amale open
has amale connector
.
Preventive Maintenance
The best techniques for maintaining the integrity of the devices in this kit include routine
visual inspection and cleaning, and proper gaging and connection techniques
.F
ailure to detect
and remove dirt or metallic particles on a mating plane surface can degrade repeatability and
accuracy and can damage any connector mated to it. Improper connections
,resulting from
pin depth values being out of the
observed
limits (see T
able 4-1)or from poor connection
techniques
,can also damage these devices
.
Visual inspection, cleaning techniques
,proper gaging for pin depth, and connection techniques
are all described in Chapter 4, \Gaging and Making Connections."
1-4 General Information HP 85058D

2
Specications
Environmental Requirements
Table 2-1. Environmental Requirements
Parameter Required Values/Ranges
Operating Temperature
1
20

to 26

C(68

to 79

F)
Error{Corrected
Temperature Range
2
6 1

C of measurement calibration temperature
Storage Temperature 0 40

to +75

C( 0 40

to +167

F)
Altitude
Operation < 4,500 meters (

15,000 feet)
Storage <
15,000 meters (

50,000 feet)
Relative Humidity Always Non{Condensing
Operation 0 to 80% (26

Cmaximum dry bulb)
Storage 0 to 90%
1
The temperature range over which the calibration standards maintain performance to their specications
.
2
The allowable network analyzer ambient temperature drift during measurement calibration and during
measurements when the network analyzer correction is turned on. Also
,the range over which the network analyzer
maintains its specied performance while correction is turned on.
T
emperature {What T
oW
atch Out F
or
Due to the small dimensions of the calibration devices
,electrical characteristics will
change with temperature
.Therefore
,the operating temperature is acritical factor in their
performance. During a measurement calibration, the temperature of the calibration devices
must be stable and within the range shown in Table 2-1 .
Remember
Your ngers are a heat source, so avoid handling the devices unnecessarily
during calibration.
P
erformance verication and measurements of devices under test need not be performed
within the operating temperature range of the calibration devices
, but they must be within the
error{corrected temperature of the network analyzer (
6 1

C of the measurement calibration
temperature). F
or example
,if the calibration is performed at +20

C, the error{corrected
temperature range is +19

to +21

C. It is then appropriate to perform measurements and
performance verications at +19

, which is outside the operating temperature range of the
calibration devices, since only the actual calibration must be performed within the operating
temperature range.
HP 85058D Specications 2-1

Mechanical Characteristics
Center Conductor Protrusion and Pin Depth
Mechanical characteristics such as center conductor protrusion and pin depth are not
performance specications. They are, however, important supplemental characteristics related
to electrical performance. Hewlett{Packard veries the mechanical characteristics of the
devices in this kit with special gaging processes and electrical testing. This ensures that the
device connectors do not exhibit any center conductor protrusion and have proper pin depth
when the kit leaves the factory.
Chapter 4, \Gaging and Making Connections", explains how to use the gages listed in Chapter
7, \Replaceable Parts", to determine if the kit devices have maintained their mechanical
integrity. (Refer to Table 4-1 for typical and observed pin depth limits.)
2-2 Specications HP 85058D

Electrical Specications
Table 2-2. Electrical Specications
Device Frequency (GHz) Parameter Specication
Broadband Loads DC to  4 Return Loss  34 dB (  0.01995  )
> 4to  26.5 Return Loss  25 dB (  0.05623  )
> 26.5 to  50 Return Loss  22 dB (  0.07943  )
> 50 to  65 Return Loss  20 dB (  0.10000  )
Adapters DC to  4 Return Loss  34 dB (  0.01995  )
> 4to  26.5 Return Loss  25 dB (  0.05623  )
> 26.5 to  50 Return Loss  24 dB (  0.06310  )
> 50 to  65 Return Loss  22 dB (  0.07943  )
Oset Opens
1
DC to  4 Deviation from Nominal 6 1.5

> 4to

26.5 Deviation from Nominal
6 3.0

>
26.5 to

50 Deviation from Nominal
6
7.5

>
50 to
 65 Deviation from Nominal
6
9.0

Oset Shorts
1
DC to

4Deviation from Nominal
6
1.0

>
4to

26.5 Deviation from Nominal
6
2.0

>
26.5 to

50 Deviation from Nominal
6
4.0

>
50 to

65 Deviation from Nominal
6
6.0

1
The specications for the open and short are given as allowed deviation from the
nominal
model as
dened in the standard denitions (see T
able A-3 ).
Residual Errors after Calibration
The HP 8510 \Specications and Performance Verication" software can be used to obtain
a printout of the residual errors after a calibration has been performed. Refer to the
\Specications and Performance Verication" section of the HP 8510C On{Site Service Manual
for information on how to use the software.
HP 85058D Specications 2-3

3
User Information
The Calibration Devices and Their Use
The HP 85058D 1.85 mm economy calibration kit contains three types of calibration devices
with both male and female connectors: 50 ohm broadband loads, oset short circuits, and
oset open circuits.
For measurement convenience, the kit also contains three 1.85 mm to 1.85 mm adapters. The
adapters are primarily intended for use in measuring non{insertable devices, but can also be
used as connector savers.
The following briey describes the design and construction of all the calibration kit devices.
Broadband Loads
The broadband loads are instrument{grade
,50 ohm terminations which have been optimized
for broadband performance up to 65 GHz.The rugged internal structure provides for highly
repeatable connections
.Adistributed resistive element on sapphire provides excellent stability
and return loss
.
Oset Opens and Shorts
The oset opens and shorts are built from parts which are machined to the current
state{of{the{art in precision machining. The oset short's inner conductors have aone{piece
construction, common with the shorting plane
.This construction provides for extremely
repeatable connections
.The
oset opens have inner conductors which are supported by a
strong, low{dielectric{constant plastic to minimize compensation values. Both the opens
and shorts are constructed so that the pin depth can be controlled very tightly
,thereby
minimizing phase errors
.The lengths of the osets in the opens and shorts are designed so
that the dierence in phase of their reection coecients is approximately 180 degrees at all
frequencies.
Adapters
Like the other devices in the kit, the adapters are built to very tight tolerances to provide
good broadband performance
,and to ensure stable, repeatable connections
.The adapters are
designed so that their nominal electrical lengths are the same
, which allows them to be used in
calibration procedures for non{insertable devices (such as adapter removal).
HP 85058D User Information 3-1

HP 8510 Information
Loading Calibration Constants
Use one of the following procedures to load the calibration constants into HP 8510 memory.
For HP 8510A/B
1. Insert the calibration constants tape (option 002) into the HP 85101 drive.
2. Press 4
TAPE/DISC
5 .
3.
Select
NNNNNNNNNNNNNN
LOAD .
The analyzer displays SELECT DATA TYPE TO LOAD .
4.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
CAL KIT 1-2 .
5.
Select either
NNNNNNNNNNN
*1 or
NNNNNNNNNNN
*2 .
The analyzer displays SELECT CAL KIT FILE TO LOAD .
6.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNN
*FILE1 to load the calibration constants into memory.
7. Remove the tape from the drive
.
F
or HP 8510C
1. Insert the calibration constants disk into the HP 85101 drive
.
2. Press
4
DISC
5
.
3.
Select
NNNNNNNNNNNNNN
LOAD
.
The analyzer displays
SELECT DATA TYPE TO LOAD
.
4.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
CAL KIT 1-2
.
5.
Select either
NNNNNNNNNNN
*1
or
NNNNNNNNNNN
*2
.
The analyzer displays
USE KNOB OR STEP KEYS TO SELECT AFILE.
6. Select
CK_185MMD1
from the display menu.
7.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNN
LOAD FILE .
8. Remove the disk from the drive.
3-2 User Information HP 85058D

Duplicating a Calibration Constants Disk
Use the following procedure to make a backup copy of a calibration constants disk on an
HP 8510C network analyzer. If you are using a dierent network analyzer, or are using an
external disk drive, refer to the analyzer documentation.
1. Load the original calibration constants disk (see previous procedure).
2. Initialize a blank disk:
a. Insert the disk into the HP 85101 disk drive.
b. Press 4
DISC
5 .
c.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
STORAGE IS INTERNAL
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
SETUP DISC
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
INITIALIZE DISC
NNNNNNNNNNN
YES .
3. With an initialized disk in the HP 85101 disk drive, transfer the calibration constants:
a. Press 4
DISC
54
STORE
5 .
b.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
CAL KIT/1-2
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
CAL KIT/*1 .
c. Select the appropriate data type.
4. Remove, write protect, and label the disk.
P
erforming aCalibration
Use the following steps to set up an HP 8510 network analyzer for a1.85 mm calibration.
1.
Be sure that the system impedance is set to 50 ohms by pressing
4
CAL
5
NNNNNNNNNNNNNN
MORE
NNNNNNNNNNNNNNNNNNNN
SET Z0
.
2. If the display does
not
read 50.0 
,press
4
5
54
0
54
2
1
5
.
3. Load the 1.85 mm le from the calibration constants disk or tape
.Refer to the \Loading
Calibration Constants" section of this chapter
.
4.
Press
4
CAL
5
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
1.85mm D.1
.The calibration options are available as softkeys on the display
.As
selections are made
,more softkeys appear
.
5. F
ollow the prompts on the display or refer to the HP 8510
Operating Manual
for more
information.
HP 85058D User Information 3-3
