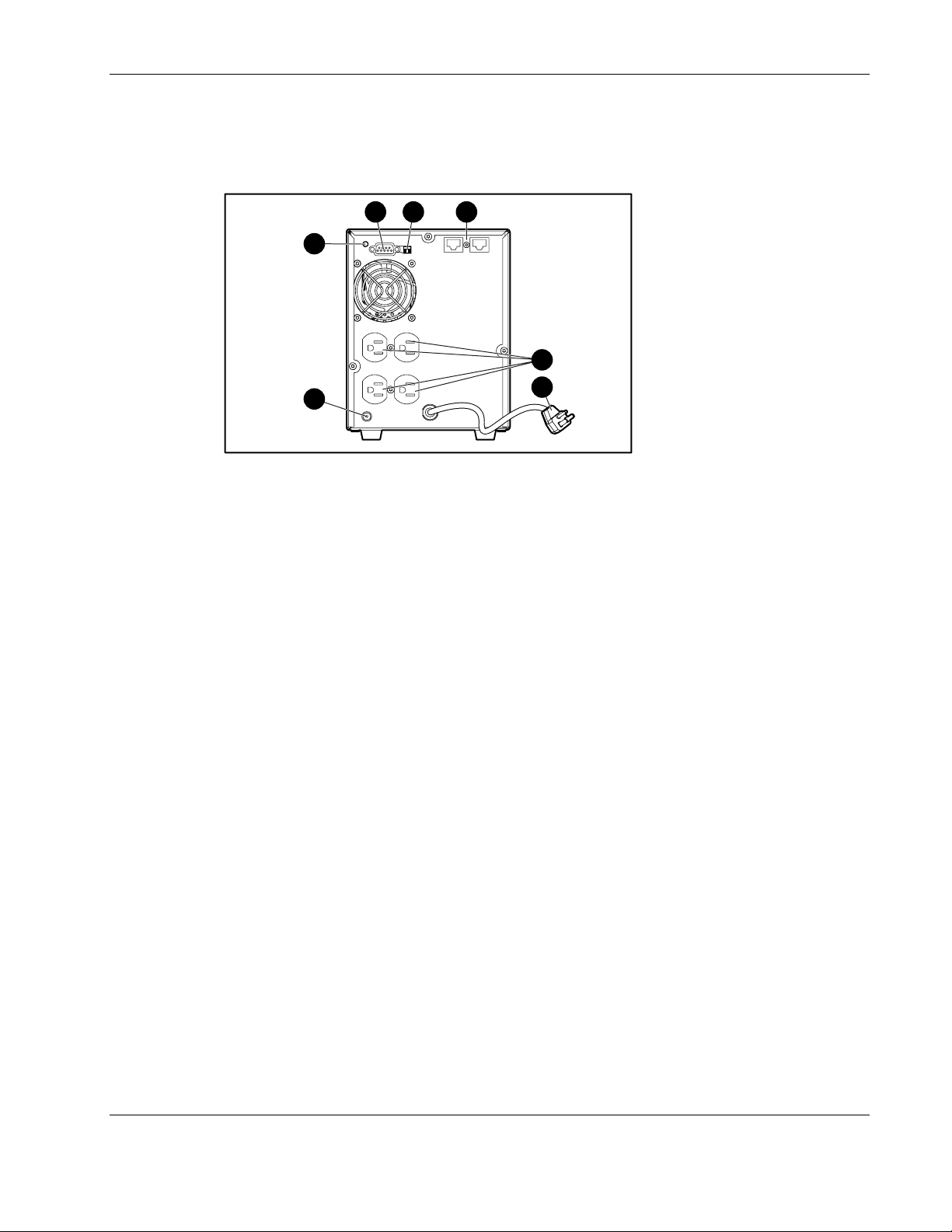

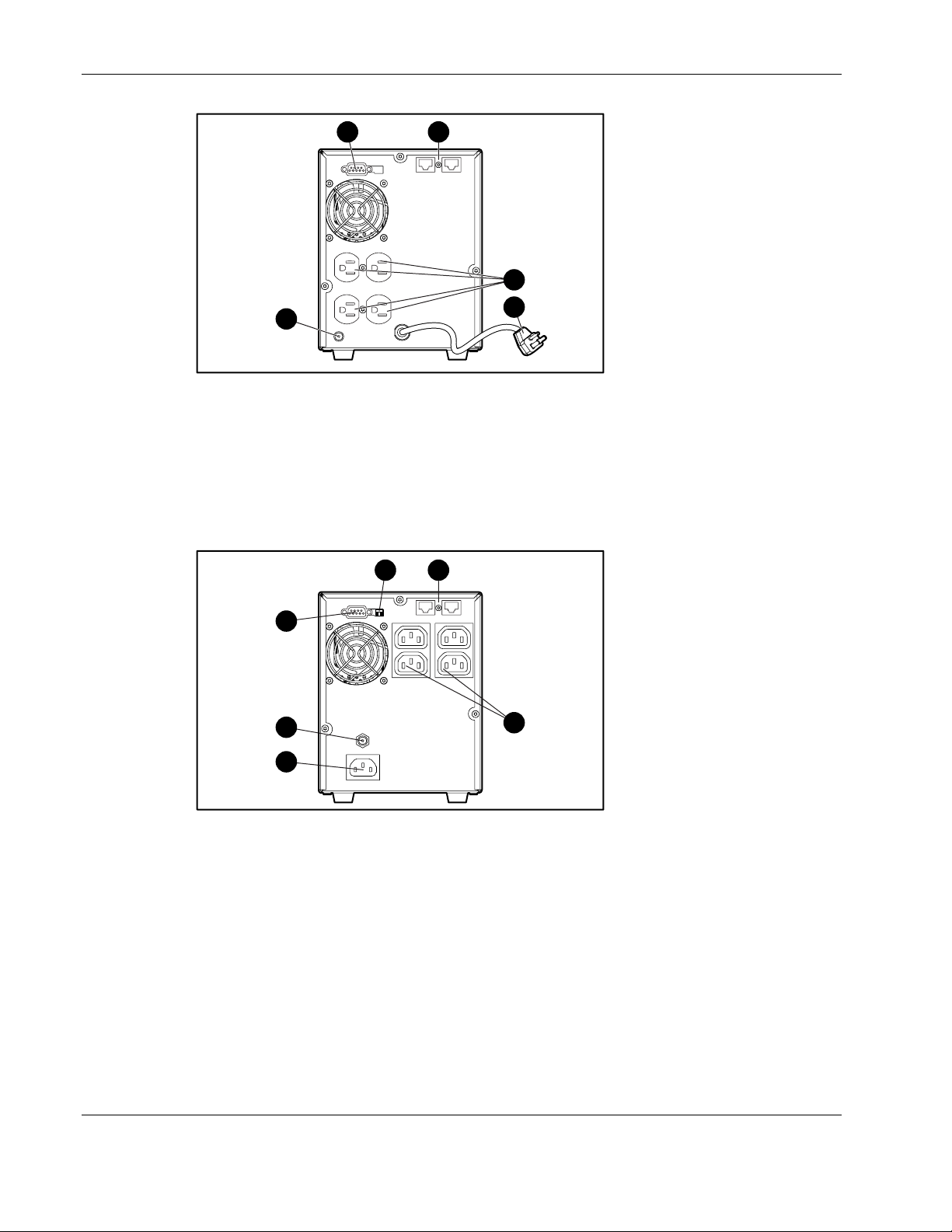

Rear Panels.......................................................................................................................................... 1-3
Power Management Software.................................................................................................................... 1-5
Warranties.................................................................................................................................................. 1-5
$25,000 Computer Load Protection Guarantee................................................................................... 1-5
Pre-Failure Battery Warranty .............................................................................................................. 1-6
Chapter 2
Operation
Front Panel Controls and LED Indicators.................................................................................................. 2-1
Site Wiring Fault Indicator ........................................................................................................................ 2-2
Modes of Operation ................................................................................................................................... 2-3
Charging the Batteries ............................................................................................................................... 2-3
Placing the UPS in Operate Mode ............................................................................................................. 2-4
Returning to Standby Mode....................................................................................................................... 2-5
Initiating a Self-Test .................................................................................................................................. 2-6
Audible Alarms.......................................................................................................................................... 2-7
Silencing an Audible Alarm................................................................................................................ 2-7
Shutting Down the System ........................................................................................................................ 2-7

Contents
iv HP Uninterruptible Power System T700 Models User Guide
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:28 AM
Chapter 3
Configuration
UPS Voltage Configuration DIP Switches................................................................................................ 3-1
Selecting the UPS Voltage Configuration................................................................................................. 3-2
UPS T700 NA Model Configuration Settings .................................................................................... 3-3
UPS T700 H INT’L Model Configuration Settings............................................................................ 3-3
Chapter 4
Battery Maintenance
Precautions ................................................................................................................................................ 4-1
Charging Batteries..................................................................................................................................... 4-1
Determining When to Replace Batteries................................................................................................... 4-2
Obtaining New Batteries ........................................................................................................................... 4-2
Replacing Batteries ................................................................................................................................... 4-3
Preparing the UPS............................................................................................................................... 4-3
Removing the Battery Pack ................................................................................................................ 4-3
Installing a New Battery Pack ............................................................................................................ 4-4
Testing the New Battery Pack ............................................................................................................ 4-4
Disposing of Used Batteries ............................................................................................................... 4-5
Care and Storage of Batteries.................................................................................................................... 4-5
Pre-Failure Battery Warranty.............................................................................................................. 4-5
Chapter 5
Troubleshooting
Troubleshooting ........................................................................................................................................ 5-1
Repairing the UPS..................................................................................................................................... 5-4
Appendix A
Regulatory Compliance Notices
Regulatory Compliance Identification Numbers.......................................................................................A-1
Federal Communications Commission Notice..........................................................................................A-1
Class A Equipment .............................................................................................................................A-1
Class B Equipment .............................................................................................................................A-2
Declaration of Conformity for Products Marked with the FCC Logo, United States Only................A-2
Modifications......................................................................................................................................A-2
Cables .................................................................................................................................................A-3
Canadian Notice (Avis Canadien).............................................................................................................A-3
Class A Equipment .............................................................................................................................A-3
Class B Equipment .............................................................................................................................A-3
European Union Notice.............................................................................................................................A-3
Japanese Notice.........................................................................................................................................A-4
China Taiwan Notice.................................................................................................................................A-4
Battery Replacement Notice......................................................................................................................A-5
Appendix B
Electrostatic Discharge
Grounding Methods...................................................................................................................................B-1

Contents
HP Uninterruptible Power System T700 Models User Guide v
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:28 AM
Appendix C
Specifications
Physical Specifications ............................................................................................................................. C-1
Input Specifications .................................................................................................................................. C-1
Output Specifications................................................................................................................................ C-2
Overcurrent Protection.............................................................................................................................. C-3
Battery Specifications............................................................................................................................... C-3
Battery Runtime........................................................................................................................................ C-3
Environmental Specifications................................................................................................................... C-4
Index

HP Uninterruptible Power System T700 Models User Guide vii
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:28 AM
About This Guide
This guide provides step-by-step instructions for configuration, and reference information for
operation, battery maintenance, and troubleshooting for the Uninterruptible Power
System (UPS).
Intended Audience
This guide is intended for individuals requiring information about the use of HP UPSs. HP
assumes you are qualified in the servicing of computer equipment and trained in recognizing
hazards in products with hazardous energy levels.
Important Safety Information
Before installing this product, read the Important Safety Information document provided.
Symbols on Equipment
The following symbols may be placed on equipment to indicate the presence of potentially
hazardous conditions.
WARNING: This symbol, in conjunction with any of the following symbols, indicates
the presence of a potential hazard. The potential for injury exists if warnings are not
observed. Consult your documentation for specific details.
This symbol indicates the presence of hazardous energy circuits or electric shock
hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not open this
enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.
Weight in kg
Weight in lb
This symbol indicates that the component exceeds the recommended weight for
one individual to handle safely.
WARNING: To reduce the risk of personal injury or damage to the equipment,
observe local occupational health and safety requirements and guidelines for
manual material handling.

About This Guide
viii HP Uninterruptible Power System T700 Models User Guide
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:28 AM
Symbols in Text
These symbols may be found in the text of this guide. They have the following meanings.
WARNING: Text set off in this manner indicates that failure to follow directions in the
warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents clarifying information or specific instructions.
NOTE: Text set off in this manner presents commentary, sidelights, or interesting points of information.
Text Conventions
This document uses the following conventions:
• Italic type indicates complete titles of manuals or variables. Variables include
information that varies in system output, in command lines, and in command parameters
in text.
• Bold type is used for emphasis of selected onscreen elements (menu options, command
names, dialog box names, and so on) and keyboard keys.
• Monospace typeface indicates code examples, screen displays, and user input.
• Sans serif typeface is used for uniform resource locators (URLs).
Related Documents
For additional information on the topics covered in this guide, refer to the following
documents:
• HP Uninterruptible Power System T700 Models Installation Instructions
• HP UPS XR Products Power Cord and Options Reference Guide
• Industry Standard Terminology Glossary
These documents are located on the Power Products Documentation CD or at www.hp.com.
Getting Help
If you have a problem and have exhausted the information in this guide, you can get further
information and other help in the following locations.

About This Guide
HP Uninterruptible Power System T700 Models User Guide ix
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:28 AM
Technical Support
In North America, call the HP Technical Support Phone Center at 1-800-652-6672. This
service is available 24 hours a day, 7 days a week. For continuous quality improvement, calls
may be recorded or monitored. Outside North America, call the nearest HP Technical Support
Phone Center. For telephone numbers of worldwide Technical Support Centers, go to
www.hp.com.
Have the following information available before you call:
• Technical support registration number (if applicable)
• Product serial number
• Product model name and number
• Applicable error messages
• Add-on boards or hardware
• Third-party hardware or software
• Operating system type and revision level
• Power management software type and version
HP Website
For information on this product as well as the latest drivers, firmware updates, and service
packs, go to www.hp.com.
Authorized Reseller
For the name of your nearest authorized reseller:
• In the United States, call 1-800-345-1518.
• In Canada, call 1-800-263-5868.
Elsewhere, see the HP website for locations and telephone numbers.
Reader’s Comments
To comment on this guide, send e-mail to [email protected].

HP Uninterruptible Power System T700 Models User Guide 1-1
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
1
Overview
This chapter contains a general overview of the HP UPS, including an introduction to the
model configurations, power management software, available hardware options, and
warranties. Read this chapter to become familiar with the features of the UPS before
operating the unit.
UPS Features
The following features make this UPS versatile and easy to use:
• Communications port for data exchange with the host computer
• Network Transient Protector (for network surge protection)
• Power protection for loads up to 700 VA/500 W
• Support for UPS power management software
Communications Port
The UPS includes a communications port for data exchange with a host computer.
CAUTION: Use only the specific cable supplied with the UPS to connect the communications
port to the host computer.
Network Transient Protector
The UPS includes a Network Transient Protector (NTP) that provides surge protection for
connected communication devices.
CAUTION: To avoid damaging the equipment, do not connect the Network Transient
Protector to a digital PBX line. Connect either to an analog phone line or to a network.
Overcurrent Protection
The UPS features overcurrent protection provided through input overload protectors located
on the UPS rear panel.

Overview
1-2 HP Uninterruptible Power System T700 Models User Guide
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
UPS T700 Models
The UPS models include the following.
Table 1-1: UPS T700 Models
UPS Model Kit Part
Number
Unit Part
Number
Series
Number Comments
T700 NA 204015-001 204016-001 EO3016 Domestic, low-voltage tower with
nondetachable six-foot power cord
with NEMA 5-15 plug
T700 JPN 204015-291 204016-191 EO3016j Japanese, low-voltage tower with
nondetachable six-foot power cord
with NEMA 5-15 plug
T700 H INT’L 204015-B31 204016-002 EO3016i International, high-voltage tower
with 10A, IEC-320-C14 input
connector
Front Panels
The front panel of the UPS is shown in Figure 1-1.
3
1
2
Figure 1-1: Front panel configuration
1 LED display
2 Control buttons
3 Removable front panel
For detailed information on using the control buttons and LED indicators, refer to the section,
“Front Panel Controls and LED Indicators,” in Chapter 2.

Overview
HP Uninterruptible Power System T700 Models User Guide 1-3
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
Rear Panels
The rear panel configurations of the UPS are shown in Figures 1-2, 1-3, and 1-4.
1
6
7
32
4
5
Figure 1-2: Rear panel of T700 NA
1 Communications port
2 Voltage configuration DIP switches
3 Network Transient Protector
4 Four 5-15 receptacles
5 Power cord with NEMA 5-15 plug
6 Input overload protector
7 Site Wiring Fault Indicator

Overview
1-4 HP Uninterruptible Power System T700 Models User Guide
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
1
5
2
3
4
Figure 1-3: Rear panel of T700 JPN
1 Communications port
2 Network Transient Protector
3 Four 5-15 receptacles
4 Power cord with NEMA 5-15 plug
5 Input overload protector
1
6
5
32
4
Figure 1-4: Rear panel of T700 H INT’L
1 Communications port
2 Voltage configuration DIP switches
3 Network Transient Protector
4 Four IEC-320 receptacles
5 Input power receptacle (IEC-320)
6 Input overload protector

Overview
HP Uninterruptible Power System T700 Models User Guide 1-5
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
Power Management Software
Power management software ensures maximum power reliability of HP computer systems
through comprehensive control of HP UPSs. Specifically, power management software
performs the following:
IMPORTANT: Not all UPSs are equipped to support the entire feature set listed.
• Manages a graceful shutdown of attached equipment during utility power failures
• Prioritizes the timing of equipment shutdowns
• Shuts down and reboots any HP UPS and attached equipment based on a user-specified
schedule
• Delays restart after a power outage to sequence the startup of system components
• Customizes alert generation with modifiable popup dialog boxes, command execution,
and email and broadcast messages
• Monitors the status of the UPS and performs UPS diagnostics
• Displays power logs for analysis
For more information, refer to the power management CD provided with the UPS. For the
most up-to-date information, refer to www.hp.com.
Warranties
To back up the wide range of features offered with the UPS, HP provides a three-year limited
warranty.
$25,000 Computer Load Protection Guarantee
In addition to the limited warranty, HP offers a $25,000 Computer Load Protection Guarantee
(provided by the original equipment manufacturer).
IMPORTANT: The $25,000 Computer Load Protection Guarantee is offered only in North America.
The $25,000 Computer Load Protection Guarantee applies only if:
• The UPS is plugged into a suitably grounded and wired outlet using no extension cords,
adapters, other ground wires, or other electrical connections.
• The UPS installation complies with all applicable electrical and safety codes specified by
the National Electrical Code (NEC).
• The UPS is used under normal operating conditions. Users must comply with all
instructions and labels.
• The UPS is not damaged by accident (other than a utility power transient), misuse, or
abuse.

Overview
1-6 HP Uninterruptible Power System T700 Models User Guide
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
Pre-Failure Battery Warranty
For specific information on the battery warranty, refer to the section, “Pre-Failure Battery
Warranty,” in Chapter 4.

HP Uninterruptible Power System T700 Models User Guide 2-1
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
2
Operation
This chapter contains information on operating the UPS. Topics include the front panel
controls, LED indicators, and modes of operation. Knowledge of these features is helpful
when configuring and troubleshooting the unit.
NOTE: For installation considerations and procedures, refer to the instructions included with the UPS.
Copies of this document can be downloaded from www.hp.com.
Front Panel Controls and LED Indicators
The front panel controls and LED indicators provide an easy-to-use interface for UPS
configuration and monitoring.
1
2
34
5
6
Figure 2-1: UPS front panel LED display and controls
Item Description Meaning/Function
1 Utility LED ( ) Green—Utility voltage is present and output is on, or utility
voltage has returned to the voltage range for which the UPS
has been configured (UPS is supplying utility power and the
audible alarm should be reset).
2 On Battery/Low Battery
()
Amber—UPS is running on battery power or battery is low.
3 Bad Battery ( ) Red—Battery is bad.
4 General Alarm/Overload
Indicator ( )
Red—UPS detects a general alarm or overload condition.
continued

Operation
2-2 HP Uninterruptible Power System T700 Models User Guide
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
continued
Item Description Meaning/Function
5 Test/Alarm Reset button Resets alarms or initiates self-tests.
6 On/Standby button Places the UPS in Standby mode (turns output load segments
off) or starts UPS powering the load.

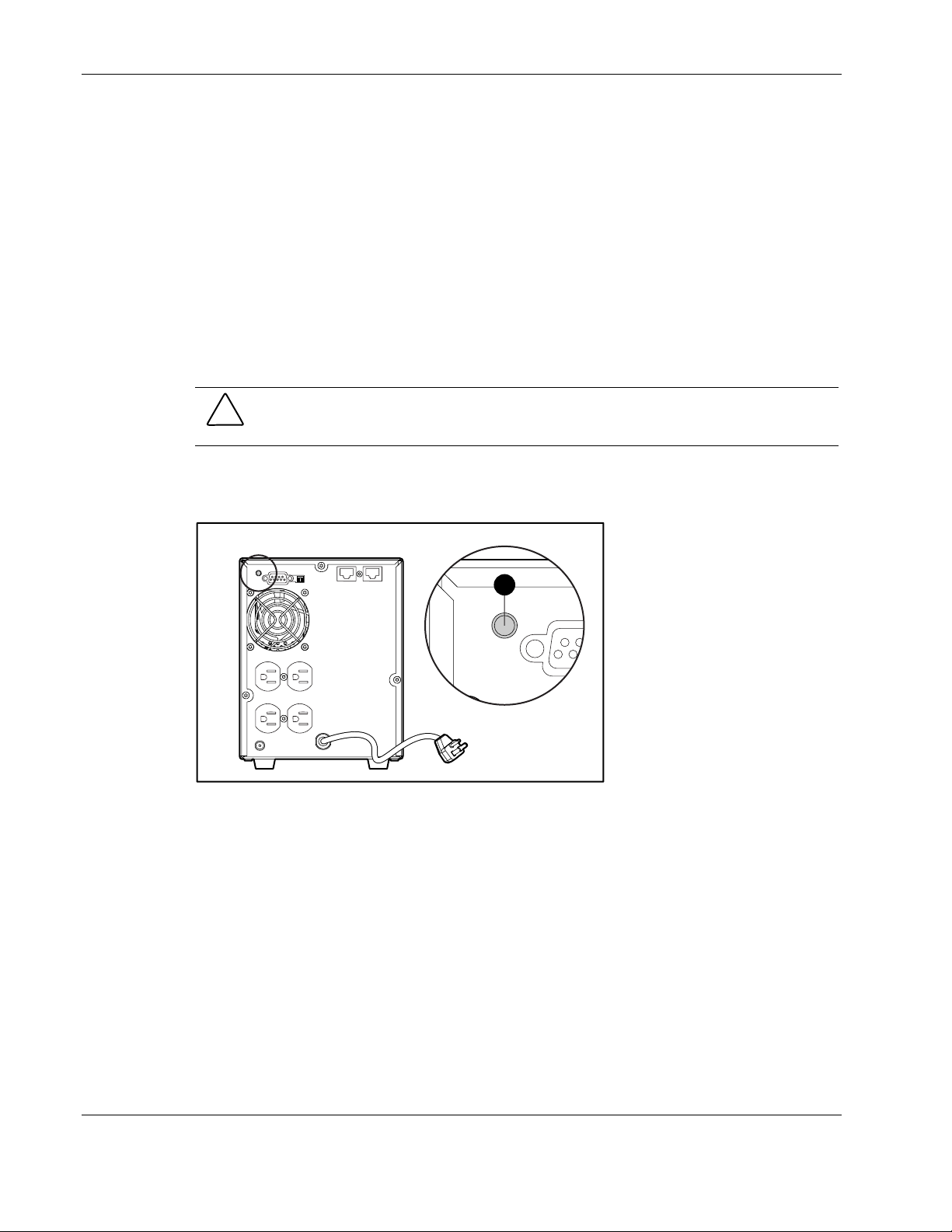

Site Wiring Fault Indicator
The UPS T700 NA model features a Site Wiring Fault Indicator (1) located on the rear panel
of the UPS unit. The Site Wiring Fault Indicator illuminates if the ground wire connection
does not exist, or if the line and neutral wires are reversed in the line receptacle. This
indicator remains illuminated until the condition is resolved.
CAUTION: The UPS operates in this condition, but does not provide proper noise and surge
protection.
For information and procedures to follow if the Site Wiring Fault Indicator is illuminated,
refer to Chapter 5, “Troubleshooting.”
1
Figure 2-2: Site Wiring Fault Indicator

Operation
HP Uninterruptible Power System T700 Models User Guide 2-3
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
Modes of Operation
The UPS has two modes of operation:
• Standby Mode
— No power is available at the UPS output receptacles.
— The UPS charges the batteries as necessary.
— Front panel LEDs are not illuminated.
• Operate Mode
— Power is available at the UPS output receptacles.
— The UPS charges the batteries as necessary.
— The Utility LED illuminates solid green.
Charging the Batteries
When the UPS is in Standby mode, allow the batteries to charge before putting the UPS into
service.
IMPORTANT: The batteries charge to:
• 90 percent of their capacity within 3 hours
• 100 percent of their capacity within 24 hours
Charge the batteries for at least 24 hours before supplying backup power to devices.

Operation
2-4 HP Uninterruptible Power System T700 Models User Guide
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
Placing the UPS in Operate Mode
The UPS can be placed in Operate mode if either of the following conditions apply:
• The UPS is powered up and in Standby mode (unit is plugged in, utility power is present,
and none of the front panel LEDs are illuminated).
• The UPS is powered down and no utility power is available.
Press and hold the On/Standby button (2). The Utility LED (1) initially illuminates solid
green, then the UPS continues with a series of beeps and LED flashes. When the Utility LED
remains illuminated solid green, power is available at the UPS output receptacles.
IMPORTANT: If the UPS is running on battery power (no utility power is present), press and hold the
On/Standby button (2) until the audible alarm sounds.
1
2
Figure 2-3: Placing the UPS in Operate mode

Operation
HP Uninterruptible Power System T700 Models User Guide 2-5
HP CONFIDENTIAL Codename: Sherman7 Part Number: 215420-002 Last Saved On: 10/4/02 10:27 AM
Returning to Standby Mode
When the UPS is in Operate mode (the Utility LED is solid green), press and hold the
On/Standby button (2). The Utility LED (1) goes out and power to the loads ceases.
1
2
Figure 2-4: Placing the UPS in Standby mode
IMPORTANT:
• While in Standby mode, the UPS maintains the charge on the batteries, but no power is available
at the output receptacles.
• The UPS remains in Standby mode until an alternate mode is selected, or until utility power is
removed.
