Huawei UPS5000-A-200 Series User manual

1
Issue: 04
Part Number: 31508414
Date: 2019-06-28
UPS5000-A-200 kVA
Quick Guide
1
1Overview Copyright ©Huawei Technologies Co.,Ltd.2019. All rights reserved.
1Overview
UPS Model Capacity Weight Dimensions (H x W x D)
UPS5000-A-200K-ST 200 kVA 370 kg 2000 mm x 600 mm x 850 mm
UPS5000-A-200K-FT
UPS5000-A-200K-ST UPS5000-A-200K-FT
(1) Power units (2) Bypass unit (3) Control unit
(4) Power distribution
subrack cover (5) Maintenance bypass switch (6) Monitor display unit (MDU)
(7) Folder (8) Bypass input switch (9) Main input switch
(10) Output switch
The UPS5000-A-200K-ST is a standard configuration model. The UPS5000-A-200K-FT is a full
configuration model. A UPS in standard configuration has no mains input switch, bypass input
switch, or output switch.
NOTE

2
2Installing the UPS
1. Determine the position for installing the
cabinet. Mark mounting holes based on the
drawings (unit: mm).
2. Use a hammer drill to drill four holes for
installing expansion bolts and then install four
expansion bolts in the holes. Remove the bolt,
spring washer, and flat washer.
3. Slide the cabinet on its castors to the
installation position.
4. (Optional) If the castors of the UPS need to be
lifted from the ground, perform Step 1 to Step 2
in Non-Secured Installation.
5. Remove the rear panel of the cabinet, and then
open the front door.
6. Remove the four rubber plugs from the
bottom of the cabinet (two on the front and
two at the back).
7. Insert four M12x115 expansion bolts into the
expansion bolt holes in the floor, and tighten
the expansion bolts.
Secured Installation
1. Before installation, read the user manual carefully to get familiar with product information and
safety precautions.
2. Use insulated tools during installation and operation.
3. Only Huawei engineers or engineers certified by Huawei are allowed to install, commission,
and maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the
resulting UPS faults are beyond the warranty scope of Huawei.
4. This document describes how to install a single UPS. For details about how to install parallel
systems, contact Huawei technical support.

3
2. Check whether the bottom of the cabinet is
horizontal by using a level. If the cabinet is not
leveled, adjust the leveling feet.
1. Lower the four leveling feet at the bottom of the
cabinet by using a wrench until all the four
castors at the bottom hang in the air and the
leveling feet bear the whole cabinet weight.
3Connecting Cables
Non-Secured Installation
UPS Cable Connection Reference
3.1
•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may
ignite and cause personal injury or device damage.
•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets and
surrounding environment clean and tidy.
•You need to prepare terminals onsite. The stripped length of the copper wire should be the
same as that of the part of the terminal that covers the conductor.
The cabling route is for reference only. Connect cables based on site requirements.
NOTE
1. This document describes cable routing by removing the top cover when there are two mains
inputs.
2. In the case of single mains, you do not need to connect bypass input power cables and remove
short-circuit copper bars.

4
Connecting Cables to the UPS5000-A-200K-ST
1. Remove the small covers of the cabinet top.
Scenario 1: Routing Cables from the Top
2. Remove the cover from the power distribution
subrack.
The cover can be opened only if the
maintenance bypass switch is OFF.
NOTE
3.2
3. Remove the copper bars between mains
input terminals and bypass input terminals. 4. Connect the ground cable to the UPS.
In the preceding figure, circled wiring
terminals are primary ones and must
connect to the ground cable.
NOTE

5
6. Connect the output power cable.
5. Connect the mains and bypass input power
cables.

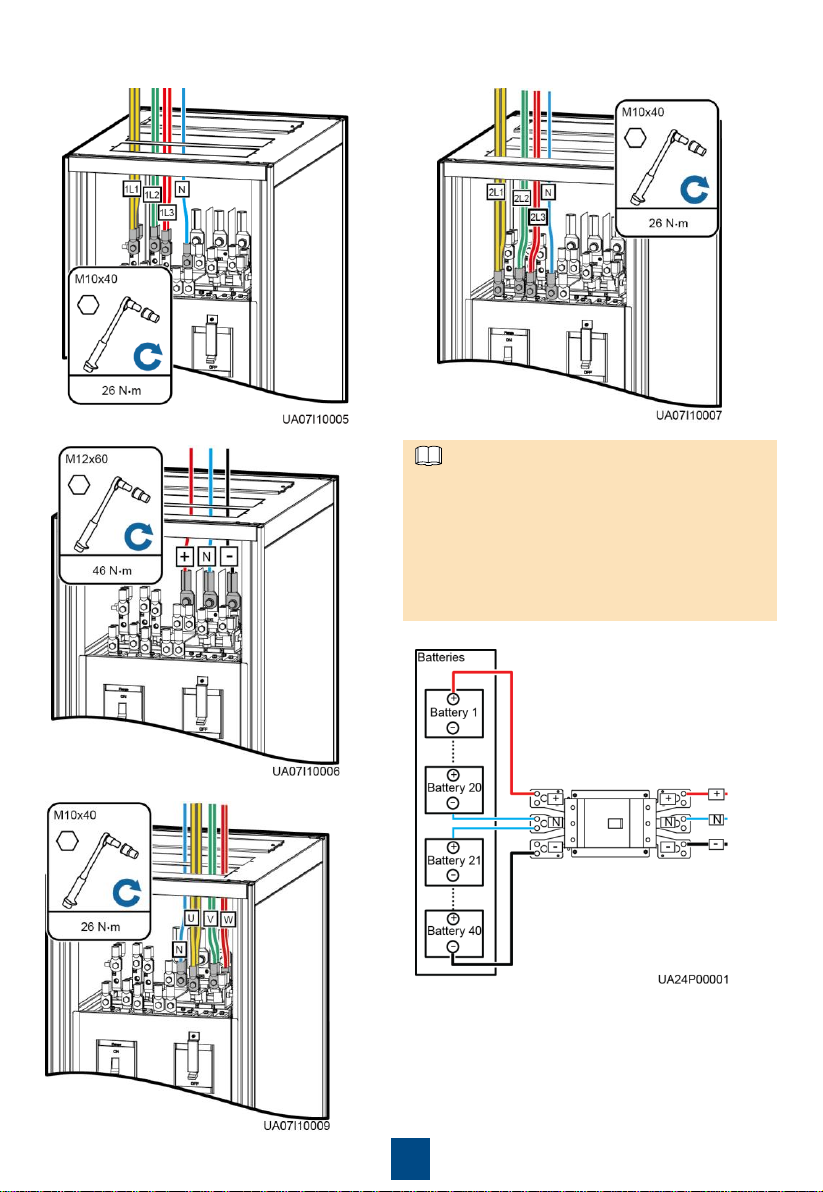

7. Connect the battery cable.
Route a neutral wire from the middle of the positive
and negative battery strings.
Take a battery string consisting of 40 batteries as
an example. A neutral wire is routed from the
middle of positive and negative battery strings,
each consisting of 20 batteries.
NOTE

6
8. Connect signal cables.
NOTE
The number and
color of signal
cables in the figure
are for reference
only. Signal cables
can be routed along
the left or right side
of the cabinet.
Route signal cables
based on the actual
situation.
NOTE
For the cable
connection method
for the TN-C system,
see the user manual.
Scenario 2: Routing Cables from the Bottom
1. Remove the cover from the power
distribution subrack.
2. Remove the copper bars between mains
input terminals and bypass input terminals.
3. Remove the cable cover for signal cables,
and remove small covers from the bottom
based on site requirements.
4. Connect power cables.
For the screw specifications and torque used
for connecting cables in a bottom cable
routing scenario, refer to the top cable
routing scenario. This section only shows the
cable routes in the bottom cable routing
scenario.
NOTE
5. Connect signal cables.
The number and color of signal cables in
the figure are for reference only. Signal
cables can be routed along the left or
right side of the cabinet. Route signal
cables based on the actual situation.
NOTE

7
2. Remove the cover from the power distribution
subrack.
Scenario 1: Routing Cables from the Top
1. Remove a certain number of small covers
from the top of the cabinet based on site
conditions.
4. Connect the ground cable to the UPS.3. Remove the copper bars between mains
input terminals and bypass input terminals.
Connecting Cables to the UPS5000-A-200K-FT
3.3

8
5. Connect the mains input power cable. 6. Connect the bypass input power cable.
7. Connect the battery cable.
Route a neutral wire from the middle of the
positive and negative battery strings.
Take a battery string consisting of 40
batteries as an example. A neutral wire
is routed from the middle of positive and
negative battery strings, each consisting of
20 batteries.
NOTE
8. Connect the output power cable.

9
9. Connect signal cables.
The number and color of signal cables in the
figure are for reference only. Signal cables can be
routed along the left or right side of the cabinet.
Route signal cables based on the actual situation.
NOTE
Scenario 2: Routing Cables from the Bottom
A cable entry cabinet needs to be installed when cables are
routed from the bottom. This document uses the cable entry
cabinet installed on the right of the UPS cabinet as an example.
For the cable entry cabinet installed on the left of the UPS
cabinet, refer to the user manual.
1. (Optional) Determine the installation position for the cable
entry cabinet, and draw mounting holes in the installation
position based on drawings.

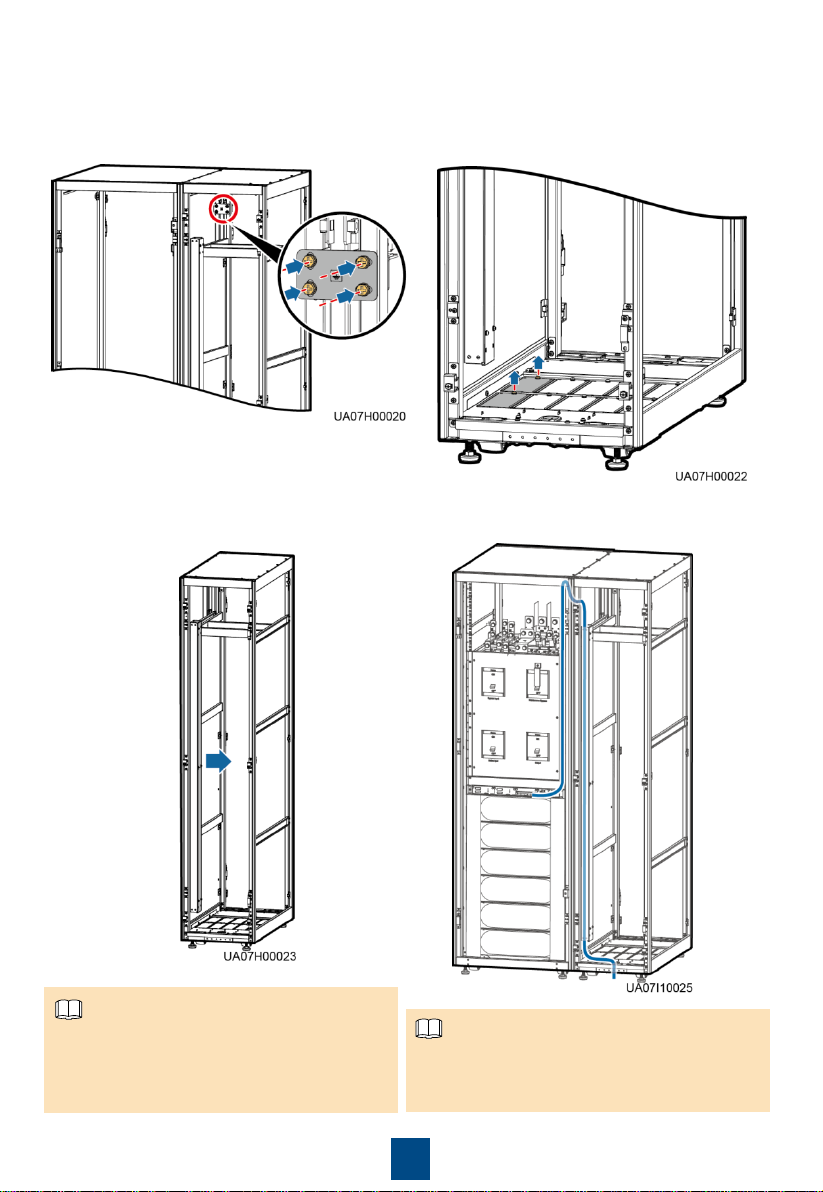

2. Remove the right and rear covers from the
UPS cabinet, and remove the front and rear
covers from the cable entry cabinet. Put away
the removed screws and covers.
3. Adjust the anchor bolts of the cable entry
cabinet to make it flush with the UPS cabinet.
4. Install equipotential plate mounting kits on the
same horizontal plane of the UPS cabinet and
cable entry cabinet.
5. Place the cable entry cabinet on the right of
the UPS cabinet.
6. Install the front and rear connecting kits.

10
7. (Optional) Secure the cable entry cabinet to
the ground.
8. Install an equipotential plate.
9. Remove a certain number of small covers
from the bottom of the cable entry cabinet
based on site conditions.
10.Remove the signal cable trough cover from
the cable entry cabinet. 11.Connect signal cables.
The figure shows the signal cable routing and
is for reference only. Connect the cable based
on the actual situation.
NOTE
If the cable entry cabinet is placed on the
left of the UPS cabinet, remove the cable
trough for signal cables and install it on the
right of the cable entry cabinet.
NOTE

11
12.Connect power cables.
For the screw specifications and torque used
for connecting cables in a bottom cable
routing scenario, refer to the top cable
routing scenario. This section only shows the
cable routes in the bottom cable routing
scenario.
NOTE
NOTE
For the cable connection method for the TN-C
system, see the user manual.
Verifying the Installation
4Verifying the Installation
(1) Cabinet top
(2) Wiring terminal blocks
(3) Switches
(4) Cabinet rear
Positions to be checked
1. Check that there is no foreign matter in the cabinet.

12
5Powering On and Starting the UPS
Powering On the UPS
5.1
2. After verifying the installation, reinstall all
the covers.
3. (Remove the paper protective film from the
sealing putty.) After routing cables and
verifying cable connections, seal the gap
between cables and the cabinet using
sealing putty. Dustproof cover
4. Do not remove the dustproof cover before
power-on to prevent dust inside the UPS.
Close the upstream bypass and mains input switches.
(Full configuration model) Close the UPS bypass input switch, output switch, and mains input switch.
After the UPS is powered on, initialization begins. The MDU displays the Huawei logo and an
initialization progress bar.
Sealing putty
Sealing putty must be used as a whole and
the gap can be sealed only from the top.
Paper
protective film
1. Before powering on the UPS, ensure that the UPS has passed all check items in the UPS5000
Commissioning and Acceptance Report and Chapter 4.
2. Measure the voltage and frequency of the UPS upstream input switch. The line voltage range is
138–485 V AC, and the frequency range is 40–70 Hz.

13
Starting the Inverter
5.2
System User LCD Preset Password WebUI Preset Password
admin (system administrator) 000001 Changeme
operator (common user) 000001 Changeme
Initial Startup
a) If this is the initial startup, set the language, time, date, network parameters, and system
parameters on the Settings Wizard screen.
b) After you set parameters on the Settings Wizard screen, the MDU displays the Bypass mode
and No battery alarms, which do not need to be handled. If there is any other alarm, you need
to rectify the fault.
c) View the system running status diagram on the MDU to check that the UPS is working in
bypass mode.

14
•The Service Expert app can be downloaded from Google Play and can run on Android.
•The port number is 443 by default and can be modified. If the UPS is managed using the app,
the port number must be set to 443.
NOTE
d) Start the inverter on the app.
Download the mobile phone app (Service Expert).
On the app home screen, tap StartUp to
access the Set Startup screen. Set the Site
and Device Type as required, and connect
the device. Enter the UPS IP and Port as well
as the user name and password of the WebUI
account, and tap Login.
Enable the mobile phone WLAN, search for
the UPS WiFi signal, and connect to the WiFi
signal. The default value of SSID is UPS_WIFI.
Insert the WiFi module into the USB port on
the MDU. Set System Info > Settings >
Comm Settings > WiFi Settings on the MDU.
The initial WiFi password is Changeme by
default.
After login, tap Power-on password
activation on the screen. A message is
displayed, indicating whether to start the UPS.
Tap OK.
Enter Bar code and Verification code
obtained from the MDU on the Offline
Activation screen. Tap Generate PWD to
generate a startup password.
On the MDU, choose System Info >
Maintenance > Inv. ON and obtain the Bar
code and Verification.
Enter the generated password in the
password textbox on the MDU to start the
inverter.
Use the app to
start the inverter
online?
Yes
No, start the
inverter
offline
Open the Service Expert app on the mobile
phone.
Open the Service Expert app on the mobile
phone.
On the home screen of the app, tap StartUp
to access the Set Startup screen. Set Site
and Device Type as required, and tap
Offline Activation.
Non-initial Startup
a. Choose Common Functions from the main menu and tap Inv. ON.
b. In the displayed login window, enter the user name and password, and tap .
c. In the displayed dialog box, tap OK to start the inverter.
To ensure system security, change the LCD and WebUI passwords
after the first login.
NOTE

15
6Shutting Down the UPS
After you shut down the inverter, the UPS transfers to bypass mode if the bypass is normal; the
UPS supplies no power if the bypass is abnormal. Before shutting down the UPS, ensure that all
loads have been shut down.
Powering Off a Single UPS
6.2
Open the downstream output switch and battery string switch.
(Full configuration model) Open the UPS mains input switch, bypass input
switch, and output switch.
Open the upstream mains input and bypass input switches.
(Optional) Setting Parameters for the BCB Box
5.4
Powering On Loads
5.3
1. After the inverter starts, the UPS works in normal mode. The Bypass mode alarm disappears
from the MDU.
2. After confirming that the battery strings are properly connected, turn on the battery string input
circuit breaker. If there are multiple battery strings, turn on the circuit breaker for each battery
string and then turn on the general circuit breaker between battery strings and the UPS. The No
battery alarm disappears from the MDU.
3. Turn on the UPS downstream output switch to supply power to the loads.
1. On the main menu of the LCD, choose Common Functions and tap Inv. OFF.
2. In the displayed login window, enter the user name and password, and tap .
3. In the displayed dialog box, tap Yes to shut down the inverter.
1. If a BCB box is configured, set MUE05A connection to Enable in Settings > Dry Contact Set,
and then set BCB connection [OL] and Battery breaker [STA] to Enable.
Shutting Down the Inverter to Transfer the UPS to Bypass Mode
6.1

16
Huawei Technologies Co., Ltd.
Huawei Industrial Base, Bantian, Longgang
Shenzhen 518129 People's Republic of China
www.huawei.com
Scan here for more documents:
You can also log in to Huawei technical support website:
http://support.huawei.com/enterprise
http://support.huawei.com
SupportSupport-E WeChat
Scan here for technical support (enterprise):
Scan here for technical support (carrier):
Huawei App Store
Huawei App Store
