Huawei B593s-31A Technical specifications

Product Description
B593s-LTE450M CPE B593s-31A V100R001
Product Description
Issue
02
Date
2013-08-05

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
2
Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service.
Please feel free to contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website:
http://www.huawei.com
Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
3
About This Document
Purpose
This document describes the main functions, supported services, and system
architecture of the HUAWEI B593s-31A Long Term Evolution (LTE)
Customer-Premises Equipment (CPE) V100R001 (B593s-31A for short).
This document is organized as follows.
Chapter
Description
1 Overview
Supported network modes, basic services and
functions, and appearance of the B593s-31A.
2 Product Features
Features and technical specifications of the
B593s-31A.
3 Services and Applications
Services provided by the B593s-31A.
4 System Architecture
System architecture of the B593s-31A.
5 Packing List
Items included with the B593s-31A.

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
4
Change History
Version
Change Description
Date
01
First release
2013-07-23
02
Modified by reviews
2013-08-05

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
5
Contents
1 Overview.........................................................................................................................................6!
2 Product Features .........................................................................................................................8!
2.1 Main Features................................................................................................................................................. 8!
2.2 Technical Specifications ............................................................................................................................... 8!
2.2.1 Hardware Specifications ..................................................................................................................... 8!
2.2.2 Antenna Specifications...................................................................................................................... 10!
2.2.3 Software Specifications ..................................................................................................................... 11!
3 Services and Applications.......................................................................................................13!
3.1 Data Services ............................................................................................................................................... 13!
3.2 Voice Services.............................................................................................................................................. 14!
3.3 USB Sharing Services................................................................................................................................. 14!
3.4 Security Services ......................................................................................................................................... 15!
3.4.1 Firewall................................................................................................................................................. 15!
3.4.2 User Authentication............................................................................................................................ 15!
3.4.3 PIN Protection..................................................................................................................................... 15!
3.5 Maintenance and Management ................................................................................................................. 16!
4 System Architecture .................................................................................................................17!

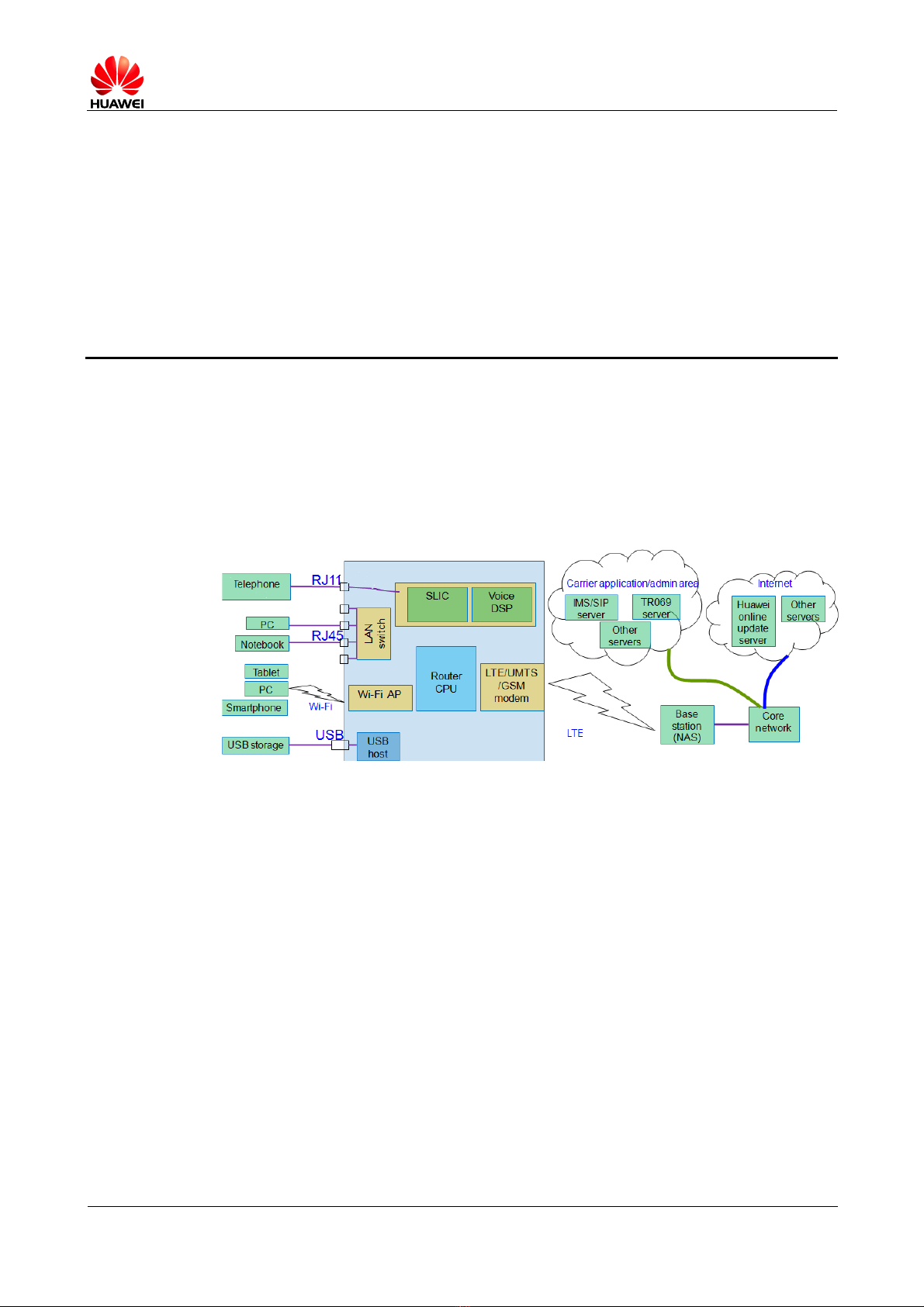

4.1 System Architecture Diagram .................................................................................................................... 17!
4.2 Functional Modules...................................................................................................................................... 17!
5 Packing List.................................................................................................................................19!

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
6
1 Overview
As a LTE CPE device, the B593s-31A enables home users to get access to wireless
and wired networks. The B593s-31A supports the following frequency bands:
!LTE
−Frequency division duplex (FDD): 450M MHz (Band31)
The B593s-31A can work in any of the following network standards:
!LTE
The B593s-31A provides the following services and functions:
!Data services
!Voice and Fax services
!USB Sharing services
!Security functions
!Maintenance and management

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
7

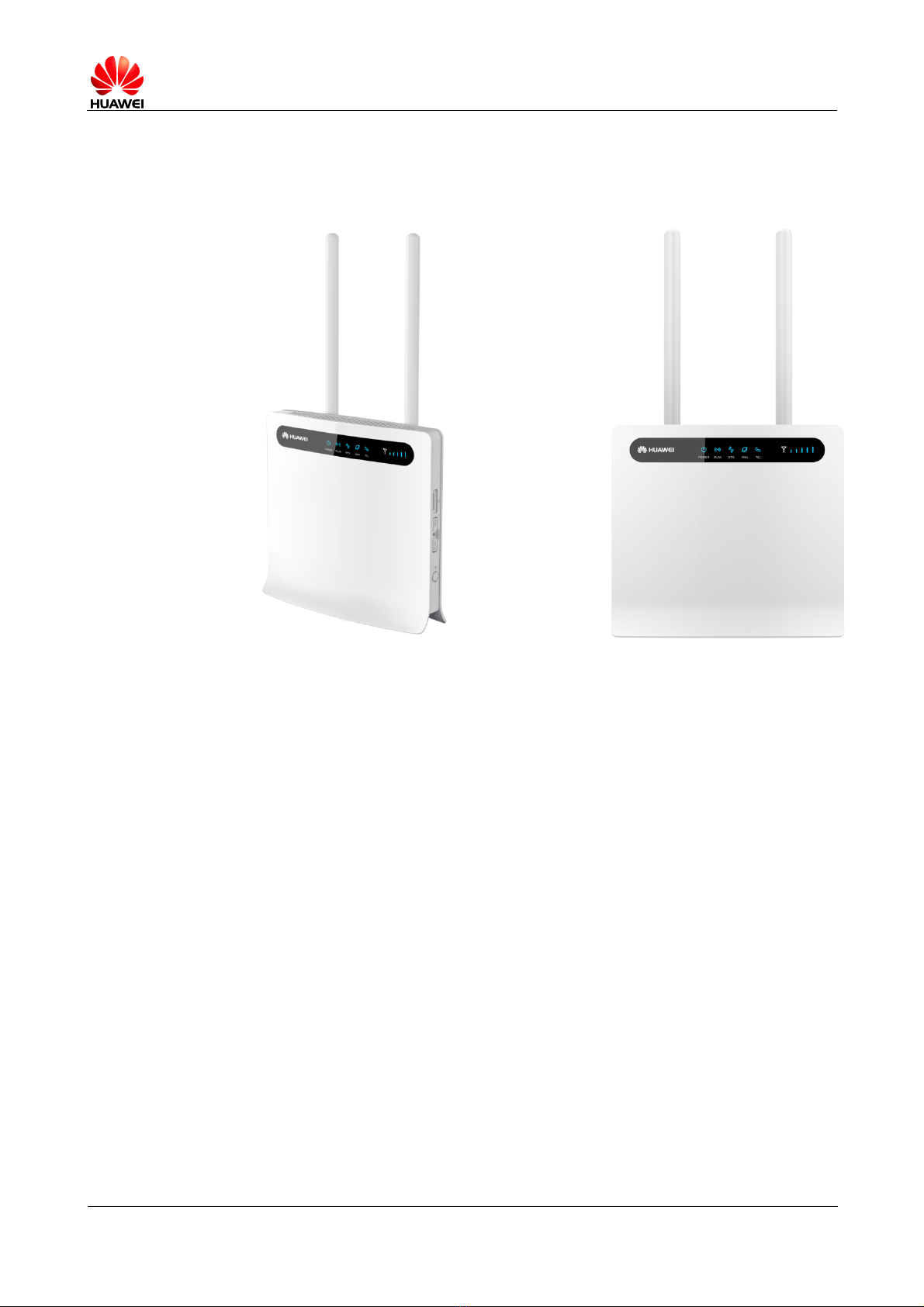

Figure 1-1 shows the appearance of the B593s-31A.
Figure 1-1 B593s-31A appearance

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
8
2 Product Features
2.1 Main Features
The following lists the main features of the B593s-31A:
!Access to LTE wireless networks
!LTE downlink packet data service at a maximum transmission rate of 35 Mbit/s
!LTE uplink packet data service at a maximum transmission rate of 10 Mbit/s
!IEEE802.11b/g/n
!Functioning as a Dynamic Host Configuration Protocol (DHCP) server and
supporting Network Address Translation (NAT)
!Security functions
!IPv4v6 dual stack
!Wi-Fi
!Wi-Fi protected setup (WPS)
!VoIP and Fax over IP
!Windows XP, Windows Vista, Windows 7, Windows 8, and Mac OS X 10.6, 10.7,
and 10.8
!USB 2.0 host port
!Personalized light emitting diode (LED) indicators
2.2 Technical Specifications
2.2.1 Hardware Specifications
Table 2-1 lists the hardware specifications of the B593s-31A.
Table 2-1 Hardware specifications
Item
Description
Technical
standards
WAN: LTE
LAN: IEEE 802.3/802.3u

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
9
Item
Description
WLAN: IEEE 802.11b/g/n
Working bands
LTE:
!FDD: 450 MHz (Band31)
WLAN: 2400–2483.5 MHz
Memory
512 MB NAND Flash
256 MB Double Data Rate (DDR) Synchronous Dynamic
Random Access Memory (SDRAM)
External ports
One power port
One telephone ports (RJ11)
Four LAN ports (RJ45)
One USB 2.0 host port
One Universal Subscriber Identity Module (USIM) card port
Two external antenna ports
Buttons
One power button
One WLAN button
One WPS button
One reset button
LED indicators
One power indicator
One WLAN indicator
One WPS indicator
One telephone indicator
One WAN indicator
Five signal strength indicators
Four LAN indicators
Maximum
transmit power
LTE: Conform to Power Class 3 Definition
WLAN
802.11b: 16 dBm
802.11g: 16 dBm
802.11n: 13 dBm
Receiving
sensitivity
LTE: Confirm to 3GPP Requirements
WLAN
802.11n: –64 dBm at 65 Mbit/s
802.11g: –65 dBm at 54 Mbit/s

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
10
Item
Description
802.11b: –76 dBm at 11 Mbit/s
Power
consumption
< 20 W
Power supply
DC: 12 V/2 A
Dimensions (H x
W x D)
176 mm ×190 mm ×35 mm (6.93 in. x 7.48 in. x 1.38 in.)
Weight
About 500 g (power adapter excluded)
Temperature
Working temperature: 0°C to +40°C
Storage temperature: –20°C to +70°C
Humidity
5%–95% RH
2.2.2 Antenna Specifications
Built-in Antenna
Table 2-2 Specifications of the WLAN antenna
Item
Description
Frequency range
2400–2483.5 MHz
Input impedance
50 Ω
SWR
< 3
Efficiency
> 50%
Gain
< 1.5 dBi
Polarization type
Linear polarization
External Antenna
Table 2-3 Specifications of the LTE external antenna at 450 MHz to 470 MHz
Item
Description
Frequency range
450–470 MHz
Input impedance
50 Ω
SWR
< 3
Efficiency
> 40%
Gain (H-plane)
>-1 dBi

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
11
Item
Description
Polarization type
Linear polarization
2.2.3 Software Specifications
Table 2-4 lists the software specifications of the B593s-31A.
Table 2-4 Software specifications
Item
Description
Gateway
Supports the default route, namely, the route with the IP
address 0.0.0.0.
Supports the Address Resolution Protocol (ARP).
Supports the Internet Control Message Protocol (ICMP).
Supports the domain name service (DNS).
NAT
Supports NAT and Network Address and Port
Translation (NAPT), which complies with
RFC2663, RFC3022, and RFC3027.
Supports fragmented message identification
during common NAT.
DHCP server
Enables and disables the DHCP server.
Configures DHCP server address pools.
Sets the lease time.
Displays the status of the DHCP server
address pools, including host names, Media
Access Control (MAC) addresses, IP
addresses, and remaining lease time.
Firewall
Enables and disables the firewall.
Filters LAN MAC addresses.
Filters LAN IP addresses.
Filters URLs.
Supports port forwarding.
Supports demilitarized zone (DMZ).
Supports Universal Plug and Play (UPnP).
Supports Application Level Gateway (ALG) settings.
LAN
Supports 10/100 Mbit/s autonegotiation.

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
12
Item
Description
Supports auto MDI/MDIX.
MDI stands for Medium Dependent Interface, and MDIX stands
for Medium Dependent Interface Crossover.
Complies with IEEE 802.3 and IEEE 802.3u.
WLAN
Broadcasts and hides service set identifiers (SSIDs).
Complies with IEEE 802.11b/g/n.
Supports WPS.
Authentication
Supports OpenSystem authentication.
Supports encryption using wired equivalent
privacy (WEP), Wi-Fi protected access
preshared key (WPA-PSK), and WPA2-PSK
keys.
Supports the Temporal Key Integrity Protocol
(TKIP) encryption algorithm.
Supports the Advanced Encryption Standard
(AES) encryption algorithm.
Supports the TKIP and AES hybrid encryption
algorithm.
MAC address
authentication
Supports the MAC address authentication
whitelist.
Supports the MAC address authentication
blacklist.
Supports a maximum of 16 MAC address
entries.
Supports automatic transmission rate adjustment.
Station
management
Supports station status queries.
Supports a maximum of 32 connected
stations.
System
requirements
Operating system: supports Windows XP, Windows Vista,
Windows 7, Windows 8, and Mac OS X 10.6, 10.7, and 10.8.
Hardware configuration: meets the configuration requirements
of the operating system.

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
13
3 Services and Applications
3.1 Data Services
By connecting to the B593s-31A over a wireless or wired network, users can get
access to high-speed Internet services.
The B593s-31A can simultaneously set up wireless connections with 32 Wi-Fi devices
and establish a local area network (LAN) by connecting to concentrators and
switches.

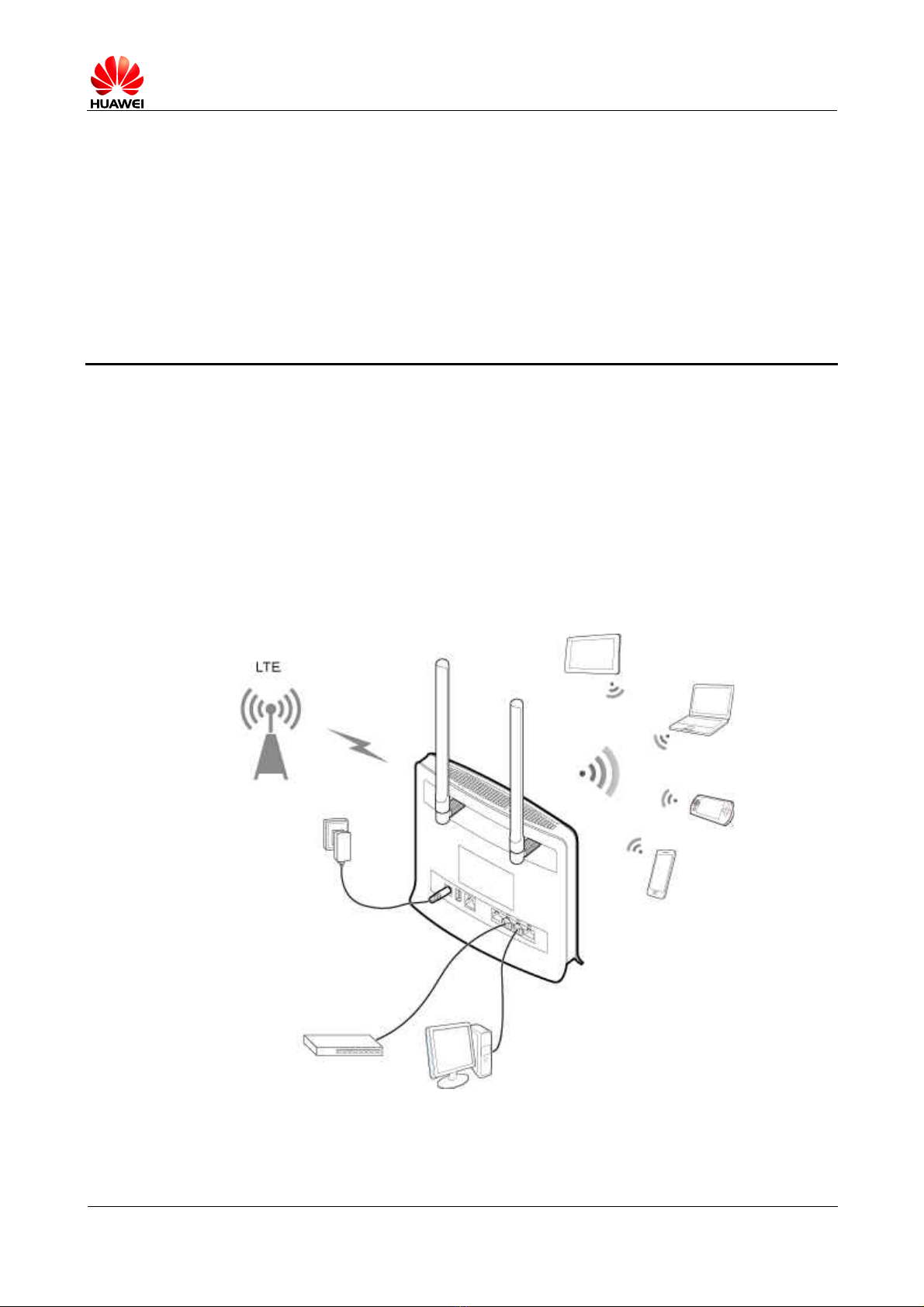

Figure 3-1 B593s-31A connected to multiple devices

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
14
3.2 Voice Services
The B593s-31A provides one telephone port to which users can connect telephones
to implement basic VoIP voice functions or connect fax machines to use fax over IP
services.

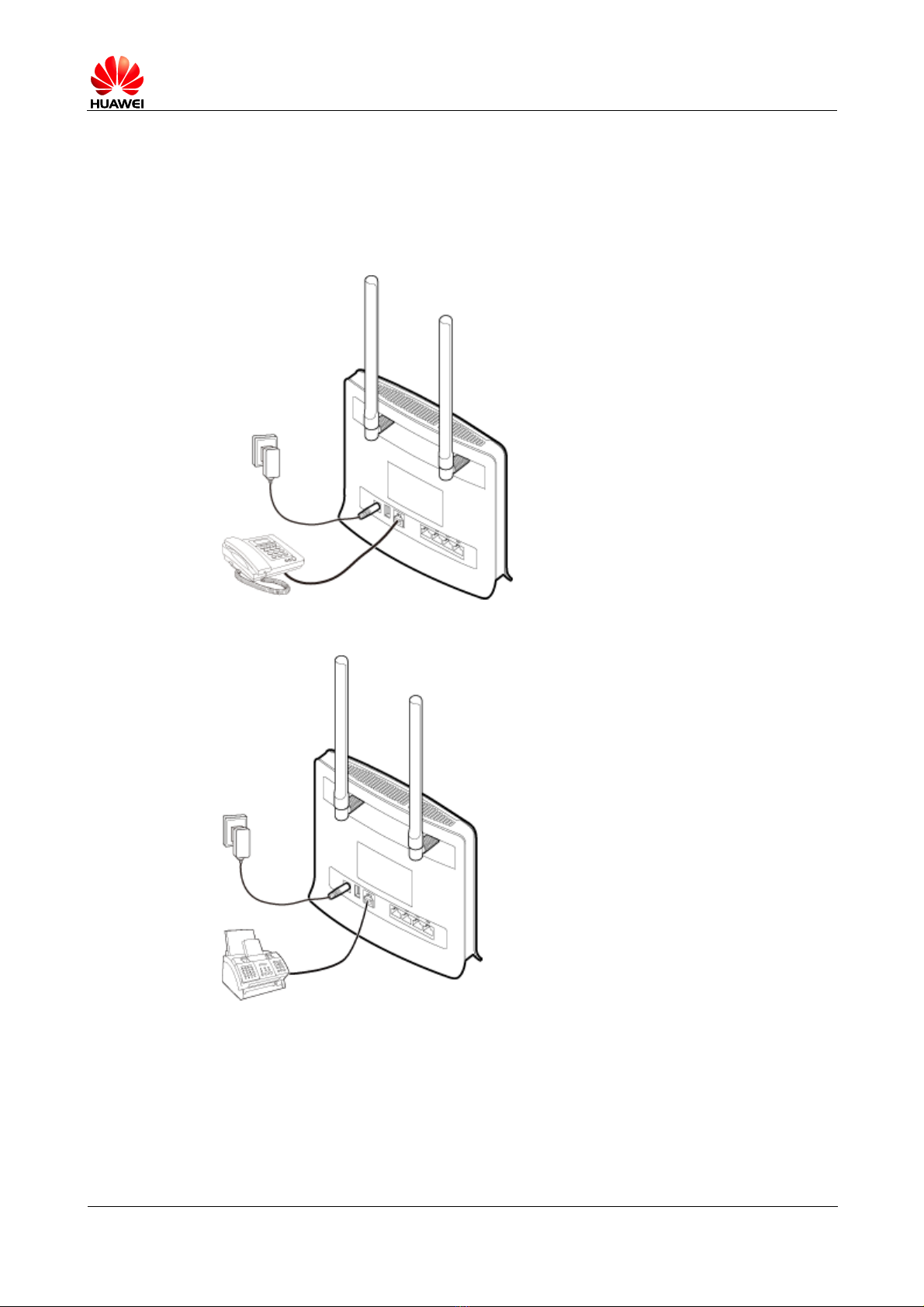

Figure 3-2 B593s-31A connected to telephones
Figure 3-3 B593s-31A connected to a fax machine (optional)
3.3 USB Sharing Services
With one USB port, the B593s-31A can function as a file sharing center. Users can
connect a USB storage device to the USB port on the B593s-31A to save and share
files. Only FAT/FAT32 format USB storage device are supported.

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
15

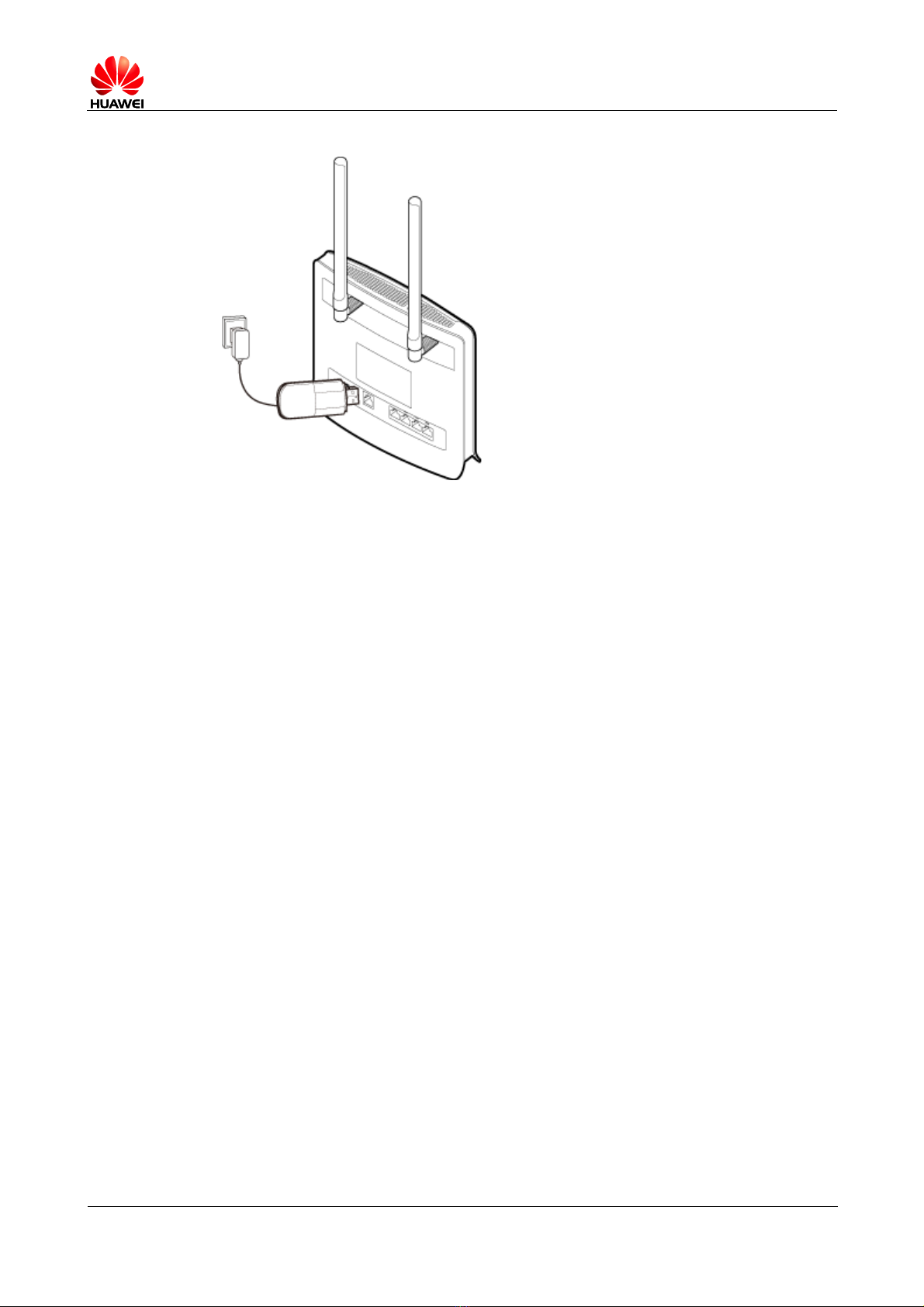

Figure 3-4 B593s-31A connected to a USB storage device
3.4 Security Services
The B593s-31A offers security features, such as network firewalls, user authentication,
and personal identification number (PIN) protection, to protect users from network
security threats.
3.4.1 Firewall
The B593s-31A has the following firewall functions:
!Firewall switch: Enable and disable the firewall.
!LAN MAC address filtering: Prevent specified MAC addresses on a LAN from
accessing the network.
!LAN IP address filtering: Prevent specified IP addresses on a LAN from
accessing the network.
!URL filtering: Prevent computers on a LAN from visiting specified URLs.
3.4.2 User Authentication
The B593s-31A complies with the following user authentication protocols:
!WEP
!WPA-PSK
!WPA2-PSK
3.4.3 PIN Protection
If PIN protection is enabled, after the B593s-31A restarts, users must enter the correct
PIN each time they log in to the web management page.

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
16
3.5 Maintenance and Management
The B593s-31A allows users to locally and remotely manage connected devices,
complete network settings, and check the device status to ensure consistent
performance.

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
17
4 System Architecture
4.1 System Architecture Diagram
Figure 4-1 shows the B593s-31A system architecture.
Figure 4-1 B593s-31A system architecture
4.2 Functional Modules
!LTE modem
−Processes baseband and radio frequency (RF) signals for LTE standards, for
example, modulates and demodulates LTE baseband signals and encodes
and decodes LTE channels.
−Sends and receives radio signals.
−Modulates and demodulates radio and baseband signals.
!Router CPU
Transmits data and voices from the wireless metropolitan area network (WMAN)
to the LAN.
!Voice digital signal processor (DSP) and Subscriber Line Interface Circuit (SLIC)
Provides voice and fax services.
!LAN switch
Transmits data over Ethernet ports.

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
18
!Wi-Fi access point (AP)
Enables wireless devices to connect to a LTE network using Wi-Fi or related
standards.
!USB 2.0 host port
Connects a USB storage device to the B593s-31A.

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
19
5 Packing List
Table 5-1 lists the items included with the B593s-31A.
Table 5-1 Items in the B593s-31A package
Item
Quantity
Remarks
LTE CPE
1
Mandatory
Power adapter
1
Mandatory
Quick Start
1
Mandatory
Safety Information
1
Mandatory
Ethernet cable
1
Mandatory
USB cable
1
Mandatory
External antenna
2
Mandatory

B593s-31A V100R001 Product Description
Issue 02 (2013-08-05)
Commercial in Confidence
20
A Acronyms and Abbreviations
Numerics
3G
The Third Generation
A
AC
Alternating Current
AES
Advanced Encryption Standard
ALG
Application Level Gateway
ARP
Address Resolution Protocol
AP
Access Point
APN
Access Point Name
C
CPE
Customer-Premises Equipment
D
DDR
Double Data Rate
DHCP
Dynamic Host Configuration Protocol
DL
Down Link
DMZ
demilitarized zone
DNS
domain name service
E
EDGE
Enhanced Data Rates for GSM Evolution
F
FDD
frequency division duplex
I
ICMP
Internet Control Message Protocol
IP
Internet Protocol
