Huazheng HZGC3521 Series User manual

TT Model No：HZGC3521 Series
Product Name：Three-phase energy meter field
calibrator
TT
TT
TT HZGC3521 Series
Manual

--- ---
1
Three-phase energy meter field calibrator
Introduction
TTThank you for using Our company HDGC energy meter field calibrator product.
TTThe handheld three-phase energy meter field calibrator is a series of Our company’s products,
and is a product integrated with low-voltage energy meter calibrator and low-voltage metering
device calibrator. It can not only measure high-voltage energy meter and wiring, but also measure
the integrated error of low-voltage measuring devices, as well as TA transformation ratio, TV and
TA secondary load. Such an instrument is equivalent to several instruments.
TTBefore this product is used for the first time, please be sure to carefully read all the
information accompanied with the instrument, which will help you make better use of the product.
If you fail to operate this product according to the instructions and requirements of this manual, or
misuse the product due to misunderstanding and other reasons, Our company will not be liable for
any loss arising from this.
TT Our company has strictly and carefully proofread the manual, but we can not guarantee that
there are no errors and omissions completely in the manual.

--- ---
2
Three-phase energy meter field calibrator
TT Our company is committed to making continuous improvement in product functions, and
improving service quality, so the company remains the right to change any products and software
programs described in this manual as well as the content of this manual without prior notice.
TTThe purpose of this manual is to help you correctly use Our company product, but does not
mean any description of the hardware and software configuration of the product. For the product
configuration, please refer to the relevant contract of the product (if any), or contact Our company.
The pictures in this manual are for reference only, and if individual pictures do not match with the
actual product, the actual product shall prevail.
TTIf you find that the actual situations of this product are inconsistent with with the manual in the
course of use, and if you have any questions and ideas, or want to get the latest information,
please call us.

--- ---
3
Three-phase energy meter field calibrator
Catalog
1. Hardware description............................................................................................................................ 6
1.1 External Structure of Calibrator...........................................................................................6
1.2 Introduction to top panel structure.....................................................................................7
1.3 Introduction to right panel structure.................................................................................8
1.4 Back Introduction......................................................................................................................... 9
1.5 Parts List..................................................................................................................................... 10
2. Getting Started.................................................................................................................................... 12
2.1 Introduction to main functions............................................................................................. 12
2.2 Main features............................................................................................................................... 13
2.3 Operating Precautions............................................................................................................... 16
2.4 Operating procedures for the instrument...........................................................................18
2.5 Connection..................................................................................................................................... 19
2.6 Introduction to the main screen........................................................................................... 25
2.7 Description of Function Keys................................................................................................. 30

--- ---
4
Three-phase energy meter field calibrator
2.8 Mode of power supply................................................................................................................. 33
2.9 Charging......................................................................................................................................... 35
2.10 Adjustment of LCD Contrast................................................................................................... 37
2.11 Input and delete characters................................................................................................. 37
3. Methods of Use of Functions............................................................................................................41
3.1 Calibration information settings.........................................................................................41
3.2 Check the active and reactive power of energy meter at the same time................ 46
3.3 Measure the comprehensive error of energy meter...........................................................48
3.4 Clip-on ammeter Self-checkinginging...................................................................................49
3.5 Transformation ratio measurement.........................................................................................52
3.6 Analysis of search line........................................................................................................... 55
3.7 Harmonic Analysis..................................................................................................................... 59
3.8 System management....................................................................................................................... 62
3.9 User................................................................................................................................................. 68
3.10 Indicating character measurement.......................................................................................70
3.11 Inquire calibration plan....................................................................................................... 71
3.12 View Waveform............................................................................................................................. 74

--- ---
5
Three-phase energy meter field calibrator
3.13 Communications........................................................................................................................... 76
3.14 Storage......................................................................................................................................... 77
3.15 Query............................................................................................................................................. 79
3.16 About the pilot test measurement.....................................................................................81
4. Frequently Asked Questions..............................................................................................................84
5. Instrument Maintenance...................................................................................................................... 87
6. After-sales service............................................................................................................................ 88
7. Appendix.................................................................................................................................................. 89

--- ---
6
Three-phase energy meter field calibrator
1. Hardware description

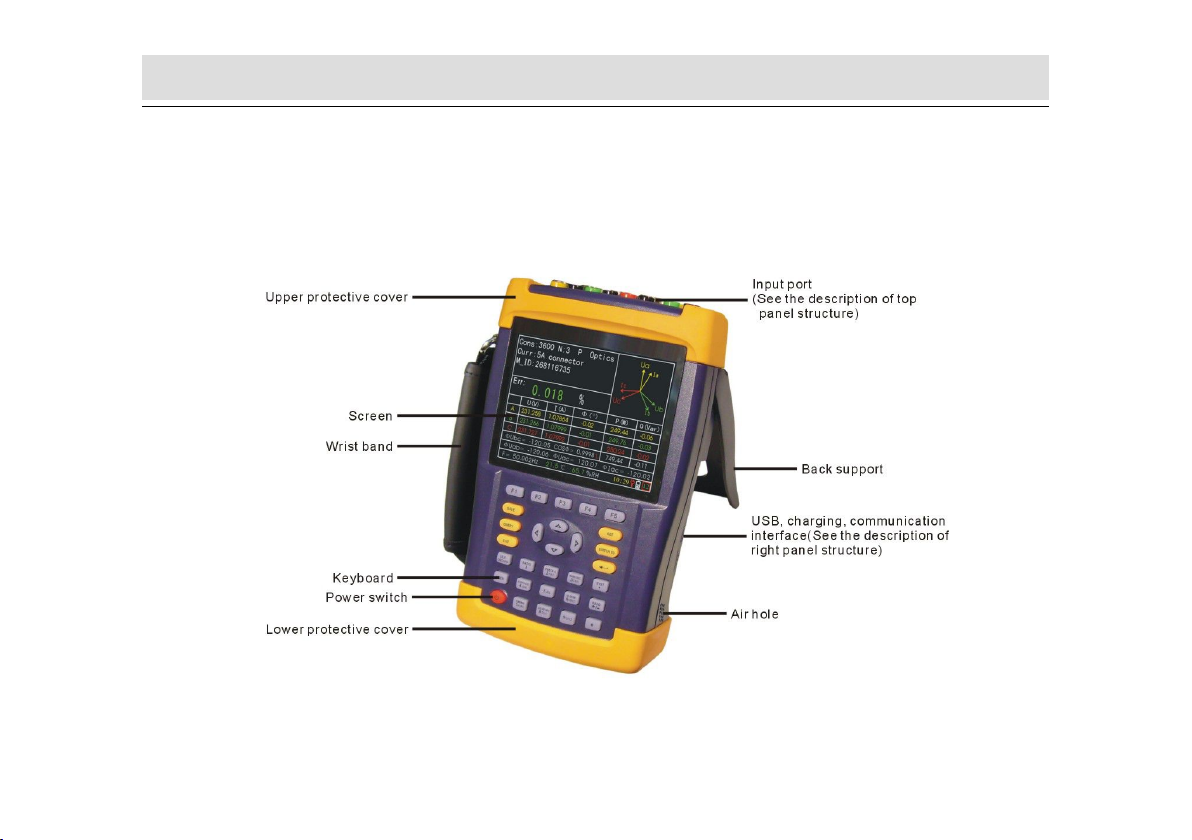

1.1 External Structure of Calibrator

--- ---
7
Three-phase energy meter field calibrator

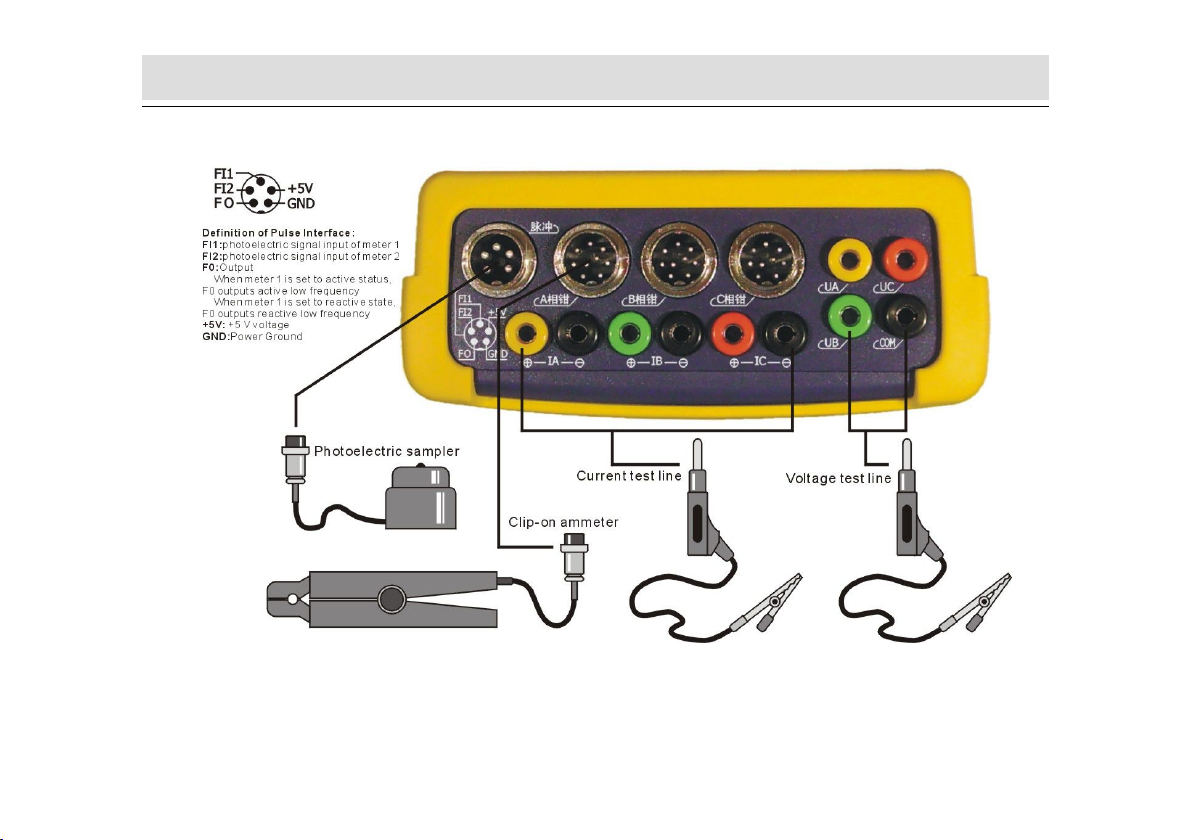

1.2 Introduction to top panel structure

--- ---
8
Three-phase energy meter field calibrator
1.3 Introduction to right panel structure

--- ---
9
Three-phase energy meter field calibrator
1.4 Back Introduction

--- ---
10
Three-phase energy meter field calibrator
1.5 Parts List
Name
Quantity
Remark
TTthree-phase energy meter
field calibrator
1 set
Standard configuration
TTTest line
1 set
Standard configuration（Voltage, current
test line）
Photoelectric sampler
1 Pcs
Standard configuration
5A clip-on ammeter
3 Pcs
Standard configuration（each for A, B
and C phase）
TTPulse acquisitionTT TTlineTT
1 Pcs
Standard configuration
Manual
1 Pcs
Standard configuration
Factory inspection TTreport
1 copy
Standard configuration
TTEnergy meterTT TTcalibration
systemTT TTmanagement
software
1 set
Standard configuration（CD）

--- ---
11
Three-phase energy meter field calibrator
TTTerminalTT TTCharging
CableTT
1 Pc
Standard configuration
TTVoltage, currentTT TTalligator
clip
10 Pcs
Standard configuration（10 Pcs）
Instrument package
1 Pcs
Standard configuration
PC communication line
1 Pcs
Standard configuration
Power adapter
1 Pcs
Selective configuration
U disk
1 Pcs
Selective
Infrared communication
connector
1 Pcs
Selective
100A clip-on ammeter
3 Pcs
Selective（each for A, B and C phase）
500A clip-on ammeter
3 Pcs
Selective（each for A, B and C phase）
1000A clip-on ammeter
3 Pcs
Selective（each for A, B and C phase）
Multifunctional meter read head
1 Pcs
Selective
Miniprinter
1 set
Selective
Hand switch
1 Pcs
Selective

--- ---
12
Three-phase energy meter field calibrator
2. Getting Started
2.1 Introduction to main functions
TTCheck the energy error of all mechanical and electronic energy meters, and can check the
main and auxiliary meter in the same circuit or the active and reactive meter in the same
circuit at the same time; check all energy meter constants;
TTMeasure TA transformation ratio;
TTMeasure field elecTTtrical parameters and indicators of each phase (U, I, P, Q, Φ, F);
TTMeasure TTthe indicating errors of various energy meters;
Measure current and voltage harmonics, and support the measurement of 51 harmonics;
Measure current and voltage waveforms;
U disk upgrading system, download the calibration data to achievTTe paperless office;
TTUse T9 Chinese input method commonly used in mobile phones, extremely easy to input
Chinese characters;
TTDetect automatically the changes in the clip-on ammeter errors (only for 8800 function);
TTSupport the measurement of small current (support <5mA current testing, and facilitate the
initial installation and test of measuring devices;
TTRead multifunctional energy meter data;

--- ---
13
Three-phase energy meter field calibrator
TTMore complete wrong wiring recognition functions, and IB access and reverse connection
of TV, TA polarity can be recognized;
TTThe instrument power is supplied with battery and test circuit, and can be online charged.
2.2 Main features
TTCheck the error of active and rewatt-hour meter at the same time, and meanwhile check
the error of main and secondary meter in the same circuit.
TTCheck the voltage, current, power, power factor, phase and frequency and other electrical
instruments and transmitters by contrast method.
TTIdentify 48 common three-phase three-wire, and 96 three-phase four-wire connection
errors in four quadrants, and show the hexagon diagram of any connection.
TTClip-on ammeter self-calibration function can guarantee the long-term accuracy stability of
clamp transformers. The self-test between any two phases ensures the long-term accuracy
stability of the instrument.
TTto 51 three-phase voltage and current harmonics can be measured, and all harmonic data
can be stored.
TTDisplay three voltage and current waveforms at the same time.
TTMeasure TV, TA secondary load.
TTStore all measurement data of 6,000 meters, including operating parameters, to facilitate
subsequent analysis.

--- ---
14
Three-phase energy meter field calibrator
TTSupport U disk: download calibration data through U disk, and serial port upgrading
software.
TTCommunicate with the PC, very easy to interface with the original database and
management system. HDGC Meter Management System software can be equipped to
realize paperless office.
TTHigh-brightness, high-definition, high-resolution 5.7 "(320 * 240) TFT color LCD display.
TTChinese character input.
TTWide range of power supply AC 57.7 ~ 480V, and an internal battery can supply power (no
external battery charger for charging) double selection.
TTThe system uses a high-speed high-precision digital multiplier, which can measure active
(reactive) power, voltage, current, frequency, phase, and all other parameters at the same
time, and can correct all the parameters by software.
TTThe instrument has no potentiometer, which can completely prevent instrument error from
changing caused by transport and other outside factors, thus greatly improving the system
stability and reliability.
TTThe system uses domestic pioneering digital true reactive measurement technology.
Reactive measurement can be truly affected by the voltage and current, phase asymmetry,
frequency change and others, so the reactive accuracy is raised to 0.1% for the first time in

--- ---
15
Three-phase energy meter field calibrator
the country.
TTEnsure the accuracy of electric energy (0.1% or 0.05%) in the temperature range of -20 ℃
~ +40 ℃.
TTFour-quadrant energy measurement.
TTEquipped with class-0.2 5A clamp (the opening and closing non-repetitive errors, contact
error, external magnetic field interference error, and angle error and others have been
included).
TTEquipped with 20A, 100A, 500A, 1000A clamp, directly measure integrated low-voltage
measurement error, and matching with 5A clamp, directly measure TA transformation ratio.
TTAutomatic voltage transmission AC 30 ~ 480V, and 5A current direct input.
TTFor each connection, show the hexagon diagram after the error is identified, for the training
of hexagonal diagram search line.
TTProvide error correction function to facilitate the error calibration (password required).
TTHigh-precision plastic mold chassis design, light and beautiful.

--- ---
16
Three-phase energy meter field calibrator
2.3 Operating Precautions
TTWarning: This instrument is a live working device, so for your safety, please observe
the relevant provisions of state work safety, and operate in strict accordance
with the operating instructions to field calibration of power metering devices.
TTDo not clip the pulse line clamp to voltage terminal of energy meter, otherwise it will
damage the instrument;
TTDo not insert the voltage terminal line into the current terminal port, otherwise it will damage
the instrument;
TTDo not insert the current terminal line into the voltage terminal port, otherwise it will damage
the instrument;
TTSelect correctly working power supply (Note: the power range is AC57.7V ~ 480V);
TTSelect correctly current range, and the current range generally does not exceed 220% of
the rating;
TTWhen measuring three-phase three-wire, B-phase voltage must be connected to the
common COM of voltage terminals;
TTEach clip-on ammeter connects to the positive and negative terminal: "+" terminal is the

--- ---
17
Three-phase energy meter field calibrator
current input, and "-" terminal is the current output, which can not be wrong;
TTClip-on ammeter colors represent different phases: Yellow-A phase, Green-B phase, and
Red-C phase;
TTA different phase of clip-on ammeter will not be used interchangeably, otherwise it will affect
the measurement accuracy;
TTWhen measuring three-phase three-wire, B-phase voltage line and current can not connect
to the instrument, so as not to affect the measurement accuracy;
TTAs 8800 built-in power is supplied by the voltage terminal, 8800 is used on the calibration
console, and select the instrument batteries or external power supply, so as not to affect the
voltage output of the calibration console.

--- ---
18
Three-phase energy meter field calibrator
2.4 Operating procedures for the instrument
TTThe instrument in use is operated in strict accordance with the operating procedures.
TTStart the instrument power supply→ connect the instrument test line → connect the test line
and clip-on ammeter at the end of energy meter → set test parameters→ check→ remove the test
line at the end of energy meter →close the instrument →remove the test line at the end of the
instrument.
TTNote: Clip-on ammeter "+" is the current input, and "-" is the current output; the middle
colors of the clip-on ammeter represent different phases: Yellow-A phase, Green-B phase,
and Red-C phase.

--- ---
19
Three-phase energy meter field calibrator
2.5 Connection
TT2.51 Method for checking the connection of three-phase three-wire energy meter:
TTWhen determining the three-phase three-wire energy meter, the instrument’s Ua, Uc, and
COM voltage terminal connect to theTTTT measureHDGCTTT energy meter’s Ua, Uc, Ub, respectively,
and the instrument’s A, C phase current terminal connect to the energy meter’s Ia, Ic (B phase
voltage, current line do not connect to the instrument); the pulse input device connects to the
energy meter’s optoelectronic socket.
TTAs shown below:
