Huazheng ES9020 User manual

ES9020
The Intelligent lightning
Protection Component Tester
User Manual
Huazheng Electric Manufacturing (Baoding) Co., Ltd

Dear use r:
Thank you for choosing ES 90 20 Th e Int elligent lightn ing Protec tion
Component Tester.
We hope that this instrument can make you r work easier and more
enjoyable, so that you can get the feel ing of office automation in the test
and ana ly si s work.
Before usin g the inst ru me nt , ple as e read this manual, and operate and
maintain the instru ment accord in g to the manual to prolong its service life.
"Just a light press, the test wil l be complete d aut omatically" is the
operating chara ct eristi cs of this inst rument .
If you are satisfied with this instrum ent, please tell your colle ag ue s;
if you ar e not sa tisfied with this inst ru ment, please ca ll [phone] to
tell you to serve you at all times-Baoding Huazheng Electric Manufact urin g
Co. , Ltd., our company will definitely mak e you satisfied !

Contents
I,Safety Precautions and Procedures................................................................................... 1
II.Introduction............................................................................................................................ 2
III. Rang and Accuracy........................................................................................................... 2
IV .Technical Specifications....................................................................................................3
V. Structure...............................................................................................................................5
VI.Operation Method.............................................................................................................. 6
VII.Battery Description.........................................................................................................9
VIII. Accessories...................................................................................................................... 9

1
I,Safety Precautions and Procedures
Thank you for purchasing our company's Intelligent Lightning Protection Component
Tester. Before using the instrument for the first time, in order to avoid possible
electric shock or personal injury, please be sure to read and strictly observe the
safety rules and precautions listed in this manual.
In any case, the use of this instrument should pay special attention to safety.
The instrument is designed, produced and inspected according to IEC61010
safety specifications.
In any case, the use of this instrument should pay special attention to
safety.
When measuring, high-frequency signal generators such as mobile phones
should not be used next to the meter to avoid errors.
Pay attention to the text and symbols on the body of the instrument.
Before use, make sure that the instrument and accessories are in good
condition. The insulation layer of the instrument and test wire is not damaged,
exposed or broken.
During the measurement, it is forbidden to touch exposed conductors and the
circuit being measured.
Make sure the connection plug of the wire is tightly inserted in the meter
connector.
Do not measure in flammable places, sparks may cause explosion.
When the instrument is in use and the enclosure or test wire is broken and the
metal is exposed, please stop using it.
Do not place and store the instrument for a long period of time under
conditions of high temperature, humidity, condensation, and direct sunlight.
²When charging the battery, make sure the test line has been removed from
the meter and the meter is off.
² The meter displays the battery voltage low symbol “ ” and should be
charged in time, otherwise it will cause an error.
² Do not measure when th e battery cov er is op en and when thunderin g
Pay attention to the measuring range and use environment
specified by this instrument.
The use, disassembly, calibration and maintenance of this instrument must be
performed by authorized personnel.
Because of the reason of this instrument, if it is dangerous to continue using
it, it should be immediately stopped and sealed immediat ely, and it should be
handled by a qualified organization.

2
The " " safety warning sign in the instrument and manual must be operated
strictly
in accordance with the contents of this manual.
The meter outputs high voltage, please be sure to connect the test line, and then
press the test button to test after the hand leaving the test line. Otherwise there is
a risk of electric shock
II.Introduction
Intelligent lightning protection component tester, also known as lightning protection
component tester, SPD field tester. It’s a Special instrument for performance
testing of lightning arresters, lightning arresters, surge protectors, varistors, cermet
discharge tubes, and direct-air lightning arresters.The instrument adopts the
charging function and is used offline to overcome the shortcomings of the traditional
product to be plugged in and used inconvenient on-site operation, the voltage output
2000V application range is more extensive, the use of high voltage
short circuit protection, automatic discharge function, the instrument is reliable,
safe and durable. At the same time, it adopts luxurious large-color screen display,
data storage, data review, qualified judgment, automatic shutdown, USB data upload
and other functions. The machine is beautiful and high-grade, wide in range, high in
resolution, convenient in operation, convenient to carry, accurate, reliable, stable in
performance and strong in anti-interference ability.
Moreover, it has anti-vibration, dust-proof and moisture-proof structure and adapts to
the harsh working environment. It is an indispensable instrument for meteorological
lightning protection, electric power, post and telecommunications,
communication, electromechanical installation and maintenance, and industrial
enterprises that use electricity as industrial power or energy. It is suitable for
measuring performance parameters of various arresters and surge protectors.
The intelligent lightning protection component tester consists of medium and large
scale integrated circuits. The output power of this instrument is large, the initial
operating voltage measurement range is 10-2000V, the leakage current
measurement range is 0. 1~199.9uA, the repeatability is good, and the one-button
measurement is convenient and quick.
III. Rang and Accuracy
Measurement
function
Output voltage
Measurement
range
Accuracy
Resolution
Varistor
Starting action
10～2000V
±2%rdg±3dgt
1V
voltage

3
U1mA
Leakage current
I0.75,1mA
0.1~199.9uA
±2%rdg±10dgt
0.1uA
Discharge tube
Discharge voltage
15～2000V
±2%rdg±3dgt
1V
Insulation
resistance
500V
0～1000M
±3%rdg±10dgt
1M
Base test condition：1mA±10uA(23℃)
IV .Technical Specifications
Function
Varistor, discharge tube discharge voltage and leakage current
measurement, insulation resistance test
Ambient
temperature
and humidity
23℃±5℃ ，below 75%rh
Power
7.2V Large capacity rechargeable battery
Measure
method
DC voltage drop method
Shift
Automatic shifting
Backlight
Have
Display mode
Color screen
Measurement
indication
Text prompt in the lower right corner of the measurement
(automatic mode only)
LCD size
108mm×65mm
Instrument size
L/W/H：240mm×188mm×85mm
Test line
Red 1 meter, black 1 meter , each 1PC

4
Overvoltage
protection
Have
Data storage
500 groups, "H" storage indication, "storage array" display "500"
indicates that the storage is full
Data review
"MR" symbol indication when viewing data
Overflow
display
"OL" symbol indication when overrange overflow
Qualification
judgment
function
The measured value has an audible indication within the range of the
judgment value, and one sounds is qualified , and the unqualified sounds
three times.
Battery voltage
The low battery voltage symbol indicates that the battery is promptly
replaced when the battery voltage is low.
Automatic
shut-down
The splash screen indicates that it will automatically shut
down after 15 minutes of booting.
Power
consumption
Standby: about 140mA(Lowest brightness)
Maximum brightness：about 300mA
Measure：about 830mA(Lowest brightness)
Weight
Instrument：1230g (including battery)
Working
temperature
and humidity
- 10℃～40℃；below 80%rh

5
Storage
temperature
and humidity
-20℃～60℃；below 70%rh
Insulation
resistance
More than 200MΩ(between the circuit and the housing 500V)
Pressure
resistance
AC 3000V/rms(between the circuit and the housing)
Electromagnetic
properties
IEC61326(EMC)
Suitable for
safety
regulations
IEC61010- 1(CAT Ⅲ300V、CAT IV 150V、pollution level 2)；
V. Structure

6

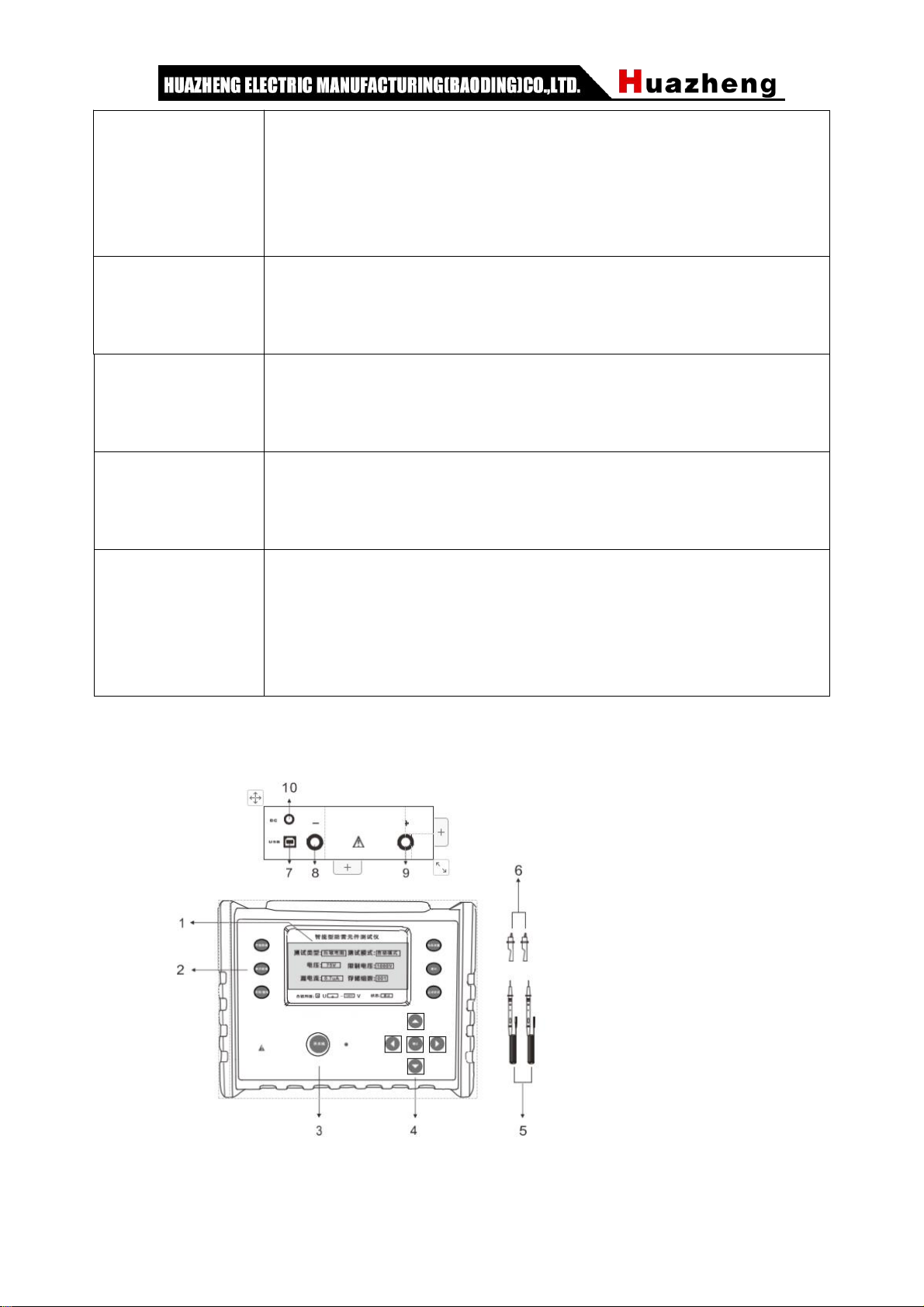

1. LCD
2. Function button
3.Power on/off button
4.Direction and confirmation button
5.Instrument pen
6.Safety alligator clip
7. Positive interface
8. USB interface
9. Public interface
10. Charging interface
VI.Operation Method
1．Power On/Off
Press the "Power On/Off" button in the power-off state to turn it on. Press the "Power
On/Off" button in the power-on state to turn it off.
2．Battery Voltage Check
After the power is turned on, if the LCD displays the battery voltage
low symbol “ ”, it indicates that the battery is low, please replace the
battery in time. The battery power is sufficient to ensure the accuracy of
the measurement.
3．Varistor Test

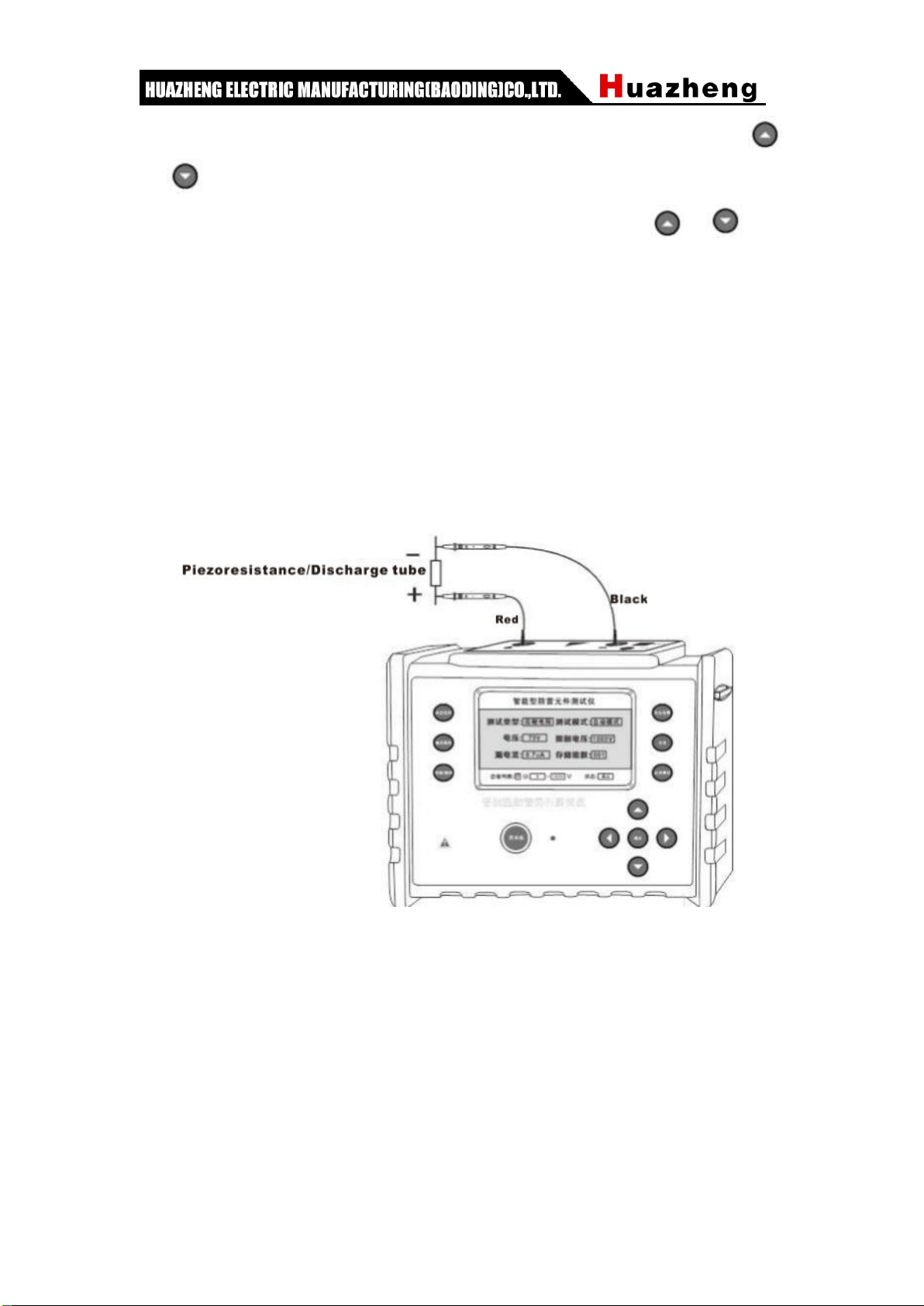

When measuring, press the “Type Select” button to select “varistor” and clamp the
varistor under test (as shown below). There are two modes to choose from under the
“varistor” type, namely “automatic mode” and “manual mode”, which can be selected by
pressing the “mode selection” button.
Under the "automatic mode" test, you only need to press the "start test" button to start
the test. During the test, the word "in progress..." will be displayed in the lower right corner.
When the test is completed, the message "Test completed!" is displayed. . If you want to
interrupt the test process during the test, you can press the "Exit" button to
interrupt the test.

7
Under the “Manual Mode” test, press the “Voltage Setting” button and press the “ ”
or “ ” button on the direction button to adjust the value of “Limit Voltage” to be more
than 1.2 times the nominal value of the measured varistor. Press the(“ ” ,“ ”)
button to add or subtract 1 for short press, plus or minus 50 for long press, then press the
"OK" button, then press the "Start Test" button to start the test.The voltage value when the
current shows about 1 mA (1000 uA) is the U1mA value (breakdown voltage),at this point,
you can press the “Start Test” button again to check the leakage current value of the
varistor under test.If you want to end the test, you can press the “Exit” button or press the
“Start Test” button when checking the varistor leakage current value.
4．Discharge Tube Test
When measuring, press the “Type Select” button to select the test type as “Discharge
Tube” and clamp the measured discharge tube (as shown).Press the “Start Test” button to
start the test. At this point, you can see that the voltage value is rising. When the voltage
value stops, the test is completed. At this time, the voltage is the ignition voltage of the
tested discharge tube (DC breakdown voltage).

8
5．Insulation Resistance Test
When measuring, press the “Type Select” button to select the test type as “Insulation
Resistance”, and clamp the measured insulation resistance like clamp the
varistor as described above.Press the “Start Test” button to start the test. In the
lower right corner of the screen, there is a “in progress...” message. The test will stop
automatically after about
15 seconds from the start of the test. If you want to interrupt the test in advance,
you can press the “Exit” button directly.
6．Backlight Control
After booting up, press and hold the “Exit” button to enter the backlight brightness
adjustment page. Press the “ ” and “ ” arrow keys to adjust the backlight
brightness.
7．Qualification Judgment Setting
After booting up, press the “OK” button to enter the qualification judgment mode. At
this time, you can see that the bottom text box on the screen is flashing, indicating that
the
item can be set.Press the " " or " " (short press plus or minus 1 when
the upper and
lower limits are adjusted, long press plus or minus 50) to adjust the parameters, press
the " " or " " key to change the cursor position.When the qualification judgment
state is adjusted to the "on" state, the qualification judgment can be turned on,
otherwise the qualification judgment is turned off.The right side of "U:" is the judgment
voltage range, the value in the left box is the lower limit of the judgment, and the right is
the upper limit value.When the test is completed, if the measured voltage is within this
range, it means qualified.“Pass” will be displayed in the “Status” box and the buzzer
will sound once,otherwise, “Fail” is displayed and the buzzer sounds three times. As
shown below:

9
8．Data Storage
After the power is turned on, the measurement is completed. Short press the
“Store/View” button to save the data once. When saving, the “H” will be displayed in
the upper right corner of the screen. After the save is completed, the “H” will
disappear and complete a data save operation. Up to 500 sets of data can be saved,
and the number of data sets that have been saved is displayed in the box to
the right of the “Store Data” on the test interface.
9．Data Review/Delect
When the data is stored, press and hold the “Store/View” button to view the saved
data. After the “MR” is displayed in the upper right corner of the screen, press
“ ” and
“ ” to scroll through the stored data. The sequence number of the
saved data is displayed in the box to the right of "Stored Data". Press the “Store/View”
button in the data review state to exit the data review status. If there is no data saved,
long press the “Store/View” button to display “NULL” in the upper right corner of the
screen, indicating that no data is stored and the test interface will automatically jump to
test state.
In the data review state, long press the “storage/view” button to jump to the delete data
page. Press " ", " " button to select "Yes", "No" to choose whether to delete
the data. Select "Yes" then press "OK" to delete all data. Select "No" then press "OK"
to cancel the deletion of data and return to the data review status.
VII.Battery Description
The meter is powered by a 9V 6-cell LR14 dry battery. When the battery power is
reduced,when the voltage drops to about 6.5V, the battery symbol “ ” is
displayed,please replace the battery in time. The measurement accuracy is affected
when the voltage is low.
VIII. Accessories
Instrument
1PC
Test line
2PC（red ，black each 1PC）
CD
1PC
Charger
1PC

10
Battery
7.2V large capacity rechargeable battery
USB data line
1PC
Manual、
Certificate
1SET
Instrument box
1PC
