Humanscale efloat GO User manual

Assembly Instructions
North America: [phone]
Europe: [phone]
Asia Pacic: [phone]

2
DESIGNING
HEALTHIER
WORKPLACES

3
Table of Contents
Important Safety Instructions ���������������������������������������������������������������������������������� 4
Before Getting Started��������������������������������������������������������������������������������������������� 6
Parts Included���������������������������������������������������������������������������������������������������������� 6
Assembly Instructions
Two Column (Standard/Extended Range) ��������������������������������������������������� 8
Two Column Beamless (Standard/Extended Range) �������������������������������� 13
Hand Switch
Initial Setup / Reset����������������������������������������������������������������������������������� 16
Programming �������������������������������������������������������������������������������������������� 16
Troubleshooting ����� ����������������������������������������������������������������������������������������������� 19
Technical Data�������������������������������������������������������������������������������������������������������� 19

4
Important Safety Instructions
WHEN USING AN ELECTRICAL FURNISHING, BASIC PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED. READ ALL INSTRUCTIONS BEFORE USING (THIS FURNISHING). HUMANSCALE
CANNOT BE HELD LIABLE FOR INJURY OR DAMAGE CAUSED BY NON-COMPLIANCE WITH
THESE INSTRUCTIONS. SAVE THESE INSTRUCTIONS AND PASSTHEM ON TO ANY FUTURE
USER.
DANGER: To reduce the risk of electric shock always unplug this furnishing from the electrical outlet
before cleaning�
WARNING: To reduce the risk of burns, re, electric shock, or injury to persons:
• Close supervision is necessary when this furnishing is used by, or near children, invalids, or
disabled persons�
• Use this furnishing only for its intended use as described in these instructions� Do not use
attachments not recommended by the manufacturer�
• If the worksurface used with this furnishing is not of the appropriate size or shape or is not
mounted correctly to the furnishing, the assembled product could be unstable, may collapse,
or cause failure in electrical components�
• Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water� Return the furnishing to a service center
for examination and repair�
• Keep the cord away from heated surfaces�
• Never operate the furnishing with the air openings blocked� Keep the air openings free of lint,
hair, and the like�
• Never drop or insert any object into any opening�
• Do not use outdoors�
• Do not operate where aerosol (spray) products are being used or where oxygen is being
administered�
• To disconnect, turn all controls to the off position, then remove plug from outlet�
WARNING: Risk of Electric Shock - Connect this furnishing to a properly grounded outlet only� See
Grounding Instructions
DO NOT OVERLOAD DESK: To prevent the table from tipping or collapsing, make sure the desk is not
overloaded by the weight of the worksurface and items on table� Evenly distribute load; excess loads
near edges can reduce stability and lead to tip over�
• E Float Go -Two Column Kit - Worksurfaces must be rectangular and at least 0�75” (20mm)
thick, depth 23"-35", width 46"-82"� For stability, maximum worksurface size is 35” x 82”�
• E Float Go -Two Column Kit, Beamless - Worksurfaces must be rectangular with a depth of
23"-29" and at least:
• 0�75" (19mm) thick laminate for widths 34" to 46"
• 1�1" (28mm) thick laminate for widths >46" up to 58"

5
• Do not exceed maximum load including weight of worksurface of 250lbs (113kg) for two
column kits and 350lbs (158kg) for three column kits�
• For loading, always put heavier items in the center and distribute the load�
• Do not sit or stand on table�
USE CARE WHEN OPERATING DESK:
• Before using the table check for any visible signs of damage� Do not use a damaged product�
• Make sure no obstacles are in the desk’s path and that the desk is not touching walls or
neighboring objects�
• Items taller than 20” in height should not be placed or stored under the desk�
• Keep Table Frame dry� Keep all electrical components away from water and high humidity� Do
not spray cleaning solutions directly onto table frame�
• Working Temperature for table is 5 - 40OC
• Make sure all the cords are the appropriate length to accommodate the change in height�
• Although this product comes with anti-collision function, in order to avoid any pinching, please
ensure that hands or other body parts are in a safe position during the operation�
• Unplug power cord during a thunderstorm or if you do not intend to use the desk for a long
time�
• Never use the table if it has a damaged cords or plugs�
• Keep cords away from heated surfaces�
• Over time grease might start to accumulate on the inner columns of the table legs, if this
occurs wipe columns with a soft cloth�
DO NOT OPEN ELECTRICAL COMPONENTS: Do not attempt to service the table's components�
There are no user-serviceable components within the motor control box, hand switch, or table legs� If
your table needs service or you are having issues with your table, please contact customer service�
GROUNDING INSTRUCTIONS: This product is for use on a nominal 120-volt circuit and has a
grounding plug that looks like the plug illustrated below� Make sure that the product is connected to an
outlet having the same conguration as the plug� No adapter should be used with this product�
Do not modify the plug provided with the product - it will not t the outlets, have a proper outlet
installed by a qualied electrician�
GROUNDED
OUTLET
GROUNDED
PIN

6

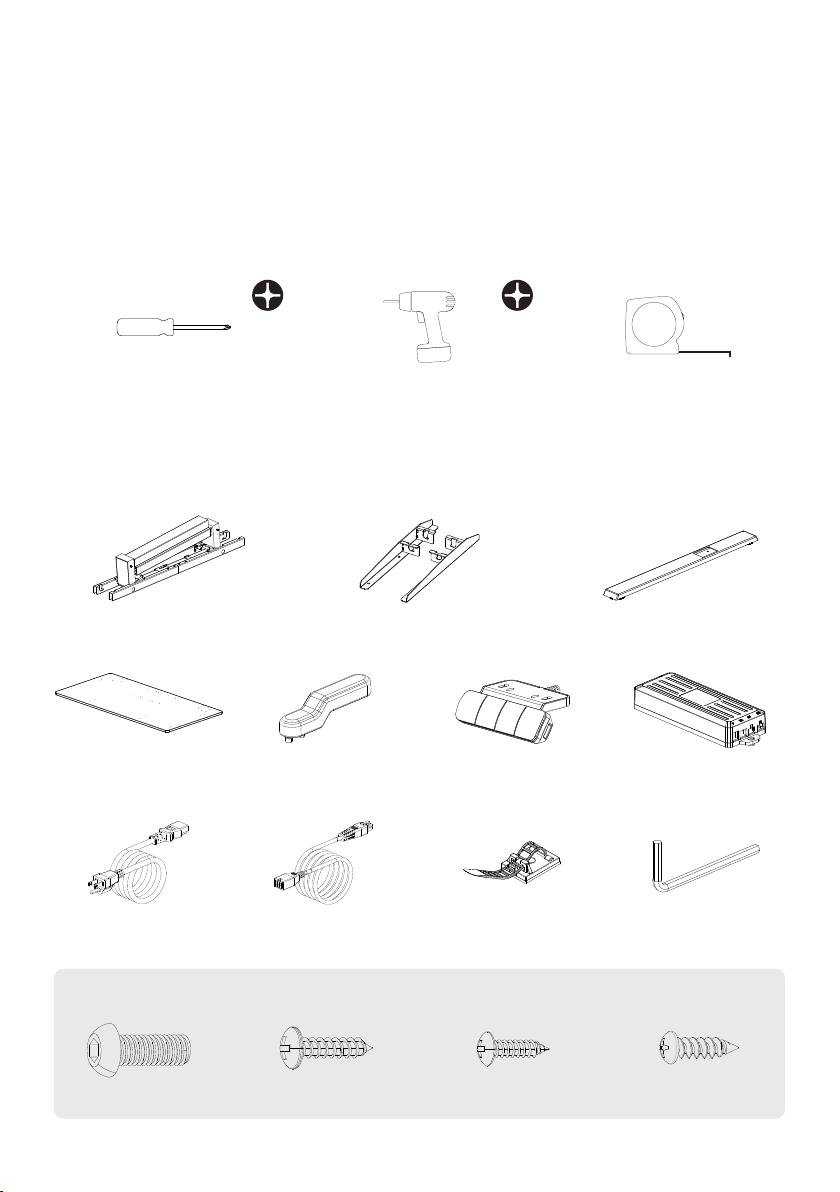

Parts Included
Two Column (Standard/Extended Range)
Before Getting Started
• If using a power drill, use a low torque setting�
• Do assemble product on a protective surface�
• 2 or more people may be required to maneuver the table�
• After assembly, the table will need to have an initial set up/reset performed before table can be
used�
Leg Assembly
(9) ST5 x 20 wood screws
Power Supply
(2) Feet
4mm Allen Key
Assembly Handle
(8) M6 x 14 machine screws
Control Box
Connecting cable
Left, Right Wing Brackets
(2) ST4 X 16 Wood Screws (10) ST5 X 16 Wood Screws
Hand Switch
(10) Cable Ties
Philips Head Screw Driver
Universal Worksurface
(CONFIGURATION SPECIFIC, PACKAGED
SEPARATELY)
Power Drill with Philips driver bit Measuring Tape
Tools Required
Hardware Included

7
(2) Legs
(12) ST5 x 20 wood screws
Power Supply
(2) Feet
4mm Allen Key
(8) M6 x 14 machine screws
(8) M6 x 10 Machine Screw
Control Box
Connecting Cable
(2) Brackets
(2) ST4 X 16 Wood Screws
(12) ST5 X 16 Wood Screws
Hand Switch
(10) Cable Ties (10) Adhesive Pads
Universal Worksurface
(CONFIGURATION SPECIFIC, PACKAGED
SEPARATELY)

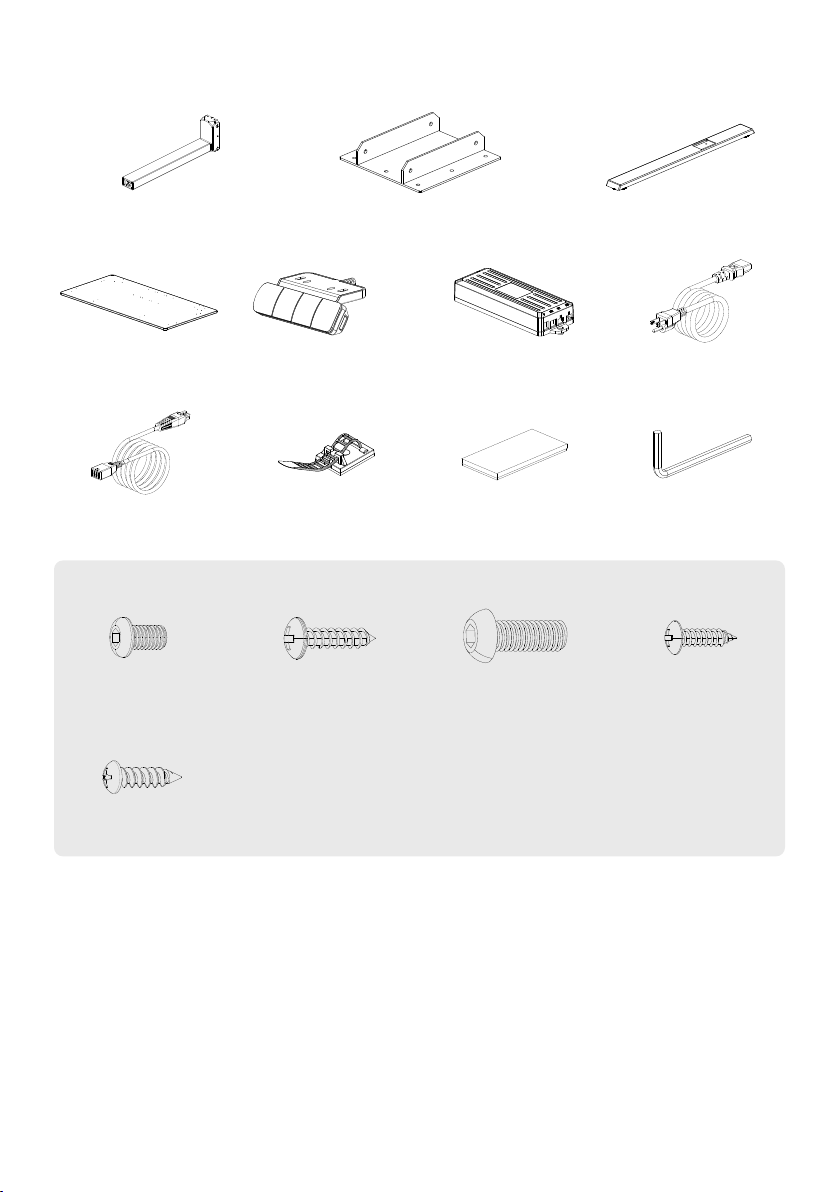

Two Column Beamless (Standard/Extended Range)
Hardware Included

8

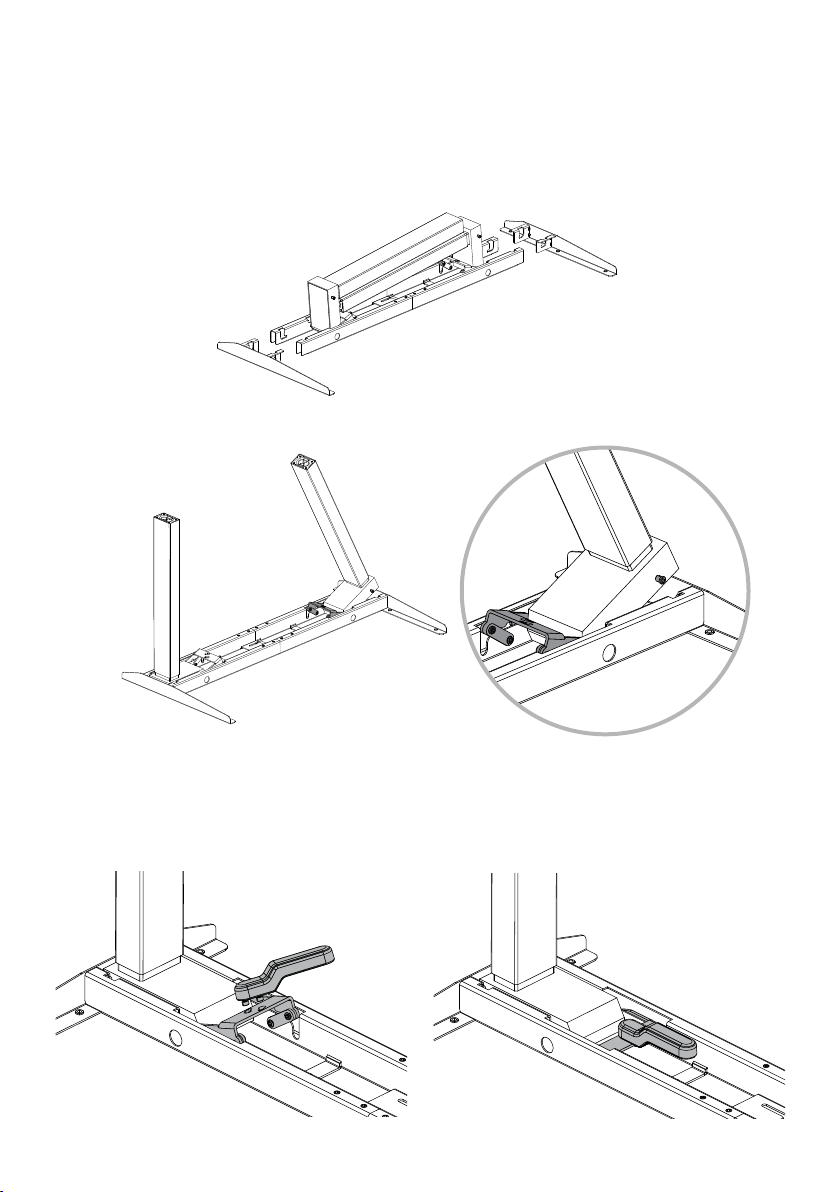

Ensure the buckle is raised� Raise the Leg perpendicular to the frame, placing steadily into pocket�
Assembly Instructions
Two Column (Standard/Extended Range)
Insert the Assembly Handle into the buckle and rotate until handle is in line with frame� Ensure
cables are clear of any moving parts� Push down hard on the handle until the buckle snaps into
place� Remove the handle and repeat on the opposite leg�
1
2
3
Insert the 2 Wing Brackets into either side of the Frame�

9

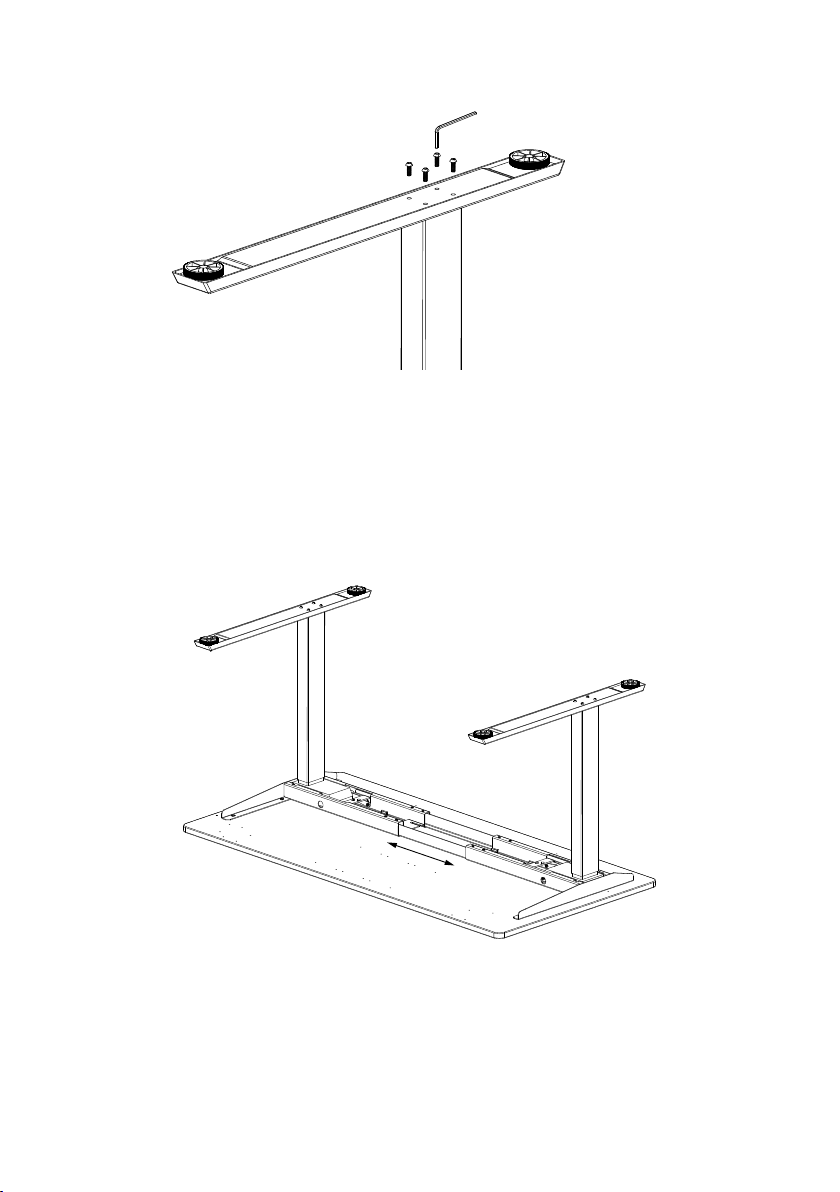

Using the (8) M6 X 14 Machine screws secure the feet to the legs with the 4mm Allen Key�
Place your worksurface upside down on a protective surface� Lift and place the frame on top of
the worksurface� Adjust the width and position the frame on the worksurface per the following
sections:
A - Humanscale Universal Worksurface
B - Using Your Own Work-surface�
4
5

10

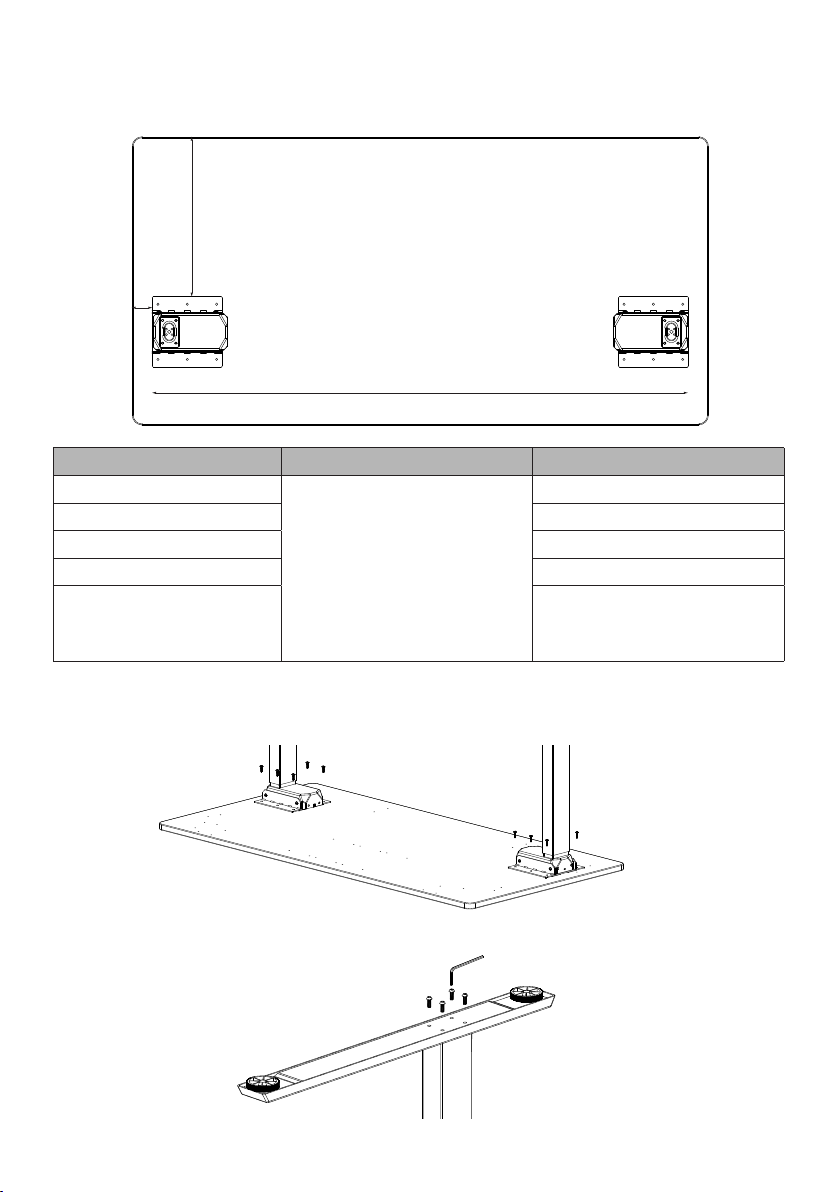

A - Humanscale Universal Worksurface
If using one of our Universal Worksurfaces, align the frame to the following pilot holes highlighted
below� Note: Only the four outer corner pilot holes are included for alignment�
Please note different size tops come with different pilot hole options� More or less pilot holes may be present depending on size ordered�
FRONT
EFLOAT GO FRAME HOLES
HAND SWITCH PILOT HOLES L&R
HS KEYBOARD TRAY (ACCESSORY)
HS NEAT TECH (ACCESSORY)
NOT APPLICABLE WITH THIS TABLE
B - Your Own Worksurface
If using your own top, locate the Table Frame using the measurements listed below� Do not use tops
larger than the size noted in the Important Safety Instructions section�
B
A
FRONT

11

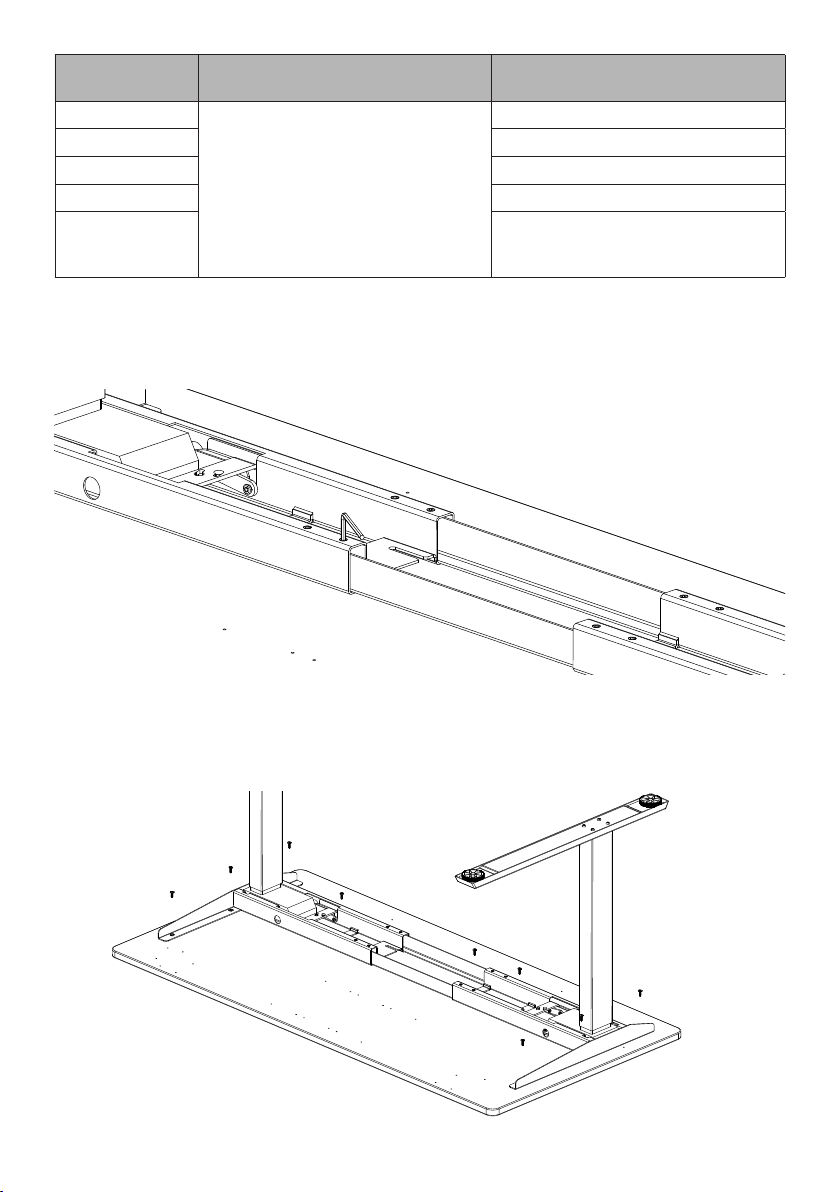

Once the frame is adjusted to the width of the worksurface, tighten the 8 set screws on the
frame with the 4mm Allen key�
Using the (9) ST5 X 20 Wood screws secure the frame to the work surface� If using a power drill
ensure it is set to low torque� If using a Humanscale Universal Worksurface please note only the
four outer pilot holes are included to assist in aligning your worksurface to table base�
WORKSURFACE
DEPTH A B
23”
2”
For worksurfaces wider than 76", set frame to max
width of 72"�
12�57" (320mm)
24” 13�07" (332mm)
29” 16�76" (426mm)
30” 17�26" (438mm)
OTHER DEPTHS
Position frame by ensuring the foot
is centered with the depth of the
worksurface�
6
7

12
Slide the Control Box onto the frame, orientated with the (AC) Port for the power cord facing the
center of the table�
Secure the hand switch to the worksurface in your desired location using the (2) ST4 X 16, screw
along the front edge of worksurface� If using a Humanscale Universal Worksurface, Pilot holes are
positioned on the left/right hand side of the worksurface in our recommended location(s)�
Plug the hand switch into the control box� Connect the two legs to the control box, using the
connecting cable for the leg furthest away from the control box� Plug the power cord into the
control box� Use the provided (10) Cable Ties to secure cables to underside of worksurface (not
pictured), with either double sided tape or the (10) ST5 X 16 Screws�
Flip your Table right side up and plug into outlet� Reset the desk per instructions in following
section�
YOU MUST RESET THE DESK BEFORE USE. FOLLOW INSTRUCTIONS ON INITIAL SETUP/RESET
UNDER HAND SWITCH ON PG. 16
8
9
10
11

13
Using the (8) M6 x 10 Machine Screw Screws secure the brackets to each leg, using the 4mm
Allen Key�
Secure the (10) adhesive pads to the (2) Brackets
Place your worksurface upside down on a protective surface� Lift and place the legs on top of the
worksurface� Position the leg assembly on the worksurface per the following sections:
A - Humanscale Universal Worksurface�
B - Using Your Own Work-surface� Lift and place the legs on top of the worksurface� Position
Two Column Beamless (Standard/Extended Range)
2
1
3
A - Humanscale Universal Worksurface
If using one of our Universal Worksurfaces, align the legs to the following pilot holes highlighted below�
Note: Only the four outer corner pilot holes are included for alignment�
EFLOAT GO FRAME HOLES
HAND SWITCH PILOT HOLES L&R
HS KEYBOARD TRAY (ACCESSORY)
CONTROL BOX
NOT APPLICABLE WITH THIS TABLE
Please note different size tops come with different pilot hole options� More or less pilot holes may be present depending on size ordered�

14
Using the M6x14 Machine screws secure the feet to the legs�
Using the (12) ST5 X 20 Wood screws secure the frame to the work surface� If using a power drill
ensure it is set to low torque�
5
4
B - Your Own Worksurface
If using your own top, locate the legs using the measurements listed below� Do not use tops larger
than the size noted in the Important Safety Instructions section�
B
A
FRONT
MAX DISTANCE 54”
WORKSURFACE DEPTH A B
23”
2”
12” (305mm)
24” 12�5” (315mm)
29” 16” (405mm)
30” 16�5” (420mm)
OTHER DEPTHS
Position frame by ensuring the
foot is centered with depth of
worksurface�

15

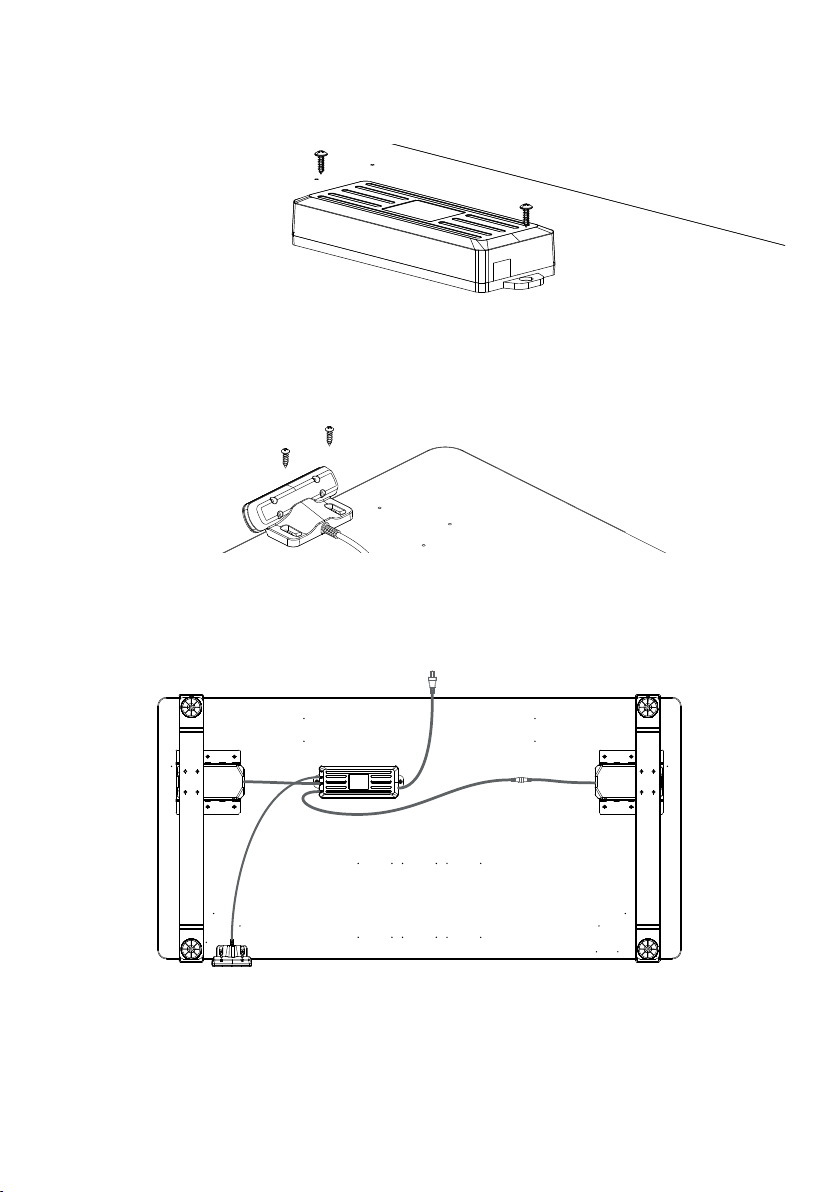

Using the (2) ST5 X 16 Screws� Align the control box with the pilot holes included if using a
Humanscale universal worksurface� Alternatively, place the Control box at your desired location on
the worksurface, ensuring it is within reach of the cable from one of the legs�
Secure the hand switch to the worksurface in your desired location using the (2) ST4 X 16, screw
along the front edge of worksurface� If using a Humanscale Universal Worksurface, Pilot holes are
positioned on the left/right hand side of the worksurface in our recommended location(s)�
Plug the hand switch into the control box� Connect the two legs to the control box, using the
connecting cable for the leg furthest away from the control box� Plug the power cord into the
control box� Use the provided Cable ties to secure cables to underside of worksurface (not
pictured), with either double sided tape or the (10) ST5 X 16 Screws�
6
7
8
Flip your Table right side up and plug into outlet� Reset the desk per instructions in following
section�
YOU MUST RESET THE DESK BEFORE USE. FOLLOW INSTRUCTIONS ON INITIAL SETUP/RESET
UNDER HAND SWITCH ON PG. 16
9

16

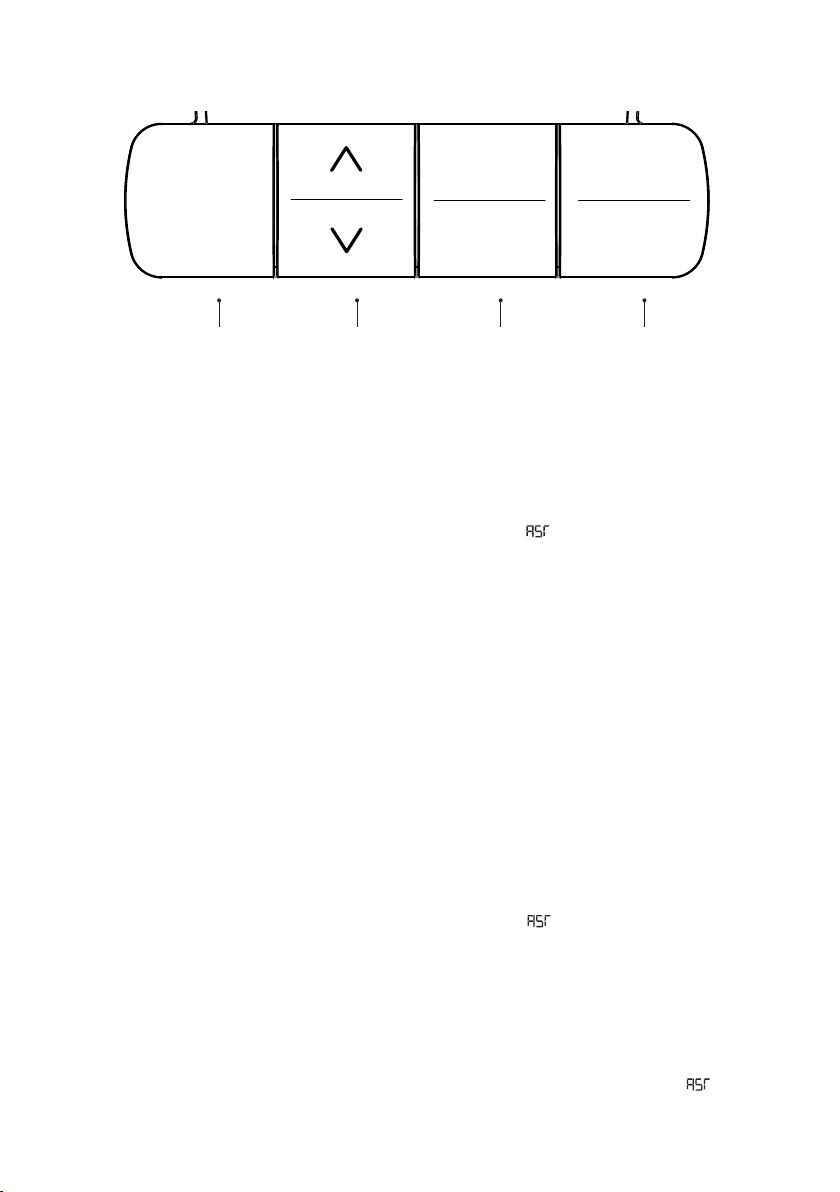

Hand Switch
Initial Setup / Reset
IMPORTANT: You must RESET the desk before use�
1� Press the DOWN button, moving the desk to its lowest position, then release�
2� Hold the DOWN button until again, the LED display reads “ “�
3� Hold the DOWN button while the desk clicks lower, slightly rises and stops�
Your desk is now ready to use� The desk can be adjusted by pressing and holding either the UP/DOWN
button until the desired height is reached�
Setting Presets
Use the up/down buttons to nd a desired height, then press “M” followed by a number 1 - 3, to set
the three presets�
CAUTION: Once a preset button is pushed, the desk will move to the programmed height�
Programming
Changing Units of Measurement
1� Press the DOWN button, moving the desk to its lowest position, then release�
2� Hold the DOWN button until again, the LED display reads “ “�
3� Hold the 2 button (about 5 seconds) to switch settings� Repeat until desired setting is
displayed�
10�3 = Metric (cm)
10�4 = Imperial (IN)
4� Once the chosen setting is displayed, wait 5 seconds for the display to return to “ “�
29.8
1
2
3
M
LED DISPLAY UP/DOWN PRESETS MEMORY

17
5� Hold the DOWN button down while the desk lowers a little bit more, slightly rises and stops�
One-Touch / Constant-Touch
Follow the steps below to change between One-Touch and Constant - Touch� One-Touch requires only
a single touch of the “1, 2 or 3” button to move the worksurface to a preset memory location� One-
Touch is the default setting. Constant-Touch requires a continuous touch of the “1, 2, or 3,” button to
move the worksurface to a preset memory location�
1� Press the DOWN button, moving the desk to its lowest position, then release�
2� Hold the DOWN button again, until the LED display reads “ “�
3� Hold the 1 button (about 5 seconds) to switch settings� Repeat until desired setting is
displayed�
10�1 = One-Touch
10�2 = Constant-Touch
4� Once the chosen setting is displayed, wait 5 seconds for the display to return to “ “�
5� Hold the DOWN button while the desk clicks lower, slightly rises and stops�
Setting LED Retracted Height
Press and hold the DOWN button until the worksurface reaches its lowest position� Measure the
distance from the oor to the top surface of the desktop� If the number on the LED display does NOT
match your measurement, follow these steps:
1� Hold the DOWN button again, until the LED display reads “ “�
2� Hold the M button (about 5 seconds) until the display starts ashing the height�
3� Use the UP/DOWN button to match your measurement�
4� Wait 5 seconds for the display to return to “ “�
5� Hold the DOWN button while the desk clicks lower, slightly rises and stops�
Setting Upper and Lower Limits
This desk is designed to go to its minimum and maximum heights, allowing for the longest possible
range� If you prefer to change the settings to a more shorter range, follow these steps:
To Set the Upper-Limit Position:
1� Use the UP /DOWN buttons to move the base to the desired maximum-height position�
2� Press the “M” button�
3� Press the UP button� The LED display will ash “S -”�
4� Hold the “M” button (about 2 seconds) until the LED display changes to “999”� The display will

18
automatically return to the selected height� The new upper limit is now set�
To Set the LOWER-Limit Position:
1� Use the UP /DOWN buttons to move the base to the desired minimum-height position�
2� Press the “M” button�
3� Press the DOWN button and release� The LED display will ash “S -”�
4� Hold the “M” button (about 2 seconds) until the LED display changes to “000”� The display will
automatically return to the selected height� The new lower limit is now set�
To Remove the Upper/Lower Limit Positions:
1� Press the “M” button� The LED display will ash “S -”�
2� Press the “M” button again and hold for 2 seconds� The LED display will change to “555” and
then automatically return to the height display� The upper and lower limits are now removed�
Handset Lock
To lock the handset:
Press and hold the “M” button (about 8 seconds) until the LED display switches to “S -” and then to
“LOC�” Release the button�
To unlock the handset:
Press and hold the “M” button (about 8 seconds) until the LED switches from “LOC” to the height
display� Release the button�

19
Troubleshooting
Error Solution
Table does not
move
Ensure all cords are fully secured and the outlet your table is plugged into has
power�
Table moves at a
slow rate Reset table�
Hand Switch
Error Codes:
E01 - E08
Ensure all cables are fully secured� Follow the steps to Reset your table� If you
are still encountering an error please call customer care�
Technical Data
Two Column Kit Two Column Kit, Beamless
Power supply 120VAC 50/60Hz
Maximum input current 4�2A
Stand by power consumption, primarily <0�1W
Operating Temperature 5 - 40OC
Height Range (Standard Range) 26�8” - 46”
Height Range (Extended Stage) 21�5” - 47�6”
Base Width 42” - 72” Can not exceed 54" from
the outside of the columns�
Travel Speed 1” per second (no load)
Noise Level <50dB
Maximum lift capacity
(Including worksurface) 250lbs
Duty Cycle 10% Max� 2 min on, 18 mins off

1114 6th Ave, 15th Floor
New York, NY 10036
humanscale�com
For our terms and conditions please go to
https://www�humanscale�com/about/legal-information/terms-conditions�cfm
© 2021 Humanscale Corporation� The text and artwork are copyrighted materials� All rights reserved� The Humanscale mark and logo are
trademarks of Humanscale Corporation and are registered in the United States and certain other countries� GT-NPD-IM-8897-001-R02
FCC Notice
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules� These limits are designed to provide reasonable protection against harmful interference in a residential installation� This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications� However, there is no guarantee that interference will not occur in a particular installation�
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna�
• Increase the separation between the equipment and receiver�
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected�
• Consult the dealer or an experienced radio/TV technician for help�
The FCC requires the user be cautioned that any changes or modications made to this device that are not expressly approved by
Humanscale may void the user’s authority to operate the equipment�
EMC: FCC Part 15 Subpart B Class B
CAN ICES-003(B) / NMB-003 (B)
Evaluated using Commercial UL 2999 and Household UL962 for the Two Column Kit
Meets BIFMA X5�5 2021 for the Two Column Kit
