Hunter Products JE009 User manual

• Suitable for 2+ years
•Maximum user weight: 20kg
•Adult assembly required
Please keep this manual for future reference as it contains important
information.
Before first time use, charge the battery for at least 8-10 hours.
OWNER'S MANUAL
Read and understand this entire manual before using!
CHILDREN'S
ELECTRONIC TOY CAR
With remote control function
Model No.: JE009
Item No.: 5156

Table of Contents
About Your New Vehicle
Thank you for your purchasing our products, we wants your child to enjoy this product for years to
come. Keep these points in mind as you read this guide:
1. About Your New Vehicle
2. Parts List
3. Parts Diagram
4. Assembly Steps
5. How To Operation Your Vehicle

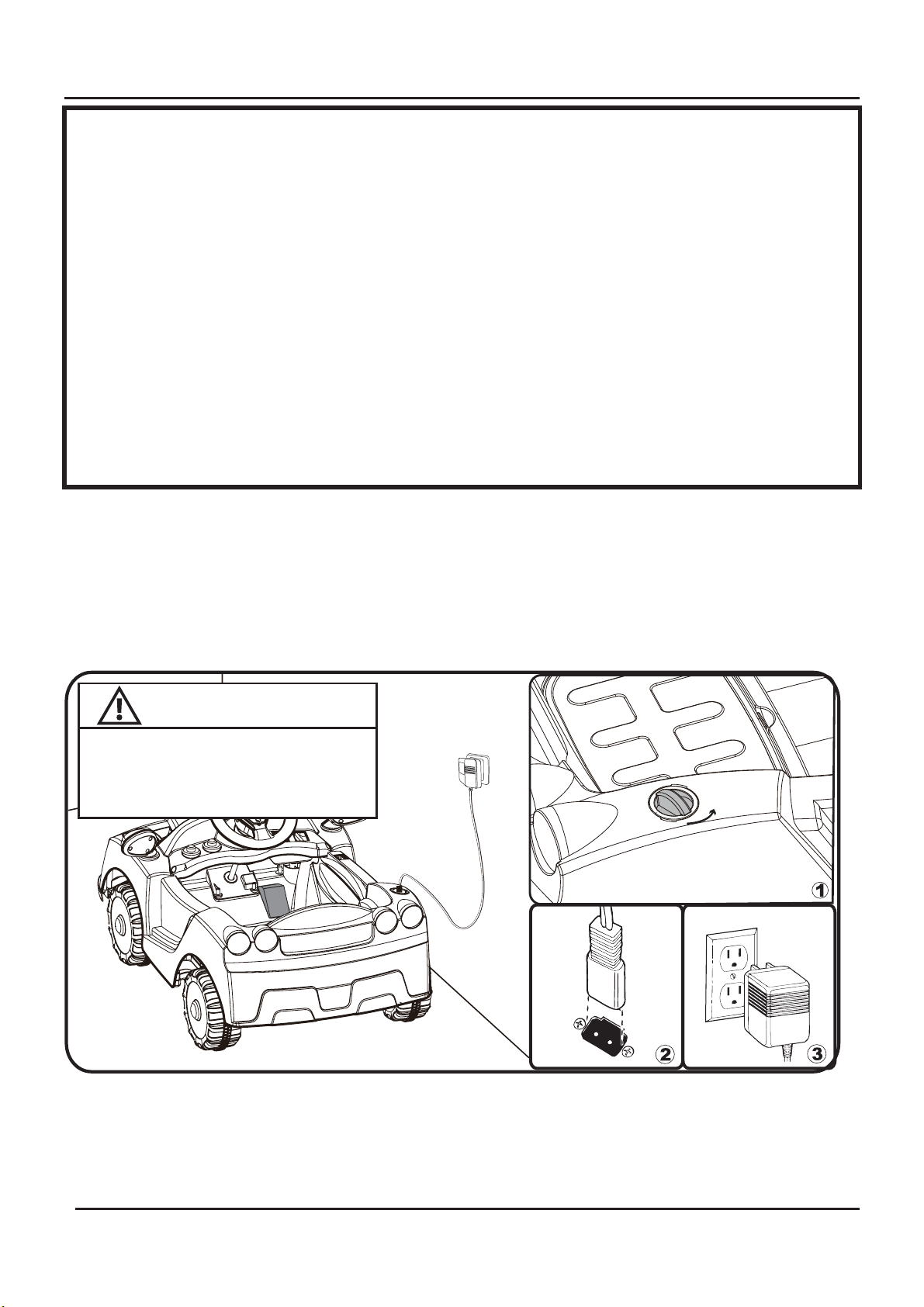

6. Charging The Vehicle
7. Troubleshooting Guide
8. Maintaining Your Vehicle
9. Disposal Of Battery
WARNING!
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep small children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.
Suitable age: 2+ years Battery: 6V 4AH *1
Load Capacity:
Under 20KGS
Size of car: 79*52*39CM
Speed: 2KM/H
Power way: Charging type
Charger:
Input: depend on local voltage
Output: DC 6V500mA
Average
battery life:
Approximately
300 times
Charge time: 8-12 Hours Fuse: 5A
PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE. PLEASE
CONTACT HUNTER PRODCUTS CUSTOMER SERVICE TOLL FREE NUMBER: 1800 224 094
OR VISIT WWW.ELECTRICRIDEON.COM.AU
-1-

NO.
34
56
78
9
1
1
2
1
1
1
Par t Par t
10
11
13
12
14

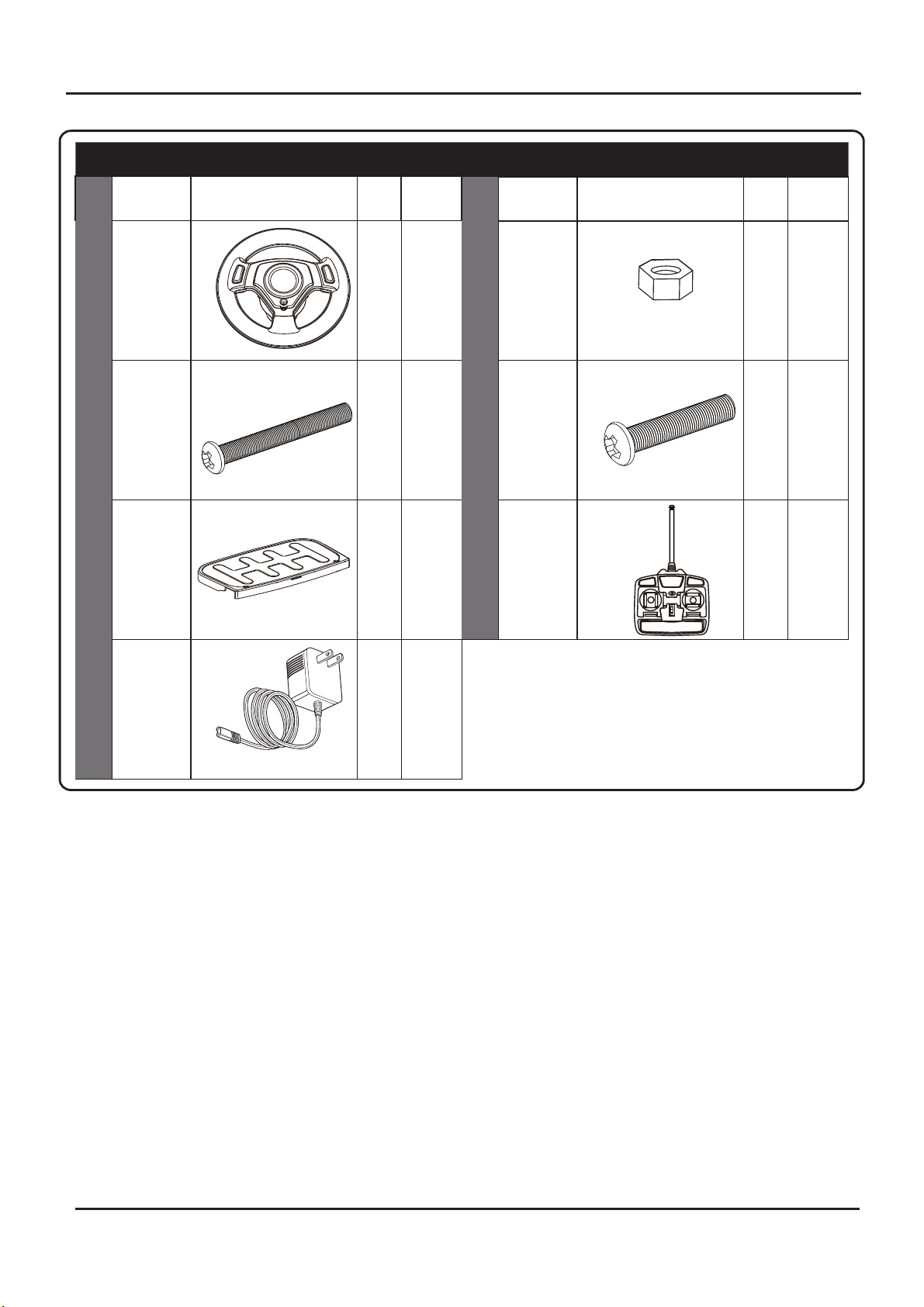

PartsList
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
Vehicle
body
Gear
box
Steering
shaft
Driving
wheel
Placed
in the
assembly
package
PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE. PLEASE
CONTACT HUNTER PRODCUTS CUSTOMER SERVICE TOLL FREE NUMBER: 1800 224 094
OR VISIT WWW.ELECTRICRIDEON.COM.AU
-2-
4
Outer
bush
9
Ø10
wahser
1pcs
for spare
4
Ø10
cap nut
4
Wheel
cover
4
Inner
bush
4
Ø3x12
screw
1pcs
for spare
2
Split
pin
1pcs
for spare
1
Motor
hood Mirror
1pair
3
Wheel

15
14
16 17
19
18
NO.
Par t Par
NO.
Par t Par
20
16
15
17 18
20
19
21
PartsList
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
Assemblypackage
1
Steering
wheel
1
Ø5 nut
Placed
on the
steering
wheel
1
M5x35
screw
Placed
on the
steering
wheel
2
M5x12
screw
Placed
in vehicle
body
1
Seat
1
Remote
controller
1
Charger
PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE. PLEASE
CONTACT HUNTER PRODCUTS CUSTOMER SERVICE TOLL FREE NUMBER: 1800 224 094
OR VISIT WWW.ELECTRICRIDEON.COM.AU
-3-

2
5
8
11
14 17
3
6
9
12
15
18
1
10
4
7
13
16
19
1
2
3
4
5
5
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
14
15
16
17
18
19
5
3. Parts Diagram
Note: Some Parts Shown are assembled on both sides of vehicle
Tools Required
Screwdriver(not included)
Spanner
Pliers(not included)
Vehicle bdody *1
Outer bush *4
Wheel cover *4
Motor hood *1 Mirror *2
Gear box *1 Driving wheel *1
Ø10 washer *9 Ø10 cap nut *4
Ø5 nut *1
Seat *1
M5x35 machine screw *1 M5x12 machine screw *2
Ø3x12 screw *3 Split pin *1 Steering shaft *1
Steering wheel *1
Inner bush *4 Wheel *3
Hammer(not included)
Ø10 washer *8
PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE. PLEASE
CONTACT HUNTER PRODCUTS CUSTOMER SERVICE TOLL FREE NUMBER: 1800 224 094
OR VISIT WWW.ELECTRICRIDEON.COM.AU
-4-

Assembly Steps
• Your new vehicle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
• Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.
• Assembly tool for need: screwdriver(not included), pliers(not included), hammer(not
included), spanner.
1. Driving Wheel assembly
2.Wheel assembly
Gear box
Inner bush
Inner bush
Drivng wheel
Wheel
Outer
bush
Outer
bush
Ø10 washer
Ø10 washer
Ø10
washer
Ø 10
cap nut
Ø 10
cap nut
Wheel
cover
Wheel
cover
●Slide a inner bush onto the rear axle.
●Slide the gear box onto the rear axle
from the left side of vehicle body(standing
at rear of vehicle).
●Slide the driving wheel on to rear axle,
make it match to the gear box.
●Slide a
outer bush onto the rear axle.
●Slide a Ø 10 washer.
●Fit a
Ø 10 cap nut with a hammer.
●Insert the wheel cover.
●Slide a
Ø 10 washer onto the front axle
●Slide a inner bush onto the front axle.
●Slide a wheel onto the front axle(the
bush should match to the wheel).
●Slide a outer bush onto the front axle.
●Slide
Ø 10 washer*1 onto the front axle.
●Fit a
Ø 10 cap nut with a hammer.
●Insert the wheel cover.
NOTE: REMEMBER TO FOLLOW THE
SAME STEPS FOR OTHER TWO
WHEELS.
PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE. PLEASE
CONTACT HUNTER PRODCUTS CUSTOMER SERVICE TOLL FREE NUMBER: 1800 224 094
OR VISIT WWW.ELECTRICRIDEON.COM.AU
-5-

4-1
4-2 4-3
4-1
Assembly Steps
3. Steering Shaft assembly
Ø10nut
Ø10nut
Ø10nut
Split pin
Split pin
Steering shaft
●Turn the vehicle on its side.
●Slide a
Ø 10 washer *1 onto the steering shaft from the straight end(PIC4-1).
●Insert the straight end of steering shaft through the hole in the vehicle body and out through the hole in the
dashboard.
●Insert the bent end into the hole in the front axle, secure it with split pins *1 and
Ø 10 washers *1(PIC4-2,4-3)
●Turn the vehicle on its side.
●Insert the straight end of steering shaft through the hole in the vehicle body. And make the steering shaft
match to the steering gear box(PIC4-1).
●Insert the bent end into the hole in the front axle, secure it with split pins *1 and
Ø 10 washers *1(PIC4-2,4-3)
Match to the
steering gear
box
PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE. PLEASE
CONTACT HUNTER PRODCUTS CUSTOMER SERVICE TOLL FREE NUMBER: 1800 224 094
OR VISIT WWW.ELECTRICRIDEON.COM.AU
-6-

Assembly Steps
4. Steering Wheel assembly
5. Mirror assembly
6. Connect the power supply
●Insert the tabs on the mirror into the slot
located at the front of the vehicle body.
●Push until you hear this click into place;
Repeat for the other side.
●Plug the wire connector into the motor
connector.

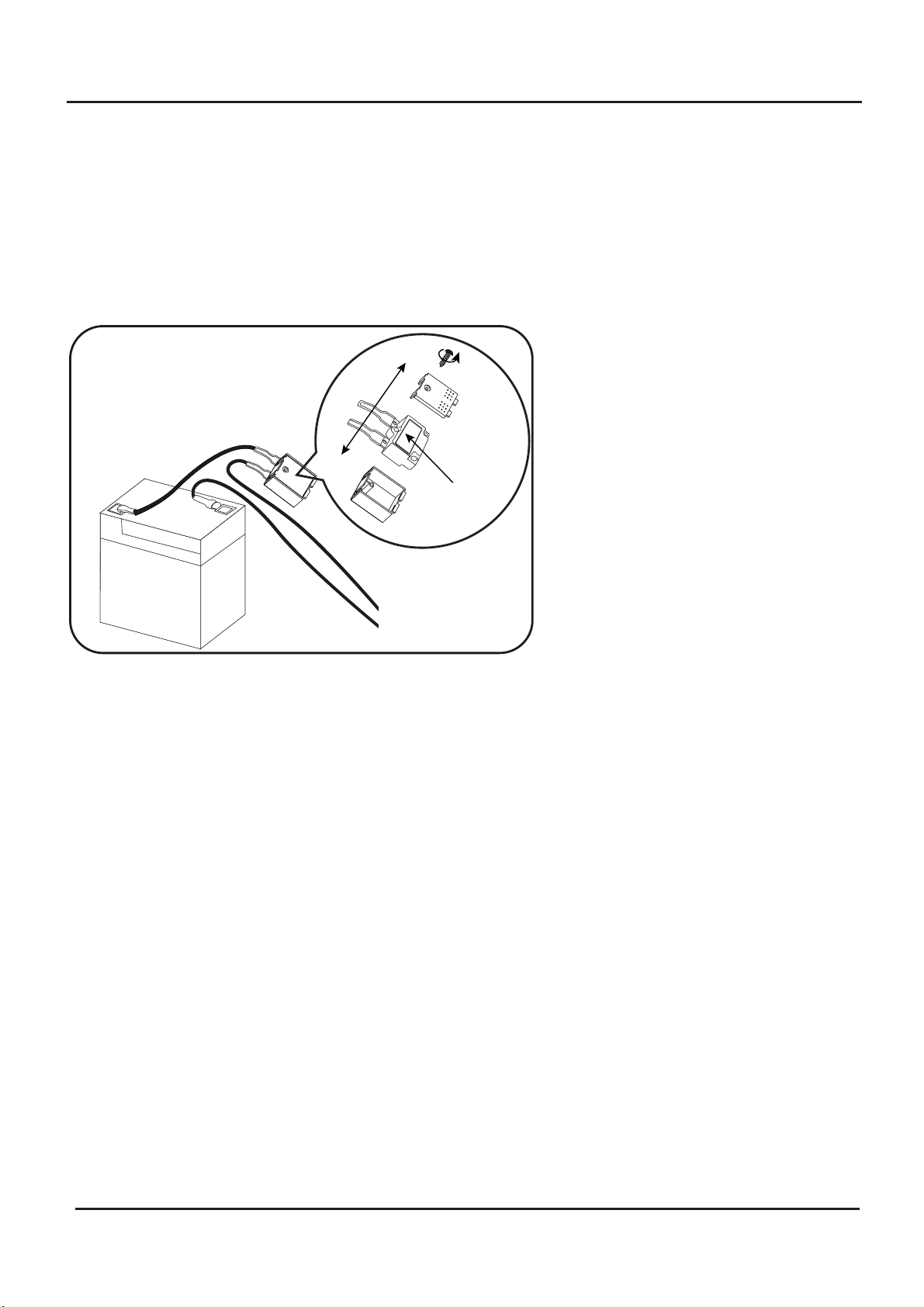

●Plug the power connector into the
terminal on battery as shown.
Wire
connector
Power
connector
Fuse box
Motor
connector
●Remove the M5x35 machine screw with
a screwdriver
●Insert the steering wheel onto end of
the steering shaft, line up the holes in the
steering wheel and the holes in steering
shaft, insert the M5x35 machine screw
and
Ø 5 nut back in the same location and
tighten it with a screwdriver.
Ø5 nut
M5x35
machine screw
Steering wheel
Mirror
PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE. PLEASE
CONTACT HUNTER PRODCUTS CUSTOMER SERVICE TOLL FREE NUMBER: 1800 224 094
OR VISIT WWW.ELECTRICRIDEON.COM.AU
-7-

Assembly Steps
7. Motor Hood assembly
8. Seat assembly
IMPORTANT SUPPLEMENT TO INSTRUCTION MANUAL
After assembling any wheel to the axles, please check the gap
between the screw thread and the collapsible (refer to below
picture), if the gap is too big, please add two or three washers inside
the wheel, But after tightening the nut outside the wheel, please turn
the wheel by your finger to check if the wheel can run smoothly, this
is very important, because if the wheel can run smoothly, it is ok, but
if the nut press the wheel and the wheel can’t run smoothly, the
motor will be broken easily! Then you need to decrease one or two
washers to make sure the wheel can run smoothly!
GAP
Motor hood
Seat M5x12
machine screw
Ø3x12 screw
●Fit the motor hood on the motor.
●Tighten the
Ø 3x12 screws*3 to secure
it.
●Insert the tabs on the seat into the slots
on the vehicle body.
●Secure it with M5x12 screw*2 with a
screwdriver.
PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE. PLEASE
CONTACT HUNTER PRODCUTS CUSTOMER SERVICE TOLL FREE NUMBER: 1800 224 094
OR VISIT WWW.ELECTRICRIDEON.COM.AU
-8-

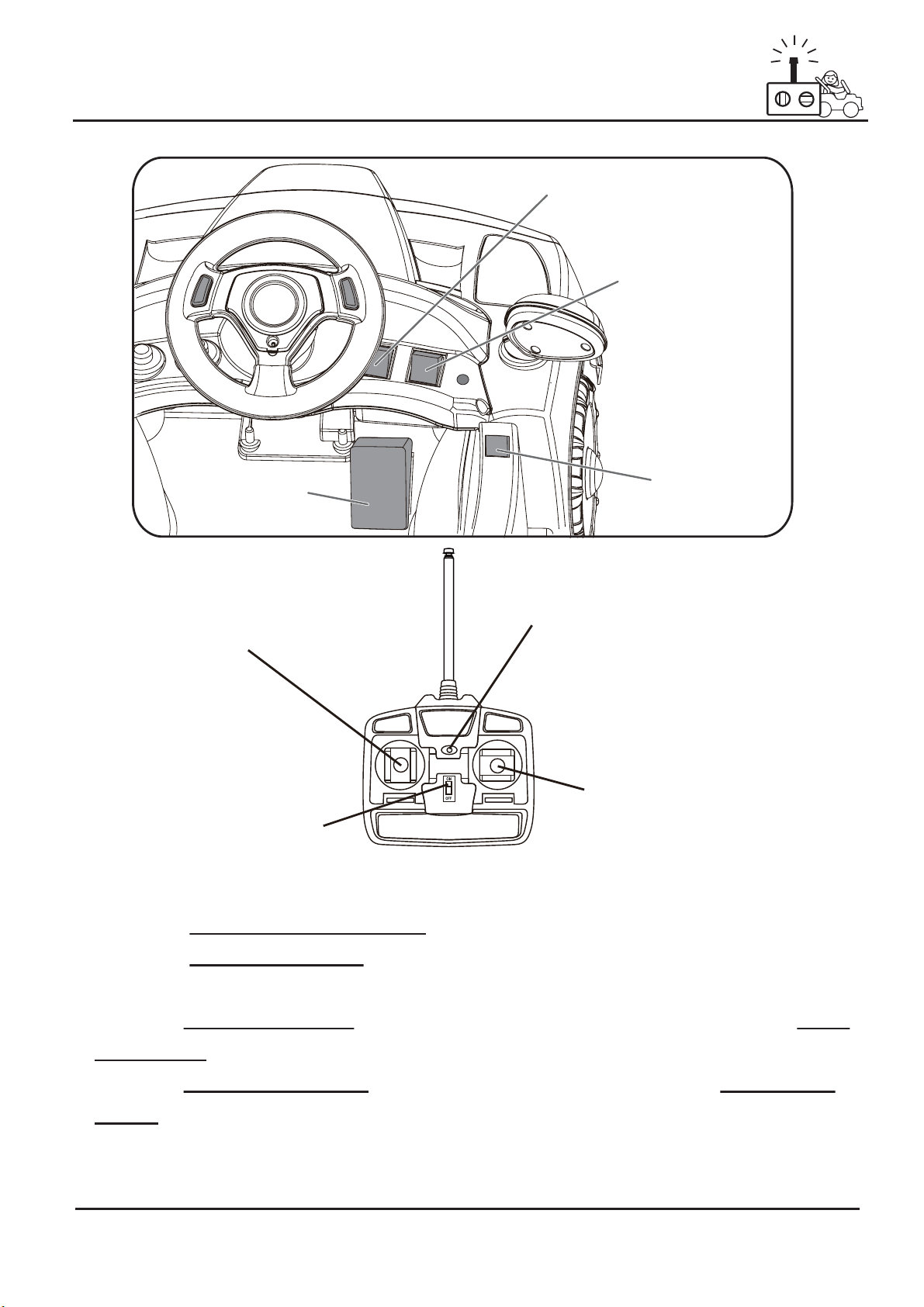

How To Operate Your Vehicle
WARNING!
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS
REQUIRED. Always keep child in view when child is in vehicle.
• Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Suitable for age 2+ years; Maximum user weight is 20kgs.
Rules for Safe Riding
READ THESE RULES ALOUD TO YOUR CHILD AND THEIR PLAYMATES AND MAKE SURE
THEY UNDERSTAND THEM!
• Important! Before using the vehicle for the first time, the battery needs to be charged for 4 to 6 hours, no
more than 10 hours. Only an adult can charge or recharge the battery.
• Finishing the complete car to assemble according to the steps that the manual described. The plug-in
package of storage battery has already been inserted well, the power has already been put through.
• All places to need the screw guarantee the screw has already been locked.
Must confirm before using that following work which is already finished:
• This vehicle has adjustable play seat belts. please instruct children how to tie the safety belt before using,
guarantee the security.
• Always wear a helmet when riding.
• Direct Adult Supervision Required.
• Keep Children within Safe Riding Areas:
• Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps, swimming
pools or other bodies of water;
• Use the toy only on flat surfaces. such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the
vehicle only in the daytime or a well-lit area.
• It is not recommended to drive the vehicle on wet surfaces or on lopes of greater than 15 degrees.
• Do not use this vehicle outdoors when it is raining or snowing.
• Make sure you come to a complete stop before changing directions from forward to back.
• Please follow the correct weight and age limits allowed to drive this vehicle.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• In order to avoid accidents, please ensure the vehicle is safe before riding.
• Do not let any child touch the wheels or be near them when the car is moving .
PLEASE NOTE: IN CASE OF PRODUCT FAULT DO NOT RETURN THIS PRODUCT TO STORE. PLEASE
CONTACT HUNTER PRODCUTS CUSTOMER SERVICE TOLL FREE NUMBER: 1800 224 094
OR VISIT WWW.ELECTRICRIDEON.COM.AU
-9-
