Hunter Products JE128 User manual

• Suitable for 3 years +
•Maximum user weight: 30kg
•Adult assembly required
Please keep this manual for future reference as it contains important
information.
Before first time use, charge the battery for at least 6-8 hours.
OWNER'S MANUAL with Assembly Instructions
Read and understand this entire manual before using!
CHILDREN'S
ELECTRIC TOY CAR
ITEM NO # MM4393
MODEL #JE128
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

Use the vehicle on generally level ground ONLY!
CAUTION
ABOUT YOUR NEW VEHICLE
Thank you for your purchasing our products, we want your child to enjoy this product for years to
come. Keep these points in mind as you read this guide:
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.
WARNING!
Suitable age: 3 Years +
6V7AH x1(Fuse: 10A)
Load Capacity:
Under 30KGS
Size of car:
125 x 70 x 52 CM
Speed: 3KM/H
Power way:
Charging type
Charger: 8V 800mA
Average
battery life:
Approximately
300 times
Charge time: 6-8 Hours
Battery &
Fuse:
WARNING
CHOKING HAZARD - Small parts.
Not suitable for children under 36
months.
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
-1-

1
1
1
3
3
1
4
9
4
2
2
1
1
1
2
1
1
1
1
1
1
14
2
5
2
3
2
A
B
C
D
E
F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
PARTS LIST
PART
NO.
REMARKS
PART NAME
Q’ty (pcs)
Vehicle body
Gear box
Driving wheel
Normal wheel
Bushing
Motor hood
Ø4x12 flat head screw
Ø12 washer
Ø10 locknut
M5x16 machine screw
Side support
Steering column
Rear axle
Windshield
View mirror
Steering wheel
M5x35 machine screw
Ø5 nut
Spare wheel
Seat
Charger
Ø4x12 round head screw
Ø4x16 screw
Hubcap
Split pin
Ø10 Washer
Spanner
2pcs placed on the front axle,
1pcs placed on the rear axle.
Placed on the steering wheel
Placed on the steering wheel
Placed on the vehicle body
1 pcs FOR SPARE
1 pcs FOR SPARE
Tool package
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
-2-

1
2
3
4
7
6
5
8
8
8
9
9
C
C
C
11
12
A
D
E
B
A
13
14
15
17
19
20
21
10
F
16
18
NOTE: Some parts shown are
assembled on both sides of vehicle
Tools Required
Screwdriver(not included)
Spanner
Pliers(not included)

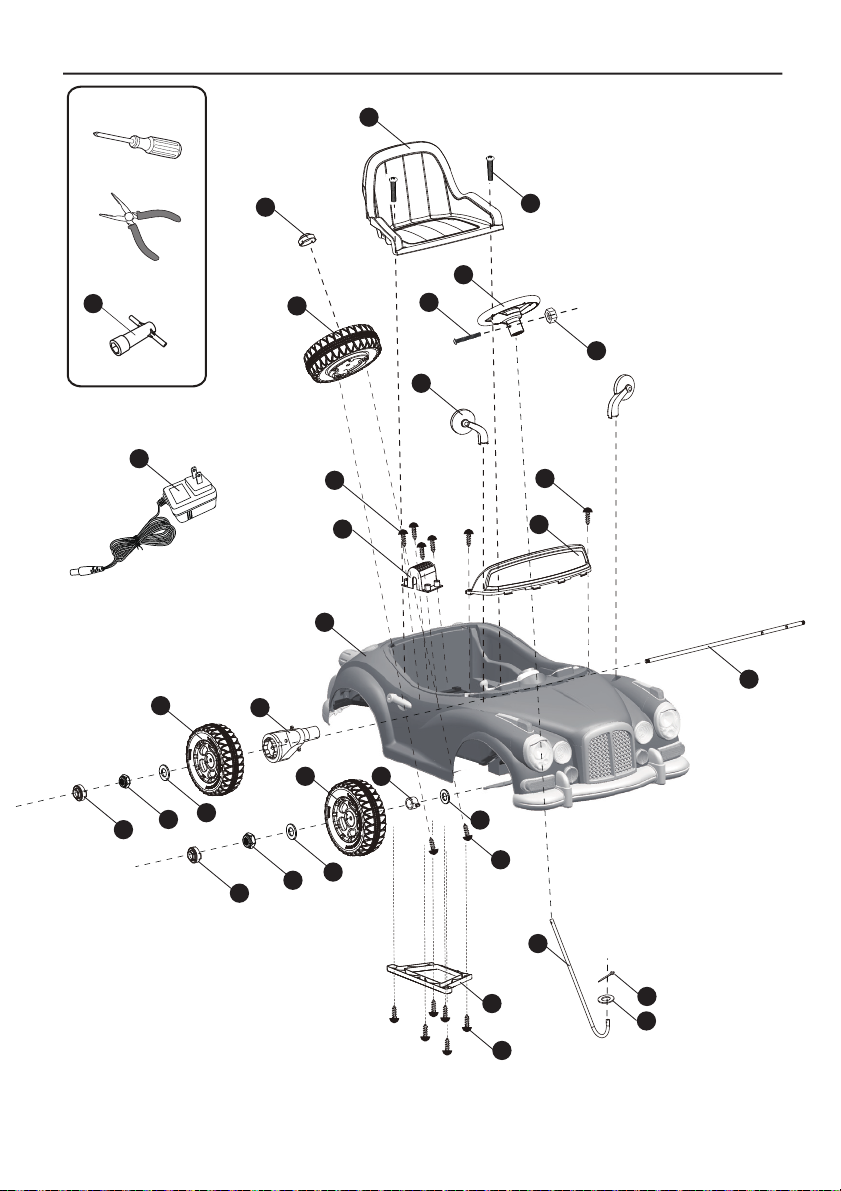

PARTS DIAGRAM
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
-3-

FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
-4-
1
2
ASSEMBLY STEPS
• Your new vehicle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
• Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.
• Assembly tool for need: screwdriver(provide for oneself) and spanner.

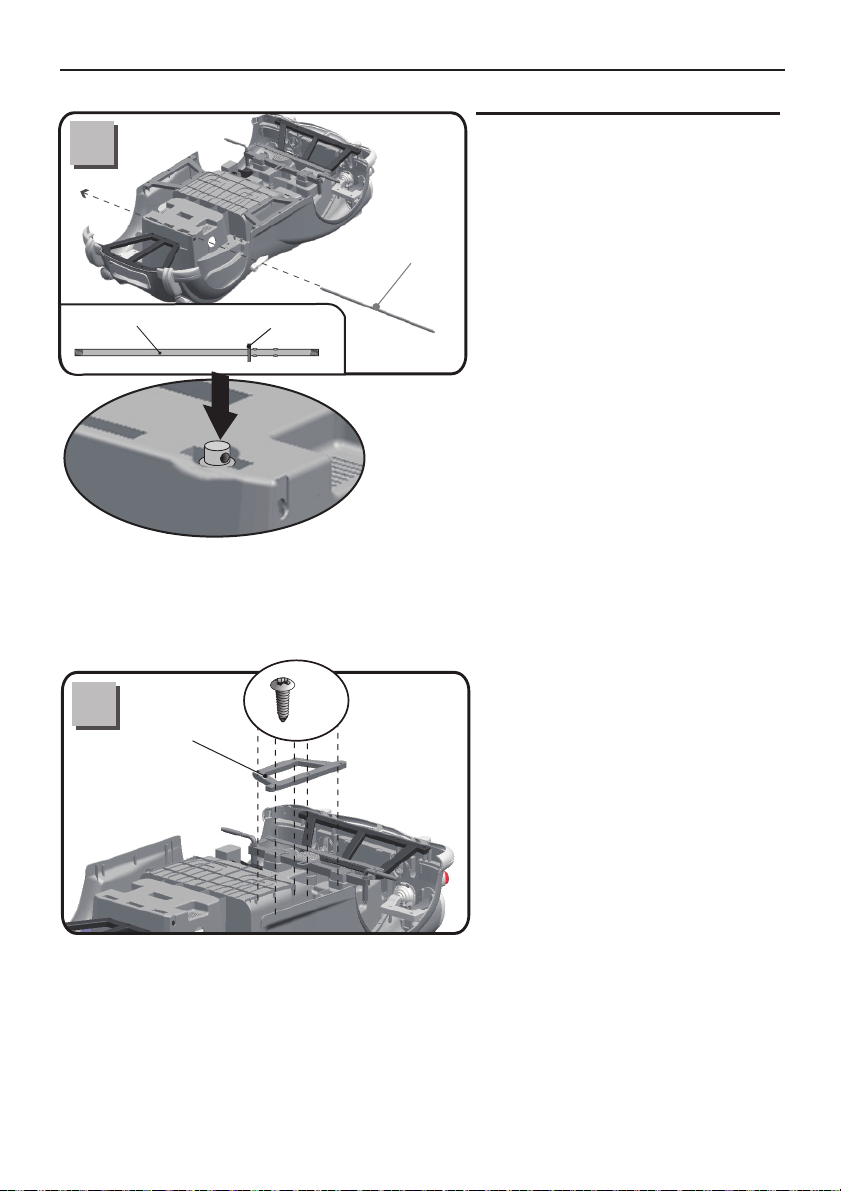

Turn the vehicle body upside down.

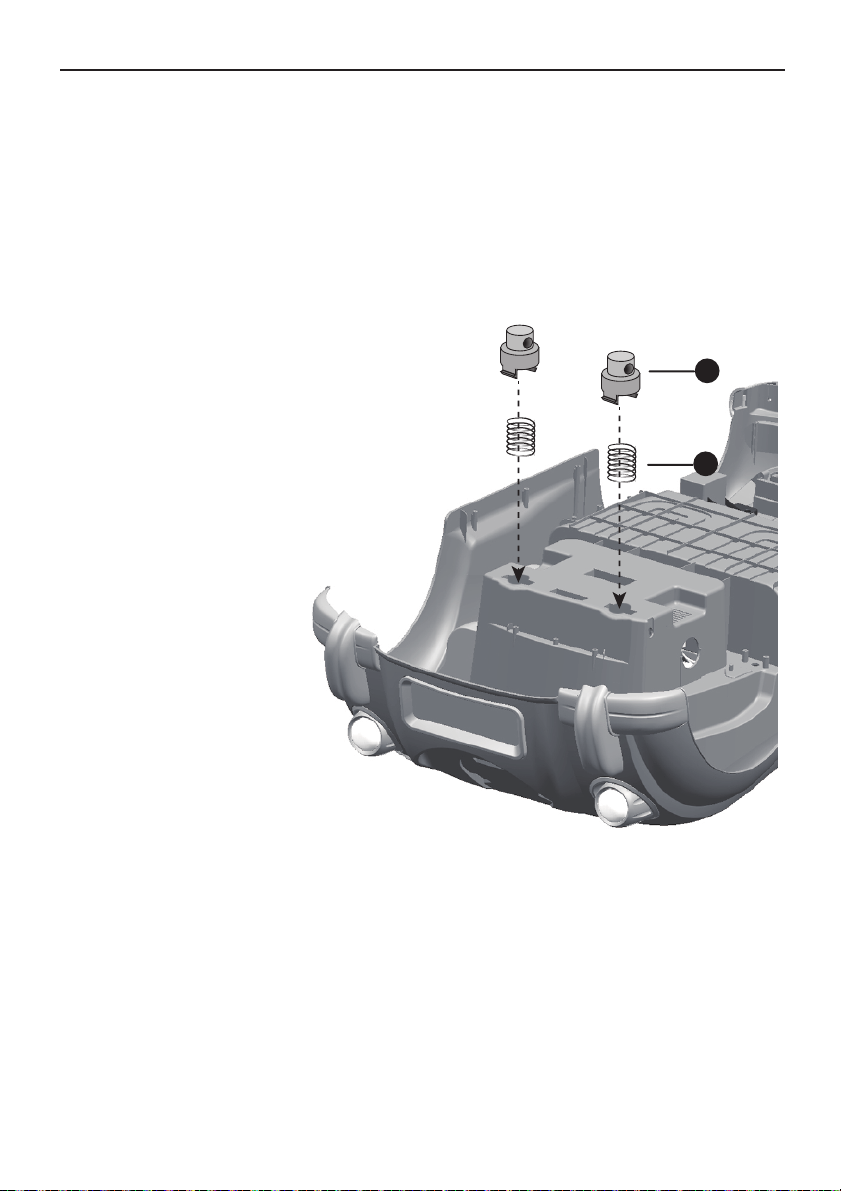

1. Fit the shock spring to the vehicle body.
2. Fit the shock tube to the vehicle body,
and make the tabs on the shock tube
match with the slots in the hole. Pushing it
and ensure it’s working.
Repeat for the other side.

1
2x6
ASSEMBLY STEPS
Ø4x12 round
head screws
Ø12 Washer
Rear axle
Rear axle
Side support
●Turn the vehicle body downside up.
●Fit the side support to the vehicle
body.
(HINT: If the side support does not
seem to fit, change the other one and
try again! )
●Insert six Ø4x12 round head screws
and tighten with a screwdriver.
●Repeat for the other side.
●
Remove all the parts from the
rear axle.
● Slide a Ø12 washer onto the rear axle
from the longer end.
● Insert the rear axle through the hole in
vehicle body.
Pushing the shock tube while attaching
the rear axle to the vehicle body.
Push
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
-5-

3
4
ASSEMBLY STEPS

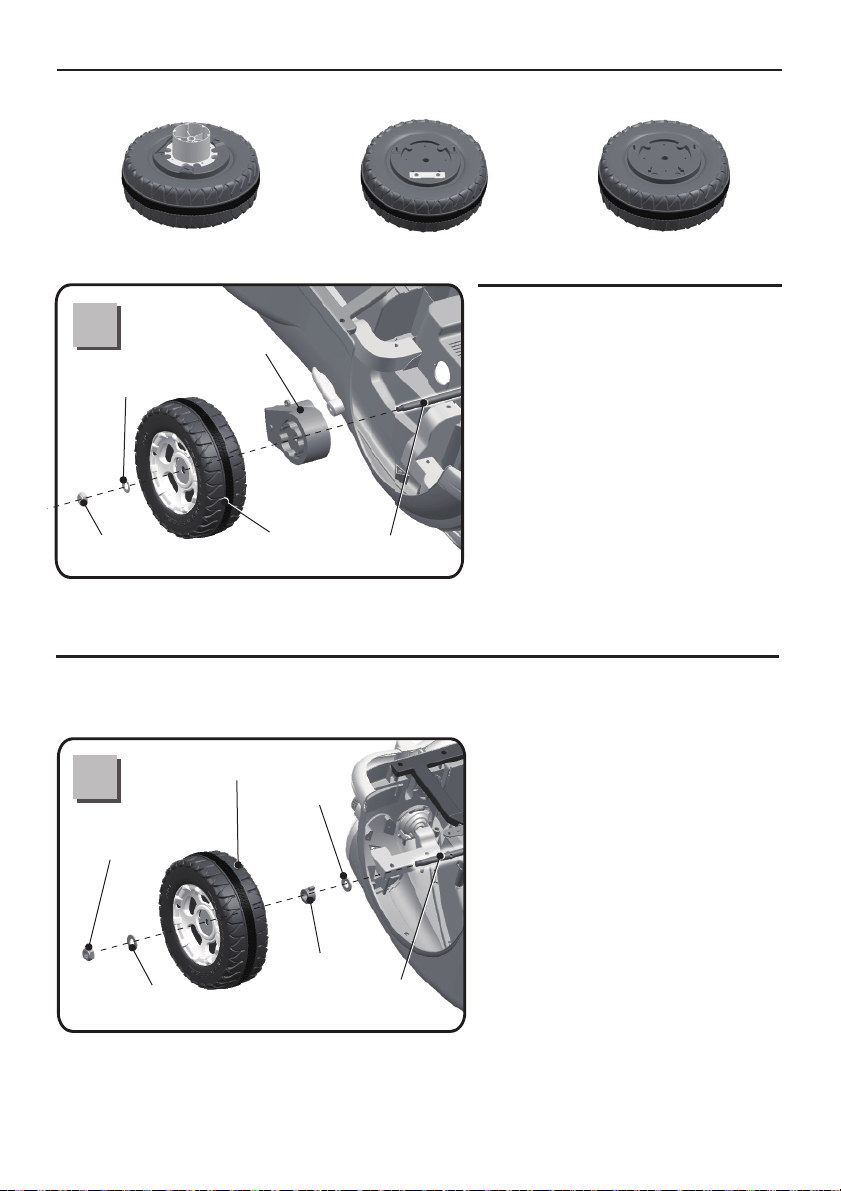

Driving wheel Spare wheel Normal wheel
Hint: An extra spanner has been provided to hold the Ø10 locknut on the other side
of the front axle while tightening the locknut on the other side.
●Fit the gear box onto the rear
axle from the left side (Standing at the
rear of the vehicle body). And make the
motor on the gear box pass through the
hole in the vehicle body.
●Fit the driving wheel onto the rear
axle, keep it match with the gear box.
●Fit a Ø12 washer onto the rear axle.
●Fit a Ø10 locknut to the end of the
rear axle.
Driving wheel
Ø10
Locknut
Ø10
Locknut
Gear box
Rear axle
Ø12
Washer
Bushing
Front axle
Normal wheel
Ø12
Washer
Ø12
Washer
●Remove the parts from the front axle.
●Fit a Ø12 washer onto the axle.
●Fit a bushing onto the axle.
●Fit a normal wheel onto the axle, make
the wheel match with the bushing.
●Fit a Ø12 washer onto the axle.
●Tighten the Ø10 locknut with a spanner.
(Do not over tighten)
●Repeat for the other wheel(s).
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
-6-

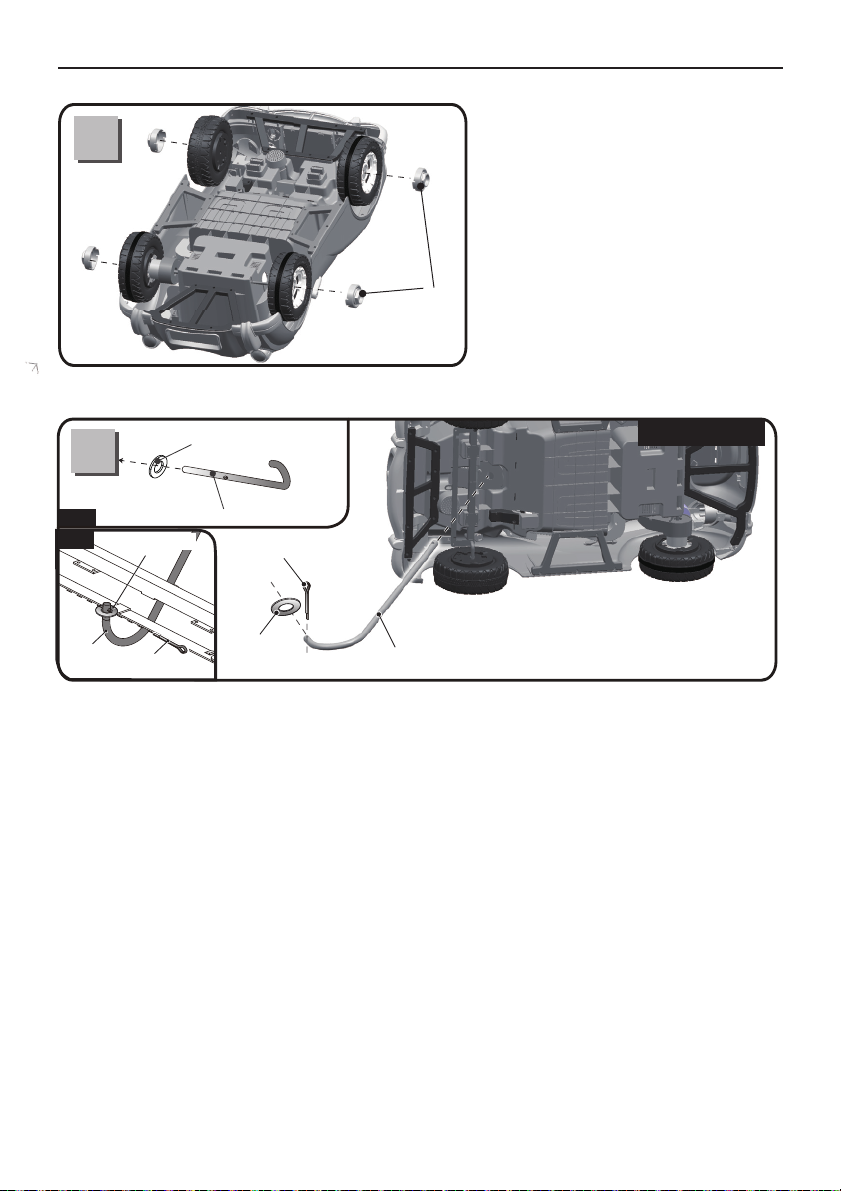

5
6-2
6-1
6
ASSEMBLY STEPS
Ø10 washer
Ø12 washer
Ø10
washer
Steering
column
Steering column
Steering column
Split pin
Split pin
Hubcaps

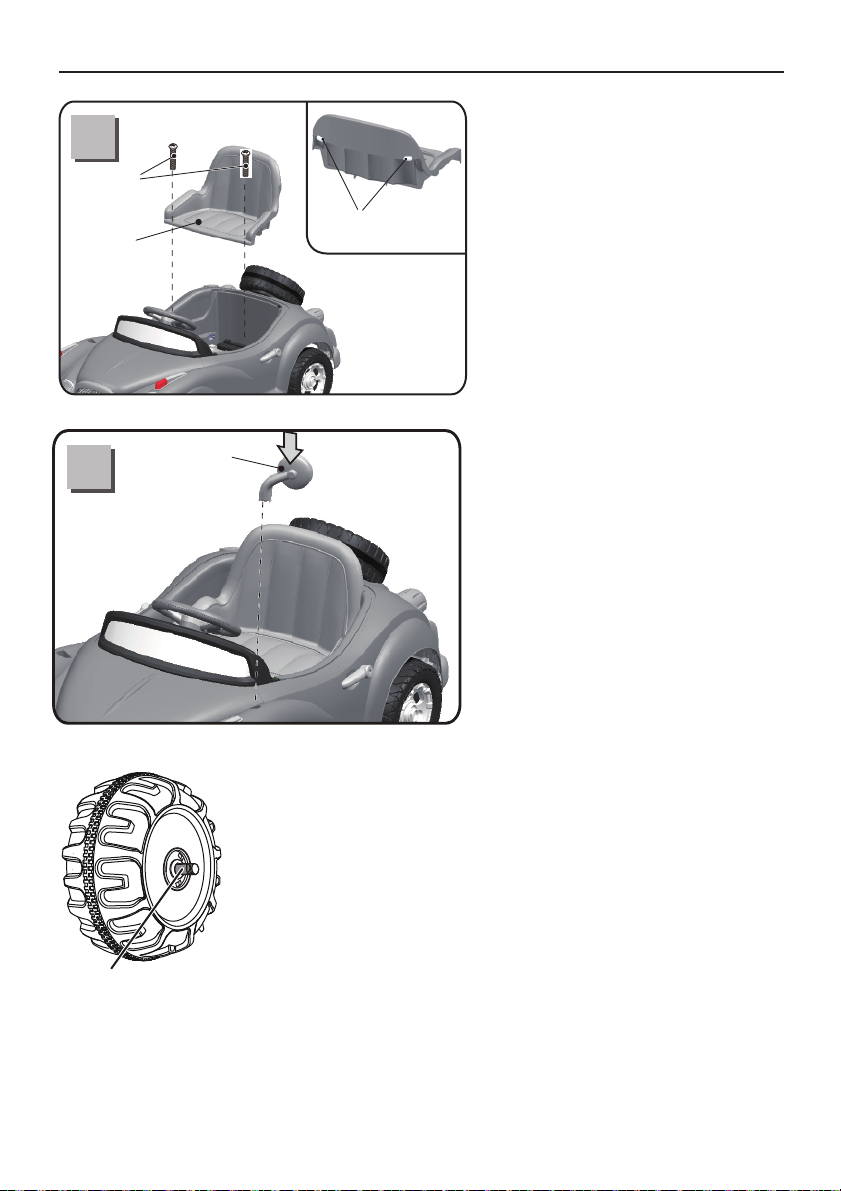

●“Snap” a hubcap onto the center of
each wheel cover.
●Turn the vehicle body on its side.
●Slide a
Ø 10 washer onto the steering column from the straight end(PIC 6-1).
●Insert the straight end of steering column up through the hole at the front of vehicle body from
bottom side, and out through the hole in dash.
●Insert the bent end of steering column through the hole in the front axle linkage, insert a
Ø 10
washer onto the steering column and insert a split pin into the hole in the steering column, bend
the ends of split pin back using a pair of pliers(PIC 6-2).
BOTTOM VIEW
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
-7-

7
8
ASSEMBLY STEPS
Ø4x16 round
head screws
Ø4x12 round
head screws
Windshield
Slots in the vehicle body
Spare wheel REAR VIEW
BOTTOM VIEW
Hubcap
●Insert the tabs in the spare wheel into the slots at the rear of the vehicle body,
●Insert two
Ø4x16 round head screws through the vehicle body wall and into the spare wheel,
tighten with a screwdriver.
●“Snap” the hubcap into the wheel cover of spare wheel.
●Turn the vehicle body upright.
●Fit the tabs on the windshield into the
slots in the vehicle.
●Insert two
Ø4x12 round head screws
and tighten with a screwdriver.
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
-8-

9
10
11 x4
ASSEMBLY STEPS
M5x35
machine screw
End of steering
column
Steering wheel
Ø5 nut
●Remove the M5x35 machine screw
and
Ø 5 nut from the steering wheel.
●Insert the steering wheel to the end of
the steering column.
●Insert the M5x35 machine screw
through the steering wheel and steering
column, and tighten the
Ø 5 nut back in
the same location.

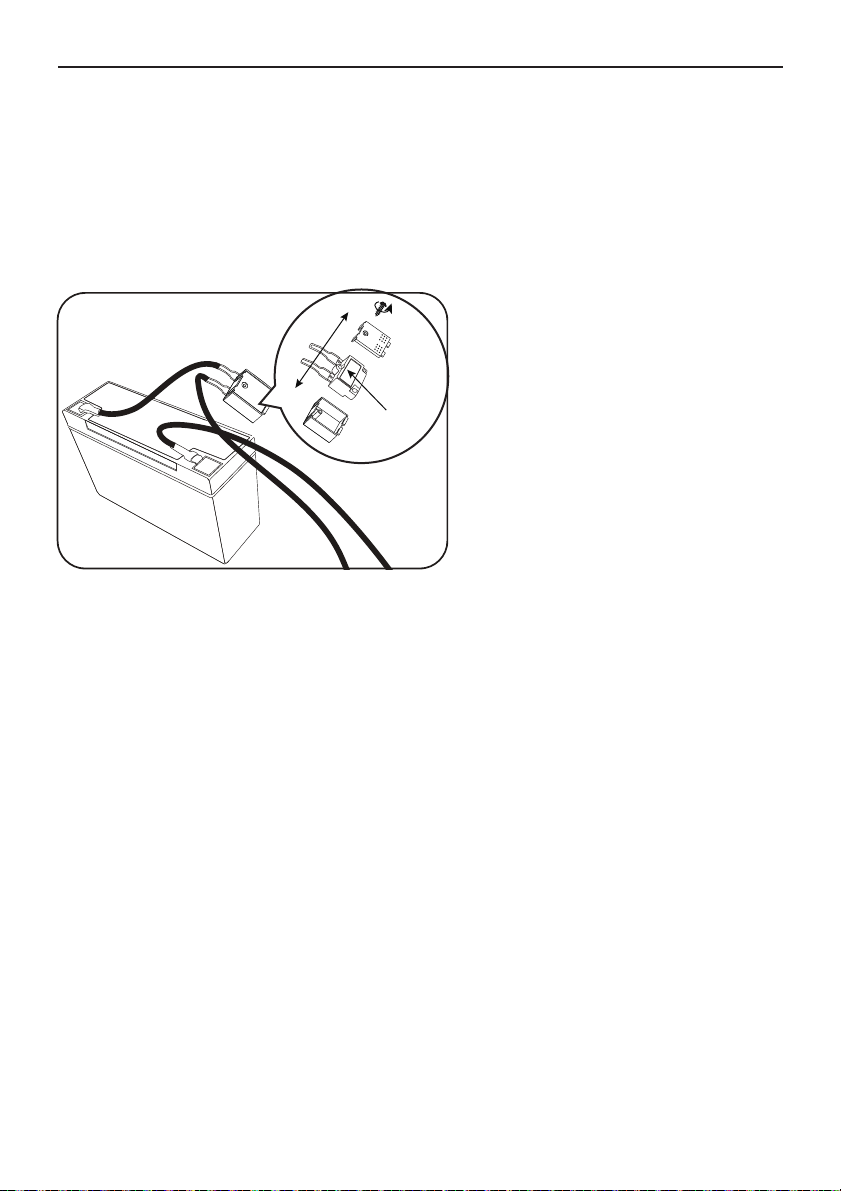

Fuse box Power connector
Motor connector
Vehicle connector
●Fit the motor hood on the motor.
●Tighten four
Ø 4x12 flat head screws to
secure it.
Ø4x12
flat head
screw
Motor hood
●Plug the power connector into the
terminal on battery as shown.
●Plug the vehicle connector(s) into the
motor connector(s).
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
-9-
