Hytronik HIM38/RF User manual

Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 1/9
HIM38/RF HIM39/RF
HF and PIR, 1-10V Dimming / Independent DALI Control with RF Wireless
IP65 High Bay Dual Sense Sensor
TM
Stand-by power
EMC standard (EMC)
Safety standard (LVD)
Certication
Radio Equipment (RED)
Resistive
HC034RF (IP20)
HIM39/RF
EN55015, EN61000
Semko, CB, CE , EMC, RED, RCM
EN60669, AS/NZS60669
Model No. HIM38/RF HIM39/RF
120~277VAC 50/60Hz
Mains voltage
Load ratings:
EN300440, EN300328,
EN301489
<1.5W
Input Characteristics
Safety and EMC
400VA@120V;800VA@220-277V
800W@120V;1600W@220-277V
400VA (capacitive); 1200W (resistive)
max. 20 devices, max. 40mA
Capacitive
Sensor & RF Data
Operation temperature Ta: -20
O
C~ +50
O
C
Environment
IP65
IP rating
Model No.
<0.2mW (HF)
5.8GHz +/- 75MHz (HF)
High Frequency (microwave), PIRSensor principle
Operation frequency
Transmission power
Detection range
Detection angle
RF frequency
RF transmission distance
Max. ( Ox H) 18m x 15m
868MHz (FSK mode, default)
30m indoor, 50m outdoor
30sWarming-up
Technical Data
360O
4 modes: PIR, HF, PIR+HF, PIR/HF
Sensor mode

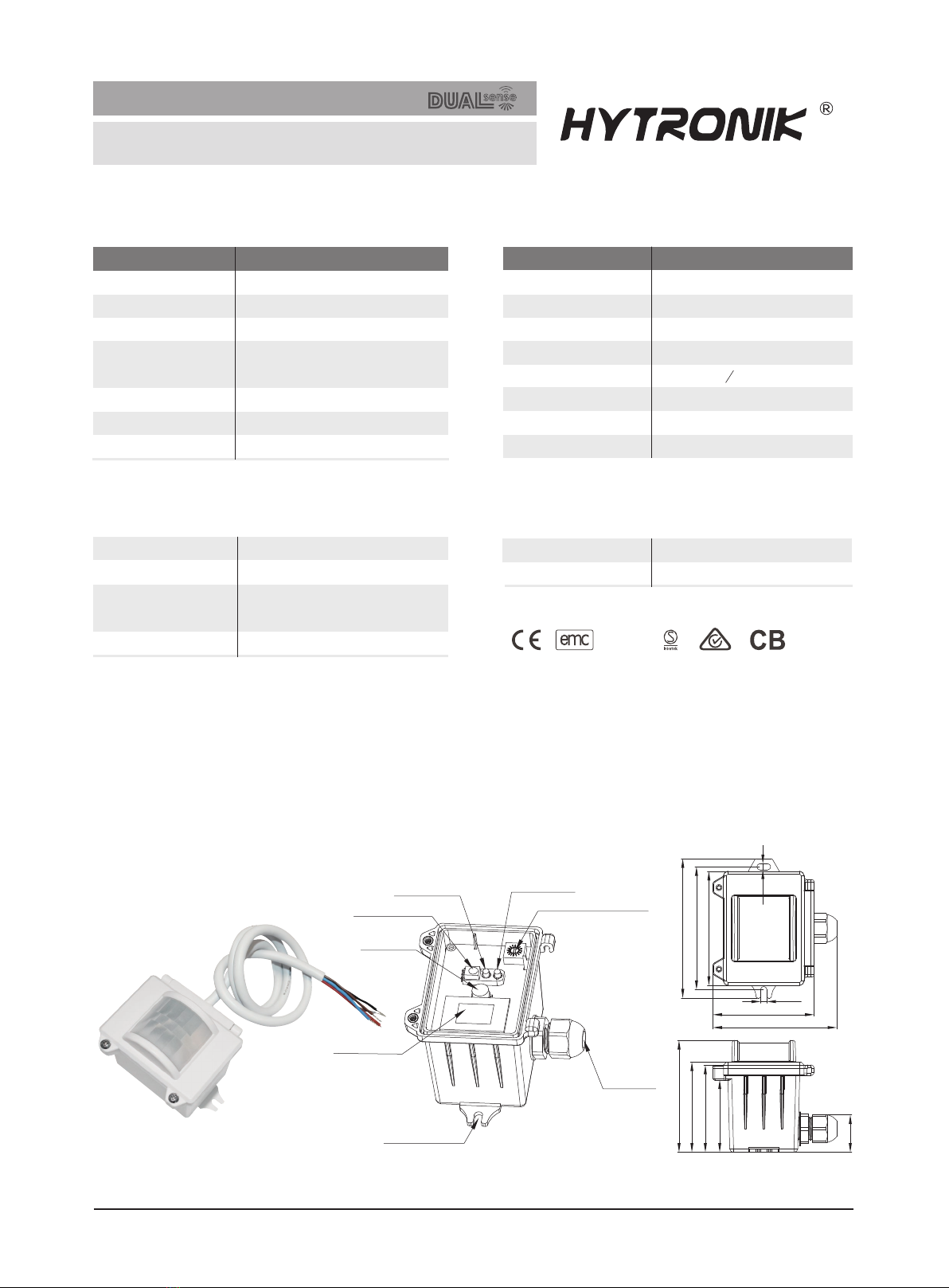

Mechanical Structures and Installations
For more details, please refer to user manual.
HIM38/RF HIM39/RF
IP65RED
Sensor module
PIR
LED indicator
Infrared receiver Rotary switch for programing
Cable entry
Installation rack
A. Ceiling mount
Daylight sensor
81.5
4.1
66.6
91.5
80.7
75
4.1
59.3
73.5
57.3
47.5
24.5

Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 2/9
The motion detected by the master unit HIM38/RF passes to all other units programmed on the same group via RF transmission. The
transmission can reach 30 meters indoor and 50 meters in open areas. A daylight sensor is also built-in to prevent the light switching
on when surrounding natural light is sufcient.
RF receiver serves as slave only, which turns on the light after receving the RF “ON” signal from the master.
RF antenna
Rotary switch
Infrared remote receiver 1-10V+
1-10V L’ NNL
Installation hole
-
71.5
4.2
37.5
38.3
25
11.8
78.2
87
1
HC034RF (1-10V output, RF grouping by rotary switch or remote control)
C. Attach to the shade by clamp
B. Screw to the Luminaire by conduit
Cable entry
Sensor module
PIR
LED indicator
Infrared receiver Rotary switch for programing
Daylight sensor
59.6
66.6
89.9
0.825”
75
64
43.8
43
59.3
73.5
35.2
57.3
47.5
Sensor module
PIR
LED indicator
Infrared receiver
Rotary switch for RF grouping
Angle adjustment
Luminaire clamp
Daylight sensor
163.2
33.7
28.5
4.5
15
96.8
66.6
ぶ4.5
93.8
84.5
59.3
ぶ29
Note: We recommend the mounting distance between sensor to sensor should be more than 4m to prevent sensors from
false-triggering.

Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 3/9
It’s commonly known Microwave and Infrared are main detecting technologies in lighting controls. Both have the advantage and
disadvantage for industrial applications.
The remedy is to create Dual Sense by combining both technologies to make use of the advantage and bypass the disadvantage.
* sensitive to minor motion.
* sensitive to radial movement.
* can be reected by objects hence covering big detection area
* resilient to heat source, smoke and and air conditioner.
* penetrates walls, picks up motions outside of the ofce area;
* back wave detection, false trigger by motions at the back.
* can be false triggered by ventilation fans, water pipe, elevators
etc. in industrial application.
* no penetration, conned detection area.
* sensitive to tangential movement.
* resilient to motion object which has no heat radiation.
* can be false triggered by air conditioner, smoke and
other heat sources.
Dual Sense Introduction
HF PIR
Advantage
Disadvantage Disadvantage
Advantage
* HF: Microwave only
* PIR: PIR mode only
* HF+PIR: both PIR and microwave mode, to decrease the detection capability and detection area. Only when both detections are
activated, the motion is considered valid. This is to prevent the sensor from false trigger by heat source, air conditioner,
ventilation fans, water pipe and elevators etc...
* HF/PIR: either PIR or microwave mode, to increase the detection capability and detection area;
4 optional detection modes via remote control:
Sensor Sensor
min 6m

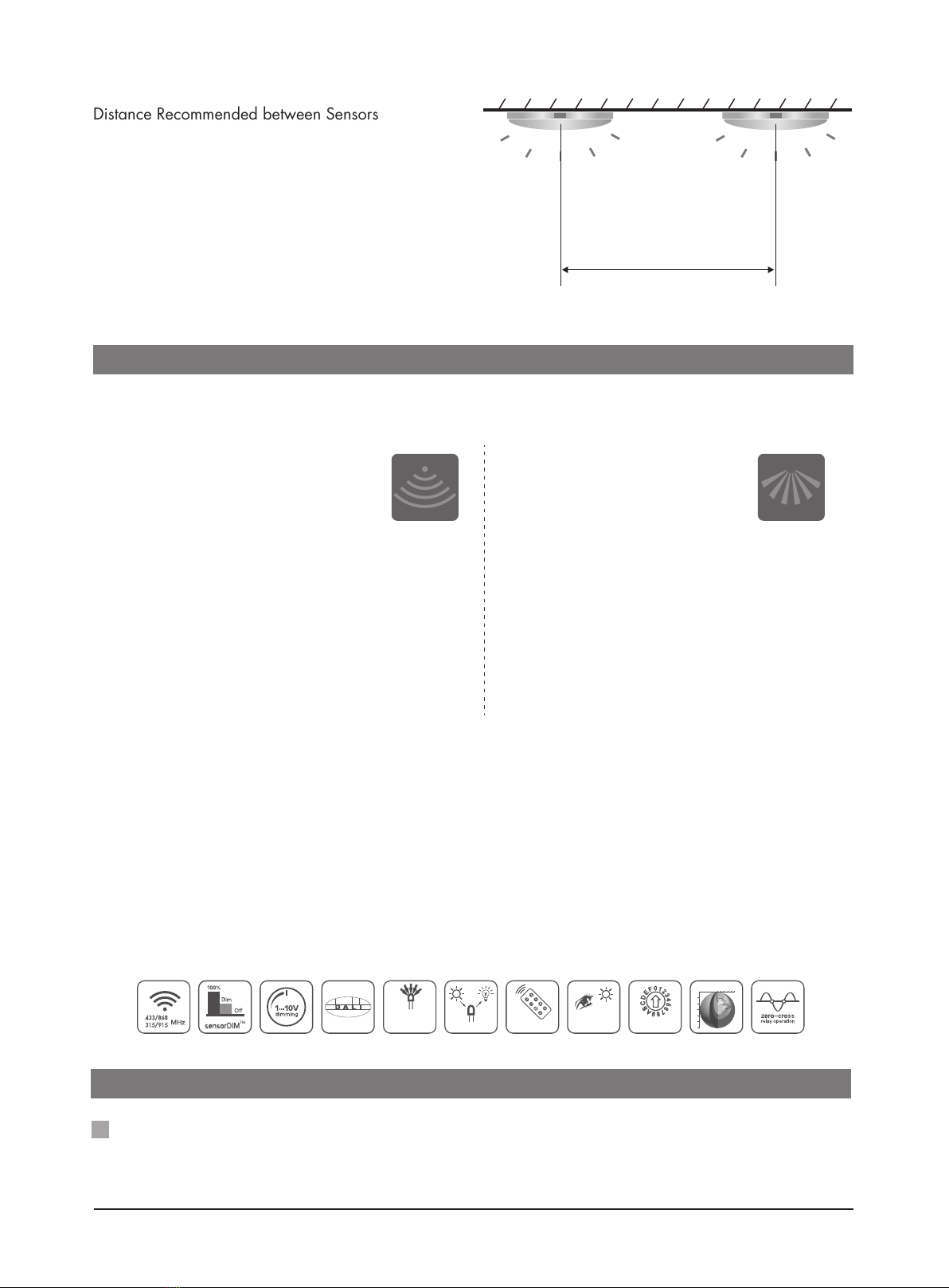

Distance Recommended between Sensors
Pay attention: The RF signal could be affected by big metal
plate & wireless devices such as GSM mobile antenna, strong
Wi signal, ultra high-voltage cable which emits frequent
electromagnetic waves radiation, which may interfere with the
RF transmission and communication! Please always check the
application environment before mass installation!
We recommend the mounting distance between sensors to be
more than 6m to avoid sensors from being false-triggered.
433/868
315/915
9
0
15
Detection Pattern
Ambient daylight
threshold
One-Key
Commissioning
Photocell
Intelligent
Rotary Switch
Grouping
Photocell Advance
TM
Functions and Features
Tri-level Control (Corridor Function)
1
Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas which require a light change notice
before switch-off. The sensor offers 3 levels of light: 100%-->dimmed light (natural light is insufcient) -->off; and 2 periods of
selectable waiting time: motion hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.

Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 4/9

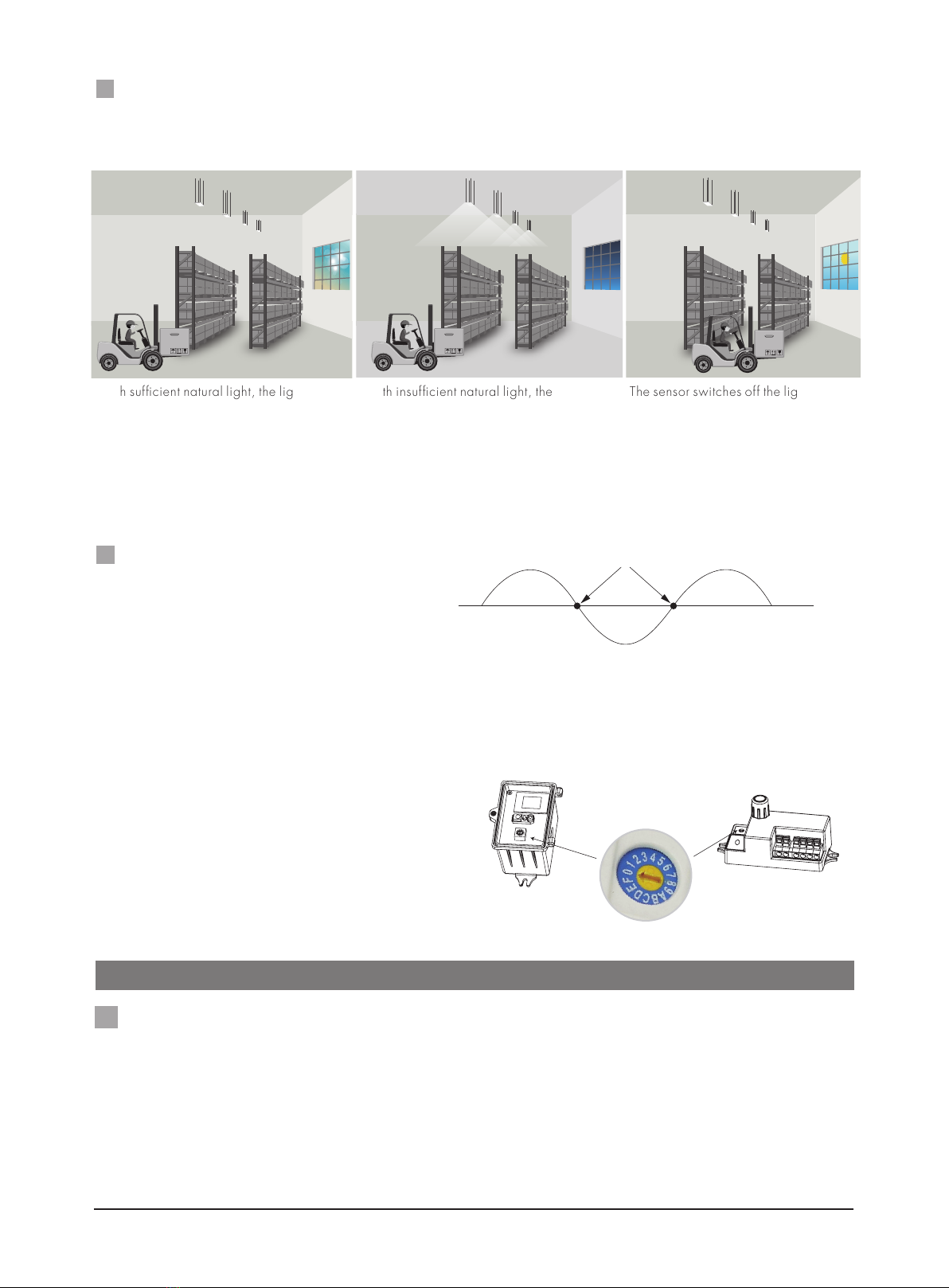

Intelligent Photocell (daylight detection prior to motion detection)
2
The built-in photocell will also automatically turn off the light when the ambient natural light exceeds the programmed lux level for
more than 5min, regardless of whether motion is detected or not. This feature can be disabled if it is required that the xture stays at
dimmed level during absence.
With insufcient natural light, the sensor
switches on the light automatically when
presence is detected.
With sufcient natural light, the light
does not switch on when presence is
detected.
The sensor switches off the light when
natural light is sufcient, even with
presence.
Note: if the stand-by time is preset at "+∞", the xture never switches off but stays at preset dimming level even when natural light is sufcient.
zero-cross point
Alternating current
Zero-cross Relay Operation (HIM38/RF)
Designed in the software, sensor switches on/off the
load right at the zero-cross point, to ensure that the
in-rush current is minimised, enabling the maximum
lifetime of the relay.
3
RF Grouping by Rotary Switch (Maximum 15 channels)
Noted: channel "0" is not for fast grouping, and sensors can only
be grouped by remote control. Transceiver
Receiver
15 channels are available for fast grouping via rotary
switch on both HIM38/RF and the receiver HC034RF.
Simply selecting the same channel on each unit, the
grouping is automatically completed.

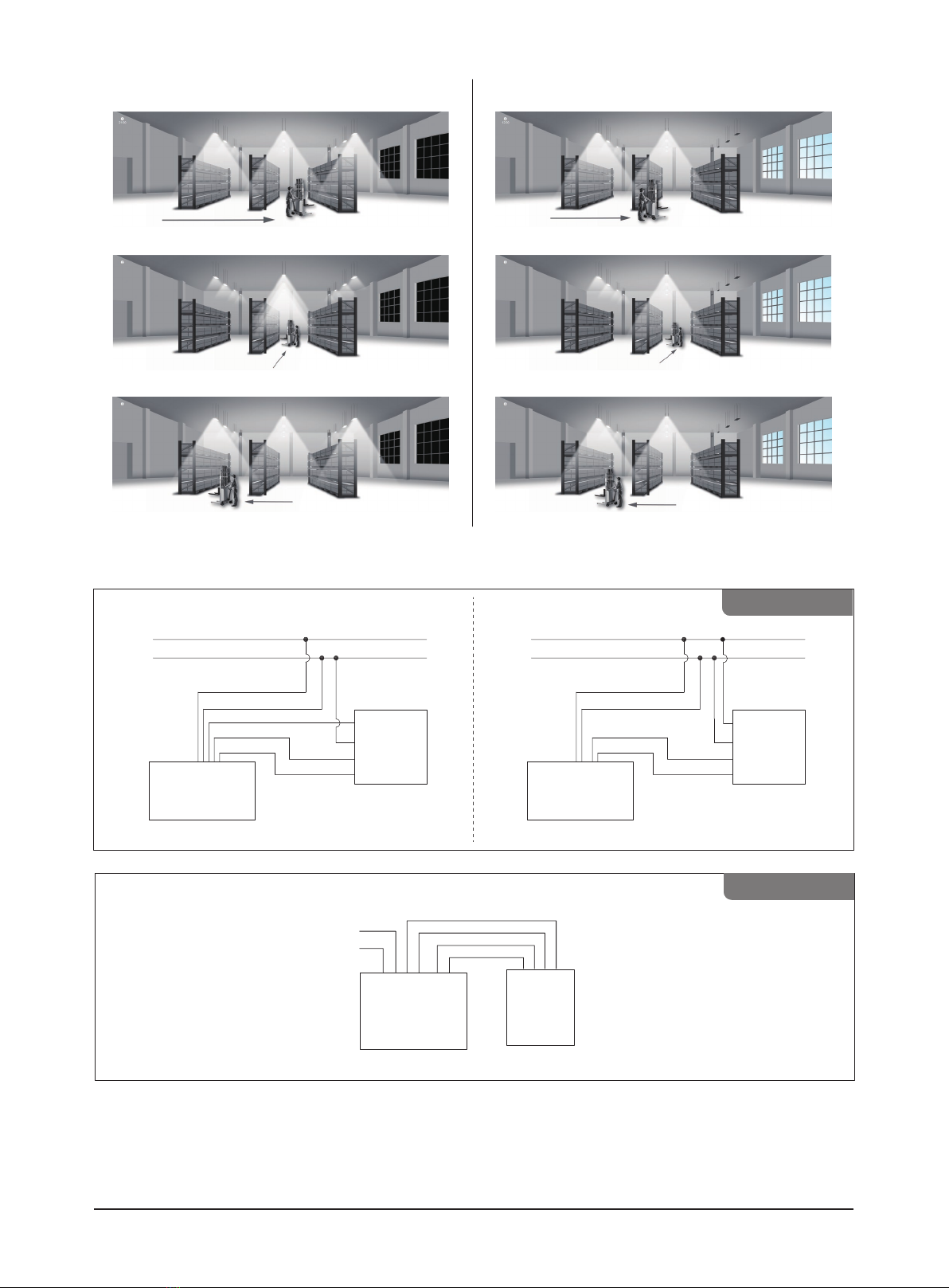

Typical Applications
For warehouse (HIM38/RF or HIM39/RF as both transmitter and receiver)
1
Settings on this demonstration:
Detection range: 100% Hold-time: 10min Daylight threshold: 100lux Stand-by dimming level: 30% Stand-by period: 10min RX: STBY%

Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 5/9
Night Daytime
HIM39/RF
Brown
LED driver
L
N
DALI+
DALI
L
N
Blue
Red
Black
-
HIM38/RF
Brown
LED driver
L
N
1-10V+
1-10V
L
N
Blue
Grey
Red
Black
-
Wiring Diagram
HC034RF LED Driver
N
N
1-10V
NN LL
L
L’ +_
1-10V
+_
Wiring Diagram

Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 6/9

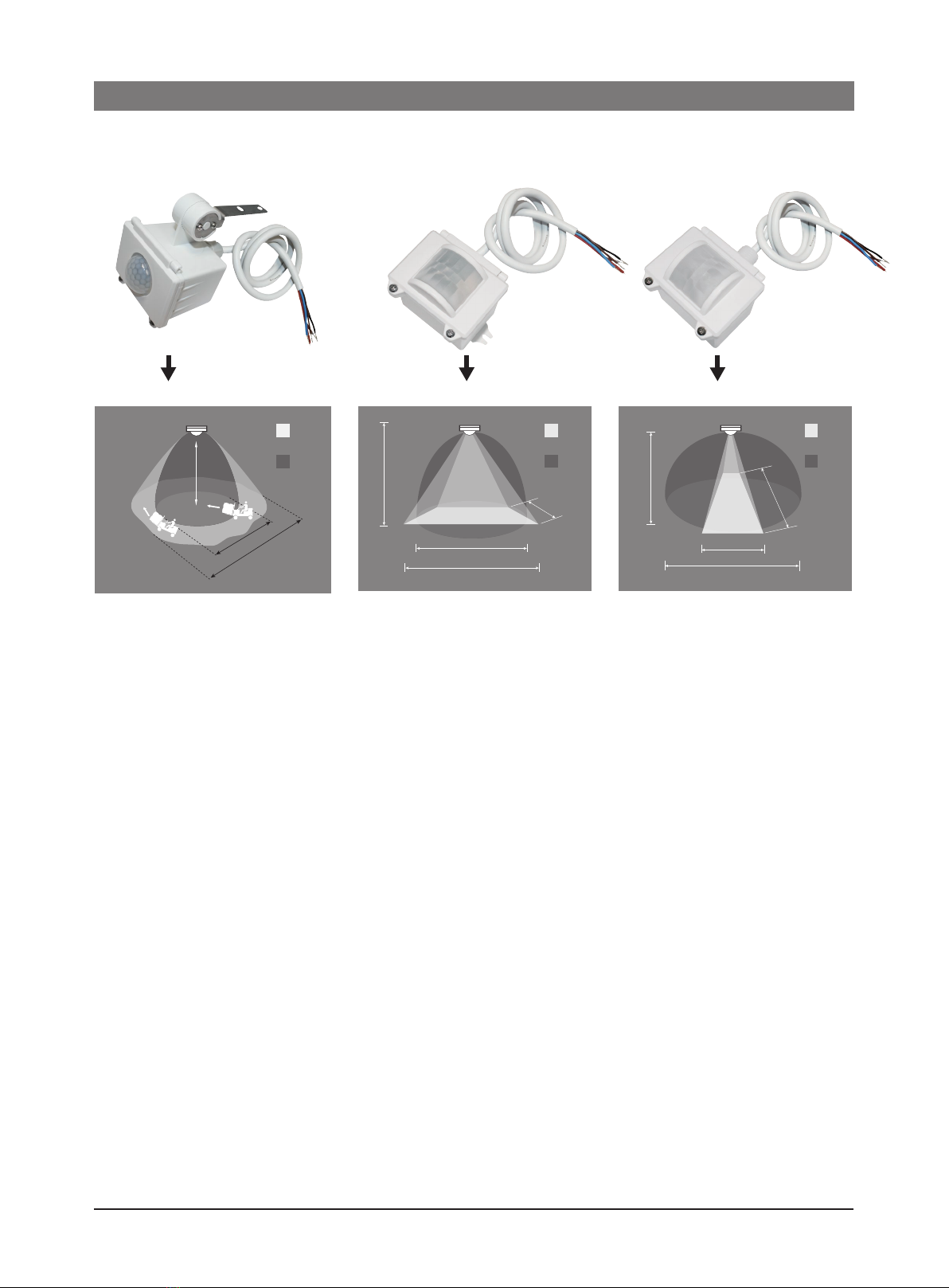

Detection Pattern
End user can choose the suitable PIR lens in real application to fulll various requirements. Three options are offered for selection:
* For single person walking across, the detection range is reduced by 1/3.
PIR detection: H x D:15 x 18m (max.)
HF detection: H x D:15 x 14m (max.)
PIR
HF
PIR tangential movement 18m
HF walking across 14m
15m
PIR detection: L x W x H:18 x 5 x 15m (max.)
HF detection: H x D:15 x 14m (max. )
PIR
HF
15m
18m
14m
5m
PIR
HF
PIR detection: L x W x H:5 x 18 x 15m (max.)
HF detection: H x D:15 x 14m (max. )
15m
5m
14m
18m

Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 7/9
Press buttons in zone “ Daylight threshold” to set daylight sensor at 2Lux/ 10Lux / 50Lux / 100Lux / 300Lux / 500Lux / Disable.
Note: To set daylight sensor at 100Lux / 300Lux / 500Lux, press “Shift” button rst.
Disabled for HC034RF.
Press the buttons to select light output at 80% (at initial 10,000 hours) or 100%.
Note: “Sensor off” and “Twilight” functions are disabled.

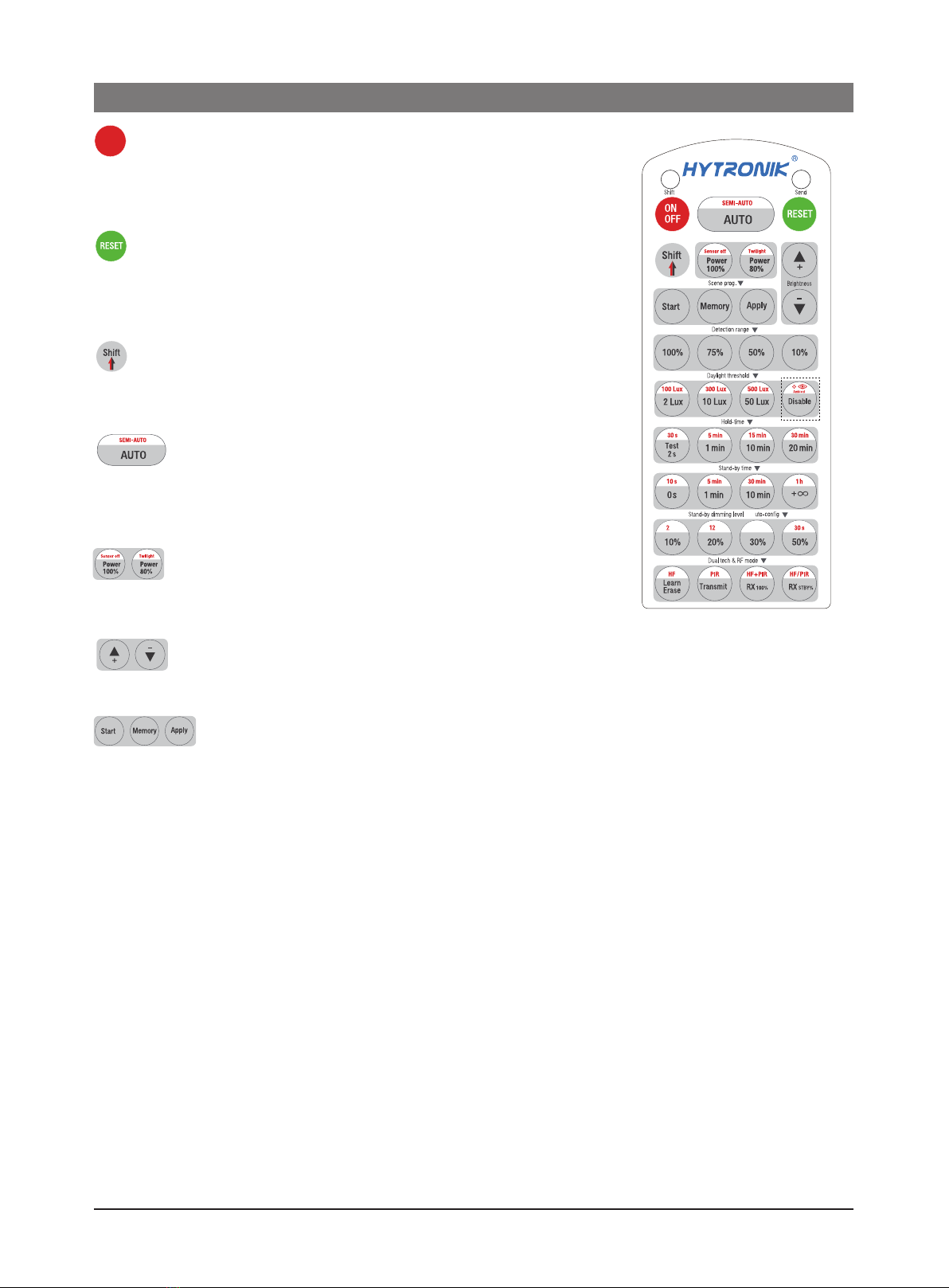

Settings (Remote Control HRC-11)
HRC-11
Press button “RESET”, all settings go back to default settings:
Detection range:100%, hold time:1min, stand-by time:5min,
stand-by dimming level:20%, daylight sensor:lux disable, RX 100%
Reset Settings
Permanent ON/OFF function
Press button “ON/OFF” to select permanent ON or permanent OFF mode.
* Press button “AUTO”, “RESET” to quit this mode.
The mode will change to AUTO Mode after power failure.
AUTO mode
Press button “AUTO” to initiate automatic mode. The sensor starts working and all
settings remain as before the light is switched ON/OFF.
Note: “Semi-auto” function is disabled.
ON/
OFF
Power output
Press the buttons to adjust the light brightness during hold-time.
Load Indication:
The light will ash ONCE rapidly after
receiving the commamd from the
remote control successfully.
Brightness +/-
Scene program - 1-key commissioning
Detection range (for Transceiver only)
Press buttons in zone “Detection range” to set detection range at 100% / 75% / 50% / 10%.
Daylight threshold
1. Press button “Start” to program.
2. Select the buttons in “Detection range”, “Daylight threshold”, “Hold-time”, “Stand-by time”, “Stand-by dimming level” to set all
parameters.
3. Press button “Memory” to save all the settings programmed in the remote control.
4. Press button “Apply” to set the settings to each sensor unit(s).
For example, to set detection range 100%, daylight threshold Disable, hold-time 5min, stand-by time +∞, stand-by dimming level 30%, the steps should be:
Press button “Start”, button ”100%”, “Disable”, “Shift”, “5min”, “Shift”, “+∞”, “30%”, “Memory”. By pointing to the sensor unit(s) and pressing “Apply”, all
settings are passed on the sensor(s).
&
A
4
4 hhh
Press button “Shift”, the LED on the top left corner is on to indicate mode selection.
All values / settings in RED are valid for 20 seconds.
Shift Button
1. Press button “Shift”, the red LED starts to ash.
2. Press button “Ambient”, the surrounding lux level is sampled and set as the new daylight threshold.
Ambient daylight threshold

Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 8/9
Hold-time
Press buttons in zone “hold-time” to set the hold-time at 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min.
Note: 1. To set hold-time at 30s / 5min / 15min / 30min, press “Shift” button rst.
2. 2s is for testing purpose only, stand-by period and daylight sensor settings are disabled in this mode.
*To exit from Test mode, press button “RESET” or any button in “Hold-time”.
Stand-by dimming level
Stand-by time (corridor function)
Press buttons in zone “stand-by time” to set the stand-by period at 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞.
Note: “0s” means on/off control; “+∞” means bi-level control, the xture is 100% on when there is motion detected, and remains at the stand-by dimming level
when no presence after motion hold-time.
Press the button in zone “stand-by dimming level” to set the stand-by dimming level at 10% / 20% / 30% / 50%.
RF grouping by HRC-11
Dual tech & RF mode
1. Press buttons in this zone to select sensor technology.
HF+PIR: the light is on when both HF and PIR sensors are activated.
HF/PIR: the light is on when HF or PIR sensors are activated.
2. For RF grouping via remote control, please refer to steps below:
Short press “Learn/Erase” button on RC to activate pairing mode, and the
receiver unit starts to beep once every second for 3min.
Note: up to 30 units can be paired.
Short press “Transmit” button on RC, the commander unit (master unit)
beeps one time to send the transmission signal.
Upon receiving the transmission signal, the receiver unit (slave unit) rapidly
beeps 3 times in 1s to indicate the success of pairing. Repeat this
step to pair more units.
One more short press on “Learn/Erase” button to the receiver unit to
complete the pairing process, the receiver unit will quit the pairing mode.
Note: Press button RX100%, the light on receiver unit is 100% on upon receiving
RF on signal; Press “RX STBY%” button, the light(s) goes to preset stand-by
dimming level directly.
Erase:
Long press “Learn/Erase” button for 3s to the sensor unit. The beeper
beeps rapidly for about 5s. All commands received before are erased.
Step1
The receiver unit
Beeper is on for 3min
Short press ”Learn
/Erase” button
Step2
The commander unit
LED indicator flash 3 times
Beeper beeps rapidly beep 3 times in 1s
when RF signal is received successfully
The receiver unit (slave)
Short press
”Transmit” button
Step3
The receiver unit (slave)
Beeper is on
Short press ”Learn
/Erase” button
Auto-conguration function
All buttons in this zone are disabled.

Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0 Page 9/9
Additional Information / Documents
1. Regarding precautions for microwave sensor installation and operation, please kindly refer to
www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation
2. Regarding precautions for PIR sensor installation and operation, please kindly refer to
www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation
3.Regarding precautions for RF sensor installation and operation, please kindly refer to
www.hytronik.com/download ->knowledge ->RF Sensors - Precautions for Product Installation and Operation
4. Regarding Hytronik standard guarantee policy, please refer to
www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
