IBASE Technology BYARM-181-PC User manual

www.ibase.com.tw
IBASE Technology Inc.
BYARM-181-PC
User Manual
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

Copyright © 2013 IBASE Technology Inc. All Rights Reserved. 2
2
BYARM-181-PC User Manual
Revision
Release Date
V0.1
2015/02/03
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

i
BYARM-181-PC User Manual
Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may
be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of IBASE Technology INC. (“IBASE”).
Products and corporate names mentioned in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are
used for identification purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are
correct and up to date. However, the manufacturer makes no guarantee
regarding the accuracy of its contents, and reserves the right to make changes
without prior notice.
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

ii
BYARM-181-PC User Manual
Table of Contents
Setting up your system........................................................................................iii
Care during use...................................................................................................iv
Acknowledgments ...............................................................................................v
CHAPTER 1 INTRODUCTION .................................................................................... 1
1.1 General Description ...................................................................................... 1
1.2 System Specifications .................................................................................... 2
1.2.1 Hardware Specifications............................................................................. 2
1.2.2 Dimensions ................................................................................................ 3
1.2.3 I/O View .................................................................................................... 4
1.3 Packing List ................................................................................................... 4
1.4 Installation .................................................................................................... 5
1.4.1 Installing SD card........................................................................................ 5
CHAPTER 2 MOTHERBOARD INTRODUCTION .......................................................... 6
2.1 Introduction .................................................................................................. 6
I/O View................................................................................................... 7
Board Dimensions .................................................................................... 7
2.2 Setting Jumpers............................................................................................. 8
2.3 Connectors on IB102 ....................................................................................14
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
iii
IBASE Technology Inc.
Safety Information
Your BYARM-181-PC is designed and tested to meet the latest standards of
safety for information technology equipment. However, to ensure your safety, it
is important that you read the following safety instructions
Setting up your system
Read and follow all instructions in the documentation before you operate
your system.
Do not use this product near water.
Set up the system on a stable surface. Do not secure the system on any
unstable plane.
Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
Slots and openings on the chassis are for ventilation. Do not block or
cover these openings. Make sure you leave plenty of space around the
system for ventilation. Never insert objects of any kind into the
ventilation openings.
This system should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
Use this product in environments with ambient temperatures between 0˚C
and 50˚C.
If you use an extension cord, make sure that the total ampere rating of the
devices plugged into the extension cord does not exceed its ampere
rating.
DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE
THESTORAGE TEMPERATURE MAY GO BELOW -20°C OR ABOVE
60°C. THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT
SHOULD BE IN A CONTROLLED ENVIRONMENT.
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

iv
BYARM-181-PC User Manual
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned off, a small amount of electrical current still
flows. Always unplug all power, and network cables from the power outlets
before cleaning the system.
If you encounter the following technical problems with the product, unplug
the power cord and contact a qualified service technician or your retailer.
The power cord or plug is damaged.
Liquid has been spilled into the system.
The system does not function properly even if you follow the
operating instructions.
The system was dropped or the cabinet is damaged.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s instructions.
NO DISASSEMBLY
The warranty does not apply to the products that have been disassembled by
users.
WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
v
IBASE Technology Inc.
Acknowledgments
AMI is a registered trademark of AMI Software International, Inc.
AMD and ATI are registered trademarks of AMD Corporation.
Microsoft Windows is a registered trademark of Microsoft Corporation.
FINTEK is a registered trademark of FINTEK Electronics Corporation.
REALTEK is a registered trademark of REALTEK Electronics Corporation.
All other product names or trademarks are properties of their respective
owners.
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

1
BYARM-181-PC User Manual
CHAPTER 1 INTRODUCTION
1.1 General Description
BYARM-181-PC, an 18.5” ARM based all-in-one panel PC, utilizes the
Freescale I.MX6 Cortex A9 Processor that provide high computing
performance with low power consumption.
Well suited for industrial applications, BYARM-181-PC comes with 1GB
DDR3 memory and one 4GB eMMC and one SD card slot for data storage. It
has one Gigabit Ethernet LAN PoE, an RS-232/485 port and USB OTG. The
unit is equipped with 5-side IP65 protection and supports Android 4.x and 12V
DC single power input.
BYARM-181-PC Overview
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

2
BYARM-181-PC User Manual
1.2 System Specifications
1.2.1 Hardware Specifications
Model Name
BYARM-181-PC
System Mainboard
IB102
CPU
Freescale I.MX6 Cortex A9 Solo (1 Cores @
1GHz)
Memory
1GB DDR3 memory
I/O Interface
1x USB (USB Host. A-Type)
1x USB OTG (mini USB B Type)
1x RS-232/485 via RJ45 connector
1x GbE LAN POE 802.3at
1x Power reset button Switch
1x 12V DC-in power jack
Storage
1x 4GB eMMC onboard
1x SD card slot
Expansion Slots
None
Power Supply
12V DC input/POE
LCD Size
18.5” TFT LCD
LCD Color
16.7M
LCD Resolution
1366 x 768
LCD Brightness
300
LCD View Angle
(H°/V°)
170/160
Backlight MTBF
50,000 hrs
Touch Screen
Projected capacitive touch
Construction
Black aluminum front bezel and black steel
back cover
Mounting
VESA 75x75/100x100 mm
Dimensions
(W)x(D)x(H) mm
520 x 341 x 68.3
Operating
Temperature
0°C~ 50°C
Storage Temperature
-20°C ~ 60°C
Relative Humidity
10%~90% (non-condensing)
Protection Class
IP65 front bezel
Certification
CE/FCC Class B
Operating System
Support
Android4.X
‧ This specification is subject to change without prior notice.
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
3
IBASE Technology Inc.

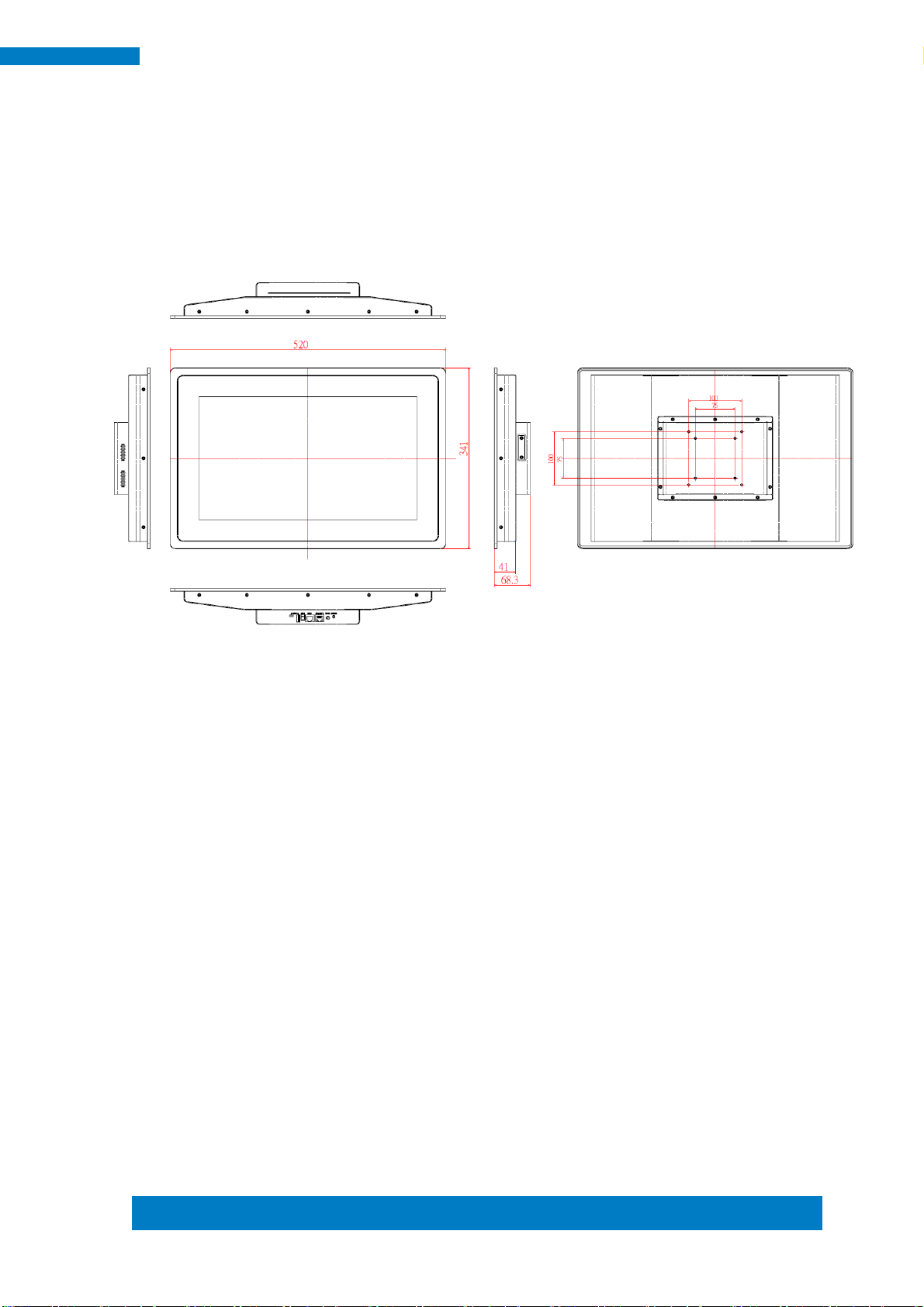

1.2.2 Dimensions
BYARM-181-PC
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

4
BYARM-181-PC User Manual
1.2.3 I/O View
1.3 Packing List
Part
No.
Description
Quantity
1
60W power adaptor
1 pc
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
5
IBASE Technology Inc.
1.4 Installation
1.4.1 Installing SD card
1. Loosen the two screws as shown in the picture.
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

6
BYARM-181-PC User Manual
CHAPTER 2 MOTHERBOARD INTRODUCTION
2.1 Introduction
The IB102 i.MX6 SBC comes with extended consumer-grade Freescale
i.MX6 Solo Core Cortex-A9 1GHz CPU. LVDS, POE+, and light bar design to
bring you the scalability and flexibility you need. The device offers 3D graphics
acceleration, while also supporting numerous peripherals, including DDR3,
RS232/422/485 port and USB OTG that are well suited for industrial
applications.
Specifications –Mainboard
Product Name
IB102
Form Factor
150mm x 165mm
CPU Type
Freescale i.MX6 Solo Core Coretex-A9 on Board
CPU Speed
1GHz
Memory
DDR3 1GB on Board
VGA Controller
IPU v3H IPU Engine
Edge IO
10/100/1000 LAN x1 (RJ45 connector with POE+ support )
USB x 1 (USB Host. A-Type)
USB OTG x 1 (mini AB type)
COM1 RS-232/422/485 x 1
Dip switch x 1 (for 232/485 selection)
SD card slot x 1
Reset button x1
12V DC-IN Jack x 1,
Internal
Headers
LVDS Connector x 1
GPIO x (10pin, pitch 2.0 with 3.3V, refer to RP100)
Audio pin Header x3
I2C connector x1
Battery: BR2032 with socket
Expansion
Slots
miniPCIE x1 ( with USB support)
Others
LEDs light bar x 1 (3xGPIO pin control Red, Orange and
Green)
Operating
Temperature
0~60 degree
SW Support
1. Android 4.3
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
7
IBASE Technology Inc.
This specification is subject to change without prior notice.

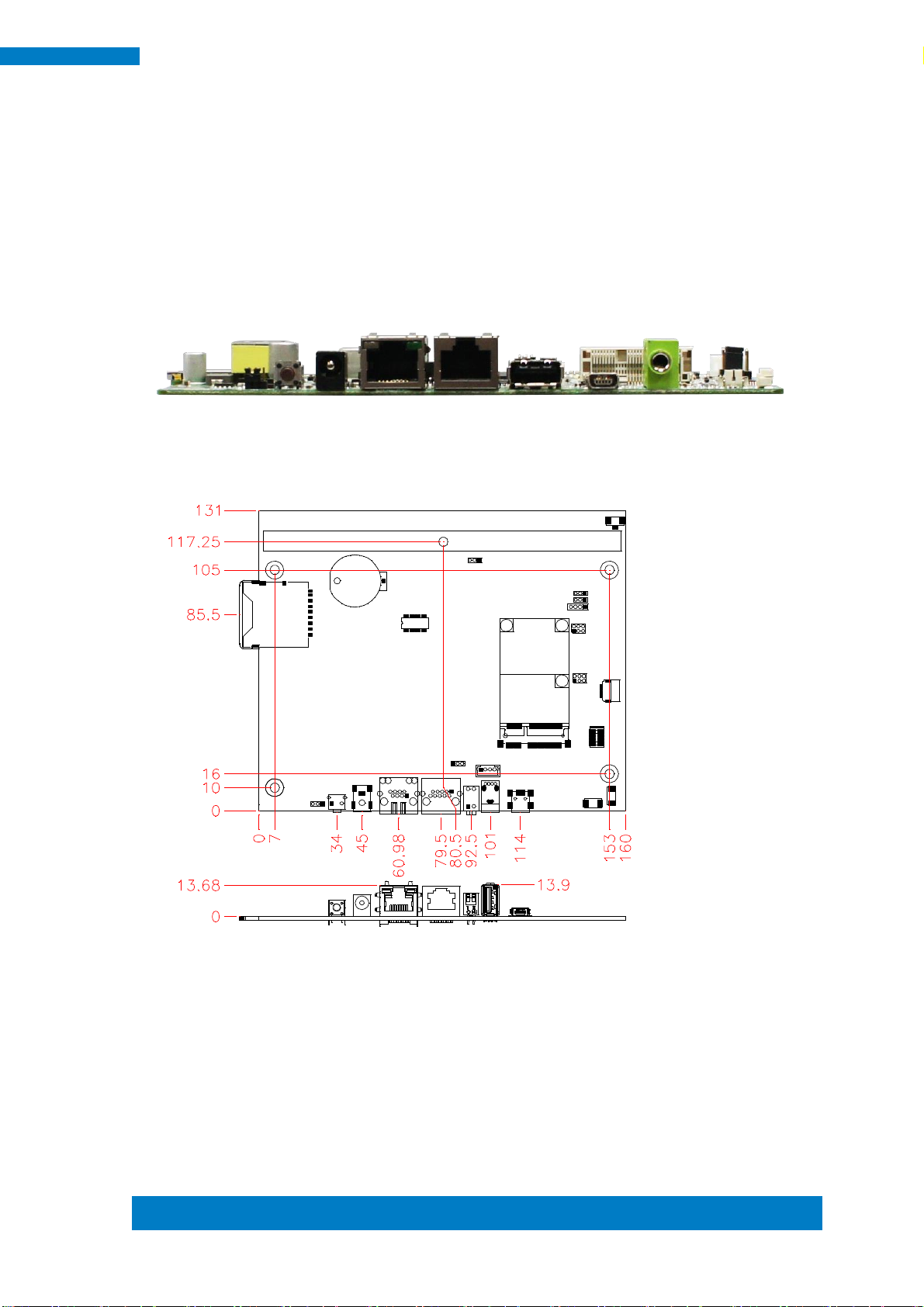

I/O View
Board Dimensions
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

8
BYARM-181-PC User Manual
2.2 Setting Jumpers
[Important] Please check the jumpers, DIP, buttons and switches on
IB102 before doing the panel connection and boot up.
Jumpers are used on IB102 to select various settings and features
according to your needs and applications. Contact your supplier if you have
doubts about the best configuration for your needs. The following lists the
connectors on IB102 and their respective functions.

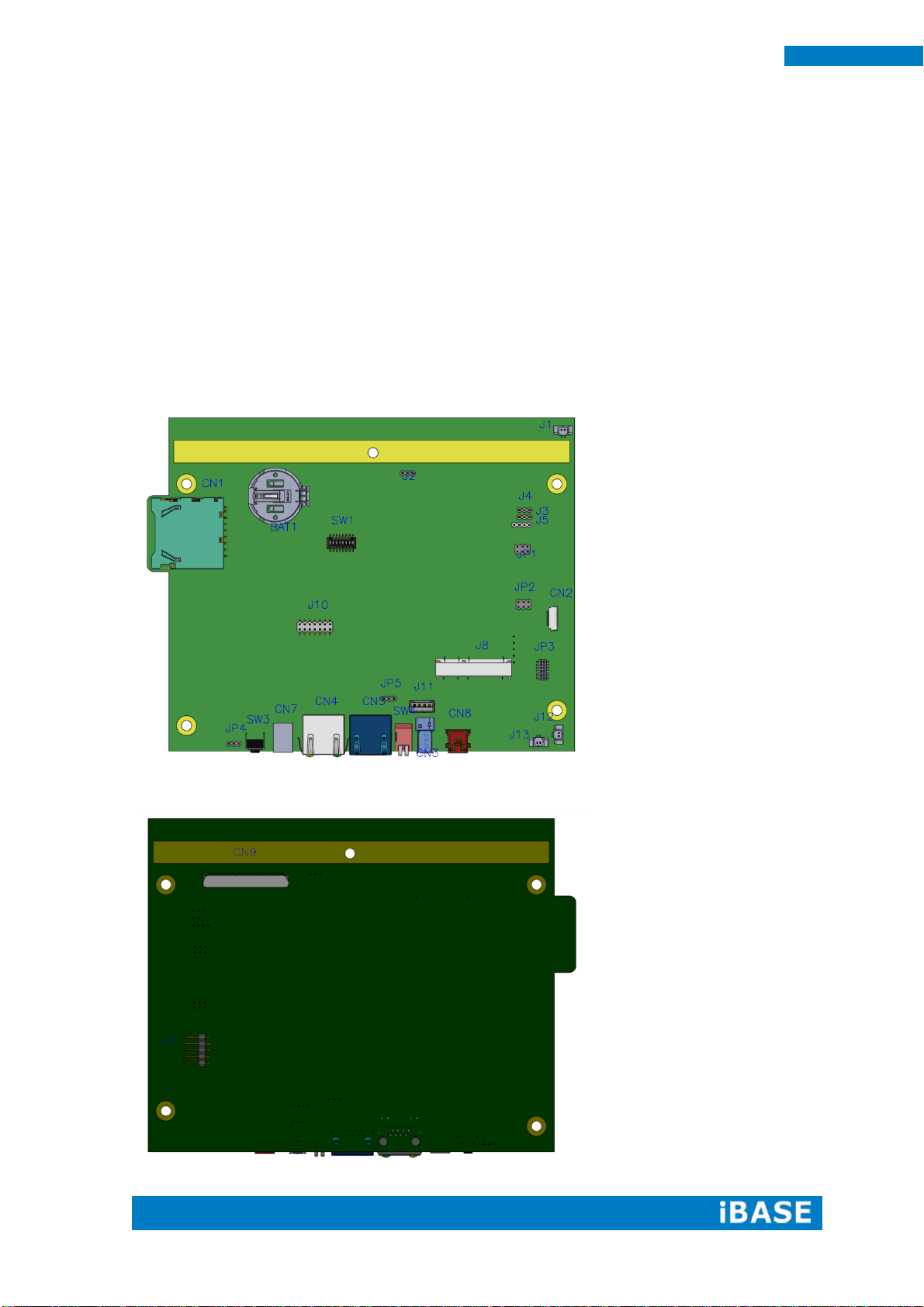

Jumper Locations on IB102
Top Side
Bottom Side
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
9
IBASE Technology Inc.
JP1: Touch Pad Wire Setting 2.0mm
JP1
Setting
Function
Pin 1-2 Short/Open
4 or 8 wire/5 wire (Default)
Pin 3-4 Short/Open
4 or 8 wire/5 wire (Default)
Pin 5-6 Short/Open
4 or 8 wire/5 wire (Default)
JP2: Touch USB/UART Mode Setting 2.0mm
JP2
USB Setting*
Function
1
3
2
4
5 6
Pin 1-3 Short/Closed
USB
Pin 2-4 Short/Closed
JP2
UART Setting
Function
1
3
2
4
5 6
Pin 3-5 Short/Closed
UART*
Pin 2-4 Short/Closed
Baud rate 19200*
Pin 4-6 Short/Closed
Baud rate 9600
1
6
5
2
1
6
5
2
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

10
BYARM-181-PC User Manual
JP3: Program Interface (E-CALL 0519-03-2161-120) (Factory use only)
JP4: System reset/GPIO Mode Setting 2.0mm
JP4
Setting
Function
Pin 1-2 Short/Closed
GPIO
Pin 2-3 Short/Closed
System Reset
(Default)
11
2
12
1
1
3
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
11
IBASE Technology Inc.
JP5, SW4 (S2): RS-232/422/485 Mode Selection 2.0mm
COM1
Mode
SW4 (S2)
JP5
RS-232
Off (Default)
2-3 Short (Default)
RS-485
On
2-3 Short
RS-422
Off
1-2 Short
SW4 (S1): RS-422/485 Device Termination Selection
SW4 (S1)
Device Mode
On
None Terminal (Default)
Off
Terminal
s2
s1
1
3
S2
S1
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru

12
BYARM-181-PC User Manual
J2: BL Voltage Setting 2.0mm
J2
Setting
Panel Voltage
Pin 1-2 Short/Closed
5V (default)
Pin 2-3 Short/Closed
12V
J3: BL ADJ Level Setting 2.0mm
J3
Setting
Panel Voltage
Pin 1-2 Short/Closed
5V
Pin 2-3 Short/Closed
3.3V (default)
1
3
1
3
Russia: LLC “ID Solution”, [phone],
www.idsolution.ru
