Icom IC–2720H Mini–Operating Guide by W5JCK, September 2007 Page 1 of 6
Icom IC-2720H VHF/UHF Radio
Mini–Operating Guide by W5JCK
1
[PWR] Power Switch
Press and hold 1 sec. to turn power On/Off.
2
[SET●LOCK] Set, Lock Switch
●Press to enter Set mode.
●Press and hold for 1 sec. to switch the
Lock function On or Off.
3
[LOW●PRIO] Output Power, Priority Switch
● Press to change the power output level.
● Press and hold for 1 sec. to start the
Priority Watch operation.
4
[TONE●DTMF] Tone, DTMF Switch
● Press to select a Tone function.
●Press and hold for 1 sec. to turn DTMF
memory encoder On or Off.
5
[DUP●MONI] Duplex, Monitor Switch
● Press to select between DUP-, DUP+, and
Simplex operation.
● Press and hold for 1 sec. to switch the
Monitor function On or Off.
6
[MAIN●BAND] L/R Band Switches
● Press to select the main band for L/R side.
● Press and hold for 1 sec. to select
operating frequency band for L/R side.
7
[V/MHz●SCAN] L/R VFO/MHz Tuning, Scan
Switches
● Press to select between VFO mode and 1
MHz Tuning mode for L/R side.
● Press and hold for 1 sec. to start scan for
L/R side.
● Press to stop a scan for L/R side.
8
[M/CALL●MW] L/R Memory/Call, Memory
Write Switches
● Press to select between Memory, Call, and
Weather Channel modes for L/R side.
● Press and hold for 1 sec. to select a
memory channel for L/R side for
programming.
9
[VOL] L/R Volume Control Switches
Turn to adjust audio for L/R side.
10
[DIAL] L/R Tuning Dials
Turn to select operating frequency, memory
channel, setting for Set mode item, or
scanning direction for L/R side.
11
[SQL] L/R Squelch Control Switches
Turn to adjust squelch level for L/R side.

Icom IC–2720H Mini–Operating Guide by W5JCK, September 2007 Page 2 of 6

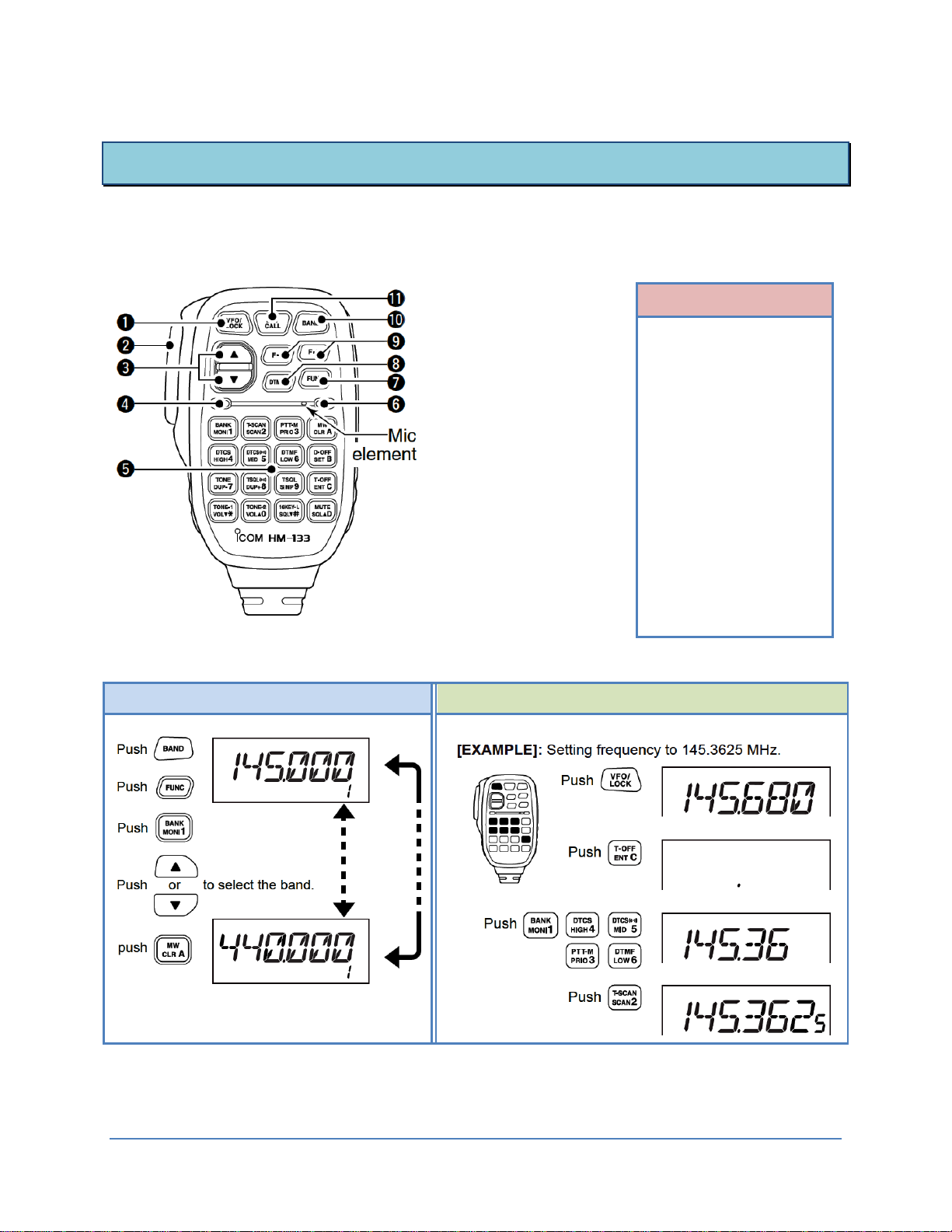

Using the HM-133 Microphone
You can use the keypad and buttons on the HM-133 microphone to perform many of the
common tasks required for operating the radio, including selecting a frequency band and
directly entering a frequency. (Note: Microphone keys only function for the main band.)
1VFO/Lock Switch
2PTT Switch
3Up/Down Switches →
4Activity Indicator
5Keypad
6Function Indicator
72nd function Switch
8DTMF Select switch
9Function Switches
10 Band Switch →
11 Memory/Call Switch
Using the ▲/▼ Keys
Select a Frequency
Press ▲ or ▼ to select a
frequency (in VFO mode)
or memory channel (in
Memory mode).
Start a Scan
Press and hold ▲ or ▼
for 1 sec. to activate the
scan mode.
Stop a Scan
Press ▲ or ▼ to cancel
the scan.
Select a Band
Press [BAND]to toggle
main band between left
and right sides of radio.
Select a Frequency Band
Directly Enter a Frequency

Icom IC–2720H Mini–Operating Guide by W5JCK, September 2007 Page 3 of 6
Basic Operation
Turning the power On or Off
Press and hold [PWR]for 1 sec. to turn the power On or Off.
Selecting a Frequency Band in VFO Mode
1. Press L/R [MAIN●BAND]for 1 second.
2. Rotate [DIAL]to select the band.
3. Press [MAIN●BAND]to activate the desired band.
You can select between 2m and 70cm bands for
transmission, and 127 MHz, 2m, 220 MHz, 350 MHz,
70cm, 500 MHz, and 900 MHz bands for reception.
Alternatively: See “Using the HM-133
Microphone” section for instructions on
using the microphone to select a band.
Activating VFO Mode
Press L/R [V/MHz●SCAN]to activate the VFO mode.
Alternatively: Press the HM-133 microphone button [VFO/LOCK]to
activate VFO mode on the main band.
Operating in VFO Mode
● If necessary, press L/R [V/MHz●SCAN]to activate the VFO mode.
● To change the frequency using 1 KHz steps, rotate [DIAL].
● To change the frequency using 1 KHz, 1 MHz, or 10 MHz steps:
1. Press [V/MHz●SCAN]one or more times to toggle between
1 KHz, 1 MHz, and 10 MHz tuning steps.
2. Rotate [DIAL] to change the frequency.
● To start a scan, press and hold [V/MHz●SCAN]for 1 second.
● To stop a scan, press [V/MHz●SCAN].
Note: The digit associated with
each tuning step (1 KHz,
1 MHz, or 10 MHz) disappears
when that step is selected.
Activating Memory Mode
Press L/R [M/CALL●MW]to activate Memory mode.
The indicator icon appears on the appropriate side of LCD
display when Memory mode is activated for that side.
Alternatively: Press the HM-133 microphone button [MR/CALL]to
activate Memory mode on the main band.

Icom IC–2720H Mini–Operating Guide by W5JCK, September 2007 Page 4 of 6
Operating in Memory Mode
● Press L/R [M/CALL●MW]one or more times to activate Memory mode.
● To change the Memory channel, rotate [DIAL].
● To start a scan, press and hold [V/MHz●SCAN]for 1 second.
● To stop a scan, press [V/MHz●SCAN].
Alternatively: See “Using the HM-133 Microphone” section for instructions
on using the microphone ▲/▼ and/or keypad buttons to perform these
operations.
Memory Bank Selection
The IC-2720H has 10 Memory Banks (A to J), each of which can contain up
to 200 Memory channels. To select a Memory channel within a Bank:
1. Press L/R [M/CALL●MW]one or more times to activate Memory mode.
2. Press and hold [MAIN●BAND]for 1 sec. to activate the Memory Bank
selection. (The Bank initial blinks on the LCD display.)
3. Rotate [DIAL]to display the desired Memory Bank.
4. Press [MAIN●BAND]to select the Memory Bank. (The Bank initial stops
blinking.)
5. Rotate the Dial to select a Memory channel within the bank.
To return to regular Memory mode, press and hold [MAIN●BAND]for 1 sec.
then momentarily press [MAIN●BAND]again.
Using the Monitor Function
This function is used to listen to weak signals
without disturbing the squelch setting.
● To activate, press and hold L/R [DUP●MONI]for 1
sec. to open the squelch. (The “Busy”icon blinks
on the LCD display`.)
● To cancel, press and hold [DUP●MONI]for 1 sec.
Alternatively: Press the HM-133 microphone
button [BANK●MONI●1]to activate or cancel the
Monitor function.
Selecting the Call Channel
Call channel is a pre-programmed Memory channel
accessed by pressing the Call channel button.
1. Press L/R [M/CALL●MW]one or more times to
activate Call Channel mode.
2. Rotate [DIAL]to select the desired call channel.
(In Memory mode, the “C1” or “C2” icon
appears. In VFO mode, the “c” icon appears.)
3. To cancel Call Channel mode, press
[M/CALL●MW]one or more times.
Alternatively: Press and hold the HM-133
microphone button [MR●CALL]for 1 sec. to
activate the Call Channel mode, then press ▲ or
▼ to select the desired call channel in the main
Band.To cancel, press [MR●CALL]to return to
Memory mode.

Icom IC–2720H Mini–Operating Guide by W5JCK, September 2007 Page 5 of 6
Operating through a Repeater
Normally, you will operate the IC-2720H through repeater frequencies that you have already
programmed into the radio’s Memory channels. However, the occasion may arise in which you
need to operate through a repeater that has not been programmed. This section instructs you in
setting up the IC-2720H to operate through a repeater.
1. Activate VFO mode: Press L/R [V/MHz●SCAN]to activate the VFO mode.
2. Select the Frequency Band: See “Selecting a Frequency Band” for instructions.
3. Set the Receive Frequency: See “Operating in VFO Mode” for instructions. This is the
frequency on which your radio receives the repeater’s transmissions. (For example, you
will receive the Tarrant County R.A.C.E.S. repeater on 146.940 MHz.)
4. If necessary, Set the Repeater Shift:
Note: If the Auto Repeater Function is set to On and the repeater
uses a standard repeater shift, this step will not be necessary as the
IC-2720H will automatically set the shift.
To manually set the repeater shift:
Press L/R [DUP●MONI]once or twice to select minus duplex or plus
duplex shift.
● For minus duplex, “DUP−” appears on the LCD screen. The
repeater’s receive freq. is set lower than its transmit frequency.
● For plus duplex, “DUP” appears on the LCD screen. The
repeater’s receive freq. is set higher than its transmit frequency.
● If the repeater uses an offset frequency amount other than 0.6
MHz for 2m band or 5 MHz for 70cm band, manually set the offset
in Step 5.
Example: Set the 146.940
repeater shift to minus
duplex “DUP−“. This sets
the repeater’s receive
frequency to 146.340 MHz.
5. If necessary, Set the Repeater Offset Frequency Amount:
Note: This step is only necessary if the repeater’s offset frequency
is an amount other than 0.6 MHz on the 2m band or 5 MHz on the
70cm band.
a. Press [SET●LOCK]to activate Set mode.
b. Press either [SET●LOCK]or [LOW●PRIO] one or more times until
“DUP” and offset frequency appear.
c. Rotate [DIAL]to select the offset frequency.
d. Press [TONE●DTMF]to set the offset and exit Set mode.

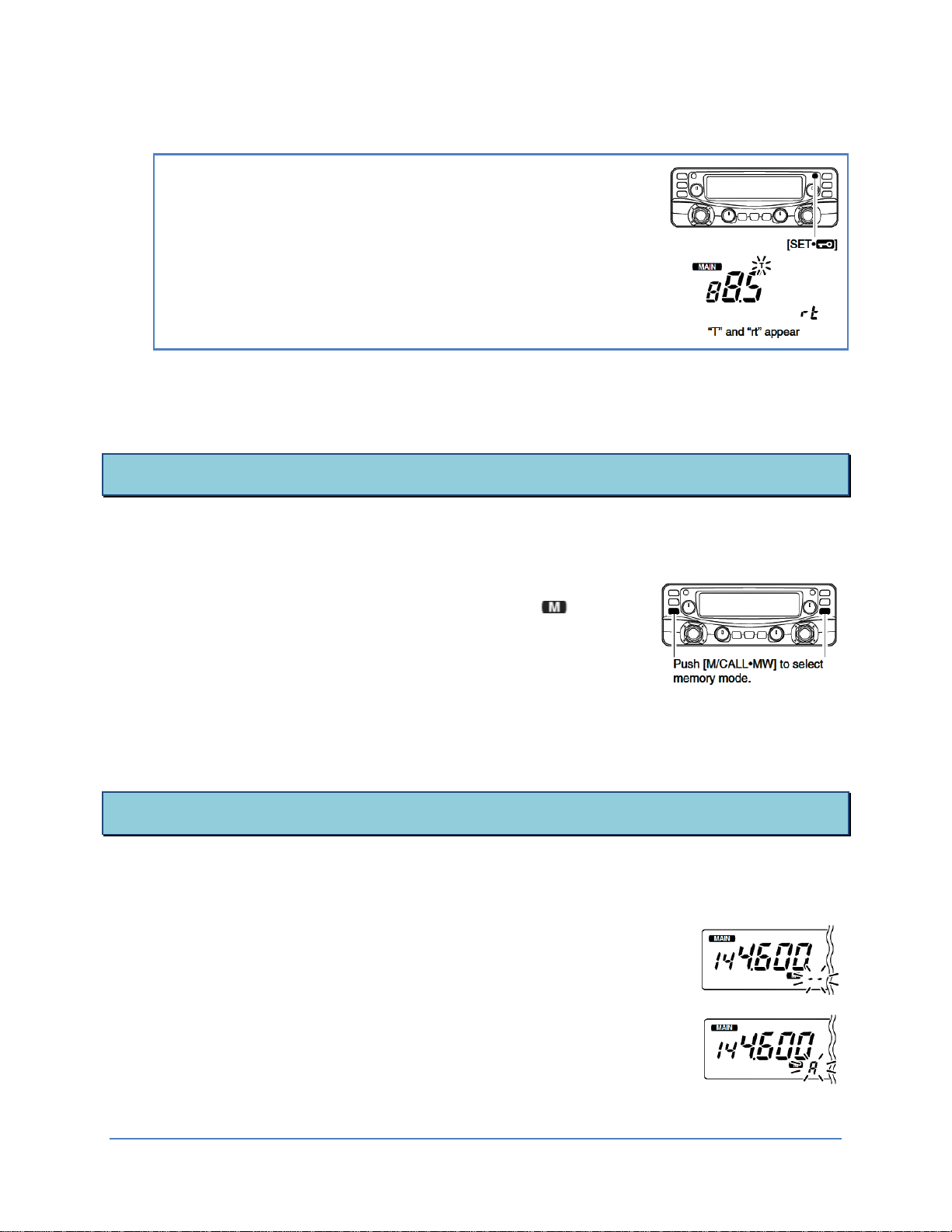

Icom IC–2720H Mini–Operating Guide by W5JCK, September 2007 Page 6 of 6
6. Set the Repeater Tone Encoder Type and Tone Frequency:
a. Press [SET●LOCK]to activate Set mode.
b. Press [SET●LOCK]one or more times until “T” and “rT” appear.
c. Rotate [DIAL]to select the subaudible tone frequency.
Example: Set tone frequency to 110.9 for the 146.940 repeater.
d. Press [TONE●DTMF]to set the tone frequency and exit Set mode.
You can now operate through the repeater. To ensure you do not lose these settings, you can
save this information to a Memory channel.
Programming a Memory Channel
VFO settings, including the set mode contents such as subaudible tone frequency or offset, can
be programmed into a memory channel.
1. Press and hold L/R [M/CALL●MW]for 1 sec. to activate memory
channel programming mode. Three beeps sound and the indicator
icon appears on the LCD display.
2. Rotate [DIAL]to select a blank Memory channel in which to program
the current settings. Be certain you select a blank channel so as to not
overwrite any existing channels.
3. Press and hold [M/CALL●MW]for 1 sec. to program the channel. Three
beeps will sound indicating the channel was programmed.
Assigning a Memory Channel to a Memory Bank
Each memory channel and the call channel can be programmed with an alphanumeric
name for easy recognition. Names can be a maximum of six characters.
1. Press L/R [M/CALL●MW]one or more times to activate Memory mode,
then rotate [DIAL]to select the Memory channel.
2. Press and hold [MAIN●BAND]for 1 sec. The “– –“ icon starts blinking.
3. Press [MAIN●BAND]again. The “– –“ icon stops blinking.
4. Press and hold [M/CALL●MW]for 1 sec., then rotate [DIAL]to select the
desired Memory bank. The bank initial starts blinking.
5. Press [M/CALL●MW]again to program the channel into the bank. The
bank initial stops blinking.
