Icom IC-F1020 User manual

INSTRUCTION MANUAL
VHF LAND MOBILE RADIO
IC-F1020
UHF LAND MOBILE RADIO
IC-F2020
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the condition that this device does not
cause harmful interference.
Icom Inc.

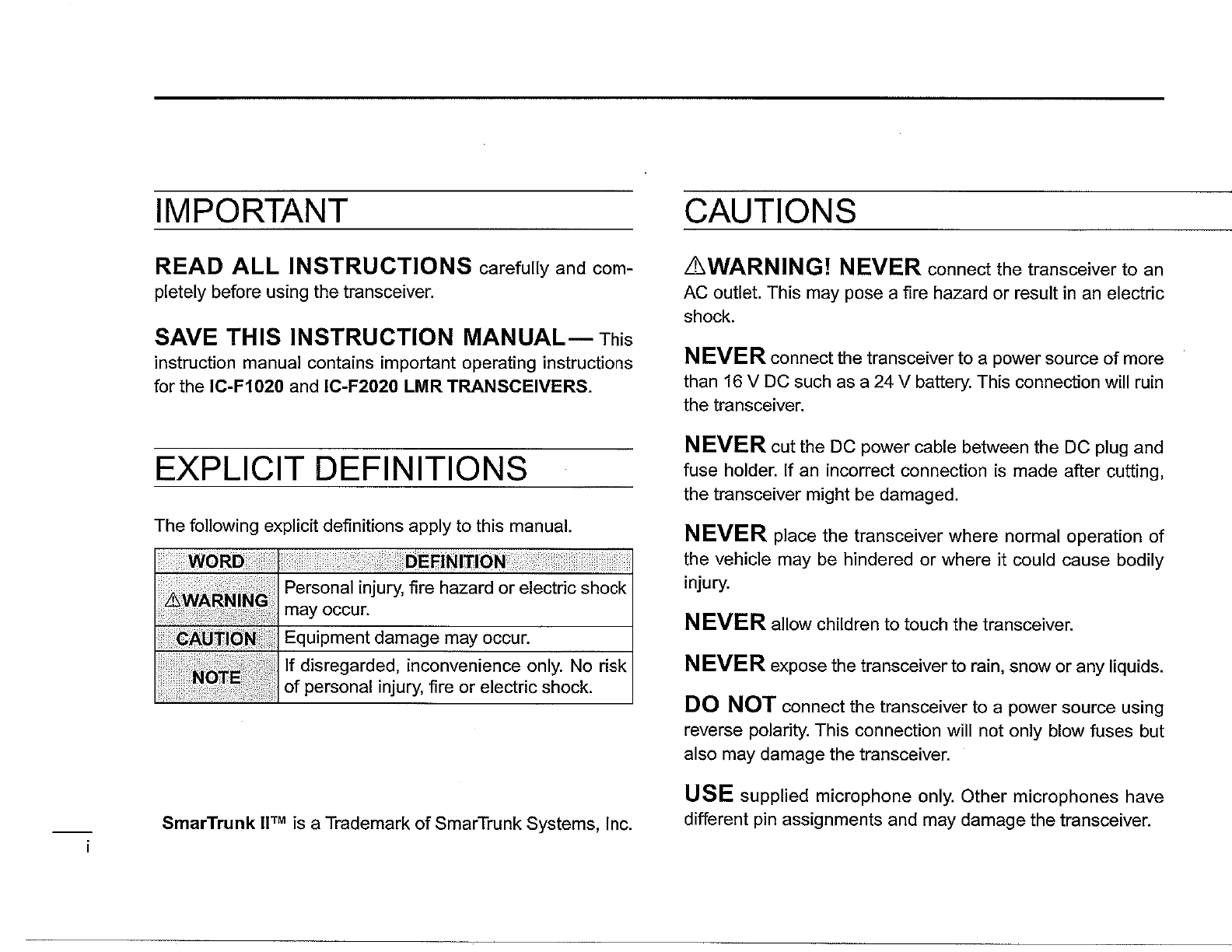

IMPORTANT
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL- This
instruction manual contains important operating instructions
for the IC-F1020 and IC-F2020 LMR TRANSCEIVERS.
EXPLICIT DEFINITIONS
The following explicit definitions apply to this manual.
Personal injury, fire hazard or electric shock
&'NA,R~~INIG may occur.
Equipment damage may occur.
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
SmarTrunk II™ is a Trademark of SmarTrunk Systems, Inc.
CAUTIONS
LtWARNING! NEVER connect the transceiver to an
AC outlet. This may pose a fire hazard or result in an electric
shock.
NEVERconnect the transceiver to a power source of more
than 16 V DC such as a 24 V battery. This connection will ruin
the transceiver.
NEVER cut the DC power cable between the DC plug and
fuse holder. If an incorrect connection is made after cutting,
the transceiver might be damaged.
NEVER place the transceiver where normal operation of
the vehicle may be hindered or where it could cause bodily
injury.
NEVER allow children to touch the transceiver.
NEVER expose the transceiver to rain, snow or any liquids.
DO NOT connect the transceiver to a power source using
reverse polarity. This connection will not only blow fuses but
also may damage the transceiver.
USE supplied microphone only. Other microphones have
different pin assignments and may damage the transceiver.

DO NOT use or place the transceiver in areas with tem-
peratures below -30°C (-22°F) or above +60°C (+140°F) or,
in areas subject to direct sunlight, such as the dashboard.
AVOID operate the transceiver without running the vehicle's
engine. The vehicle's battery will quickly run out if the trans-
ceiver is in transmission while the vehicle's engine
OFF.
AVOID placing the transceiver in excessively dusty envi-
ronments.
AVOID placing the transceiver against walls. This will ob-
struct heat dissipation.
AVOID the use of chemical agents such as benzine or al-
cohol when cleaning, as they damage the transceiver sur-
faces.
BE CAREFUL! The transceiver will become hot when
operating continuously for long periods.
For U.S.A. only
CAUTION: Changes or modifications to this transceiver,
not expressly approved by Icom Inc., could void your authority
to operate this transceiver under FCC regulations.
TABLE OF CONTENTS
IMPORTANT i
EXPLICIT DEFINITIONS i
CAUTIONS i
TABLE OF CONTENTS n
1 PANEL DESCRIPTION 1-5
• Front panel 1
•Programmable function keys 2
• Function display 5
2 OPERATION 6-8
• Turning power ON 6
•Channel selection 6
•Receiving and transmitting 7
oTransmitting notes 7
<> DTMF transmission 8
3CONNECTION AND INSTALLATION 9-12
•Rear panel and connection 9
•Unpacking 10
•Mounting 11
•Separation 11
•Optional UT-105 instaJlation 12

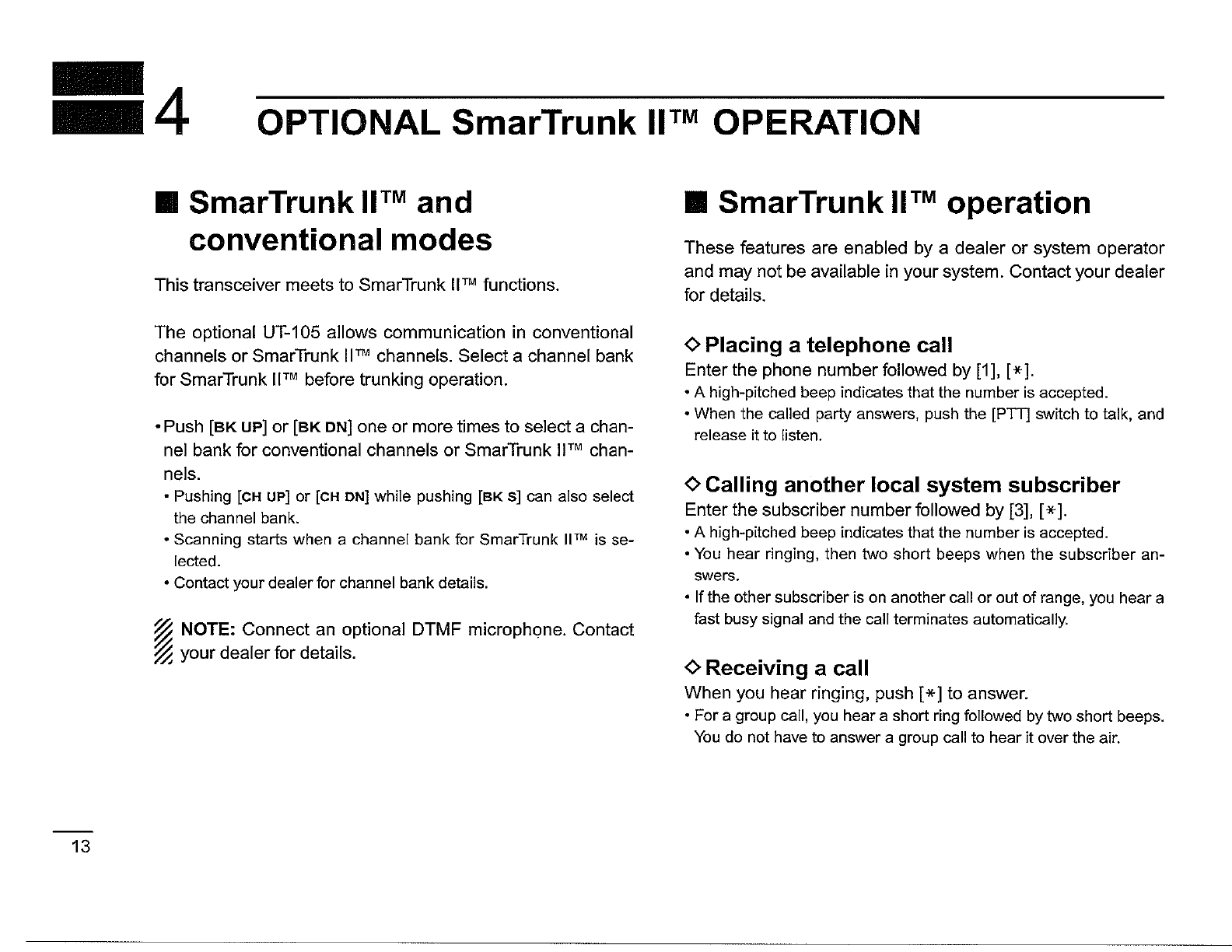

4OPTIONAL SmarTrunk II™ OPERATION 13-15
•SmarTrunk JlTM and conventional modes 13
•SmarTrunk
IITM operation 13
5 OPTIONS 16
Ii

PANEL DESCRIPTION
• Front panel
SPEAKERPROGRAMMABLE
FUNCTION KEYS
FUNCTION DISPLAY !/
C) /
?eolMl
bQ,
~~
(
:=: 0 [S) ~ '4
11) /
T t: t: /17/17/17/
(II
0
..L L -- r- ,ILlILlILl
[7:J
(•I
- ---
bLJ
(I
GJH!J~{E)~~~ ~J
()
rO
/
177\
VOLUME CONTROL
MICROPHONE
CONNECTOR PROGRAMMABLE FUNCTION KEYS POWER SWITCH
1

VOLUME CONTROL
Adjusts the audio output level.
·Minimum audio level (when setting control at maximum
counterclockwise) is pre-programmed.
POWER SWITCH
Turns the power ON and OFF.
•
The following functions are available at power ON as op-
tions:
•
Automatic scanstart
•
Password prompt
MICROPHONE CONNECTOR
Connects the supplied microphone or optional DTMF micro-
phone for SmarTrunk
"TM operation here.
NEVER connect other microphones. The pin assignments
may be different and the transceiver may be damaged.
MICROPHONE
The supplied microphone has a PTT switch and a hanger
hook.
•The following functions are available when the microphone is
hung on or released form the microphone hanger:
•
Automatic scanstartwhen hung.
• Automatic priority channel selection when released.
• Turns OFF and ON the monitorfunction when hungor released
respectively.
PANEL DESCRIPTION 1
•Programmable function keys
The following functions can be assigned to programmable
function keys. Assigned function names can be affixed to the
LCD using supplied stickers.
CHANNEL UP AND DOWN KEYS
ICH upl •Select an operating channel
•Select abank after pushing the
[BANK s] key.
ICH oNI •Select aDTMF channel after pushing the [DTMF]
key.
•Select a scan group after pushing and holding the
[SCAN] key.
BANK UP AND DOWN KEYS
IBK upl Select abank (a group of 16 (or multiples of) chan-
nels).
IBK ONI •This function maybe available forthe optional 160chan-
neltype
only.
• When the optional UT-105 is installed. push one or more
timesto selecta
channel bankfor conventional channels
or SmarTrunk IITM channels .
2

3
1PANEL DESCRIPTION
BANK SELECT KEY
1BK s1Sets the [CH UP] and [CH ON] keys as bank up/down
keys.
• Push this key, then push the [CH UP] or [CH DN] to select
the desired bank.
•When the optional UT-105 is installed, push one or more
times to select achannel bank for conventional channels
or SmarTrunk
Il™ channels while pushing [BK 5].
OPERATING CHANNEL KEYS
1CH11Select an operating channel directly without the [CH
1CH21 UP] and [CH ON] keys.
ICH 31
I CH41
SCAN START/STOP KEY
1SCAN 1Push this key to start scanning; and push again to
stop.
~ NOTE: Hung the microphone to the microphone
~ hanger to operate scanning. When release the
~ microphone, scan will be canceled.
Push and hold this key to indicate the scan group,
then push
[CH UP] Dr [CH ON] to select the desired
group.
SCAN TAG
KEY
ITAG 1 Adds or deletes the selected channel to the scan
group.
• "-" appears above the [TAG] key when the channel be-
longs to the scan group.
PRIORITYCHANNEL KEY
IPRIA 1Selects apriority A or priority B channel with each
IPRIB 1push.
LOCK KEY
I LOCK 1Electronically locks all programmable keys except
the
[MONI] and [EMER] keys.
MONITOR
KEY
IMONI IActivates the following functions on each channel in-
dependently:
• Push and hold the key to unmute the channel (audio is
emitted).
• Push the key to toggle the monitor function ON and OFF
(or ON only or OFF only depending on the pre-setting).
OUTPUTPOWERSELECTION KEY
1 HIGH ISelects the transmit output power temporarily or per-
manently depending on the pre-setting.
1LOW1 I • Ask your dealer or system operator for the output power
1LOW21 level for each selection.

TALK AROUND KEY
IT A ITurns the talk around function ON and OFF.
oThe talk around function equalizes the transmit frequency
to the receive frequency for mobile-to-mobile communica-
tion.
EMERGENCYKEY
IEMER IPush and hold the key to transmit an emergency call.
oAn emergency call is transmitted for a specified period
after the" -" appears.
oIf you want to cancel the emergency call, push (or push
and hold) the key again before transmitting the call.
oThe emergency call is transmitted one time only or re-
peatedly until receiving a control code depending on the
pre-setting.
DTMF CHANNEL SELECT KEY
I DTMF IPush this key to select a DTMF channel.
oPush this key, then select the desired DTMF channel
using the [CH UP] or [CH ON] key.
Push and hold this key to transmit the selected
DTMF code.
~ NOTE: DTMF channels 5 and 7 are used for 10 code and
~ emergency code respectively, depending on your system.
~ Ask your system operator or Dealer about DTMF channels
~ 5 and 7 before using these DTMF.
PANEL DESCRIPTION 1
PUBLIC ADDRESS KEY
IP A IWhen an optional Ope-517 ACC CABLE is installed,
the audio output via the cable can be controlled from
the transceiver separately from the [VOLUME] control.
oThis audio output can be used as a 'public address' func-
tion when an external audio amplifier and speaker are
connected additionally.
oPush this key, then speak into the microphone while push-
ing the PTT switch.
oThe [CH up] and [CH ON] keys allow you to set the audio
output level, from ", "(minimum) to " 1'1" (maximum).
PFl--I~
EXTERNAL SPEAKER SWITCH
IsPIWhen external connections are made for the 'public
address' function, the external speaker drive function
is also available simultaneously. The received audio
can be heard via the external speaker when this key
is pushed.
oThis function is useful when you are out of the vehicle.
oThe audio output levelis linked to the transceiver's volume
control.
4

5
1PANEL DESCRIPTION
•Function display
BUSY INDICATOR
Appears while the channel is busy.
TRANSMIT INDICATOR
Appears while transmitting.
BANK NUMBER READOUT
Appears for the 'Bank' type and 180 channel
type only.
Shows the selected bank number or a hundred
digit to show more than 100 channels.
[ E: [2J ~ ~ '41))
- ,-
~
' r: r-, IT' I -- I
--- ,
- - --
- --
BELL INDICATOR
Appears or blinks when the optional 2-tone call
is received.
AUDIBLE INDICATOR
Appears when monitorfunction is tumed OFF
(CTCSS and DTCS mutes are released).
ACTIVATED KEY INDICATOR
Appears or blinks when the key underthis
indicator is activated.

OPERATION
.Turning powerON •Channel selection
KEY
~~
8 EJ
[7]
NUMBER 012 3 4
567 8 9
~Bank number
e
-, J-flM -
_
IrlJ_--
LLUJI
@Push [CH UP] or [CH ON] to select
the desired channel in the selected bank.
BANK-TYPE:
CD Push [BK 5], then push [CH UP]or [CH ON] to select the de-
sired bank number; or
Push [BK UP] or [BK
ON] if the
transceiver has these keys.
NON-BANK TYPE:
Push the [CHUP]or [CH ON] keys to select the desired oper-
ating channel, in sequence; or,
push one
of the [CH 1]to [CH 4] keys to select these channels
directly.
There are several types are available, and channel selection
method may differ according to your system:
Inc
TI-flM
LLUII
OC
1"1,)',flOIl
JI __ /I~ UJ • JJ
Input your password if
this display appears.
Opening message may
differ depending on the
pre-setting.
CD Push [CD] to turn the power ON.
• A power-up alert tone sounds for
about 1 sec. and an opening mes-
sage may appears.
@If the transceiver is programmed
for start up passcode, input digit
codes as directed by your sys-
tem operator.
• The following keys can be used for
the password input:
The transceiver detects the numbers in the same block as the
same number. Therefore the same effect for "1234" and "6789."
®When the "PASSWORD" indication does not clear after 4-
digit input, the input code number may be incorrect. Turn
power off and start over in this case.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turning
the power ON, the transceiver automatically starts scanning.
Scanning stops when receiving a call or taking the micro-
phone off from the microphone hanger.
6

7
2OPERATION
•Receiving and transmitting
RECEIVING:
CD Push [CD] to turn the power ON.
CV Push [CHUP] or [CH ON] to select a channel.
®When receiving a signal, adjust the volume to a comfort-
able listening level.
TRANSMITTING:
@) Hung off the microphone from the microphone hanger:
• CTCSS or DTCS may be released (" 04.1) "appears).
• A priority channel may be selected automatically.
®Wait for the channel to become clear.
• The channel is busy when" lSJ "appears.
®While pushing and holding [PTT], speak into the micro-
phone at your normal voice level.
(j) Release [PTT] to receive.
~IMPORTANT: Tomaximize the readability of your signal:
~ (1) pause briefly after pushing [PTT], (2) hold the trans-
~ ceiver 15 to 20 cm from your mouth, then speak into the
:a: microphone with normal voice level.
oTransmitting notes
•Transmit inhibitfunction
The transceiver has severallockoutlinhibit functions which re-
stricts the transmission under the following conditions:
• Channel is busy.
• Not matched (or matched) CTCSS or DTCS is receiving.
• The selected channel is a 'receive only' channel.
• Time-out timer
After continuous transmission for a pre-programmed period,
the time-out timer is activated causing the transceiver to stop
transmitting and automatically select receive.
•Penalty timer
Once the time-out timer is activated, transmission is further
inhibited for a period determined by the penalty timer.

of.l)
7/ 7 11//1- -/
.11 I I tt: -- 1
<> DTMF transmission
If the transceiver has [OTMF] key, the automatic DTMF trans-
mission function is available. Up to 7 DTMF channels may
be available.
CD Push [OTMF] to select the display
as at right.
@Push [CH UP] or [CH ON] to select
the desired DTMF channel.
®Push and hold [OTMF] to transmit the DTMF code in the
selected DTMF channel.
OPERATION 2
8

CONNECTION AND INSTALLATION
•Rear panel and connection Antenna
o
red: EE>
black: o r-->"Jr---~"'E
Supplied DC
power cable
Optional speaker
(SP-10)
Optional cable
(OPC-61?)
-9

CONNECTION AND INSTALLATION 3
.Unpacking
@
'icc. ta>.,,,,:.,.
DODD
Clc:JCJO
DClDD
DODD
DODD
DODD
DODD
DODD
0000
DODD
DODD
IJ)Mounting screw (M5x12) ... 4
®Self-tapping screw
(M5x20) 4
®Flat washer 4
@Spring washer 4
@Nut 4
©Fuse (15 A) 2
@Function name sticker 1
@
nn
@
~
nn
== .
CD
. ~
inn @
~~
G:DClS@
<If)@(l!Hl'D eeea
®
@) @@
CD Microphone (EM-99) 1
(%) Microphone hanger and
screw
set 1 set
®Microphone cable 1
@) DC power cable
(OPC-345) 1
®Mounting bracket 1
®Bracket bolt 4
OPTIONAL CABLE PIN ASSIGNEMENT
eEXTERNAL SPEAKER JACK
Connect a 4-8 nexternal speaker, if desired.
eOPTIONAL CABLE (OPC-617)
Connect an external modem unit, LCD backlight control,
audio amplifier for 'public address' function, etc.
o ANTENNA CONNECTOR
Connects to an antenna.
Ask your dealer about antenna
selection and best installation location.
4') MICROPHONE HANGER
Connect the supplied microphone hanger to the vehicle's
ground for hangerfunction when hanging or releasing the
microphone.
@DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay attention to polarities.
NEVER connect to a 24V battery. This could damage the
transceiver.
@@@@CD
[0 §.::::J oJ
@@CD@
CD LCD backlit cont. IN
@ P-Adress AF OUT
@Det.AFOUT
@Mod.IN
@PTTconrollN
@Hom drive cont. OUT
CD P-Adress AF GND
@Det.AFGND
@Mod.GND
o Function name sticker
There are no names on the programmable function keys
since the needed functions can be assigned to these keys.
Therefore, attach the supplied function name sticker on the
"-" indicator.
10

3CONNECTION AND INSTALLATION
Fig. 3
Fig. 1
~=~';j--''----- Rearplate
flJiJ!J!JIJIJIJ!Jlililia
~--
Fig.2
~ j\\;;; " Attachment
I "1\i::l2
00 ' (formainunit)
4 ~." _Supplied screws
<ll r---t14@withthe RMK-1
~
~"o~ ~
'Y
(l 01 c:
-Separation (using RMK-1)
When using
self-tapping screws
•Separation
CD Separate the front panel from the transceiver main unit
using an allen-wrench (1/32 in).
®Connect the optional separation cable to the both front and
main unit attachments (fig. 1 and 2).
• Remove the rear plate of the attachment.
• Use the supplied screw to connect a cable lug,
• For the main unit attachment, attach to the main unit using sup-
plied screws, in advance.
®Attach the front panel and attachment with the removed 3
allen socket bolts (fig. 3)
.Mounting
Flatwasher~;; *~
,
11

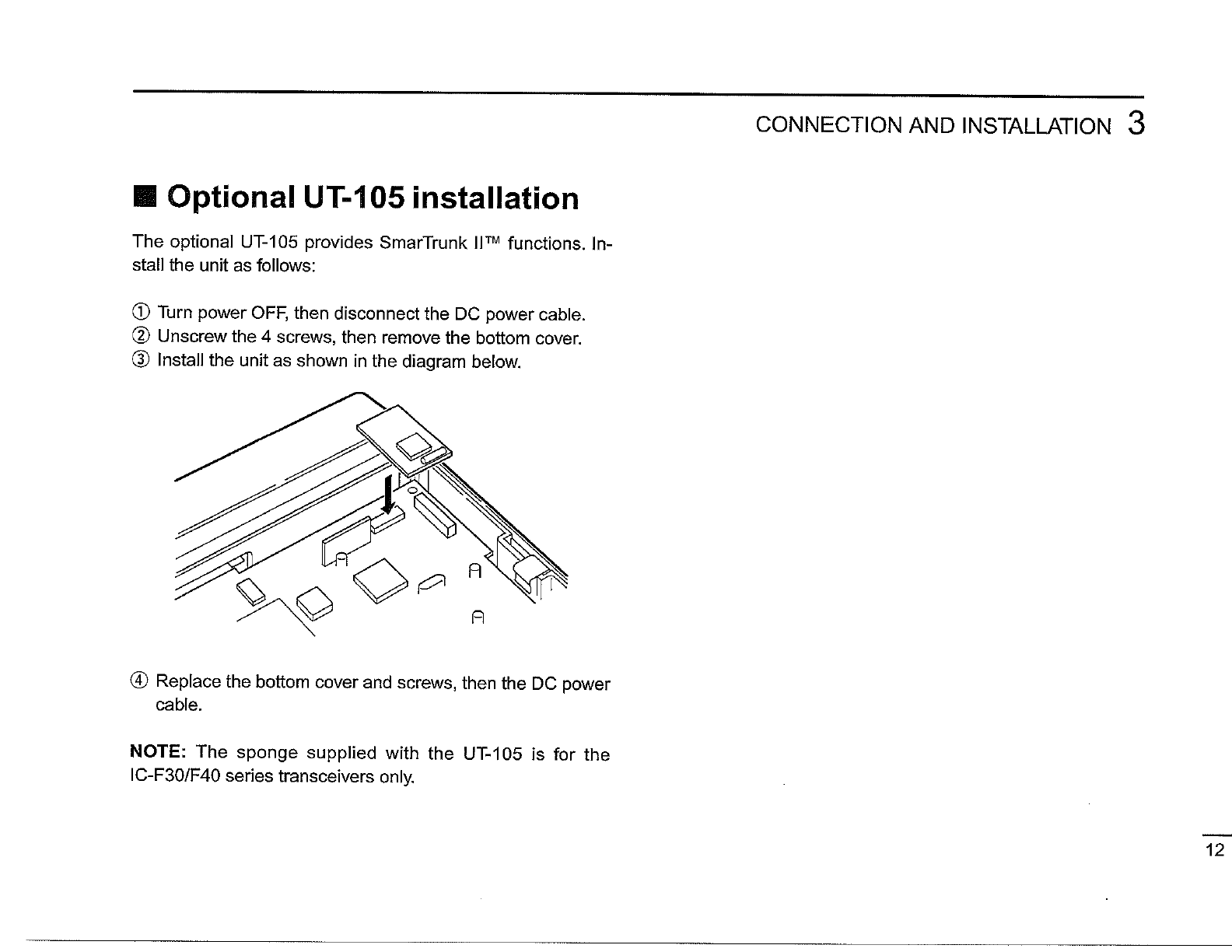

•Optional UT-1 05 installation
The optional UT-105 provides SmarTrunk IJTM functions. In-
stall the unit as follows:
CD Turn power OFF, then disconnect the DC power cable.
oUnscrew the 4 screws, then remove the bottom cover.
®Install the unit as shown in the diagram below.
®Replace the bottom cover and screws, then the DC power
cable.
NOTE: The sponge supplied with the UT-105 is for the
IC-F30/F40 series transceivers only.
CONNECTION AND INSTALLATION 3
12

OPTIONAL SmarTrunk IITM OPERATION
13
•SmarTrunk IITM and
conventional modes
This transceiver meets to SmarTrunk II™ functions.
The optional UT-105 allows communication in conventional
channels or SmarTrunk
IITM channels. Select a channel bank
for SmarTrunk
II™ before trunking operation.
•Push
[BK up] or [BK ON] one or more times to select a chan-
nel bank for conventional channels or SmarTrunk
IF
Mchan-
nels.
• Pushing [CH up] or [CH ON] while pushing [BK s] can also select
the channel bank.
•Scanning starts when a channel bank for SmarTrunk II™ is se-
lected,
•Contact your dealerfor channel bank details.
~ NOTE: Connect an optional DTMF microphone. Contact
~ your dealerfor details.
•SmarTrunk IITM operation
These features are enabled by a dealer or system operator
and may not be available in your system. Contact your dealer
for details.
~ Placing a telephone call
Enter the phone number followed by [1], [*].
• A high-pitched beep indicates that the number is accepted.
• When the called party answers, push the [PTT] switch to talk, and
release it to listen.
oCalling another local system subscriber
Enter the subscriber number followed by [3], [*].
• A high-pitched beep indicates that the number is accepted.
• You hear ringing, then two short beeps when the subscriber an-
swers.
• If the other subscriber is on another call or out of range, you hear a
fast busy signal and the call terminates automatically.
c- Receiving a call
When you hear ringing, push [*] to answer.
• For a group call, you hear a short ring followed by two short beeps.
You do not have to answer a group call to hear it over the air.

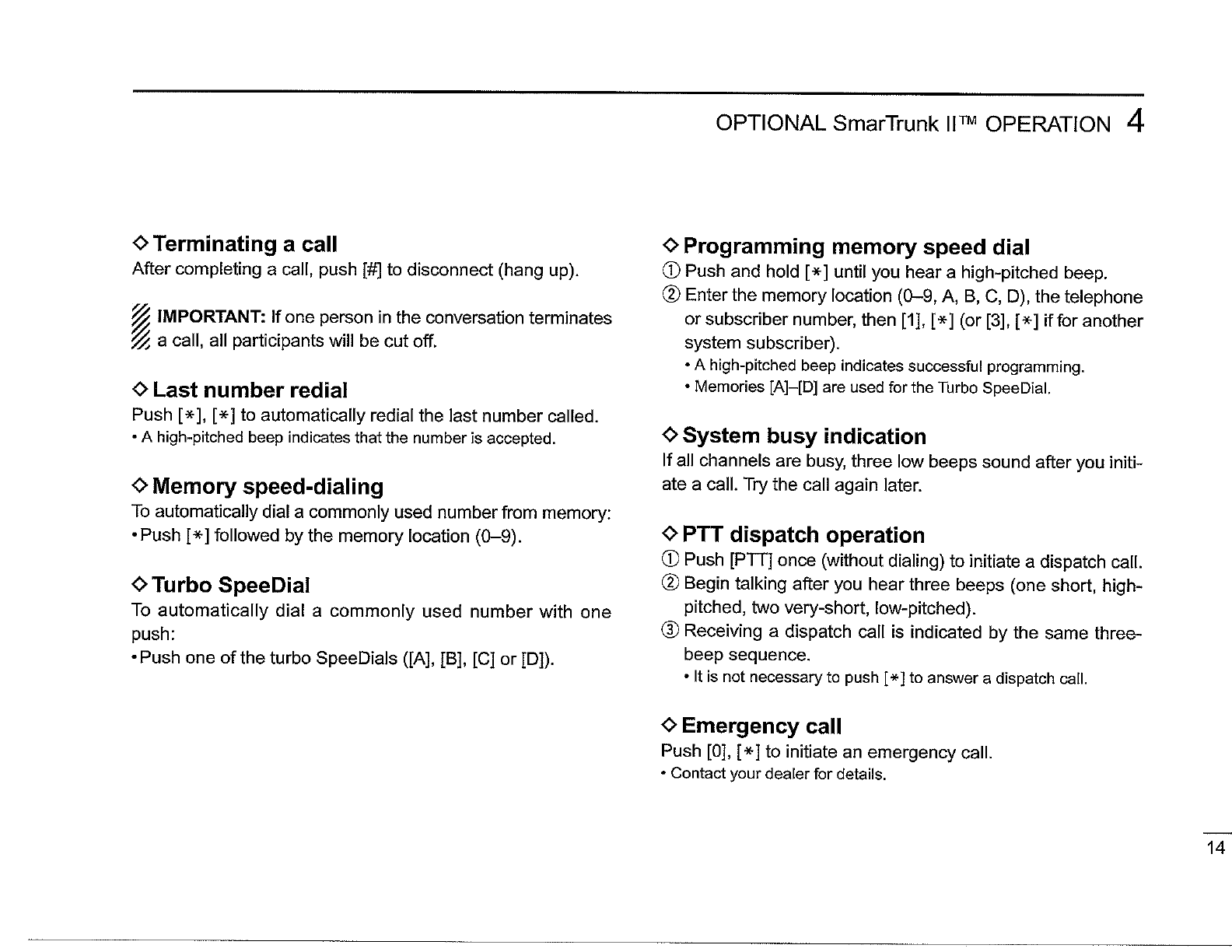

oTerminating a call
After completing a call, push [#]to disconnect (hang up).
~ IMPORTANT: If one person in the conversation terminates
~ a call, all participants will be cut off.
oLast number redial
Push [*], [*] to automatically redial the last number called.
• A high-pitched beep indicates that the number is accepted.
~ Memory speed-dialing
To automatically dial a commonly used numberfrom memory:
•Push [*] followed by the memory location (0-9).
oTurbo SpeeDial
To automatically dial acommonly used number with one
push:
•Push one of the turbo SpeeOials ([A], [B], [C] or
[OJ).
OPTIONAL SmarTrunk II™ OPERATION 4
~ Programming memory speed dial
CD Push and hold [*] until you hear a high-pitched beep.
@Enter the memory location (0-9, A, B, C, 0), the telephone
or subscriber number, then [1], [*] (or [3], [*]
iffor another
system subscriber).
• A high-pitched beep indicates successful programming.
•Memories [A]-[D] are used for the Turbo SpeeDial.
<> System busy indication
If all channels are busy, three low beeps sound after you initi-
ate a call. Try the call again later.
~ PTT dispatch operation
CD Push [PTT] once (without dialing) to initiate a dispatch call.
@Begin talking after you hear three beeps (one short, high-
pitched, two very-short, low-pitched).
ell Receiving a dispatch call is indicated by the same three-
beep sequence.
• It is not necessary to push [*] to answer adispatch call.
oEmergency call
Push [0], [*] to initiate an emergency call.
•Contact your dealerfor details.
14

15
4OPTIONAL SmarTrunk II™ OPERATION

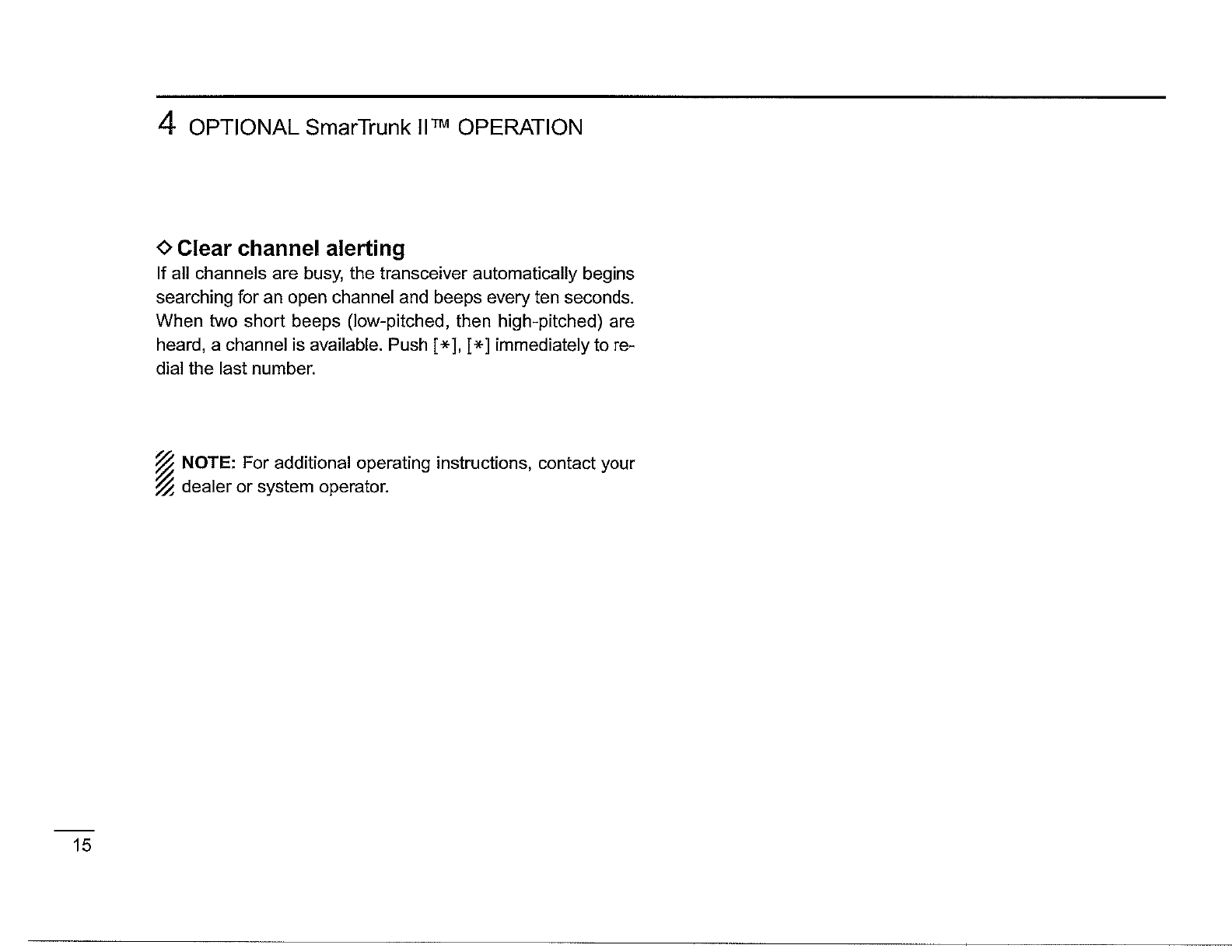

oClear channel alerting
If all channels are busy, the transceiver automatically begins
searching for an open channel and beeps every ten seconds.
When two short beeps (low-pitched, then high-pitched) are
heard, a channel is available. Push [*], [*] immediately to re-
dial the last number.
~NOTE: For additional operating instructions, contact your
~ dealer or system operator.

OPTIONS
EXTERNALSPEAKERS
SP-5
Large speaker for good
quality.
Input impedance: 4 n
Max. input power: 5 W
audio
UT-96 5-TONE DECODER UNIT
Provides for the 2-tone decode ca-
pability. The unit has 2 receive
channels with easy PC program-
ming.
UT-SO 2-TONE DECODER UNIT
Provides for the 2-tone decode ca-
pability.
SP-10
Compact and easy-to-install.
Input impedance: 4n
Max. input power: 5 W
RMK-1 SEPARATION KIT and
SEPARATION CABLE
Allows you for separate installation
of the transceiver main unit and
front panel for easy installation
and good operation convenience.
SEPARATION CABLES:
OPC-607 (3 m), OPC-60S (8 m)
OPC-609 (1.9 m), OPC-726 (5 m)
UT-105 SmarTrunk II™ Logic
Board
Provides for the SmarTrunk IITM
capability.
EX-1761 MEMORY EXPANSION
UNIT
Provides the 160 channels for
large system operation.
OPC-617 ACC CABLE
Allows you to external terminal
connection.
16

Count on us!
A-5441S-1us
Printed in Japan
Copyright ©1995 by lcorn lnc.
Icom Inc.
6-9-16 Kamihigashi, Hirano-ku, Osaka 547 Japan
