SERVICE
MANUAL
D-STAR REPEATER SYSTEM
S-14205HZ-C1
Nov. 2005

INTRODUCTION
This service manual describes the latest service information
for the ID-RP2 D-STAR REPEATER SYSTEM at the time of
publication.
DANGER
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 16 V. This will ruin the
transceiver.
DO NOT expose the transceiver to rain, snow or any liquids.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100
mW) to the antenna connector. This could damage the
transceiver’s front end.
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-Digit Icom parts number
2. Component name and informations
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1130009850 S.IC TC74LCX245FT ID-RP2C MAIN UNIT 5 pieces
8810002950 Screw BiH M3×6 SUS ID-RP2C Cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
REPAIR NOTES
1. Make sure a problem is internal before disassembling
the transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An
insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a signal generator or a
sweep generator.
7. ALWAYS connect a 50 dB to 60 dB attenuator between
the transceiver and a deviation meter or spectrum
analyzer when using such test equipment.
8. READ the instructions of test equipment thoroughly
before connecting equipment to the transceiver.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
ID-RP2C
ID-RP2D
ID-RP2V
ID-RP2L
Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
MODEL DESCRIPTION
ID-RP2C REPEATER CONTROLLER
ID-RP2L
10GHz MICROWAVE LINK REPEATER
Version TX frequency RX frequency
USA
10.150 - 10.175 GHz 10.000 - 10.025 GHz
USA-1 10.000 - 10.025 GHz 10.150 - 10.175 GHz
ID-RP2D 1.2 GHz DATA REPEATER
ID-RP2V 1.2 GHz DIGITAL VOICE REPEATER

TABLE OF CONTENTS
ID-RP2 SYSTEM CONNECTION ....................................................................... A
ID-RP2C REPEATER CONTROLLER ................................................................. B
ID-RP2L 10GHz MICROWAVE LINK REPEATER ............................................... C
ID-RP2D 1.2 GHz DATA REPEATER ................................................................... D
ID-RP2V 1.2 GHz DIGITAL VOICE REPEATER ................................................. E

Antenna
filter
Duplexer
ID-RP2V
Coaxial cables
(purchase locally)
ID-RP2D
ID-RP2C
[A]
[B]
[B]
[A]
OPC-1380
(supplied w/ID-RP2C)
to AH-106/107to AH-106/107
OPC-1309
(supplied w/ID-RP2D/V)
OPC-1309
(supplied w/ID-RP2D/V)
Control cable
(supplied w/ID-RP2D/V)
Control cable
(supplied w/ID-RP2D/V)
ID-RP2L
(Assist 1)
AH-108
ID-RP2L
(Assist 2)
AC outlet
AC power cable
External DC power
supply 13.8 V
Black
Red
+–
• SYSTEM CONNECTION
A

SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEW
SECTION 3 CIRCUIT DESCRIPITON
3-1 RECEIVER CIRCUITS ............................................................................................................. B-3-1
3-2 TRNSMITTER CIRCUITS ........................................................................................................ B-3-1
3-3 POWER SUPPLY CIRCUITS ................................................................................................... B-3-1
3-4 OTHER CIRCUITS ................................................................................................................... B-3-2
SECTION 4 PARTS LIST
SECTION 5 MECHANICAL PARTS AND DISASSEMBLY
SECTION 6 SEMI-CONDUCTOR INFORMATION
SECTION 7 BOARD LAYOUTS
7-1 MAIN UNIT ............................................................................................................................... B-7-1
7-2 LED UNIT ................................................................................................................................. B-7-1
SECTION 8 WIRING DIAGRAM
SECTION 9 BLOCK DIAGRAM
SECTION 10 VOLTAGE DIAGRAM
10-1 MAIN UNIT ............................................................................................................................. B-10-1
SERVICE MANUAL
REPEATER CONTROLLER
B
faJomO`

B - 1 - 1
¤GENERAL
• Power supply requirement : 13.8 V DC ±15% (Negative ground)
• Current drain : Less than 0.5 A
• Usable temperature range : –10˚C to +50˚C; +14˚F to +122˚F
• Dimensions (proj. not included) : 483(W)×44(H)×257(D) mm; 19(W)×13⁄4(H)×101⁄8(D) in.
• Weight (Approx.) : 2.7 kg; 5 lb 15 oz
• Repeater control protocol : Compatible to D-STAR standard
¤LOCAL REPEATER INTERFACE
• Max. number of connections : 4
• Communication speed : Data 128 kbps
Voice 4.8 kbps
• Cable length (approx.) : 3 m; 10 ft (standard; supplied cable of the ID-RP2D/V)
¤ASSIST REPEATER INTERFACE
• Max. number of connections : 2
• Communication speed : Data 10 Mbps
Setting CPU communication 19.2 kbps
• Cable length (approx.) : 30 m; 100 ft (standard; supplied cable of the ID-RP2L)
¤WIRED INTER FACE
• Number of connector : 1
• Type of connection : 10Base-T
• MAC address : Unique ID
• IP address : Programmed with the utility
All stated specifications are subject to change without notice or obligation.
SECTION 1 SPECIFICATIONS

ATM-SAR
ATM-SAR
controller
controller
(IC16:
(IC16:
µPD98409GN-LMU)
PD98409GN-LMU)
LVDS reciever
LVDS reciever
(IC25: SN65LVDT33D)
(IC25: SN65LVDT33D)
ASSIST I/F FPGA
ASSIST I/F FPGA
(IC19: EP1C6T144C7)
(IC19: EP1C6T144C7)
LVDS reciever
LVDS reciever
(IC26: SN65LVDT33D)
(IC26: SN65LVDT33D)
CPU
CPU
(IC5: HD6417750SF167)
(IC5: HD6417750SF167)
SRAM
SRAM
(IC2, IC3, IC6, IC7
(IC2, IC3, IC6, IC7
:
:
µPD444008LLE)
PD444008LLE)
LOCAL RPT I/F FPGA
LOCAL RPT I/F FPGA
(IC24: EP1C6T144C8)
(IC24: EP1C6T144C8)
LVDS driver
LVDS driver
(IC22: SN65LVDS391D)
(IC22: SN65LVDS391D)
MAIN unit
MAIN unit
Ethernet controller
Ethernet controller
(IC8: AM79C973BVD)
(IC8: AM79C973BVD)
PCI/DMA FPGA
PCI/DMA FPGA
(IC15: EP1C6Q240C8)
(IC15: EP1C6Q240C8)
USB-serial controller
USB-serial controller
(IC27:
(IC27:
IC28: )
IC28: )
Boot ROM
Boot ROM
(IC12: SC-1408)
(IC12: SC-1408)
+3.3V regulator
+3.3V regulator
(IC13: LM2676S-3.3)
(IC13: LM2676S-3.3)
Flash ROM
Flash ROM
(IC11: SC-1407)
(IC11: SC-1407)

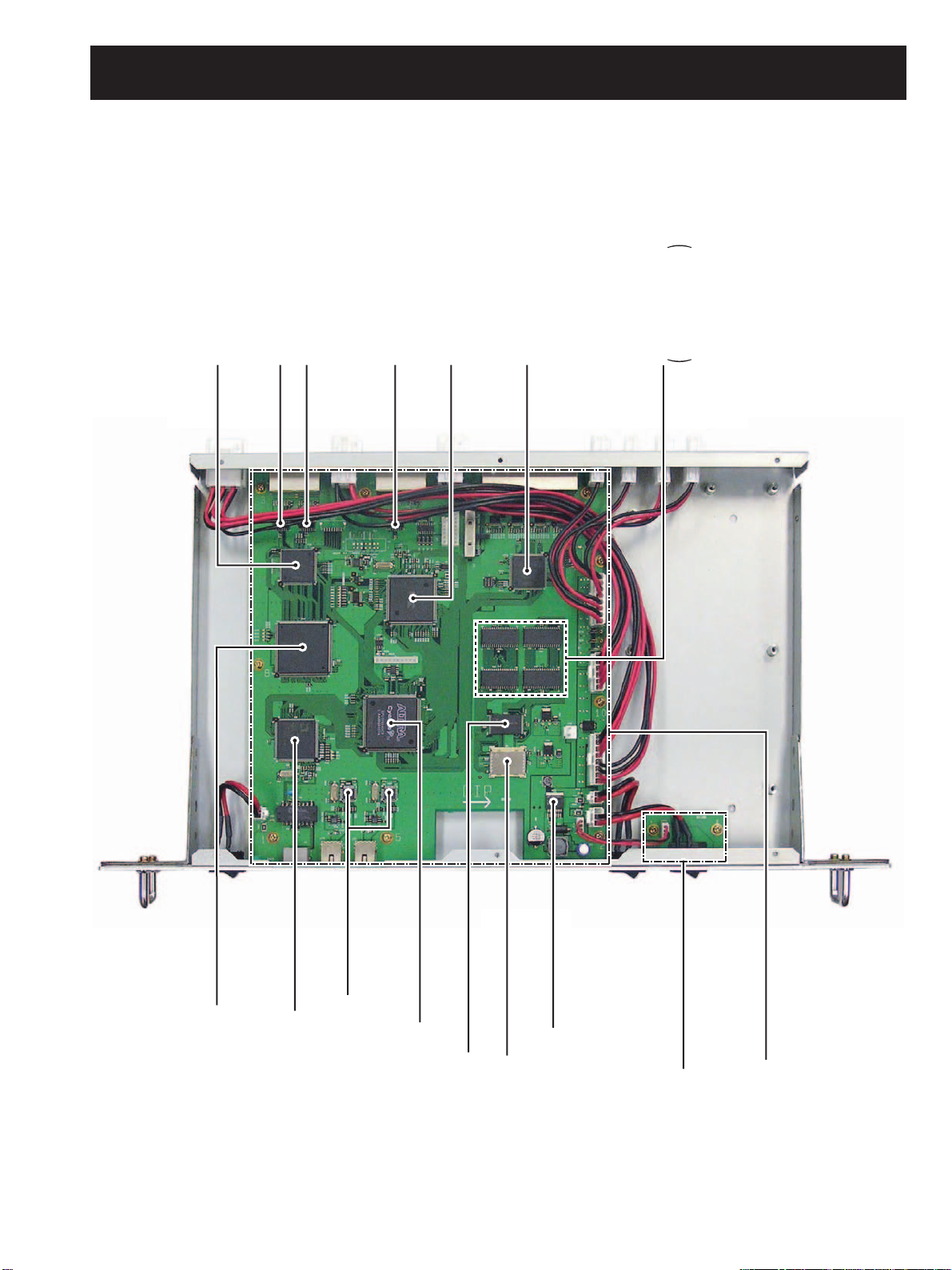

LED board
LED board
ATM-SAR controller (IC16: µPD98409GN-LMU)
LVDS reciever (IC25: SN65LVDT33D) ASSIST I/F FPGA (IC19: EP1C6T144C7) LVDS reciever (IC26: SN65LVDT33D) CPU (IC5: HD6417750SF167) SRAMs IC2, IC3, IC6, IC7 : µPD444008LLE×4
LOCAL RPT I/F FPGA (IC24: EP1C6T144C8) LVDS driver (IC22: SN65LVDS391D)
MAIN unit Ethernet controller (IC8: AM79C973BVD) PCI/DMA FPGA (IC15: EP1C6Q240C8) USB-serial controllers (IC27, IC28: FT232BL×2)
Boot ROM (IC12: SC-1408) +3.3V regulator (IC13: LM2676S-3.3) Flash ROM (IC11: SC-1407) LED unit
SECTION 2 INSIDE VIEWS
B - 2 - 1

SECTION 3CIRCUIT DESCRIPTION
3-1 RECEIVED DATA PROCESS
3-1-1 DURING ASSIST REPEATER OPERATION
(MAIN UNIT)
The demodulated data signal from the connected ASSIST
repeater (ID-RP2L) is applied to [ASSIST-1 A/B] (J13) or
[ASSIST-2 A/B] (J12) connector. The demodulated data sig-
nal is applied to the LVDS receivers (IC25, IC26) and con-
verted to the I/O signal and then applied to the ASSIST I/F
FPGA IC (IC19).
The ASSIST I/F FPGA IC (IC19) converts the applied I/O
signal format to the ATM-SAR interface signal format.
The converted ATM-SAR interface signal is applied to the
ATM-SAR controller (IC16) and converts the data format
into the PCI bus line data format.
The converted data signal is applied to the PCI/DMA FPGA
IC (IC15).
3-1-2 DURING LOCAL REPEATER OPERATION
(MAIN UNIT)
The demodulated data signal from the connected LOCAL
repeater (ID-RP2D or ID-RP2V) is applied to [LOCAL RPT-
CONT I/O] connector (J10). The applied signal is amplified
at the buffer amplifiers (IC17, IC20, IC21, IC23) and then
applied to the LOCAL RPT I/F FPGA IC (IC24).
The LOCAL RPT I/F FPGA (IC24) detects header frame
synchronization and then converts the format into the serial
data signal.
The converted serial data signal is applied to the PCI/DMA
FPGA IC (IC15).
3-1-3 DURING CONNECTED SERVER OPERATION
(MAIN UNIT)
The data signal from the connected server is applied to the
[10BASE-T] connector (J1) and then applied to the Ethernet
controller (IC8). The Ethernet controller (IC8) converts the
data format into the PCI bus line data format.
The converted signal is applied to the PCI/DMA FPGA IC
(IC15).
3-1-4 SRAM CIRCUIT (MAIN UNIT)
The PCI/DMA FPGA IC bridges the data signal from the
ATM-SAR controller (IC16), LOCAL RPT I/F FPGA (IC24)
or Ethernet controller (IC8) to the SRAM circuit.
The bridged data signal from the PCI/DMA FPGA IC (IC15)
is applied to the SRAM circuit (IC2, IC3, IC6, IC7) and then
memorized for transmission.
The bridged data signal from the PCI/DMA FPGA IC (IC15)
is also applied to the CPU (IC5) and the CPU analyzes
the call sign settings. The CPU (IC5) selects the desired
repeater or connected server for transmission according to
the analyzed call sign settings.
3-2 TRANSMIT DATA PROCESS
3-2-1 SRAM CIRCUIT (MAIN UNIT)
The memorized data from the SRAM circuit is transferred to
the desired repeaters or connected server at the PCI/DMA
FPGA IC according to the analyzed call sign settings at the
CPU.
The data signal from the SRAM circuit (IC2, IC3, IC6, IC7)
is applied to the PCI/DMA FPGA IC (IC15) and the PCI/
DMA FPGA IC (IC15) selects one of the ATM-SAR control-
ler (IC16), LOCAL RPT I/F FPGA (IC24) or Ethernet con-
troller (IC8) by the CPU (IC5).
B - 3 - 1

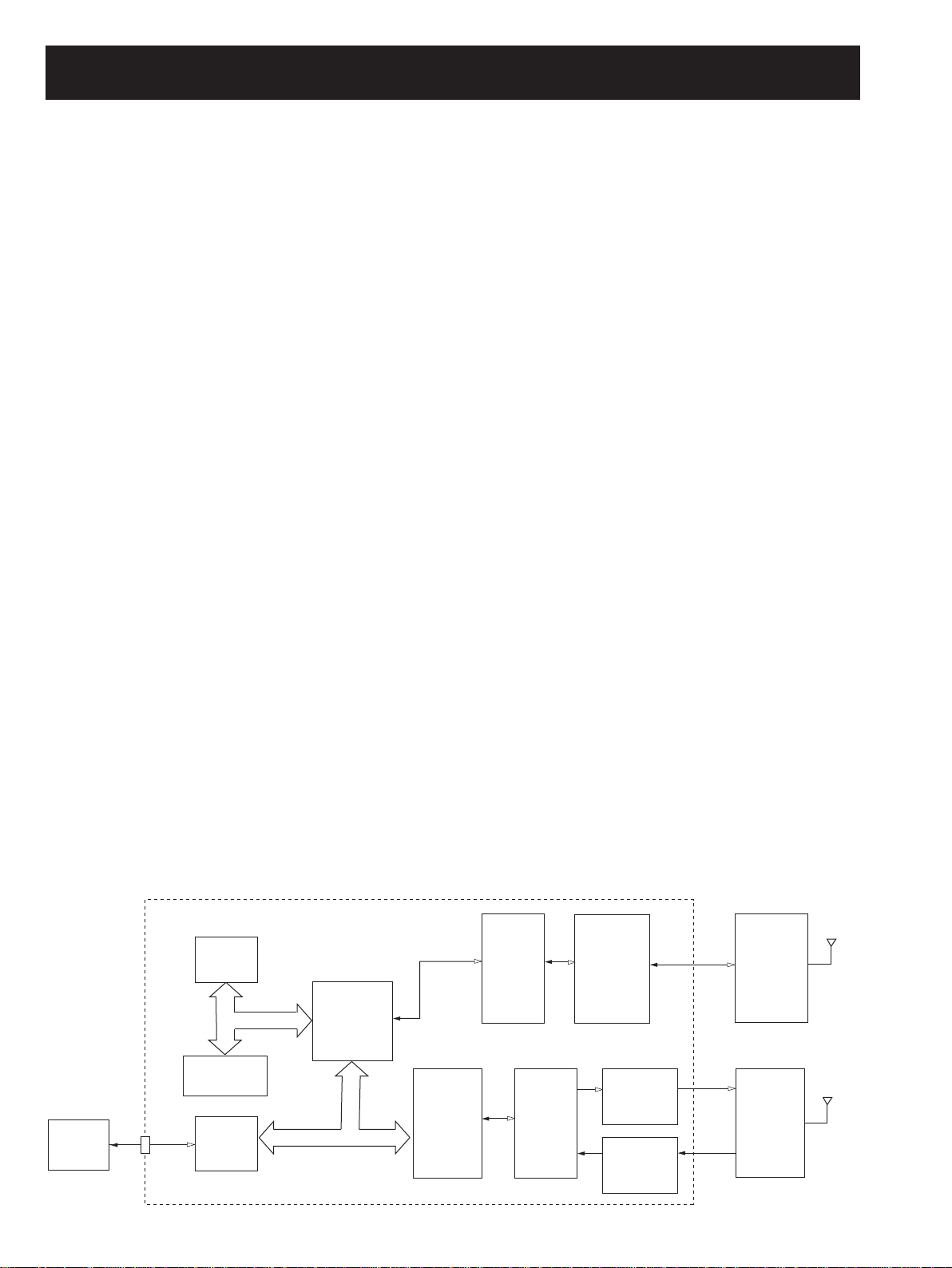

IC17, IC20,
IC21, IC23
IC24
IC15
IC5
Buffer
amplifier ID-RP2D/
ID-RP2V
ID-RP2L
ID-RP2C
LOCAL
RPT I/F
FPGA
PCI/DMA
FPGA
CPU
SRAM
IC2, IC3,
IC6, IC7
IC22
IC19
LOCAL REPEATER
ASSIST REPEATER
IC16
LVDS
driver
IC25, IC26
LVDS
receiver
ASSIST
I/F
FPGA
ATM-SAR
controller
Ethernet
controller
IC8
10BASE-T
Gateway
Server
etc.
LOCAL BUS
PCI BUS
• REPEATER CONTROL CIRCUIT

3-4 OTHER CIRCUITS
• REPEATER CONTROL CIRCUITS (MAIN UNIT)
The repeater control circuits consist of the CPU (IC5), Boot
ROM (IC12), Flash ROM (IC11), SRAM (IC2, IC3, IC6, IC7).
A 32-bit processor is adopted as the CPU (IC5), and the 22
MHz signal, generated by the clock oscillator (X2), is used
for the CPU clock after being multiplied by 6 at the inside
the CPU.
The Boot ROM (IC12) is 16 M-bit flash memory as 8 bits
each.
The Flash ROM (IC11) is 32 M-bit flash memory as 16 bits
each.
The SRAM circuit (IC2, IC3, IC6, IC7) contains four 4 M-bit
SRAM IC as 32 bits each.
• 33 MHz CLOCK CIRCUIT (MAIN UNIT)
The 22 MHz clock signal is multiplied by 3/2at the inside of
the CPU (IC5) and then amplified at the clock driver (IC15).
The amplified clock signal is applied to the PCI/DMA FPGA
IC (IC15), Ethernet controller (IC8), ATM-SAR controller
(IC16).
• USB CONTROLLER (MAIN UNIT)
While setting the ASSIST repeater (ID-RP2L), the USB con-
trollers are used for communication with the connected PC.
While reading the setting data from the connected ASSIST
repeater (ID-RP2L), the setting data is applied to the LVDS
receivers (IC25, IC26) in the differential data format. The
applied data format is converted into the serial data format
at the LVDS receivers (IC25, IC26).
The converted serial data is applied to the USB controllers
(IC27, IC28) to be converted into the USB data format. The
converted USB data is applied to the connected PC via
[SERVICE 1] (J19) or [SERVICE 2] (J20) connector.
While writing the setting data to the connected ASSIST
repeater (ID-RP2L), the setting data is applied to the USB
controllers (IC25, IC26) via [SERVICE 1] (J19) or [SERVICE
2] (J20) connector. The USB controllers (IC25, IC26) con-
vert the applied data format into the serial data format.
The converted serial data is applied to the LVDS driver (IC22)
and converted into the differential data format. The con-
verted differential data is applied to the connected ASSIST
repeater (ID-RP2L).
B - 3 - 2
3-3 POWER SUPPLY CIRCUITS
Line Description
3.3 V
Common 3.3 V converted from the 13.8 V
line by the 3.3 V regulator circuit (IC13). The
output voltage is applied to the SRAM ICs (IC2,
IC3, IC6, IC7), ATM-SAR controller (IC16), etc.
1.8 V
Common 1.8 V converted from the 3.3 V
line by the 1.8 V regulator circuit (IC33). The
output voltage is applied to the CPU (IC5).
1.5 V
Common 1.5 V converted from the 3.3 V
line by the 1.5 V regulator circuit (IC34). The
output voltage is applied to the ASSIST IF
FPGA IC (IC19), LOCAL RPT I/F FPGA IC
(IC24), etc.
3-2-2 DURING ASSIST REPEATER OPERATION
(MAIN UNIT)
The data signal from the PCI/DMA FPGA IC (IC15) is
applied to the ATM-SAR controller (IC16) and converts the
signal format into the ATM-SAR interface signal format.
The converted interface signal is applied to the ASSIST I/F
FPGA IC (IC19) to convert the signal format into the I/O sig-
nal format . The converted I/O signal is applied to the LVDS
driver (IC22) and converts the I/O signal format into the dif-
ferential signal format.
The differential signal is applied to the connected ASSIST
repeater (ID-RP2L) via [ASSIST-1 A/B] (J13) or [ASSIST-2
A/B] (J12) connector.
3-2-3 DURING LOCAL REPEATER OPERATION
(MAIN UNIT)
The data signal from the PCI/DMA FPGA IC (IC15) is
applied to the LOCAL RPT I/F FPGA IC (IC24) and converts
the signal format into the parallel data signal format.
The converted parallel data signal is applied to the buf-
fer amplifiers (IC17, IC20, IC21, IC23) and then applied to
the connected LOCAL repeater (ID-RP2D or ID-RP2V) via
[LOCAL RPT CONT I/O] connector (J10).
3-2-4 DURING CONNECTED SERVER OPERATION
(MAIN UNIT)
The data signal from the PCI/DMA FPGA IC (IC15) is
applied to the Ethernet controller (IC8) and converts the
data format into the Ethernet data format.
The converted Ethernet data is applied to the connected
server via [10BASE-T] connector (J1).

B - 4 - 1
SECTION 4 PARTS LIST
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
IC1 1130009850 S.IC TC74LCX245FT (EL) T 65.5/166.5
IC2 1130011731 S.IC µPD444008LLE-A12 T 155/140.5
IC3 1130011731 S.IC µPD444008LLE-A12 T 181/140.5
IC4 1130011360 S.IC HD74LVC14TELL T 65.5/188.5
IC5 1140011870 S.IC HD6417750SF167 T 100/164.5
IC6 1130011731 S.IC µPD444008LLE-A12 T 155/114.5
IC7 1130011731 S.IC µPD444008LLE-A12 T 181/114.5
IC8 1130012730 S.IC AM79C973BVD\W T 29/76.5
IC9 1130007030 S.IC TC7W08FU (TE12L) T 65.5/178
IC10 1120002990 S.IC MAX3232CSE T 108.5/210
IC11 1130012300 S.IC MBM29LV320TE-90TN/SC-1407 T 159.5/86
IC12 1130012310 S.IC MBM29LV160TE90TN/SC-1408 T 160.3/62.5
IC13 6910015300 S.DC LM2676S-3.3 T 190/42.5
IC14 1130012330 S.IC EPCS1SI8 / SC-1409 T 89/120.3
IC15 1130011710 S.IC EP1C6Q240C8 T 88.5/87
IC16 1130011420 S.IC µPD98409GN-LMU T 33/134
IC17 1120002960 S.IC TC74AC541FT (EL) T 151.5/215.5
IC18 1130006891 S.IC TC7S04FU (TE85R, F) T 27/220.5
IC19 1140011420 S.IC EP1C6T144C7 T 29/186
IC20 1120002960 S.IC TC74AC541FT (EL) T 165.5/215.5
IC21 1120002960 S.IC TC74AC541FT (EL) T 179.5/215.5
IC22 1190001980 S.IC SN65LVDS391D T 34/212.5
IC23 1120002960 S.IC TC74AC541FT (EL) T 193.5/215.5
IC24 1140011410 S.IC EP1C6T144C8 T 172.5/182
IC25 1190001970 S.IC SN65LVDT33D T 18.5/212.5
IC26 1190001970 S.IC SN65LVDT33D T 89.5/212.5
IC27 1130012051 S.IC FT232BL T 62/43
IC28 1130012051 S.IC FT232BL T 87.5/43
IC29 1130009570 S.IC BR93LC46F-WE2 T 53/27
IC30 1130009570 S.IC BR93LC46F-WE2 T 78.5/27
IC33 1180002470 S.REG TA48018F (TE16L1,NQ) T 184.4/90
IC34 1180002601 S.REG TA48015F (TE16L1,NQ) T 185.7/72.6
IC35 1130011160 S.IC IDT2305-1DC T 80/137
IC36 1130006551 S.IC TC7S08FU (TE85R, F) T 106.5/111.4
Q1 1590001040 S.TR DTA113ZU T106 T 32/220.5
Q2 1590000430 S.TR DTC144EUA T106 T 37.5/220.5
Q3 1590000430 S.TR DTC144EUA T106 T 102.5/220.5
Q4 1590001040 S.TR DTA113ZU T106 T 97.5/220.5
D1 1790000700 DIO DSA3A1
D2 1710001190 DIO 1N5820
D3 1730002531 S.ZEN NNCD6.2G-T1 T 149/223
D4 1730002531 S.ZEN NNCD6.2G-T1 T 158/224.5
D5 1730002531 S.ZEN NNCD6.2G-T1 T 167/224.5
D6 1730002531 S.ZEN NNCD6.2G-T1 T 178.5/224.5
D7 1730002531 S.ZEN NNCD6.2G-T1 T 186.5/224.5
D8 1730002531 S.ZEN NNCD6.2G-T1 T 195/224.5
D13 1730002531 S.ZEN NNCD6.2G-T1 T 101.5/227
D19 1790000700 DIO DSA3A1
D20 1790000700 DIO DSA3A1
D21 1750000550 S.DIO 1SS355 TE-17 T 184.5/83.9
D22 1750000550 S.DIO 1SS355 TE-17 T 185.2/66.6
X1 6050010910 S.XTL CR-670 (25.000 MHz) T 24/55.5
X2 6050011620 S.XTL SMD-49 (22.000 MHz) T 82.5/186.5
X3 6050011030 S.XTL DMX-26S (32.768 kHz) T 122/185.5
X5 6050011290 S.XTL CR-715 (6 MHz) T 53/44
X6 6050011290 S.XTL CR-715 (6 MHz) T 78.5/44
L1 6200010750 S.COL 931BS-220M=P3 T 192.5/15
L2 6200005741 S.COL ELJRE 47NG-F T 51/18.1
L3 6200005741 S.COL ELJRE 47NG-F T 71.5/19.3
L4 6190001561 S.COL CDRH5D18NP-101NC T 186.1/55.3
R1 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 58/172.7
R2 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 58/171
R3 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 58/169.2
R4 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 58/167.5
R5 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 58/165.7
R6 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 58/164
R7 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 58/162.2
R8 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 58/160.5
R9 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 12.5/76
R10 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 65.5/162
R11 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/168
R12 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/166.5
R13 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/165
R14 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/163.5
R15 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/161.5
R16 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/160
R17 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/158.5
R18 7030003860 S.RES ERJ3GE JPW V T 74.7/163.5
R19 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 25/95
R20 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 26.5/95
R21 7030003200 S.RES ERJ3GEYJ 100 V (10
Ω) T 32.5/59
R22 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩT 24.5/59.5
R23 7030010900 S.RES ERJ3GEYJ 750 V (75
Ω) T 30.5/21
R24 7030003570 S.RES ERJ3GEYJ 123 V (12 kΩ) T 35.5/59
R25 7030010900 S.RES ERJ3GEYJ 750 V (75
Ω) T 30.5/39
R26 7030005420 S.RES ERJ3GEYJ 202 V (2 kΩ) T 37.5/56
R27 7030010890 S.RES ERJ3EKF 49R9 V (49.9 Ω) T 37/59
R28 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 60/188.5
R29 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/171.5
R30 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/173
R31 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/174.5
R32 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/176
R33 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/177.5
R34 7030003860 S.RES ERJ3GE JPW V T 77/182.5
R35 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 78.2/169.5
R36 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 48.5/73.5
R37 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 48.5/72
R38 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 48.5/69
R39 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 48.5/67
R40 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 48.5/63.5
R41 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 48.5/65
R42 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 48.5/70.5
R43 7030010890 S.RES ERJ3EKF 49R9 V (49.9 Ω) T 38.5/59
R44 7030010890 S.RES ERJ3EKF 49R9 V (49.9 Ω) T 40/59
R45 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 40/55
R46 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 71/188.7
R47 7030003200 S.RES ERJ3GEYJ 100 V (10
Ω) T 90.8/195
R48 7030003200 S.RES ERJ3GEYJ 100 V (10
Ω) T 93.6/195
R49 7030003200 S.RES ERJ3GEYJ 100 V (10
Ω) T 96.3/195
R50 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 96.5/186
R52 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 100/186
R54 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 103/186
R56 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 101.5/189.5
R60 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 89/143
R61 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 90.5/143
R62 7030003860 S.RES ERJ3GE JPW V T 99/143
R63 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 103/143
R64 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 104.5/143
R65 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 108/186
R66 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 109.5/186
R67 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 110.4/216
R68 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 111/186
R69 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 113/186
R70 7030003860 S.RES ERJ3GE JPW V T 116/184
R71 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 121.5/178.5
R72 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 106/143
R73 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 107.5/143
R74 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 109/143
R75 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 110.5/143
R76 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 116.2/143
R77 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 114.7/143
R78 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 113.2/143
R79 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 170/94.5
R80 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 146.5/85.5
R82 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 125/174
R83 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 125/172.5
R85 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 125/175.5
R88 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 121.5/171
R89 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 121.5/169.5
R90 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 121.5/168
R91 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 121.5/166.5
R94 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 93/115.8
R95 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 103.6/112.1
R96 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 85/115.8
R97 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64/104.5
R98 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64/99.5
R99 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64/101
R100 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64/103
R101 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 35.5/111
R102 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 37/111
R103 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 89.5/63.5
R104 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 86.5/63.5
R105 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 92.5/63.5
R106 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 91/63.5
R107 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64.5/85
R108 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64.5/83.5
S.=Surface mount
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]

B - 4 - 2
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
R109 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64.5/82
R110 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64.5/80.5
R111 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64.5/79
R112 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 10.6/139.5
R113 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 10.6/141.5
R114 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 10.6/143.5
R115 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 10.6/145.5
R116 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 85/63.5
R117 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 88/63.5
R118 7030003860 S.RES ERJ3GE JPW V T 14/183.5
R119 7030003860 S.RES ERJ3GE JPW V T 45.5/182
R120 7030003860 S.RES ERJ3GE JPW V T 45.5/183.5
R121 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 45.5/185
R122 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 45.5/186.5
R123 7030003860 S.RES ERJ3GE JPW V T 151/208.5
R124 7030003860 S.RES ERJ3GE JPW V T 149.5/208.5
R125 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 157/208.5
R126 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 155.5/208.5
R127 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 154/208.5
R128 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 152.5/208.5
R131 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 189.5/185
R132 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 189.5/182
R133 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 189.5/180.5
R134 7030003860 S.RES ERJ3GE JPW V T 189.5/179
R135 7030003860 S.RES ERJ3GE JPW V T 189.5/177.5
R136 7030003860 S.RES ERJ3GE JPW V T 13.5/195.5
R137 7030003860 S.RES ERJ3GE JPW V T 27.5/202.5
R138 7030003860 S.RES ERJ3GE JPW V T 29/202.5
R139 7030003860 S.RES ERJ3GE JPW V T 31/202.5
R140 7030003860 S.RES ERJ3GE JPW V T 32.5/202.5
R141 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 45.5/188
R142 7030003860 S.RES ERJ3GE JPW V T 165/208.5
R143 7030003860 S.RES ERJ3GE JPW V T 163.5/208.5
R144 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 171/208.5
R145 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 169.5/208.5
R146 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 168/208.5
R147 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 166.5/208.5
R150 7030003860 S.RES ERJ3GE JPW V T 179/208.5
R151 7030003860 S.RES ERJ3GE JPW V T 177.5/208.5
R152 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 185/208.5
R153 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 183.5/208.5
R154 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 182/208.5
R155 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 180.5/208.5
R158 7030003860 S.RES ERJ3GE JPW V T 193/208.5
R159 7030003860 S.RES ERJ3GE JPW V T 191.5/208.5
R160 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 199/208.5
R161 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 197.5/208.5
R162 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 196/208.5
R163 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 194.5/208.5
R167 7030003860 S.RES ERJ3GE JPW V T 155.5/181
R171 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 155.5/171.5
R172 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 34.5/220.5
R173 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 32/223
R174 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 100/220.5
R177 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 97.5/223
R178 7540000280 S.ASB ERZVF2M220 T 210.3/87.4
R179 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 65/50.5
R180 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 90.5/50.5
R181 7030003200 S.RES ERJ3GEYJ 100 V (10
Ω) T 66/33.5
R182 7030003200 S.RES ERJ3GEYJ 100 V (10
Ω) T 91.5/33.5
R183 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 48/27
R184 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 73.5/27
R185 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 58.5/26
R186 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 84/26
R187 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 48/30.5
R188 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 73.5/30.5
R193 7030003400 S.RES ERJ3GEYJ 471 V (470
Ω) T 54/33.5
R194 7030003400 S.RES ERJ3GEYJ 471 V (470
Ω) T 79.5/33.5
R195 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 88.5/33.5
R196 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 63/33.5
R197 7030003200 S.RES ERJ3GEYJ 100 V (10
Ω) T 64.5/33.5
R198 7030003200 S.RES ERJ3GEYJ 100 V (10
Ω) T 90/33.5
R201 7030009220 S.RES ERJ12YJ561U T 204.2/43.5
R202 7030009220 S.RES ERJ12YJ561U T 204.7/35.6
R205 7030009220 S.RES ERJ12YJ561U T 9.5/22.3
R206 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 174.5/67.5
R207 7030003320 S.RES ERJ3GEYJ 101 V (100
Ω) B 146.5/229.5
R208 7030003320 S.RES ERJ3GEYJ 101 V (100
Ω) B 148/230.3
R209 7030003320 S.RES ERJ3GEYJ 101 V (100
Ω) B 151/230.3
R210 7030003320 S.RES ERJ3GEYJ 101 V (100
Ω) B 155.5/229.5
R211 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 146.5/229.5
R212 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 148/229.5
R213 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 151/229.5
R214 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 155.5/229.5
R215 7030003320 S.RES ERJ3GEYJ 101 V (100
Ω) B 160/229.5
R216 7030003320 S.RES ERJ3GEYJ 101 V (100
Ω) B 161.5/229.5
R217 7030003320 S.RES ERJ3GEYJ 101 V (100
Ω) B 164.5/230.3
R218 7030003320 S.RES ERJ3GEYJ 101 V (100
Ω) B 166/229.5
R219 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 160/229.5
R220 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 161.5/229.5
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
R221 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 164.5/229.5
R222 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 166/229.5
R223 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 174/229.5
R224 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 175.5/230.3
R225 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 178.5/230.3
R226 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 174/229.5
R227 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 175.5/229.5
R228 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 178.5/229.5
R229 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 180/229.5
R230 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 189.5/229.5
R231 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 188/230.3
R232 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 194/230.2
R233 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 192.5/229.5
R234 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 189.5/229.5
R235 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 188/229.5
R236 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 194/229.5
R237 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 192.5/229.5
R238 7030003860 S.RES ERJ3GE JPW V T 48.5/77.4
R239 7030003860 S.RES ERJ3GE JPW V T 54.9/125.4
R240 7030003860 S.RES ERJ3GE JPW V B 109.3/96.5
R248 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 147.5/63.5
R249 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 58.5/33.5
R250 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 84/33.5
R251 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 180/229.5
R252 7030003300 S.RES ERJ3GEYJ 680 V (68 Ω) B 152.5/229.5
R253 7030003300 S.RES ERJ3GEYJ 680 V (68 Ω) B 154/230.2
R254 7030003300 S.RES ERJ3GEYJ 680 V (68 Ω) B 167.5/230.3
R255 7030003300 S.RES ERJ3GEYJ 680 V (68 Ω) B 169/229.5
R256 7030003300 S.RES ERJ3GEYJ 680 V (68 Ω) B 181.5/230.3
R257 7030003300 S.RES ERJ3GEYJ 680 V (68 Ω) B 183/229.5
R258 7030003300 S.RES ERJ3GEYJ 680 V (68
Ω) B 197/230.3
R259 7030003300 S.RES ERJ3GEYJ 680 V (68 Ω) B 195.5/229.5
R260 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 63.5/205.5
R265 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 155.5/189
R266 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 155.5/187.5
R267 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 165.5/202.5
R268 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 166.5/201
R269 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 180/201.5
R270 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 178.5/201.5
R271 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 189/188.8
R272 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 189/190.2
R273 7030003860 S.RES ERJ3GE JPW V T 35.4/223.2
R274 7030003860 S.RES ERJ3GE JPW V T 43/220.4
R275 7030003860 S.RES ERJ3GE JPW V T 97/227
R276 7030003860 S.RES ERJ3GE JPW V T 105.2/226.2
R277 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 144.2/64.5
R278 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 144.2/61.1
R279 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 147.1/60.2
R280 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 175.2/69.7
R300 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 57.3/47.4
R301 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 56.6/50.3
R302 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 59.2/49.5
R303 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 82.8/47.5
R304 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 82.1/50.1
R305 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 84.8/49.2
C1 4030011600 S.CER C1608 JB 1E 104K-T B 63/164
C2 4030011600 S.CER C1608 JB 1E 104K-T B 12.7/85.2
C3 4030011600 S.CER C1608 JB 1E 104K-T B 12.7/81.7
C4 4030011600 S.CER C1608 JB 1E 104K-T B 19.8/78.7
C5 4030011600 S.CER C1608 JB 1E 104K-T B 19/75.7
C6 4030011600 S.CER C1608 JB 1E 104K-T B 19.8/72.7
C7 4030011600 S.CER C1608 JB 1E 104K-T B 19/69.7
C8 4030011600 S.CER C1608 JB 1E 104K-T B 21.5/66.5
C9 4030011600 S.CER C1608 JB 1E 104K-T T 155/133
C10 4030011600 S.CER C1608 JB 1E 104K-T T 155/148
C11 4030011600 S.CER C1608 JB 1E 104K-T T 181/133
C12 4030011600 S.CER C1608 JB 1E 104K-T T 181/148
C13 4030011600 S.CER C1608 JB 1E 104K-T B 21/86.5
C14 4030011600 S.CER C1608 JB 1E 104K-T B 24/88.9
C15 4030011600 S.CER C1608 JB 1E 104K-T B 27/86.5
C16 4030011600 S.CER C1608 JB 1E 104K-T B 28.6/89.7
C17 4030011600 S.CER C1608 JB 1E 104K-T B 32/88.7
C18 4030011600 S.CER C1608 JB 1E 104K-T B 33.8/86.5
C19 4030011600 S.CER C1608 JB 1E 104K-T B 37.5/86.5
C20 4030011600 S.CER C1608 JB 1E 104K-T B 26/66.5
C21 4030011600 S.CER C1608 JB 1E 104K-T B 28.5/63.4
C22 4030011600 S.CER C1608 JB 1E 104K-T B 31/66.5
C23 4030011600 S.CER C1608 JB 1E 104K-T B 31.7/64.2
C24 4030011600 S.CER C1608 JB 1E 104K-T B 34.2/67.3
C25 4030006890 S.CER C1608 JF 1H 103Z-T T 34/59
C26 4030007050 S.CER C1608 CH 1H 220J-T T 18.5/52
C27 4030007050 S.CER C1608 CH 1H 220J-T T 29.5/52
C28 4030011600 S.CER C1608 JB 1E 104K-T T 33.5/56
C29 4010008500 CER DEBB33D102KA2B
C30 4030006900 S.CER C1608 JB 1H 103K-T T 60/191.5
C31 4030011600 S.CER C1608 JB 1E 104K-T B 88.1/173.2
C32 4030011600 S.CER C1608 JB 1E 104K-T B 88.1/167.2
C33 4030011600 S.CER C1608 JB 1E 104K-T B 88.1/162.2

B - 4 - 3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
C34 4030011600 S.CER C1608 JB 1E 104K-T B 88.1/156.2
C35 4030011600 S.CER C1608 JB 1E 104K-T B 88.7/152.6
C36 4030011600 S.CER C1608 JB 1E 104K-T B 95.2/153.4
C37 4030011600 S.CER C1608 JB 1E 104K-T B 99.7/152.6
C38 4030011600 S.CER C1608 JB 1E 104K-T B 104.2/153.4
C39 4030007050 S.CER C1608 CH 1H 220J-T T 77/190
C40 4030007050 S.CER C1608 CH 1H 220J-T T 88/190
C41 4030011600 S.CER C1608 JB 1E 104K-T T 92.8/198.6
C42 4030011600 S.CER C1608 JB 1E 104K-T T 155/107
C43 4030011600 S.CER C1608 JB 1E 104K-T T 155/122
C44 4030011600 S.CER C1608 JB 1E 104K-T T 181/106.5
C45 4030011600 S.CER C1608 JB 1E 104K-T T 181/122
C46 4030011600 S.CER C1608 JB 1E 104K-T B 37.5/66.5
C47 4030011600 S.CER C1608 JB 1E 104K-T B 37.5/64.2
C48 4030011600 S.CER C1608 JB 1E 104K-T B 41.2/67.5
C49 4030011600 S.CER C1608 JB 1E 104K-T B 38.7/72.7
C50 4030011600 S.CER C1608 JB 1E 104K-T B 38/76.4
C51 4030011600 S.CER C1608 JB 1E 104K-T B 42.1/77.2
C52 4030011600 S.CER C1608 JB 1E 104K-T B 41.2/80.2
C53 4550000460 S.TAN TEESVA 1C 105M8R T 36/52.5
C54 4030006890 S.CER C1608 JF 1H 103Z-T T 27/21
C55 4030006890 S.CER C1608 JF 1H 103Z-T T 25.5/39
C56 4030011600 S.CER C1608 JB 1E 104K-T T 72.5/188.7
C57 4030006890 S.CER C1608 JF 1H 103Z-T T 90/193
C58 4030006890 S.CER C1608 JF 1H 103Z-T T 92.8/193
C59 4030006890 S.CER C1608 JF 1H 103Z-T T 95.5/193
C60 4030007050 S.CER C1608 CH 1H 220J-T T 116/185.5
C61 4550000530 S.TAN TEESVA 1V 104M8L T 107/202
C62 4030007050 S.CER C1608 CH 1H 220J-T T 116/187
C63 4550000530 S.TAN TEESVA 1V 104M8L T 109.5/202
C64 4550000530 S.TAN TEESVA 1V 104M8L T 112/202
C65 4550000530 S.TAN TEESVA 1V 104M8L T 104.5/202
C66 4030011600 S.CER C1608 JB 1E 104K-T B 110.2/152.6
C67 4030011600 S.CER C1608 JB 1E 104K-T B 111.9/155.7
C68 4030011600 S.CER C1608 JB 1E 104K-T B 111.9/161.7
C69 4030011600 S.CER C1608 JB 1E 104K-T B 111.9/166.7
C70 4030011600 S.CER C1608 JB 1E 104K-T B 111.9/172.7
C71 4030011600 S.CER C1608 JB 1E 104K-T B 111.2/176.4
C72 4030011600 S.CER C1608 JB 1E 104K-T B 102.7/176.4
C73 4030011600 S.CER C1608 JB 1E 104K-T B 97.7/176.4
C74 4550000530 S.TAN TEESVA 1V 104M8L T 102.5/215
C75 4030011600 S.CER C1608 JB 1E 104K-T B 88.1/171.2
C76 4030011600 S.CER C1608 JB 1E 104K-T B 88.9/158.2
C77 4030011600 S.CER C1608 JB 1E 104K-T B 93.2/152.6
C78 4030011600 S.CER C1608 JB 1E 104K-T B 106.2/152.6
C79 4030011600 S.CER C1608 JB 1E 104K-T B 111.1/157.7
C80 4030011600 S.CER C1608 JB 1E 104K-T B 111.1/170.7
C81 4030011600 S.CER C1608 JB 1E 104K-T B 106.7/176.4
C82 4030011600 S.CER C1608 JB 1E 104K-T B 93.7/176.4
C83 4030011600 S.CER C1608 JB 1E 104K-T T 172/86
C84 4030011600 S.CER C1608 JB 1E 104K-T T 173.5/62
C85 4510008780 S.ELE EEEV1EA471P T 178.5/21
C86 4030006900 S.CER C1608 JB 1H 103K-T T 187.5/30
C87 4510008210 ELE 10 SP 270M
C88 4550000560 S.TAN TEESVA 1V 334M-8L T 178/87.7
C90 4550006240 S.TAN TEMSVB2 0G 336M-8L T 190.2/88.4
C92 4030011600 S.CER C1608 JB 1E 104K-T B 101.5/97.5
C93 4030011600 S.CER C1608 JB 1E 104K-T B 99.2/100.9
C94 4030011600 S.CER C1608 JB 1E 104K-T B 97.8/100.1
C95 4030011600 S.CER C1608 JB 1E 104K-T B 92.7/100.9
C96 4030011600 S.CER C1608 JB 1E 104K-T B 78.2/100.9
C97 4030011600 S.CER C1608 JB 1E 104K-T B 79.6/100.1
C98 4030011600 S.CER C1608 JB 1E 104K-T B 74.6/97.6
C99 4030011600 S.CER C1608 JB 1E 104K-T B 21.5/120.2
C100 4030011600 S.CER C1608 JB 1E 104K-T B 24.7/121.2
C101 4030011600 S.CER C1608 JB 1E 104K-T B 27.7/120.2
C102 4030011600 S.CER C1608 JB 1E 104K-T B 33.5/121.2
C103 4030011600 S.CER C1608 JB 1E 104K-T B 36.5/120.2
C104 4030011600 S.CER C1608 JB 1E 104K-T B 40.7/121.2
C105 4030011600 S.CER C1608 JB 1E 104K-T B 43.7/120.2
C106 4030011600 S.CER C1608 JB 1E 104K-T B 45.2/117.2
C107 4030011600 S.CER C1608 JB 1E 104K-T B 48.2/118
C108 4030011600 S.CER C1608 JB 1E 104K-T B 47.2/122.7
C109 4030011600 S.CER C1608 JB 1E 104K-T B 46.2/125.8
C110 4030011600 S.CER C1608 JB 1E 104K-T B 47.2/128.7
C111 4030011600 S.CER C1608 JB 1E 104K-T B 75.4/85.9
C112 4030011600 S.CER C1608 JB 1E 104K-T B 74.6/75.9
C113 4030011600 S.CER C1608 JB 1E 104K-T B 79.6/73.9
C114 4030011600 S.CER C1608 JB 1E 104K-T B 18.2/118
C115 4030011600 S.CER C1608 JB 1E 104K-T B 18.7/121
C116 4030011600 S.CER C1608 JB 1E 104K-T B 19.7/124
C117 4030011600 S.CER C1608 JB 1E 104K-T B 18.7/128.2
C118 4030011600 S.CER C1608 JB 1E 104K-T B 19.8/136.5
C119 4030011600 S.CER C1608 JB 1E 104K-T B 18.7/139.7
C120 4030011600 S.CER C1608 JB 1E 104K-T B 19.7/143.8
C121 4030011600 S.CER C1608 JB 1E 104K-T B 47.2/133.5
C122 4030011600 S.CER C1608 JB 1E 104K-T B 50.7/137.5
C123 4030011600 S.CER C1608 JB 1E 104K-T B 100.7/96
C124 4030011600 S.CER C1608 JB 1E 104K-T B 90.2/100.9
C125 4030011600 S.CER C1608 JB 1E 104K-T B 75.4/95.9
S.=Surface mount
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
C126 4030011600 S.CER C1608 JB 1E 104K-T B 74.6/87.6
C127 4030011600 S.CER C1608 JB 1E 104K-T B 75.4/77.6
C128 4030011600 S.CER C1608 JB 1E 104K-T B 90.2/73.1
C129 4030011600 S.CER C1608 JB 1E 104K-T B 100.6/77.5
C130 4030011600 S.CER C1608 JB 1E 104K-T B 101.5/87.5
C131 4030011600 S.CER C1608 JB 1E 104K-T B 78.2/73.1
C132 4030011600 S.CER C1608 JB 1E 104K-T B 91.7/73.9
C133 4030011600 S.CER C1608 JB 1E 104K-T B 99.2/73.1
C134 4030011600 S.CER C1608 JB 1E 104K-T B 101.5/76
C135 4030011600 S.CER C1608 JB 1E 104K-T B 100.7/86
C136 4030011600 S.CER C1608 JB 1E 104K-T B 18.7/146.7
C137 4030011600 S.CER C1608 JB 1E 104K-T B 24.2/147.5
C138 4030011600 S.CER C1608 JB 1E 104K-T B 29.5/147.5
C139 4030011600 S.CER C1608 JB 1E 104K-T B 33.2/147.5
C140 4030011600 S.CER C1608 JB 1E 104K-T B 39/147.5
C141 4030011600 S.CER C1608 JB 1E 104K-T B 44/146.5
C142 4030011600 S.CER C1608 JB 1E 104K-T B 47.5/147.5
C143 4030011600 S.CER C1608 JB 1E 104K-T B 21.4/181.6
C144 4030011600 S.CER C1608 JB 1E 104K-T B 21.4/184.2
C145 4030011600 S.CER C1608 JB 1E 104K-T B 21.4/190.4
C146 4030011600 S.CER C1608 JB 1E 104K-T B 23.4/178.4
C147 4030011600 S.CER C1608 JB 1E 104K-T B 35.1/178.4
C148 4030011600 S.CER C1608 JB 1E 104K-T B 25.1/179.2
C149 4030011600 S.CER C1608 JB 1E 104K-T B 29.2/178.4
C150 4030011600 S.CER C1608 JB 1E 104K-T B 37.6/178.4
C151 4030011600 S.CER C1608 JB 1E 104K-T B 36.6/181.2
C152 4030011600 S.CER C1608 JB 1E 104K-T B 180.1/186.6
C153 4030011600 S.CER C1608 JB 1E 104K-T B 178.6/189.6
C154 4030011600 S.CER C1608 JB 1E 104K-T B 180.1/183.7
C155 4030011600 S.CER C1608 JB 1E 104K-T B 176.9/188.8
C156 4030011600 S.CER C1608 JB 1E 104K-T B 180.1/177.2
C157 4030011600 S.CER C1608 JB 1E 104K-T B 181.8/189.5
C158 4030011600 S.CER C1608 JB 1E 104K-T B 178.6/174.4
C159 4030011600 S.CER C1608 JB 1E 104K-T B 21.4/187.7
C160 4030011600 S.CER C1608 JB 1E 104K-T B 25.1/192.8
C161 4030011600 S.CER C1608 JB 1E 104K-T B 33.4/193.6
C162 4030011600 S.CER C1608 JB 1E 104K-T B 29.2/193.6
C163 4030011600 S.CER C1608 JB 1E 104K-T B 23.4/193.6
C164 4030011600 S.CER C1608 JB 1E 104K-T B 35.1/192.7
C165 4030011600 S.CER C1608 JB 1E 104K-T B 33.4/179.2
C166 4030011600 S.CER C1608 JB 1E 104K-T B 36.6/187.7
C167 4030011600 S.CER C1608 JB 1E 104K-T B 38.3/193.5
C168 4030011600 S.CER C1608 JB 1E 104K-T B 179.3/178.7
C169 4030011600 S.CER C1608 JB 1E 104K-T B 168.6/175.2
C170 4030011600 S.CER C1608 JB 1E 104K-T B 172.7/174.4
C171 4030011600 S.CER C1608 JB 1E 104K-T B 176.9/175.2
C172 4030011600 S.CER C1608 JB 1E 104K-T T 27/223
C173 4030011600 S.CER C1608 JB 1E 104K-T T 34/207.2
C174 4030011600 S.CER C1608 JB 1E 104K-T B 172.7/189.6
C175 4030011600 S.CER C1608 JB 1E 104K-T B 168.6/188.8
C176 4030011600 S.CER C1608 JB 1E 104K-T B 164.9/183.7
C177 4030011600 S.CER C1608 JB 1E 104K-T B 166.9/174.4
C178 4030011600 S.CER C1608 JB 1E 104K-T B 164.9/176.7
C179 4030011600 S.CER C1608 JB 1E 104K-T B 164.9/180.2
C180 4030011600 S.CER C1608 JB 1E 104K-T B 165.7/181.7
C181 4030011600 S.CER C1608 JB 1E 104K-T B 164.8/187.2
C182 4030011600 S.CER C1608 JB 1E 104K-T B 166.9/189.6
C183 4550007480 S.TAN F930J106MAABMA T 54.9/18.8
C184 4550007480 S.TAN F930J106MAABMA T 75.3/20
C185 4030006900 S.CER C1608 JB 1H 103K-T T 54.1/20.8
C186 4030006900 S.CER C1608 JB 1H 103K-T T 74.6/21.8
C187 4030008560 S.CER C1608 CH 1H 300J-T T 49.5/38.5
C188 4030008560 S.CER C1608 CH 1H 300J-T T 49.5/49.5
C189 4030008560 S.CER C1608 CH 1H 300J-T T 75/38.5
C190 4030008560 S.CER C1608 CH 1H 300J-T T 75/49.5
C195 4030011600 S.CER C1608 JB 1E 104K-T T 55.5/33.5
C196 4030011600 S.CER C1608 JB 1E 104K-T T 81/33.5
C197 4030011600 S.CER C1608 JB 1E 104K-T T 58.7/51.5
C198 4030011600 S.CER C1608 JB 1E 104K-T T 84.2/51.3
C199 4030008900 S.CER C1608 JB 1H 333K-T T 61/33.5
C200 4030008900 S.CER C1608 JB 1H 333K-T T 86.5/33.5
C201 4030004760 S.CER C2012 JF 1H 104Z-T T 14.2/24.5
C202 4030004760 S.CER C2012 JF 1H 104Z-T T 206/48
C203 4030004760 S.CER C2012 JF 1H 104Z-T T 207/39.5
C204 4550000560 S.TAN TEESVA 1V 334M-8L T 179.6/70.6
C206 4550006240 S.TAN TEMSVB2 0G 336M-8L T 192.5/71
C207 4030011600 S.CER C1608 JB 1E 104K-T T 157/212
C208 4030011600 S.CER C1608 JB 1E 104K-T T 171/212.1
C209 4030011600 S.CER C1608 JB 1E 104K-T T 185/212.1
C210 4030011600 S.CER C1608 JB 1E 104K-T T 199.5/212
C211 4030011600 S.CER C1608 JB 1E 104K-T T 17.8/205.8
C212 4030011600 S.CER C1608 JB 1E 104K-T T 90.1/204.2
C213 4030011600 S.CER C1608 JB 1E 104K-T T 80.2/132
C215 4030011600 S.CER C1608 JB 1E 104K-T T 106.4/113.5
J1 6510016170 CNR 52018-8835
J2 6510011460 CNR B6P-VH
J3 6510011480 CNR B8P-VH
J4 6510011480 CNR B8P-VH

B - 4 - 4
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT]
J5 6510011590 CNR B2P-VH
J6 6510003420 CNR B06B-EH-S
J8 6510003460 CNR B10B-EH-S
J10 6510022961 CNR 3012S-04R
J12 6510023331 CNR 3012S-02R
J13 6510023331 CNR 3012S-02R
J14 6510003390 CNR B03B-EH-S
J19 6450002100 CNR CMS1410-010010
J20 6450002100 CNR CMS1410-010010
J22 6510011590 CNR B2P-VH
J23 6510011430 CNR B3P-VH
J24 6510011590 CNR B2P-VH
J25 6510003440 CNR B08B-EH-S
J26 6510024420 S.CNR IC197-4807-2000 T 160.3/62.5
DS1 5040002420 S.LED SML-310MT T86 T 55/172.7
DS2 5040002420 S.LED SML-310MT T86 T 55/171
DS3 5040002420 S.LED SML-310MT T86 T 55/169.2
DS4 5040002420 S.LED SML-310MT T86 T 55/167.5
DS5 5040002420 S.LED SML-310MT T86 T 55/165.7
DS6 5040002420 S.LED SML-310MT T86 T 55/164
DS7 5040002420 S.LED SML-310MT T86 T 55/162.2
DS8 5040002420 S.LED SML-310MT T86 T 55/160.5
DS9 5040002420 S.LED SML-310MT T86 T 51.5/69
DS10 5040002420 S.LED SML-310MT T86 T 51.5/67
DS11 5040002420 S.LED SML-310MT T86 T 51.5/65
DS12 5040002420 S.LED SML-310MT T86 T 7.8/139.5
DS13 5040002420 S.LED SML-310MT T86 T 7.8/141.5
DS14 5040002420 S.LED SML-310MT T86 T 7.8/143.5
DS15 5040002420 S.LED SML-310MT T86 T 7.8/145.5
DS16 5040003070 LED MPG4371F
S2 2220000570 SW HSW1196-01-020
T1 5910000930 S.TSM H1081 <QUA> T 30/30.5
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[LED UNIT]
J1 6510003390 CNR B03B-EH-S
DS1 5040003070 LED MPG4371F
DS2 5040003070 LED MPG4371F
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[CHASSIS UNIT]
W1 8900013310 CBL OPC-1324
W2 8900013300 CBL OPC-1325
W3 8900013290 CBL OPC-1326
W4 8900013280 CBL OPC-1327
W5 8900013270 CBL OPC-1328
W6 8900013260 CBL OPC-1329

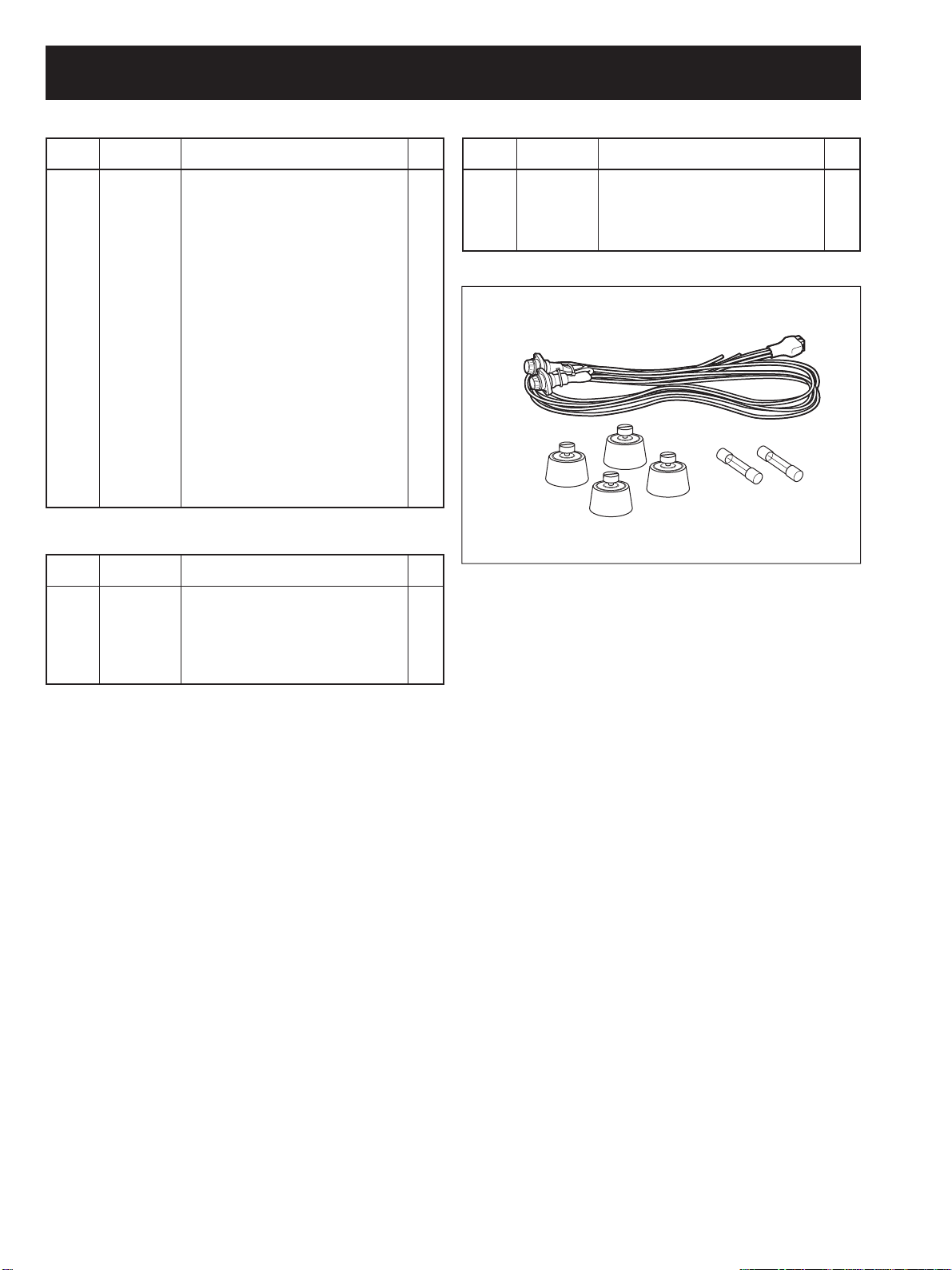

SECTION 5 MECHANICAL PARTS AND DISASSEMBLY
[ACCESSORIES]
F1 5210000930 Fuse FGB01 250V 30A 2
W1 8900013250 Cable OPC-1380 1
MP1 8930057680 Rubber stand (O) 4
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
Screw abbreviations BiH: Binding head
SUS: Stainless NI: Nickel
BS: Brass
[CHASSIS PARTS]
W1 8900013310 Cable OPC-1324 1
W2 8900013300 Cable OPC-1325 1
W3 8900013290 Cable OPC-1326 1
W4 8900013280 Cable OPC-1327 2
W5 8900013270 Cable OPC-1328 1
W6 8900013260 Cable OPC-1329 1
MP1 8110008160 2730 cover (NC) 1
MP2 8010019610 2730 chassis assembly (NC) 1
MP5 8210020720 2730 panel (NC) 1
MP6 8930063100 Handle BH-26S 1
MP7 8850002050 Washer Z-6S 4
MP8 8930058750 Insulation plate (HH) 1
MP9 8930048350 2146 lens 3
MP10 8810005060 Setscrew C M3 ×12 4
MP11 8810003360 Setscrew C M3 ×6 12
MP12 8810002950 Screw BiH M3 ×6 SUS 11
MP13 8830000110 Nut M4 1
MP14 8850000130 Flat washer M3 (3 ×8 ×0.5) NI BS 1
MP15 8950000180 Cable tie -80 1
MP16 8850000140 Flat washer M4 NI BS 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
B - 5 - 1
W1
MP1
F1
[MAIN UNIT]
J1 6510016170 Connector 52018-8835 1
J10 6510022960 Connector 3012S-04 1
J12 6510023330 Connector 3012S-2 1
J13 6510023330 Connector 3012S-2 1
J19 6450002100 Connector CMS1410-010010 1
J20 6450002100 Connector CMS1410-010010 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.

MAIN UNIT
MP11 (C)
D
G
FE
B
A
C
G
A
B
B
D
E
F
C
MP15 (C)
J12 (M)
J1 (M)
J19 (M)
J20 (M)
J13 (M)
J10 (M)
Unit abbreviation (C): CHASSIS PARTS
LED UNIT
MP14 (C)
MP12 (C)
MP1 (C)
MP10 (C)
MP13 (C)
MP16 (C)
MP9 (C)
MP5 (C)
MP7 (C)
MP6 (C)
W4 (C)
W4 (C)
W5 (C)
MP6 (C) MP7 (C)
MP9 (C)
MP10 (C)
MP2 (C)
MP8 (C)
W3 (C)
W2 (C)
W1 (C)
MP12 (C)
W6 (C)
MP11 (C)
MP11 (C)
B - 5 - 2

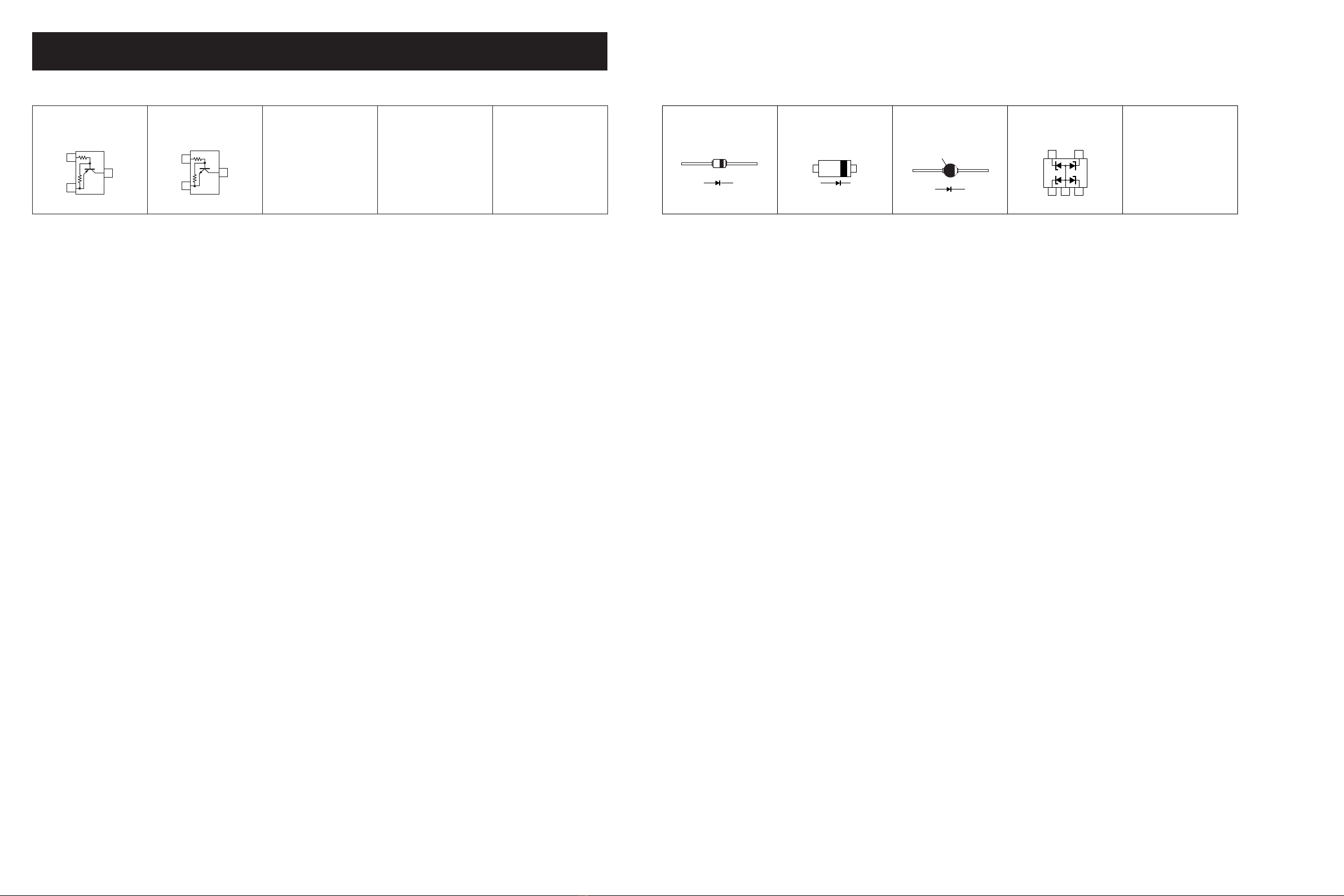

SECTION 6 SEMI-CONDUCTOR INFORMATION
• TRANSISTORS AND FET'S
B
E
C
B
E
C
DTA113 ZU T106 DTC144EUA T106
(Symbol: 111) (Symbol: 26_)
• DIODES
AC
green
K1
K4 K3
AK2
1N5820 1SS355 DSA3A1 NNCD6.2G
(Symbol: 1N5820) (Symbol: A) (Color: Green) (Symbol: 62G)
B - 6 - 1

H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130 H135 H140 H145 H150 H155 H160 H165 H170 H175 H180 H185 H190 H195 H200 H205 H210 H215 H220H0
V5
V10
V15
V0
V25
V30
V35
V20
V45
V50
V55
V40
V65
V70
V75
V60
V80
V90
V95
V100
V85
V105
V110
V115
V125
V130
V135
V120
V145
V150
V155
V140
V165
V170
V175
V160
V180
V190
V195
V200
V185
V205
V210
V215
V225
V230
V235
V220
V245
V240
GND8
1
to CHASSIS W3
(LOCAL RPT DC 13.8V OUT)
J4
13.8V
GND
13.8V
GND
13.8V
GND
13.8V
GND6
1
to CHASSIS W1
(DC 13.8V IN)
J2
GND
GND
13.8V
13.8V
13.8V
GND8
1
to CHASSIS W2
(ASSIST 1/2 DC 13.8V OUT)
J3
GND
13.8V
13.8V
GND
GND
13.8V
13.8V
13.8V2
1
to CHASSIS W4
(ASSIST 1 SW)
J22
13.8V
NC3
1
to CHASSIS W5
(ASSIST 2 SW)
J23
13.8V
13.8V
+13.8V ASSIST A1
3
to LED unit J1
J14
GND
+13.8V ASSIST B
13.8V1
2
to CHASSIS W4
(POWER SW)
J5
HV
16
15
2
1
J12
RXDA+
RDA
-
NC
RCA+
TXDA+
TDA
-
TEA
TCA+
RXDA
-
NC
RDA+
RCA
-
TXDA
-
REA
TDA+
TCA
-
16
15
2
1
J13
RXDB+
RDB
-
NC
RCB+
TXDB+
TDB
-
TEB
TCB+
RXDB
-
NC
RDB+
RCB
-
TXDB
-
REB
TDB+
TCB
-
32
31
2
1
J10
RC4
RE4
GND
TC4
RC3
RE3
GND
TC3
RC2
RE2
GND
TC2
RC1
RE1
GND
TC1
RD4
RSSI4
TE4
TD4
RD3
RSSI3
TE3
TD3
RD2
RSSI2
TE2
TD2
RD1
RSSI1
TE1
TD1
3
2
4
1
J20
D
-
D+
GND VBUS
3
2
4
1
J19
D
-
D+
GND VBUS
7
8
1
2
J1
NC
TX
-
NC
RX
-
NC NC
TX+
RX+
(Connect to IC12)
10 BASE-T SERVICE 1 SERVICE 2
ASSIST 2 A/B ASSIST 1 A/B LOCAL RPT CONT I/O
SECTION 7 BOARD LAYOUTS
B - 7 - 1
7-1 MAIN UNIT
• TOP VIEW
7-2 LED UNIT
• TOP VIEW
H5 H10 H15 H20 H25 H30 H35 H40 H45 H50H0
V5
V10
V15
V0
V25
V20
+13.8V ASSIST A1
3
to MAIN unit J14
J1
GND
+13.8V ASSIST B

H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120H125H130H135H140H145H150H155H160H165H170H175H180H185H190H195H200H205H210H215H220 H0
V5
V10
V15
V0
V25
V30
V35
V20
V45
V50
V55
V40
V65
V70
V75
V60
V80
V90
V95
V100
V85
V105
V110
V115
V125
V130
V135
V120
V145
V150
V155
V140
V165
V170
V175
V160
V180
V190
V195
V200
V185
V205
V210
V215
V225
V230
V235
V220
V245
V240
B - 7 - 2
• BOTTOM VIEW (MAIN UNIT)
• BOTTOM VIEW (LED UNIT)
H5H10H15H20H25H30H35H40H45H50 H0
V5
V10
V15
V0
V25
V20
