DIGITAL VOICE REPEATER
id-rp2000v

This service manual describes the latest service information
for the ID-RP2000V DIGITAL VOICE REPEATER at the time
of publication.
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 15 V. This will ruin the
transceiver.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100 mW) to
the antenna connector. This could damage the transceiver’s
front end.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1110003491 S.IC TA31136FNG ID-RP2000V MAIN UNIT 5 pieces
8820001210 Screw 2438 screw ID-RP2000V Top cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
ORDERING PARTS
1. Make sure a problem is internal before disassembling
the transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An
insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a signal generator or a
sweep generator.
7. ALWAYS connect a 50 dB to 60 dB attenuator between
the transceiver and a deviation meter or spectrum
analyzer when using such test equipment.
8. READ the instructions of test equipment thoroughly
before connecting equipment to the transceiver.
REPAIR NOTES
INTRODUCTION CAUTION

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTIONS
SECTION 4 PARTS LIST
SECTION 5 MECHANICAL PARTS
SECTION 6 SEMICONDUCTOR INFORMATION
SECTION 7 BOARD LAYOUTS
SECTION 8 BLOCK DIAGRAM
SECTION 9 VOLTAGE DIAGRAM

1 - 1
SECTION 1 SPECIFICATIONS
¤GENERAL
• Operating frequency range : Transmit 144–148 MHz
Receive 144–148 MHz
• Type of emission : F1D* (GMSK)
*F7W for system operation
• Transfer rate : 4.8 kbps
• Frequency resolutions : 5, 6.25 kHz
• Frequency stability : ±0.3 kHz (based on 25˚C)
• Usable temperature range : –10˚C to +50˚C; +14˚F to +122˚F
• Antenna connectors : Type-N (50 Ω)×2
• Power supply requirement : 13.8 V DC ±15% (Negative ground)
• Current drain : Transmit (High) Less than 7.0 A
(Low) Less than 3.0 A
Receive (Stand-by) Less than 0.7 A
• Dimensions (proj. not included) : 483(W)×88(H)×428(D) mm; 19(W)×315⁄32(H)×1627⁄32(D) in
• Weight (Approx.) : 7.5 kg; 16 lb 9 oz
¤TRANSMITTER
• Output power (at 13.8 V DC) : High 23–30 W
Low 2.0–3.0 W
• Modulation : GMSK
• Modulation system : Quadrature modulation (244.8 MHz)
• Occupied bandwidth : Less than 5.5 kHz
• Spurious emissions : Less than –60 dB
¤RECEIVER
• Receive system : Double-conversion superheterodyne system
• Intermediate frequencies : 1st 46.35 MHz
2nd 450 kHz
• Sensitivity (BER 1×10–2) : Less than –7 dBµ (0.45 µV)
• Selectivity (20 kHz offset) : More than 65 dB
• Spurious and image rejection : More than 70 dB
• Receive spurious : Less than 2 nW (–57 dBm)
All stated specifications are subject to change without notice or obligation.

SECTION 2 INSIDE VIEWS
2 - 1
REAR UNIT
REAR UNIT
FRONT UNIT
FRONT UNIT
CHASSIS UNIT
CHASSIS UNIT
REAR UNIT
FRONT UNIT
TX UNIT CHASSIS UNIT
CHASSIS UNIT
RX UNIT

2 - 1
RX RF amplifier
RX RF amplifier
(Q1: NE34018)
(Q1: NE34018)
1st VCO circuit
1st VCO circuit
RX 2nd mixer
RX 2nd mixer
(Q131: 3SK241)
(Q131: 3SK241)
2nd VCO circuit
2nd VCO circuit
RX 1st mixer
(IC71: µPC2721GV)
RX RF amplifier
(Q1: NE34018)
1st VCO circuit
RX 2nd mixer
(Q131: 3SK241)
2nd VCO circuit
Demodulator
(IC191: TA3116FNG)

2 - 1
Power switch circuit
Power switch circuit
Power amplifier
(IC1162: RA18H1213G1)
Fan drive circuit
Fan drive circuit
Fan drive circuit
Q1250: 2SB798
Q1251: 2SC4081
D1750: MA8082
APC amplifier*
(IC1250: TA75S01F)
TX mixer*
(IC960: µPC8163TB-E3)
TX RF amplifier
(IC1021: µPC1678G)
1st VCO circuit
2nd VCO circuit
Quadrature modulator*
(IC890: RF2485)

3 - 1

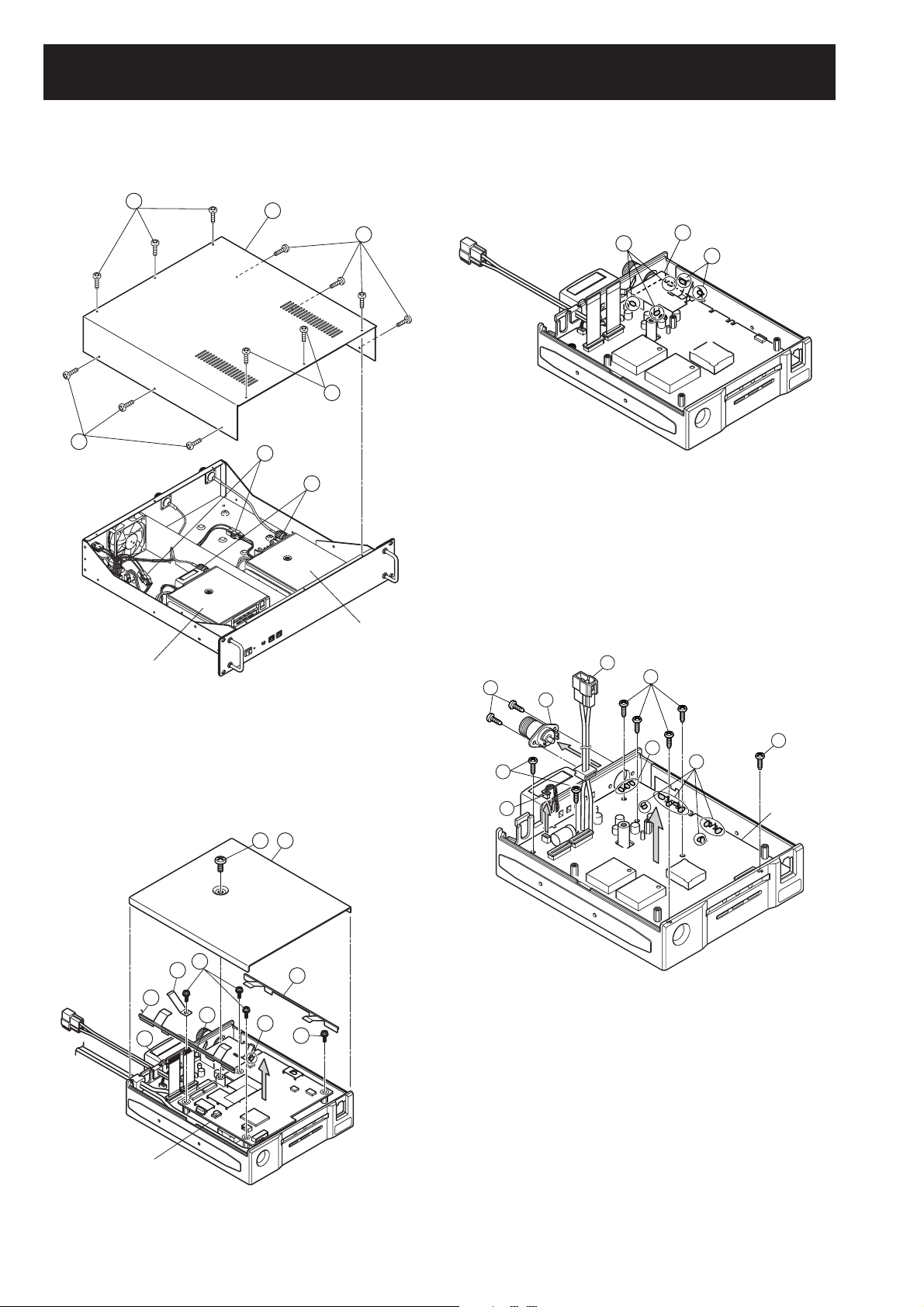

SECTION 3 DISASSEMBLY INSTRUCTION
• REMOVING THE COVER
1Unscrew 12 screws A, and remove the cover B.
2Disconnect 2 cables C, and disconnect 2 cables D.
TX unit
RX unit
A
A
AD
C
A
B
BC
A
LOGIC-T/R unit
A B
C
F
G
C
E
D
F
D
•REMOVING THE MAIN-T/R UNIT
1 Unsolder 2 points A. (MAIN-T unit only)
2 Unsolder 3 points B, and remove the ANT plate C.
•REMOVING THE LOGIC-T/R UNIT
1 Unscrew 1 screw A, and remove the cover B.
2 Remove 2 main shield plates C.
3 Disconnect 2 cables D, and unsolder 1 point E.
4 Unscrew 4 screws F, and remove the earth spring G.
5 Take off the LOGIC-T/R unit.
3 Unsolder 8 points D. (MAIN-T unit only)
4 Unsolder 3 points E.
5 Unscrew 2 screws F, and remove the ANT connector G.
6 Take off the cable Hfrom the chassis.
7 Disconnect the cable I. (MAIN-T unit only)
8 Unscrew 7 screws J, and take off the MAIN-T/R unit.
MAIN-T/R unit
H
E
J
D
J
J
F
G
I

4 - 1
SECTION 4 PARTS LIST
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[LOGIC-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC5 1180002391 S.REG S-812C33AMC-C2N-G T 49.9/4.1
IC6 1180001071 S.IC TA7805F (TE16L,Q) T 27.5/9.8
IC7 1110005440 S.IC NJM2374AM-TE1 T 4.7/13.3
IC9 1130010630 S.IC SN74AHCT541PWR T 96.4/30.8
IC10 1130007301 S.IC TC4W66FU (TE12L,F) B 19/21.5
IC11 1180002391 S.REG S-812C33AMC-C2N-G T 19.1/18
IC12 1190001340 S.IC M62334FP 600C T 49.2/57
IC13 1130006891 S.IC TC7S04FU (TE85R,F) T 29.7/26
IC14 1110005430 S.IC CMX589AD5 T 19.4/29.5
IC15 1110002861 S.IC TA75S393F (TE85R,F) B 08.5/40.1
IC16 1130007111 S.IC TC7W04FU (TE12L,F) B 68.8/29
IC17 1140008650 S.IC HN58X2464TI T 4.6/25.8
IC18 1130008361 S.IC TC7SHU04FU (TE85L,JF) T 7.2/45.6
IC19 1130008361 S.IC TC7SHU04FU (TE85L,JF) B 10.4/47.3
IC20 1190001340 S.IC M62334FP 600C T 49.2/44.2
IC21 1120002870 S.IC XCS20XL-4TQ144I T 27.3/51.6
IC22 1130007281 S.IC TC7S32FU (TE85R,F) B 68.9/41.2
IC23 1110005731 S.IC S-80928CNMC-G8Y-G B 90/51.6
IC24 1130008361 S.IC TC7SHU04FU (TE85L,JF) T 7/58.3
IC25 1130008361 S.IC TC7SHU04FU (TE85L,JF) B 8.2/60.2
IC26 1140010091 S.IC PD70F3102AGJ-33-8EU-A T 73.5/48.6
IC27 1130007281 S.IC TC7S32FU (TE85R,F) B 54.1/27.3
IC28 1130012051 S.IC FT232BL T 53.8/24.4
IC29 1130009570 S.IC BR93LC46F-WE2 T 66.8/23
IC33 1120002960 S.IC TC74AC541FT (EL) T 76.8/73
IC36 1120002830 S.IC NJM2125F-TE1 T 65.5/73.2
Q1 1590000430 S.TR DTC144EUA T106 T 39.1/16.4
Q2 1520000201 S.TR 2SB798-T2-AZ DK T 34.5/20.2
Q4 1590001400 S.TR XP1214 (TX) B 20.7/24.6
Q5 1590001400 S.TR XP1214 (TX) B 27.2/23
Q6 1590003500 S.TR DTC114YE TL B 45.2/9.2
Q7 1590000430 S.TR DTC144EUA T106 B 20.9/34
Q8 1530002280 S.TR 2SC4081 T106 S T 46/7.5
Q9 1520000201 S.TR 2SB798-T2-AZ DK B 71.3/14.5
Q10 1590000430 S.TR DTC144EUA T106 T 34/32
Q11 1590000430 S.TR DTC144EUA T106 B 11.2/35.7
Q12 1590000440 S.TR DTA143ZUA T106 B 93.7/38.5
Q13 1590003500 S.TR DTC114YE TL B 06.2/35.5
Q14 1590000430 S.TR DTC144EUA T106 B 58/22.5
D2 1790000671 S.DIO SB07-03C-TB-E T 10.8/6.9
D3 1750000550 S.DIO 1SS355 TE-17 T 43.4/9.4
D4 1790000671 S.DIO SB07-03C-TB-E T 15.7/17.6
D5 1790000671 S.DIO SB07-03C-TB-E T 41.9/13.3
D6 1750000550 S.DIO 1SS355 TE-17 B 11.4/40.1
D7 1730002280 S.ZEN MA8091-M (TX) B 110.1/47
D8 1730002280 S.ZEN MA8091-M (TX) T 110.8/36.1
D9 1750000841 S.VCP 1SV324 (TPH3,F) T 8.9/42
D11 1750000550 S.DIO 1SS355 TE-17 B 01.8/40.6
D12 1750000550 S.DIO 1SS355 TE-17 B 97.9/42.4
D13 1750000550 S.DIO 1SS355 TE-17 B 97.9/40.6
D15 1750000841 S.VCP 1SV324 (TPH3,F) T 9.1/61.6
D16 1790001240 S.DIO MA2S728-(TX) T 59.1/44.3
D17 1790001240 S.DIO MA2S728-(TX) T 58.9/46.8
X1 6050011240 S.XTL CR-708 (16.384 MHz) T 3.7/45.9
X2 6050011290 S.XTL CR-715 (6 MHz) T 79.8/30.1
X3 6050011700 S.XTL CR-760 (9.8304 MHz) T 3.7/58.4
X4 6050011290 S.XTL CR-715 (6 MHz) T 43.5/25.1
L1 6200003590 S.COL EXCCL3225U1 B 92.1/13
L2 6200003590 S.COL EXCCL3225U1 B 05.7/10.3
L3 6200003590 S.COL EXCCL3225U1 T 3.7/22.4
L4 6190001561 S.COL CDRH5D18NP-101NC T 10.7/18.5
L5 6190001561 S.COL CDRH5D18NP-101NC T 10.7/11.5
L6 6200002041 S.COL NLV25T-101J B 16.6/34.4
L7 6200005741 S.COL ELJRE 47NGFA B 3.6/31.7
L8 6200005741 S.COL ELJRE 47NGFA B 69.7/34.8
L9 6200005741 S.COL ELJRE 47NGFA B 105.5/44
L10 6200005741 S.COL ELJRE 47NGFA B 69.7/36.9
L11 6200005741 S.COL ELJRE 47NGFA B 55.7/37.5
L12 6200006991 S.COL ELJRE 56NGFA B 52.6/23.2
L15 6200002041 S.COL NLV25T-101J T 61.4/25.4
L16 6200005741 S.COL ELJRE 47NGFA T 61.5/23.5
R1 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 91.2/16.2
R3 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 96.8/13.7
R4 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 98.3/13.7
R5 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 99.8/13.7
S.=Surface mount
[LOGIC-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R7 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 02.8/13.7
R8 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 04.3/13.7
R10 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 07.3/13.7
R13 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 09.1/13.7
R14 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 80/13.7
R15 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 81.3/13.7
R16 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 82.6/13.7
R17 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 84/13.7
R21 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 86.2/17.5
R22 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 87.9/21
R23 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 86.2/21
R29 7030000420 S.RES MCR10EZHJ 2.2 k T 36.6/13.8
R30 7030000420 S.RES MCR10EZHJ 2.2 k T 36.6/11.9
R31 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 34.5/16.3
R32 7030000180 S.RES MCR10EZHJ 22 (220) T 33.2/13.8
R33 7030000180 S.RES MCR10EZHJ 22 (220) T 33.2/11.9
R34 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 94.3/18.4
R38 7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) B 108/17.2
R40 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) T 83.4/15.9
R41 7030003590 S.RES ERJ3GEYJ 183 V (18 k) B 86.5/14.5
R51 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 5.3/18.9
R52 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 4/18.9
R53 7030000020 S.RES MCR10EZHJ 1 (010) B 4.3/10
R60 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 6.6/18.9
R61 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 48/9.7
R62 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) B 43.2/8.2
R63 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 29.7/23.8
R64 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 19.1/31.7
R65 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 19.1/30.5
R66 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 19.1/29.3
R67 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 19.1/28.1
R68 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 19.1/26.9
R69 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 25.4/25.1
R70 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 32/27.2
R71 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 31.4/29.6
R72 7030003750 S.RES ERJ3GEYJ 394 V (390 k) B 17.1/25.6
R73 7030009340 S.RES ERJ3GEYJ 275V (2.7 M) B 13.8/22.7
R90 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 45.2/10.7
R91 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 109.8/44
R94 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 14.2/23.3
R115 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 04.6/37.6
R116 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 104.6/39
R117 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) B 08.1/37.5
R126 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 09.2/34.5
R127 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 94.5/36.2
R128 7030003490 S.RES ERJ3GEYJ 272 V (2.7 k) B 04.5/34.2
R129 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 05.5/45.5
R130 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 7.2/50.1
R131 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 7.2/48.7
R132 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 10.5/50.8
R133 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 22.3/37.6
R134 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 66.3/41.2
R135 7030003570 S.RES ERJ3GEYJ 123 V (12 k) B 02.4/38.3
R136 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 00.9/38.3
R137 7030003570 S.RES ERJ3GEYJ 123 V (12 k) T 9.5/25.9
R138 7030003570 S.RES ERJ3GEYJ 123 V (12 k) T 5.2/28.9
R139 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 90.7/48.2
R140 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/49.4
R141 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/45.4
R142 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 13.2/44
R143 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 10.4/42.5
R145 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 66.2/35.5
R146 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 66.2/34
R148 7030003860 S.RES ERJ3GE JPW V T 68.5/30.1
R149 7030003340 S.RES ERJ3GEYJ 151 V (150 ) B 72.8/36.9
R150 7030003360 S.RES ERJ3GEYJ 221 V (220 ) B 92.2/48.2
R151 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/54.4
R152 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/58.4
R153 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 40.5/51.2
R154 7030003860 S.RES ERJ3GE JPW V T 57/40.9
R155 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 7/60.7
R156 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 7/62.2
R157 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 8.4/63.9
R158 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 40.8/59.3
R159 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 62.3/47
R160 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 62.5/49.3
R161 7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) B 90/43.8
R162 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 8.2/56.5
R163 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 11.7/61.2
R164 7030003860 S.RES ERJ3GE JPW V T 37.7/63.5
R165 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 39.3/62.6
R167 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 58.8/57.3
R168 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/57.8
R169 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/56.4
R170 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/44.7

4 - 2
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[LOGIC-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R171 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/43.5
R172 7030003340 S.RES ERJ3GEYJ 151 V (150 ) B 56.5/25.9
R173 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 54/25.3
R174 7030003580 S.RES ERJ3GEYJ 153 V (15 k) B 51/26.5
R175 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) B 51/28
R176 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 53.3/18
R177 7030003400 S.RES ERJ3GEYJ 471 V (470 ) B 55.5/23.2
R178 7030003860 S.RES ERJ3GE JPW V B 52/21
R179 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 66.3/23.5
R180 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 69/23.5
R183 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 55.8/31.5
R184 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 57.5/16.1
R185 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 57.5/18.6
R186 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 57.5/17.4
R187 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 68.2/73
R188 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 28.5/35.7
R190 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 64.5/76
R192 7030003860 S.RES ERJ3GE JPW V T 65.8/30.1
R194 7030003860 S.RES ERJ3GE JPW V T 68.5/32.9
R195 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 51/32.2
R196 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 52.4/32.9
C1 4030006860 S.CER C1608 JB 1H 102K-T B 91.2/17.5
C3 4030006860 S.CER C1608 JB 1H 102K-T B 99.1/18.4
C4 4030011600 S.CER C1608 JB 1E 104K-T B 99.1/20.2
C5 4030011600 S.CER C1608 JB 1E 104K-T T 90.9/14.3
C6 4030007090 S.CER C1608 CH 1H 470J-T T 109.1/17.5
C13 4030006900 S.CER C1608 JB 1H 103K-T B 94.3/19.7
C15 4030006860 S.CER C1608 JB 1H 102K-T B 06.6/12.5
C16 4030007130 S.CER C1608 CH 1H 101J-T B 06.6/13.8
C19 4030007090 S.CER C1608 CH 1H 470J-T T 07.3/17.5
C21 4030007090 S.CER C1608 CH 1H 470J-T T 04.3/17.5
C22 4030006850 S.CER C1608 JB 1H 471K-T T 02.8/17.5
C24 4030007090 S.CER C1608 CH 1H 470J-T T 98.3/17.4
C25 4030007090 S.CER C1608 CH 1H 470J-T T 96.8/17.4
C26 4030007090 S.CER C1608 CH 1H 470J-T B 86.5/15.9
C27 4030011810 S.CER C1608 JB 1A 224K-T B 86.5/17.3
C28 4030006900 S.CER C1608 JB 1H 103K-T T 62.5/73.5
C29 4030007090 S.CER C1608 CH 1H 470J-T T 34/26.5
C30 4030007090 S.CER C1608 CH 1H 470J-T B 26.7/32.8
C41 4510008490 S.ELE EEE1CS100SR B 24.2/5.6
C42 4030011600 S.CER C1608 JB 1E 104K-T T 47.5/3.4
C43 4510008520 S.ELE EEE1CA470SP B 29.7/5.2
C44 4030011600 S.CER C1608 JB 1E 104K-T T 30.3/16.9
C45 4510008850 S.ELE EEE1CA101P B 10.5/5.9
C47 4030011600 S.CER C1608 JB 1E 104K-T T 95.4/35.7
C48 4030008890 S.CER C1608 JB 1H 273K-T B 29.5/24
C49 4030008890 S.CER C1608 JB 1H 273K-T B 25.1/20.8
C56 4030011600 S.CER C1608 JB 1E 104K-T T 49.7/7
C57 4550006250 S.TAN TEESVA 1A 106M8R T 48.6/10.7
C58 4510007130 S.ELE EEFCD 0J 470R T 16.9/10.6
C59 4030011600 S.CER C1608 JB 1E 104K-T T 27.2/16.4
C60 4510008520 S.ELE EEE1CA470SP B 18.7/5.1
C61 4030006850 S.CER C1608 JB 1H 471K-T T 27.2/17.6
C62 4030011600 S.CER C1608 JB 1E 104K-T T 21.4/15.2
C63 4030006850 S.CER C1608 JB 1H 471K-T T 6.1/7.7
C64 4550006250 S.TAN TEESVA 1A 106M8R T 28.5/19.4
C65 4030011600 S.CER C1608 JB 1E 104K-T T 27.7/21.8
C66 4030007000 S.CER C1608 CH 1H 090D-T T 31.4/30.9
C67 4030006900 S.CER C1608 JB 1H 103K-T T 27.2/24.5
C68 4030011600 S.CER C1608 JB 1E 104K-T T 26.2/27
C69 4030007130 S.CER C1608 CH 1H 101J-T B 25/23
C70 4030012600 S.CER C2012 JB 1A 105M-T B 27/31.2
C71 4030011600 S.CER C1608 JB 1E 104K-T B 26.8/29.6
C72 4030006860 S.CER C1608 JB 1H 102K-T B 12.5/35
C73 4030006860 S.CER C1608 JB 1H 102K-T B 12.5/33.8
C74 4550006050 S.TAN TEESVA 0J 106M8R T 45.7/15.4
C75 4030011600 S.CER C1608 JB 1E 104K-T T 21.5/19.7
C76 4550006730 S.TAN TEESVB2 0J 226M8R T 18.1/22.5
C77 4550006250 S.TAN TEESVA 1A 106M8R T 23.1/16
C78 4550006050 S.TAN TEESVA 0J 106M8R B 68.8/32.3
C80 4550006250 S.TAN TEESVA 1A 106M8R B 13.9/31.8
C81 4030011600 S.CER C1608 JB 1E 104K-T B 14.7/29.9
C82 4030011600 S.CER C1608 JB 1E 104K-T B 14.8/28.4
C84 4030007090 S.CER C1608 CH 1H 470J-T B 09.8/45.3
C85 4030006860 S.CER C1608 JB 1H 102K-T T 12.5/36.4
C86 4030006900 S.CER C1608 JB 1H 103K-T B 58.7/58.9
C87 4030006850 S.CER C1608 JB 1H 471K-T B 63.8/29.9
C88 4030007050 S.CER C1608 CH 1H 220J-T T 7.2/51.4
C89 4030009520 S.CER C1608 CH 1H 020B-T T 6.5/42
C90 4030007040 S.CER C1608 CH 1H 180J-T T 10.3/45.4
C91 4030011600 S.CER C1608 JB 1E 104K-T B 63.8/28.6
C92 4030011600 S.CER C1608 JB 1E 104K-T B 3.6/29.9
C93 4030006900 S.CER C1608 JB 1H 103K-T B 72.8/35.3
C94 4030006900 S.CER C1608 JB 1H 103K-T T 9.8/47.4
C95 4030006900 S.CER C1608 JB 1H 103K-T T 50.1/48
C96 4030011600 S.CER C1608 JB 1E 104K-T B 10.5/45.2
C97 4030006900 S.CER C1608 JB 1H 103K-T B 28.2/41.7
C98 4030006860 S.CER C1608 JB 1H 102K-T B 70.6/43.1
C99 4030008560 S.CER C1608 CH 1H 300J-T T 78.5/34.7
S.=Surface mount
[LOGIC-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C100 4030008560 S.CER C1608 CH 1H 300J-T T 78.5/33.5
C101 4030006900 S.CER C1608 JB 1H 103K-T B 90.3/54.2
C102 4030006900 S.CER C1608 JB 1H 103K-T T 9.8/56.4
C103 4030007080 S.CER C1608 CH 1H 390J-T T 10.4/58.4
C105 4030011600 S.CER C1608 JB 1E 104K-T B 39/41.2
C106 4550006780 S.TAN TEESVB2 0J 476M8R B 40/38.7
C107 4030011600 S.CER C1608 JB 1E 104K-T T 59.6/40.9
C108 4030007090 S.CER C1608 CH 1H 470J-T B 58.7/41.5
C109 4030007040 S.CER C1608 CH 1H 180J-T T 5.5/63.4
C110 4030006900 S.CER C1608 JB 1H 103K-T B 8.2/58
C111 4030011600 S.CER C1608 JB 1E 104K-T B 15.1/63.2
C112 4030011600 S.CER C1608 JB 1E 104K-T T 14.6/53.6
C113 4030006900 S.CER C1608 JB 1H 103K-T T 27.6/65.1
C115 4030007090 S.CER C1608 CH 1H 470J-T B 87.2/49.4
C116 4030007090 S.CER C1608 CH 1H 470J-T T 88.6/53.6
C117 4030011600 S.CER C1608 JB 1E 104K-T T 14.1/41.1
C118 4030011600 S.CER C1608 JB 1E 104K-T B 93.1/65.9
C119 4030007090 S.CER C1608 CH 1H 470J-T B 57.2/27.7
C120 4030008560 S.CER C1608 CH 1H 300J-T T 48.1/24.8
C121 4030008560 S.CER C1608 CH 1H 300J-T T 46.9/24.8
C122 4030007090 S.CER C1608 CH 1H 470J-T B 63.6/64.2
C123 4030007090 S.CER C1608 CH 1H 470J-T B 86.6/55.3
C124 4030011600 S.CER C1608 JB 1E 104K-T B 93.2/64.4
C125 4030007090 S.CER C1608 CH 1H 470J-T B 50.9/25.1
C126 4030011600 S.CER C1608 JB 1E 104K-T B 55.5/22
C127 4030011600 S.CER C1608 JB 1E 104K-T B 63.5/23.5
C131 4030006900 S.CER C1608 JB 1H 103K-T B 53.9/32.9
C132 4550006250 S.TAN TEESVA 1A 106M8R B 58/33.8
C133 4030008900 S.CER C1608 JB 1H 333K-T T 54.3/16.7
C136 4030011600 S.CER C1608 JB 1E 104K-T T 67.4/76
C137 4030007130 S.CER C1608 CH 1H 101J-T T 60.5/22.2
C138 4030007050 S.CER C1608 CH 1H 220J-T B 99.5/12.2
C139 4030007050 S.CER C1608 CH 1H 220J-T B 98/12.2
C140 4030006860 S.CER C1608 JB 1H 102K-T B 55.8/34.3
C141 4550000460 S.TAN TEESVA 1C 105M8R B 95.1/21.5
C142 4550000460 S.TAN TEESVA 1C 105M8R B 102.8/17
C143 4550000460 S.TAN TEESVA 1C 105M8R B 81.4/13
C144 4550000460 S.TAN TEESVA 1C 105M8R T 84.1/21.8
C145 4510007400 S.ELE EEFCD 1C 8R2R T 11.6/2.8
J1 6510022710 S.CNR 30FLZ-SM1-TB T 100.6/5.5
J2 6510022710 S.CNR 30FLZ-SM1-TB T 78.8/5.5
J4 6510019271 S.CNR 52365-0671 T 08.4/40.2
J5 6510021431 S.CNR S8B-ZR-SM4A-TF (LF) (SN) T 95.6/75.4
J6 6510023861 S.CNR S9B-ZR-SM4A-TF (LF) (SN) B 95/5.7
W1 8900013161 CBL OPC-1313A
[LOGIC-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC1 1110005290 S.IC NJM2115V-TE1 B 28.3/49.1
IC2 1110005290 S.IC NJM2115V-TE1 B 28.1/61.1
IC3 1130007301 S.IC TC4W66FU (TE12L,F) B 103.5/20
IC4 1110005290 S.IC NJM2115V-TE1 B 28.1/71.3
IC5 1180002391 S.REG S-812C33AMC-C2N-G T 49.9/4.1
IC6 1180001071 S.IC TA7805F (TE16L,Q) T 27.5/9.8
IC7 1110005440 S.IC NJM2374AM-TE1 T 4.7/13.3
IC9 1130010630 S.IC SN74AHCT541PWR T 96.4/30.8
IC11 1180002391 S.REG S-812C33AMC-C2N-G T 18.9/18
IC12 1190001340 S.IC M62334FP 600C T 49.2/57
IC15 1110002861 S.IC TA75S393F (TE85R,F) B 08.5/40.1
IC16 1130007111 S.IC TC7W04FU (TE12L,F) B 68.8/29
IC17 1140008650 S.IC HN58X2464TI T 10.3/31.6
IC18 1130008361 S.IC TC7SHU04FU (TE85L,JF) T 7.2/45.6
IC19 1130008361 S.IC TC7SHU04FU (TE85L,JF) B 10.4/47.3
IC20 1190001340 S.IC M62334FP 600C T 49.2/44.1
IC21 1120002870 S.IC XCS20XL-4TQ144I T 27.3/51.6
IC22 1130007281 S.IC TC7S32FU (TE85R,F) B 68.9/41.2
IC23 1110005731 S.IC S-80928CNMC-G8Y-G B 90/51.6
IC24 1130008361 S.IC TC7SHU04FU (TE85L,JF) T 7/58.4
IC25 1130008361 S.IC TC7SHU04FU (TE85L,JF) B 8.2/60.2
IC26 1140010091 S.IC PD70F3102AGJ-33-8EU-A T 73.5/48.6
IC27 1130007281 S.IC TC7S32FU (TE85R,F) B 54.1/27.3
IC28 1130012051 S.IC FT232BL T 53.8/24.4
IC29 1130009570 S.IC BR93LC46F-WE2 T 66.8/23
IC33 1120002960 S.IC TC74AC541FT (EL) T 76.8/73
Q1 1590000430 S.TR DTC144EUA T106 T 39.1/16.4
Q2 1520000201 S.TR 2SB798-T2-AZ DK T 34.5/20.2
Q3 1590000430 S.TR DTC144EUA T106 B 104.2/23.1
Q6 1590003500 S.TR DTC114YE TL B 46.1/15.2
Q8 1530002280 S.TR 2SC4081 T106 S T 46.3/7.5

4 - 3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
[LOGIC-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
Q9 1520000201 S.TR 2SB798-T2-AZ DK B 71.3/14.5
Q11 1590000430 S.TR DTC144EUA T106 B 111.2/35.7
Q12 1590000440 S.TR DTA143ZUA T106 B 93.7/38.5
Q13 1590003500 S.TR DTC114YE TL B 107.4/35.4
Q14 1590000430 S.TR DTC144EUA T106 B 58.9/22.6
D2 1790000671 S.DIO SB07-03C-TB-E T 10.9/6.7
D3 1750000550 S.DIO 1SS355 TE-17 T 43.4/10.5
D4 1790000671 S.DIO SB07-03C-TB-E T 16.5/21.6
D5 1790000671 S.DIO SB07-03C-TB-E T 42.1/14.5
D6 1750000550 S.DIO 1SS355 TE-17 B 112.4/42.4
D7 1730002280 S.ZEN MA8091-M (TX) B 110.1/47
D8 1730002280 S.ZEN MA8091-M (TX) T 110.8/36.1
D9 1750000841 S.VCP 1SV324 (TPH3,F) T 10/43.1
D11 1750000550 S.DIO 1SS355 TE-17 B 101.8/40.5
D12 1750000550 S.DIO 1SS355 TE-17 B 97.9/42.4
D13 1750000550 S.DIO 1SS355 TE-17 B 97.9/40.6
D15 1750000841 S.VCP 1SV324 (TPH3,F) T 10.1/60.6
D16 1790001240 S.DIO MA2S728-(TX) T 59.1/44.3
D17 1790001240 S.DIO MA2S728-(TX) T 59/46.7
X1 6050011240 S.XTL CR-708 (16.384 MHz) T 3.7/45.9
X2 6050011290 S.XTL CR-715 (6 MHz) T 80.9/30.8
X3 6050011700 S.XTL CR-760 (9.8304 MHz) T 3.9/58.1
X4 6050011290 S.XTL CR-715 (6 MHz) T 43.2/25.2
L1 6200003590 S.COL EXCCL3225U1 B 92.1/13
L2 6200003590 S.COL EXCCL3225U1 B 105.7/10.3
L3 6200003590 S.COL EXCCL3225U1 T 4.1/22.6
L4 6190001561 S.COL CDRH5D18NP-101NC T 10.7/18.5
L5 6190001561 S.COL CDRH5D18NP-101NC T 10.7/11.5
L7 6200005741 S.COL ELJRE 47NGFA B 3.7/30.5
L8 6200005741 S.COL ELJRE 47NGFA B 69.7/34.9
L9 6200005741 S.COL ELJRE 47NGFA B 105.3/44
L10 6200005741 S.COL ELJRE 47NGFA B 69.7/36.9
L11 6200005741 S.COL ELJRE 47NGFA B 56.4/37.5
L12 6200006991 S.COL ELJRE 56NGFA B 52.6/23.2
L15 6200002041 S.COL NLV25T-101J T 61.4/24.8
L16 6200005741 S.COL ELJRE 47NGFA T 61.7/22.9
R1 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 91.3/16.2
R3 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 96.8/13.7
R4 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 98.3/13.7
R5 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 99.8/13.7
R6 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 101.3/13.7
R7 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 102.8/13.7
R8 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 104.3/13.7
R9 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 105.8/13.7
R10 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 107.3/13.7
R11 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 108.8/13.7
R12 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 110.3/13.7
R18 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 86.4/12.3
R19 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 85/12.3
R20 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 87.9/17.5
R21 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 86.2/17.5
R22 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 87.9/21
R23 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 86.2/21
R24 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 32.9/58.4
R25 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 34.3/55.1
R26 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 23.4/58.4
R27 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 25.9/54.2
R28 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 25.9/66
R29 7030000420 S.RES MCR10EZHJ 2.2 k T 36.6/13.8
R30 7030000420 S.RES MCR10EZHJ 2.2 k T 36.6/11.9
R31 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 34.5/16.3
R32 7030000180 S.RES MCR10EZHJ 22 (220) T 33.2/13.8
R33 7030000180 S.RES MCR10EZHJ 22 (220) T 33.2/11.9
R34 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 93.3/19.5
R35 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 99.2/21.8
R36 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 103.1/23.4
R37 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 103.7/28.4
R38 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) B 108/17.2
R40 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) T 83.4/15.9
R41 7030003590 S.RES ERJ3GEYJ 183 V (18 k) B 86.5/14.5
R42 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 32.9/61.3
R43 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 37.3/58.4
R44 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 35.8/58.4
R45 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 20.5/58.4
R46 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 23.4/61.3
R47 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 19.1/58.4
R48 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 26/76.3
R49 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 22.6/55
R50 7030003860 S.RES ERJ3GE JPW V T 25.3/74.9
R51 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 5.2/19.7
R52 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 4/19.7
R53 7030000020 S.RES MCR10EZHJ 1 (010) B 3.8/16.4
R54 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) B 32.9/66
[LOGIC-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R55 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) B 34.3/68.8
R56 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 34.3/71.5
R57 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) B 23.4/66
R58 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) B 21.9/68.8
R59 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 21.9/71.6
R60 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 6.6/19
R61 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 48.5/13.5
R62 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) B 44.8/12.5
R64 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 29.8/35
R65 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 31.2/35
R74 7030005321 S.RES ERA3YED 103V (10 k) T 28.5/72.7
R75 7030005321 S.RES ERA3YED 103V (10 k) T 29.5/71.4
R76 7030005321 S.RES ERA3YED 103V (10 k) T 31.2/72.7
R77 7030005321 S.RES ERA3YED 103V (10 k) T 32.2/71.4
R78 7030005661 S.RES ERA3YED 203V (20 k) T 27.8/69.3
R79 7030005321 S.RES ERA3YED 103V (10 k) T 13.8/72.7
R80 7030005661 S.RES ERA3YED 203V (20 k) T 29.1/69.3
R81 7030005321 S.RES ERA3YED 103V (10 k) T 15.3/71.4
R82 7030005661 S.RES ERA3YED 203V (20 k) T 30.4/69.3
R83 7030005321 S.RES ERA3YED 103V (10 k) T 16.5/72.7
R84 7030005661 S.RES ERA3YED 203V (20 k) T 31.7/69.3
R85 7030005321 S.RES ERA3YED 103V (10 k) T 18/71.4
R86 7030005661 S.RES ERA3YED 203V (20 k) T 13.5/69.3
R87 7030005661 S.RES ERA3YED 203V (20 k) T 14.8/69.3
R88 7030005661 S.RES ERA3YED 203V (20 k) T 16.1/69.3
R89 7030005661 S.RES ERA3YED 203V (20 k) T 17.4/69.3
R90 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 45.2/10.7
R91 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 109.8/44
R92 7030003860 S.RES ERJ3GE JPW V T 47.7/61
R93 7030003860 S.RES ERJ3GE JPW V T 48.9/61
R95 7030005321 S.RES ERA3YED 103V (10 k) T 33.9/72.7
R96 7030005321 S.RES ERA3YED 103V (10 k) T 34.9/71.4
R97 7030005321 S.RES ERA3YED 103V (10 k) T 36.6/72.7
R98 7030005321 S.RES ERA3YED 103V (10 k) T 37.6/71.4
R99 7030005321 S.RES ERA3YED 103V (10 k) T 39.3/72.7
R100 7030005661 S.RES ERA3YED 203V (20 k) T 33/69.3
R101 7030005321 S.RES ERA3YED 103V (10 k) T 19.2/72.7
R102 7030005661 S.RES ERA3YED 203V (20 k) T 34.3/69.3
R103 7030005321 S.RES ERA3YED 103V (10 k) T 20.7/71.4
R104 7030005661 S.RES ERA3YED 203V (20 k) T 35.6/69.3
R105 7030005321 S.RES ERA3YED 103V (10 k) T 21.9/72.7
R106 7030005661 S.RES ERA3YED 203V (20 k) T 36.9/69.3
R107 7030005321 S.RES ERA3YED 103V (10 k) T 23.4/71.4
R108 7030005661 S.RES ERA3YED 203V (20 k) T 38.2/69.3
R109 7030005321 S.RES ERA3YED 103V (10 k) T 24.6/72.7
R110 7030005661 S.RES ERA3YED 203V (20 k) T 18.7/69.3
R111 7030005661 S.RES ERA3YED 203V (20 k) T 20/69.3
R112 7030005661 S.RES ERA3YED 203V (20 k) T 21.3/69.3
R113 7030005661 S.RES ERA3YED 203V (20 k) T 22.6/69.3
R114 7030005661 S.RES ERA3YED 203V (20 k) T 23.9/69.3
R115 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 104.6/37.6
R116 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 104.6/39
R117 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) B 108.2/37.4
R118 7030005321 S.RES ERA3YED 103V (10 k) T 40.3/71.4
R119 7030005661 S.RES ERA3YED 203V (20 k) T 41.3/73.5
R120 7030005661 S.RES ERA3YED 203V (20 k) T 39.5/69.3
R121 7030005321 S.RES ERA3YED 103V (10 k) T 26.1/71.4
R122 7030005661 S.RES ERA3YED 203V (20 k) T 40.8/69.3
R123 7030005661 S.RES ERA3YED 203V (20 k) T 26.6/73.4
R124 7030005661 S.RES ERA3YED 203V (20 k) T 25.2/69.3
R125 7030005661 S.RES ERA3YED 203V (20 k) T 26.5/69.3
R126 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 105.3/32.9
R127 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 92.9/36.3
R128 7030003490 S.RES ERJ3GEYJ 272 V (2.7 k) B 104.6/35
R129 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 106.1/46.3
R130 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 7.2/50.1
R131 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 7.2/48.7
R132 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 10.5/50.8
R134 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 66.3/41.2
R135 7030003570 S.RES ERJ3GEYJ 123 V (12 k) B 102.4/38.1
R136 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 100.9/38.1
R137 7030003570 S.RES ERJ3GEYJ 123 V (12 k) T 7.4/27.9
R138 7030003570 S.RES ERJ3GEYJ 123 V (12 k) T 10/26.1
R139 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 89.1/48.9
R140 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/49.4
R141 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/45.4
R142 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 13.6/44.3
R143 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 12.9/40.4
R145 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 66.2/35.5
R146 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 66.2/34
R148 7030003860 S.RES ERJ3GE JPW V T 68.5/30.1
R149 7030003340 S.RES ERJ3GEYJ 151 V (150 ) B 72.8/36.9
R150 7030003360 S.RES ERJ3GEYJ 221 V (220 ) B 91/48.2
R151 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/54.2
R152 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/58.2
R153 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 40.5/51.2
R154 7030003860 S.RES ERJ3GE JPW V T 57/40.9
R155 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 7.1/60.5
R156 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 7.1/61.7
R157 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 9.7/62.9
R158 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 40.8/59.3

4 - 4
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[LOGIC-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R159 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 58.8/47.1
R160 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 59.3/50.1
R161 7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) B 90/43.8
R162 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 7.5/56
R163 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 9.8/62.5
R164 7030003860 S.RES ERJ3GE JPW V T 43.8/67.1
R165 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 39.3/62.6
R166 7030003860 S.RES ERJ3GE JPW V B 28.4/76.5
R167 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 58.8/57.3
R168 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/57.8
R169 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/56.4
R170 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.3/45.7
R171 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.3/43.5
R172 7030003340 S.RES ERJ3GEYJ 151 V (150 ) B 56.5/25.9
R173 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 54/25.3
R174 7030003580 S.RES ERJ3GEYJ 153 V (15 k) B 51.1/25.8
R175 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) B 51.1/27.3
R176 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 53.3/18
R177 7030003400 S.RES ERJ3GEYJ 471 V (470 ) B 55.9/23.2
R178 7030003860 S.RES ERJ3GE JPW V B 50.3/20.4
R179 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 65.9/23.5
R180 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 68.5/24.3
R183 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 55.8/31.5
R184 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 56.9/16.6
R185 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 58.8/19
R186 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 56.9/18.4
R188 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 85.2/76.3
R189 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 85.2/73.1
R192 7030003860 S.RES ERJ3GE JPW V T 65.8/30.1
R193 7030003860 S.RES ERJ3GE JPW V T 68.5/34.3
R194 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 03.1/24.7
R195 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 50.9/32.2
R196 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 52.4/31.5
R197 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 99.2/20.3
C1 4030006860 S.CER C1608 JB 1H 102K-T B 90.6/18.3
C2 4030006900 S.CER C1608 JB 1H 103K-T B 01.5/23.2
C3 4030006860 S.CER C1608 JB 1H 102K-T B 98.6/18.4
C4 4030011600 S.CER C1608 JB 1E 104K-T B 98.6/20.2
C5 4030011600 S.CER C1608 JB 1E 104K-T B 94.4/15.3
C7 4030007090 S.CER C1608 CH 1H 470J-T T 10.3/17.5
C8 4030010760 S.CER C1608 CH 1H 331J-T B 30/55.7
C9 4550005980 S.TAN TEESVA 1A 475M8R B 34.3/50.1
C10 4030010760 S.CER C1608 CH 1H 331J-T B 26.9/55.7
C11 4550006250 S.TAN TEESVA 1A 106M8R B 26.8/52.3
C12 4550006250 S.TAN TEESVA 1A 106M8R B 26.8/64.2
C13 4030006900 S.CER C1608 JB 1H 103K-T B 93.3/20.7
C14 4030006900 S.CER C1608 JB 1H 103K-T T 02.5/20.6
C15 4030006860 S.CER C1608 JB 1H 102K-T B 06.6/12.5
C16 4030007130 S.CER C1608 CH 1H 101J-T B 06.6/13.8
C18 4030007090 S.CER C1608 CH 1H 470J-T T 08.8/17.5
C19 4030007090 S.CER C1608 CH 1H 470J-T T 07.3/17.5
C20 4030007090 S.CER C1608 CH 1H 470J-T T 05.8/17.5
C21 4030007090 S.CER C1608 CH 1H 470J-T T 04.3/17.5
C22 4030006850 S.CER C1608 JB 1H 471K-T T 02.8/17.5
C23 4030007090 S.CER C1608 CH 1H 470J-T T 01.3/17.5
C24 4030007090 S.CER C1608 CH 1H 470J-T T 98.3/17.5
C25 4030007090 S.CER C1608 CH 1H 470J-T T 96.8/17.5
C31 4030007170 S.CER C1608 CH 1H 221J-T B 30/57.7
C32 4030007170 S.CER C1608 CH 1H 221J-T B 34.3/58.4
C33 4030007170 S.CER C1608 CH 1H 221J-T B 31.2/57.7
C34 4030007170 S.CER C1608 CH 1H 221J-T B 34.3/61.3
C35 4030007170 S.CER C1608 CH 1H 221J-T B 24.9/57.7
C36 4030007170 S.CER C1608 CH 1H 221J-T B 26.1/57.7
C37 4550005980 S.TAN TEESVA 1A 475M8R B 22.6/50.1
C38 4030007170 S.CER C1608 CH 1H 221J-T B 21.9/58.4
C39 4030007170 S.CER C1608 CH 1H 221J-T B 21.9/61.3
C40 4550006250 S.TAN TEESVA 1A 106M8R B 26.8/74.4
C41 4510008490 S.ELE EEE1CS100SR B 42.8/28.6
C42 4030011600 S.CER C1608 JB 1E 104K-T T 45.5/3.8
C43 4510008520 S.ELE EEE1CA470SP B 43.2/22.9
C44 4030011600 S.CER C1608 JB 1E 104K-T T 29.7/17.7
C45 4510008850 S.ELE EEE1CA101P B 11.8/11.3
C47 4030011600 S.CER C1608 JB 1E 104K-T T 95.4/35.7
C50 4030009490 S.CER C1608 JB 1H 821K-T B 34.3/66
C51 4030007140 S.CER C1608 CH 1H 121J-T B 30.1/67.2
C52 4030009490 S.CER C1608 JB 1H 821K-T B 21.9/66
C53 4030010040 S.CER C1608 JB 1H 561K-T B 30.1/68.5
C54 4030007140 S.CER C1608 CH 1H 121J-T B 26.7/67.2
C55 4030010040 S.CER C1608 JB 1H 561K-T B 26.7/68.5
C56 4030011600 S.CER C1608 JB 1E 104K-T T 49.7/7
C57 4550006250 S.TAN TEESVA 1A 106M8R T 48.6/10.7
C58 4510007130 S.ELE EEFCD 0J 470R T 16.9/10.6
C59 4030011600 S.CER C1608 JB 1E 104K-T T 27.1/17.2
C60 4510008520 S.ELE EEE1CA470SP B 23/10.9
C61 4030006850 S.CER C1608 JB 1H 471K-T T 27.1/18.6
C62 4030011600 S.CER C1608 JB 1E 104K-T T 23.5/13.8
C63 4030006850 S.CER C1608 JB 1H 471K-T T 6.1/7.7
C64 4550006250 S.TAN TEESVA 1A 106M8R T 28/20.3
C65 4030011600 S.CER C1608 JB 1E 104K-T T 27.2/22
S.=Surface mount
[LOGIC-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C74 4550006050 S.TAN TEESVA 0J 106M8R T 45.7/16.2
C75 4030011600 S.CER C1608 JB 1E 104K-T T 21.5/19.7
C76 4550006730 S.TAN TEESVB2 0J 226M8R T 15.6/26.6
C77 4550006250 S.TAN TEESVA 1A 106M8R T 24.4/19.9
C78 4550006050 S.TAN TEESVA 0J 106M8R B 72.2/32.2
C79 4030007090 S.CER C1608 CH 1H 470J-T T 44.6/55.6
C84 4030007090 S.CER C1608 CH 1H 470J-T B 09.8/45.3
C85 4030006860 S.CER C1608 JB 1H 102K-T T 113/36.3
C86 4030006900 S.CER C1608 JB 1H 103K-T B 56.3/49.3
C87 4030006850 S.CER C1608 JB 1H 471K-T B 63.8/29.9
C88 4030007050 S.CER C1608 CH 1H 220J-T T 7.2/51.4
C89 4030009520 S.CER C1608 CH 1H 020B-T T 6.4/41.9
C90 4030007040 S.CER C1608 CH 1H 180J-T T 10.5/45.4
C91 4030011600 S.CER C1608 JB 1E 104K-T B 64.5/27.8
C92 4030011600 S.CER C1608 JB 1E 104K-T B 3.7/29.3
C93 4030006900 S.CER C1608 JB 1H 103K-T B 72.8/35.3
C94 4030006900 S.CER C1608 JB 1H 103K-T T 9.8/47.4
C95 4030006900 S.CER C1608 JB 1H 103K-T T 50.8/48.9
C96 4030011600 S.CER C1608 JB 1E 104K-T B 10.5/44.3
C97 4030006900 S.CER C1608 JB 1H 103K-T B 26.4/37.7
C98 4030006860 S.CER C1608 JB 1H 102K-T B 70.6/43.1
C99 4030008560 S.CER C1608 CH 1H 300J-T T 78.5/34.4
C100 4030008560 S.CER C1608 CH 1H 300J-T T 79.2/35.6
C101 4030006900 S.CER C1608 JB 1H 103K-T B 90.2/54
C102 4030006900 S.CER C1608 JB 1H 103K-T T 9.9/56.3
C103 4030007080 S.CER C1608 CH 1H 390J-T T 10.6/58.2
C105 4030011600 S.CER C1608 JB 1E 104K-T B 39.8/41.3
C106 4550006780 S.TAN TEESVB2 0J 476M8R B 41/38.8
C107 4030011600 S.CER C1608 JB 1E 104K-T T 59.6/40.9
C108 4030007090 S.CER C1608 CH 1H 470J-T B 55.5/42.3
C109 4030007040 S.CER C1608 CH 1H 180J-T T 5.6/62.9
C110 4030006900 S.CER C1608 JB 1H 103K-T B 8.2/58
C111 4030011600 S.CER C1608 JB 1E 104K-T B 16.5/59.7
C112 4030011600 S.CER C1608 JB 1E 104K-T T 43/65.1
C113 4030006900 S.CER C1608 JB 1H 103K-T T 45/62.4
C114 4030007090 S.CER C1608 CH 1H 470J-T T 90/51.1
C116 4030007090 S.CER C1608 CH 1H 470J-T T 88.7/54.1
C117 4030011600 S.CER C1608 JB 1E 104K-T T 45/63.6
C118 4030011600 S.CER C1608 JB 1E 104K-T B 92.8/68
C119 4030007090 S.CER C1608 CH 1H 470J-T B 59.1/29.4
C120 4030008560 S.CER C1608 CH 1H 300J-T T 46.5/24.9
C121 4030008560 S.CER C1608 CH 1H 300J-T T 47.8/24.1
C122 4030007090 S.CER C1608 CH 1H 470J-T B 63.5/65.3
C123 4030007090 S.CER C1608 CH 1H 470J-T B 86.6/55.3
C124 4030011600 S.CER C1608 JB 1E 104K-T B 92.8/63.5
C125 4030007090 S.CER C1608 CH 1H 470J-T B 50.4/23.8
C126 4030011600 S.CER C1608 JB 1E 104K-T B 55.2/21.2
C127 4030011600 S.CER C1608 JB 1E 104K-T B 65.8/25.5
C131 4030006900 S.CER C1608 JB 1H 103K-T B 53.9/31.5
C132 4550006250 S.TAN TEESVA 1A 106M8R B 59.6/33.9
C133 4030008900 S.CER C1608 JB 1H 333K-T T 54.3/16.7
C137 4030007130 S.CER C1608 CH 1H 101J-T T 61.7/21.3
C138 4030007050 S.CER C1608 CH 1H 220J-T B 99.5/12.2
C139 4030007050 S.CER C1608 CH 1H 220J-T B 98/12.2
C140 4030006860 S.CER C1608 JB 1H 102K-T B 56.8/34.5
C141 4550000460 S.TAN TEESVA 1C 105M8R B 94.1/22.4
C142 4550000460 S.TAN TEESVA 1C 105M8R B 102.8/17
C143 4550000460 S.TAN TEESVA 1C 105M8R B 81.4/13
C144 4550000460 S.TAN TEESVA 1C 105M8R T 84.1/21.8
C145 4550000460 S.TAN TEESVA 1C 105M8R T 90.2/21.8
C146 4510007400 S.ELE EEFCD 1C 8R2R T 12.8/2.7
C147 4030006900 S.CER C1608 JB 1H 103K-T T 85.1/71.6
J1 6510022710 S.CNR 30FLZ-SM1-TB T 100.6/5.5
J2 6510022710 S.CNR 30FLZ-SM1-TB T 78.8/5.5
J4 6510019271 S.CNR 52365-0671 T 08.4/40.2
J5 6510021431 S.CNR S8B-ZR-SM4A-TF (LF) (SN) T 95.6/75.4
J6 6510023861 S.CNR S9B-ZR-SM4A-TF (LF) (SN) B 95/5.7
W1 8900013180 CBL OPC-1312
[MAIN-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC2 1180001071 S.IC TA7805F (TE16L,Q) T 0.5/110.5
IC3 1180002020 S.REG BA033FP-E2 T 13/93.5
IC4 1110005290 S.IC NJM2115V-TE1 T 78.7/25
IC5 1110006670 S.IC NJM2730F-TE1 T 78.5/14.2
IC7 1110003201 S.IC TA31136FNG (EL) T 100.8/16
IC8 1110006670 S.IC NJM2730F-TE1 T 31.3/62.2
IC9 1140005991 S.IC MB15A02PFV1-G-BND-ERE1 T 42.7/72
IC10 1190002051 S.IC SPM5001-TL-E T 110.3/70.6
IC11 1180001071 S.IC TA7805F (TE16L,Q) T 67.5/110.2

4 - 5
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
[MAIN-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
Q1 1590000430 S.TR DTC144EUA T106 T 46.5/97.7
Q2 1590000430 S.TR DTC144EUA T106 T 31.2/97.5
Q3 1510000581 S.TR 2SA1362-GR (TE85R,F) T 35.7/97.5
Q4 1510000581 S.TR 2SA1362-GR (TE85R,F) T 51.5/98
Q5 1530002691 S.TR 2SC4116-GR (TE85R,F) B 105.9/26.1
Q6 1560000670 S.FET 2SK1771 (TE85L) T 116.1/39.5
Q7 1530002691 S.TR 2SC4116-GR (TE85R,F) T 50/65.5
Q9 1560000491 S.FET 2SK508-T2B-A K52 T 66.6/65
Q10 1530003581 S.TR 2SC5231C8-TL-E T 64.6/70.2
Q11 1530003581 S.TR 2SC5231C8-TL-E T 70.2/73.5
Q12 1530002880 S.TR 2SC4226-T1 R24 T 86/68.3
Q13 1560000531 S.FET 2SK880-GR (TE85R,F) T 10.2/31.8
Q14 1530003820 S.TR 2SC5337QS-T1 B 112.1/95.8
D1 1790000700 DIO DSA3A1
D2 1720000781 S.VCP HVU350BTRF-E T 68.5/62.4
D3 1790000491 S.DIO HSM88ASTR-E T 109.6/31
FI1 2020001460 CER CFWLA450KHFA-B0
FI2 2030000490 S.MLH FL-398 (46.35 MHz) T 114.9/53.5
FI3 2040001920 S.SAW SAFCH146MAL0N00R11 B 113.5/81.9
FI4 2040001920 S.SAW SAFCH146MAL0N00R11 B 118.9/107.5
X1 6070000190 S.DCR CDBCB450KCAY24-R0 T 92.2/15.5
X2 6050012380 S.XTL CR-826 (15.3 MHz) T 17.7/36.3
L2 6200004480 S.COL MLF1608D R82K-T B 107.4/21.4
L3 6200003540 S.COL MLF1608D R22K-T B 108/26
L4 6200007120 S.COL ELJND 1R0J T 114.6/36.3
L6 6200003640 S.COL MLF1608E 100K-T T 69.3/59.7
L7 6200009351 S.COL ELJRE R22GFA T 57.7/66.2
L9 6200010610 S.COL C6342A-50NG-A T 62.4/62.5
L10 6200005741 S.COL ELJRE 47NGFA T 62.8/69.4
L12 6130003000 S.COL #617DB-1714=P3 T 110.3/65.2
L13 6200005741 S.COL ELJRE 47NGFA T 96.8/67.4
L14 6130003000 S.COL #617DB-1714=P3 T 104.6/70.5
L15 6200005741 S.COL ELJRE 47NGFA T 93.8/67.4
L16 6200009571 S.COL ELJRE R12GFA T 69.9/75.5
L17 6130003000 S.COL #617DB-1714=P3 T 110.3/76
L18 6200005140 S.COL MLF1608D R33K-T T 85.9/71.5
L19 6200005741 S.COL ELJRE 47NGFA T 49.5/79
L20 6200005731 S.COL ELJRE 39NGFA T 83.4/68.1
L21 6200005741 S.COL ELJRE 47NGFA T 52.5/78.9
L22 6200010860 S.COL C2520C-R10G-A (0.1U) B 113.5/76.6
L23 6200010860 S.COL C2520C-R10G-A (0.1U) B 113.5/87.2
L24 6200010760 S.COL C2520C-27NG-A B 106.6/95.8
L28 6200010720 S.COL C2520C-56NG-A B 15.4/117.3
L30 6200010860 S.COL C2520C-R10G-A (0.1U) B 18.9/102.3
L31 6200010860 S.COL C2520C-R10G-A (0.1U) B 18.9/112.7
R1 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 20.5/87.3
R2 7510001670 S.TMR NTCG16 4BH 103KT T 19.2/87.2
R3 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) T 20.5/84.5
R4 7540000280 S.ASB ERZVF2M220 B 71.2/123.7
R5 7030003860 S.RES ERJ3GE JPW V B 36.5/109.2
R6 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 35.7/77.5
R8 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 73.1/4.7
R9 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 76/19.3
R11 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 74.8/11.8
R12 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 57.2/103.5
R13 7030003860 S.RES ERJ3GE JPW V T 21/91.2
R14 7030003700 S.RES ERJ3GEYJ 154 V (150 k) T 78.3/18.6
R15 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 74.8/14.6
R17 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 81.1/18.6
R18 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 81.2/15.3
R19 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 74.6/28.4
R20 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 78.2/16.6
R23 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 75.5/23.5
R24 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 82.5/15.3
R25 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 78.7/11.7
R29 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 44.2/97.5
R30 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 29.2/97.2
R31 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 49/97.7
R32 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 33.2/97.2
R34 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 51.5/95.5
R35 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 35.7/95
R40 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 92.3/18.7
R41 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 99.8/20.7
R42 7030003280 S.RES ERJ3GEYJ 470 V (47 ) T 94.2/19.5
R43 7030003730 S.RES ERJ3GEYJ 274 V (270 k) B 96.2/17.2
R45 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) T 97.1/15.7
R46 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 109.3/27.8
R47 7030003780 S.RES ERJ3GEYJ 684 V (680 k) B 106/28.5
R48 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 108.4/39
R49 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 119.7/40.4
R50 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 114.4/34.2
[MAIN-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R51 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 48/65.5
R52 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 113.6/39.7
R53 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) T 116.1/42.7
R55 7030003860 S.RES ERJ3GE JPW V T 111.7/45
R56 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 34.5/57.2
R57 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 40.2/62
R58 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 36.3/62.1
R59 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 41.4/64.2
R60 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 47.9/71.6
R61 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) T 71.4/67.7
R62 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 42.5/76
R63 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 105.6/64.8
R64 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 103.6/64.1
R65 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 64.7/68.5
R66 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 103.6/65.6
R67 7030003290 S.RES ERJ3GEYJ 560 V (56 ) T 47.2/76.9
R68 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 61.5/72.4
R69 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 67.2/69.8
R70 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 99.1/65.3
R71 7030003230 S.RES ERJ3GEYJ 180 V (18 ) T 99.9/67.4
R72 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 100.6/65.3
R73 7030003860 S.RES ERJ3GE JPW V T 102.5/67.4
R74 7030003280 S.RES ERJ3GEYJ 470 V (47 ) T 116/66.5
R75 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 67.9/73.4
R76 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 65.7/74.1
R77 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 72.2/70.8
R78 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 35.7/76.2
R79 7030003860 S.RES ERJ3GE JPW V T 104.8/74.2
R80 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 35.8/73.7
R81 7030003860 S.RES ERJ3GE JPW V T 103.4/74.1
R82 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 35.8/71.3
R83 7030003280 S.RES ERJ3GEYJ 470 V (47 ) T 86.1/74.6
R84 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 35.7/70
R85 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 35.8/72.5
R86 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 35.7/75
R87 7030003340 S.RES ERJ3GEYJ 151 V (150 ) T 106.7/75
R88 7030003860 S.RES ERJ3GE JPW V T 88.4/68.8
R89 7030003290 S.RES ERJ3GEYJ 560 V (56 ) B 80/73.4
R90 7030003280 S.RES ERJ3GEYJ 470 V (47 ) T 86.6/65.1
R91 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 84.4/71.5
R92 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 114.4/73.6
R93 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 113.6/71.3
R94 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 115.1/71.3
R95 7030000240 S.RES MCR10EZHJ 68 (680) B 116.8/92.2
R96 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 9.2/27.2
R97 7030003860 S.RES ERJ3GE JPW V T 7/32.5
R98 7030003860 S.RES ERJ3GE JPW V B 110.5/91.5
R99 7030000240 S.RES MCR10EZHJ 68 (680) B 11.8/100.8
R100 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 14.1/31
R101 7030000180 S.RES MCR10EZHJ 22 (220) B 103.1/98.4
R102 7030003400 S.RES ERJ3GEYJ 471 V (470 ) B 107.2/98.4
R103 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) B 115.8/100
R104 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) B 116.6/95.8
R105 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 19/39.6
R106 7030003860 S.RES ERJ3GE JPW V T 64.7/72.7
R107 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 114.3/45.8
R108 7030003860 S.RES ERJ3GE JPW V B 18.9/124.1
R115 7030003360 S.RES ERJ3GEYJ 221 V (220 ) B 111.5/63.3
C1 4030007090 S.CER C1608 CH 1H 470J-T B 44.7/106.2
C2 4030007090 S.CER C1608 CH 1H 470J-T B 43.2/106.2
C3 4030011600 S.CER C1608 JB 1E 104K-T T 19.2/84.5
C4 4030006900 S.CER C1608 JB 1H 103K-T B 27.8/108.3
C5 4030007090 S.CER C1608 CH 1H 470J-T B 41.2/106.2
C7 4510004601 ELE 16 ME 1000 HC+T0
C8 4030006860 S.CER C1608 JB 1H 102K-T B 57.9/124.2
C9 4030006900 S.CER C1608 JB 1H 103K-T B 22/112.2
C10 4030007090 S.CER C1608 CH 1H 470J-T B 20.5/106.2
C11 4030006850 S.CER C1608 JB 1H 471K-T B 56.2/124.2
C12 4030007090 S.CER C1608 CH 1H 470J-T B 42.7/112
C13 4030007090 S.CER C1608 CH 1H 470J-T B 40.7/112
C14 4030007090 S.CER C1608 CH 1H 470J-T B 20.7/112.2
C15 4030007090 S.CER C1608 CH 1H 470J-T B 18/106.2
C16 4030007130 S.CER C1608 CH 1H 101J-T B 54.5/124.2
C17 4030007090 S.CER C1608 CH 1H 470J-T B 18.7/112.2
C18 4030007090 S.CER C1608 CH 1H 470J-T B 16.7/106.2
C19 4030007090 S.CER C1608 CH 1H 470J-T B 15.7/112.2
C20 4510008520 S.ELE EEE1CA470SP T 22.2/114.2
C21 4510008520 S.ELE EEE1CA470SP T 63.5/99
C22 4510008520 S.ELE EEE1CA470SP T 78/99
C23 4030008630 S.CER C1608 JF 1H 104Z-T B 28.5/114.7
C24 4030008630 S.CER C1608 JF 1H 104Z-T T 63/106.2
C25 4030011600 S.CER C1608 JB 1E 104K-T T 76/106.5
C26 4030011600 S.CER C1608 JB 1E 104K-T T 18.7/92
C27 4030006900 S.CER C1608 JB 1H 103K-T T 76.6/29.1
C28 4030008630 S.CER C1608 JF 1H 104Z-T B 8.7/114.7
C29 4030008630 S.CER C1608 JF 1H 104Z-T T 72/106.2
C30 4030011600 S.CER C1608 JB 1E 104K-T T 5.2/106.5
C31 4030011600 S.CER C1608 JB 1E 104K-T T 18.7/95
C32 4030011600 S.CER C1608 JB 1E 104K-T T 76.1/14.6

4 - 6
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C34 4510008590 S.ELE EEE1AA101SP T 42.5/114
C35 4510008590 S.ELE EEE1AA101SP T 70.7/99
C36 4510008590 S.ELE EEE1AA101SP T 0.2/108.2
C37 4550006780 S.TAN TEESVB2 0J 476M8R T 14.5/99
C38 4030011810 S.CER C1608 JB 1A 224K-T T 83.8/18.6
C39 4030006900 S.CER C1608 JB 1H 103K-T T 81.2/12.3
C42 4510008520 S.ELE EEE1CA470SP T 54/89.5
C43 4510008520 S.ELE EEE1CA470SP T 42/92.2
C44 4030007170 S.CER C1608 CH 1H 221J-T B 94.3/16.5
C45 4030007170 S.CER C1608 CH 1H 221J-T B 94.3/18
C47 4030011600 S.CER C1608 JB 1E 104K-T T 99/21.5
C48 4030009530 S.CER C1608 CH 1H 030B-T B 05.1/20.6
C49 4030011600 S.CER C1608 JB 1E 104K-T T 101/21.5
C51 4550007520 S.TAN F931A106MAABMA T 05.5/17.7
C52 4030006860 S.CER C1608 JB 1H 102K-T B 95.2/9.8
C53 4030006860 S.CER C1608 JB 1H 102K-T B 110/25.5
C54 4030006980 S.CER C1608 CH 1H 070D-T B 08.9/21.4
C55 4030006860 S.CER C1608 JB 1H 102K-T B 108/29.3
C56 4030009910 S.CER C1608 CH 1H 040B-T B 05.9/22.9
C57 4030007120 S.CER C1608 CH 1H 820J-T T 99/11
C58 4030008920 S.CER C1608 JB 1H 473K-T B 01.8/12.8
C59 4030006860 S.CER C1608 JB 1H 102K-T B 00.3/12.8
C60 4030007130 S.CER C1608 CH 1H 101J-T T 15.1/31.8
C61 4550006350 S.TAN TEESVB2 1A 226M8R T 45.7/60.7
C62 4030006860 S.CER C1608 JB 1H 102K-T T 19.7/38.6
C63 4030006860 S.CER C1608 JB 1H 102K-T T 06.1/39.7
C64 4550006350 S.TAN TEESVB2 1A 226M8R T 49.2/60.7
C65 4030006860 S.CER C1608 JB 1H 102K-T T 13.6/43.1
C66 4030006900 S.CER C1608 JB 1H 103K-T T 04.6/39.7
C67 4030011600 S.CER C1608 JB 1E 104K-T T 52.7/64.7
C68 4030006860 S.CER C1608 JB 1H 102K-T T 10.6/39.7
C69 4550006350 S.TAN TEESVB2 1A 226M8R T 52.7/60.7
C70 4030006900 S.CER C1608 JB 1H 103K-T T 12.1/39.7
C71 4030009530 S.CER C1608 CH 1H 030B-T T 14.3/47.3
C72 4030006900 S.CER C1608 JB 1H 103K-T T 32.3/59.1
C74 4550002890 S.TAN TEESVA 1A 225M8R T 39.5/65.5
C75 4030007060 S.CER C1608 CH 1H 270J-T T 09.8/53.5
C77 4030006860 S.CER C1608 JB 1H 102K-T B 57.2/61.9
C78 4030009350 S.CER C1608 CH 1H 3R5B-T T 66.3/61.3
C79 4550000550 S.TAN TEESVA 1V 224M8R T 37.3/65.5
C80 4030007010 S.CER C1608 CH 1H 100D-T T 66.3/62.6
C81 4610001590 S.TRI TZC3R100A110R00 T 72/63.2
C82 4550003220 S.TAN TEESVA 1E 105M8R T 59/61.1
C83 4550005980 S.TAN TEESVA 1A 475M8R T 35/65.5
C84 4030006980 S.CER C1608 CH 1H 070D-T B 114.8/64
C85 4030006860 S.CER C1608 JB 1H 102K-T T 58.9/69
C87 4030009910 S.CER C1608 CH 1H 040B-T T 69.1/65.7
C88 4030007040 S.CER C1608 CH 1H 180J-T T 70.2/67.7
C89 4030006900 S.CER C1608 JB 1H 103K-T T 41.4/66.8
C90 4030011600 S.CER C1608 JB 1E 104K-T T 57.7/69
C91 4030006860 S.CER C1608 JB 1H 102K-T B 06.4/63.3
C92 4030006900 S.CER C1608 JB 1H 103K-T T 50/72.4
C93 4030011600 S.CER C1608 JB 1E 104K-T T 42.5/77.5
C94 4030009500 S.CER C1608 CH 1H 0R5B-T T 67.3/68.5
C95 4030006900 S.CER C1608 JB 1H 103K-T T 50/71
C96 4030006860 S.CER C1608 JB 1H 102K-T T 59.5/72.9
C97 4030009920 S.CER C1608 CH 1H 050B-T T 47.8/68.8
C98 4030006860 S.CER C1608 JB 1H 102K-T T 45.8/76.9
C99 4030006860 S.CER C1608 JB 1H 102K-T T 107/64.8
C101 4030006860 S.CER C1608 JB 1H 102K-T T 45.7/67.8
C102 4030006860 S.CER C1608 JB 1H 102K-T T 14.1/62.8
C103 4030006860 S.CER C1608 JB 1H 102K-T T 116.7/69
C104 4030006860 S.CER C1608 JB 1H 102K-T T 59.5/71.7
C105 4030007050 S.CER C1608 CH 1H 220J-T T 62.8/72
C106 4030006900 S.CER C1608 JB 1H 103K-T T 116/65.1
C107 4030006860 S.CER C1608 JB 1H 102K-T T 63.5/75
C108 4030006980 S.CER C1608 CH 1H 070D-T T 97.6/65.3
C109 4030009910 S.CER C1608 CH 1H 040B-T T 96.8/68.6
C110 4030007040 S.CER C1608 CH 1H 180J-T T 96.1/65.3
C111 4030009910 S.CER C1608 CH 1H 040B-T T 93.8/68.6
C112 4030006860 S.CER C1608 JB 1H 102K-T T 67.2/75.5
C113 4030007010 S.CER C1608 CH 1H 100D-T T 72.2/74.7
C114 4030006980 S.CER C1608 CH 1H 070D-T T 93/65.2
C115 4030006860 S.CER C1608 JB 1H 102K-T T 70.8/70.8
C116 4030006900 S.CER C1608 JB 1H 103K-T T 06.7/76.4
C117 4030007070 S.CER C1608 CH 1H 330J-T T 91/68.8
C118 4030006860 S.CER C1608 JB 1H 102K-T T 88.1/65.1
C119 4030006900 S.CER C1608 JB 1H 103K-T T 06.8/78.1
C120 4030006860 S.CER C1608 JB 1H 102K-T T 13.6/75.8
C121 4030006980 S.CER C1608 CH 1H 070D-T T 48.7/77
C122 4030006950 S.CER C1608 CH 1H 040C-T T 49.5/80.2
C123 4030007040 S.CER C1608 CH 1H 180J-T T 51.8/77
C124 4030006860 S.CER C1608 JB 1H 102K-T T 88.4/73.8
C125 4030006950 S.CER C1608 CH 1H 040C-T T 52.5/80.2
C126 4030006860 S.CER C1608 JB 1H 102K-T B 14.2/73.5
C127 4030006980 S.CER C1608 CH 1H 070D-T T 53.3/77
C128 4030007050 S.CER C1608 CH 1H 220J-T T 82.6/65.8
C129 4030007040 S.CER C1608 CH 1H 180J-T B 11.2/73.5
C130 4030007020 S.CER C1608 CH 1H 120J-T B 110.2/78
C131 4030006860 S.CER C1608 JB 1H 102K-T T 8.5/29.5
C132 4030006860 S.CER C1608 JB 1H 102K-T T 10.7/27.2
S.=Surface mount
[MAIN-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C133 4030006990 S.CER C1608 CH 1H 080D-T B 09.6/85.9
C135 4030007090 S.CER C1608 CH 1H 470J-T B 12.7/90.7
C136 4030007040 S.CER C1608 CH 1H 180J-T B 09.5/88.5
C137 4030007010 S.CER C1608 CH 1H 100D-T T 12.6/31
C138 4030006860 S.CER C1608 JB 1H 102K-T T 7.7/27.2
C139 4030006860 S.CER C1608 JB 1H 102K-T B 16.6/94.3
C140 4030006860 S.CER C1608 JB 1H 102K-T B 3.9/100.8
C141 4030006860 S.CER C1608 JB 1H 102K-T T 22.4/35
C142 4030006860 S.CER C1608 JB 1H 102K-T B 2.1/100.8
C143 4030006860 S.CER C1608 JB 1H 102K-T B 9.8/101.5
C144 4030007130 S.CER C1608 CH 1H 101J-T B 16.6/97.8
C145 4030006860 S.CER C1608 JB 1H 102K-T B 0.6/100.8
C146 4030006860 S.CER C1608 JB 1H 102K-T B 8.3/101.5
C147 4030006990 S.CER C1608 CH 1H 080D-T B 19.6/99.3
C151 4030006860 S.CER C1608 JB 1H 102K-T T 19/41.1
C159 4030007060 S.CER C1608 CH 1H 270J-T B 18.9/116.5
C160 4030007060 S.CER C1608 CH 1H 270J-T B 118.9/119.5
C163 4030007030 S.CER C1608 CH 1H 150J-T B 114.9/114
C164 4030007020 S.CER C1608 CH 1H 120J-T B 114.9/111.3
C165 4030007020 S.CER C1608 CH 1H 120J-T B 114.9/103.7
C166 4030006860 S.CER C1608 JB 1H 102K-T T 82.7/70.4
C167 4030007100 S.CER C1608 CH 1H 560J-T B 108.7/23.8
C168 4030006850 S.CER C1608 JB 1H 471K-T T 78.3/20.1
C169 4030006860 S.CER C1608 JB 1H 102K-T T 112.9/31
C170 4030006860 S.CER C1608 JB 1H 102K-T T 15.6/32.5
J1 6510021720 S.CNR 30FLT-SM1-TB T 23/107.2
J2 6510021720 S.CNR 30FLT-SM1-TB T 45/107.2
J3 6510018450 CNR TMP-S01X-B1
W1 8900004880 CBL OPC-465
EP2 6910013310 S.BEA MMZ1608D121B T 52.7/66.2
[MAIN-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC2 1180001071 S.IC TA7805F (TE16L,Q) T 7.7/113.2
IC3 1180001071 S.IC TA7805F (TE16L,Q) T 77.7/106
IC4 1180002020 S.REG BA033FP-E2 T 15.7/95.5
IC5 1110005410 S.IC RF2485 <I.A> T 68.2/25.2
IC6 1110005600 S.IC PC2758TB-E3 T 66/42.1
IC7 1110004050 S.IC NJM3404AV-TE1-#FMZB B 82.5/26.3
IC8 1130006551 S.IC TC7S08FU (TE85R,F) B 25.3/62
IC9 1110006670 S.IC NJM2730F-TE1 B 43/23.7
IC10 1140005991 S.IC MB15A02PFV1-G-BND-ERE1 B 35.2/28.7
IC11 1110006670 S.IC NJM2730F-TE1 B 43.5/46.4
IC12 1140005991 S.IC MB15A02PFV1-G-BND-ERE1 B 34.7/52.5
IC13 1110002751 S.IC TA75S01F (TE85R,F) T 105.5/78
IC14 1110002751 S.IC TA75S01F (TE85R,F) B 87.7/26.4
Q1 1520000201 S.TR 2SB798-T2-AZ DK T 8/126.5
Q2 1590000430 S.TR DTC144EUA T106 T 61.2/14
Q3 1510000581 S.TR 2SA1362-GR (TE85R,F) T 65.9/15.7
Q4 1530002280 S.TR 2SC4081 T106 S T 7.2/120.7
Q5 1510000581 S.TR 2SA1362-GR (TE85R,F) T 45/93.6
Q6 1590000430 S.TR DTC144EUA T106 T 40.2/92
Q7 1590000430 S.TR DTC144EUA T106 T 50.8/91.9
Q8 1510000581 S.TR 2SA1362-GR (TE85R,F) T 55.3/93.5
Q9 1530003231 S.TR 2SC5085-Y (TE85R,F) T 65.5/33.6
Q10 1530002691 S.TR 2SC4116-GR (TE85R,F) T 30.7/16.2
Q12 1560000491 S.FET 2SK508-T2B-A K52 T 39.3/26.8
Q13 1530002561 S.TR 2SC4403-3-TL-E B 74.8/73.8
Q14 1530003231 S.TR 2SC5085-Y (TE85R,F) T 53.8/26
Q15 1530003231 S.TR 2SC5085-Y (TE85R,F) T 32.5/31.7
Q16 1530003231 S.TR 2SC5085-Y (TE85R,F) T 40.8/34.7
Q18 1530003431 S.TR 2SC5226-4-TL-E B 88.3/65.9
Q19 1530002561 S.TR 2SC4403-3-TL-E T 51.8/50.4
Q20 1530002691 S.TR 2SC4116-GR (TE85R,F) T 20.4/49.7
Q21 1510000581 S.TR 2SA1362-GR (TE85R,F) T 92.7/79.5
Q22 1590000680 S.TR DTC114EUA T106 T 90.2/74.7
Q23 1560000491 S.FET 2SK508-T2B-A K52 T 39.8/51.9
Q24 1560001161 S.FET 2SK3475 (TE12L,F) T 105.7/61.4
Q25 1530002561 S.TR 2SC4403-3-TL-E T 32.3/55.6
Q26 1590000680 S.TR DTC114EUA T106 T 109/72.5
Q27 1530002561 S.TR 2SC4403-3-TL-E T 40.5/57.7
Q28 1560000531 S.FET 2SK880-GR (TE85R,F) T 7.6/27.2
D1 1790000700 DIO DSA3A1
D2 1730002300 S.ZEN MA8082-M (TX) T 4.3/125.4

4 - 7
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
[MAIN-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
D3 1720000781 S.VCP HVU350BTRF-E T 34.2/21
D4 1720000811 S.VCP HVC358BTRF-E T 39.7/48.5
D5 1790000950 S.ZEN MA8056-M (TX) T 97.5/64.2
D6 1790000980 S.DIO MA742 (TX) T 100.6/97.4
D8 1790000950 S.ZEN MA8056-M (TX) T 113.7/72.4
D9 1790000980 S.DIO MA742 (TX) T 96.3/100.4
FI1 2040001920 S.SAW SAFCH146MAL0N00R11 B 60.7/70.7
L1 6200005701 S.COL ELJRE 22NGFA T 60.8/25.9
L2 6200009351 S.COL ELJRE R22GFA B 66.7/22.7
L3 6200006981 S.COL ELJRE R10GFA T 62.7/40.4
L5 6200006671 S.COL ELJRE 68NGFA T 63.5/46
L7 6200005691 S.COL ELJRE 18NGFA T 73/34
L8 6200005741 S.COL ELJRE 47NGFA T 68.8/40.3
L9 6200005731 S.COL ELJRE 39NGFA T 72/44.8
L10 6200006991 S.COL ELJRE 56NGFA T 67.5/34.7
L11 6200005731 S.COL ELJRE 39NGFA T 71.1/48.9
L12 6200005721 S.COL ELJRE 33NGFA T 67.9/50.4
L13 6200005721 S.COL ELJRE 33NGFA T 63.5/49.6
L14 6200005721 S.COL ELJRE 33NGFA T 63.5/51.3
L15 6200005661 S.COL ELJRE 10NGFA T 63.2/36.3
L16 6200009351 S.COL ELJRE R22GFA T 39/20.6
L17 6200010730 S.COL C2520C-68NG-A T 34/24.3
L18 6200007770 S.COL LQW2BHNR10J03L B 60.7/64.1
L19 6200007120 S.COL ELJND 1R0J T 31/27.8
L20 6200007120 S.COL ELJND 1R0J T 39.3/30.9
L21 6200007770 S.COL LQW2BHNR10J03L B 63.7/74.7
L22 6200005741 S.COL ELJRE 47NGFA B 71.6/73.2
L23 6200006671 S.COL ELJRE 68NGFA B 78.7/72
L24 6200005701 S.COL ELJRE 22NGFA T 52.3/29.8
L25 6200006991 S.COL ELJRE 56NGFA T 50/29.2
L26 6200005661 S.COL ELJRE 10NGFA T 35.2/33.5
L27 6200005721 S.COL ELJRE 33NGFA B 39.5/34.9
L28 6200005721 S.COL ELJRE 33NGFA B 42.3/34.8
L29 6200006671 S.COL ELJRE 68NGFA B 85.4/69.8
L30 6200005691 S.COL ELJRE 18NGFA B 86.9/63.3
L31 6200005691 S.COL ELJRE 18NGFA T 50.7/43
L32 6200005691 S.COL ELJRE 18NGFA T 50.7/46.1
L33 6200005741 S.COL ELJRE 47NGFA T 53.8/51.2
L34 6200009351 S.COL ELJRE R22GFA T 39.7/44.5
L35 6200005701 S.COL ELJRE 22NGFA T 98.8/56.6
L36 6200005701 S.COL ELJRE 22NGFA T 101/57.4
L37 6200004150 S.COL MLF1608D 47NM-T T 51/54.2
L38 6200009380 S.COL C6328A-43NG-A T 34.3/48.1
L39 6200007350 S.COL ELJND R39J T 30.5/48.6
L40 6200005711 S.COL ELJRE 27NGFA T 108.9/58.3
L41 6200007820 S.COL ELJND R33J T 43.2/53.8
L42 6200006671 S.COL ELJRE 68NGFA T 30.2/56
L43 6200005661 S.COL ELJRE 10NGFA T 36.3/56.7
L44 6200011910 S.COL BLM31PG330SN1L T 94.8/91.2
L45 6200011910 S.COL BLM31PG330SN1L T 103.1/91.2
L46 6200011910 S.COL BLM31PG330SN1L T 111.8/91.2
L47 6200010170 S.COL AS080447-33N T 112.9/99.3
L48 6200005741 S.COL ELJRE 47NGFA T 39.2/60
L49 6200005691 S.COL ELJRE 18NGFA B 39.5/59
L50 6200005691 S.COL ELJRE 18NGFA B 42.2/59
L51 6200010060 S.COL AS080647-56N T 105.4/102.9
L52 6200010050 S.COL AS080547-47N T 116.8/112.1
L53 6200010050 S.COL AS080547-47N T 117.1/122.7
L54 6200009380 S.COL C6328A-43NG-A B 120.7/127.2
R1 7540000280 S.ASB ERZVF2M220 B 65.9/124.8
R2 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 8/123
R3 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 15.5/106.3
R4 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 40.2/105.6
R5 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 37.5/105.6
R6 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 63.5/14
R7 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 66/13.2
R8 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 89/111.9
R9 7030003860 S.RES ERJ3GE JPW V T 88.2/114
R10 7510001670 S.TMR NTCG16 4BH 103KT T 89/110.3
R11 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) T 91.8/112
R12 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 90.8/26.2
R13 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 88.8/23.3
R14 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 90.8/28.9
R16 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 9.2/120.7
R17 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 7.3/118.5
R18 7030003860 S.RES ERJ3GE JPW V T 22.7/91
R19 7030003230 S.RES ERJ3GEYJ 180 V (18 ) T 60.8/23
R20 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 62.7/22.2
R21 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 62.7/23.8
R22 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 78.2/26.9
R23 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 78.2/25.7
R24 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) T 81.8/30.6
R25 7030003860 S.RES ERJ3GE JPW V B 86/29.2
R26 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 81.8/28.2
R27 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 82.2/21.5
[MAIN-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R28 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) T 84/25
R29 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 81.8/22.9
R30 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 38/92
R31 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 48.8/92
R32 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 16.7/106.2
R33 7030003300 S.RES ERJ3GEYJ 680 V (68 ) T 60.8/28.7
R34 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 62.8/27.9
R35 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 62.7/29.5
R36 7030003230 S.RES ERJ3GEYJ 180 V (18 ) T 68/30.7
R37 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 65/30.7
R38 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 74.7/30.7
R39 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 79/30
R40 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 70/27
R41 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 71.2/27
R42 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 75.7/24.5
R43 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 74.3/24.5
R44 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 78.2/24.5
R45 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 42.5/91.7
R46 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 52.8/91.7
R47 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 45/91
R48 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 55.3/91
R49 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 68.7/44
R50 7030003290 S.RES ERJ3GEYJ 560 V (56 ) T 72.2/36.2
R51 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 69/34.7
R52 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 62.4/34.1
R53 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 28.5/16
R55 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 44.7/20.5
R56 7030003230 S.RES ERJ3GEYJ 180 V (18 ) B 64.1/59.3
R57 7030003370 S.RES ERJ3GEYJ 271 V (270 ) B 61.9/58.6
R58 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 65.5/37
R59 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 65.5/35.5
R60 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 31.7/29.2
R61 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 38.7/30.2
R62 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 40.2/30.2
R63 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 34.5/34.2
R64 7030003370 S.RES ERJ3GEYJ 271 V (270 ) B 61.9/60.1
R65 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 60/66.7
R66 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 52.3/28.5
R67 7030003290 S.RES ERJ3GEYJ 560 V (56 ) B 56/37.1
R68 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 53/23
R69 7030003860 S.RES ERJ3GE JPW V T 31.5/23.7
R70 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 32.2/29.7
R71 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 41.3/28.9
R72 7030003290 S.RES ERJ3GEYJ 560 V (56 ) B 35.9/34.1
R73 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 39.5/24
R74 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 39.5/22.8
R75 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 33/24
R76 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 35/23.2
R77 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 36.2/23.2
R78 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 37.5/23.2
R79 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 60/74.2
R80 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) B 74.6/71.2
R81 7030003540 S.RES ERJ3GEYJ 682 V (6.8 k) B 72.4/75.4
R82 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 76.1/69.7
R83 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 75.4/76.7
R84 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 51.6/31.9
R85 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 51.6/25.9
R86 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 50/25.9
R87 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 51.6/23
R88 7030003360 S.RES ERJ3GEYJ 221 V (220 ) T 30.7/35
R89 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 30/32.7
R90 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 38.7/34.2
R92 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 35.5/36.5
R93 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 38.6/36.5
R94 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 44.2/33.5
R95 7030003360 S.RES ERJ3GEYJ 221 V (220 ) B 77.2/72
R96 7030003280 S.RES ERJ3GEYJ 470 V (47 ) B 82.4/74.3
R97 7030003330 S.RES ERJ3GEYJ 121 V (120 ) B 81.7/76.5
R98 7030003330 S.RES ERJ3GEYJ 121 V (120 ) B 83.2/76.5
R99 7030003220 S.RES ERJ3GEYJ 150 V (15 ) B 87.6/69
R100 7030003300 S.RES ERJ3GEYJ 680 V (68 ) T 54.8/42.2
R101 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 55.7/39.9
R102 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 53.8/39.9
R103 7030003290 S.RES ERJ3GEYJ 560 V (56 ) B 45.9/37.3
R104 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 18.5/49.5
R106 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 86.1/66
R107 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) B 83.9/66.8
R108 7030000320 S.RES MCR10EZHJ 330 (331) B 86.1/57.1
R109 7030003270 S.RES ERJ3GEYJ 390 V (39 ) B 89.9/58.8
R110 7030003340 S.RES ERJ3GEYJ 151 V (150 ) B 89.1/56.5
R111 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 49/48
R112 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 46.5/47.7
R113 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 41.8/50.5
R114 7030003340 S.RES ERJ3GEYJ 151 V (150 ) B 90.6/56.5
R115 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 92.8/76.9
R116 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 90.2/77.7
R117 7030007860 S.RES ERJ3GEYJ 8R2V (8.2 ) T 102.5/58.9
R118 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 101/60.4
R119 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 101/63.8
R120 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.6/54.7
R121 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 51.7/52.3

4 - 8
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R122 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 49/52.3
R123 7030003240 S.RES ERJ3GEYJ 220 V (22 ) T 29.4/51
R124 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 31.2/52.8
R125 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 41.8/53.2
R126 7030003630 S.RES ERJ3GEYJ 393 V (39 k) B 40.3/53.2
R127 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 33.7/58.7
R128 7030003290 S.RES ERJ3GEYJ 560 V (56 ) B 35.7/58.2
R129 7030000180 S.RES MCR10EZHJ 22 (220) T 111.5/52.2
R130 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 99.5/66.7
R131 7030000180 S.RES MCR10EZHJ 22 (220) T 113.7/52.2
R132 7030003350 S.RES ERJ3GEYJ 181 V (180 ) T 110.5/58.3
R133 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 99.5/69.7
R134 7030000170 S.RES MCR10EZHJ 18 (180) T 114.8/60.3
R135 7030000310 S.RES MCR10EZHJ 270 (271) T 113.6/57.4
R138 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 32.2/53.6
R139 7030003380 S.RES ERJ3GEYJ 331 V (330 ) T 28.8/56.1
R140 7030003330 S.RES ERJ3GEYJ 121 V (120 ) T 43.3/51.8
R141 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 39.3/47.5
R142 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 39.3/46
R143 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 33.5/46.7
R144 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 34.7/46.7
R145 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 36/46.7
R146 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 37.2/46.7
R147 7030000310 S.RES MCR10EZHJ 270 (271) T 116.1/57.4
R149 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 118.5/76
R150 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 112.5/76.7
R151 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 120/76
R152 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 105.5/74
R153 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 99.2/99.6
R155 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 38.5/57.8
R156 7030003340 S.RES ERJ3GEYJ 151 V (150 ) T 35.5/59.3
R157 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 43.1/55.5
R158 7030003660 S.RES ERJ3GEYJ 683 V (68 k) T 36.3/55.3
R159 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 102.7/75.5
R160 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 97.7/97.9
R161 7030003390 S.RES ERJ3GEYJ 391 V (390 ) T 99.5/76.2
R162 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 100.5/79.3
R163 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 98.5/80
R164 7030003290 S.RES ERJ3GEYJ 560 V (56 ) B 46.2/59.3
R165 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 5.5/28.5
R166 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 5.5/45.6
R167 7030003390 S.RES ERJ3GEYJ 391 V (390 ) T 10.4/29.3
R168 7030003290 S.RES ERJ3GEYJ 560 V (56 ) T 12.6/24
C1 4510004601 ELE 16 ME 1000 HC+T0
C2 4030006860 S.CER C1608 JB 1H 102K-T T 10.8/120.8
C3 4510008520 S.ELE EEE1CA470SP T 15.5/126.7
C4 4030006860 S.CER C1608 JB 1H 102K-T T 21/127.5
C5 4030006850 S.CER C1608 JB 1H 471K-T B 57/124
C6 4030006900 S.CER C1608 JB 1H 103K-T B 15.5/102.2
C7 4030006900 S.CER C1608 JB 1H 103K-T B 27.7/108.2
C8 4030007090 S.CER C1608 CH 1H 470J-T B 44.2/106.4
C9 4030007090 S.CER C1608 CH 1H 470J-T B 52.5/106.2
C10 4030006860 S.CER C1608 JB 1H 102K-T B 40.2/106.9
C11 4030007090 S.CER C1608 CH 1H 470J-T B 51.3/106.2
C12 4030007090 S.CER C1608 CH 1H 470J-T B 50.1/106.2
C13 4030006860 S.CER C1608 JB 1H 102K-T B 37.5/106.9
C14 4030011600 S.CER C1608 JB 1E 104K-T T 91.8/110.3
C15 4030011600 S.CER C1608 JB 1E 104K-T T 90.8/23.3
C17 4030006860 S.CER C1608 JB 1H 102K-T B 54.9/123.9
C18 4030006850 S.CER C1608 JB 1H 471K-T B 50.9/123.9
C19 4510008520 S.ELE EEE1CA470SP T 22.3/115.2
C20 4510008520 S.ELE EEE1CA470SP T 65.9/115.5
C21 4030008630 S.CER C1608 JF 1H 104Z-T B 28.2/113.7
C22 4030008630 S.CER C1608 JF 1H 104Z-T B 74.7/113.7
C23 4030006900 S.CER C1608 JB 1H 103K-T T 4.7/119.7
C24 4030007130 S.CER C1608 CH 1H 101J-T B 52.9/123.9
C25 4510008520 S.ELE EEE1CA470SP T 65.9/101
C26 4030011600 S.CER C1608 JB 1E 104K-T B 75/106
C27 4030011600 S.CER C1608 JB 1E 104K-T T 22/93.4
C28 4030006900 S.CER C1608 JB 1H 103K-T B 22/112.5
C29 4030007090 S.CER C1608 CH 1H 470J-T B 20.7/112.5
C30 4030007090 S.CER C1608 CH 1H 470J-T B 19.3/102
C31 4030007090 S.CER C1608 CH 1H 470J-T B 20.5/102
C32 4030006990 S.CER C1608 CH 1H 080D-T T 62.8/25.2
C33 4030006950 S.CER C1608 CH 1H 040C-T T 59.5/26
C34 4030006990 S.CER C1608 CH 1H 080D-T T 62.7/26.6
C35 4030006850 S.CER C1608 JB 1H 471K-T T 73.8/21.3
C36 4030006860 S.CER C1608 JB 1H 102K-T T 62.7/20.7
C37 4030011600 S.CER C1608 JB 1E 104K-T T 73.7/22.7
C38 4030011600 S.CER C1608 JB 1E 104K-T T 88.8/26.5
C39 4030007130 S.CER C1608 CH 1H 101J-T T 81.8/29.4
C40 4030007130 S.CER C1608 CH 1H 101J-T T 81.8/24.2
C41 4030008630 S.CER C1608 JF 1H 104Z-T B 38.8/113.7
C42 4030008630 S.CER C1608 JF 1H 104Z-T B 72.5/111.7
C43 4510008590 S.ELE EEE1AA101SP T 42.2/113.7
C44 4510008590 S.ELE EEE1AA101SP T 66/108.3
C45 4030011600 S.CER C1608 JB 1E 104K-T B 72.7/103.7
C46 4030011600 S.CER C1608 JB 1E 104K-T T 22/96.9
C47 4510008590 S.ELE EEE1AA101SP T 75.2/97.9
S.=Surface mount
[MAIN-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C48 4550006780 S.TAN TEESVB2 0J 476M8R T 25.5/95.9
C49 4030007090 S.CER C1608 CH 1H 470J-T B 19.5/112.5
C50 4030007090 S.CER C1608 CH 1H 470J-T B 17/112.5
C52 4030007090 S.CER C1608 CH 1H 470J-T B 18.1/102
C53 4030007090 S.CER C1608 CH 1H 470J-T B 16.7/102.2
C54 4030006860 S.CER C1608 JB 1H 102K-T T 85.8/38.3
C55 4030006860 S.CER C1608 JB 1H 102K-T T 60/30.6
C56 4030007050 S.CER C1608 CH 1H 220J-T T 60.3/41.2
C57 4030007050 S.CER C1608 CH 1H 220J-T T 62.7/41.9
C58 4030006980 S.CER C1608 CH 1H 070D-T T 63.5/47.8
C59 4030006860 S.CER C1608 JB 1H 102K-T T 75.1/33.3
C60 4030006990 S.CER C1608 CH 1H 080D-T T 74.7/36.2
C61 4030006960 S.CER C1608 CH 1H 050C-T T 73/32.6
C62 4030007090 S.CER C1608 CH 1H 470J-T T 74.8/25.2
C63 4030007090 S.CER C1608 CH 1H 470J-T T 74.7/26.5
C64 4030007090 S.CER C1608 CH 1H 470J-T T 74.8/27.7
C65 4030007090 S.CER C1608 CH 1H 470J-T T 74.7/29
C66 4030007090 S.CER C1608 CH 1H 470J-T B 73.5/21.5
C67 4550006250 S.TAN TEESVA 1A 106M8R B 79.5/20.8
C68 4030011600 S.CER C1608 JB 1E 104K-T B 82.2/20.2
C69 4510008520 S.ELE EEE1CA470SP T 42.7/99.7
C70 4510008520 S.ELE EEE1CA470SP T 52.8/100
C71 4030006860 S.CER C1608 JB 1H 102K-T T 66/46.1
C72 4030006860 S.CER C1608 JB 1H 102K-T T 67.9/46.1
C73 4030006990 S.CER C1608 CH 1H 080D-T T 73.5/40.8
C74 4030007030 S.CER C1608 CH 1H 150J-T T 71/41.8
C75 4030006990 S.CER C1608 CH 1H 080D-T T 73.5/42.9
C76 4030006960 S.CER C1608 CH 1H 050C-T T 72/46.6
C77 4030006990 S.CER C1608 CH 1H 080D-T T 73.5/36.2
C78 4030006860 S.CER C1608 JB 1H 102K-T T 60.2/47
C79 4030006860 S.CER C1608 JB 1H 102K-T T 69.8/32.5
C80 4030007090 S.CER C1608 CH 1H 470J-T T 70.4/34.7
C81 4030006860 S.CER C1608 JB 1H 102K-T T 68.3/37
C82 4030006860 S.CER C1608 JB 1H 102K-T T 62.4/32.9
C83 4030007090 S.CER C1608 CH 1H 470J-T B 76.5/22.5
C84 4030007090 S.CER C1608 CH 1H 470J-T B 72/22.9
C85 4030007090 S.CER C1608 CH 1H 470J-T B 67.9/26.2
C86 4550006350 S.TAN TEESVB2 1A 226M8R T 27/11.2
C87 4550006350 S.TAN TEESVB2 1A 226M8R T 30.5/11.2
C88 4030011600 S.CER C1608 JB 1E 104K-T T 33.7/15.2
C89 4030006900 S.CER C1608 JB 1H 103K-T B 25.1/63.9
C90 4030007040 S.CER C1608 CH 1H 180J-T T 73.5/48.2
C91 4030006960 S.CER C1608 CH 1H 050C-T T 69.6/48.9
C92 4030006990 S.CER C1608 CH 1H 080D-T T 73.5/49.7
C93 4030007020 S.CER C1608 CH 1H 120J-T T 60.2/49.6
C94 4030007020 S.CER C1608 CH 1H 120J-T T 66/50.4
C95 4030007020 S.CER C1608 CH 1H 120J-T T 60.2/51.3
C96 4030007010 S.CER C1608 CH 1H 100D-T T 61.6/36.3
C97 4550006350 S.TAN TEESVB2 1A 226M8R T 34/11.2
C98 4030009520 S.CER C1608 CH 1H 020B-T T 36.7/21.8
C99 4030006860 S.CER C1608 JB 1H 102K-T T 29.2/23
C100 4030006900 S.CER C1608 JB 1H 103K-T B 41.2/20.2
C101 4030006900 S.CER C1608 JB 1H 103K-T B 29.8/28.5
C102 4030006900 S.CER C1608 JB 1H 103K-T B 29.8/30
C103 4610001590 S.TRI TZC3R100A110R00 T 43/24.5
C104 4030009920 S.CER C1608 CH 1H 050B-T T 39/23
C105 4030009530 S.CER C1608 CH 1H 030B-T T 39/21.8
C106 4550005980 S.TAN TEESVA 1A 475M8R B 44.3/29
C107 4550005980 S.TAN TEESVA 1A 475M8R B 42/29
C108 4030006900 S.CER C1608 JB 1H 103K-T B 39.5/28
C109 4030011600 S.CER C1608 JB 1E 104K-T B 33/34.5
C110 4030006860 S.CER C1608 JB 1H 102K-T B 37.5/34.2
C111 4030006860 S.CER C1608 JB 1H 102K-T B 63.4/61.6
C112 4030007040 S.CER C1608 CH 1H 180J-T B 63.4/63.1
C113 4030007010 S.CER C1608 CH 1H 100D-T B 63.4/65
C114 4030006860 S.CER C1608 JB 1H 102K-T T 54.6/31.1
C115 4030006860 S.CER C1608 JB 1H 102K-T T 53.1/31.9
C116 4030007010 S.CER C1608 CH 1H 100D-T T 55.3/28.5
C117 4030006860 S.CER C1608 JB 1H 102K-T T 29.2/24.5
C118 4030007050 S.CER C1608 CH 1H 220J-T T 36.5/25
C119 4030011600 S.CER C1608 JB 1E 104K-T T 29.3/26.2
C120 4030006860 S.CER C1608 JB 1H 102K-T T 30.7/36.5
C121 4030009500 S.CER C1608 CH 1H 0R5B-T T 36.5/28.4
C122 4030006860 S.CER C1608 JB 1H 102K-T B 29.7/31.7
C123 4030009520 S.CER C1608 CH 1H 020B-T T 39/24.4
C124 4030007050 S.CER C1608 CH 1H 220J-T T 39/29.2
C125 4030007010 S.CER C1608 CH 1H 100D-T B 60/75.7
C126 4030007040 S.CER C1608 CH 1H 180J-T B 66.4/75.4
C127 4030006860 S.CER C1608 JB 1H 102K-T B 68.6/74.7
C128 4030009500 S.CER C1608 CH 1H 0R5B-T B 69.4/72.4
C129 4030006860 S.CER C1608 JB 1H 102K-T T 50.9/34.2
C130 4030006860 S.CER C1608 JB 1H 102K-T T 48.5/31.9
C131 4030006860 S.CER C1608 JB 1H 102K-T T 54.5/23
C132 4030009510 S.CER C1608 CH 1H 010B-T T 48.5/29.2
C133 4030007010 S.CER C1608 CH 1H 100D-T T 50/31.9
C134 4030006860 S.CER C1608 JB 1H 102K-T T 29.2/29.9
C135 4030007090 S.CER C1608 CH 1H 470J-T T 32.4/33.6
C136 4030006860 S.CER C1608 JB 1H 102K-T T 32/59.8
C137 4030006860 S.CER C1608 JB 1H 102K-T T 37.5/34.2
C138 4030007090 S.CER C1608 CH 1H 470J-T T 42.4/36.6
C139 4030006860 S.CER C1608 JB 1H 102K-T T 42.9/33.5

4 - 9
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
[MAIN-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C140 4030009530 S.CER C1608 CH 1H 030B-T B 39.5/33.5
C141 4030009530 S.CER C1608 CH 1H 030B-T B 42.3/33.5
C142 4030006970 S.CER C1608 CH 1H 060D-T B 38.7/36.8
C143 4030007030 S.CER C1608 CH 1H 150J-T B 40.2/36.9
C144 4030006860 S.CER C1608 JB 1H 102K-T B 73.9/76.7
C145 4030007050 S.CER C1608 CH 1H 220J-T B 79.5/74.3
C146 4030006860 S.CER C1608 JB 1H 102K-T B 75.4/67.5
C147 4030006850 S.CER C1608 JB 1H 471K-T B 73.9/67.5
C148 4030006860 S.CER C1608 JB 1H 102K-T B 84.7/73.5
C149 4030007020 S.CER C1608 CH 1H 120J-T B 85.4/71.3
C150 4550006350 S.TAN TEESVB2 1A 226M8R T 16.4/44.7
C151 4030006970 S.CER C1608 CH 1H 060D-T B 43/36.9
C152 4030006860 S.CER C1608 JB 1H 102K-T T 95/76
C153 4030006860 S.CER C1608 JB 1H 102K-T B 85.4/61.8
C154 4030006850 S.CER C1608 JB 1H 471K-T B 89.1/62.5
C155 4030006850 S.CER C1608 JB 1H 471K-T B 85.4/60
C156 4030007100 S.CER C1608 CH 1H 560J-T B 89.9/60.3
C157 4030006960 S.CER C1608 CH 1H 050C-T T 48.6/42.3
C158 4030009520 S.CER C1608 CH 1H 020B-T T 52.2/43
C159 4030007010 S.CER C1608 CH 1H 100D-T T 49.3/44.6
C160 4030009520 S.CER C1608 CH 1H 020B-T T 52.2/46.1
C161 4030006960 S.CER C1608 CH 1H 050C-T T 48.6/46.8
C162 4030007010 S.CER C1608 CH 1H 100D-T T 53.1/48.4
C163 4030006860 S.CER C1608 JB 1H 102K-T T 49/49.7
C164 4550006350 S.TAN TEESVB2 1A 226M8R T 19.8/44.7
C165 4030011600 S.CER C1608 JB 1E 104K-T T 23.3/48.7
C166 4550006350 S.TAN TEESVB2 1A 226M8R T 23.3/44.7
C167 4030006860 S.CER C1608 JB 1H 102K-T T 30.9/51
C168 4030006900 S.CER C1608 JB 1H 103K-T B 42.2/43.2
C169 4550000460 S.TAN TEESVA 1C 105M8R B 45.2/49.5
C170 4030007040 S.CER C1608 CH 1H 180J-T T 97.3/55.2
C171 4030007120 S.CER C1608 CH 1H 820J-T T 98/60.4
C172 4030007120 S.CER C1608 CH 1H 820J-T T 99.5/60.4
C173 4030007130 S.CER C1608 CH 1H 101J-T T 112.4/48.3
C174 4030006860 S.CER C1608 JB 1H 102K-T T 110.8/54.7
C175 4030006860 S.CER C1608 JB 1H 102K-T T 112.4/49.8
C176 4030006850 S.CER C1608 JB 1H 471K-T T 110.8/55.9
C177 4030006860 S.CER C1608 JB 1H 102K-T T 54.6/53.2
C178 4030006860 S.CER C1608 JB 1H 102K-T T 54.6/56.4
C179 4030006860 S.CER C1608 JB 1H 102K-T T 99.5/63.8
C180 4030006960 S.CER C1608 CH 1H 050C-T T 49/55
C181 4030006860 S.CER C1608 JB 1H 102K-T T 51/57.2
C182 4030009540 S.CER C1608 CH 1H 1R5B-T T 37.7/45.3
C183 4030009910 S.CER C1608 CH 1H 040B-T T 39.7/46.1
C184 4030007130 S.CER C1608 CH 1H 101J-T T 30.8/46.2
C185 4030006860 S.CER C1608 JB 1H 102K-T T 29.3/46.2
C186 4030007030 S.CER C1608 CH 1H 150J-T T 37/51.9
C187 4610001590 S.TRI TZC3R100A110R00 T 43/48
C188 4030006900 S.CER C1608 JB 1H 103K-T B 29.2/52
C189 4030006900 S.CER C1608 JB 1H 103K-T B 29.2/53.5
C190 4030009520 S.CER C1608 CH 1H 020B-T T 37/48.4
C191 4030006860 S.CER C1608 JB 1H 102K-T B 29.2/55.4
C192 4550000530 S.TAN TEESVA 1V 104M8R B 45.2/51.7
C193 4550005980 S.TAN TEESVA 1A 475M8R B 45.2/54
C194 4030006900 S.CER C1608 JB 1H 103K-T B 38.8/53.2
C195 4030011600 S.CER C1608 JB 1E 104K-T B 33.7/57.5
C196 4030006860 S.CER C1608 JB 1H 102K-T B 37.2/58.2
C197 4030007050 S.CER C1608 CH 1H 220J-T T 109.7/60.4
C198 4030006860 S.CER C1608 JB 1H 102K-T T 101/66.8
C199 4550006250 S.TAN TEESVA 1A 106M8R T 111.5/71.5
C200 4030006860 S.CER C1608 JB 1H 102K-T T 114.7/81.2
C201 4030011600 S.CER C1608 JB 1E 104K-T T 115.5/72.7
C202 4030009570 S.CER C1608 CH 1H 0R3B-T T 34.7/53.5
C203 4030006860 S.CER C1608 JB 1H 102K-T T 28.8/58.8
C204 4030006860 S.CER C1608 JB 1H 102K-T T 29.5/53.6
C205 4030009520 S.CER C1608 CH 1H 020B-T T 33.1/57.6
C206 4030007030 S.CER C1608 CH 1H 150J-T T 38.5/54.9
C207 4030006860 S.CER C1608 JB 1H 102K-T T 91.3/88.1
C208 4030008630 S.CER C1608 JF 1H 104Z-T T 92.6/88.1
C209 4030006860 S.CER C1608 JB 1H 102K-T T 98.5/90
C210 4030008630 S.CER C1608 JF 1H 104Z-T T 100/90
C211 4030006860 S.CER C1608 JB 1H 102K-T T 106.8/90
C212 4030008630 S.CER C1608 JF 1H 104Z-T T 108.1/90
C213 4030006860 S.CER C1608 JB 1H 102K-T T 120/72.7
C215 4030006860 S.CER C1608 JB 1H 102K-T T 101.4/95.1
C216 4030011020 S.CER GRM31M4C2H1R0CY21L T 105.1/97.3
C218 4030006860 S.CER C1608 JB 1H 102K-T T 117/72.7
C219 4030006860 S.CER C1608 JB 1H 102K-T T 98.7/95.2
C220 4030008920 S.CER C1608 JB 1H 473K-T T 105.5/75.5
C222 4030006860 S.CER C1608 JB 1H 102K-T T 37/59.3
C223 4030006860 S.CER C1608 JB 1H 102K-T T 30.2/59.8
C224 4030006860 S.CER C1608 JB 1H 102K-T T 43.1/57.1
C225 4030009530 S.CER C1608 CH 1H 030B-T T 42.8/59.3
C226 4030006960 S.CER C1608 CH 1H 050C-T B 38.7/60.9
C227 4030009520 S.CER C1608 CH 1H 020B-T B 39.5/57.8
C228 4030007010 S.CER C1608 CH 1H 100D-T B 40.2/60.9
C229 4030009520 S.CER C1608 CH 1H 020B-T B 42.2/57.8
C230 4030011200 S.CER GRM31M2C2H300JV01L T 108.3/95.1
C231 4030006860 S.CER C1608 JB 1H 102K-T T 114.8/90.1
C232 4030006860 S.CER C1608 JB 1H 102K-T T 94/102
C233 4030008630 S.CER C1608 JF 1H 104Z-T T 116.1/90.1
[MAIN-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C234 4030006850 S.CER C1608 JB 1H 471K-T T 117.4/90.1
C235 4030011020 S.CER GRM31M4C2H1R0CY21L T 98.8/103.6
C237 4030011160 S.CER GRM31M2C2H150JV01L T 98.8/105.9
C238 4030018770 S.CER C3216 CH 2J 102J-T T 111/107.4
C239 4030011210 S.CER GRM31M2C2H330JV01L T 110.9/117
C240 4030011060 S.CER GRM31M2C2H4R0CY21L T 116.7/117
C241 4030006900 S.CER C1608 JB 1H 103K-T T 107.2/80.5
C242 4030006860 S.CER C1608 JB 1H 102K-T T 94.2/97.9
C243 4030006860 S.CER C1608 JB 1H 102K-T T 100.7/76.2
C244 4030011600 S.CER C1608 JB 1E 104K-T T 103.1/79.3
C245 4030006860 S.CER C1608 JB 1H 102K-T T 101.8/79.3
C246 4030006860 S.CER C1608 JB 1H 102K-T T 7/30
C247 4030006860 S.CER C1608 JB 1H 102K-T T 3.9/28.5
C249 4030006960 S.CER C1608 CH 1H 050C-T B 43/60.9
C250 4030006860 S.CER C1608 JB 1H 102K-T T 10.4/28.1
C253 4030011180 S.CER GRM31M2C2H220JV01L T 110.8/119.8
C254 4030011180 S.CER GRM31M2C2H220JV01L T 110.8/122.9
C255 4030011070 S.CER GRM31M2C2H5R0CY21L B 118.9/120.4
C256 4030011180 S.CER GRM31M2C2H220JV01L T 110.8/126
C257 4030011180 S.CER GRM31M2C2H220JV01L B 114.3/125.7
C258 4030007130 S.CER C1608 CH 1H 101J-T T 9.6/25.5
C259 4030006860 S.CER C1608 JB 1H 102K-T B 76.9/67.5
C260 4030009910 S.CER C1608 CH 1H 040B-T T 63.5/44.2
C261 4030006860 S.CER C1608 JB 1H 102K-T T 108.7/76
J1 6510009351 CNR B2B-ZR (LF) (SN)
J2 6510021720 S.CNR 30FLT-SM1-TB T 23/107.2
J3 6510021720 S.CNR 30FLT-SM1-TB T 45/107.2
J4 6510018450 CNR TMP-S01X-B1
W1 8900004880 CBL OPC-465
EP1 6910013310 S.BEA MMZ1608D121B T 83.5/39
EP4 6910013310 S.BEA MMZ1608D121B B 78.4/67.5
EP5 6910013310 S.BEA MMZ1608D121B T 90.2/80.7
EP6 6910013310 S.BEA MMZ1608D121B T 23.2/50.5
EP7 6910013310 S.BEA MMZ1608D121B T 111.6/46.2
EP8 6910013310 S.BEA MMZ1608D121B T 118.5/72.7
EP9 6910013310 S.BEA MMZ1608D121B T 33.7/16.7
[FRONT UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
D1 1730002300 S.ZEN MA8082-M (TX) T 7.5/21.8
D3 1790001711 S.DIO NNCD5.6C-T1-A T 57.5/16.7
D4 1790001711 S.DIO NNCD5.6C-T1-A T 53/16.7
D5 1790001711 S.DIO NNCD5.6C-T1-A T 48.4/16.7
D6 1790001711 S.DIO NNCD5.6C-T1-A T 43.9/16.7
D7 1790001711 S.DIO NNCD5.6C-T1-A T 78/16.6
D8 1790001711 S.DIO NNCD5.6C-T1-A T 73.5/16.6
D9 1790001711 S.DIO NNCD5.6C-T1-A T 69/16.7
D10 1790001711 S.DIO NNCD5.6C-T1-A T 64.5/16.6
R1 7030006250 S.RES ERJ12YJ271U (270 ) T 8.5/30.5
R2 7030008180 S.RES ERJ12YJ331U (330 ) T 8.5/7.8
R3 7030003860 S.RES ERJ3GE JPW V T 60.5/16.5
R4 7030003860 S.RES ERJ3GE JPW V T 56/16.5
R5 7030003860 S.RES ERJ3GE JPW V T 51.5/16.5
R6 7030003860 S.RES ERJ3GE JPW V T 46.9/16.5
R7 7030003860 S.RES ERJ3GE JPW V T 81/16.5
R8 7030003860 S.RES ERJ3GE JPW V T 76.5/16.5
R9 7030003860 S.RES ERJ3GE JPW V T 72/16.5
R10 7030003860 S.RES ERJ3GE JPW V T 67.5/16.5
C1 4030011600 S.CER C1608 JB 1E 104K-T T 7.2/18.8
C2 4510008800 S.ELE EEE1EA100SR T 9.4/25.7
C3 4030007050 S.CER C1608 CH 1H 220J-T T 59/16.5
C4 4030007050 S.CER C1608 CH 1H 220J-T T 54.5/16.5
C5 4030007050 S.CER C1608 CH 1H 220J-T T 49.9/16.5
C6 4030007050 S.CER C1608 CH 1H 220J-T T 45.4/16.5
C7 4030007050 S.CER C1608 CH 1H 220J-T T 79.5/16.5
C8 4030007050 S.CER C1608 CH 1H 220J-T T 75/16.5
C9 4030007050 S.CER C1608 CH 1H 220J-T T 70.5/16.5
C10 4030007050 S.CER C1608 CH 1H 220J-T T 66/16.5
C11 4030006850 S.CER C1608 JB 1H 471K-T T 7.2/20.1
J1 6450002101 CNR CMS1410-016010
J2 6450002101 CNR CMS1410-016010
J3 6510020251 S.CNR B9B-PH-SM4-TB (LF) (SN) T 22.4/39.5
J4 6510022311 S.CNR B5B-PH-SM4-TB (LF) (SN) T 72.5/39.5

4 - 10
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[FRONT UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
DS1 5040003070 LED MPG4371F
S1 2220000631 SW MFS201N-16-Z
S.=Surface mount
[REAR UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
D1 1790001711 S.DIO NNCD5.6C-T1-A T 36.9/71.8
D2 1790001711 S.DIO NNCD5.6C-T1-A T 32.9/71.8
D3 1790001711 S.DIO NNCD5.6C-T1-A T 24.9/71.8
D4 1790001711 S.DIO NNCD5.6C-T1-A T 20.9/71.8
D5 1790001711 S.DIO NNCD5.6C-T1-A T 16.9/71.7
D6 1790001711 S.DIO NNCD5.6C-T1-A T 12.9/71.8
D7 1790000700 DIO DSA3A1
D8 1790001711 S.DIO NNCD5.6C-T1-A T 28.9/71.8
R1 7030003300 S.RES ERJ3GEYJ 680 V (68 ) T 36/76.4
R2 7030003300 S.RES ERJ3GEYJ 680 V (68 ) T 32/76.4
R3 7030003300 S.RES ERJ3GEYJ 680 V (68 ) T 24/76.4
R4 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 20/76.4
R5 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 16/76.4
R6 7030003300 S.RES ERJ3GEYJ 680 V (68 ) T 12/76.4
R7 7030011030 S.RES ERJ1TYJ 270U (27 ) T 35.3/21.3
R8 7030003340 S.RES ERJ3GEYJ 151 V (150 ) T 28/76.4
C7 4510008800 S.ELE EEE1EA100SR T 40.8/26.6
J1 6510018921 S.CNR B8B-PH-SM4-TB (LF) (SN) T 23.9/43
J2 6510016171 CNR 52018-8836
J3 6510023261 S.CNR B6B-PH-SM4-TB (LF) (SN) T 25.9/58.5
J4 6510011591 CNR B2P-VH (LF) (SN)
J5 6510011461 CNR B6P-VH (LF) (SN)
J6 6510018961 S.CNR B2B-PH-SM4-TB (LF) (SN) T 39.8/36.3

5 - 1
SECTION 5 SEMICONDUCTOR INFORMATION
B
E
C
B
E
C
B
C
E
B
B
E
E
CC
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
E
C
B
E
B
C
E
B
C
E
B
E
C
G
S
D
S
B
E
C
B
E
C
D
G
S
D
S
G2
G1
G
S
D
S
B
E
C
B
E
C
G
S
S
D
E1
B1
B2
C1
C2
E1
C2
B1
C1
E2
B2
2SA1362 GR 2SA1586 GR 2SB798 T2 DK 2SB934 P 2SC4081 T106 S
2SC4215 O 2SC4226 T1 R25 2SC4684 2SC5107 O 2SC5195
2SC5454 R54 2SD1619 T TD 2SD1801 S TL 2SD2216J 2SK2854
2SK2855 3SK241 DTA114EUA T106 DTA143TUA DTA144EUA T106
DTC143ZUA DTC144EUA T106 NE34018-T1 64 XP1214 XP4315
(Symbol: AEG) (Symbol: SG) (Symbol: DK) (Symbol: None) (Symbol: BS)
(Symbol: QO) (Symbol: R25) (Symbol: 2SC4684) (Symbol: MFO) (Symbol: 88)
(Symbol: R54) (Symbol: DB) (Symbol: CE) (Symbol: Y) (Symbol: UP)
(Symbol: UT) (Symbol: DU) (Symbol: 14) (Symbol: 93) (Symbol: 16)
(Symbol: 123) (Symbol: 26) (Symbol: V64) (Symbol: 9H) (Symbol: CB)
B
E
C
B
C
E
• TRANSISTORS AND FET'S
ACC
A1
A2
AC AC
ACAC
green
AC
AC
AC AC AC AC AC
A
C
AC
AC
1SS355 1SS364 1SS372 1SV239 1SV282
1SV307 1SV308 DSA3A1 HSU88TRF
MA2S077
MA2S728 MA8030 H MA8033 L MA8062 M MA8082 M
MA8091 M NNCD5.6C-T1 SB07-03C
(Symbol: A) (Symbol: BF) (Symbol: N9) (Symbol: TC) (Symbol: TD)
(Symbol: TX) (Symbol: TX) (Color: Green) (Symbol: 9) (Symbol: S)
(Symbol: B) (Symbol: 3^0) (Symbol: 3_3) (Symbol: 6-2) (Symbol: 8-2)
(Symbol: 9-1) (Symbol: NNCD5.6) (Symbol: J)
• DIODES
RP2000VALL.indd1-10-1-11 12/15/20064:56:11PM

6 - 1
SECTION 6 MECHANICAL PARTS
[FRONT UNIT]
J1 6450002101 CMS1410-016010 1
J2 6450002101 CMS1410-016010 1
J3 6510020251 B9B-PH-SM4-TB (LF) (SN) 1
J4 6510022311 B5B-PH-SM4-TB (LF) (SN) 1
DS1 5040003070 MPG4371F 1
S1 2220000631 MFS201N-16-Z 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
[REAR UNIT]
J2 6510016171 52018-8836 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
Screw abbreviations BiH: Binding head
SUS: Stainless NI: Nickel
BS: Brass
[CASE]
MF1 2710000750 FBA08A12LZ (RIB) 1
W1 8900013140 OPC-1323 (2731 POWER-SW CABLE) 1
W2 8900013210 OPC-1307 (2731 DC CABLE) 1
W3 8900013240 OPC-1373 (2731 FAN CABLE) 1
W4 8900013170 OPC-1306 (2731 TRX-ANT CABLE) 1
W5 8900013170 OPC-1306 (2731 TRX-ANT CABLE) 1
EP1 6910008330 G80-18 1
MP1 8010019581 2732 CHASSIS-1 1
MP2 8930062871 2731 R-PLATE-1 1
MP3 8930062861 2731 L-PLATE-1 1
MP4 8110008171 2731 COVER-1 1
MP5 8210023000 2732 PANEL (B) 1
MP6 8930062851 2731 M-PLATE-1 2
MP7 8930062851 2731 M-PLATE-1 2
MP8 8930062841 2731 FAN HOLDER-1 2
MP9 8930063090 BH-60S 1
MP10 8850002040 Z-8S 4
MP12 8930048350 2146 LENS 1
MP13 8950003170 Nylon clip SL-8N 1
MP14 8810006470 setscrew (C) 4×12 SUS 4
MP15 8810003361 setscrew (C) 3×6 ZC3 4
MP16 8810003361 setscrew (C) 3×6 ZC3 4
MP17 8810003361 setscrew (C) 3×6 ZC3 4
MP18 8810003361 setscrew (C) 3×6 ZC3 4
MP20 8810003361 setscrew (C) 3×6 ZC3 1
MP21 8810002950 binding screw M3×6 SUS 12
MP22 8810002950 binding screw M3×6 SUS 2
MP23 8810002950 binding screw M3×6 SUS 1
MP24 8810010131 setscrew (C) 3×35 ZC3 4
MP25 8810003391 setscrew (C) 4×8 ZC3 4
MP26 8810003391 setscrew (C) 4×8 ZC3 4
MP27 8830000111 Nut M4 ZC3 1
MP28 8850000140 flat washer M4 BS NI 1
MP29 8850000130 flat washer M3 BS NI 3×8×0.5 1
MP30 8810002950 binding screw M3×6 SUS 2
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
[ACCESSORIES]
F1 5210000071 FGB 10A PBF 2
W1 8900013190 OPC-1309 (2731 DC-IN CABLE) 1
W2 8900010551 OPC-1069A 1
EP1 7800000330 Utility CD 1
MP1 8930057680 Rubber leg (O) 4
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
EP1
F1
W1 W2
MP1
[CHASSIS-T PARTS]
IC204 1150002042 RA30H1317M-121 1
J1 6510004910 NR-DSE-01 1
P1 5610000380 TMP-K01X-A1 1
P2 5610000380 TMP-K01X-A1 1
MF1 2710000590 MF40D-12H-001 * 1
W1 8900010890 OPC-1115 1
W2 8900010890 OPC-1115 1
W3 9025900540 62/99/270/C31/C31 1
W4 9086700300 08 1
MP1 8010019621 2506 CHASSIS (A)-2 1
MP2 8810008661 Screw BT B0 3×8 NI-ZC3 (BT) 2
MP3 8810008661 Screw BT B0 3×8 NI-ZC3 (BT) 2
MP4 8810008661 Screw BT B0 3×8 NI-ZC3 (BT) 7
MP5 8110006640 2047 COVER 1
MP6 8810008451 binding screw M4×8 ZK3 1
MP7 8810008661 Screw BT B0 3×8 NI-ZC3 (BT) 1
MP9 8110005751 1729 FAN COVER-1 1
MP10 8810009111 Screw M2.6×16 ZK3 4
MP11 8510012210 2047 MAIN SHIELD 2
MP12 8810007131 setscrew (H) 3×6 ZC3 4
MP13 8930001170 earth spring (A) (FX-294) 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
[MAIN-R UNIT]
J1 6510021721 30FLT-SM2-TB (LF) (SN) 1
J2 6510021721 30FLT-SM2-TB (LF) (SN) 1
J3 6510018450 TMP-S01X-B1 1
W1 8900004880 OPC-465 1
EP2 6910013310 MMZ1608D121B 1
MP1 8510011111 1922 VCO CASE-1 1
MP2 8510017220 2850 VCO COVER 1
MP3 8930056580 Spacer (AD) 4
MP4 8810007131 setscrew (H) 3×6 ZC3 4
MP5 8510002280 VCOshield plate (A) (FX-15) 1
MP6 8930014140 earth spring (D) 1
MP7 8510016420 2506 VCO CASE 1
MP8 8510016430 2506 VCO COVER 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
[MAIN-T UNIT]
J1 6510009351 B2B-ZR (LF) (SN) 1
J2 6510021721 30FLT-SM2-TB (LF) (SN) 1
J3 6510021721 30FLT-SM2-TB (LF) (SN) 1
J4 6510018450 TMP-S01X-B1 1
W1 8900004880 OPC-465 1
MP1 8510011111 1922 VCO CASE-1 1
MP2 8510011111 1922 VCO CASE-1 1
MP3 8510014760 2493 PLL CASE 1
MP4 8510017220 2850 VCO COVER 1
MP5 8510017220 2850 VCO COVER 1
MP6 8510014750 2493 PLL COVER 1
MP7 8930056580 Spacer (AD) 4
MP8 8810007131 setscrew (H) 3×6 ZC3 4
MP9 8930059770 2633 M-HOLDER 1
MP10 8930014140 earth spring (D) 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
[LOGIC-T UNIT]
J1 6510022711 30FLZ-SM2-TB (LF) (SN) 1
J2 6510022711 30FLZ-SM2-TB (LF) (SN) 1
J4 6510019271 52365-0671 1
J5 6510021431 S8B-ZR-SM4A-TF (LF) (SN) 1
J6 6510023861 S9B-ZR-SM4A-TF (LF) (SN) 1
W1 8900013180 OPC-1312 (2732 TX-CTRL CABLE) 1
MP1 8510014481 2506 CPU SHIELD-1 1
MP3 8510002280 VCO shield plate (A) (FX-15) 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
[CHASSIS-R PARTS]
J1 6510004910 NR-DSE-01 1
W1 8900010890 OPC-1115 1
W2 8900010890 OPC-1115 1
MP1 8010019621 2506 CHASSIS (A)-2 1
MP2 8810008661 screw BT B0 3×8 NI-ZC3 (BT) 2
MP3 8810008661 screw BT B0 3×8 NI-ZC3 (BT) 1
MP4 8810008661 screw BT B0 3×8 NI-ZC3 (BT) 7
MP5 8110006640 2047 COVER 1
MP6 8810008451 binding screw M4×8 ZK3 1
MP7 8510012210 2047 MAIN SHIELD 2
MP8 8810007131 setscrew (H) 3×6 ZC3 4
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
[LOGIC-R UNIT]
J1 6510022711 30FLZ-SM2-TB (LF) (SN) 1
J2 6510022711 30FLZ-SM2-TB (LF) (SN) 1
J4 6510019271 52365-0671 1
J5 6510021431 S8B-ZR-SM4A-TF (LF) (SN) 1
J6 6510023861 S9B-ZR-SM4A-TF (LF) (SN) 1
W1 8900013161 OPC-1313A (2732 RX-CTRL CABLE) 1
MP1 8510014481 2506 CPU SHIELD-1 1
MP3 8510002280 VCO shield plate (A) (FX-15) 1
MP4 8510010460 1691 MAIN SHIELD PLATE 1
MP5 8510010460 1691 MAIN SHIELD PLATE 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
Screw abbreviations BT: Self-tapping PH: Pan head
BiH: Binding head
ZK, ZK3: Black ZC, ZC3: Black
NI-ZU: Nickel-Zinc
*Note: Refer to SECTION 9 BOARD LAYOUTS.
6 - 2
RP2000VALL.indd1-12-1-13 12/15/20064:56:13PM
