Icom IC-A14 User manual

S-14417XZ-C1
Jan. 2008
VHF AIR BAND TRANSCEIVER

This service manual describes the latest service
information for the IC-A14 and IC-A14S VHF AIR BAND
TRANSCEIVER at the time of publication.
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than specifed. This will ruin
the transceiver.
DO NOT expose the transceiver to rain, snow or any liquids.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100 mW) to
the antenna connector. This could damage the transceiver’s
front-end.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
MODEL VERSION KEY TYPE
IC-A14
[USA]
Full key
[USA-01]
[EXP]
[EXP-01]
IC-A14S
[USA]
Simple key
[USA-01]
[EXP]
[EXP-01]
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit Icom parts numbers
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1110003491 S.IC TA31136FNG IC-A14 MAIN UNIT 5 pieces
8820001210 Screw 2438 screw IC-A14 Top cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
ORDERING PARTS
1. Make sure the problem is internal before disassembling
the transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An
insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a Standard Signal
Generator or a Sweep Generator.
7. ALWAYS connect a 50 dB to 60 dB attenuator between
the transceiver and a Deviation Meter or Spectrum
Analyzer when using such test equipment.
8. READ the instructions of test equipment throughly
before connecting a test equipment to the transceiver.
REPAIR NOTES
INTRODUCTION
CAUTION
UNIT ABBREVIATIONS:
C=CHASSIS PARTS
M=MAIN UNIT
P=PA UNIT
DC=DC UNIT
A=ANT UNIT

CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTION
SECTION 4 CIRCUIT DESCRIPITON
4-1 RECEIVER CIRCUITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4-2 TRANSMITTER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

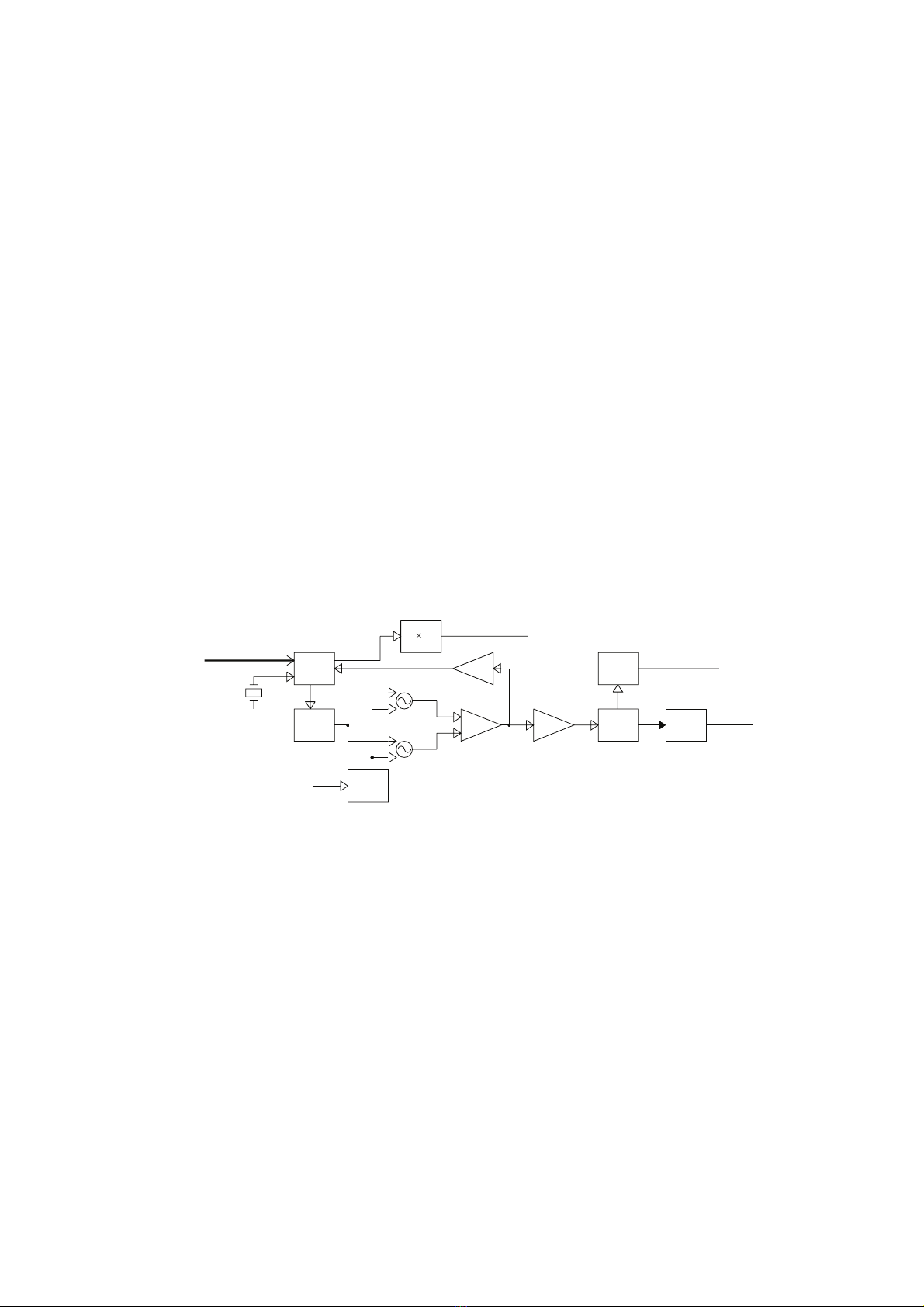

4-3 FREQUENCY SYNTHESIZER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4-4 PORT ALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

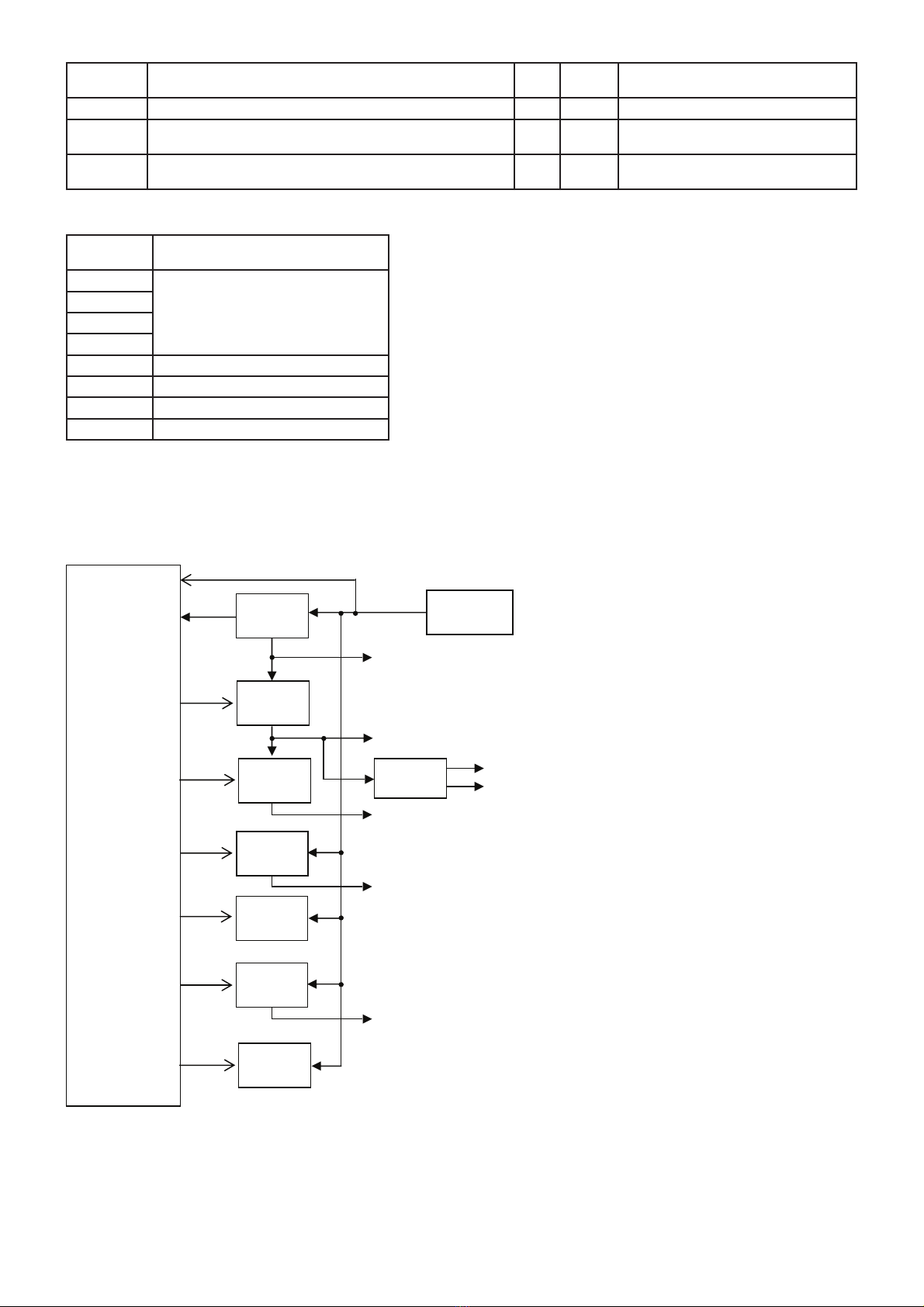

4-5 VOLTAGE BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
SECTION 5 PARTS LIST
SECTION 6 MECHANICAL PARTS
SECTION 7 BOARD LAYOUTS
SECTION 8 BLOCK DIAGRAM
SECTION 9 VOLTAGE DIAGRAM
MAIN UNIT (Left side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
MAIN UNIT (Center) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
MAIN UNIT (Right side). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
DC, PA AND ANT UNITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

1 - 1
SECTION 1 SPECIFICATIONS
PGeneral
• Frequency coverage :
IC-A14 TX 118.000 to 136.975 MHz
RX 108.000 to 136.975 MHz
WX (Rx only) 161.650 to 163.275 MHz
IC-A14S TX/RX 118.000 to 136.975 MHz
• Mode : 6K00A3E
16K0G3E (IC-A14/Rx only)
• Channel spacing : 25 kHz
•
Number of memory channels:
IC-A14 200 (20 CH ×10 BANKS)
IC-A14S 100
• Power supply requirement : Specified Icom’s battery packs
7.4 V DC standard
• Usable temperature range : –10˚C to +60˚C (+14°F to +140°F)
• Current drain (at 7.4 V DC):
Tx 1.5 A
Rx at stand by 50 mA typical
at AF max. 500 mA
• Antenna connector : BNC 50 Ω(nominal)
• Dimensions : 53(W) ×120(H) ×36.9(D) mm
(projections not included) 23⁄32(W) ×423⁄32(H) ×19⁄16(D) inch
• Weight : Approx. 180 g (6.35 oz) (Without the battery pack and antenna.)
PTransmitter
• Output power : 5.0 W (PEP) typical
1.5 W (CW)
• Modulation : Low level modulation
• Modulation limiting : 70 to 100%
• Frequency stability : ±5 ppm
• Audio harmonic distortion : Less than 10% (at 60% mod.)
• Hum and noise ratio : More than 35 dB
• Spurious emissions : More than 46 dB (except operating frequency ±62.5 kHz range)
• External MIC connector : 3-conductor 2.5(d) mm (1⁄10˝)/150 Ω
PReceiver
• Receive system : Double conversion superheterodyne
• Intermediate frequencies : 1st 46.35 MHz, 2nd 450 kHz
• Sensitivity :
COM band (6 dB S/N) –6 dBµ typical
NAVI band (6 dB S/N) –3 dBµ typical (IC-A14 only)
WX channels (12 dB SINAD) –13 dBµ typical (IC-A14 only)
• Squelch sensitivity : AM Less than 0 dBµ
(threshold) FM Less than –5 dBµ
(IC-A14 only)
• Selectivity : 6 dB (More than 7.5 kHz)
60 dB (Less than 25 kHz)
•
Spurious response rejection : AM More than 60 dB
FM More than 30 dB
(IC-A14 only)
• Audio output power : More than 700 mW (internal SP)
(at 10% distortion with an 8 ΩMore than 500 mW (external SP)
load, 30% mod.)
• Hum and noise : More than 35 dB at 30% mod.
• External SP connector : 3-conductor 3.5 (d) mm (1⁄8˝)/8 Ω
All stated specifications are subject to change without notice or obligation.

2 - 1
SECTION 2 INSIDE VIEWS
DISCRIMINATOR
(X4: JTBM450CX24)
1st IF FILTER
(FI3: FL-417)
AF POWER AMP
(IC31: TDA8547TS)
(TOP VIEW)
• PA UNIT
AF AMP/FILTER
(IC18: LMV324IPW)
DAC (IC17: M62363FP)
2nd IF FILTER
(FI2: CFWM450D)
POWER AMP
(Q2: RD12MVS1)
TX and RX VCOs
CPU
(IC26: uPD780338)
(TOP VIEW)
• MAIN UNIT
(BOTTOM VIEW)
(BOTTOM VIEW)
PLL IC
(IC29: MB15E03SL)
IF IC
(IC1: NJM2552V)
CPU CLOCK
(X3: CR-867)
DATA I/O INVERTER
(IC33: TC7W04FU)
DRIVE AMP
(Q3: RD01MUS1)
PRE-DRIVE AMP
(Q4: 2SC3775)
EEPROM
(IC25: S-24CS64A0I)

3 - 1
SECTION 3 DISASSEMBLY INSTRUCTION
1. Removing the front panel
qRemove the VR knob and antenna nut.
wUnscrew 2 screws from the bottom.
eUnscrew 2 screws from the side, and remove the jack
panel.
rTake off the CHASSIS assembly in direction of the arrow
until the speaker cable appears.
tDisconnect the speaker connector from the CHASSIS
assembly, and separate the front panel and CHASSIS
assembly completely.
wUnsolder total of 8 points from the shield cover then
remove it.
eUnscrew 2 screws from the side plate then remove it.
rUnscrew total of 4 screws from the MAIN UNIT.
tUnsolder total of 12 points which connecting PA UNIT,
then remove the MAIN UNIT from the CHASSIS.
2. Removing the MAIN UNIT
q Remove the seal, VR nut and VR plate from the CHASSIS
assembly.
Chassis
assembly
2 screws
Speaker
connector
Speaker
cable
Jack
p
anel
Antenna nut
VR knob
Front panel
Seal
VR nut
VR plate
Chassis
assembly
Shied cover
MAIN UNIT
PA UNIT
12 points
2 screws
2 screws
2 screws
4 points
4 points
Side plate
Chassis
PA UNIT
2 points
2 points
3 screws
3. Removing the PA UNIT
qUnscrew 3 screws from the PA UNIT.
wUnsolder total of 4 points then remove the PA UNIT from
the CHASSIS.
(Continued to right above)

4 - 1
SECTION 4 CIRCUIT DESCRIPTION
4-1 RECEIVER CIRCUITS
RF CIRCUITS
RF circuits consist of RF filters, antenna switch (ANT SW),
RF amplifier (RF AMP), etc., and extracts and amplifies the
signals of frequency which desired to receive.
The received signals (RX signals) from the antenna are
entered to the ANT UNIT and passed through the LPF. The
filtered RX signals are entered to the PA UNIT, and passed
through the LPF and ANT SW (an LPF in RX), then entered
to the MAIN UNIT.
The RX signals from the PA UNIT are passed through the
attenuator (ATT), BEF and 2-staged tuned BPF, then applied
to the RF AMP (Q11). The amplified RX signals are passed
through another 2-staged tuned BPF, and applied to the 1st
mixer (Q12).
The ANT SW toggles RX line and TX line. While receiving,
the TX line and the antenna is disconnected to prevent RX
signals entering. The RX line is disconnected from the GND
simultaneously, and an LPF which guides received signals
to the RX circuits is composed.
While transmitting, serial-connected PIN diodes are ON,
thus the TX line is connected to the antenna, and the RX
line is connected to the GND simultaneously to prevent
transmit signal entering.
The ATT functions as a part of the AGC circuit. The AGC
voltage which is applied to the PIN diodes of the ATT
controls RX signal level to enter the RX circuits, to keep the
demodulated AF signal level stable.
The tuned-BPF is adjusted so that it responds to receiving
frequency and rejects all others, by the variable capacitor
whose capacitance is varied by applied tuning voltages; "T1
–T4."
The RF AMP amplifies RX signals to a level suited to the 1st
mixer.
1ST IF CIRCUITS
The 1st IF circuits consist of 1st mixer, 1st IF filter and 1st
IF amplifier. And it converts the RX signals into the 1st IF
signal, then filters to remove unwanted signals and amplifies.
The filtered RX signals are applied to the 1st mixer to be
converted into the 46.35 MHz 1st IF signal, by being mixed
with the 1st Local Oscillator (LO) signals from the RX VCO
via buffers (Q60 and Q28), LO SW (D17) and ATT (R63,
335, 336).
The converted 1st IF signal is passed through the 1st IF filter
(FI3) to be removed unwanted signals, and amplified by the
1st IF AMP (Q13). The amplified 1st IF signal is then applied
to the 2nd IF circuit.

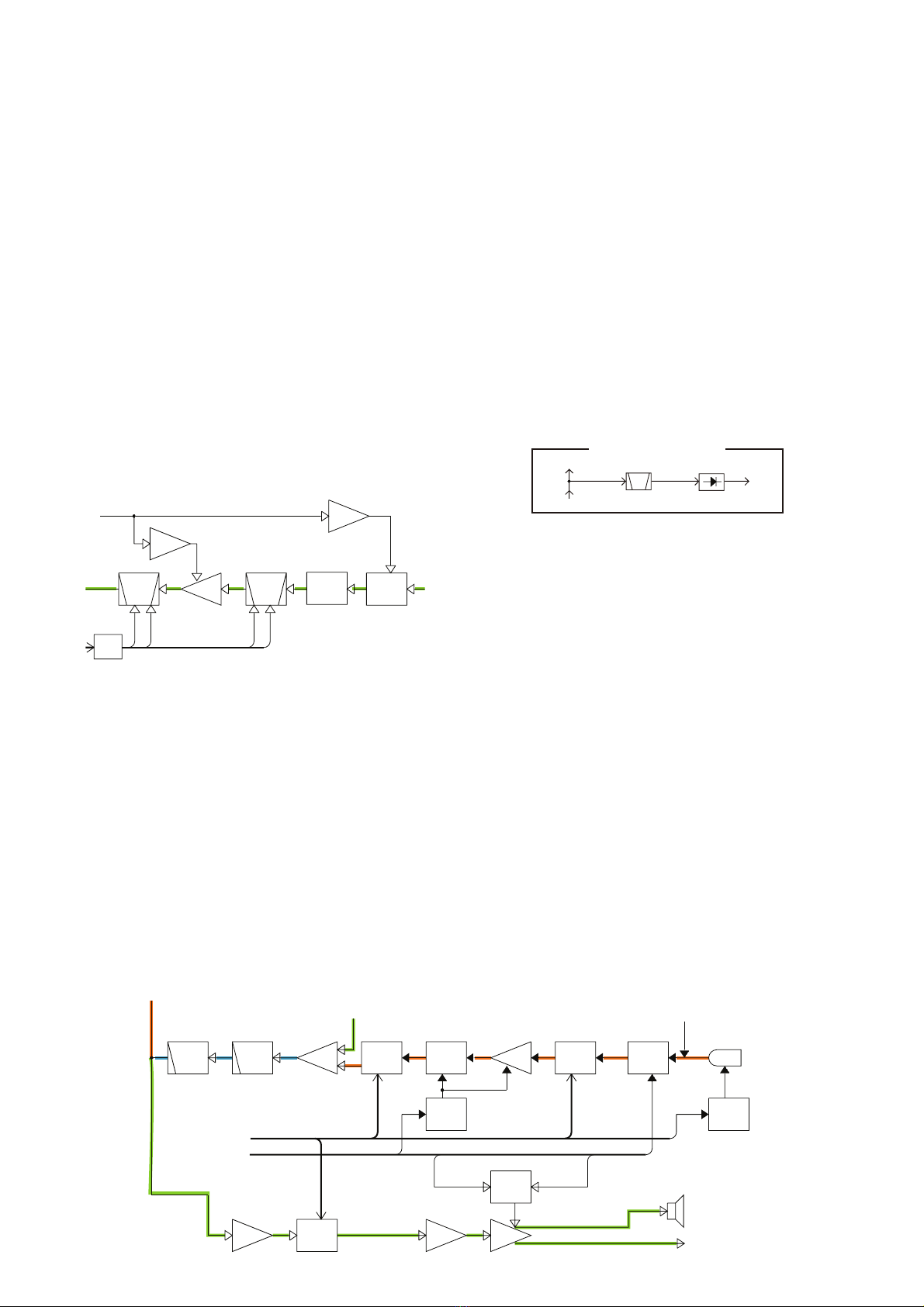

• RF AND 1ST IF CIRCUITS
• 2ND IF CIRCUIT
2ND IF AND DEMODULATOR CIRCUITS
The 2nd IF circuit consists of 2nd mixer, 2nd IF filter, 2nd
IF amplifier. And it converts the 1st IF signal into the 2nd IF
signal, then filters and amplifies 2nd IF signal only. And the
demodulator circuit converts the 2nd IF signal to AF signals.
IC1 is an IF IC which contains the whole of the 2nd IF
and demodulator circuits for the both of AM and FM
demodulation.
The amplified 1st IF signal from the 1st IF AMP is applied
to the IF IC, and converted into the 2nd IF signal, by being
mixed with the 45.9 MHz 2nd LO signal at internal 2nd
mixer.
The 2nd LO signal is generated by PLL IC (IC29) and X5,
and tripled by Q84 before being applied to the 2nd mixer.
• AM signals
The converted 2nd IF signal is filtered by external 2nd IF
filter (FI2), and amplified by the internal 2nd IF AMP. The
amplified 2nd IF signal is AM-demodulated by internal AM
detector, then output from pin 14.
The demodulated AF signals are applied to the RX AF
circuits via the ANL (Automatic Noise Limiter) circuit which
reduces pulse-type noises, if the ANL function is activated.
• FM (Weather Alert) signals
The converted 2nd IF signal is filtered by external 2nd
IF filter (FI2), and amplified by internal 2nd IF AMP. The
amplified 2nd IF signal is FM-demodulated by quadrature
detector, then output from pin 11.
The demodulated AF signals are applied to the RX AF
circuits.
ANTENN
A
LPF
ANT
SW
BPF
RF
AMP
BPF
BPF
XTALIF
AMP
AGC
AM P
AGC
AM P
ATT
T4 T3 T1 T2
46.350MHz D1,D8
D75
BEF
L52,C235
Q80
D13,50
Q10
Q11
D14,D15
L21,22
C67,71,73,326
Q12
1st IF FILTER 1st MIXER
1st IF AMP
Q13
IC17
DAC
SCK,SDATA
DA2STB
FI3
RF AGC
RF AGC from IF IC
1st LO signal
PA UNIT
MAIN UNIT
LPF
L1,45
C210-212
L3
C5-7
L18,69,
C60,327,780,781
ANT UNIT
BPF
CERAMIC
FM
DET
AM
DET
X4
(Discriminator)
NOISE
450kHz
2nd IF
2nd IF FILTER
2nd MIXER
IC1
IF IC FI2
DET AM DET
AGC feedback
20
11617
10
11
12
13
14 18 57 3
FM DET
RSSI
RF AGC
45.9MHz 2nd LO
(AM)
(FM)
2nd
IF
2nd
IF
OP.
AMP
RSSI

4 - 2
RX AF CIRCUITS
The RX AF circuits consist of AF filters, AF amplifiers, etc.,
and amplify, filter the demodulated AF signals.
The demodulated AF signals from the IF IC are passed
through the AM/FM SW (IC2), and applied to the buffer
(IC18a). The AF bufffer-amplified AF signals are passed
through the 5-pole LPF (IC18b/c) to filter audio band signals
only, then buffer-amplified by another AF bufffer (IC18d).
The buffer-amplified AF signals are level-adjusted (audio
output level) by DAC (IC17_7), then applied to the AF power
AMP (IC31) via AF Pre-AMP (IC20). The AF signals are
power-amplified to obtain AF output level, then applied to
the internal speaker or external speaker via [SP] jack (J5).
SQUELCH CIRCUITS
The squelch circuit cuts off the AF output signals when no
RF signals are received.
• For receiving AM signals (RSSI SQUELCH)
The "RSSI" signal which is in proportion to the RX signal
level is applied to the CPU (IC26, pin 30). The CPU
interprets that RX signals are present or absent according
to the voltage of "RSSI" signal level.
• For recieving FM (WX) signals (NOISE SQUELCH)
A portion of FM demodulated AF signals is filtered by active
BPF (IC1; pins 12, 13, R790, 792, 793, C736, 737, 744)
which filters and amplifies only noise components (around
10 kHz signals) in the demodulated signals. The amplified
noise components are detected into pulse-type signal by
D79, then applied to the CPU (IC26) via the noise AMP
(IC28). The CPU interprets that RX signals are present or
absent by counting the pulse of noise signal.
If the CPU interprets that the RX signals are absent, the
CPU sends the "DETMUTE" signal to the AM/FM mute SW
(IC2). Then the AM/FM SW cuts off the AF line to close the
squelch.
• AF CIRCUITS (for RX and TX)
MIC
MUT E
PWR
AMP
BUFF
LPFLPF
BUFF
From the ext. microphone
From the AM/FM SW (IC2)
MIC
AM P
PRE
AMP
To the ext. speaker
MMUT E
EMBI
ALCC
AFC SPCON
MIC
CONTROL
AF AMP
CONTROL
ALC
CONTROL
To the int. speaker
(MIC VR)
DAC
IC17 _6
IC17 _5
IC17 _7
Q51
Microphone
MC1
D67
Q79
Q86
IC15
Q52
Q82,Q83,Q36
IC31
IC18a
IC18bIC18c
Control lines
from the CPU (IC26)
IC18d
DA2STB SCK,SDATA DA2STB SCK,SDATA
DA2STB SCK,SDATA
ALC
AM P
IC20
(MIC VR)
DAC
(VOLUME)
DAC
AGC (Automatic Gain Control) CIRCUITS
(For receiving AM signals)
The AGC circuit effectively reduces the RX signal level if
the signal is strong, and raises it when it is weaker. The
AGC circuit detects the overall strength of RX signals and
automatically adjusts the gain of RF and IF AMPs, and
attenuation level of the ATT to maintain an approximately
constant average level of the received signals (=the AF
output level).
• 2nd IF AMP gain control
The DC component in the AM-demodulated signals whose
signal level is in proportion to the RX signal (RF signal)
level, is fedback to the 2nd IF AMP in the IF IC. The DC
voltage controls the gain of 2nd IF AMP to keep the 2nd IF
signal level constant.
• RF AMP and 1st IF AMP gain control
The AGC voltage "RF AGC" which is in proportion to the RX
signal (RF signal) level is generated by the internal 2nd IF
AMP (similar as RSSI voltage). The AGC voltage “RF AGC”
is output pin 17 and applied to the AGC line drivers (Q10
and Q80) via AGC SW (Q85). Q10 controls the gain of RF
AMP (Q11), and Q80 controls the attenuation level of ATT
(D75–77) for stable 2nd IF signal level.
BPF
RF
AMP
BPF
AGC
AM P
AGC
AM P
ATT
T4 T3 T1 T2
D75
BEF
L52,C235
Q80
D13,50
Q10
Q11
D14,D15
L21,22
C67,71,73,326
IC17
DAC
RF AGC
RF AGC from IF IC
L18,69,
C60,327,780,781
• RF AMP AND 1ST IF AMP GAIN CONTROL
ANL (Automatic Noise Limiter) CIRCUIT
The ANL circuit is a limiter which reduces pulse-type noises
by cutting off the AF line temporarily. When the ANL function
is activated (ANL SW(Q21) is ON), demodulated AF signals
are applied to the cathode of D82 (switching diode) only. If a
pulse-type noise is included in the demodulated AF signals,
the cathode voltage of D82 becomes higher than that of
anode, and D82 turns OFF to cut-off the AF line. Thus, if the
RX signals contains pulse-type noise, the demodulated AF
signals are not applied to the AM/FM SW (IC2).
Fc=10 kHz
Active filter
From Pin16
Pin18 Pin13
To RX AF circuits
D79
Rectify
“NOISE”
NOISE SQUELCH DIAGRAM

4 - 3
4-2 TRANSMITTER CIRCUITS
TX AF CIRCUITS
The TX AF circuit consists of microphone amplifier (MIC
AMP), ALC and AF filters. ALC (Automatic Level Control) is
an amplifier which reduces its gain automatically to prevent
over deviation.
The audio signals from the connected headset's microphone
(MIC signals) are passed through the MIC mute SW (Q51)
and the DAC (IC17_6) which adjusts the MIC signal level.
The level-adjusted MIC signals are amplified by the MIC
AMP (Q86), then applied to the ALC AMP (IC15).
The ALC (Automatic Level Control) AMP is an amplifier
which controls its gain automatically according to the MIC
signals level. The ALC provides stable modulation signals
by limiting the amplitude of MIC signals to prevent the over
deviation.
The output signals of ALC are applied to another DAC
(IC17_5) for level (deviation) adjustment. The level-adjusted
MIC signals are passed through the buffer (IC18a) and
5-pole LPF (IC18b/c) to filter audio band signals only. The
filtered MIC signals are entered to the PA UNIT, and applied
to the APC AMP (PA: IC27) as the modulation signals.
APC CIRCUIT (PA UNIT)
The APC (Automatic Power Control) circuit stabilizes transmit
output power to prevent transmit output power level change,
which is caused by load mismatching or heat effect, etc.
The power detector rectifies a portion of the TX signal and
converts it into DC voltage which is in proportion to the
transmit output power level. The detected voltage is applied
to the input terminal (pin 3) of APC AMP (IC27; as a com-
parator). The TX power setting voltage “POW” is applied to
another input terminal (pin 1) as the reference voltage.
The comparator compares the detected voltage and refer-
ence voltage, and the difference of voltage is output from
output terminal. The output voltage controls the bias of the
driver and power amplifiers to reduce/increase the gain of
these amplifiers for stable TX output power.
ANTENN
A
LPF
ANT
SW
PWR
AMP
DRIVE
PRE
BPF
RF
AMP
AGC
A
MP
AM P
ATT
LPF LPF
APC
AMP
DRIVE
AM P
T1 T2
POWER
DET
Q2
Q3
Q4
IC27
D2,D3,D74
D1,D8
D75
BEF
L52,C235
D13,50
Q10
Q11
,326
R36-38
HVTXV
MOD
43
1
1
PCON
ATT
signal
D75,D76,D77
PA UNIT
MAIN UNIT
LPF
L1,45
C210-212
L3
C5-7
L5
C12,14
L6,46
C19,212,297,
791,792,797
L18,69,
C60,327,780,781
ANT UNIT
MIC
MUT E
PWR
AMP
BUFF
LPFLPF
BUFF
From the ext. microphone
From the AM/FM SW (IC2)
MIC
AM P
PRE
AMP
To the ext. speaker
MMUT E
EMBI
ALCC
AFC SPCON
MIC
CONTROL
AF AMP
CONTROL
ALC
CONTROL
To the int. speaker
(MIC VR)
DAC
IC17 _6
IC17 _5
IC17 _7
Q51
Microphone
MC1
D67
Q79
Q86
IC15
Q52
Q82,Q83,Q36
IC31
IC18a
IC18bIC18c
Control lines
from the CPU (IC26)
IC18d
DA2STB SCK,SDATA DA2STB SCK,SDATA
DA2STB SCK,SDATA
ALC
AM P
IC20
(MIC VR)
DAC
(VOLUME)
DAC
AM MODULATION CIRCUITS
The AM modulation circuits mudulate the carrier with the
MIC signals (=modulation signals).
The level-adjusted modulation signals from the MAIN UNIT
are applied to the APC AMP. The output voltege of APC
AMP which controls the gain of drive (Q3) and power (Q2)
AMPs swings corresponding to the amplitude of modulation
signals, thus the AM modulation is obtained.
TX AMPLIFIERS
The TX amplifers consist pre-driver, driver and power
amplifiers, and amplify the VCO output to the transmit output
level.
The TX VCO (Q59, D45, 46) output is applied to the pre-
driver via buffers (Q60 and Q28), LO switch (D6) and ATT,
and amplified by the pre-driver (Q4) to the driver (Q3) input
level. The amplified TX signal is amplified by driver (Q3) to
the power AMP (Q2) input level, then power-amplified by the
power AMP (Q2) to the TX output level.
The power-amplified TX signal is passed through the LPF,
ANT SW and LPF and entered to the ANT UNIT, then
applied to the antenna via the LPF
.
• AF CIRCUITS (for RX and TX)
• AM MODULATION, TX AMPLIFIERS AND APC CIRCUITS

4 - 4
4-3 FREQUENCY SYNTHESIZER CIRCUITS
VCO
A VCO is an oscillator whose oscillating frequency is
determined by the applied volatge. This transceiver has two
VCOs; RX VCO and TX VCO. The RX VCO generates the
1st LO signals for the 1st IF signal produce, and TX VCO
generates TX signal.
• RX VCO (Q58, D38, 48)
The RX VCO oscillates 1st LO signals for normal RX
(174.350 to 183.325 MHz) and for WX channels (208.000–
209.625 MHz). The generated 1st LO signals are applied to
the 1st mixer (Q12) via the buffer AMPs (Q60 and Q28), LO
SW (D17) and the ATT.
• TX VCO (Q59, D45, 46)
The TX VCO oscillates 118.000–136.975 MHz transmit
signals. The generated TX signal is applied to the pre-driver
via buffers (Q60 and Q28), LO SW (D6) and ATT.
A portion of each VCO output is applied to the PLL IC via
the buffer (Q29).
PLL (Phase Locked Loop) CIRCUIT
The PLL circuit provides stable oscillation for both of the
TX and 1st LO frequencies (for RX). By comparing fedback
VCO output and reference frequency signals, the PLL
corrects the difference of these frequencies.
A portion of RX/TX VCO output is applied to the PLL IC via
buffer (Q29). The applied VCO output is divided according
to the serial data including divide ratio from the CPU, at the
prescaler and programmable divider. In the same way, the
reference frequency signal from the TCXO is applied to the
PLL IC and divided so that these two applied signals are
the same frequency.
The divided and frequency-matched signals (VCO output
and the reference frequency signals) are applied to the
phase comparator and phase-compared. The resulted
phase difference is detected as a phase-type signal, and
level-adjusted at the charge pump then output. The output
pulse type signal is passed through the loop filter to be
converted into the DC voltage (=Lock Voltage).
Applying the lock voltage to the variable capacitor which
composes a part of the resonator of RX/TX VCO, the
capacitance of variable capacitor changes corresponding
to the applied lock voltage. This causes the change of
resonation frequency that determines the VCO oscillating
frequency to keep the VCO frequency constant.
When the oscillation frequency drifts, its phase changes
from that of the reference frequency, causing a lock voltage
change to compensate for the drift in the VCO oscillating
frequency.
• FREQUENCY SYNTHESIZER CIRCUITS
PLL
IC
BUFFBUFF
FIL
LOOP
VCO
SW
BUFF
CR-783
X5
SHIFT
LO SW
154.350-183.325 MHz
118.000-136.975 MHz
D6,
Q28
Q60
Q29
RX VCO
TX VCO
Q58
D38,D48
Q59
Q57
R63,335,336
(15.300MHz)
IC29
RX-VCO
TX-VCO
PCK,PDATA,PSTB
(serial data)
ATT
D17
D45
3
(45.900MHz)
45.9MHz
2nd LO
1st LO signal
TX signal
Q84
208.000-209.625 MHz
R36-38
ATT

4 - 5
LINE NAME DESCRIPTION IN/
OUT STATUS CONDITION
PTT Ext. [PTT] input. IN High While transmitting. (=[PTT] is pushed.)
UNLK PLL unlock signal from the PLL IC (IC29). IN Low While PLL is unlocked.
SCK Clock signal to the DAC (IC17). OUT – –
SDATA Serial data to the DAC (IC17). OUT – –
RSSI RSSI voltage from the IF IC (IC1). IN – –
RFDETV TX power monitor.
(The DC voltage which is in proportional to the TX power.) IN – –
THERMC Internal temperature moniter.
(The DC voltage which is divided by thermistor (R701) and R702.)
IN – –
VOL_IN [VOL] dial position detect.
(The DC voltage which is divided by R824.) IN – –
VIN Remaining battery capacity monitor.
(The voltage of "HV" line divided by R194 and R19.) IN – –
DETO 1050 Hz tone (for weather alert) detect. IN – –
DA2STB Strobe signal to the DAC (IC17). OUT Low –
EDATA Serial data to the EEPROM (IC25). I /O High –
ECK Clock signal to the EEPROM (IC25). OUT High –
POW TX power setting voltage to the APC AMP (PA: IC27). OUT – –
PCON Control signal to the +3.6V regulator (Q89). OUT High +3.6V regulator is activated.
(=+3.6V and +5V lines are ON.)
HOUT Battery type detect.
(The voltage of +5V line which divided by R838 and R839.) IN High Li-ion battery pack is attached.
HSW Battery type detect circuit control. OUT High Detect circuit is activated.
KR0–KR4 Key matrix. IN Low While the key is pushed.
PSTB Strobe signal to the PLL IC (IC29). OUT High –
PDATA Serial data to the PLL IC (IC29). OUT High –
PCK Clock signal to the PLL IC (IC29). OUT High –
TXC TXV regulator (Q7, 8) control signal. OUT High TXV regulator is activated.
LIGHTC Backlight (DS2, 3) driver (Q75, 76) control signal. OUT High Backlight is ON.
LIGHT [LIGHT] key input. IN Low While the key is pushed.
JACKDET Ext. speaker conection detect. IN High Ext.speaker is connected.
EXTREGC EXT-MIC regulator (Q25, 26) control signal. OUT High
While an ext. microphone is connected.
（While the VOX circuit is activated; "Low."）
KS0–KS3 Strobe signals for key matrix. OUT Low All the time "Low."
INI Initial matrix return signal. IN Low Any key is pushed.
EMBI Int. microphone control signal to the MIC controller (Q79). OUT High Int. microphone is enable.
(While in VOX mode;"Low.")
INTPTT [PTT] key input. IN Low While the key is pushed.
(=While transmitting)
BEEP Beep sounds (AF square waves). OUT – –
AGCOFF AGC SW (Q85) control signal. OUT High AGC function is disable.
NOISE Noise level for noise squelch. (pulse-type signal) IN High (Upper edge of the pulse)
SPCON Speaker select signal to the AF power AMP (IC31).
(Switching to internal or External speaker) OUT Low Ext. speaker is selected.
VOX VOX control signal from the IC21.
(A portion of MIC signals which is amplifid by IC21.) IN A/D TX=Voltage is high
RX=Voltage is low
AFC AF power AMP controller (Q36, 82) control signal. OUT High AF power AMP is activated.
(=Squelch is open.)
ALCC ALC AMP controller (Q52) control signal. OUT High ALC AMP is activated.
(=The ALC function is activated.)
R5C R5S line regulator (Q20, 90) control signal. OUT Low While receiving
ANLC ANL SW (Q21) control signal. OUT High ANL circuit is activated.
(=The ANL function is activated.)
WXC AF/FM SW (IC2) control signal. OUT High While receiving an WX channel.
SHIFT VCO SW (Q57) control signal. OUT High While transmitting. (=TX VCO is
activated.)
DETMUTE AF/FM SW (IC2) control signal. OUT High While RX AF is mute.
4-4 PORT ALLOCATIONS
• CPU (IC26)

4 - 6
LINE NAME DESCRIPTION IN/
OUT STATUS CONDITION
MMUTE MIC mute SW (Q51) control signal. OUT Low While TX AF line is mute.
SEG1–
SEG34 LCD (DS1) segments. OUT – –
COM1–
COM4 LCD (DS1) common terminal. OUT – –
LINE NAME DESCRIPTION
T1
BPF tuning volatages.
T2
T3
T4
MODMAX Maximum deviation adjust voltage.
MOD30 30% deviation adjust voltage.
VOL RX audio level adjust avoltage.
REFV Reference frequency adjustment voltage.
• DAC (IC17)
• CPU (IC26) (continued)
CPU3.6V
Regulator Battery pack
R5S
SW
CPU
(IC26)
+5V
Regulator
VCO
SW
TX VCO (Q59, D45, 46)
VIN
VCC
IC22
Q70, 71
Q20, 90 Q57
Q25, 26
Q75, 76
Q7, 8
CPU3.6V
PCON
R5C
AF PWR AMP
Controller
AFC
TXV
Regulator
TXC
Backlight
driver
EXT
Regulator
EXTREG
LIGHTC
Common 5V: PLL IC (IC29), Reference oscillator (X5), Noise AMP (IC28), etc
RX 5V: IF IC (IC1), RF AMP (Q11), 1st IF AMP (O13), etc.
RX VCO (Q58, D38, 48)
Logic 3.6V: EEPROM (IC25), Reset IC (IC24),etc.
External 5V: Connected microphone.
TX 5V: Pre-driver (PA: Q4), APC AMP (PA: IC27), etc.
4-5 VOLTAGE BLOCK DIAGRAM
Voltage from the attached battery pack is routed to the whole of the transceiver via regulators and switches.

5 - 1
SECTION 5 PARTS LIST
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC1 1110007300 S.IC NJM2552V-TE1 T 80/17
IC2 1130006221 S.IC TC4W53FU (TE12L,F) T 55/19.7
IC15 1110005310 S.IC AN6123MS B 59.2/10.8
IC17 1190000350 S.IC M62363FP-650C B 55.9/19.4
IC18 1110006470 S.IC LMV324IPWR B 57.3/31.6
IC20 1110006490 S.IC LMV321IDCKR B 100.1/24.4
IC21 1110006490 S.IC LMV321IDCKR B 46.5/10
IC22 1180002690 S.REG S-812C36AMC-C2Q-T2G B 15.4/8
IC24 1130013340 S.IC BD5230G-TR B 21.1/41.4
IC25 1130012430 S.IC S-24CS64A0I-T8T1G B 24.2/14.4
IC26 1140014451 S.IC uPD78F0338GC-9EB-A B 36.5/25.1
IC28 1110006490 S.IC LMV321IDCKR T 54.3/32
IC29 1130011671 S.IC MB15E03SLPFV1-G-ER-6E1 T 80.4/34.4
IC31 1110006770 S.IC TDA8547TS/N T 99.4/20.2
IC32 1190001860 S.IC EW-460-FT B 9.8/32.4
IC33 1130007111 S.IC TC7W04FU (TE12L,F) B 21.2/26.2
Q7 1520000460 S.TR 2SB1132 T100 R B 20.7/4.8
Q8 1590001170 S.TR XP1501-(TX) .AB B 16.4/3.8
Q10 1530003990 S.TR 2SC4738-BL (TE85L,F) T 87.8/33.8
Q11 1580000731 S.FET 3SK293 (TE85L,F) B 89.5/38.3
Q12 1580000800 S.FET 3SK324UG-TL-E B 87.9/24.7
Q13 1530003260 S.TR 2SC5006-T1 T 87.5/13
Q20 1590003250 S.TR UNR9115J-(TX) T 58.5/27.4
Q21 1590003270 S.TR UNR9210J-(TX) T 58.8/21.1
Q25 1510000510 S.TR 2SA1576A T106R B 92.8/14.5
Q26 1590003290 S.TR UNR9213J-(TX) B 95.2/17.8
Q28 1530003260 S.TR 2SC5006-T1 B 78/22.8
Q29 1530003260 S.TR 2SC5006-T1 B 79.9/31.6
Q33 1530002851 S.TR 2SC4116-BL (TE85R,F) T 71.8/24.1
Q36 1590001170 S.TR XP1501-(TX) .AB T 92.8/36.3
Q50 1590003380 S.TR UNR9111J-(TX) B 13.7/40.9
Q51 1590003290 S.TR UNR9213J-(TX) B 54/7.6
Q52 1590001980 S.TR XP4315 (TX) B 41.8/12.8
Q57 1590001810 S.TR XP1113 (TX) T 75/27.2
Q58 1530003260 S.TR 2SC5006-T1 B 75.3/31.6
Q59 1530003260 S.TR 2SC5006-T1 B 75.6/24.9
Q60 1530003260 S.TR 2SC5006-T1 B 77/28.4
Q70 1520000460 S.TR 2SB1132 T100 R B 20.1/19.8
Q71 1590001170 S.TR XP1501-(TX) .AB B 16.2/19.4
Q75 1510000510 S.TR 2SA1576A T106R B 35.2/11.3
Q76 1530002691 S.TR 2SC4116-GR (TE85R,F) B 37.9/11.3
Q79 1590003290 S.TR UNR9213J-(TX) B 66.9/39.3
Q80 1530003990 S.TR 2SC4738-BL (TE85L,F) T 92.4/31.3
Q81 1590003290 S.TR UNR9213J-(TX) T 94.2/25.6
Q82 1520000460 S.TR 2SB1132 T100 R T 93.9/40.8
Q83 1590003290 S.TR UNR9213J-(TX) T 96.3/26.1
Q84 1530003190 S.TR 2SC4617 TLQ T 78.8/27.8
Q85 1590003290 S.TR UNR9213J-(TX) T 88.4/31.2
Q86 1530002851 S.TR 2SC4116-BL (TE85R,F) B 56.4/6.3
Q88 1590003290 S.TR UNR9213J-(TX) B 8.8/35.5
Q89 1590001980 S.TR XP4315 (TX) B 16.3/13.7
Q90 1590003290 S.TR UNR9213J-(TX) T 54.9/27.3
Q91 1590003400 S.TR UNR9112J B 18.4/25.5
Q92 1590003290 S.TR UNR9213J-(TX) B 18.4/28
D6 1750000581 S.DIO 1SV307 (TPH3,F) B 84.7/19.6
D13 1750000721 S.VCP HVC375BTRF-E B 99.8/38.2
D14 1750000711 S.VCP HVC350BTRF-E B 86.5/33.1
D15 1750000711 S.VCP HVC350BTRF-E B 87.5/28.1
D17 1790001260 S.DIO MA2S077-(TX) B 86.6/20.1
D23 1790000860 S.DIO MA133 (TX) B 95.2/15.5
D31 1750000940 S.DIO ISS400 TE61 B 41.7/7.7
D36 1790001250 S.DIO MA2S111-(TX) B 11.3/40.5
D38 1720000730 S.VCP MA2S30400L B 69.8/32.8
D45 1750000771 S.VCP HVC376BTRF-E B 70.2/26.2
D46 1750000771 S.VCP HVC376BTRF-E B 68.1/26.2
D48 1720000730 S.VCP MA2S30400L B 68.5/32.8
D50 1750000721 S.VCP HVC375BTRF-E B 96.4/39.1
D52 1790001250 S.DIO MA2S111-(TX) B 31.7/7.2
D53 1790001240 S.DIO MA2S728-(TX) B 47/15
D64 1790001250 S.DIO MA2S111-(TX) B 16.7/27
D67 1730002320 S.ZEN MA8051-M (TX) B 68.1/41.2
D68 1790001250 S.DIO MA2S111-(TX) B 30.9/12.5
D69 1790001250 S.DIO MA2S111-(TX) B 24/8.9
D70 1790001250 S.DIO MA2S111-(TX) [IC-A14S] only B 28.1/8.4
D72 1790001250 S.DIO MA2S111-(TX) [IC-A14] only B 28/11
D73 1790001250 S.DIO MA2S111-(TX) [IC-A14] only B 28/12.2
D75 1790001260 S.DIO MA2S077-(TX) B 99.4/32
D76 1790001260 S.DIO MA2S077-(TX) B 96.8/31.6
D77 1790001260 S.DIO MA2S077-(TX) B 99.4/33.2
D79 1790001240 S.DIO MA2S728-(TX) T 70.6/16.5
D81 1790001250 S.DIO MA2S111-(TX) T 76.2/38.7
D82 1790001240 S.DIO MA2S728-(TX) T 55/14.5
D85 1790001250 S.DIO MA2S111-(TX) B 13.1/34.5
D86 1790001250 S.DIO MA2S111-(TX) B 30.3/9.9
D87 1790001250 S.DIO MA2S111-(TX) B 26.4/9.1
D88 1750000370 S.DIO DA221 TL T 84.2/11.8
D89 1790001240 S.DIO MA2S728-(TX) T 89.9/34.7
FI2 2020001540 CER CFWLB450KDFA-B0
FI3 2030000660 S.MLH FL-417 MFT46.3S 46.350MHZ T 89.9/19.9
X3 6050012750 S.XTL CR-867 (SMD-49/4.9152 MHz) B 31/41.1
X4 6070000300 S.DCR JTBM450CX24 <JJE> B 80/16.9
S.=Surface mount
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
X5 6050011940 S.XTL CR-783 (15.3 MHz) B 61.5/39.6
L18 6200009930 S.COL C2012C-68NG-A B 100.5/40.3
L21 6200009930 S.COL C2012C-68NG-A B 86.5/37.7
L22 6200009930 S.COL C2012C-68NG-A B 87/31.2
L24 6200007850 S.COL ELJNC R82K-F T 88/27
L38 6200009351 S.COL ELJRE R22GFA B 80.5/23.7
L52 6200009890 S.COL C2012C-82NG-A B 98.9/35
L55 6200007001 S.COL ELJRE 82NGFA B 86.3/15.6
L57 6200010540 S.COL C2012C-47NG-A B 69.7/30.6
L58 6200003550 S.COL MLF1608A 4R7K-T B 71.5/28.4
L63 6200009920 S.COL C2012C-R10G-A B 72.8/34.2
L64 6200011050 S.COL C2012C-R12G-A B 72.8/22.9
L67 6200011021 S.COL ELJRF 82NJFB B 78.5/28.9
L69 6200009930 S.COL C2012C-68NG-A B 94.6/39.5
L71 6200003640 S.COL MLF1608E 100K-T B 70.6/23.7
L72 6200003640 S.COL MLF1608E 100K-T B 69.1/34.6
L82 6200004600 S.COL MLF1608D R15K-T T 85.8/12.6
L87 6200004600 S.COL MLF1608D R15K-T T 79.1/24.6
L88 6200004600 S.COL MLF1608D R15K-T T 81.3/24.7
L91 6200003550 S.COL MLF1608A 4R7K-T B 69.5/28.9
L92 6200009890 S.COL C2012C-82NG-A B 68.9/23.3
L93 6200011011 S.COL ELJRF 68NJFB B 86.9/22.9
R36 7030005570 S.RES ERJ2GEJ 820 X (82) B 87.9/17.2
R37 7030005570 S.RES ERJ2GEJ 820 X (82) B 86.6/17.7
R38 7030005570 S.RES ERJ2GEJ 820 X (82) B 87.5/18.4
R39 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 84.4/17.1
R40 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) B 13.7/4.9
R43 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 99.8/36.9
R44 7030005080 S.RES ERJ2GEJ 823 X (82 k) B 92.1/37.4
R45 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 92.1/40
R46 7030005530 S.RES ERJ2GEJ 100 X (10) T 87.8/35.8
R48 7030010010 S.RES ERJ2RKF 334 X (330 k) B 90.2/36.3
R49 7030004970 S.RES ERJ2GEJ 470 X (47) B 86.8/36.1
R51 7030008280 S.RES ERJ2GEJ 271 X (270) B 87.6/40.3
R52 7030005000 S.RES ERJ2GEJ 471 X (470) B 86.8/35.2
R53 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 84.4/33.1
R54 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 85.5/27.4
R59 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 85.2/26.2
R60 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 84.9/24.8
R61 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 86.5/21.1
R62 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 86.1/24.3
R63 7030004980 S.RES ERJ2GEJ 101 X (100) B 90.2/21.5
R64 7030004980 S.RES ERJ2GEJ 101 X (100) B 88.6/27
R65 7030004990 S.RES ERJ2GEJ 221 X (220) B 90.3/22.4
R66 7030005010 S.RES ERJ2GEJ 681 X (680) B 90.3/26
R68 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 87.5/11.6
R69 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 85.8/15.5
R72 7030005000 S.RES ERJ2GEJ 471 X (470) T 73.7/13.4
R73 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 56/13.3
R74 7030005110 S.RES ERJ2GEJ 224 X (220 k) T 59.1/32.1
R92 7030010040 S.RES ERJ2GEJ-JPW T 58.6/14.2
R99 7030005070 S.RES ERJ2GEJ 683 X (68 k) T 57/15.1
R100 7030007320 S.RES ERJ2GEJ 225 X (2.2 M) T 58.9/19.3
R101 7030005110 S.RES ERJ2GEJ 224 X (220 k) T 57.3/16.6
R102 7030009150 S.RES ERJ2GEJ 824 X (820 k) T 57.3/18.2
R107 7030007270 S.RES ERJ2GEJ 151 X (150) T 81.8/5.1
R108 7030000250 S.RES MCR10EZHJ 82 (820) B 93.5/11.7
R109 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 93.7/16.5
R111 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 84.6/22
R114 7030008280 S.RES ERJ2GEJ 271 X (270) B 80.2/25.4
R115 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 78.3/24.4
R117 7030004970 S.RES ERJ2GEJ 470 X (47) B 80.6/29.9
R118 7030005300 S.RES ERJ2GEJ 150 X (15) B 79.6/28.9
R119 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 77.8/33.9
R120 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 79.5/33
R121 7030005000 S.RES ERJ2GEJ 471 X (470) B 79.4/33.9
R130 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 71.8/25.9
R133 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 76.2/37.2
R134 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 74.4/30.6
R135 7030008370 S.RES ERJ2GEJ 561 X (560) T 73.9/32.6
R142 7030000010 S.RES MCR10EZHJ JPW (000) T 97.8/39.1
R145 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 96.6/35.7
R147 7030005290 S.RES ERJ2GEJ 682 X (6.8 k) T 96.6/34
R148 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 91.8/34
R149 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 90/40.1
R150 7030005230 S.RES ERJ2GEJ 334 X (330 k) T 88.7/40.7
R160 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 61.7/31.6
R161 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 59.4/28.3
R162 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 57.7/26.5
R163 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 57.7/28.3
R194 7030010010 S.RES ERJ2RKF 334 X (330 k) B 38.1/8.1
R195 7030010020 S.RES ERJ2RKF 154 X (150 k) B 39.3/8.1
R210 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 96.2/25.6
R211 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 53.6/26.5
R212 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 56/25.6
R213 7030007350 S.RES ERJ2GEJ 393 X (39 k) B 56/26.5
R214 7030009150 S.RES ERJ2GEJ 824 X (820 k) B 53.6/27.5
R215 7030007310 S.RES ERJ2GEJ 155 X (1.5 M) B 53.6/28.5
R216 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 53/29.9
R217 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 54.3/36.7
R218 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 54.3/35.8
R220 7030005000 S.RES ERJ2GEJ 471 X (470) B 13.1/39.4
R222 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 17/42.7
R225 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 54.4/9.7

5 - 2
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R226 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 53.1/9
R227 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 51/15.9
R228 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 60.5/7.8
R231 7030010040 S.RES ERJ2GEJ-JPW B 54.5/13.6
R232 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 60.5/13.5
R234 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 55.8/12.2
R235 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) B 59.1/7.6
R236 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 56.2/9.5
R237 7030008310 S.RES ERJ2GEJ 564 X (560 k) B 56.3/11
R242 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 56/34.9
R243 7030005000 S.RES ERJ2GEJ 471 X (470) B 60.9/21.1
R245 7030009150 S.RES ERJ2GEJ 824 X (820 k) B 60.6/28.4
R246 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 59.4/27.4
R247 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 57.7/35.8
R252 7030010040 S.RES ERJ2GEJ-JPW T 75.2/33.8
R253 7030010040 S.RES ERJ2GEJ-JPW T 74.3/33.9
R254 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 76.8/29.9
R256 7030005000 S.RES ERJ2GEJ 471 X (470) B 75.8/34.3
R258 7030008340 S.RES RR0510P-182-D (1.8 k) B 73.8/31.8
R260 7030008340 S.RES RR0510P-182-D (1.8 k) B 75.8/23.1
R262 7030008370 S.RES ERJ2GEJ 561 X (560) B 73.1/27.8
R265 7030005000 S.RES ERJ2GEJ 471 X (470) B 79/30.1
R266 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 77.4/29.9
R272 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 86.1/26.2
R277 7030010040 S.RES ERJ2GEJ-JPW B 97.7/39.1
R280 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 84/39.1
R281 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 82.9/39.1
R282 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 81.8/39.2
R283 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 51.9/28.9
R285 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 51/19.1
R293 7030010010 S.RES ERJ2RKF 334 X (330 k) B 91.1/36.4
R307 7030005070 S.RES ERJ2GEJ 683 X (68 k) T 60.4/32.4
R308 7510001661 S.TMR NTCG16 4LH 473JT T 60.5/33.6
R311 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 97.7/40
R313 7030004970 S.RES ERJ2GEJ 470 X (47) B 79/26.3
R316 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 51.8/25.3
R317 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 50.2/27.7
R318 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 51.7/26.5
R319 7510001661 S.TMR NTCG16 4LH 473JT B 50.4/25.5
R325 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 82.4/23.2
R335 7030004980 S.RES ERJ2GEJ 101 X (100) B 90.3/20.3
R336 7030005590 S.RES ERJ2GEJ 680 X (68) B 89/21.5
R337 7030004970 S.RES ERJ2GEJ 470 X (47) T 82.7/12.2
R349 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 72.1/8.2
R350 7030007280 S.RES ERJ2GEJ 331 X (330) T 90.9/25.6
R351 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 74.2/6.1
R352 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 81.3/3.5
R353 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 97.8/25.5
R354 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 100/26.1
R355 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 100/22.4
R356 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 98/24
R357 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 50.2/8.1
R358 7030005230 S.RES ERJ2GEJ 334 X (330 k) B 47/7
R359 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 45.7/7.7
R360 7030007350 S.RES ERJ2GEJ 393 X (39 k) B 46.5/13.1
R361 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 46.8/16.9
R362 7030007320 S.RES ERJ2GEJ 225 X (2.2 M) B 46.5/12.1
R701 7510001661 S.TMR NTCG16 4LH 473JT B 44.8/43
R702 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 42.9/42.5
R705 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 15.3/17.2
R706 7030005820 S.RES RR0510P-103-D (10 k) B 16.3/17.2
R708 7030011000 S.RES RR0510P-392-D (3.9 k) B 17.6/17.7
R712 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 18.9/40.9
R716 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 28.5/13.8
R717 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 28.9/15
R718 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 42/39.4
R719 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 37.8/38.2
R720 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 42/38.5
R722 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 40.2/40.3
R723 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 40.2/41.2
R724 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 36.1/36.7
R725 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 45.2/38.8
R729 7030010040 S.RES ERJ2GEJ-JPW B 32.6/37.5
R731 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 31.5/34.9
R732 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 30.2/32.1
R733 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 29.3/32.1
R734 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 28.4/32.2
R735 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 27.3/31.2
R736 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 25/31.1
R737 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 25.1/30.1
R738 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 19/23.9
R743 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 18.8/39.4
R744 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 27.2/19.8
R745 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 28.9/18.7
R746 7410001130 S.ARY EXB28V102JX B 30.9/16.3
R747 7410001130 S.ARY EXB28V102JX B 32.7/14.5
R750 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 54.1/39
R751 7030005060 S.RES ERJ2GEJ 333 X (33 k) B 70.2/41.1
R757 7030009290 S.RES ERJ2GEJ 562 X (5.6 k) B 37.7/13.3
R758 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) B 39.7/11.3
R759 7030004990 S.RES ERJ2GEJ 221 X (220) T 57.3/4.5
R765 7030007320 S.RES ERJ2GEJ 225 X (2.2 M) B 44.7/35.5
R766 7030006610 S.RES ERJ2GEJ 394 X (390 k) B 45.6/35.5
R772 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 95.4/30.9
R773 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 95.4/32.9
R774 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 95.4/33.8
R775 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 91.3/32.7
R776 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 89.7/32.3
R777 7030005230 S.RES ERJ2GEJ 334 X (330 k) T 90.9/31
R778 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 95.4/31.9
R779 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 85.8/33.6
R780 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 89.2/33.5
R783 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 78.5/12.6
R784 7030004980 S.RES ERJ2GEJ 101 X (100) T 84/15.6
S.=Surface mount
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R785 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 79.6/10.9
R786 7030005530 S.RES ERJ2GEJ 100 X (10) B 84.2/13.9
R787 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 80.5/12.7
R788 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 79.6/11.8
R789 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 71.6/14
R790 7030005170 S.RES ERJ2GEJ 474 X (470 k) T 77.6/12.7
R791 7030004970 S.RES ERJ2GEJ 470 X (47) T 84.9/15.5
R792 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 75.1/11.7
R793 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 74.1/10.4
R794 7030005060 S.RES ERJ2GEJ 333 X (33 k) T 85.6/30.6
R795 7030005060 S.RES ERJ2GEJ 333 X (33 k) T 57.5/31.5
R796 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 56.3/32.9
R797 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 55.6/30.2
R798 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 75.3/10.5
R799 7030007280 S.RES ERJ2GEJ 331 X (330) T 89.1/14.6
R800 7030004980 S.RES ERJ2GEJ 101 X (100) T 75.6/32.2
R801 7030005530 S.RES ERJ2GEJ 100 X (10) T 76.2/34.6
R806 7030004980 S.RES ERJ2GEJ 101 X (100) B 58.1/38.4
R808 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 65.5/36.8
R809 7030006290 S.RES RR0510R-333-D (33 k) B 56.3/41.7
R810 7030005860 S.RES RR0510R-823-D (82 k) B 57.7/39.6
R811 7030005100 S.RES ERJ2GEJ 154 X (150 k) B 57.7/40.5
R812 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 95.2/22.8
R813 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 95.9/24
R814 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 97.1/24.4
R815 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 95.1/20.7
R816 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 95.1/22.3
R817 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 95.1/15.4
R818 7030005080 S.RES ERJ2GEJ 823 X (82 k) T 95.1/19.1
R819 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 95.1/16.3
R820 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 96.5/15.8
R821 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 92.7/33.8
R822 7030007060 S.RES ERJ2GEJ 684X (680 k) T 80.2/27.4
R823 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 77.4/23.7
R824 7210003061 VAR TP76N00N-15F-A103-2251A
R825 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 41.8/34.9
R826 7030009270 S.RES ERJ2GEJ 821 X (820) B 56.3/8.5
R829 7030004970 S.RES ERJ2GEJ 470 X (47) B 79.4/34.8
R830 7030011000 S.RES RR0510P-392-D (3.9 k) B 74.9/34.3
R831 7030011000 S.RES RR0510P-392-D (3.9 k) B 74.9/23.1
R832 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 84.6/22.9
R833 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 101.5/32.9
R834 7030010040 S.RES ERJ2GEJ-JPW T 98.8/7.9
R837 7030010040 S.RES ERJ2GEJ-JPW T 98.6/12.3
R838 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 13.1/32.4
R839 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 10.3/36.8
R840 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 56.1/12.4
R847 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 83.7/26.2
R849 7030006000 S.RES RR0510P-222-D (2.2 k) B 57.2/41.7
R851 7030000020 S.RES MCR10EZHJ 1 (010) B 99.1/4
R852 7030000020 S.RES MCR10EZHJ 1 (010) B 95.4/4
R853 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 16.7/21.8
R854 7030005230 S.RES ERJ2GEJ 334 X (330 k) B 45.7/16
R855 7030007350 S.RES ERJ2GEJ 393 X (39 k) B 15.7/40.9
R856 7030011000 S.RES RR0510P-392-D (3.9 k) B 17/5.6
R857 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) B 13.7/5.8
R858 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 65.8/7.8
R859 7030000020 S.RES MCR10EZHJ 1 (010) B 93.4/4.2
R860 7030000020 S.RES MCR10EZHJ 1 (010) B 97.3/4
R861 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 26.1/28
R862 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 23.6/25.5
R863 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 23.6/26.5
R864 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 23.6/27.5
R865 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 23.6/28.5
R866 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 26/19.1
R867 7030010040 S.RES ERJ2GEJ-JPW T 60.1/13.7
R868 7030005070 S.RES ERJ2GEJ 683 X (68 k) T 57.3/12.9
R870 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 53.5/10.7
R871 7030011910 S.RES ERJ2GEJ 106 X (10 M) B 51/22
R872 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 64.1/33.7
R873 7510001770 S.TMR NTCG10 4LH 473JT B 51/17.5
R874 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 90/13
C37 4550006250 S.TAN TEESVA 1A 106M8R B 82/12.1
C41 4030017390 S.CER ECJ0EC1H180J B 87.8/14.7
C44 4030017460 S.CER ECJ0EB1E102K B 89/11.3
C47 4030017460 S.CER ECJ0EB1E102K B 85.7/17.7
C48 4030017460 S.CER ECJ0EB1E102K B 87.4/16
C49 4550007090 S.TAN TEESVA 1A 226M8R B 32.4/3.4
C50 4510009090 S.ELE EEE1HS0R1SR B 19.3/9.7
C51 4030017460 S.CER ECJ0EB1E102K B 13.7/3.1
C52 4030018860 S.CER ECJ0EB0J105K B 13.7/4
C57 4030017460 S.CER ECJ0EB1E102K B 94.1/31.3
C58 4030017620 S.CER ECJ0EC1H100C B 98.1/36.9
C60 4030017460 S.CER ECJ0EB1E102K B 102/38.2
C61 4030017460 S.CER ECJ0EB1E102K T 90.2/26.5
C62 4030017390 S.CER ECJ0EC1H180J B 92.6/38.7
C65 4030017460 S.CER ECJ0EB1E102K B 91.3/38.7
C66 4030018860 S.CER ECJ0EB0J105K B 84.6/36.2
C67 4030017460 S.CER ECJ0EB1E102K B 88/35.8
C68 4030017460 S.CER ECJ0EB1E102K B 88.5/40.3
C69 4030017460 S.CER ECJ0EB1E102K B 91.1/34.8
C71 4030017460 S.CER ECJ0EB1E102K B 85.1/34.4
C73 4030017560 S.CER ECJ0EC1H2R5B B 86.8/34.3
C75 4030017460 S.CER ECJ0EB1E102K B 85.9/28.6
C78 4030017390 S.CER ECJ0EC1H180J B 87.2/26.7
C80 4030017630 S.CER ECJ0EC1H120J B 88.7/20.3
C81 4030017460 S.CER ECJ0EB1E102K B 90.3/24.2
C82 4030017460 S.CER ECJ0EB1E102K B 89.5/33.9
C83 4030017460 S.CER ECJ0EB1E102K T 86.4/17.1
C84 4030017460 S.CER ECJ0EB1E102K B 90.2/26.9
C85 4030017620 S.CER ECJ0EC1H100C B 90.3/25.1
C86 4030017630 S.CER ECJ0EC1H120J T 86.6/21.4

5 - 3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C87 4030017460 S.CER ECJ0EB1E102K T 89.1/13
C90 4030017460 S.CER ECJ0EB1E102K T 84.3/13.4
C93 4030017460 S.CER ECJ0EB1E102K T 73.5/14.6
C95 4030016790 S.CER ECJ0EB1C103K T 54.7/12.8
C97 4030016790 S.CER ECJ0EB1C103K B 61.4/16.5
C110 4030016930 S.CER ECJ0EB1A104K B 84.2/39.2
C115 4030016930 S.CER ECJ0EB1A104K T 59.8/19.5
C120 4030017460 S.CER ECJ0EB1E102K B 38.1/5.8
C121 4550007750 S.TAN TEESVA 1V 225M8R B 39.7/4.4
C127 4030017460 S.CER ECJ0EB1E102K T 99.8/39.3
C130 4550007100 S.TAN TEESVC 1A 107M12R T 78.2/7.9
C150 4030017640 S.CER ECJ0EC1H150J B 79.5/22.6
C151 4030017610 S.CER ECJ0EC1H090C B 78.1/25.6
C152 4030017460 S.CER ECJ0EB1E102K B 79.5/24.2
C153 4030017460 S.CER ECJ0EB1E102K B 78.3/32.7
C155 4030017660 S.CER ECJ0EC1H330J B 78.9/27.7
C156 4030017460 S.CER ECJ0EB1E102K B 80.7/33.4
C168 4550000560 S.TAN TEESVA 1V 334M8R T 70.5/30
C169 4550002980 S.TAN TEESVA 1C 225M8R T 70.5/32.1
C171 4030017460 S.CER ECJ0EB1E102K B 80.3/26.3
C172 4030017460 S.CER ECJ0EB1E102K T 76.9/26.8
C173 4550007090 S.TAN TEESVA 1A 226M8R T 70.5/27.9
C174 4030017460 S.CER ECJ0EB1E102K T 76.6/36
C176 4030016930 S.CER ECJ0EB1A104K B 40.4/8.1
C184 4550007770 S.TAN TEESVB2 1C 336M8R T 100.7/42.2
C186 4030017460 S.CER ECJ0EB1E102K T 97.6/34
C188 4550007260 S.TAN F931C475MAABMA T 99.2/35.5
C191 4030017460 S.CER ECJ0EB1E102K B 84.9/31.8
C193 4030017460 S.CER ECJ0EB1E102K B 85/28.6
C195 4550007100 S.TAN TEESVC 1A 107M12R B 98.1/18.4
C196 4030017460 S.CER ECJ0EB1E102K T 97/43.6
C197 4030016790 S.CER ECJ0EB1C103K T 56.7/23.6
C202 4030017490 S.CER C1608 JB 1A 105K-T B 53.7/25.4
C221 4550007100 S.TAN TEESVC 1A 107M12R B 101.8/18.4
C223 4030017490 S.CER C1608 JB 1A 105K-T B 94.1/25.4
C224 4030016930 S.CER ECJ0EB1A104K B 61.7/33.2
C225 4030016950 S.CER ECJ0EB1A473K B 62.9/33.7
C226 4030017770 S.CER ECJ0EB1E332K B 56/36.7
C227 4030018240 S.CER ECJ0EB1E562K B 54.3/34.9
C228 4030018140 S.CER ECJ0EB1H391K B 56/35.8
C231 4030017460 S.CER ECJ0EB1E102K T 58.5/12.9
C235 4030017570 S.CER ECJ0EC1H040B B 101.5/35
C237 4030017460 S.CER ECJ0EB1E102K B 11.3/39.4
C238 4030018860 S.CER ECJ0EB0J105K B 14/42.7
C239 4030016950 S.CER ECJ0EB1A473K B 16/42.7
C240 4030017460 S.CER ECJ0EB1E102K B 15/42.7
C241 4030017460 S.CER ECJ0EB1E102K B 13/42.7
C242 4030016790 S.CER ECJ0EB1C103K B 54.7/10.9
C243 4030017460 S.CER ECJ0EB1E102K B 8.2/40.5
C245 4030017780 S.CER ECJ0EB1E472K B 51.8/7.5
C246 4030017460 S.CER ECJ0EB1E102K B 59.5/6.2
C247 4550006250 S.TAN TEESVA 1A 106M8R B 63.4/9.7
C250 4550007770 S.TAN TEESVB2 1C 336M8R T 99.9/14.9
C251 4030016930 S.CER ECJ0EB1A104K B 58.3/8.5
C254 4030016930 S.CER ECJ0EB1A104K B 56.1/13.6
C255 4030016930 S.CER ECJ0EB1A104K B 61.5/7.8
C256 4550007260 S.TAN F931C475MAABMA B 63.5/12
C257 4030017760 S.CER ECJ0EB1H222K B 60.4/6.1
C258 4030018090 S.CER ECJ0EB1C822K B 57.7/36.7
C259 4030016930 S.CER ECJ0EB1A104K B 54.5/12.6
C260 4030016790 S.CER ECJ0EB1C103K B 61.9/15.1
C261 4030017700 S.CER ECJ0EC1H151J B 57.7/34.9
C269 4030017460 S.CER ECJ0EB1E102K B 56/28.3
C273 4030017460 S.CER ECJ0EB1E102K B 93.8/9.3
C274 4030017460 S.CER ECJ0EB1E102K B 73.7/10
C288 4030017460 S.CER ECJ0EB1E102K B 33.6/36.2
C293 4030018860 S.CER ECJ0EB0J105K B 59.4/25.6
C294 4030016930 S.CER ECJ0EB1A104K B 56/27.4
C295 4030016930 S.CER ECJ0EB1A104K B 57.7/27.4
C301 4030017460 S.CER ECJ0EB1E102K T 77.1/28.6
C302 4030017510 S.CER ECJ0EC1H680J B 70.8/34.3
C306 4030017660 S.CER ECJ0EC1H330J B 72.7/31.1
C307 4030017580 S.CER ECJ0EC1H060C B 72.2/25.7
C308 4030017460 S.CER ECJ0EB1E102K T 75.5/30.2
C309 4030017460 S.CER ECJ0EB1E102K T 74.6/29
C310 4030017660 S.CER ECJ0EC1H330J B 75.2/33.1
C311 4030017680 S.CER ECJ0EC1H820J B 73.6/24.5
C312 4030017460 S.CER ECJ0EB1E102K B 73.9/30.5
C313 4030017460 S.CER ECJ0EB1E102K B 75.8/26.6
C315 4030017400 S.CER ECJ0EC1H220J B 74/25.7
C316 4030017540 S.CER ECJ0EC1HR75B B 76.2/30.2
C317 4030017540 S.CER ECJ0EC1HR75B B 76.8/26.6
C319 4030017460 S.CER ECJ0EB1E102K B 77.9/31.1
C323 4030016790 S.CER ECJ0EB1C103K B 90.3/23.3
C325 4030017360 S.CER ECJ0EC1H030B B 88.1/33
C326 4030017360 S.CER ECJ0EC1H030B B 87.1/29.6
C327 4030017460 S.CER ECJ0EB1E102K B 96.2/41.1
C328 4030017460 S.CER ECJ0EB1E102K B 98.3/41.2
C329 4030017350 S.CER ECJ0EC1H020B B 97.7/38.2
C330 4030017780 S.CER ECJ0EB1E472K B 52/27.7
C331 4030016790 S.CER ECJ0EB1C103K B 60.6/26.8
C335 4030017670 S.CER ECJ0EC1H390J B 73.1/26.9
C336 4030017450 S.CER ECJ0EB1E271K B 72/24.5
C338 4030017660 S.CER ECJ0EC1H330J B 72.6/32.3
C355 4030018860 S.CER ECJ0EB0J105K T 60.2/15.1
C361 4030016790 S.CER ECJ0EB1C103K B 89.4/40.3
C364 4030017460 S.CER ECJ0EB1E102K B 93/37.5
C365 4030017460 S.CER ECJ0EB1E102K T 87.3/37
C381 4030017460 S.CER ECJ0EB1E102K T 56/16.2
C390 4030016790 S.CER ECJ0EB1C103K T 86.7/15.5
C391 4030018860 S.CER ECJ0EB0J105K T 87.8/14.5
C394 4030017680 S.CER ECJ0EC1H820J T 86/14.3
C409 4030017460 S.CER ECJ0EB1E102K B 101.5/37.3
C410 4030017460 S.CER ECJ0EB1E102K B 96.8/35.9
S.=Surface mount
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C411 4030017460 S.CER ECJ0EB1E102K T 97/37.7
C412 4030017460 S.CER ECJ0EB1E102K B 94.8/37.3
C413 4030017460 S.CER ECJ0EB1E102K B 101.6/26.1
C414 4030017460 S.CER ECJ0EB1E102K T 85.5/26.6
C415 4030017460 S.CER ECJ0EB1E102K B 83.7/24.6
C416 4030017460 S.CER ECJ0EB1E102K B 84.2/35
C417 4030017460 S.CER ECJ0EB1E102K B 83.7/32.2
C420 4030017420 S.CER ECJ0EC1H470J T 80/4
C433 4030016930 S.CER ECJ0EB1A104K B 97.1/24
C434 4030016930 S.CER ECJ0EB1A104K T 95.5/14.2
C435 4030016960 S.CER ECJ0EB1C183K B 50.4/7.1
C436 4030016960 S.CER ECJ0EB1C183K B 48.6/8.1
C437 4030017730 S.CER ECJ0EB1E471K B 47/8.1
C439 4030016790 S.CER ECJ0EB1C103K B 45.9/14.4
C602 4030017460 S.CER ECJ0EB1E102K B 10.7/10.7
C604 4030017460 S.CER ECJ0EB1E102K B 44.5/7.6
C621 4030017430 S.CER ECJ0EC1H101J B 24.4/17.7
C622 4030017430 S.CER ECJ0EC1H101J B 24.4/18.6
C623 4030017430 S.CER ECJ0EC1H101J B 24.4/16.8
C625 4030016930 S.CER ECJ0EB1A104K B 42.6/36.4
C626 4030017460 S.CER ECJ0EB1E102K B 45.2/39.7
C632 4030017460 S.CER ECJ0EB1E102K B 24.4/21.3
C633 4030017460 S.CER ECJ0EB1E102K B 53.5/40.2
C636 4030017460 S.CER ECJ0EB1E102K B 24.4/20.4
C637 4030017430 S.CER ECJ0EC1H101J B 26.9/33.2
C638 4030017430 S.CER ECJ0EC1H101J B 26.9/34.1
C639 4030017430 S.CER ECJ0EC1H101J T 72.1/9.8
C640 4030017460 S.CER ECJ0EB1E102K B 39/38.8
C641 4030017460 S.CER ECJ0EB1E102K B 24.4/19.5
C642 4030016790 S.CER ECJ0EB1C103K B 60.6/25.2
C645 4030017460 S.CER ECJ0EB1E102K B 41/42.5
C646 4030017460 S.CER ECJ0EB1E102K B 37.3/35.7
C647 4030016930 S.CER ECJ0EB1A104K B 41.9/42.5
C648 4510008580 S.ELE EEE0JA470SR B 10.9/21.5
C649 4030016790 S.CER ECJ0EB1C103K B 17.6/16.7
C650 4030016790 S.CER ECJ0EB1C103K B 23.1/21.2
C651 4030016930 S.CER ECJ0EB1A104K B 14.4/17.2
C656 4510008530 S.ELE EEE1HA2R2SR B 10.5/7.7
C657 4030016790 S.CER ECJ0EB1C103K B 21.7/8.4
C658 4030016930 S.CER ECJ0EB1A104K B 33.3/34.9
C659 4510008580 S.ELE EEE0JA470SR B 10.9/14.1
C660 4030016790 S.CER ECJ0EB1C103K B 23.3/40.8
C661 4030017460 S.CER ECJ0EB1E102K B 17.9/40.9
C663 4030016790 S.CER ECJ0EB1C103K B 29.3/36.5
C664 4030016790 S.CER ECJ0EB1C103K B 11.6/17.8
C667 4030017400 S.CER ECJ0EC1H220J B 31.4/36.7
C668 4030017400 S.CER ECJ0EC1H220J B 31.4/37.8
C669 4030016930 S.CER ECJ0EB1A104K B 29.1/34.4
C670 4030016930 S.CER ECJ0EB1A104K B 31.6/33.5
C671 4030016930 S.CER ECJ0EB1A104K B 39.9/37.1
C672 4030016790 S.CER ECJ0EB1C103K B 36.1/35.8
C673 4030016930 S.CER ECJ0EB1A104K B 39.7/42.5
C674 4030017460 S.CER ECJ0EB1E102K B 40.2/38.5
C675 4030016790 S.CER ECJ0EB1C103K B 39/37.2
C676 4030016790 S.CER ECJ0EB1C103K B 41.4/36.7
C678 4030016790 S.CER ECJ0EB1C103K B 40.2/39.4
C679 4030017480 S.CER C1608 JB 1A 474K-T B 43.6/35.2
C680 4030017480 S.CER C1608 JB 1A 474K-T B 47.3/35.2
C681 4030017480 S.CER C1608 JB 1A 474K-T B 47.3/34
C682 4030017480 S.CER C1608 JB 1A 474K-T B 47.3/32.8
C683 4030017460 S.CER ECJ0EB1E102K B 29.4/13.8
C684 4030017460 S.CER ECJ0EB1E102K B 27/32.2
C685 4030016930 S.CER ECJ0EB1A104K B 34.9/14
C686 4030016930 S.CER ECJ0EB1A104K B 40.9/33.9
C690 4030016930 S.CER ECJ0EB1A104K B 54.4/40.2
C691 4030017730 S.CER ECJ0EB1E471K B 71.4/40.9
C692 4030017420 S.CER ECJ0EC1H470J B 72.6/40.9
C698 4030016930 S.CER ECJ0EB1A104K B 36/8
C699 4030017460 S.CER ECJ0EB1E102K B 37.1/8
C706 4030017460 S.CER ECJ0EB1E102K T 102.2/40.1
C708 4030017460 S.CER ECJ0EB1E102K T 78.2/42.1
C718 4030017460 S.CER ECJ0EB1E102K B 101.5/32
C719 4030017460 S.CER ECJ0EB1E102K B 101.5/33.8
C720 4030017460 S.CER ECJ0EB1E102K B 97.7/33.1
C721 4030016930 S.CER ECJ0EB1A104K T 90/31
C722 4030016930 S.CER ECJ0EB1A104K T 85.8/35.2
C723 4030017460 S.CER ECJ0EB1E102K T 83.8/7.4
C724 4030016930 S.CER ECJ0EB1A104K T 79.6/21.7
C725 4030016930 S.CER ECJ0EB1A104K T 78.5/21.7
C726 4030016790 S.CER ECJ0EB1C103K T 75.3/17.5
C727 4030016790 S.CER ECJ0EB1C103K T 75.3/18.4
C728 4030017670 S.CER ECJ0EC1H390J T 76.2/20.3
C729 4030017600 S.CER ECJ0EC1H080C T 75.3/20.3
C731 4030017680 S.CER ECJ0EC1H820J T 82.4/21.6
C732 4030018860 S.CER ECJ0EB0J105K T 84/17.2
C733 4030016790 S.CER ECJ0EB1C103K T 85.7/29
C734 4030016950 S.CER ECJ0EB1A473K T 81.2/11.5
C735 4550007090 S.TAN TEESVA 1A 226M8R T 85.1/20.2
C736 4030017730 S.CER ECJ0EB1E471K T 77.3/11.8
C737 4030017730 S.CER ECJ0EB1E471K T 76/11.7
C738 4030016930 S.CER ECJ0EB1A104K T 85.2/17.3
C739 4030016790 S.CER ECJ0EB1C103K T 77.3/10.9
C740 4550007260 S.TAN F931C475MAABMA T 84.3/33.9
C741 4030016790 S.CER ECJ0EB1C103K T 57.5/30.6
C742 4030016790 S.CER ECJ0EB1C103K T 57.5/32.4
C743 4030017460 S.CER ECJ0EB1E102K T 84.3/14.3
C744 4030016790 S.CER ECJ0EB1C103K T 73.9/12.5
C745 4030017460 S.CER ECJ0EB1E102K T 81.5/30.1
C746 4030018860 S.CER ECJ0EB0J105K T 57.5/33.3
C747 4030018860 S.CER ECJ0EB0J105K T 77.1/34.7
C748 4030017460 S.CER ECJ0EB1E102K T 77.1/37.2
C749 4030016930 S.CER ECJ0EB1A104K T 75/37.6
C750 4030016790 S.CER ECJ0EB1C103K B 56.3/40.1
C752 4030016790 S.CER ECJ0EB1C103K B 64.6/36.8

5 - 4
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C753 4030016930 S.CER ECJ0EB1A104K B 58.1/41.7
C754 4550006250 S.TAN TEESVA 1A 106M8R T 100.1/24.7
C755 4030016930 S.CER ECJ0EB1A104K T 96.5/14.2
C756 4030017680 S.CER ECJ0EC1H820J T 79.7/25.7
C757 4030016790 S.CER ECJ0EB1C103K T 78.1/25.9
C758 4030016790 S.CER ECJ0EB1C103K T 75.7/23.6
C759 4030017380 S.CER ECJ0EC1H050B T 79.4/29.7
C769 4030017460 S.CER ECJ0EB1E102K B 77.8/34.8
C770 4030017420 S.CER ECJ0EC1H470J B 96.8/34.2
C771 4030017770 S.CER ECJ0EB1E332K T 71.6/15.2
C773 4030017570 S.CER ECJ0EC1H040B B 71.8/31.1
C774 4030017350 S.CER ECJ0EC1H020B B 71/32.5
C775 4030017570 S.CER ECJ0EC1H040B B 73.1/25.7
C776 4030017640 S.CER ECJ0EC1H150J B 88.1/22.4
C777 4030017460 S.CER ECJ0EB1E102K B 84.9/23.9
C778 4030016930 S.CER ECJ0EB1A104K T 98.8/7
C779 4030017460 S.CER ECJ0EB1E102K B 7.2/35.4
C780 4030017520 S.CER ECJ0EC1H0R3B B 98.9/39.5
C781 4030017570 S.CER ECJ0EC1H040B B 93/40
C782 4030017350 S.CER ECJ0EC1H020B B 90.3/40.3
C783 4030017590 S.CER ECJ0EC1H070C B 71.3/25.7
C784 4030017590 S.CER ECJ0EC1H070C B 69.2/26.1
C785 4030016790 S.CER ECJ0EB1C103K T 53.7/12.9
C791 4030017530 S.CER ECJ0EC1H0R5B B 80.5/27.5
C792 4030016790 S.CER ECJ0EB1C103K B 34.8/37
C793 4030016790 S.CER ECJ0EB1C103K B 90.3/29.2
C794 4030017460 S.CER ECJ0EB1E102K B 86.4/22
C795 4030016790 S.CER ECJ0EB1C103K B 84.6/15.4
C796 4030017460 S.CER ECJ0EB1E102K B 96.6/26.9
C797 4030017780 S.CER ECJ0EB1E472K B 91.8/27.1
C799 4030017460 S.CER ECJ0EB1E102K B 51.1/27.7
C800 4030016790 S.CER ECJ0EB1C103K T 90.9/14.7
J2 6450000131 CNR HSJ1102-018540
J3 6510016381 S.CNR 52465-1071 B 20/32.1
J4 6510021901 S.CNR BM02B-ASRS-TF (LF) (SN) T 89.4/4.5
J5 6450002250 CNR HSJ1456-010320
DS1 5030003070 LCD S11313 <SUC>
DS2 5040002961 S.LED SML-A12MT T86J T 57.3/5.8
DS3 5040002961 S.LED SML-A12MT T86J T 57.3/40.3
MC1 7700002760 MIC EM6027P-46C33-G-01
S23 2260002840 SW SKHLLFA010
S24 2230001060 S.SW EVQ-PUL 02K T 102.2/36.1
S25 2260002800 S.SW SW-167 (SKQTLAE010) B 99.5/44.2
S26 2260002800 S.SW SW-167 (SKQTLAE010) B 61/44.2
S27 2260002800 S.SW SW-167 (SKQTLAE010) B 51.5/44.2
EP5 6910012350 S.BEA MMZ1608Y 102BT T 84.4/3.8
EP7 6910012350 S.BEA MMZ1608Y 102BT T 78.1/5.4
EP8 6910018460 S.BEA MMZ1005Y102C-T B 73.7/11.4
EP11 6910014730 S.BEA MPZ2012S331A-T T 67.8/7.3
EP13 6910015370 S.BEA ACZ1005Y-102-T B 74.2/29.2
EP14 6910015370 S.BEA ACZ1005Y-102-T B 74.9/26.6
EP19 6910014730 S.BEA MPZ2012S331A-T T 68.2/5.5
EP20 8930063020 LCT SRCN-2721-SP-N-W
S.=Surface mount
[PA UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC27 1110006490 S.IC LMV321IDCKR B 17.2/22
Q2 1560001371 S.FET RD12MVS1-T112 B 22.6/8.3
Q3 1560001241 S.FET RD01MUS1-T113 B 16/7.9
Q4 1530002241 S.TR 2SC3775-3-TB-E T 6/10.4
D1 1710000871 S.DIO HVU131TRF-E T 35.2/14.2
D2 1790001240 S.DIO MA2S728-(TX) B 30.8/11.6
D3 1790001240 S.DIO MA2S728-(TX) B 28.2/13.2
D8 1710000871 S.DIO HVU131TRF-E B 27.4/19.7
D74 1790001240 S.DIO MA2S728-(TX) T 29.1/16.9
D75 1790001240 S.DIO MA2S728-(TX) B 26.4/15.7
D76 1790001240 S.DIO MA2S728-(TX) B 29.5/10.8
D77 1790001240 S.DIO MA2S728-(TX) T 28.2/18.6
L3 6200013110 S.COL 0.35-1.6-9TL 52.0N <COMO> T 32.8/17.5
L4 6200001520 S.COL MLF2012D R82K-T B 36.1/14.9
L5 6200012460 S.COL 0.30-1.7-8TL 54N <COMO> T 32.8/11.9
L6 6200012560 S.COL 0.30-0.7-3TR 3.4N <COMO> T 21.6/16.6
L7 6200013030 S.COL 0.35-1.6-6TL 31.0N <COMO> T 18.5/16.7
L8 6200005711 S.COL ELJRE 27NGFA B 17.4/14
L10 6200005731 S.COL ELJRE 39NGFA B 15.3/14.1
L11 6200005741 S.COL ELJRE 47NGFA B 11/10.3
L12 6200007001 S.COL ELJRE 82NGFA B 8.8/9.5
L15 6200002380 S.COL LQW31HN56NJ03L B 29.2/15.9
L46 6200012870 S.COL 0.30-1.4-5TR 23.5N <COMO> T 25.3/13.8
R2 7030000290 S.RES MCR10EZHJ 180 (181) B 33.9/12
R3 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 26.3/20.6
R4 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 27.2/20.3
R5 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 20.1/21.6
R6 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 16.9/19
R7 7030005290 S.RES ERJ2GEJ 682 X (6.8 k) B 28.4/11.2
R8 7030005290 S.RES ERJ2GEJ 682 X (6.8 k) B 26.3/17.4
R9 7030005000 S.RES ERJ2GEJ 471 X (470) B 27.2/13.2
R10 7030005000 S.RES ERJ2GEJ 471 X (470) B 31.3/8.1
R13 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 20.1/22.5
R14 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 20.6/18.6
R15 7030009200 S.RES ERJ2GEJ 390 X (39) B 19.2/15.8
R16 7030005060 S.RES ERJ2GEJ 333 X (33 k) B 20.1/17.4
R17 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 9.2/13.9
R18 7030004990 S.RES ERJ2GEJ 221 X (220) B 13.1/11.1
R19 7510001461 S.TMR NTCG16 3NH 471JT B 7.7/11.6
R20 7030000270 S.RES MCR10EZHJ 120 (121) B 6.4/8.6
R21 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 5.5/12.6
R22 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 7.2/14
R219 7030000070 S.RES MCR10EZHJ 2.7 (2R7) B 19.1/13.4
R250 7030005530 S.RES ERJ2GEJ 100 X (10) T 5.6/13.6
R320 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) B 21/17.4
R321 7510001661 S.TMR NTCG16 4LH 473JT B 22.1/17.9
R322 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 23.4/17
R323 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 23.1/18.2
R331 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 5.6/12.8
R332 7030010040 S.RES ERJ2GEJ-JPW B 5.8/11.8
R333 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 5.8/10.9
R767 7030005080 S.RES ERJ2GEJ 823 X (82 k) B 15.7/20.1
R768 7030004980 S.RES ERJ2GEJ 101 X (100) B 15.4/22
R770 7030005000 S.RES ERJ2GEJ 471 X (470) T 28/16.6
R771 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) B 13.1/10.2
R843 7030000290 S.RES MCR10EZHJ 180 (181) B 33.9/9.9
R844 7030005290 S.RES ERJ2GEJ 682 X (6.8 k) T 26.8/18.9
R845 7030000010 S.RES MCR10EZHJ JPW (000) B 13.2/17.2
R846 7030000010 S.RES MCR10EZHJ JPW (000) T 15.9/15.6
C5 4030017650 S.CER ECJ0EC1H270J T 30.9/18.3
C6 4030017360 S.CER ECJ0EC1H030B T 34.7/16.6
C7 4030017400 S.CER ECJ0EC1H220J T 30.7/16.6
C8 4030017460 S.CER ECJ0EB1E102K T 32.3/14.8
C9 4030006860 S.CER C1608 JB 1H 102K-T B 34/13.5
C10 4030017460 S.CER ECJ0EB1E102K T 35.1/12.5
C11 4030017550 S.CER ECJ0EC1H1R5B B 30.8/9.7
C13 4030017400 S.CER ECJ0EC1H220J T 31.1/9.5
C14 4030007050 S.CER C1608 CH 1H 220J-T T 29.2/13.8
C15 4030017550 S.CER ECJ0EC1H1R5B B 29.5/14
C19 4030007170 S.CER C1608 CH 1H 221J-T T 29.2/15
C23 4030017760 S.CER ECJ0EB1H222K B 19.9/23.5
C24 4030017460 S.CER ECJ0EB1E102K T 12.4/14.7
C25 4030017460 S.CER ECJ0EB1E102K B 19/17.4
C26 4550007750 S.TAN TEESVA 1V 225M8R T 13.9/15.6
C28 4030017730 S.CER ECJ0EB1E471K T 17/19.9
C29 4030017460 S.CER ECJ0EB1E102K B 7.5/7
C30 4030017670 S.CER ECJ0EC1H390J B 17/12.3
C31 4030017460 S.CER ECJ0EB1E102K B 13.8/18.6
C32 4030017460 S.CER ECJ0EB1E102K B 11.3/11.6
C33 4030017460 S.CER ECJ0EB1E102K B 5.8/10
C34 4030017620 S.CER ECJ0EC1H100C B 10.4/11.6
C35 4030017500 S.CER ECJ0EC1H560J B 9.2/11.2
C53 4030007050 S.CER C1608 CH 1H 220J-T B 32.5/15.6
C54 4030017400 S.CER ECJ0EC1H220J B 28.8/18.5
C56 4030017460 S.CER ECJ0EB1E102K B 25.9/18.3
C98 4030017460 S.CER ECJ0EB1E102K B 31.8/12.3
C212 4030007080 S.CER C1608 CH 1H 390J-T T 27.3/13.9
C296 4030017460 S.CER ECJ0EB1E102K T 20/20
C297 4030007150 S.CER C1608 CH 1H 151J-T T 23.3/13.9
C350 4030016790 S.CER ECJ0EB1C103K B 14.5/12.8
C352 4030016790 S.CER ECJ0EB1C103K T 16.8/23.4
C429 4030017460 S.CER ECJ0EB1E102K T 17.9/14
C712 4030017420 S.CER ECJ0EC1H470J B 17.6/20.3
C713 4030017550 S.CER ECJ0EC1H1R5B T 29.7/18.9

5 - 5
M.=Mou
n
[PA UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C717 4030017460 S.CER ECJ0EB1E102K T 20.3/21.9
C764 4030016930 S.CER ECJ0EB1A104K T 18.8/14
C765 4030017460 S.CER ECJ0EB1E102K B 11.6/15.5
C766 4030017460 S.CER ECJ0EB1E102K B 19.4/19.8
C770 4030017460 S.CER ECJ0EB1E102K B 5.9/14.2
C790 4030017460 S.CER ECJ0EB1E102K T 5.3/14.5
C791 4030007110 S.CER C1608 CH 1H 680J-T B 25.2/12.9
C792 4030017640 S.CER ECJ0EC1H150J T 25.3/15.6
C793 4030017420 S.CER ECJ0EC1H470J T 17/13.7
C794 4030017420 S.CER ECJ0EC1H470J T 11.5/14.6
C795 4030017420 S.CER ECJ0EC1H470J B 12.5/15.5
C796 4030017420 S.CER ECJ0EC1H470J B 15.6/17.2
J1 6910017680 CNR IMSA-9230B-1-04Z140-PT1
J2 6910017680 CNR IMSA-9230B-1-04Z140-PT1
J3 6910017680 CNR IMSA-9230B-1-04Z140-PT1
[ANT UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
L1 6200012910 S.COL 0.35-1.6-8TL 45.5N T 3.6/12.1
L45 6200013110 S.COL 0.35-1.6-9TL 52.0N T 3.5/8.3
R338 7030005080 S.RES ERJ2GEJ 823 X (82 k) T 3.8/14
C210 4030007050 S.CER C1608 CH 1H 220J-T T 7.5/8.3
C211 4030006980 S.CER C1608 CH 1H 070D-T T 5.6/7.2
C212 4030017350 S.CER ECJ0EC1H020B T 5.5/9.7
[DC UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C125 4030017460 S.CER ECJ0EB1E102K T 4.6/6.1
C126 4030006900 S.CER C1608 JB 1H 103K-T T 7.4/8.2
J1 6910015881 CNR 9230B-1-02Z141-PT1
EP17 6910014640 S.BEA MPZ2012S221A-T T 7.1/5.8
EP18 6910014640 S.BEA MPZ2012S221A-T T 5.8/8.2

Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
5 - 1
SECTION 5 MECHANICAL PARTS
[CHASSIS PARTS]
REF ORDER DESCRIPTION QTY.
NO. NO.
J1 6510026010 BNC-R170 1
J2 6910015860 IMSA-6277S-O2A-G 1
SP1 2510001360 K036NAX040A00-55 1
W1 8900009640 OPC-963 1
MP1 8010020410 2927 CHASSIS 1
MP2 8210024590 2927 S-FRONT PANEL (B)
(Incl. MP3, 4, 5, 6, 9, 10, 12) [IC-A14S] 1
8210024580 2927 T-FRONT PANEL (B)
(Incl. MP3, 4, 5, 6, 9, 10, 12) [IC-A14] 1
MP3 8210022790 2927 PTT PANEL 1
MP4 8930069520 2927 PTT BUTTON 1
MP5 8930074420 3074 PTT RUBBER 1
MP6 8930073610 SP NET (D) 1
MP8 8210020550 2721 REAR PANEL 1
MP9 8310070990 2927 WINDOW PLATE (B) 1
MP10 8930069510 2927 WINDOW SHEET 1
MP12 8930074360 2927 4-KEY (D) [IC-A14S] 1
8930074370 2927 KEYBOARD (A) [IC-A14] 1
MP13 8930070100 2927 MAIN SEAL (A) 1
MP14 8930063060 2721 T-RUBBER 1
MP16 8930069460 2927 SIDE PLATE 1
MP17 8930069470 2927 TOP PLATE 1
MP20 8930061880 2721 MIC SPONGE 1
MP21 8930059360 2600 RELEASE BUTTON 1
MP22 8930070362 2775 RELEASE PLATE (A)-2 1
MP23 8610007510 KNOB SPRING NO.7800 1
MP24 8610012970 KNOB N-350 (Incl. MP23) 1
MP25 8830003040 3017 ANT NUT 1
MP26 8810009561 SCREW BT B0 2X6 NI-ZK3 (BT) 2
MP27 8810009221 SCREW BT B0 2X8 NI-ZK3 (BT) 2
MP28 8810008641 0Tap 1Flat washer B0 2X4 NI-ZC3 (BT) 11
MP31 8810010430 SCREW TRUSS M3X5 SUS SSBC 1
MP32 8310066810 2927 OPTION PLATE 1
MP33 8930046020 1123 SHEET (A)-1 1
MP34 8930056540 PUSH SPRING (AH) 2
MP35 8830001701 VR NUT (Q)-1 1
MP36 8930048870 2056 A-SPONGE 1
MP37 8930070010 2893 VOL RUBBER 1
MP42 8210022780 2927 JACK PANEL 1
MP43 8810004861 SCREW PH M2X6 ZK3 2
[MAIN UNIT]
[ACCESSORIES]
[PA UNIT]
REF ORDER DESCRIPTION QTY.
NO. NO.
J2* 6450000131 HSJ1102-018540 1
J3* 6510016381 52465-1071 1
J4* 6510021901 BM02B-ASRS-TF (LF) (SN) 1
J5* 6450002250 HSJ1456-010320 1
DS1 5030003070 S11313 1
MC1 7700002760 EM6027P-46C33-G-01 1
S23 2260002840 SKHLLFA010 1
S24* 2230001060 EVQ-PUL 02K 1
S25* 2260002800 SW-167 (SKQT) 1
S26* 2260002800 SW-167 (SKQT) 1
S27* 2260002800 SW-167 (SKQT) 1
EP20 8930063020 SRCN-2721-SP-N-W 2
MP3* 8510016130 2721 VCO CASE 1
MP4 8510016120 2721 VCO COVER 1
MP5 8930069480 2927 LCD HOLDER 1
MP6 8210020570 2721 REFLECTOR 1
MP7 8930070080 WHITE SHEET (V) 1
MP8 8510017720 2927 MAIN SHIELD 1
REF ORDER DESCRIPTION QTY.
NO. NO.
J1* 6910017680 9230B-1-04Z140-PT1 1
J2* 6910017680 9230B-1-04Z140-PT1 1
J3* 6910017680 9230B-1-04Z140-PT1 1
MP1* 8410002531 2681 PA HEATSINK-1 1
MP2* 8510018750 3074 PA SHIELD PLATE 1
[ANT UNIT]
REF ORDER DESCRIPTION QTY.
NO. NO.
MP1* 8510017640 2927 ANT PLATE 1
REF ORDER DESCRIPTION QTY.
NO. NO.
EP1 3310002130 FA-B02AR 1
EP2 (Optional) BP-232N [IC-A14] only 1
EP3 (Optional) BC-179 [IC-A14]only 1
EP4 (Optional) BC-174A [USA] only 1
(Optional) BC-174E [EXP] only 1
EP5 (Optional) BP-261 except [USA-01], [EXP-01] 1
EP6 6910018620 BLACK HANDY STRAP 1
MP1 (Optional) MB-94 1
*: Refer to SECTION 7 “BOARD LAYOUTS.”
[DC UNIT]
REF ORDER DESCRIPTION QTY.
NO. NO.
J1 6910015881 9230B-1-02Z141-PT1 1

6 - 2
MP2* (C)
MP33 (C)
MP20 (C)
SP1 (C)
MP12* (C)
MAIN UNIT
MP28 (C)
MP8 (M) MP1 (M)
MP7 (M)
MP6 (M)
EP20 (M)
DS1 (M)
MP5 (M)
MP28 (C)
MP28 (C)
R824 (M)
MP4 (M)
MP28 (C)
MP28 (C)
J701 (P)
J1 (DC)
PA UNIT
DC UNIT
MP28 (C)
ANT UNIT MP1 (C)
MP801 (A)
MP17 (C)
MP35 (C)
J1 (C)
MP8 (C)
MP31 (C)
MP13 (C)
MP14 (C)
MP26 (C)
MP27 (C)
MP27 (C)
MP9 (C)
MP10 (C)
J2 (C)
J2 (M)
J3 (M)
MC1 (M)
S23 (M)
W1 (C)
MP32 (C)
UNIT abbreviations (C): CHASSIS PARTS, (M): MAIN UNIT, (P): PA UNIT, (DC): DC UNIT, (A): ANT UNIT
MP37 (C)
MP21 (C)
MP22 (C)
MP34 (C)
MP34 (C)
MP36 (C)
MP16 (C)
MP24 (C)
MP25 (C)
J702 (P)
MP9 (M)
120 (4 23/32)
3.7 (9/64)
15.4 (39/64)
53 (2 3/32)
17.8 (45/64)
32.5 (1 9/32)
38.9 (1 17/32)
1.7 (1/16)
5.2 (13/64)
1.7 (1/16)
2.4 (3/32)
167 (6 37/64)
Unit: mm (inch)
* MP2 (C), MP12 (C): The shape is depending on the version.

7 - 1
SECTION 7 BOARD LAYOUTS
• MAIN UNIT
(TOP VIEW)
• PA UNIT
(TOP VIEW)
• ANT UNIT
(TOP VIEW)
IC-A14 only
IC-A14S IC-A14
• DC UNIT
(TOP VIEW)
SP+ SP−
SP1 (CHASSIS)
CLONE
AFOUT
SPG
EXTSP
MICG
MIC
J2 J5
EXPTT
BATT +
J1 (CHASSIS)
BATT –
HV
GND
LPF
HV
TX
HV
GND
TXV
REFV
T4
POW
APC
GND
RFDETV
MOD
RX
TX
HV
GND
TXV
REFV
T4
POW
APC
GND
RFDETV
MOD
RX
[KEYLOCK]
MP8
C61
C83 C86
C87
C90
C93
C95
C115
C127
C130
C168
C169
C172
C173
C174
C184
C186
C188
C196
C197
C231
C250
C301
C308
C309
C355
C365
C381
C390
C391
C394
C411
C414
C420
C434
C639
C706
C708
C721
C722
C723
C724 C725
C726
C727
C728
C729
C731
C732
C733
C734
C735
C736
C737
C738
C739
C740
C741
C742
C743
C744
C745
C746
C747 C748
C749
C754
C755
C756
C757
C758
C759
C771
C778
C785
C800
D79
D81
D82
D88
D89
DS1
DS2
DS3
EP5
EP7
EP11
EP19
FI3
IC1
IC2
IC28
IC29
IC31
J4
L24
L82
L87
L88
MC1
Q10
Q13
Q20
Q21
Q33
Q36
Q57
Q80
Q81
Q82
Q83
Q84
Q85
Q90
R46
R68
R69
R72
R73
R74
R92
R99
R100
R101 R102
R107
R130
R133
R134
R135
R142
R145R147
R148
R149
R150
R252
R253
R254
R280 R281
R282
R307
R308
R325
R337
R349
R350
R351
R352
R759
R775
R776
R777
R779
R780
R784
R785
R787
R788
R789
R790
R791
R792
R793
R794
R795
R796
R797
R798
R799
R800
R801
R813
R814
R815 R816
R817
R818
R819
R820
R821
R822
R823
R834
R837
R840
R858
R867
R868
R874
S3
S4
S24
B6883B
H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100
V0 V5 V10 V15 V20 V25 V30 V35 V40 V45
C5
C6
C7
C8
C10
C13
C14
C19
C24
C26
C28
C212
C296
C297
C352
C429
C713
C717
C764
C790
C792
C793
C794
D1
D74
D77
L3
L5
L6
L7
L46
MP1
Q4
R3
R4
R21
R22
R250
R770
R844
R846
H0H5H10H15H20H25H30H35
V0 V5 V10 V15 V20 V25
C210
C211
C212
L1
L45
R338
B6885A
H0H5H10
V0 V5 V10 V15
C125
C126
EP17
EP18
J1
B6886
H0H5H10H15
V0 V5 V10
