USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. PFEL51016.4
Serial No.
Write the serial number in the space
above for reference.
proform.com
Serial Number
Decal
To register your product and
activate your warranty today,
go to my.proform.com.
For service at any time, go to
proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
258871
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL ..............................................................17
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
MAINTENANCE AND TROUBLESHOOTING.....................................................32
EXERCISE GUIDELINES ....................................................................34
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. The BLUETOOTH®word mark and
logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trademark
of Google Inc. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.

3
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. When connecting the power cord, plug the
power cord into a grounded circuit.
10. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
11. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
12. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should be
performed by an authorized service repre-
sentative only.
13. Keep children under age 13 and pets away
from the elliptical at all times.
14. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
15. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
16. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
17. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid in
determining heart rate trends in general.
IMPORTANT PRECAUTIONS

4
SAVE THESE INSTRUCTIONS
18. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
19. Keep your back straight while using the ellip-
tical; do not arch your back.
20. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

5
all
STANDARD SERVICE PLANS

6
Thank you for selecting the revolutionary PROFORM®
ENDURANCE 920 E elliptical. The ENDURANCE
920 E elliptical provides an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

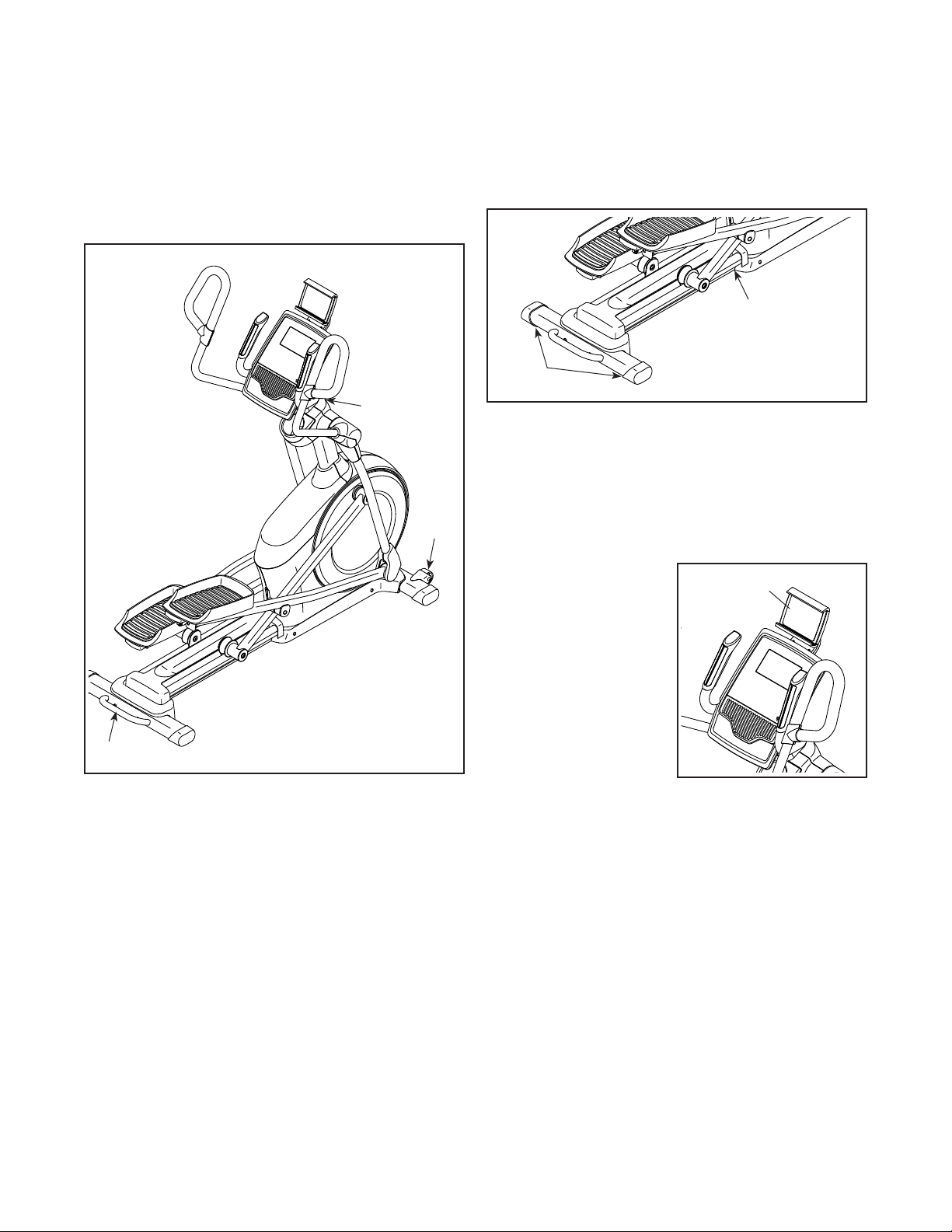

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Fan
Accessory Tray
Speakers
Upper Body Arm
Pedal
Roller
Handle
Ramp
Console
Tablet Holder
BEFORE YOU BEGIN
Wheel
Power Cord
Power Switch
Leveling Foot
Length: 5 ft. 8 in. (173 cm)
Width: 3 ft. 1 in. (94 cm)
Pedal Handle
Handlebar

7

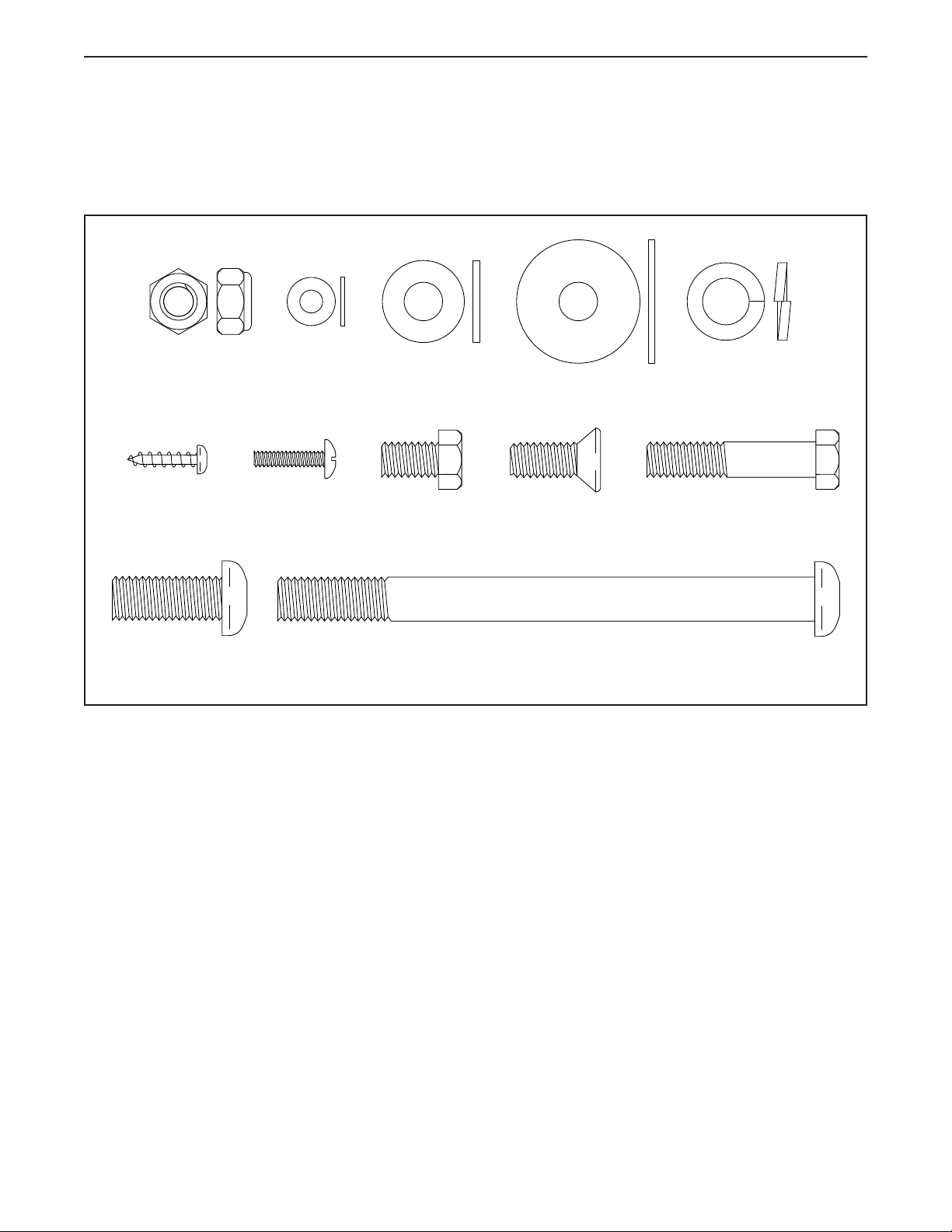

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M10 x 25mm
Screw (99)–4
M10 x 122mm Screw
(104)–4
M8 Locknut
(102)–4
M10 Split
Washer (105)–8
M8 Washer
(97)–4 M8 x 28mm
Washer (140)–2
M5 Washer
(94)–2
M4 x 16mm
Screw (101)–16
M4 x 16mm
Machine
Screw (111)–4
M8 x 13mm
Screw (82)–6
M8 x 38mm Bolt
(96)–4
M8 x 20mm
Screw (126)–2

8
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
two adjustable wrenches
one rubber mallet
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
Attach the Rear Stabilizer (2) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Then, remove the packing materials from under
the rear of the Frame (1).
2
1
2
104 105
1. Go to my.proform.com on your computer and
register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

9
3
2
106
15
3. Press the Cover Mounts (106) on the underside
of the Rear Stabilizer Cover (15) into the Rear
Stabilizer (2).
4
4. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (6) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Then, remove the packing materials from under
the front of the Frame (1).
1
6104
105

10
5
6
Avoid pinching the Main
Wire (110) and avoid
damaging the tabs (A)
A
4
1
105
105
99
99
B
110
4
4
110
B
6. Locate the wire tie (B) in the lower end of the
Upright (4). Tie the wire tie to the Main Wire
(110). Then, pull the upper end of the wire tie
until the Main Wire is routed through the Upright.
Tip: To prevent the Main Wire (110) from
falling into the Upright (4), secure the Main
Wire with the wire tie (B).
5. Tip: Avoid pinching the Main Wire (110).
Avoid damaging the indicated plastic tabs
(A). Have a second person hold the Upright (4)
on the Frame (1).
Attach the Upright (4) with four M10 x 25mm
Screws (99) and four M10 Split Washers (105);
start all the Screws, and then tighten them.
110

11
7
7. Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35).
Insert the Pivot Axle (35) through the Upright (4)
and center it. Tip: It may be helpful to use a
rubber mallet.
Next, slide a Pivot Spacer (54) onto the right
side of the Pivot Axle (35).
Then, identify the Right Upper Body Leg (60),
orient it as shown, and slide it onto the right side
of the Pivot Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
Then, tighten an M8 x 13mm Screw (82) with an
M8 x 28mm Washer (140) into each end of the
Pivot Axle (35) at the same time.
8. Identify the Right Upper Body Arm (61), orient it
as shown, and slide it onto the Right Upper Body
Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 38mm Bolts (96) and two M8 Locknuts
(102); make sure that the Locknuts are in the
hexagonal holes (C).
Repeat this step for the Left Upper Body
Arm (47).
8
C60
61
47
96
102
60
54
46
82
82
140
140
35
4
Grease

12
9
7
4
63

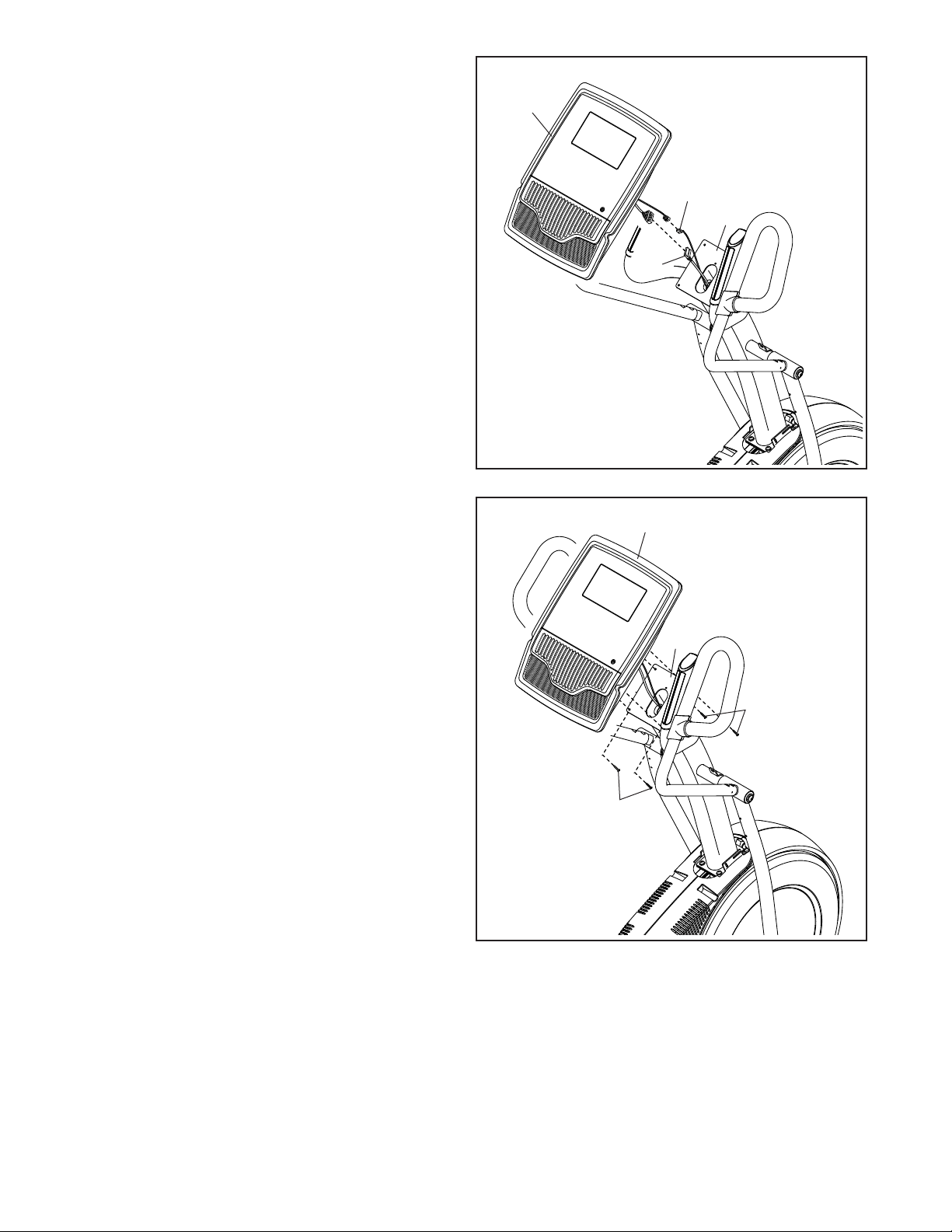

9. Untie and discard the wire tie on the Main
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (110) and to the
Sensor Wires (63).
Insert the excess wire into the Upright (4).
110
10
10. Tip: Avoid pinching the wires. Attach
the Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
7
101
101
4
Avoid pinching
the wires

13
11
Grease
126
58
59
44
82
82
97 97
58
60
46
64
Grease
12
11. Orient the Right Pedal Arm (58) as shown, and
then apply grease to the axle.
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 20mm Screw (126)
and a Retainer (55); make sure that the flat
side (D) of the Retainer is facing the Right
Roller Arm.
Repeat this step for the Left Pedal Arm (44).
12. Apply a small amount of grease to one of the
Pedal Arm Axles (64).
Next, slide an M8 Washer (97) onto an M8 x
13mm Screw (82), and tighten the Screw a few
turns into the Pedal Arm Axle (64).
While a second person holds the front end of the
Right Pedal Arm (58) inside the bracket on the
Right Upper Body Leg (60), insert the Pedal Arm
Axle (64) into both parts.
Slide an M8 Washer (97) onto another M8 x
13mm Screw (82), and tighten the Screw a few
turns into the Pedal Arm Axle (64). Then, tighten
both Screws at the same time.
Repeat this step on the other side of the
elliptical.
55 D

14
13
101
81
117
4
14
65
60
101
66
13. Orient the Rear Upright Cover (81) as shown,
and attach it to the Upright (4) with four M4 x
16mm Screws (101); start all the Screws, and
then tighten them.
Orient the Front Upright Cover (117) as shown
and press it onto the Rear Upright Cover (81).

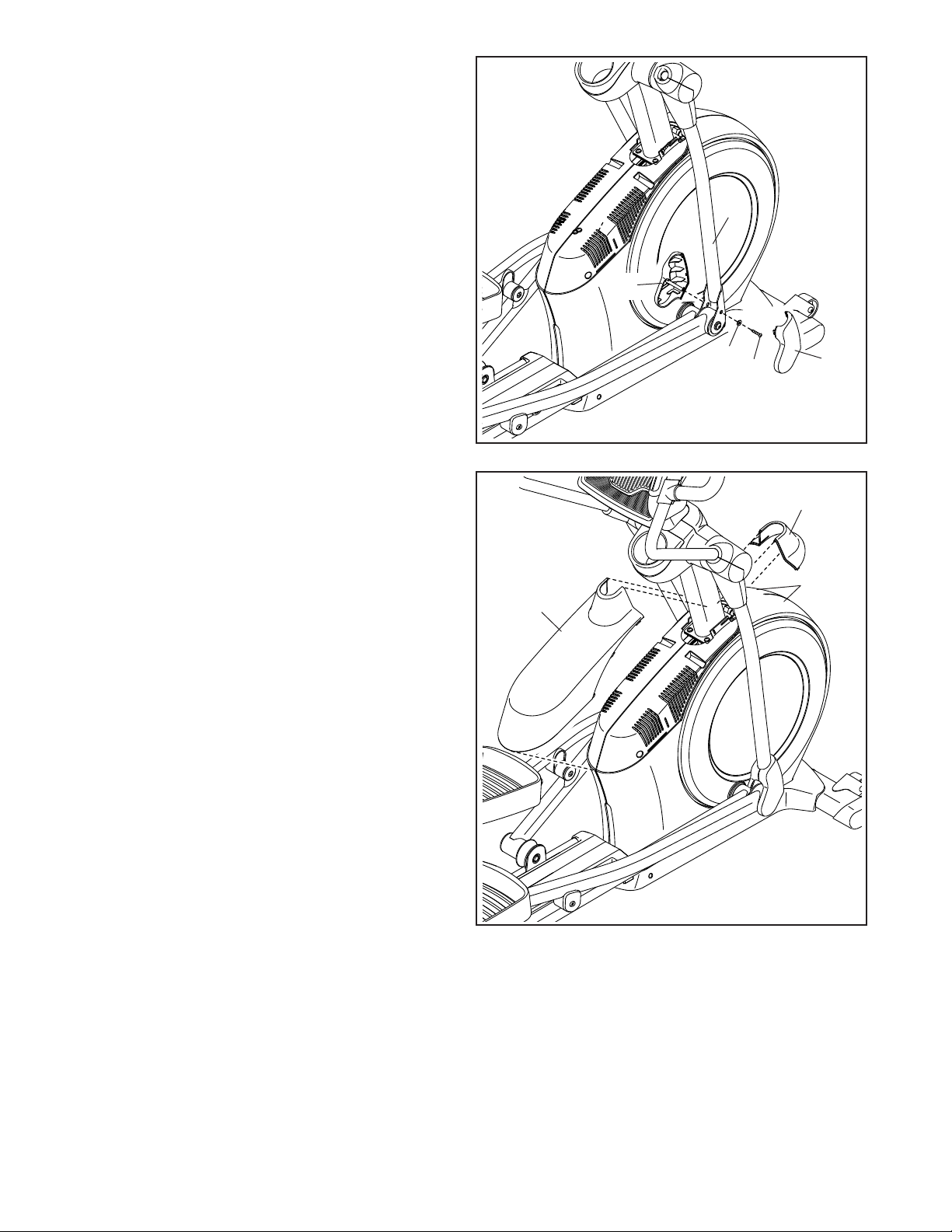

14. Identify the Right Arm Front Cover (65), orient it
as shown, and attach it to the Right Upper Body
Leg (60) with an M4 x 16mm Screw (101).
Next, identify the Right Arm Rear Cover (66),
orient it as shown, and press it onto the Right
Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.

15
60
94 101 69
15
83
75
118
73, 74
16
15. Identify the Right Leg Inner Cover (83), orient it
as shown, and attach it to the Right Upper Body
Leg (60) with an M4 x 16mm Screw (101) and an
M5 Washer (94).
Next, identify the Right Leg Outer Cover (69),
orient it as shown, and press it onto the Right
Leg Inner Cover (83).
Repeat this step on the other side of the
elliptical.
16. Orient the Shield Cover Cap (118) and the Shield
Cover (75) as shown.
First, press the Shield Cover Cap (118) into the
Left and Right Shields (73, 74).
Then, press the Shield Cover (75) into the Left
and Right Shields (73, 74).

16
17
18
19. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.
18. Attach the Tablet Holder (127) to the Console
(7) with four M4 x 16mm Machine Screws (111);
start all the Machine Screws, and then tighten
them. 7127
111
79
4
80
101
101
101
17. Orient the Rear Console Cover (80) as shown
and attach it to the Upright (4) with two M4 x
16mm Screws (101).
Next, orient the Front Console Cover (79) as
shown and attach it to the Rear Console Cover
(80) with two M4 x 16mm Screws (101).

17
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
Plug the
power cord
into an
appropriate
outlet that
is properly
installed and
grounded in
accordance
with all
local codes
and ordinances. The outlet must be on a nominal
120-volt circuit.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a
qualied electrician to determine whether the out-
let box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualied electrician.
Grounded Outlet
Grounding Pin
HOW TO USE THE ELLIPTICAL
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
2-pole Receptacle
Adapter
Lug
Metal Screw

18
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright (A), and place one foot against one of
the wheels (B). Pull on the upright and have a second
person lift the handle (C) until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet (D) beneath the
rear of the frame or turn the leveling foot (E) under
the center of the frame until the rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder (F) is designed
for use with most full-size tablets. Do not place
any other electronic device or object in the tablet
holder.
To insert a tablet into
the tablet holder (F),
set the bottom edge of
the tablet in the tray.
Then, pull the clip over
the top edge of the
tablet. Make sure that
the tablet is firmly
secured in the tablet
holder. Rotate the tab-
let holder to the desired
angle. Reverse these
actions to remove the
tablet from the tablet holder.
A
C
B
D
E
F

19
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal (G) can be adjusted to several positions.
To adjust each pedal, simply pull the pedal handle (H)
outward, move the pedal to the desired position, and
then release the pedal handle into an adjustment hole
beneath the pedal. Make sure to adjust both pedals
to the same position.
HOW TO EXERCISE ON THE ELLIPTICAL
See the drawing at the right. To mount the elliptical,
hold the handlebars (I) or the upper body arms (J) and
step onto the pedal (G) that is in the lower position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The pedals can turn in either direction. It is recom-
mended that you turn the pedals in the direction
shown by the arrow; however, for variety, you can
turn the pedals in the opposite direction.
To dismount the elliptical, wait until the pedals (G)
come to a complete stop. Note: The elliptical does
not have a free wheel; the pedals will continue to
move until the flywheel stops. When the pedals are
stationary, step off the higher pedal first. Then, step off
the lower pedal.
H
G
I
J
G

20
Scott
ELPF51016
PFEL51016
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
resistance of the pedals and the incline of the ramp as
it guides you through an effective exercise session.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or an
optional chest heart rate monitor (see page 30
for more information).
You can also listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To turn on the power, see page 21. To learn how
to use the touch screen, see page 21. To set up
the console, see page 22.
