WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your hybrid trainer before using your hybrid trainer.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to
ensure that all users of the hybrid trainer are
adequately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The hybrid trainer is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the hybrid
trainer by someone responsible for their
safety.
4. Use the hybrid trainer only as described in
this manual.
5. The hybrid trainer is intended for home use
only. Do not use the hybrid trainer in a com-
mercial, rental, or institutional setting.
6. Keep the hybrid trainer indoors, away from
moisture and dust. Do not put the hybrid
trainer in a garage or covered patio or near
water.
7. Place the hybrid trainer on a level surface,
with at least 3 ft. (0.9 m) of clearance in the
front and rear of the hybrid trainer and 2 ft.
(0.6 m) on each side. To protect the floor or
carpet from damage, place a mat under the
hybrid trainer.
8. Inspect and properly tighten all parts each
time the hybrid trainer is used. Replace any
worn parts immediately.
9. Keep children under age 13 and pets away
from the hybrid trainer at all times.
10. The hybrid trainer should not be used
by persons weighing more than 350 lbs.
(159 kg).
11. Wear appropriate clothes while exercis-
ing; do not wear loose clothes that could
become caught on the hybrid trainer. Always
wear athletic shoes for foot protection while
exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
hybrid trainer.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The hybrid trainer does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
15. Keep your back straight while using the
hybrid trainer; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4
all
STANDARD SERVICE PLANS

5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
HYBRID TRAINER. The HYBRID TRAINER provides
an impressive selection of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the hybrid trainer. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 5 ft. 11 in. (180 cm)
Width: 2 ft. 1 in. (64 cm)
Handlebar
Seat
Pivot Knob
Console
Heart Rate Monitor
Backrest
Accessory Tray
Leveling Foot
Carriage Knob
Upper Body Arm
Large Pedal
Small Pedal
Pedal Brace

6
M10 x 80mm Screw (19)–4
M10 x 20mm
Screw (76)–6
M8 Locknut
(68)–10
M8 Washer
(87)–6
M8 x 38mm
Bolt (95)–4
M8 x 12mm
Screw (106)–6
M8 x 14mm
Shoulder
Screw (86)–6
M8 x 38mm Hex
Bolt (102)–6
M4 x 16mm
Screw (84)–6
M6 x 35mm Screw
(98)–4
M6 x 18mm
Screw (97)–4
M6 x 12mm
Screw (40)–8
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

7
• To hire an authorized service technician to
assemble the hybrid trainer, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish assembly.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY

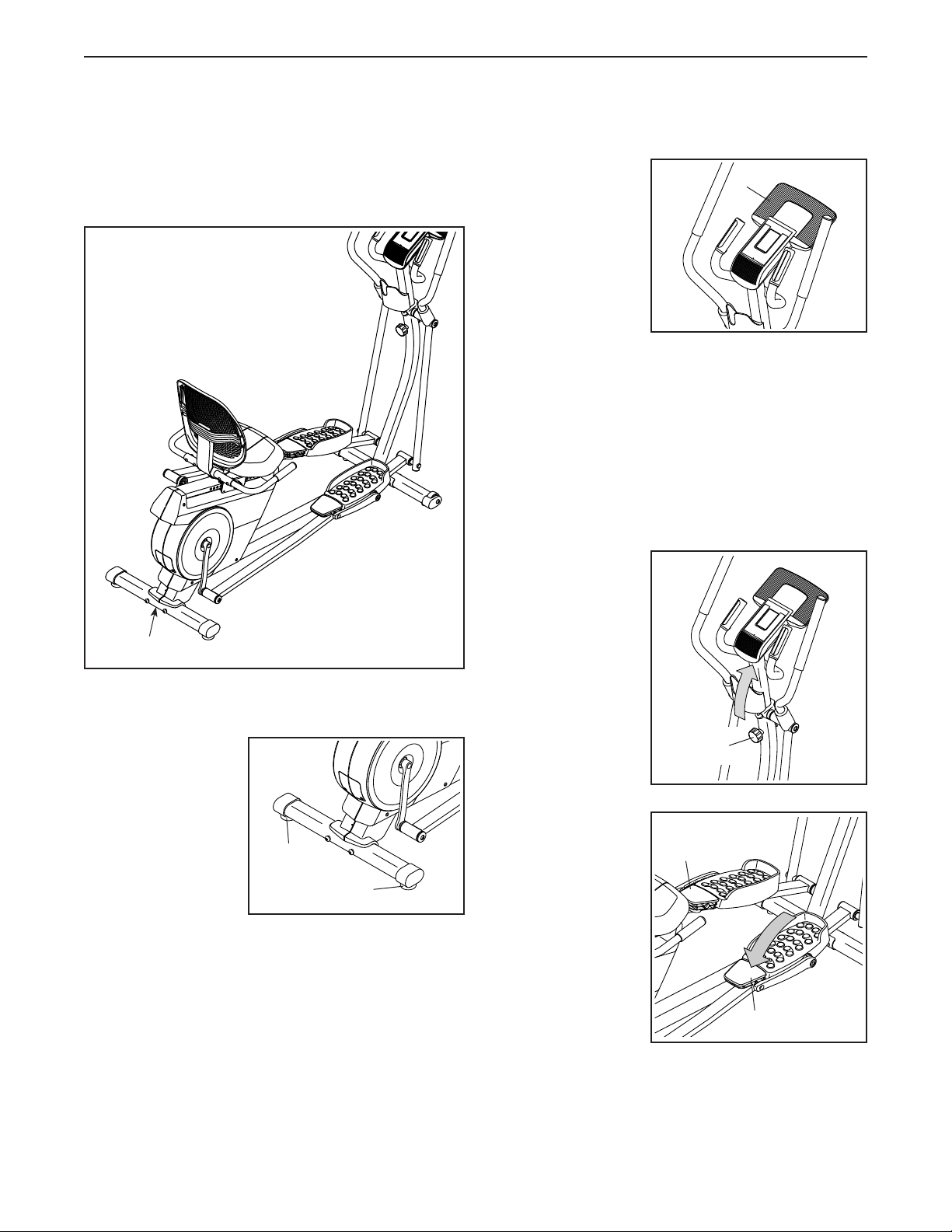

2. With the help of a second person, place some
of the packing materials (not shown) under the
Frame (1).
Orient the Rear Stabilizer (6) so that the large
holes (A) are facing the Frame (1). Attach
the Rear Stabilizer to the Frame with two
M10 x 80mm Screws (19).
Then, remove the packing materials from under
the Frame (1).
2
19
1
6
A
1. Go to my.proform.com on your computer and
register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1

8
4

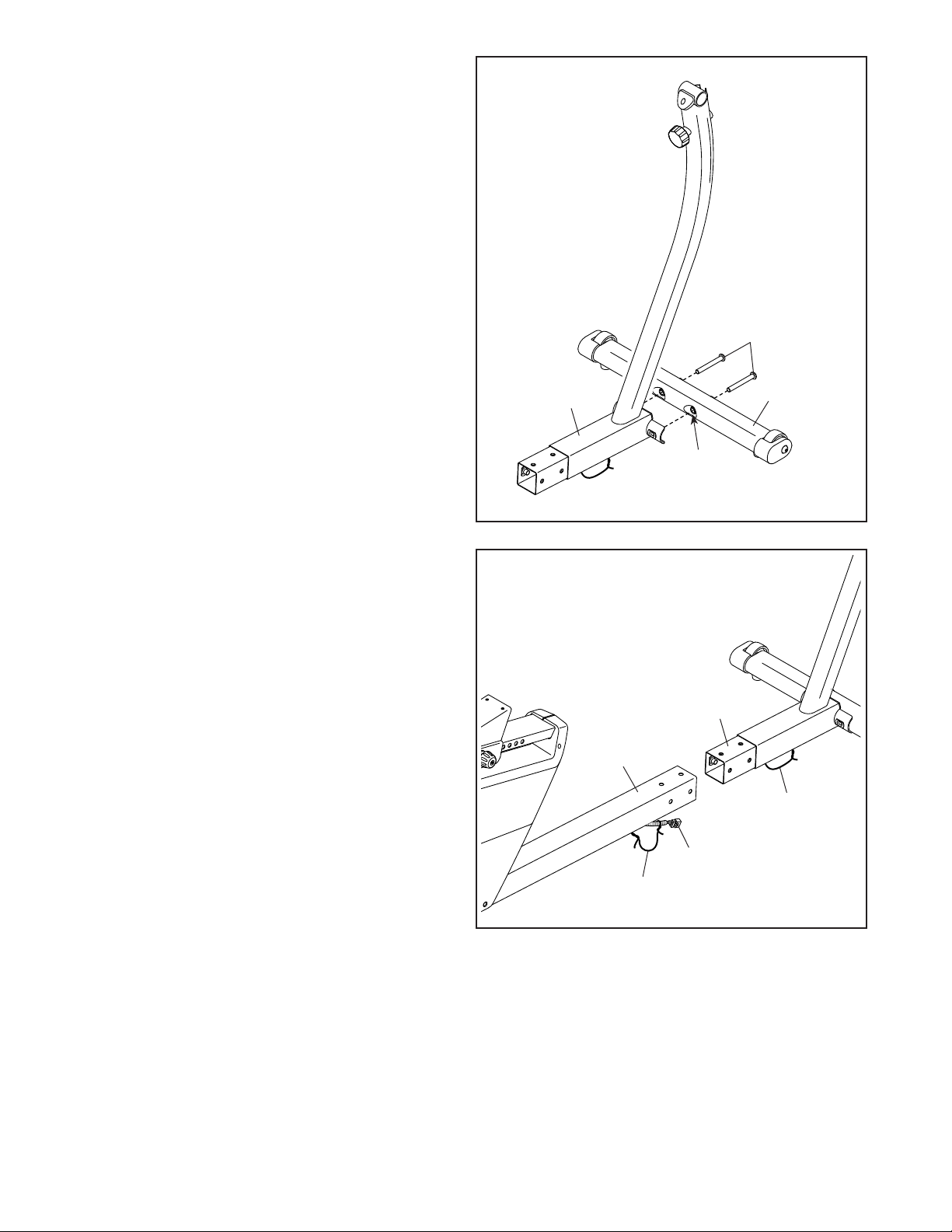

4. Set the Upright (2) near the Frame (1) as shown.
Locate the wire tie (C) in the Frame (1), and pull
the Main Wire (96) out of the underside of the
Frame.
Repeat this action to pull the Upper Wire
(not shown) out of the underside of the
Upright (2).
Then, untie and discard the wire ties (C, D).
96
3
3. Orient the Upright (2) and the Front Stabilizer (5)
so that the large holes (B) are facing the Upright.
Attach the Front Stabilizer (5) to the Upright (2)
with two M10 x 80mm Screws (19).
19
5
2
2
1
B
C
D

9
5
76
76
96
94
76
5. Tip: Avoid pinching the wires. Insert the
Upright (2) into the Frame (1).
Attach the Upright (2) with six M10 x 20mm
Screw (76); start all the Screws, and then
tighten them.
Then, connect the Upper Wire (94) to the Main
Wire (96).
Avoid pinching
the wires
Avoid pinching
the wires
6
6. Locate the wire tie (E) in the top of the Upright
(2), and pull the Upper Wire (94) out of the
Upright. Then, untie and discard the wire tie.
Tip: Avoid pinching the wires. Attach the Wire
Cover (20) to the Frame (1) and the Upright (2)
with two M4 x 16mm Screws (84). Make sure
that the tab (F) on the Wire Cover is in the
location shown.
84
F
20
94
2
2
1
1
E

10
94
3
2
2
3
Grease
Avoid
pinching
the Upper
Wire (94)
8
13
70
40
94 80
8. Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to the Pivot Axle (80).
Tip: Avoid pinching the Upper Wire (94). Slide
the Pivot Bracket (3) onto the Upright (2) and
hold it in place.
Next, insert the Pivot Axle (80) into the Pivot
Bracket (3) and into the Upright (2). Center the
Pivot Axle.
Then, tighten the Pivot Knob (13) into the Pivot
Bracket (3).
7
7. Have a second person hold the Pivot Bracket (3)
near the Upright (2).
Locate the wire tie (G) in the Pivot Bracket (3).
Tie the wire tie to the Upper Wire (94) and then
pull the other end of the wire tie until the Upper
Wire is routed through the Pivot Bracket.
G
G
9

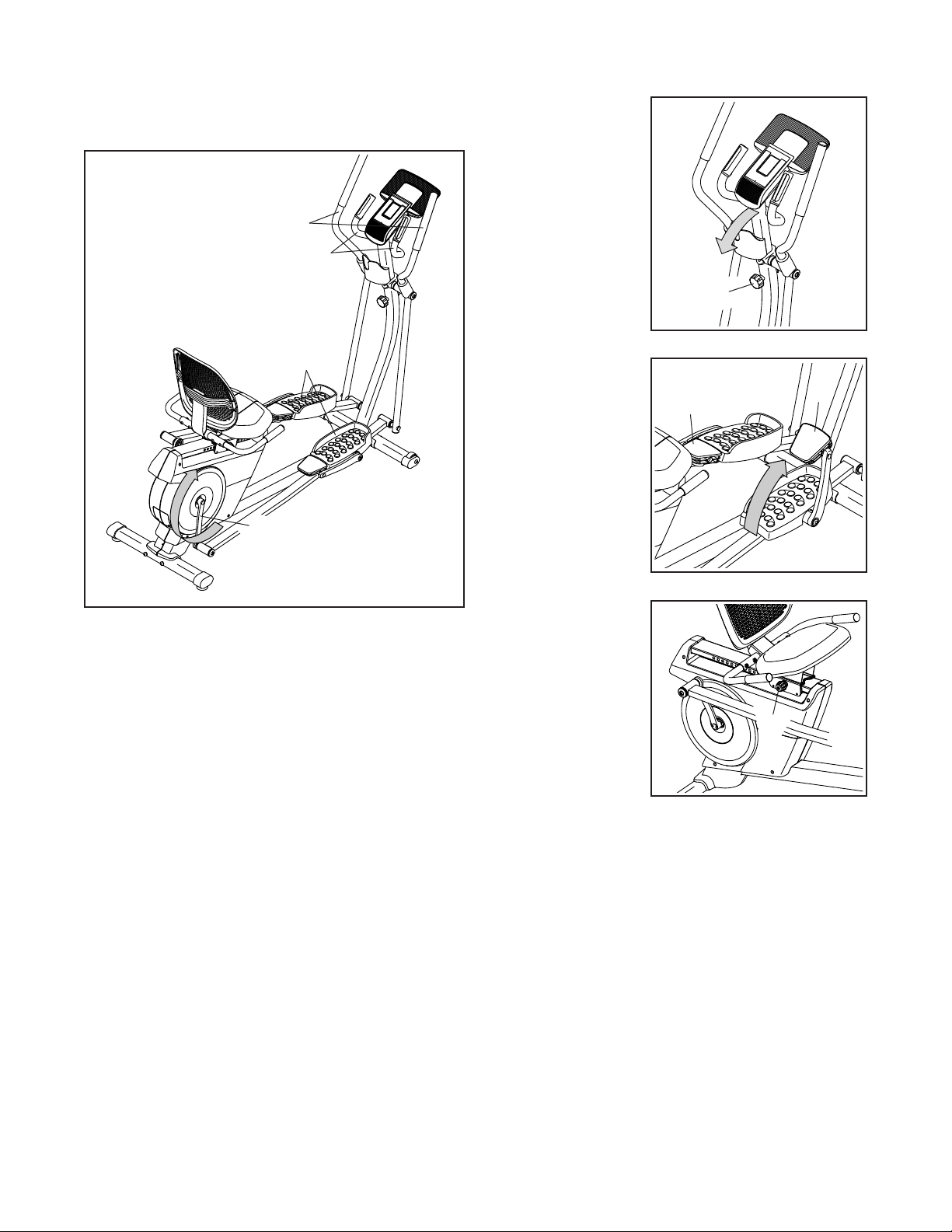

9. Identify the Right Pedal Arm (9) and the Right
Large Pedal (70), and orient them as shown.
Attach the Right Large Pedal (70) to the Right
Pedal Arm (9) with four M6 x 12mm Screws (40);
start all the Screws, and then tighten them.
Repeat this step for the Left Pedal Arm (not
shown) and the Left Large Pedal (not shown).
9
