ICON Health & Fitness PRO-FORM SMART STRIDER 495 CSE User manual

Serial
Number
Decal
USER’S MANUAL
Model No. PFEVEL60717.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference. iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL ...............................................................9
MAINTENANCE AND TROUBLESHOOTING.....................................................19
EXERCISE GUIDELINES ....................................................................21
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple
Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The
BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 275 lbs. (125 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the
elliptical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4
BEFORE YOU BEGIN
Heart Rate Monitor
Handlebar
Small Storage Foot
Large Storage Foot
Wheel
Pedal
Accessory Tray
Upright Knob
Tablet Holder
Console
Latch
Upper Body Arm
Handle
Leveling Foot
Thank you for selecting the revolutionary PROFORM®
SMART STRIDER 495 CSE elliptical. The SMART
STRIDER 495 CSE elliptical provides an impressive
selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 6 ft. 8 in. (203 cm)
Width: 2 ft. 8 in. (81 cm)
Weight: 152 lbs. (69 kg)

5
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. If necessary, remove and discard the shipping
supports and the shipping screws attached to
the rear of the Frame (1).
With the help of another person, place some
packing inserts from the packing material under
the rear of the Frame (1) so that the Frame is
lifted off the floor. Have another person hold
the elliptical to prevent it from moving from
side to side until this step is completed.
Orient the Rear Stabilizer (70) as shown. Attach
the Rear Stabilizer to the Frame (1) with two
M10 x 120mm Screws (84).
Then, remove the packing inserts and lower the
Rear Stabilizer (70).
2
84
70
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)

6

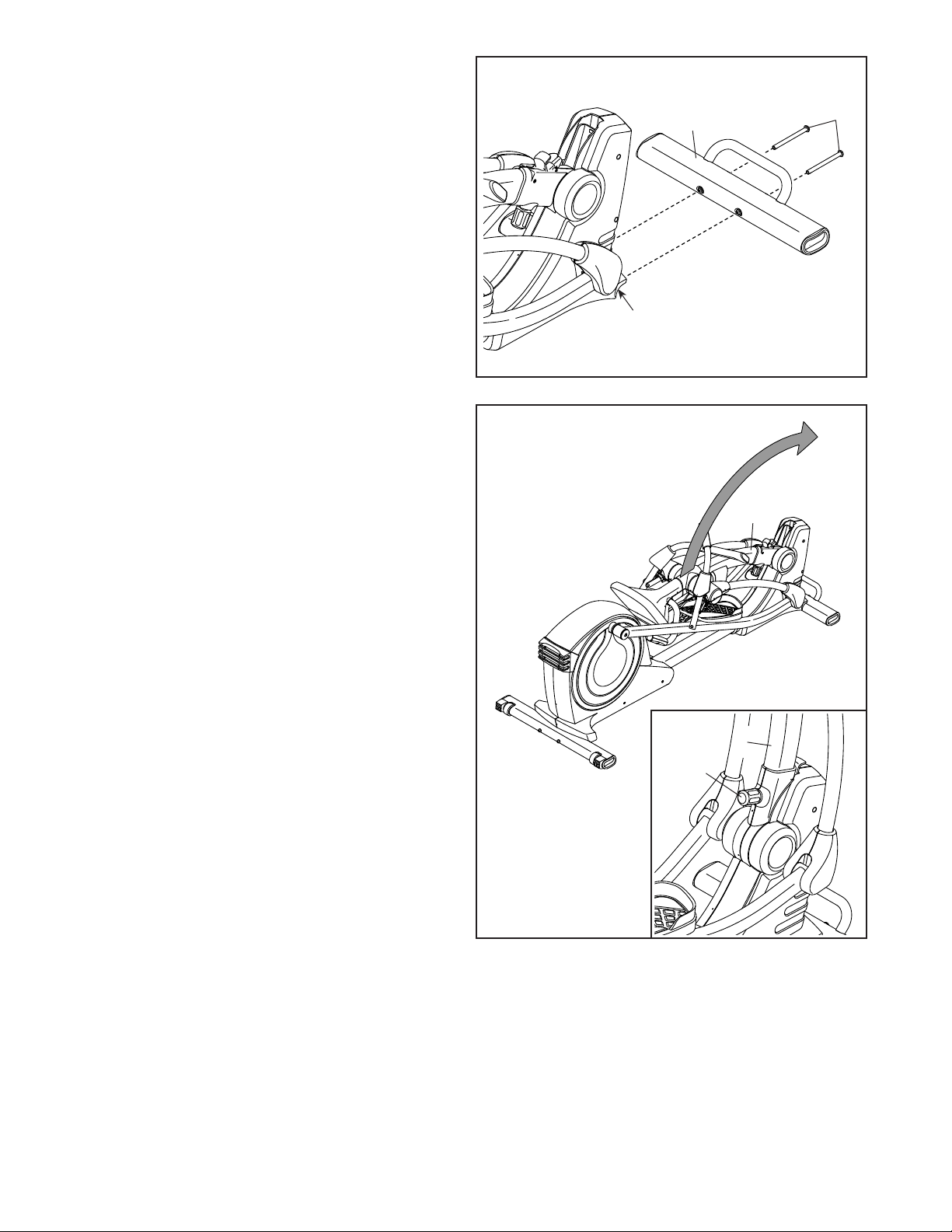

3. If necessary, remove and discard the shipping
supports and the shipping screws attached to
the front of the Frame (1).
With the help of another person, place some
packing inserts from the packing material under
the Frame (1) so that the Frame is lifted off the
floor.
Attach the Front Stabilizer (73) to the Frame
(1) with two M10 x 120mm Screws (84). Then,
remove the packing inserts and lower the Front
Stabilizer.
3
4. With the help of a second person, lift the Upright
(2) upward into the upright position.
See the inset drawing. Tighten the Upright
Knob (85) into the Upright (2).
4
1
84
73
2
85
2

7
5
6
9
6
95
5. Rotate the Right Upper Body Arm (9) to the
upright position.
Attach the Right Upper Body Arm (9) to the
Right Upper Body Leg (6) with an M10 x 50mm
Screw (95).
IMPORTANT: Tighten the indicated
M10 x 45mm Screw (78).
Press the Upper Body Arm Cover (20) downward
and turn it so that it is flush with the Right Leg
Front and Rear Covers (11, 15).
Repeat this step on the other side of the
elliptical.
20
78
11, 15
109
110
4
6. Attach the Tablet Holder (109) to the Console (4)
with four Tablet Holder Screws (110); start all
the Screws, and then tighten them.

8
8. Make sure that all parts of the elliptical are properly tightened. Extra parts may be included. Place a mat
beneath the elliptical to protect the floor.
7
7. Plug the Power Adapter (104) into the receptacle
on the frame of the elliptical.
Note: To plug the Power Adapter (104) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 9.
104

9

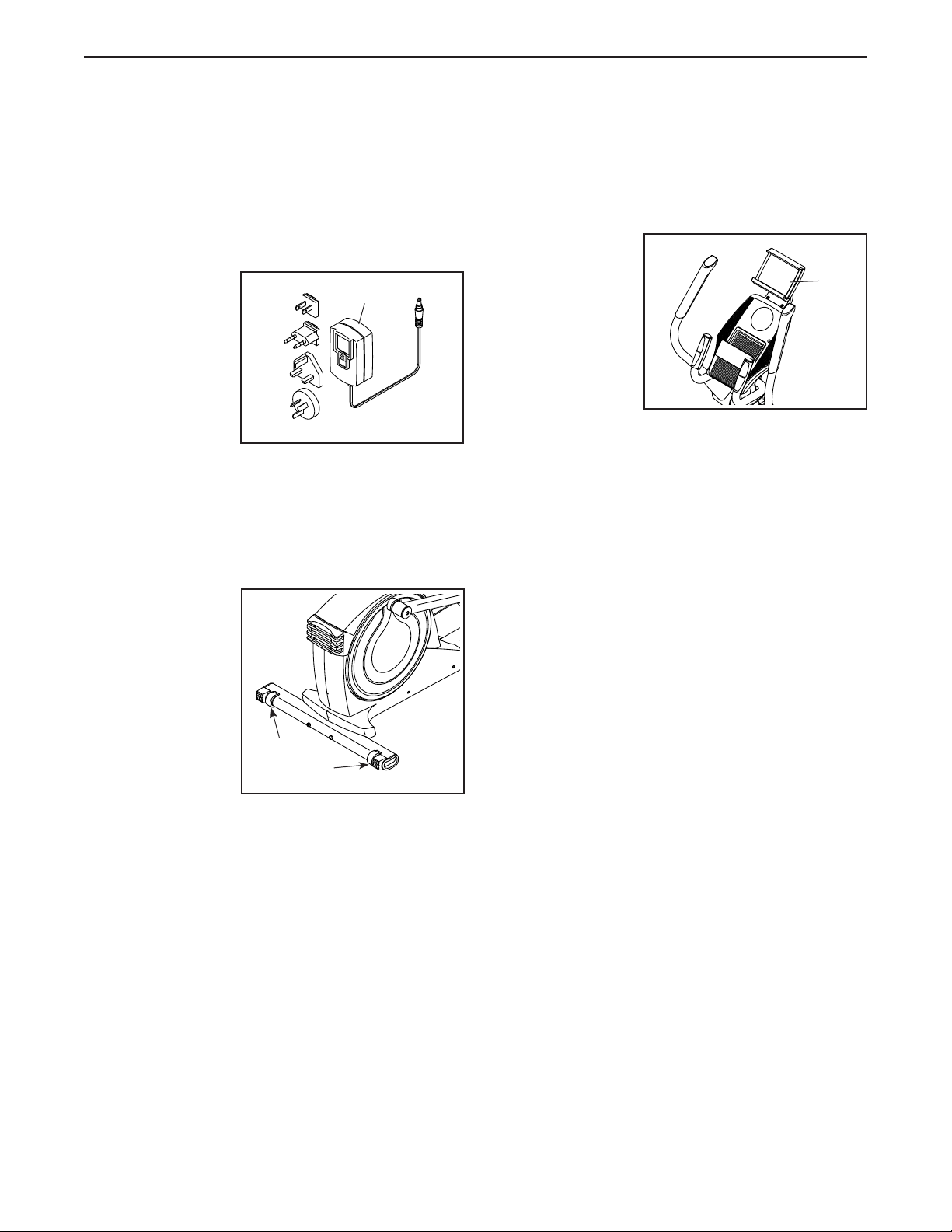

HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter (A) into
the receptacle
on the frame of
the exercise
bike. Insert the
appropriate plug
adapter into the
power adapter
if necessary.
Then, plug the
power adapter into an appropriate outlet that is prop-
erly installed in accordance with all local codes and
ordinances.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor dur-
ing use, turn one
or both of the
leveling feet (B)
beneath the rear
stabilizer until the
rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder is designed for use
with most full-size tablets. Do not place any other
electronic device or object in the tablet holder.
To insert a tablet
into the tablet
holder (C), set the
bottom edge of
the tablet in the
tray. Then, pull
the clip over the
top edge of the
tablet. Make sure
that the tablet is
firmly secured
in the tablet holder. Rotate the tablet holder to the
desired angle. Reverse these actions to remove the
tablet from the tablet holder.
A
B
B
C
HOW TO USE THE ELLIPTICAL

10

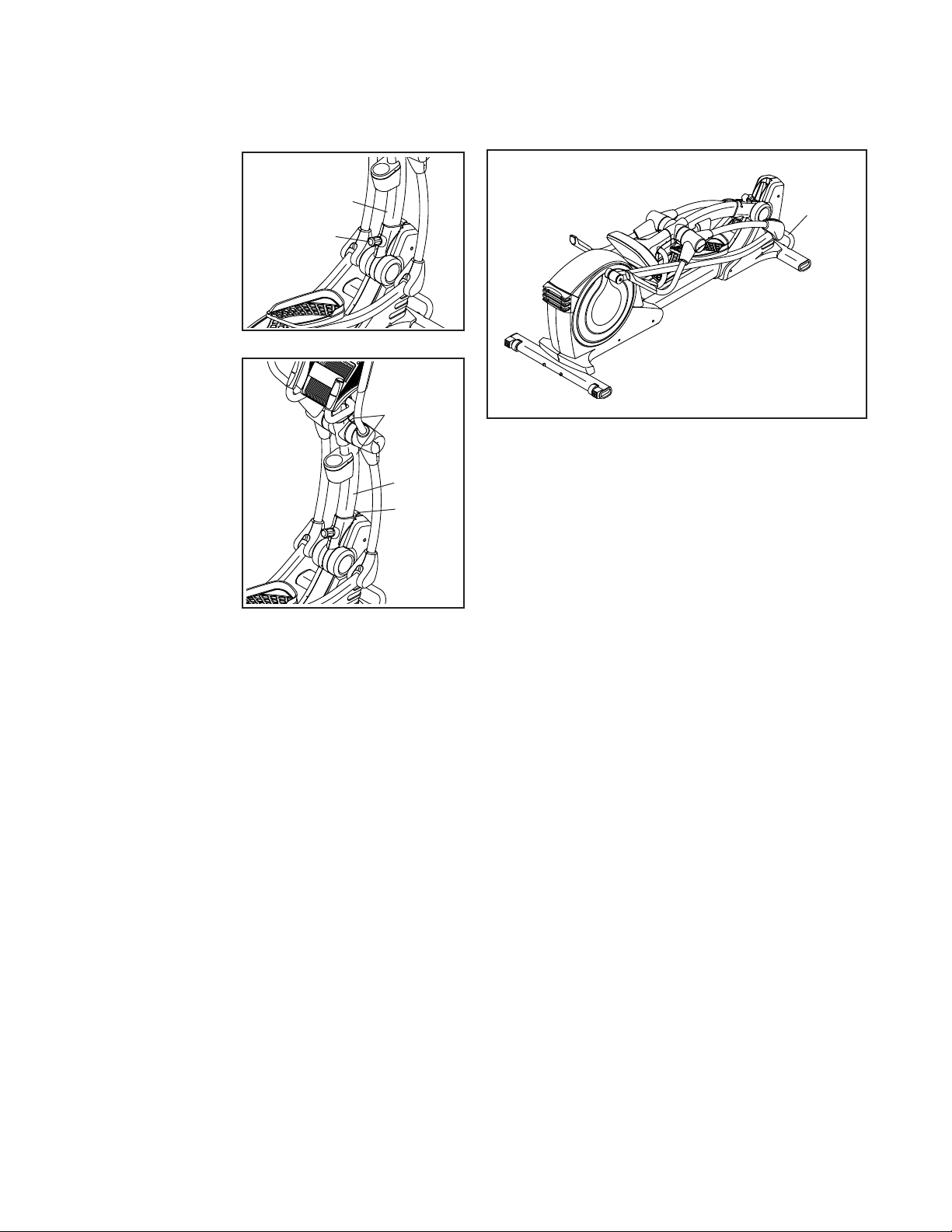

HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons.
First, loosen the
upright knob (D)
and pull it, pull the
upright (E) back-
ward until the latch
locks into place,
and then release
the upright knob.
Next, pull the
upright (E) forward
slightly, lift the
latch (F), and then
lower the upright
to the folded posi-
tion. Hold the
upright in one
of the indicated
locations (G)
while you lower
the upright; do
not hold the
upper body
arms.
Then, lift the handle on the front stabilizer until the
elliptical will roll on the wheels (H). Carefully move the
elliptical to the desired location, and then lower it to the
floor.
When you are finished moving the elliptical, lift the
upright to the upright position and tighten the upright
knob.
D
E
E
G
F
H

11
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (I) or the
upper body arms (J) and step onto the pedal (K) that is
in the lower position. Then, step onto the other pedal.
Push the pedals until they begin to move with a con-
tinuous motion. Note: The pedals can turn in either
direction. It is recommended that you turn the ped-
als in the direction shown by the arrow; however,
for variety, you can turn the pedals in the opposite
direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
HOW TO STORE THE ELLIPTICAL
Due to the size and weight of the elliptical, storing
it requires two persons. CAUTION: You must be
able to safely lift 100 lbs. (45 kg) to lift, store, and
lower the elliptical.
See HOW TO MOVE THE ELLIPTICAL on page 10
and lower the upright to the folded position.
Then, lift the handle (L) on the front stabilizer and tip
the frame upright until the elliptical rests on the small
and large storage feet (M).
To lower the elliptical for use, first hold the handle (N)
on the frame with one hand and hold the front stabilizer
(O) with your other hand. Next, pull the frame towards
you and lower the frame until you can reach the handle
(L) on the front stabilizer. Then, hold the handle on the
front stabilizer with both hands and finish lowering the
elliptical to the floor.
K
I
J
L
M
O
L
N

12
CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
You can also create custom manual workouts with
alternating high- and low-intensity intervals.
As you exercise, the console will provide continu-
ous exercise feedback. You can even measure your
heart rate using the handgrip heart rate monitor or
a compatible heart rate monitor. See page 17 for
information about purchasing an optional chest
heart rate monitor.
You can also connect your tablet to the console and
use the iFit®Bluetooth Tablet app to record and track
your workout information.
The console also offers a selection of onboard work-
outs. Each onboard workout automatically changes the
resistance of the pedals and prompts you to maintain a
target power output as it guides you through an effec-
tive workout.
You can even listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To use the manual mode, see page 13. To use an
onboard workout, see page 16.
To use the sound system, see page 17. To con-
nect your tablet to the console, see page 17. To
connect your heart rate monitor to the console,
see page 18. To use the settings mode, see page
18.
If there is a sheet of plastic on the display, remove the
plastic.
Titanium
ELPE60717
PFEVEL60717

13
HOW TO USE THE MANUAL MODE
1. Turn on the console.
Begin pedaling or press any button on the console
to turn on the console.
When you turn on the console, the display will turn
on, a tone will sound, and the console will be ready
for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected automatically.
If you have selected a workout, reselect the manual
mode by pressing the Manual Control button.

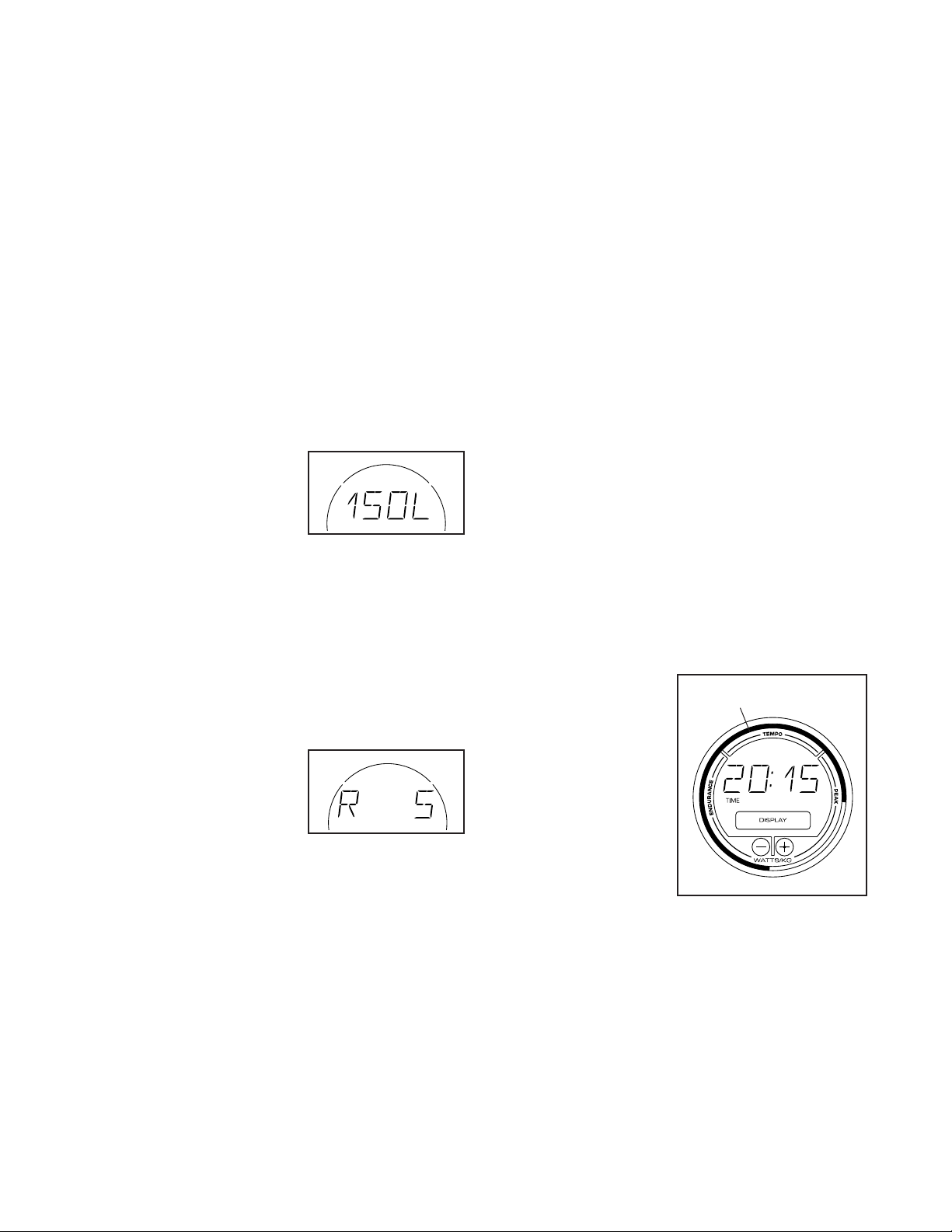

3. Enter your weight.
Press the Wt increase
and decrease buttons to
enter your weight.
Note: The console will use your weight to calcu-
late your approximate power output and calories
burned. If you do not enter your weight, the console
will use a default value to calculate your power
output and calories burned.
4. Change the resistance of the pedals as desired.
Begin pedaling to start the manual mode.
As you pedal, you can
change the resistance
of the pedals. To change
the resistance, press
one of the numbered
Quick Resistance
buttons or press the Silent Magnetic Resistance
increase and decrease buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
5. Do interval training, if desired.
As you exercise, you can alternate between
intervals of low-intensity (recovery) exercise
and intervals of high-intensity (work) exercise, if
desired.
To create a recovery interval, first adjust the
resistance of the pedals to the desired level. Then,
press and hold the Recovery button until two tones
sound to save the interval setting.
To create a work interval, first adjust the resistance
of the pedals to the desired level. Then, press and
hold the Work button until two tones sound to save
the interval setting.
As you exercise, press the Recovery and Work
buttons as desired to alternate between the saved
interval settings. After you press a button, the resis-
tance of the pedals will automatically adjust to the
level that you saved.
To change the interval settings at any time during
your workout, simply repeat this step.
6. Follow your progress with the power ring, and
set a power output target, if desired.

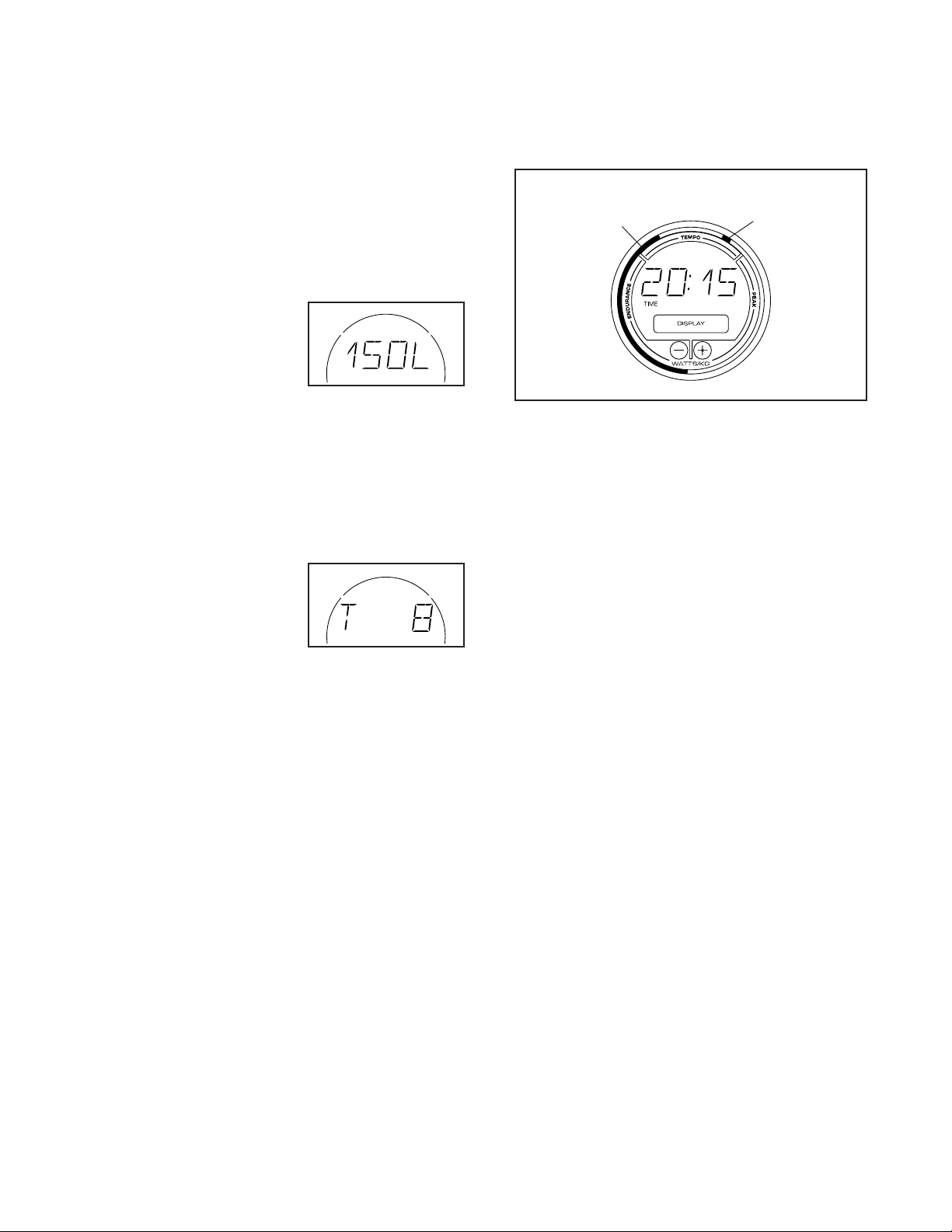

The power ring
will provide a
visual representa-
tion of your power
output in watts
per kilogram of
body weight. As
your power out-
put increases or
decreases, a solid
bar will appear or
disappear in the
power ring.
Solid Bar

14

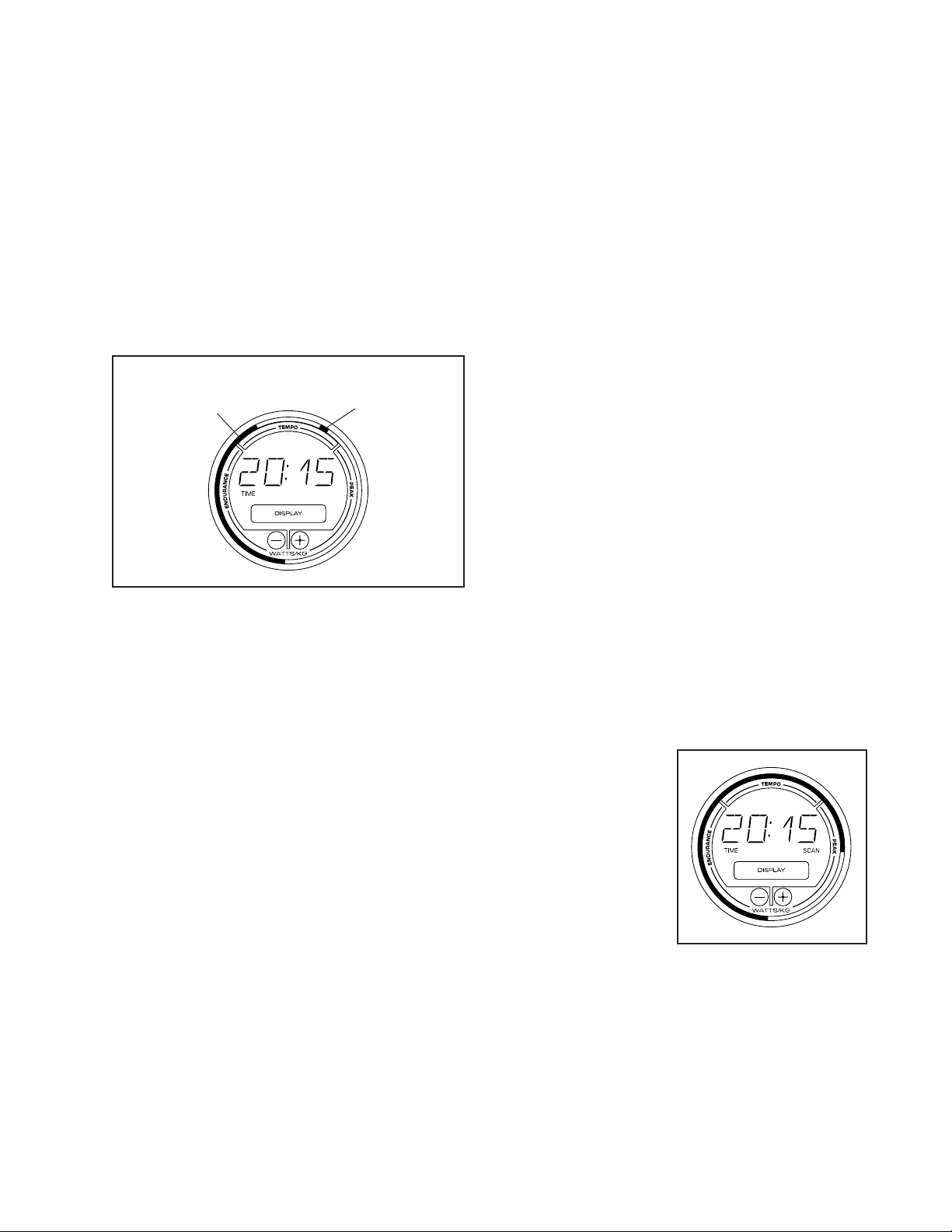

To set a power output target, press the Watts
increase and decrease buttons until the desired
power output target appears in the display.
Note: After you set a power output target, the
resistance level will automatically adjust to a preset
level. You can manually override the preset level at
any time.
If you set a power output target during the
manual mode, a flashing indicator will appear in
the power ring to indicate your power output target.
As you exercise, adjust your pedaling speed or the
resistance of the pedals to keep your power output
near the power output target.
To change the power output target at any time
during your workout, simply repeat the actions
above.
IMPORTANT: The power output target is
intended only to provide motivation. Make sure
to pedal at a speed and a resistance level that
is comfortable for you.
During an onboard workout, the power ring will
show the preset power output target for each seg-
ment of the workout (see step 4 on page 16).
7. Follow your progress with the display.
The display can show the following workout
information:
Calories (CALS)—The approximate number of
calories you have burned.
Distance (MI or KI)—The distance that you have
pedaled in miles or kilometers.
Pace—Your pedaling speed in minutes per mile or
minutes per kilometer.
Pulse (heart symbol)—Your heart rate when you
use the handgrip heart rate monitor or a compatible
heart rate monitor (see step 8).
Resistance—The resistance level of the pedals.
Note: This workout information will appear for a few
seconds each time the resistance level changes.
RPM—Your pedaling speed in revolutions per
minute (RPM).
Speed—Your pedaling speed in miles or kilometers
per hour.
Time—When the manual mode is selected,
the elapsed time. When an onboard workout is
selected, the time remaining in the workout.
Watts—Your power output in watts.
Press the Display button repeatedly to view the
desired workout information in the display.
Scan mode—The
console also has
a scan mode that
will display work-
out information in
a repeating cycle.
To select the scan
mode, press the
Display button
repeatedly until
the word SCAN
appears in the
display.
Power Output
Target
Actual Power
Output

15
Change the volume level of the
console by pressing the Vol
increase and decrease buttons.
To pause the console, simply stop pedaling. When
the console is paused, the time will flash in the
display. To continue your workout, simply resume
pedaling.
Note: The console can show weight, pedaling
speed, and distance in standard or metric units of
measurement. To change the unit of measurement,
see THE SETTINGS MODE on page 18.
8. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or an optional chest
heart rate monitor (see page 17 for infor-
mation about the optional chest heart rate
monitor).Note: The console is compatible with
BLUETOOTH®Smart heart rate monitors.
Note: If you use both heart rate monitors at the
same time, the BLUETOOTH Smart heart rate
monitor will have priority.
If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate moni-
tor, remove the
plastic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms resting against the contacts. Avoid
moving your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will be
shown in the display. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal perfor-
mance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
9. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the display will pause.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
Contacts

16
HOW TO USE AN ONBOARD WORKOUT
1. Turn on the console.
Begin pedaling or press any button on the console
to turn on the console.
When you turn on the console, the displays will turn
on, a tone will sound, and the console will be ready
for use.
2. Enter your weight.
Press the Wt increase
and decrease buttons to
enter your weight.
Note: The console will use your weight to calcu-
late your approximate power output and calories
burned. If you do not enter your weight, the console
will use a default value to calculate your power
output and calories burned.
3. Select an onboard workout.
To select an onboard
workout, press the
Tempo Apps button or
the Intrvl Apps button
repeatedly until the
name of the desired
workout appears in the display. A few seconds after
you press a button, the duration of the workout will
appear in the display.
4. Start the workout.
Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level and one power output target
are programmed for each segment. Note: The
same resistance level and/or power output target
may be programmed for consecutive segments.
At the end of each segment of the workout, a
series of tones will sound. The resistance level
for the next segment will appear in the display for
a few seconds to alert you. The resistance of the
pedals will then change.
The power ring will show a flashing indicator that
represents the power output target for the segment.
The solid bar represents your actual power output.
Note: In the power ring, power output is displayed
in watts per kilogram of body weight.
As you exercise, keep your power output near the
power output target for the current segment by
increasing or decreasing your pedaling speed.
IMPORTANT: The power output target is
intended only to provide motivation. Make sure
to pedal at a speed and a resistance level that
is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
To pause the console, simply stop pedaling. When
the console is paused, the time will flash in the
display. To continue your workout, simply resume
pedaling.
5. Follow your progress with the display.
See step 7 on page 14.
6. Measure your heart rate if desired.
See step 8 on page 15.
7. When you are finished exercising, the console
will turn off automatically.
See step 9 on page 15.
Power Output
Target
Actual Power
Output

17
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on your
personal audio player. Adjust the
volume level using the Vol increase
and decrease buttons on the con-
sole or the volume control on your
personal audio player.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. The optional chest heart rate monitor will
enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all BLUETOOTH
Smart heart rate monitors.
HOW TO CONNECT YOUR TABLET TO THE
CONSOLE
The console supports BLUETOOTH connections to
tablets via the iFit Bluetooth Tablet app and to compat-
ible heart rate monitors. Note: Other BLUETOOTH
connections are not supported.
1. Download and install the iFit Bluetooth Tablet
app on your tablet.
On your iOS®or Android™ tablet, open the App
Store℠ or the Google Play™ store, search for
the free iFit Bluetooth Tablet app, and then install
the app on your tablet. Make sure that the
BLUETOOTH option is enabled on your tablet.
Then, open the iFit Bluetooth Tablet app and follow
the instructions to set up an iFit account and cus-
tomize settings.
2. Connect your heart rate monitor to the console
if desired.
If you are connecting both your heart rate monitor
and your tablet to the console, you must connect
your heart rate monitor before you connect
your tablet. See HOW TO CONNECT YOUR
HEART RATE MONITOR TO THE CONSOLE on
page 18.
3. Connect your tablet to the console.
Press the iFit Sync button on the console; the
console pairing number will appear in the display.
Then, follow the instructions in the iFit Bluetooth
Tablet app to connect your tablet to the console.
When a connection is established, the LED on the
console will turn solid blue.

18
4. Record and track your workout information.
Follow the instructions in the iFit Bluetooth Tablet
app to record and track your workout information.
5. Disconnect your tablet from the console if
desired.
To disconnect your tablet from the console, first
select the disconnect option in the iFit Bluetooth
Tablet app. Then, press and hold the iFit Sync
button on the console until the LED on the console
turns solid green.
Note: All BLUETOOTH connections between
the console and other devices (including any
tablets, heart rate monitors, and so forth) will be
disconnected.
HOW TO CONNECT YOUR HEART RATE MONITOR
TO THE CONSOLE
The console is compatible with all BLUETOOTH Smart
heart rate monitors.
To connect your BLUETOOTH Smart heart rate moni-
tor to the console, press the iFit Sync button on the
console; the console pairing number will appear in the
display. When a connection is established, the LED on
the console will flash red twice.
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the iFit Sync button on the console until
the LED on the console turns solid green.
Note: All BLUETOOTH connections between the
console and other devices (including any tablets, heart
rate monitors, and so forth) will be disconnected.
THE SETTINGS MODE
The console features a settings mode that allows you
to select a unit of measurement for the console and to
view console usage information.
To select the settings mode, press and hold down
the Manual Control button until the settings mode
information appears in the display.
The display will alternate showing the console version
number and the unit of measurement.

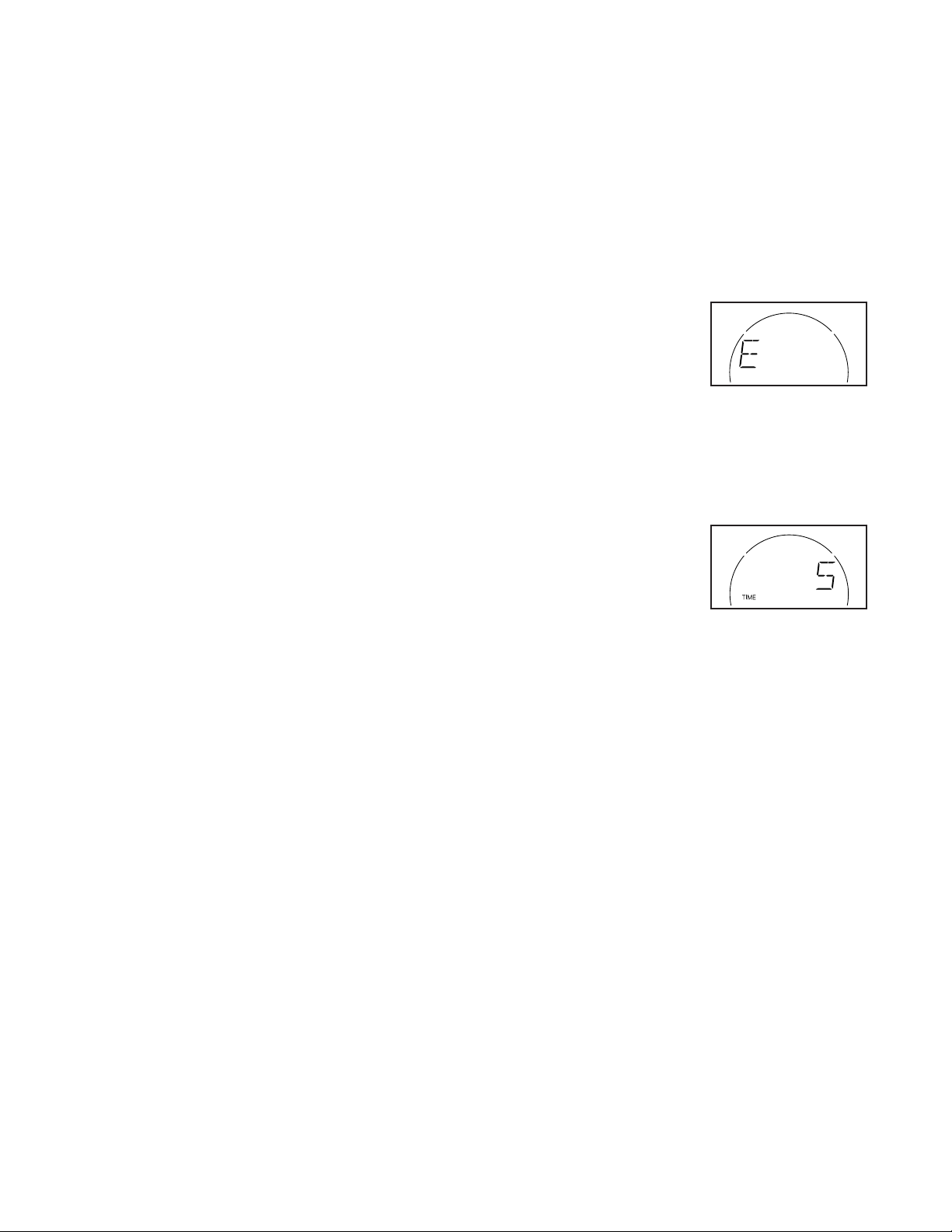

The console can show
weight, pedaling speed, and
distance in standard or met-
ric units of measurement.
An E for English miles or an
M for metric kilometers will
appear in the display. To change the unit of measure-
ment, press the Intrvl Apps button repeatedly.
Press the Tempo Apps button repeatedly until the
console usage information appears in the display.
The display will alternate
showing the total time (in
hours) that the console has
been used since the ellipti-
cal was purchased and the
total distance (in miles or
kilometers) that the elliptical has been pedaled.
To exit the settings mode, press the Tempo Apps
button again.

19
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the elliptical is used.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the dis-
played heart rate appears to be too high or too low, see
step 8 on page 15.
If a replacement power adapter is needed, call the
telephone number on the cover of this manual.
IMPORTANT: To avoid damaging the console, use
only a manufacturer-supplied regulated power
adapter.

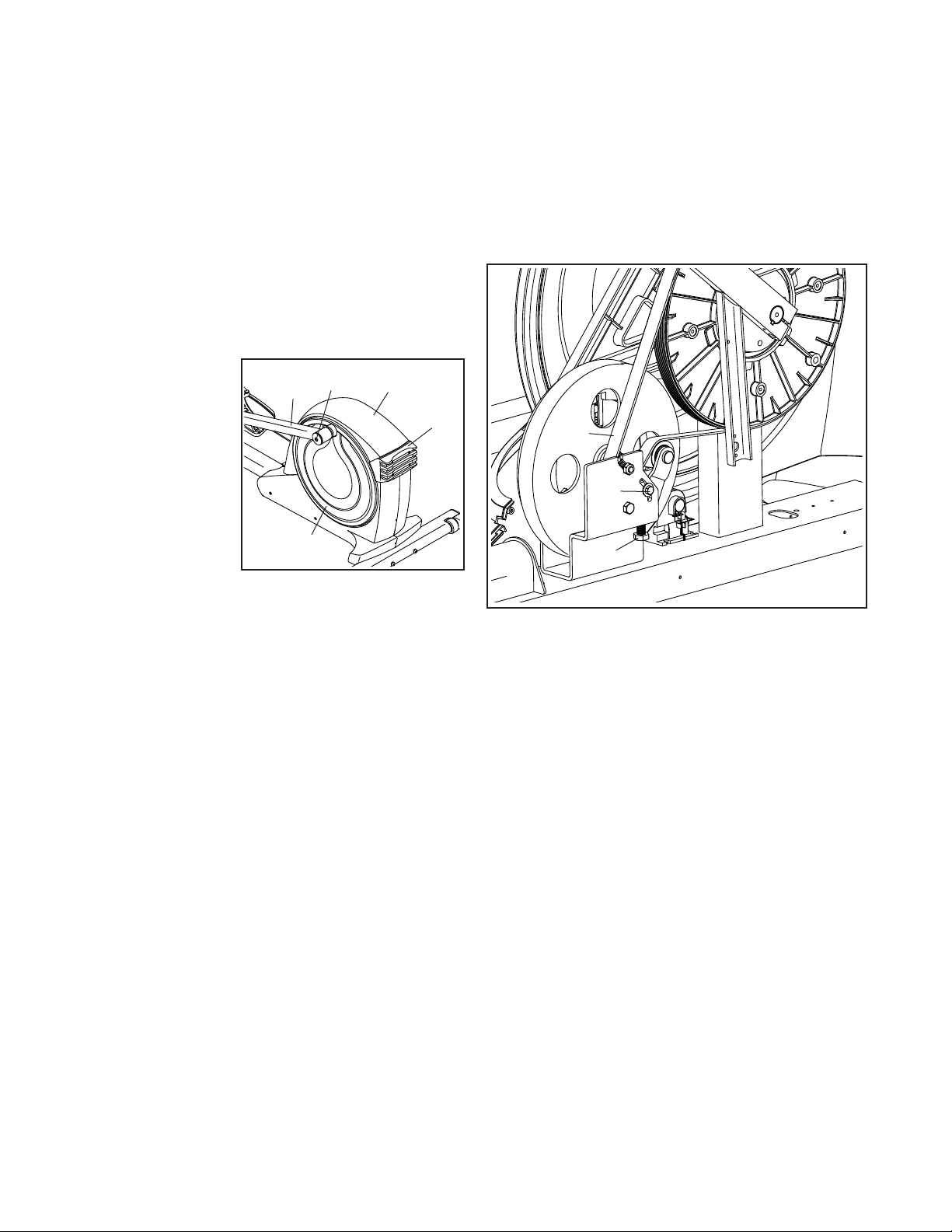

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first unplug the power adapter.
Remove the
four M4 x 16mm
Screws (not
shown) from the
Large Storage
Foot (27), and
then remove the
Large Storage
Foot. Remove the
two M4 x 16mm
Screws (not
shown) from the
Top Shield (37), and then use a standard screwdriver
to pry the Top Shield upward off the elliptical.
Look into the access opening and locate the Reed
Switch (58). Rotate the Pulley (66) until a Magnet (41)
is aligned with the Reed Switch. Note: For clarity, the
shields are shown removed in the drawing below.
Slightly loosen the two indicated M4 x 16mm Screws
(61). Slide the Reed Switch (58) slightly toward or
away from the Magnet (41). Then, retighten the
M4 x 16mm Screws.
Plug in the power adapter and rotate the pulley for a
moment. Repeat these actions until the console dis-
plays correct feedback.
When the reed switch is correctly adjusted, unplug
the power adapter and reattach the parts that you
removed. Then, plug in the power adapter.
37
27
58
41
61
66
MAINTENANCE AND TROUBLESHOOTING

20
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the
resistance is adjusted to the highest setting, the drive
belt may need to be adjusted. To adjust the drive belt,
first unplug the power adapter.
See EXPLODED DRAWING B on page 26. First,
remove the M4 x 16mm Screw (61) from the Left Leg
Inner Cover (39). Then, remove the Left Leg Inner
Cover and the Left Leg Outer Cover (92).
Next, remove the two M8 x 16mm Screws (76) and the
two M8 Washers (33) from the Left Upper Body Leg
(101) and the Left Pedal Arm (14).
Then, remove
the M8 x 14mm
Shoulder Screw
(81) from the Left
Pedal Arm (14).
Remove the Left
Pedal Arm from
the elliptical.
Remove the four M4 x 16mm Screws (not shown)
from the Large Storage Foot (27), and then remove
the Large Storage Foot. Remove the two M4 x 16mm
Screws (not shown) from the Top Shield (37), and
then use a standard screwdriver to pry the Top Shield
upward off the elliptical. Then, pry the left Pedal Disc
(26) off the elliptical.
See EXPLODED DRAWING C on page 27. Identify
the Left and Right Shields (44, 45). Remove all of the
M4 x 16mm Screws (61) and 3/16" x 1 3/8" Screws
(64) from the Left and Right Shields. Make sure to
note which size Screws come from which holes.
Then, carefully remove the Left Shield.
Loosen the Idler Screw (97). Tighten the Idler
Adjustment Screw (72) until the Drive Belt (46) is tight.
When the Drive Belt is tight, retighten the Idler Screw.
When you are finished, reattach the parts that you
removed. Then, plug in the power adapter.
37
14 81
26
27 46
72
97
