ICON Health & Fitness HealthRider HRCCEL69011 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
Model No. HRCCEL69011
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, please call:
1-888-936-4266
Mon.–Fri. 8h00 until 18h30 EST
(excluding holidays).
www.healthrider.com
Visit our website at
USER’S MANUAL

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
HealthRider is a registered trademark of ICON Health & Fitness, Inc.

3
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical crosstrainer.
1. Read all instructions in this manual before
using the elliptical crosstrainer.
2. It is the responsibility of the owner to ensure
that all users of the elliptical crosstrainer
are adequately informed of all precautions.
3. The elliptical crosstrainer is intended for
home use only. Do not use the elliptical
crosstrainer in a commercial, rental, or insti-
tutional setting.
4. Place the elliptical crosstrainer on a level
surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical crosstrain-
er indoors, away from moisture and dust.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical crosstrainer at all times.
7. The elliptical crosstrainer should not be used
by persons weighing more than 115 kg (250
lbs.).
8. Wear appropriate exercise clothing when
using the elliptical crosstrainer. Always wear
athletic shoes for foot protection.
9. Always hold the handgrip pulse sensor or the
handlebars when mounting, dismounting, or
using the elliptical crosstrainer.
10. The pulse sensor is not a medical device.
Various factors, including the user’s move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. Keep your back straight when using the ellip-
tical crosstrainer; do not arch your back.
12. If you feel pain or dizziness at any time
while exercising, stop immediately and
begin cooling down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

4
BEFORE YOU BEGIN
Congratulations for selecting the new HealthRider®
860. The HealthRider®860 is an incredibly smooth
exerciser that moves your feet in a natural elliptical
path, minimizing the impact on your knees and
ankles. And the unique HealthRider®860 features
adjustable resistance and a state-of-the-art console to
help you get the most from your exercise. Welcome to
a whole new world of natural, elliptical-motion exercise
from HealthRider.
For your benefit, read this manual carefully before
you use the elliptical crosstrainer. If you have
questions, call our Customer Service Department toll-
free at 1-888-936-4266, Monday through Friday, 8h00
until 18h30 Eastern Time (excluding holidays). To help
us assist you, please mention the product model
number and serial number when calling. The model
number is HRCCEL69011. The serial number can be
found on a decal attached to the elliptical crosstrainer
(see the front cover of this manual for the location of
the decal).

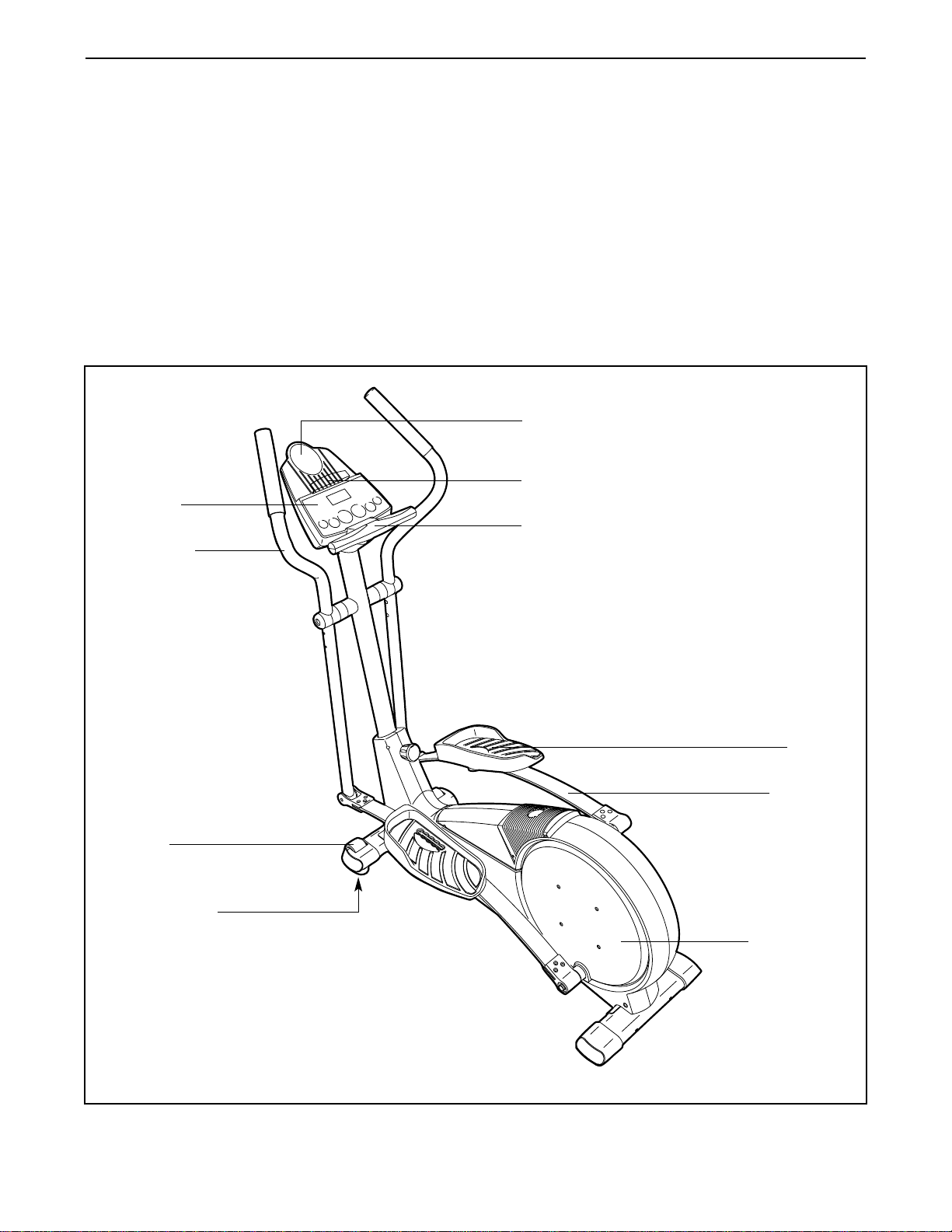

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Handlebar
FRONT
BACK
LEFT SIDE
Flex Bar
Pedal Disk
*No water bottle
is included
Wheel
Pedal
Console Bookrack
Water Bottle Holder*
Leveling Foot

5
ASSEMBLY

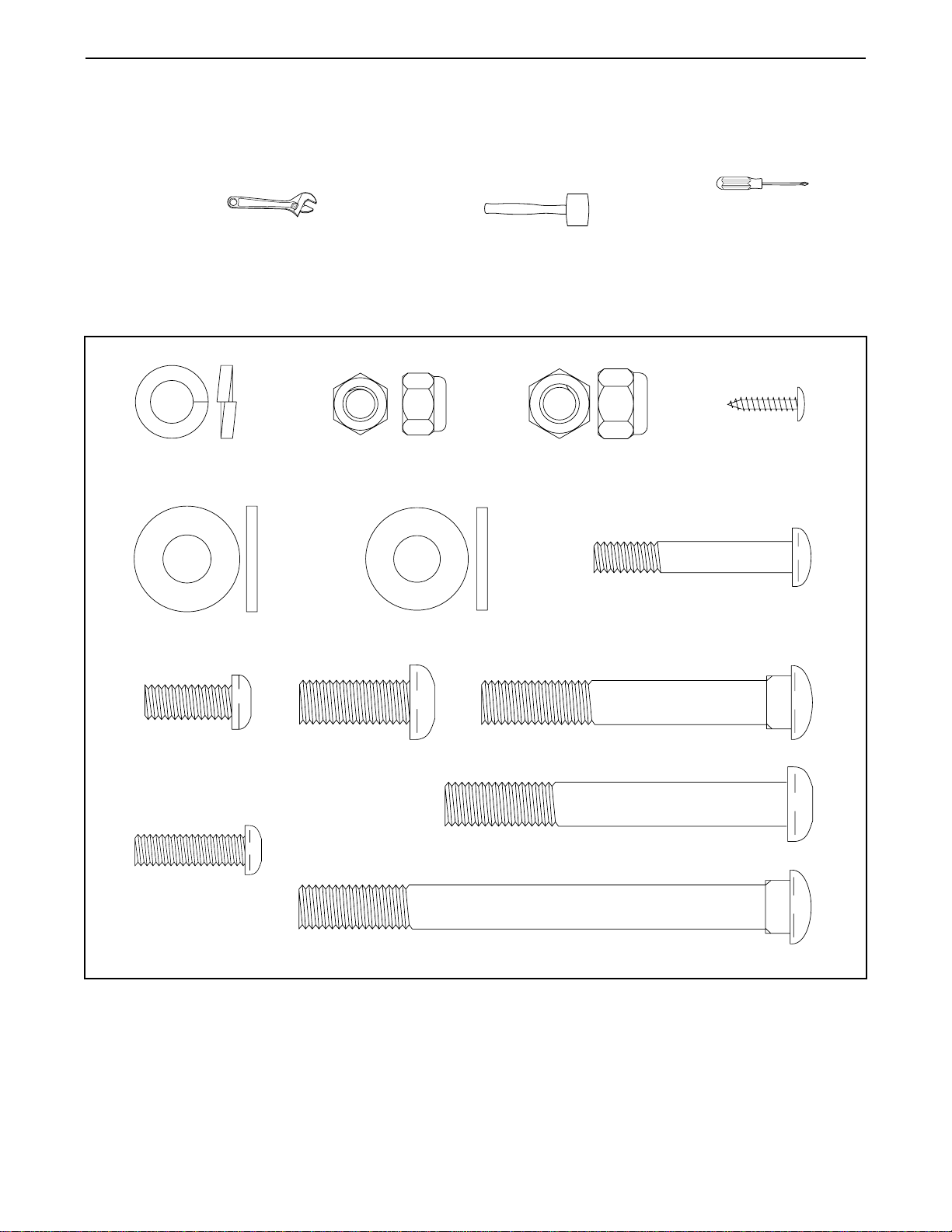

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included allen wrenches, assembly requires a phillips screwdriver , an
adjustable wrench , and a rubber mallet .
As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M10 x 112mm Carriage Bolt (34)–4
Adjustment Bolt (20)–2
M10 x 78mm Button Bolt (27)–2
M10.3 Black
Washer (53)–2
M8 x 19mm Button
Screw (22)–2
M4 x 16mm
Screw (66)–2
M10 x 27mm
Screw (71)–3
M10 Washer
(38)–6
M10 Split
Washer (70)–3 M10 Nylon
Locknut (29)–6
M8 x 45mm Button Bolt (83)–4
M8 Nylon
Locknut (46)–4
M6 x 25mm
Screw (63)–1

6

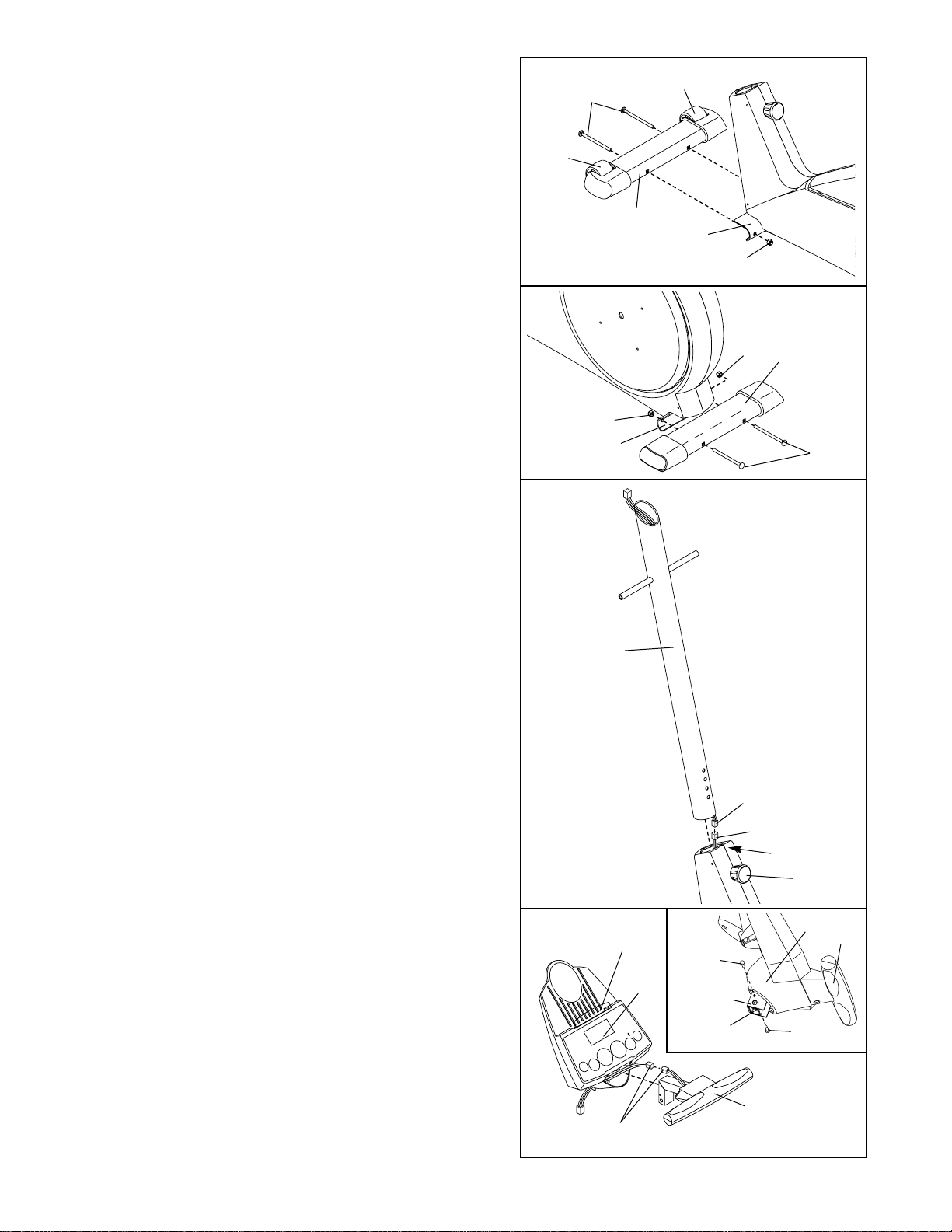

1. Identify the Front Stabilizer (3), which has Wheels (32)
attached to it. While another person lifts the front of the
Frame (1), attach the Front Stabilizer to the Frame
with two M10 x 112mm Carriage Bolts (34) and two
M10 Nylon Locknuts (29). Make sure that the Front
Stabilizer is turned so the Wheels are not touching
the floor.
3
29
32
32
34
1
1
2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (4) to the Frame with two
M10 x 112mm Carriage Bolts (34) and two M10 Nylon
Locknuts (29).
34
4
1
3
2
86
87191
3. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (86) to
the Lower Wire Harness (87). Carefully pull the
upper end of the Upper Wire Harness to remove
any slack. While holding the upper end of the
Upper Wire Harness, insert the Upright into the
Frame (1). Do not pinch the Wire Harnesses.
Next, turn the Upright Knob (91) counterclockwise sev-
eral turns. Pull the Knob, slide the Upright (2) down
until the Knob is aligned with one of the four adjust-
ment holes, and then release the Knob. Do not tighten
the Knob yet.
4. Connect the wire harness on the Handgrip Pulse
Sensor (81) to the indicated wire harness on the
Console (5). Insert both wire harnesses into the open-
ing in the bottom of the Console.
Refer to the inset drawing. Insert the metal tube on the
Handgrip Pulse Sensor (81) into the metal bracket
inside the Console (5) as shown. Be careful not to
pinch the wire harnesses. Align the holes in the metal
tube with the holes in the metal bracket, and tighten two
M4 x 16mm Screws (66) into the indicated holes.
Snap the bookrack onto the Console (5) where shown.
81
5
Bookrack
Wire Harnesses
66
5
Bracket
81
4
2
29
29
Tube 66
Make sure the
Wire Harnesses
(86, 87) do not
get pinched and
damaged during
this step.

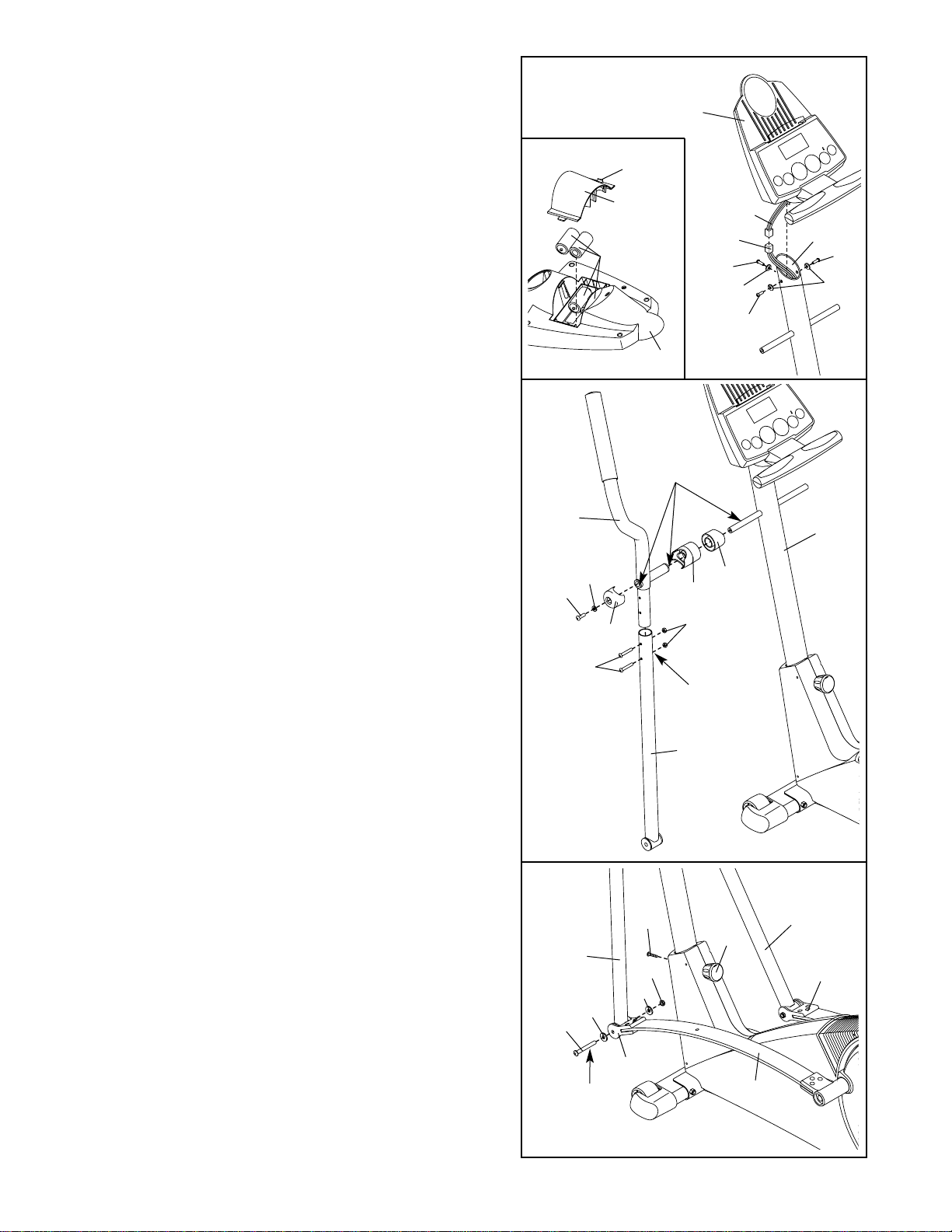

7. Hold the lower end of the left Handlebar Leg (79) inside
of the left Front Flex Bracket (17). Apply a generous
amount of grease to an M10 x 78mm Button Bolt (27).
Attach the left Handlebar Leg to the left Front Flex
Bracket with the Button Bolt, two M10 Washers (38),
and an M10 Nylon Locknut (29). Do not overtighten
the Nylon Locknut; the left Handlebar Leg must be
able to pivot freely.
Attach the right Handlebar Leg (79) to the right Front
Flex Bracket (17) in the same way.
Tighten the M6 x 25mm Screw (63) into the Upright (2).
Turn the Upright Knob (91) clockwise until it is tight.
Refer to step 6. Tighten the M8 x 45mm Button Bolts
(83) in the Handlebar Legs (79).
17
17
14
27 38 38
29
Grease
7
5. The Console (5) requires four “D” batteries (not includ-
ed); alkaline batteries are recommended. Refer to the
inset drawing. Press the tab on the battery cover, and
lift off the battery cover. Insert four batteries into the
battery compartment. Make sure that the batteries
are oriented as shown by the diagram inside the
battery compartment. Reattach the battery cover.
While another person holds the Console (5) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (86). Insert the
excess wire harness into the Upright (2). Next, attach
the Console to the Upright with three M10 x 27mm
Screws (71) and three M10 Split Washers (70). Be
careful to avoid pinching the wire harnesses.
5
86 71
71
6. Identify the Left Handlebar (9), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (79); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45mm Button Bolts (83)
and two M8 Nylon Locknuts (46). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Apply a generous amount of the included grease to the
left axle on the Upright (2) and inside of the two
Handlebar Bushings (24) in the Left Handlebar (9).
Carefully slide an Upright Spacer (26), a Handlebar
Spacer (25), the Left Handlebar (9), and a Handlebar
Cap (23) onto the left axle on the Upright (2) as shown.
Slide an M10.3 Black Washer (53) onto an M8 x 19mm
Button Screw (22), and tighten the Button Screw into the
axle.
Attach the Right Handlebar and the other Handlebar Leg
(not shown) in the same way.
Grease
6
7
2
Wire
Harness
70
70
71
26
25
92
23
22 53
83
46
Hexagonal
Holes
79
63 91
79
79
5
Tab
Batteries
Battery
Cover
5

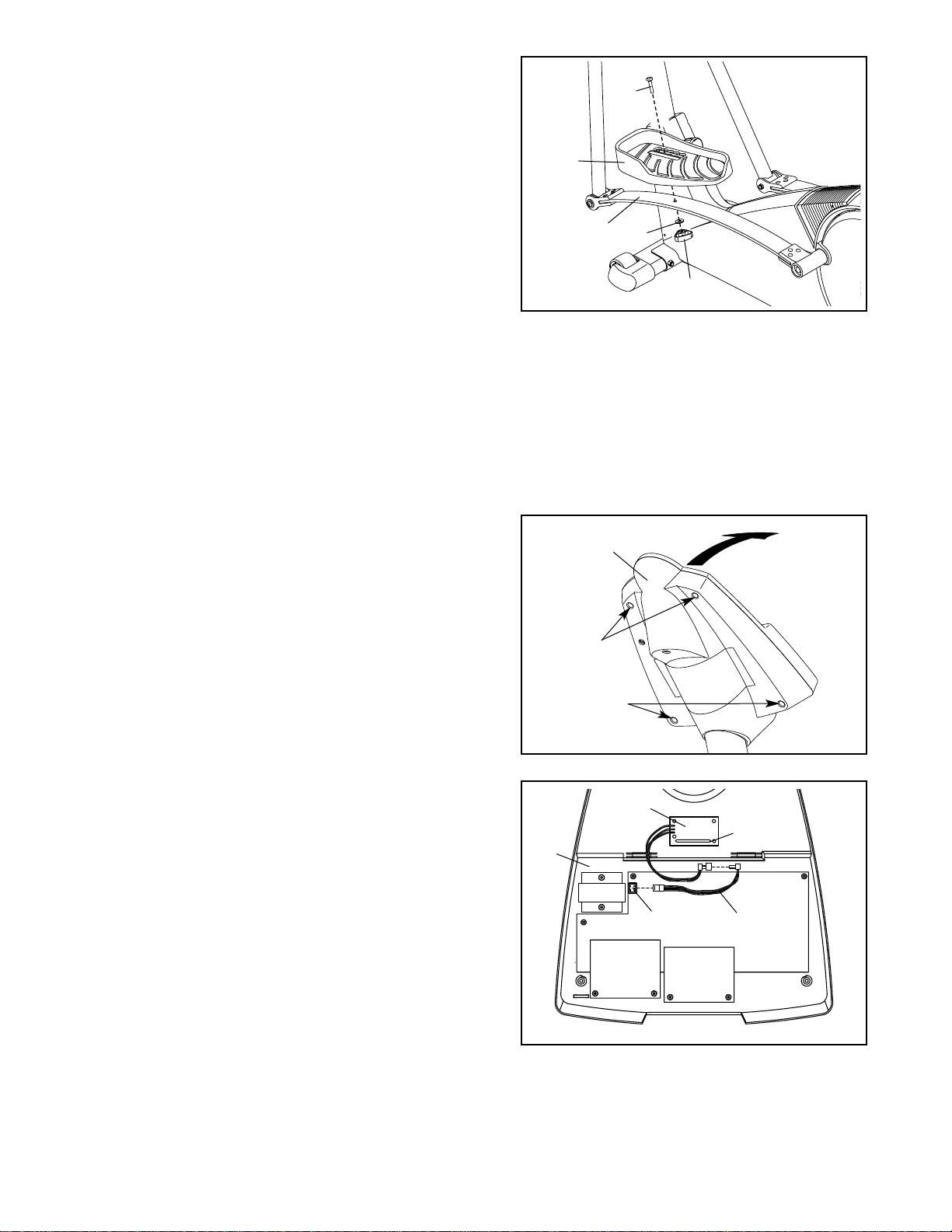

INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (refer to page 20), follow the steps below to install the receiver
and the short jumper wire included with the chest pulse sensor.
1. Remove the two short screws and the two long screws
from the back of the Console (5). Lift off the front of the
Console.
2. Plug the short jumper wire (A) into the indicated jack on
the Console (5). Connect the other end of the short
jumper wire to the wire on the receiver (B). Note: Any
other wires included with the chest pulse sensor are
not needed.
Next, peel the paper off the adhesive pad on the back
of the receiver (B). Orient the receiver as shown, and
press it onto the Console (5) in the indicated location.
Refer to step 1 above. Reattach the front of the
Console (5) with the short screws and the long screws.
Make sure that no wires are pinched.
8
9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.
820
15
38
14
13
8. Identify the Left Pedal (13). Attach the Left Pedal to the
left Flex Bar (14) with an Adjustment Bolt (20), an M10
Washer (38), and an Adjustment Knob (15) as shown.
Note: The Left Pedal can be attached in any of five
positions (see HOW TO ADJUST THE PEDALS on
page 9).
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same position.
B
5
Jack
5
Short
Screws
Long
Screws
Lift
Here
1
A
Cylinder
2

9
HOW TO USE THE ELLIPTICAL CROSSTRAINER
HOW TO ADJUST THE PEDALS
The motion of the
pedals is deter-
mined by their
position on the
flex bars. Their
are five different
pedal positions.
To adjust the
pedals, first
loosen the knob
beneath each
pedal. Slide the
pedals forward or backward to the desired position,
and then retighten the knobs. Make sure that both
pedals are in the same position.
HOW TO EXERCISE ON THE ELLIPTICAL
CROSSTRAINER
To mount the elliptical crosstrainer, hold the handgrip
pulse sensor and step onto the pedal that is in the low-
est position. Then, step onto the other pedal. Push the
pedals until they begin to move with a continuous
motion. Note: The pedal disks can turn in either
direction. It is recommended that you move the
pedal disks in the direction shown by the arrow
below; however, for variety, you may turn the pedal
disks in the opposite direction.
To dismount the elliptical crosstrainer, wait until the
pedals come to a complete stop. Note: The elliptical
crosstrainer does not have a free wheel; the ped-
als will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
HOW TO USE THE HANDLEBARS
The handlebars are
designed to add
upper-body exer-
cise to your work-
outs. Push and pull
the handlebars as
you exercise to
work your arms,
shoulders, and
back.
To exercise only
your lower body,
hold the handgrip
pulse sensor as
you exercise.
CAUTION:Before using the ellipti-
cal crosstrainer, read the following precau-
tions.
• Always hold the handgrip pulse sensor or the
handlebars when mounting, dismounting, or
using the elliptical crosstrainer.
• When you stop exercising, allow the pedals to
slowly come to a stop.
• The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
Pedals
Pedal Disk
Handgrip
Pulse Sensor
Handlebars
Handgrip
Pulse
Sensor
Knob Flex
Bar
Pedal

10
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the elliptical crosstrainer
can be adjusted with a touch of a button. As you exer-
cise, the console will provide continuous exercise
feedback. You can even measure your heart rate using
the built-in handgrip pulse sensor. (For information

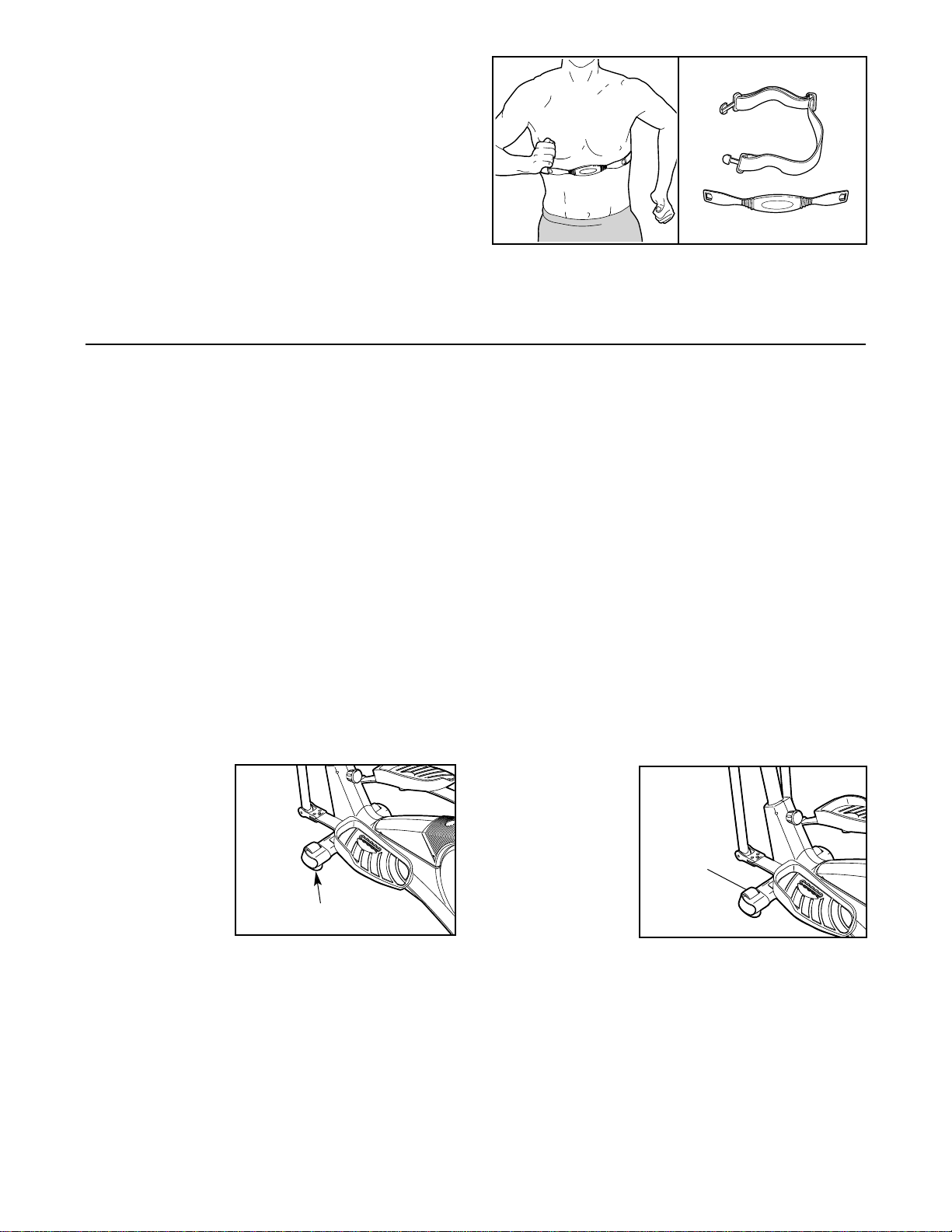

about an optional chest pulse sensor, refer to page 20.)
The console also offers eight Smart workout programs.
Each program automatically changes the resistance of
the elliptical crosstrainer and prompts you to increase
or decrease your pace as it guides you through an
effective workout.
In addition, the console features two Heart Rate work-
out programs that automatically change the resistance
of the elliptical crosstrainer and prompt you to vary
your pace to keep your heart rate near a target heart
rate as you exercise.

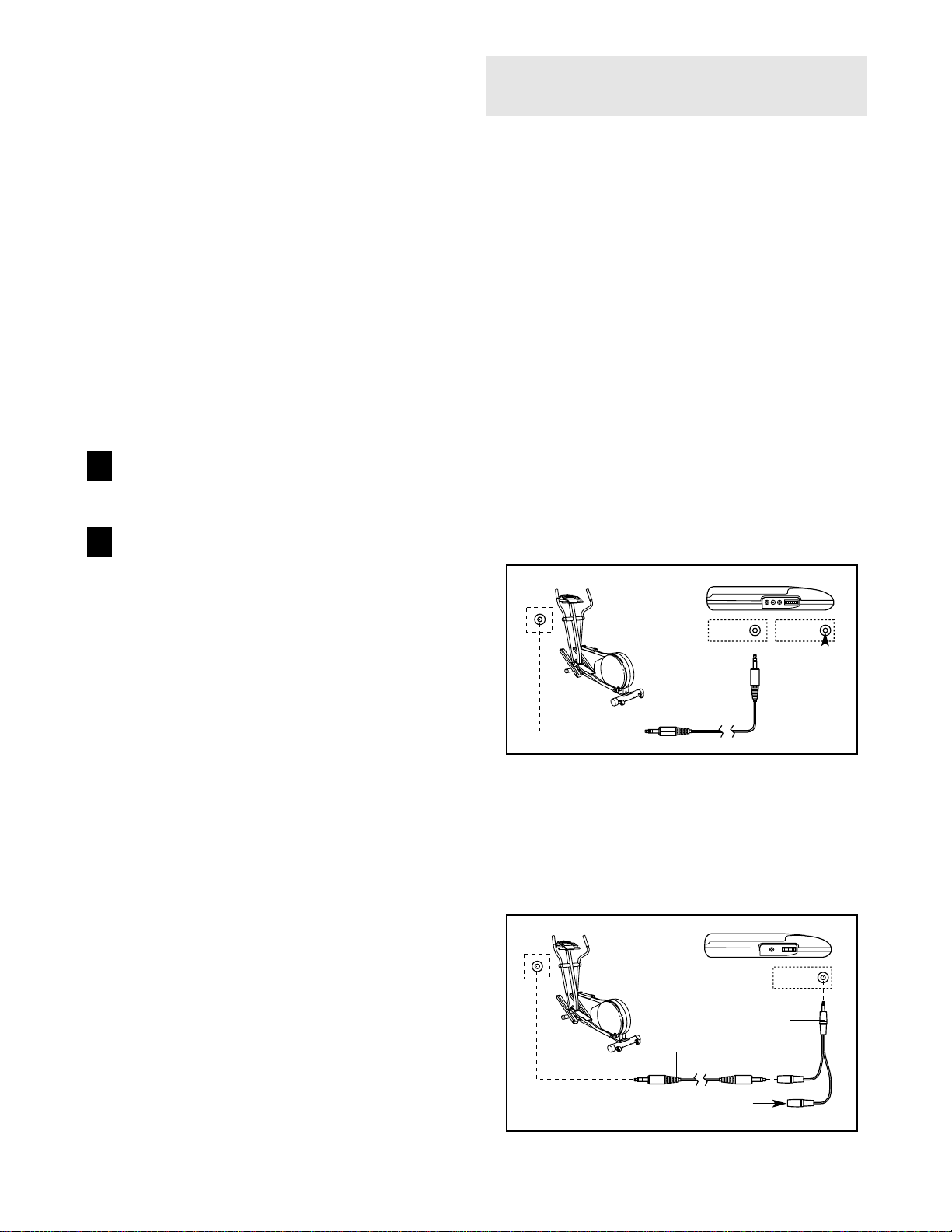

The console also features new iFIT.com interactive
technology. IFIT.com technology is like having a per-
sonal trainer right in your home. Using a stereo audio
cable (available at electronics stores), you can connect
the elliptical crosstrainer to your home stereo, portable
stereo, or computer and play special iFIT.com CD pro-
grams (CDs are available separately). IFIT.com CD
programs automatically control the resistance of the
elliptical crosstrainer and prompt you to vary your pace
as a personal trainer coaches you through every step
of your workout. High-energy music provides added
motivation. Each CD features two programs designed
by certified personal trainers.

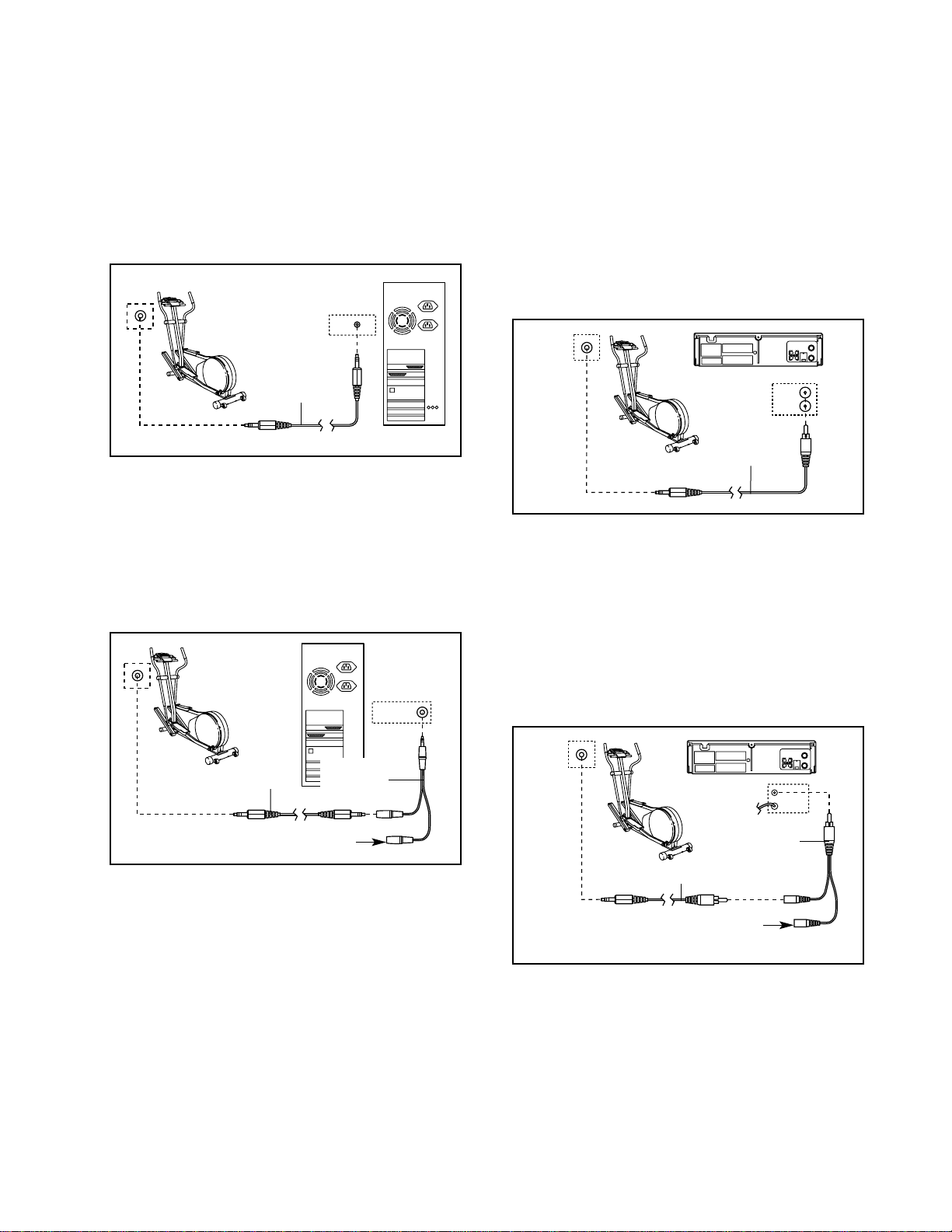

In addition, you can connect the elliptical crosstrainer
to your VCR and TV and play iFIT.com video programs
(videocassettes are available separately). Video pro-
grams offer the same benefits as iFIT.com CD pro-
grams, but add the excitement of working out with a
class and an instructor.
With the elliptical crosstrainer connected to your com-
puter, you can also go to our new Web site at
www.iFIT.com and access audio programs and video
programs directly from the internet.
To purchase iFIT.com CDs and videocassettes, call
toll-free 1-888-936-4266.
F
HI
G
L
J
K
B C DA E

11
CONSOLE DESCRIPTION
Refer to the drawing on page 10. Note: If there is a
thin sheet of clear plastic on the face of the con-
sole, remove it.
A. Program profiles—These profiles show how the
resistance of the elliptical crosstrainer and the tar-
get pace will change during Smart programs and
Heart Rate programs. For example, profile number
3 shows that during Smart program 3, both the
resistance and the pace will gradually increase dur-
ing the first half of the program, and then gradually
decrease during the last half.
B. Exercise feedback display—This display features
seven modes that give you instant exercise feed-
back: your current speed, the elapsed time (or the
time remaining in a Smart program or a Heart Rate
program), the distance that you have pedaled, the
resistance level, the approximate number of calo-
ries you have burned, your power output in watts,
and your heart rate (when you use the handgrip
pulse sensor or the optional chest pulse sensor). If
the scan mode is selected, the display will change
from one mode to the next every six seconds. Or,
you can select a single mode for continuous display.
Note: The console can show speed and distance
in either miles or kilometers. To change the unit
of measurement, hold down the On/Reset button
for six seconds. The mode indicators (see F
below) will show which unit of measurement is
selected. When the batteries are replaced, it may
be necessary to reselect the desired unit of mea-
surement.
C. Increase and decrease arrows—During Smart pro-
grams, Heart Rate programs, and iFIT.com pro-
grams, these arrows will prompt you to increase or
decrease your pace to match the target pace.
D. Manual mode/program indicator—When a Smart
program is selected, the upper right corner of the
display will show a 1, 2, 3, 4, 5, 6, 7, or 8, depend-
ing on which Smart program is selected. When a
Heart Rate program is selected, the upper right cor-
ner of the display will show a 9 or 10. When the
iFIT.com mode is selected, the upper right corner
will show the letters IF. When the manual mode is
selected, the upper right corner will be blank.
E. Warning—see page 3.
F. Feedback mode indicators—These indicators show
which feedback mode (scan, speed, time, distance,
resistance level, calories, watts, or heart rate) is
currently shown. Note: When the distance is
shown, the word Miles or the letters Kms will
appear; when your speed is shown, the letters MPH
or Km/H will appear.
G.Pace bar graphs—When the manual mode is
selected, only the left bar graph will appear. This
bar graph represents your exercise pace. As you
increase or decrease your pace, additional bars will
appear or disappear on the bar graph. When a
Smart program, a Heart Rate program, or the
iFIT.com mode is selected, both bar graphs will
appear. The left bar graph represents your exercise
pace, and the right bar graph represents a target
pace. During the program, the target pace will
periodically change. As the right bar graph
changes, simply adjust your pace so that the same
number of bars appear on both bar graphs.
Important: The target pace is a goal pace. Your
actual pace may be slower than the target pace,
especially during the first few months of your
exercise program. Make sure to exercise at a
pace that is comfortable for you.
H. On/Reset button—When the console is off, pressing
this button will turn on the display. When the console
is on, pressing this button will reset the display.
This button is also used to select the unit of mea-
surement for speed and distance (see B at the left).
I. Display Mode button—This button is used to select
the feedback modes. The modes will be selected in
the following order: scan, speed, time, distance,
resistance level, calories, watts, and heart rate
(when the handgrip pulse sensor or the optional
chest pulse sensor is used).
J. + and – buttons—These buttons control the resis-
tance of the elliptical crosstrainer. There are ten
resistance levels; level 10 is the most challenging.
These buttons are also used to enter your age
when a Heart Rate program is selected.
K. Program button—This button is used to select the
manual mode, Smart programs, and Heart Rate
programs.
L. IFIT.com button—This button is used to select the
iFIT.com mode. The indicator on the button will light
when the iFIT.com mode is selected.
To use the manual mode of the console, refer to
page 12. To use a Smart program, refer to page 13.
To use a Heart Rate program, refer to page 14. To
use iFIT.com CDs or videos, refer to page 18. To
use a program directly from our Web site, refer to
page 19.

12
Turn on the console.
Note: The console requires four “D” batteries (not
included). If you have not installed batteries, refer
to step 5 on page 7 and install batteries.
To turn on the console, press the On/Reset button
or begin pedaling.
Select the manual mode.
Each time the
console is
turned on, the
manual mode
will be select-
ed. If a Smart
program, a
Heart Rate pro-
gram, or the iFIT.com mode has been selected,
select the manual mode by pressing the Program
button repeatedly until the upper right corner of
the display is blank.
Begin exercising and adjust the resistance of
the elliptical crosstrainer.
As you exercise, adjust the resistance of the
elliptical crosstrainer as desired by pressing the +
and – buttons. There are ten resistance levels;
level 10 is the most challenging. Note: After the
buttons are pressed, it will take a few seconds for
the selected setting to be reached.
Follow your progress with the feedback modes
and the left bar graph.
When the con-
sole is turned
on, the scan
mode will be
selected. As
you exercise,
the display will
show your cur-
rent speed, the elapsed time, the distance that
you have pedaled, the current resistance level,
the approximate number of calories you have
burned, and your power output in watts. In addi-
tion, your heart rate will be shown when you use
the handgrip pulse sensor (refer to step 5 below)
or the optional chest pulse sensor (refer to page
20). Note: Each time the resistance level
changes, the console will show the resistance
level for six seconds. In addition, when a Smart
program or a Heart Rate program is selected, the
display will show the time remaining in the pro-
gram instead of the elapsed time.
In addition, the left bar graph will appear in the dis-
play to show your exercise pace. As you increase
or decrease your pace, additional bars will appear
or disappear on the bar graph.
If desired, you can select a single feedback mode
for continuous display. Press the Display Mode
button repeatedly until only the MPH (or Km/H),
Time, Miles (or Kms), Resist., Cals., or Watts
indicator appears in the display. Make sure that
the Scan indicator does not appear.
Measure your heart rate if desired.
Note: If you wear the optional chest pulse
sensor (see page 20) and hold the handgrip
pulse sensor at the same time, the console
may not display your heart rate accurately.
If there are thin
sheets of plas-
tic on the metal
contacts on the
handgrip pulse
sensor, peel off
the plastic. To
use the handgrip
pulse sensor,
place your hands on the metal contacts. Your
palms must be on the upper contacts and your
fingers must be touching the lower contacts.
Avoid moving your hands. When your pulse is
detected, the heart-shaped indicator in the dis-
play will flash each time your heart beats. After a
moment, two dashes (– –) will appear and then
your heart rate will be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 15 seconds. Note:
When you first hold the handgrips, the display will
show your heart rate continuously for 15 sec-
onds. The display will then show your heart rate
along with the other feedback modes.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved and the console but-
tons are not pressed for a few minutes, the con-
sole will automatically turn off to conserve
the batteries.
6
5
4
3
2
1
HOW TO USE THE MANUAL MODE
This corner
should be blank
Metal
Contacts

13
Turn on the console.
Refer to step 1 on page 12.

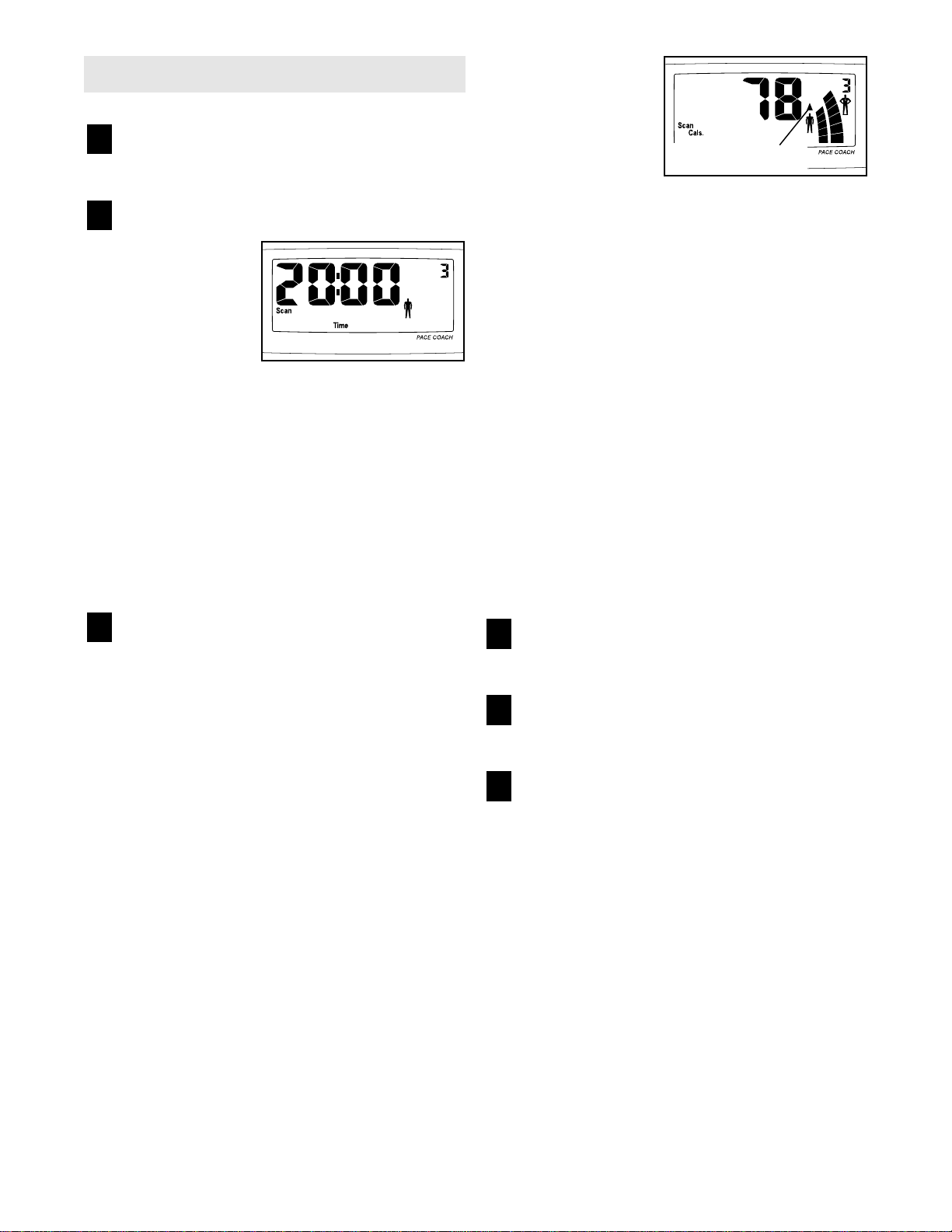

Select one of the eight Smart programs.
Each time the
console is turned
on, the manual
mode will be
selected. To
select a Smart
program, press
the Program but-
ton repeatedly until the number 1, 2, 3, 4, 5, 6, 7,
or 8 appears in the upper right corner of the dis-
play.
The profiles numbered 1 through 8 on the con-
sole show the resistance and pace settings for
the Smart programs. For example, profile number
3 shows that when Smart program 3 is selected,
both the resistance and the pace will gradually
increase during the first half of the program, and
then decrease during the last half.
Start the program.
To start the program, simply begin exercising.
Each Smart program consists of twenty, one-
minute periods. One resistance setting and one
pace setting are programmed for each period.
(The same resistance setting and/or pace setting
may be programmed for consecutive periods.)
During the program, the resistance of the elliptical
crosstrainer will automatically change as shown
by the applicable profile on the console. If the cur-
rent resistance level is too high or too low, you
can change the resistance level by pressing the +
and – buttons. However, when the current period
of the program is completed, the resistance level
will automatically change if a different resistance
setting is programmed for the next period.
The pace set-
tings for the pro-
gram will be
shown by the
right bar graph in
the display. (The
left bar graph will
show your actual
exercise pace.) As the right bar graph changes
during the program, simply increase or decrease
your pace so that the same number of bars
appear on both bar graphs. If your pace is slower
than the current pace setting, the increase arrow
will appear in the display to prompt you to
increase your pace; if your pace is faster than the
pace setting, the decrease arrow will appear.
Important: The pace settings for the program
are intended only to provide a goal. Your actu-
al pace may be slower than the pace settings,
especially during the first few months of your
exercise program. Make sure to exercise at a
pace that is comfortable for you.
During the program, the display will show the time
remaining in the program. When no time remains,
the program will be completed. If you continue
exercising after the program is completed, the
display will continue to show your exercise feed-
back.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
Refer to step 5 on page 12.
When you are finished exercising, the console
will automatically turn off.
Refer to step 6 on page 12.
6
5
4
3
2
1
HOW TO USE A SMART PROGRAM
Increase Arrow

14

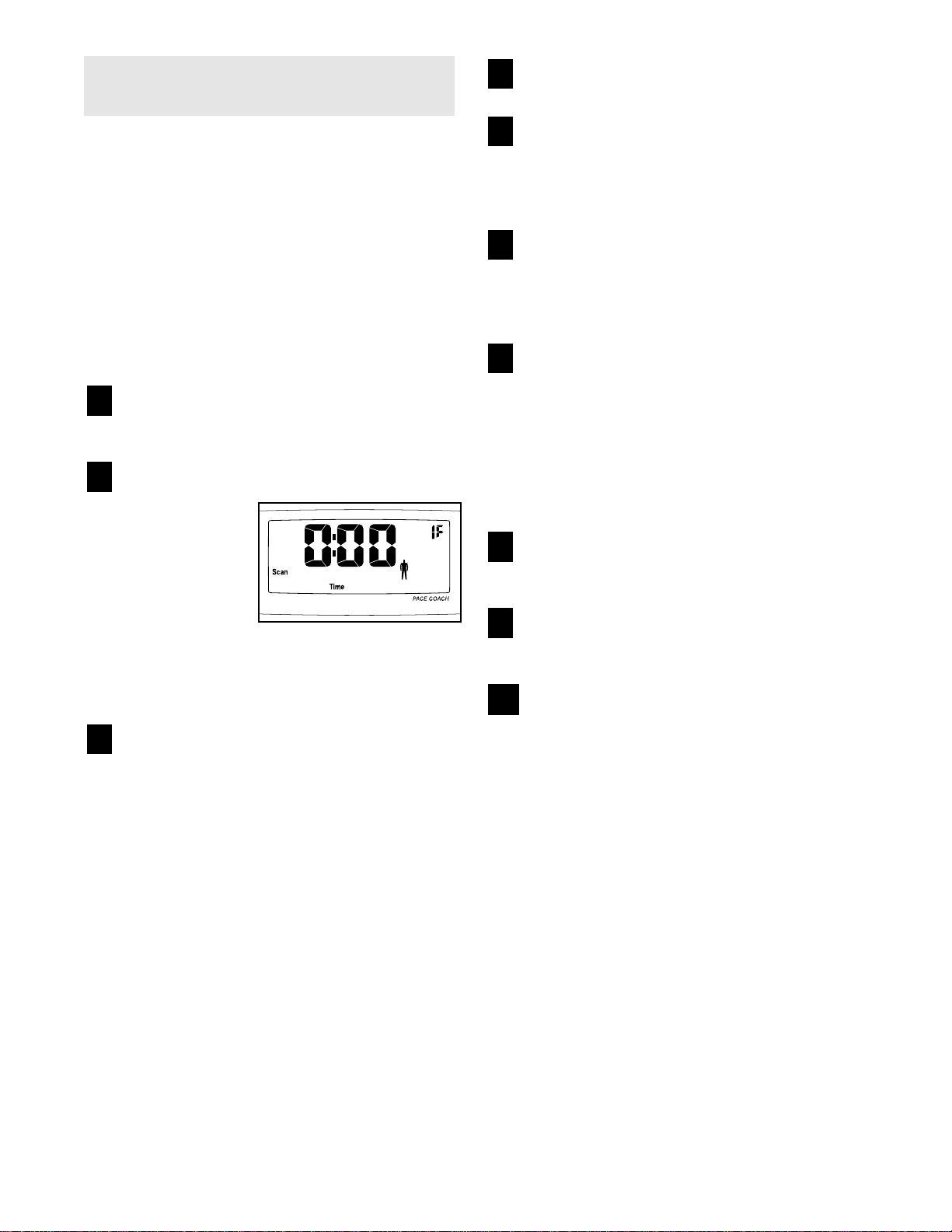

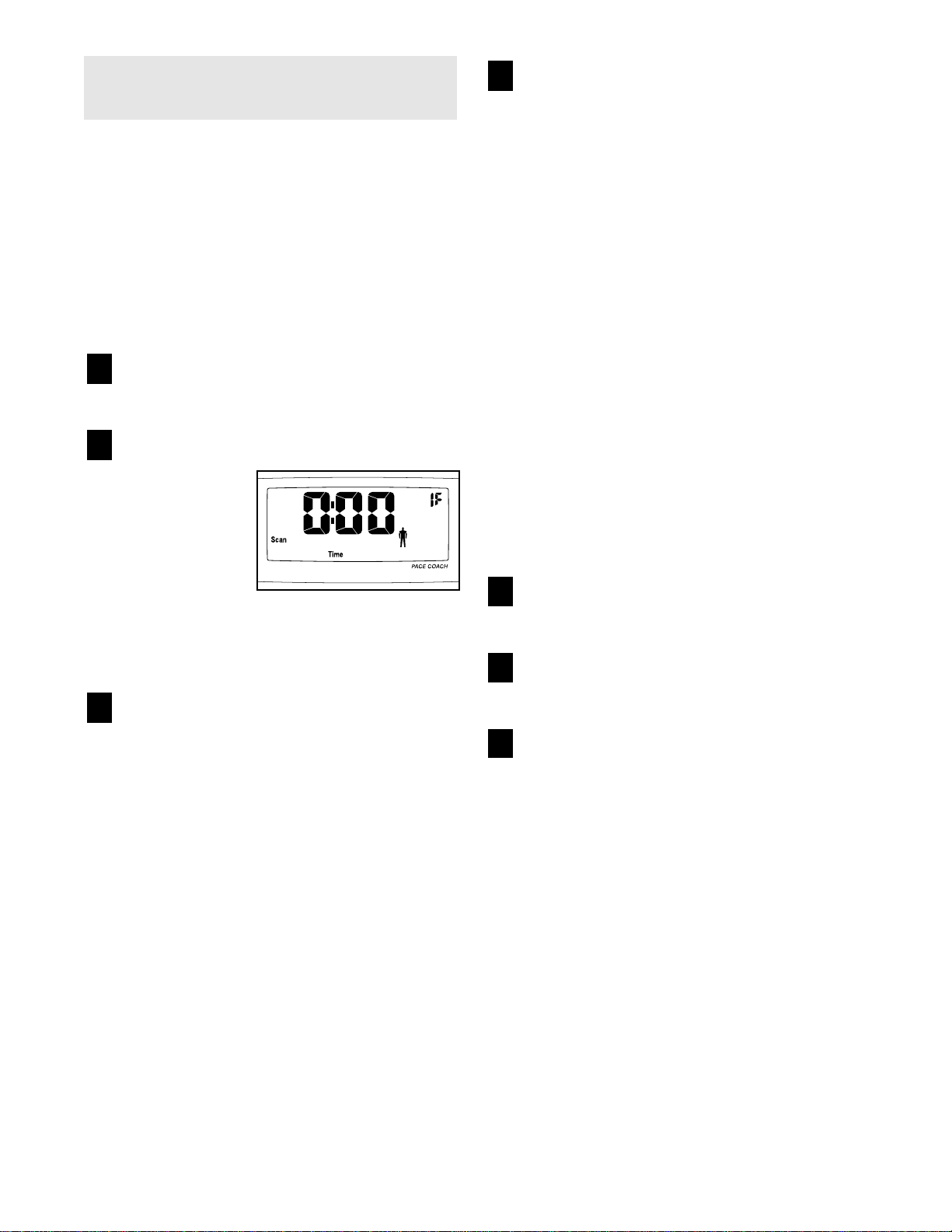

Each Heart Rate program helps you to keep your
heart rate near a certain percentage of your maximum
heart rate during your workout. (Your maximum heart
rate is estimated by subtracting your age from 220.
For example, if you are 25 years old, your maximum
heart rate is 195.) Heart Rate program 9 is designed
to keep your heart rate between 65% and 85% of your
maximum heart rate while you exercise; Heart Rate
program 10 is designed to keep your heart rate
between 65% and 80% of your maximum heart rate.
Follow the steps below to use a Heart Rate program.
Turn on the console.
Refer to step 1 on page 12.
Select one of the two Heart Rate programs.
Each time the
console is
turned on, the
manual mode
will be selected.
To select a
Heart Rate pro-
gram, press the
Program button repeatedly until the number 9 or
10 appears in the upper right corner of the dis-
play.
The profiles numbered 9 and 10 on the console
show the resistance settings for the Heart Rate
programs. For example, profile number 9 shows
that when Heart Rate program 9 is selected, the
resistance level will gradually increase during the
program and then decrease near the end.
Enter your age.
When a Heart Rate program is selected, the word
AGE will appear in the display. You must enter
your age to use a Heart Rate program. To enter
your age, first press the + or – button. The current
age setting will then be shown. Next, press the +
or – button repeatedly to enter your age. Once
you have entered your age, your age will be
saved in memory until the batteries are replaced.
Hold the handgrip pulse sensor.
When using a Heart Rate program, you must use
the handgrip pulse sensor (refer to step 5 on
page 12) or the optional chest pulse sensor (refer
to page 20). If you use the handgrip pulse sensor,
it is not necessary to hold the handgrips continu-
ously during the program. However, you should
hold the handgrips frequently for the program to
operate properly. Each time you hold the hand-
grips, keep your hands on the metal contacts
for at least 30 seconds. Note: When you are not
holding the handgrips, the letters PLS will appear
in the display instead of your heart rate.
Start the program.
To start the program, simply begin exercising.
Each Heart Rate program consists of twenty, one-
minute periods. One resistance setting and one
heart rate setting are programmed for each peri-
od. (The same resistance setting and/or heart
rate setting may be programmed for consecutive
periods.)
During the program, the resistance of the elliptical
crosstrainer will automatically change as shown
by the applicable profile on the console. If the cur-
rent resistance level is too high or too low, you
can adjust the resistance level by pressing the +
and – buttons. However, when the current period
of the program is completed, the resistance level
will automatically change if a different resistance
setting is programmed for the next period.
As you exercise,
the bar graphs
will help you to
keep your heart
rate near the
heart rate setting
for the current
period. The left
bar graph will show your actual exercise pace.
The right bar graph will show a target pace. When
you hold the handgrip pulse sensor (or wear the
optional chest pulse sensor), the console will
compare your heart rate to the heart rate setting
for the current period. If necessary, the right bar
graph will then change to prompt you to increase
or decrease your pace to bring your heart rate
closer to the current heart rate setting. When the
5
4
3
2
1
HOW TO USE A HEART RATE PROGRAM

15
right bar graph changes, increase or decrease
your pace so that the same number of bars
appear in both bar graphs. If your pace is slower
than the current pace setting, the increase arrow
will also appear in the display; if your pace is
faster than the pace setting, the decrease arrow
will appear. Important: The pace settings for
the program are intended only to provide a
goal. Your actual pace may be slower than the
pace settings, especially during the first few
months of your exercise program. Make sure
to exercise at a pace that is comfortable for
you.
During the program, the display will show the
time remaining in the program. When no time
remains, the program will be completed. If you
continue to exercise after the program is complet-
ed, the display will continue to show your exer-
cise feedback.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
When you are finished exercising, the console
will automatically turn off.
Refer to step 6 on page 12.
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CD’s, the elliptical crosstrainer must
be connected to your portable CD player, portable
stereo, home stereo, or computer with CD player. See
pages 15 to 17 for connecting instructions. To use
iFIT.com videocassettes, the elliptical crosstrainer
must be connected to your VCR. See page 17 for con-
necting instructions. To use iFIT.com programs
directly from our Web site, the elliptical crosstrainer
must be connected to your home computer. See page
17 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT
and PHONES jacks, see instruction A below. If
your CD player has only one jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
7
6
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable Head-
phones
A
PHONES
PHONES
Audio
Cable
1/8”
Y-adapter
Headphones
B

16
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your stereo.
B. Refer to the drawing above. Plug one end of a 1/8”
to 1/8” stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into an RCA Y-adapter (available at electron-
ics stores). Next, remove the wire that is currently
plugged into the LINE OUT jack on your stereo and
plug the wire into the unused side of the Y-adapter.
Plug the Y-adapter into the LINE OUT jack on your
stereo.
AUDIO OUT
RIGHT
LEFT
LINE OUT
Audio
Cable
A/B
PHONES
Audio
Cable
C
1/8”
Y-adapter
Headphones
CD
VCR
Amp
LINE OUT
LINE OUT
Audio
Cable
A
CD
VCR
Amp
LINE OUT
Audio
Cable RCA
Y-adapter
Wire removed from
LINE OUT jack
B

17
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or
speakers into the other side of the Y-adapter.
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your VCR.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into an RCA Y-adapter (available at electron-
ics stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR
and plug the wire into the unused side of the Y-
adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
LINE OUT
Audio
Cable
A
PHONES
Audio
Cable
B
1/8”
Y-adapter
Headphones/Speakers
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio
Cable
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable
B
Wire removed from
AUDIO OUT jack
RCA
Y-adapter

18
To use iFIT.com CDs or videocassettes, the elliptical
crosstrainer must be connected to your portable CD
player, portable stereo, home stereo, computer with
CD player, or VCR. See HOW TO CONNECT YOUR
CD PLAYER, VCR, OR COMPUTER on page 15.
Note: To purchase iFIT.com CDs and videocas-
settes, call toll-free 1-888-936-4266.
Follow the steps below to use an iFIT.com CD or
video program.
Turn on the console.
Refer to step 1 on page 12.
Select the iFIT.com mode.
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
iFIT.com mode,
press the
iFIT.com button. The indicator on the button will
light and the letters IF will appear in the upper
right corner of the display.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
A moment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a Smart program (refer to step 3 on page 13).
However, an electronic “chirping” sound will alert
you when the resistance and/or the pace setting is
about to change.
Note: If the resistance of the elliptical cross-
trainer and/or the pace setting does not
change when a “chirp” is heard:
• Make sure that the indicator on the iFIT.com
button is lit.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
Refer to step 5 on page 12.
When you are finished exercising, the console
will automatically turn off.
Refer to step 6 on page 12.
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS

19
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
Our Web site at www.iFIT.com allows you to play
iFIT.com audio and video programs directly from the
internet. To use programs from our Web site, the ellip-
tical crosstrainer must be connected to your home
computer. See HOW TO CONNECT YOUR COMPUT-
ER on page 17. In addition, you must have an internet
connection and an internet service provider. A list of
specific system requirements will be found on our Web
site.
Follow the steps below to use a program from our
Web site.
Turn on the console.
Refer to step 1 on page 12.
Select the iFIT.com mode.
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
iFIT.com mode,
press the
iFIT.com button. The indicator on the button will
light and the letters IF will appear in the upper
right corner of the display.
Go to your computer and start an internet
connection.
Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
select a program.
Read and follow the on-line instructions for using
a program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the elliptical crosstrainer and begin
exercising.
When the on-screen countdown ends, the pro-
gram will begin. The program will function in
almost the same way as a Smart program (refer to
step 3 on page 13). However, an electronic “chirp-
ing” sound will alert you when the resistance
and/or the pace setting is about to change.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
Refer to step 5 on page 12.
When you are finished exercising, the console
will automatically turn off.
Refer to step 6 on page 12.
10
9
8
7
6
5
4
3
2
1

20
Inspect and tighten all parts of the elliptical crosstrainer
regularly. Replace any worn parts immediately.
To clean the elliptical crosstrainer, use a damp cloth
and a small amount of mild dish soap. Important: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. Refer to assembly step 5 on
page 7 for replacement instructions. The console
requires four “D” batteries.
HOW TO LEVEL THE ELLIPTICAL CROSSTRAINER
After the elliptical
crosstrainer has
been moved to
the location
where it will be
used, make sure
that the ends of
both stabilizers
are touching the
floor. If the ellipti-
cal crosstrainer
rocks slightly during use, turn one or both of the level-
ing feet under the front stabilizer until the rocking
motion is eliminated.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
• For optimal performance of the handgrip pulse sen-
sor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth—never use alcohol,
abrasives, or chemicals.
HOW TO MOVE THE ELLIPTICAL CROSSTRAINER
Stand in front of
the elliptical
crosstrainer, hold
the handlebars
firmly, and tip the
elliptical cross-
trainer until it
can be moved
on the front
wheels. Carefully
move the ellipti-
cal crosstrainer to the desired location and then lower
it. Due to the size and weight of the elliptical
crosstrainer, use extreme caution while moving it.
MAINTENANCE AND TROUBLESHOOTING
Wheel
Leveling Foot
THE OPTIONAL CHEST PULSE SENSOR
The optional chest pulse sensor provides hands-free
operation and continuously monitors your heart rate
during your workouts. To purchase the optional
chest pulse sensor, call toll-free 1-888-936-4266.
