USER’S MANUAL
Serial
Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTEL05915.1
Serial No.
Write the serial number in the space
above for reference.
www.nordictrack.com
To register your product and
activate your warranty today, go
to www.nordictrackservice.com/
registration.
For service at any time, go to
www.nordictrackservice.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL ..............................................................18
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MAINTENANCE AND TROUBLESHOOTING.....................................................30
EXERCISE GUIDELINES ....................................................................32
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc.
Google Maps is a trademark of Google Inc.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 300 lbs. (136 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the ellip-
tical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4

5
all
STANDARD SERVICE PLANS

6
Thank you for selecting the revolutionary
NORDICTRACK®E 7.0 Z elliptical. The E 7.0 Z
elliptical provides an impressive selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Accessory Tray
Handlebar
Upper Body Arm
Pedal
Roller
Handle
Ramp
Ramp Handle
Console
Tablet Holder
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 6 in. (168 cm)
Width: 2 ft. 1 in. (64 cm)

7
PART IDENTIFICATION CHART

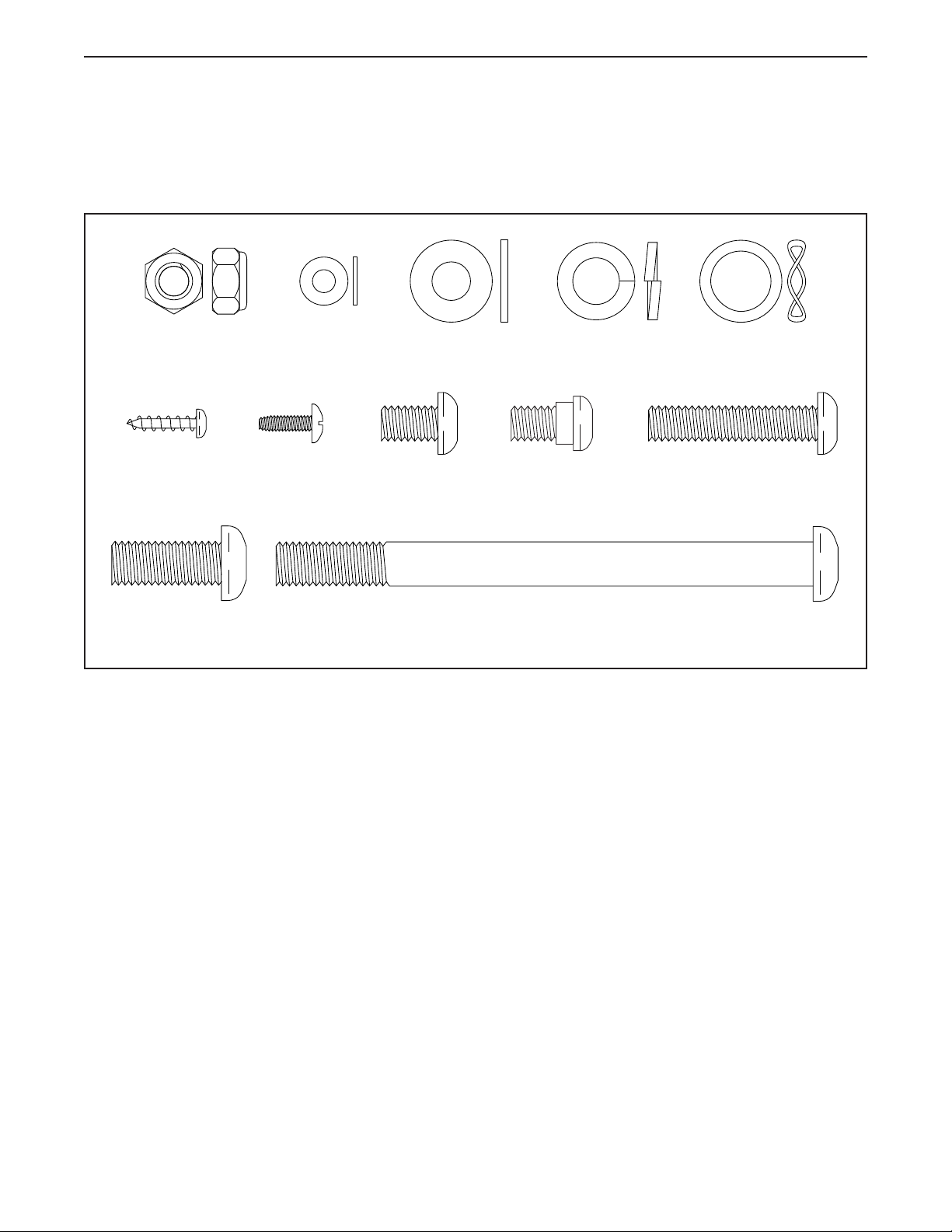

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 x 13mm
Screw (82)–6
M10 x 25mm
Screw (92)–4
M10 x 122mm Screw
(104)–4
M8 Locknut
(102)–4
M4 x 16mm
Screw (101)–16
16mm Wave
Washer (54)–2
M10 Split
Washer (105)–8
M8 Washer
(97)–8
M5 Washer
(32)–2
M8 x 38mm Bolt
(96)–4
M8 x 14mm
Shoulder
Screw (120)–2
#8 x 12mm
Screw (9)–4

8
2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
Attach the Rear Stabilizer (2) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Then, remove the packing materials from under
the rear of the Frame (1).
2
1
2
104 105
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. Go to www.nordictrackservice.com/
registration on your computer and register
your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1

9
3
2
106
15
3. Press the Cover Mounts (106) on the underside
of the Rear Stabilizer Cover (15) into the Rear
Stabilizer (2).
4
4. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (6) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Then, remove the packing materials from under
the front of the Frame (1).
1
6
104
105

10
5
5. Orient the Upright (4) as shown. Have a second
person hold the Upright near the Frame (1).
See the inset drawing. Locate the wire tie (A)
in the lower end of the Upright (4). Tie the wire
tie to the Upper Wire (110). Then, pull the upper
end of the wire tie until the Upper Wire is routed
through the Upright.
Tip: To prevent the Upper Wire (110) from
falling into the Upright (4), secure the Upper
Wire with the wire tie (A).
1
4
110
A
A
110
6
6. Tip: Avoid pinching the Upper Wire (110).
Avoid damaging the indicated plastic tabs
(B). Have a second person hold the Upright (4)
on the Frame (1).
Attach the Upright (4) with four M10 x 25mm
Screws (92) and four M10 Split Washers (105);
start all of the Screws, and then tighten them.
Avoid pinching the Upper
Wire (110) and avoid
damaging the tabs (B)
B
4
1
105
105
92
92
110

11
7
7. Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35) and to two 16mm Wave Washers (54).
Insert the Pivot Axle (35) through the Upright (4)
and center it. Tip: It may be helpful to use a
rubber mallet.
Next, identify the Right Upper Body Leg (60) and
orient it as shown.
Slide a 16mm Wave Washer (54) and the Right
Upper Body Leg (60) onto the right side of the
Pivot Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
Then, tighten an M8 x 13mm Screw (82) with an
M8 Washer (97) into each end of the Pivot Axle
(35) at the same time.
60
54
46
82
97
35
4
Grease
8
8. Identify the Right Upper Body Arm (61) and ori-
ent it as shown.
Slide the Right Upper Body Arm (61) onto the
Right Upper Body Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 38mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step for the Left Upper Body
Arm (47).
60
61
47
96
102
C

12
9
7
4
63
110

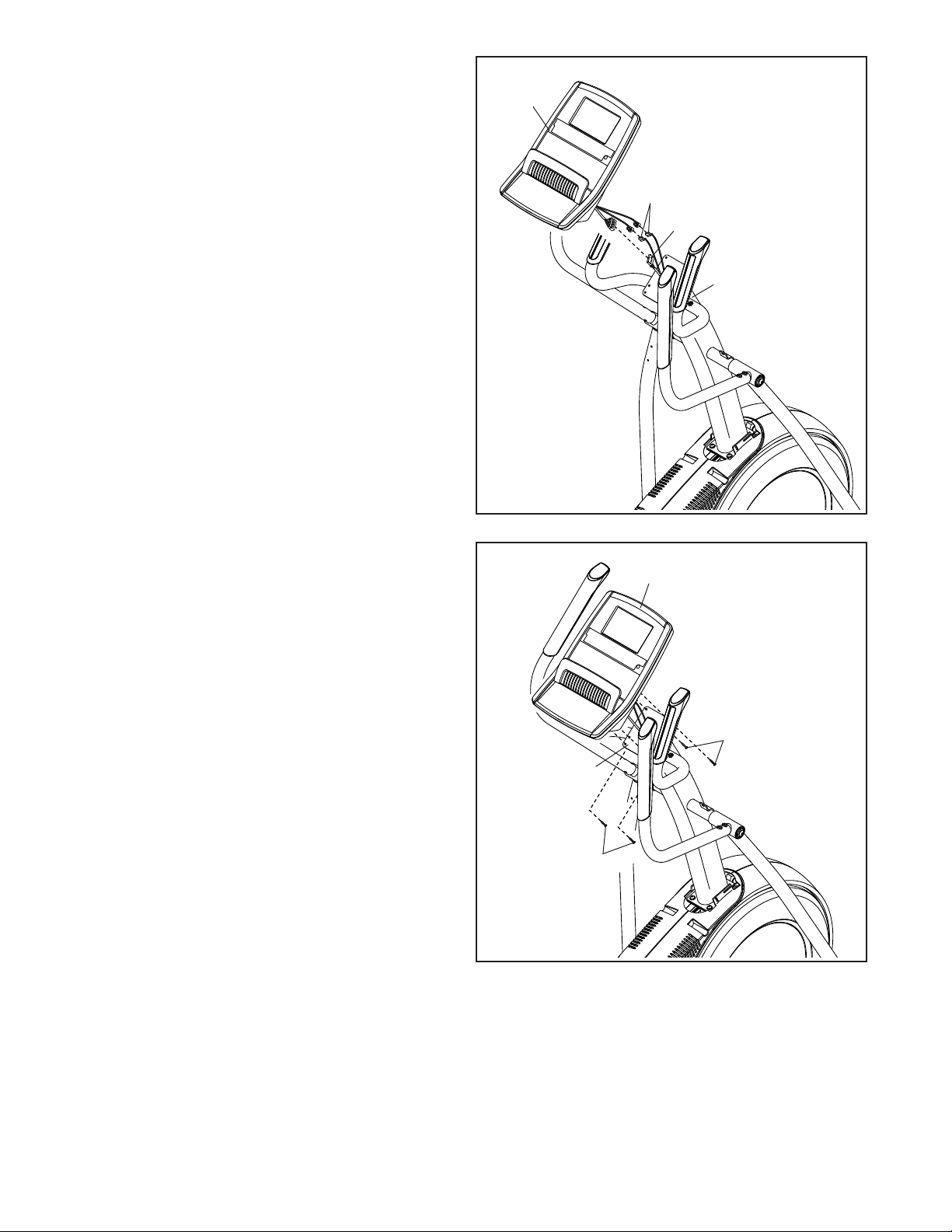

9. Untie and discard the wire tie on the Upper
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Upper Wire (110) and to the
Pulse Sensor Wires (63).
Insert the excess wire into the Upright (4) or into
the Console (7).
10
Avoid pinching
the wires
7
10. Tip: Avoid pinching the wires. Attach
the Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all of the
Screws, and then tighten them.
101
101
4

13
11

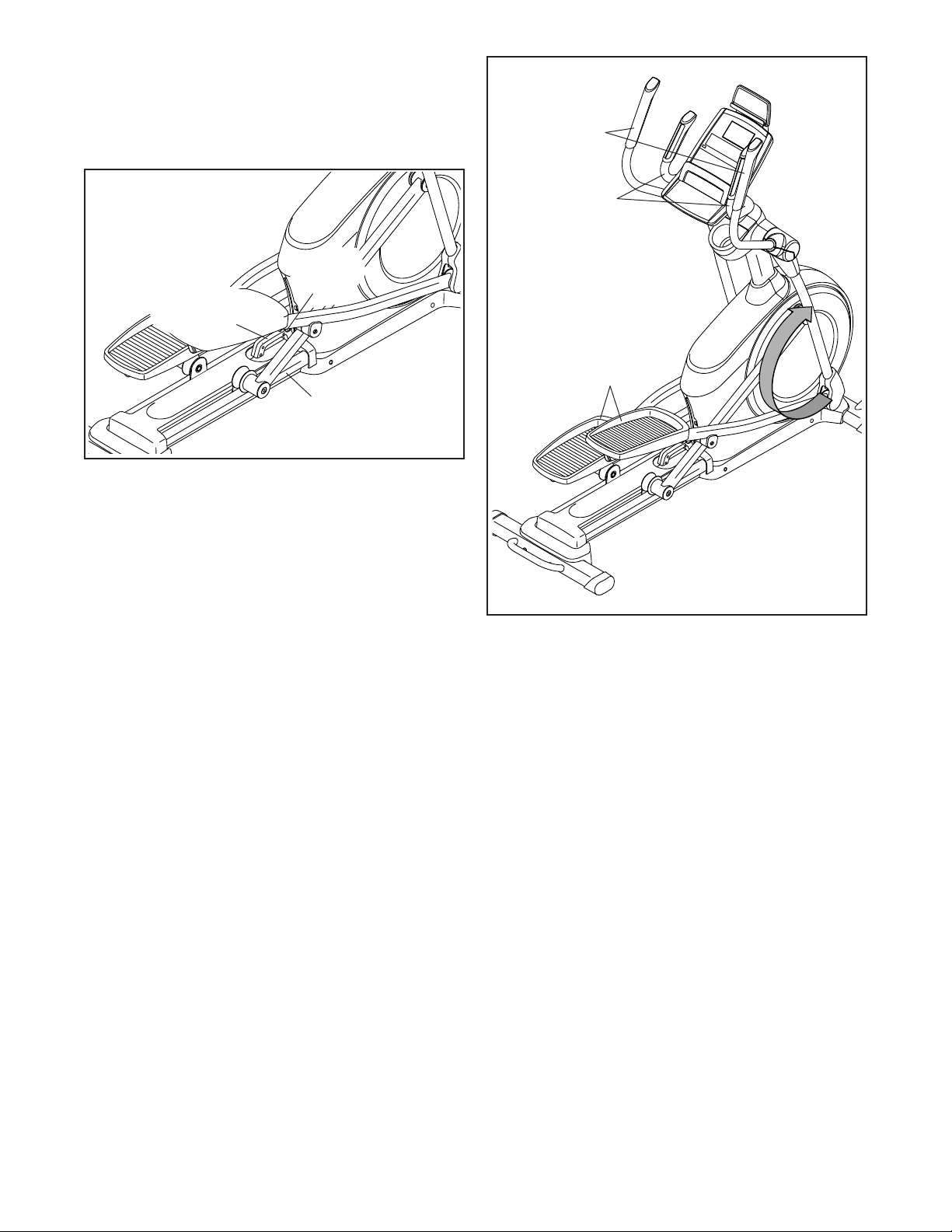

11. Orient the Right Pedal Arm (58) as shown.
Apply grease to the axle on the Right Pedal
Arm (58).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 14mm Shoulder
Screw (120), a Small Axle Cover (55), and an
M8 Washer (97).
Repeat this step for the Left Pedal Arm (44).
Grease
55
58
59
44
97
82
82
97
97
77
60
46
64
12. Apply a small amount of grease to one of the
Pedal Arm Axles (64).
Next, slide an M8 Washer (97) and an Axle
Spacer (77) onto an M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64).
While a second person holds the front end of the
Right Pedal Arm (58) inside the bracket on the
Right Upper Body Leg (60), insert the Pedal Arm
Axle (64) into both parts.
Then, slide an M8 Washer (97) and an Axle
Spacer (77) onto another M8 x 13mm Screw
(82), and tighten the Screw a few turns into the
Pedal Arm Axle (64); tighten both Screws at
the same time.
Repeat this step on the other side of the
elliptical.
Grease
12
58
120
77

14
13
13. Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101); start all
of the Screws, and then tighten them.
Next, orient the Front Upright Cover (117) as
shown.
Attach the Front Upright Cover (117) around the
Upright (4) by pressing the hooks on the Rear
Upright Cover (81) onto the tabs on the Front
Upright Cover.
101
81
117
4
14

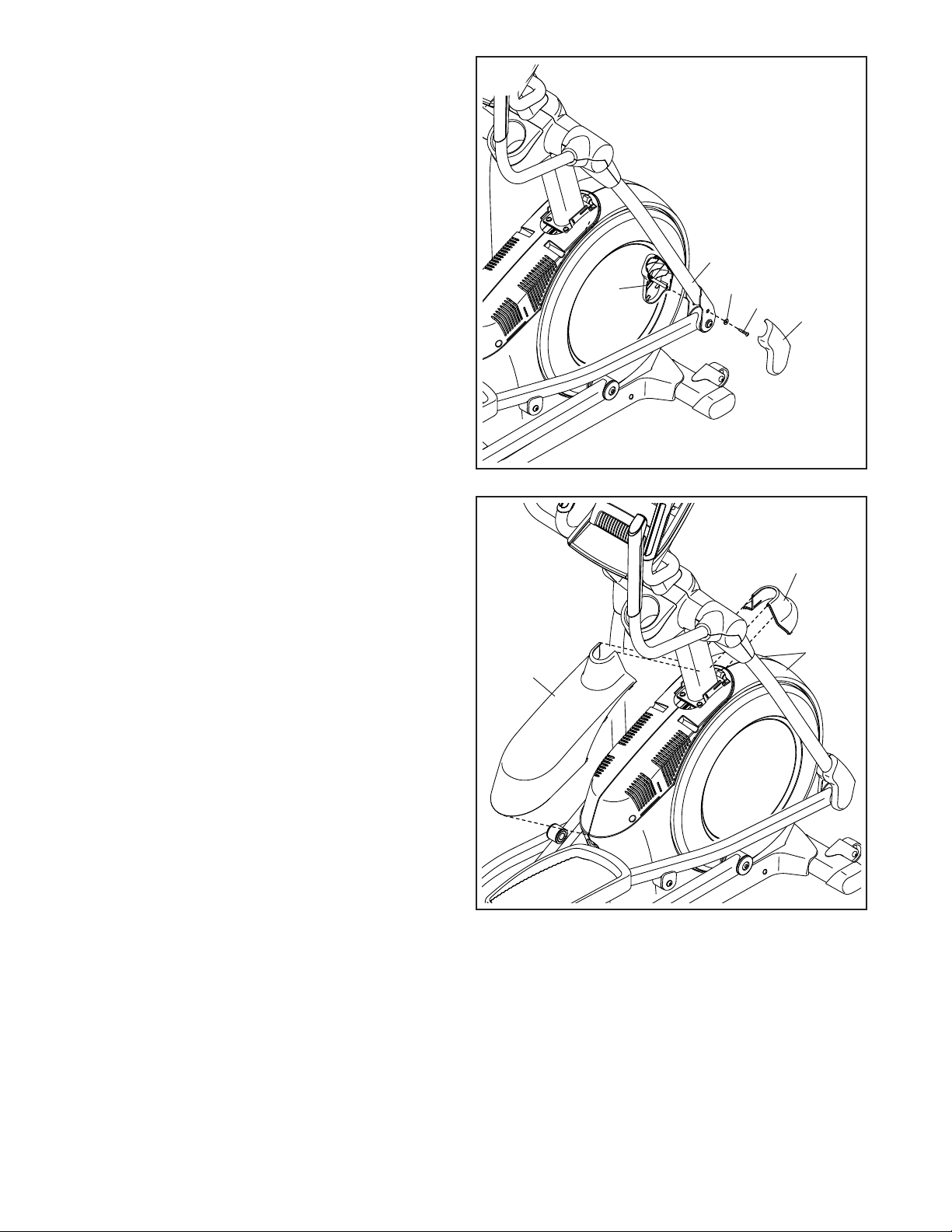

14. Identify the Right Upper Body Arm Front Cover
(65) and orient it as shown.
Attach the Right Upper Body Arm Front Cover
(65) to the Right Upper Body Leg (60) with two
M4 x 16mm Screws (101).
Next, identify the Right Upper Body Arm Rear
Cover (66) and orient it as shown.
Attach the Right Upper Body Arm Rear Cover
(66) around the Right Upper Body Leg (60) by
pressing the hooks on the Right Upper Body Arm
Rear Cover onto the tabs on the Right Upper
Body Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
65
60
101
66

15
15. Identify the Right Upper Body Leg Inner Cover
(83) and orient it as shown.
Attach the Right Upper Body Leg Inner
Cover (83) to the Right Upper Body Leg (60)
with an M4 x 16mm Screw (101) and an M5
Washer (32).
Next, identify the Right Upper Body Leg Outer
Cover (69) and orient it as shown.
Attach the Right Upper Body Leg Outer Cover
(69) around the Right Upper Body Leg (60) by
pressing the hooks on the Right Upper Body
Leg Inner Cover (83) onto the tabs on the Right
Upper Leg Outer Cover.
Repeat this step on the other side of the
elliptical.
60
83 32 101
69
15
16
75
118
73, 74
16. Orient the Shield Cover Cap (118) and the Shield
Cover (75) as shown.
First, press the tabs on the Shield Cover Cap
(118) into the Left and Right Shields (73, 74).
Then, press the tabs on the Shield Cover (75)
into the Left and Right Shields (73, 74).

16
17

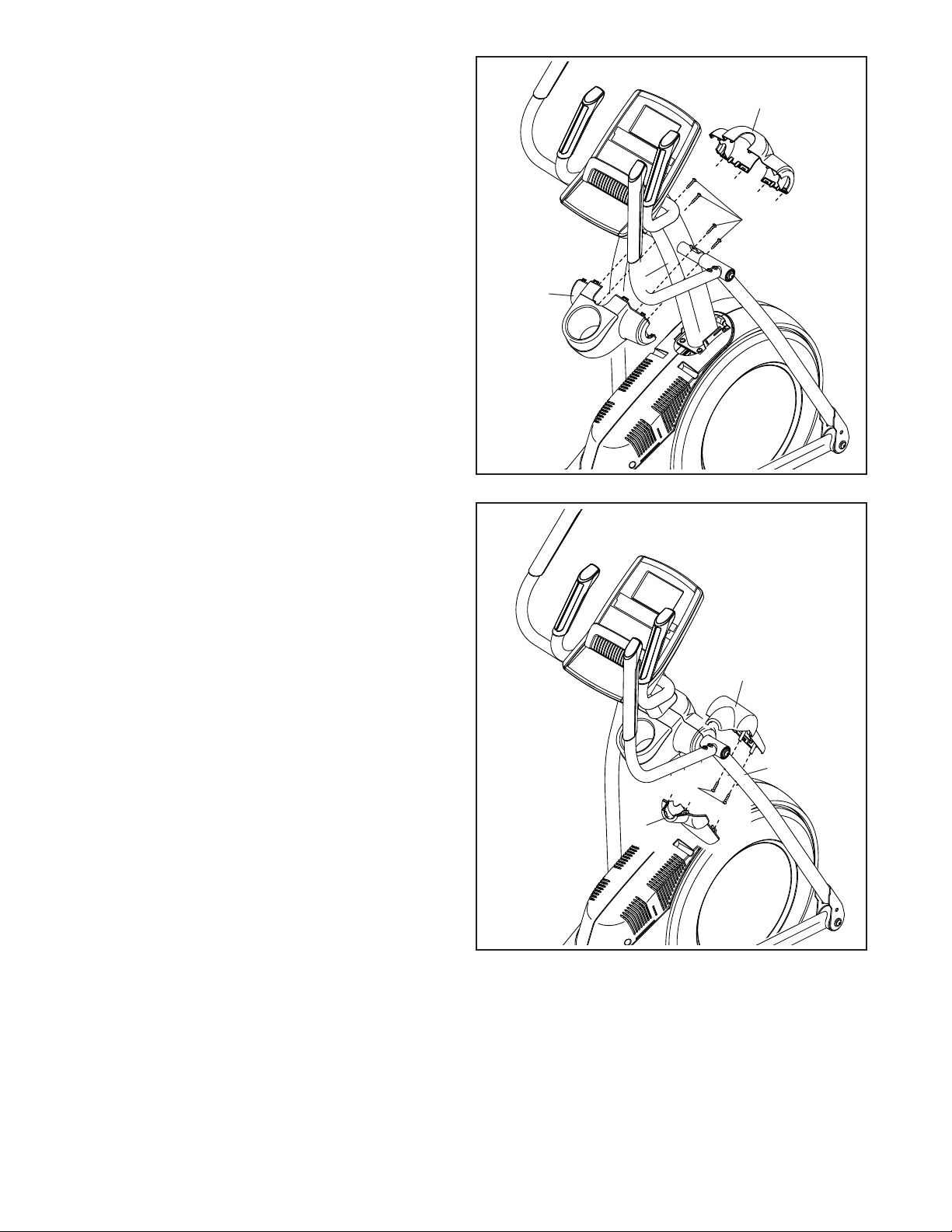

17. Orient the Rear Console Cover (80) as shown.
Attach the Rear Console Cover (80) to the
Upright (4) with two M4 x 16mm Screws (101).
Next, orient the Front Console Cover (79) as
shown.
Attach the Front Console Cover (79) around the
Upright (4) by pressing the hooks on the Rear
Console Cover (80) onto the tabs on the Front
Console Cover.
79
4
80
101
7121
9
18
18. IMPORTANT: If you purchased the optional
iFit module, insert the iFit module into the iFit
port (D) on the Console (7) before you attach
the Tablet Holder (121). After the elliptical is
assembled, follow the instructions included
with the iFit module.
Attach the Tablet Holder (121) to the back of the
Console (7) with four #8 x 12mm Screws (9);
start all of the Screws, and then tighten them.
D

17
119
19

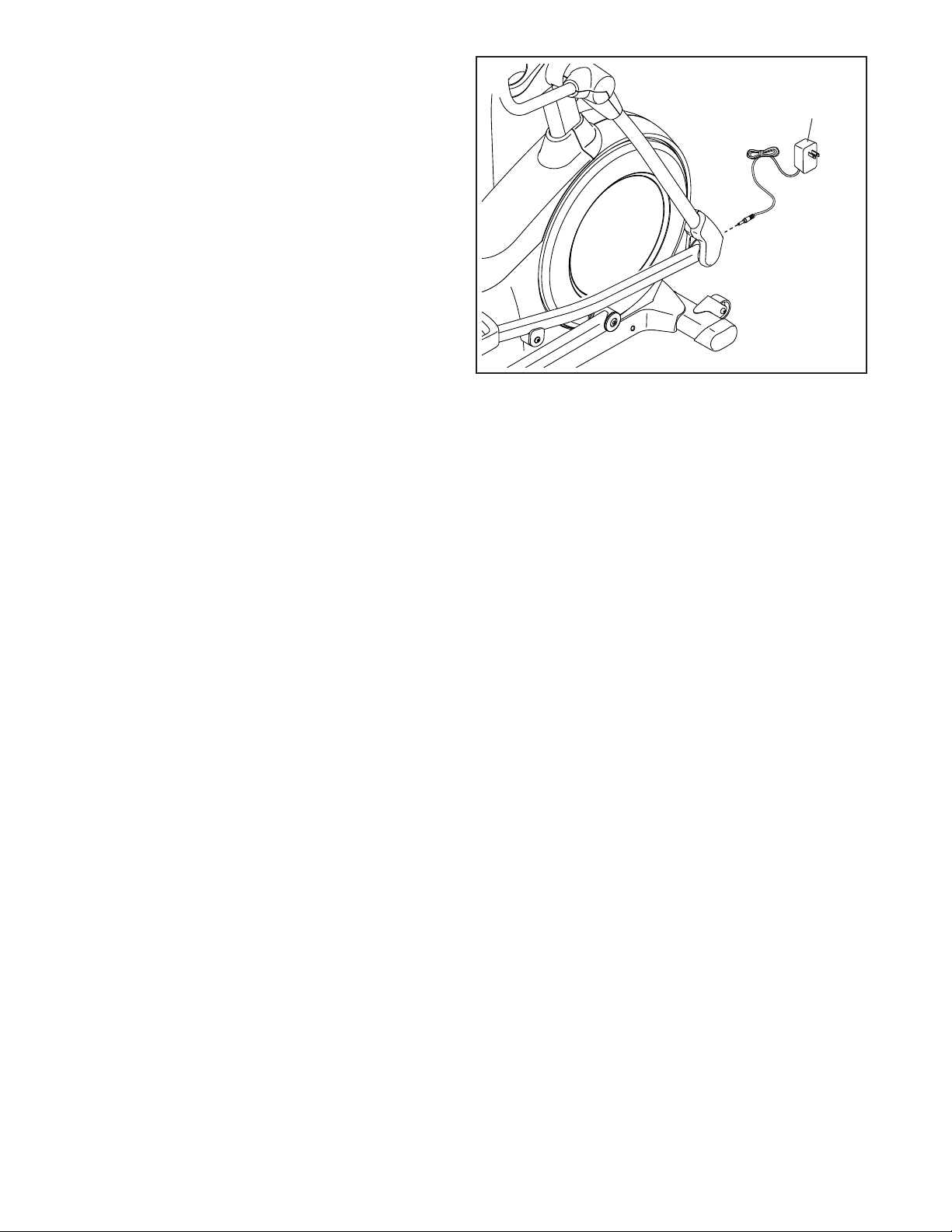

19. Plug the Power Adapter (119) into the receptacle
on the frame of the elliptical.
Note: To plug the Power Adapter (119) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 18.
20. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.

18
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter
into the receptacle on
the front of the ellipti-
cal. Then, plug the
power adapter into an
appropriate outlet that
is properly installed
in accordance with
all local codes and
ordinances.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
wheels. Pull on the upright and have a second person
lift the handle until the elliptical will roll on the wheels.
Carefully move the elliptical to the desired location, and
then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your
floor during use,
turn one or both
of the leveling feet
beneath the rear of
the frame until the
rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder was designed for
use with most full-size tablets. Do not place any
other electronic device or object into the tablet
holder.
To insert a tablet into
the tablet holder, set
the bottom edge of the
tablet in the tray. Make
sure that the tablet is
firmly secured in the
tablet holder. Reverse
these actions to
remove the tablet from
the tablet holder.
Power Adapter
Pull on the
upright
Lift
here
Place
your foot
here
HOW TO USE THE ELLIPTICAL
Leveling
Feet

19
HOW TO CHANGE THE INCLINE OF THE RAMP
To vary the motion of the pedals, you can change the
incline of the ramp. To raise the ramp, simply pull the
ramp handle upward to the desired incline level.
To lower the ramp, press the latch button, pull the ramp
handle, and lower the ramp to the desired incline level.
Then, release the latch button and engage the latch
pin into one of the adjustment holes in the frame. Make
sure that the latch pin is firmly engaged in one of
the adjustment holes in the frame.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars or the
upper body arms and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The pedals can turn in either direc-
tion. It is recommended that you turn the pedals
in the direction shown by the arrow; however, for
variety, you can turn the pedals in the opposite
direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Ramp
Ramp
Handle
Latch
Button
Handlebars
Upper
Body Arms
Pedals

20
Crow
ELS059514
23905
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-compatible fitness equipment, you
can use an array of features on iFit.com to make your
fitness goals a reality:
Exercise anywhere in the world with
customizable Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Choose and download sets of weight-loss
workouts.
Go to iFit.com to learn more.
CONSOLE DIAGRAM
