Icop PDX2-090T-5A User manual

i
DM&P Vortex86DX2 Panel
PC with 9”TFT LCD
Model:
PDX2-090T-5A / PDX2-090T-8A
PDX2-090T-5A-2G / PDX2-090T-8A-2G
PDX2-090T-P5A / PDX2-090T-P8A
PDX2-090T-P5A-2G / PDX2-090T-P8A-2G
User’s Manual
(Revision 1.3A)

i
Revision
Date
Version
Description
2016/11/18
Version 1.0
Initial Release
2016/12/27
Version 1.1
Specification correction
2019/07/30
Version 1.2
Add Section 1.3 [Note 5] instruction
2021/08/31
Version 1.3
Add Projected Capacitive Touch
Solution

ii
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
Copyright
The information in this manual is subject to change without notice for
continuous improvement in the product. All rights are reserved. The manufacturer
assumes no responsibility for any inaccuracies that may be contained in this
document. And makes no commitment to update or to keep current the
information contained in this manual.
No part of this manual may be reproduced, copied, translated or transmitted,
in whole or in part, in any form or by any means without the prior written
permission of the ICOP Technology Inc.
Copyright 2021 ICOP Technology Inc.
Manual No. IUMPDX2090-01 Ver.1.3A Aug, 2021
Trademarks Acknowledgment
Vortex86DX2is the registered trademark of DMP Electronics Inc. Other
brand names or product names appearing in this document are the properties and
registered trademarks of their respective owners. All names mentioned herewith
are served for identification purpose only.
Safety Information
Read these Safety instructions carefully.
Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
Do not expose your Panel PC to rain or moisture, in order to prevent shock
and fire hazard.
Keep PDX2-090T away from humidity.
Do not open the cabinet to avoid electrical shock. Refer to your nearest
dealer for qualified personnel servicing.
Never touch un-insulated terminals or wire unless your power adaptor is
disconnected.
Locate your Panel PC as close as possible to the socket outline for easy access
and to avoid force caused by entangling of your arms with surrounding cables
from the Panel PC.
USB connectors are not supplied with Limited Power Sources.
If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient overvoltage.
DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS (ENCASING)OF THIS
PRODUCT.PLEASE CONTACT YOUR DEALER FOR SERVICING FROM QUALIFIED TECHNICIAN.

iii
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
Table of Contents
Table of Contents............................................................................................. iii
1.General Information............................................................................. 1
1.1 Product Description............................................................ 1
1.2 Product Specification ......................................................... 2
1.3 Inspection standard for TFT-LCD Panel .............................. 5
1.4 Product Dimension........................................................... 10
1.5 Panel Mounting Instruction.............................................. 11
1.6 Ordering Information ....................................................... 13
1.7 Packing List....................................................................... 15
2.System Installation ............................................................................. 16
2.1 CPU Board Outline............................................................ 16
2.2 Connector Summary......................................................... 17
2.3 Connector Pin Assignments.............................................. 18
2.4 External I/O Overview ...................................................... 20
2.5 External I/O Pin Assignment............................................. 21
2.6 System Mapping............................................................... 23
2.7 Watchdog Timer............................................................... 26
3.Driver Installation............................................................................... 27
3.1 PDX2-090T Development Note ........................................ 28
3.2 BIOS Default setting ......................................................... 30
Warranty......................................................................................................... 31

1
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
1.General Information
1.1 Product Description
PDX2-090T is an ultra-compact platform for the present demanding
embedded and productive applications. It has new Vortex86DX2 SoC CPU which
consumes only minimum power requirement when running at 933MHz, and DDR2
memory provides faster data transfer rate. By using 9”TFT LCD, PDX2-090T
becomes the perfect choice for a limited budget. In additional, the integrated
10/100M Ethernet port supplies the communication capability which makes
PDX2-090T can be more widely used when running with Linux, Windows CE,
Windows XP, Windows 7, Windows Embedded environments to become the
perfect solution for system integration.

2
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
1.2 Product Specification
Table 1-1 Product Specification
CPU Board Specifications
CPU
DM&P Vortex86DX2 - 933MHz
Cache
L1:16KB I-Cache, 16KB D-Cache
L2: 256KB Cache
BIOS
AMI BIOS
Memory
1GB/2GB DDR2 onboard
Watchdog Timer
Software programmable from
30.5u to 512 seconds x 2 sets
LAN
Integrated 10/100M Ethernet
Audio
HD Audio-Realtek ALC262 CODEC
Internal Drives
Compact Flash Type I / II slot
Micro SD slot (Optional)
1GB or 2GB Flash Memory onboard (Optional)
I/O
RS-232/422/485 x 1
USB ports (Ver2.0) x 2
RJ-45 Port x 1
Mechanical & Environment
Power Requirement
Single Voltage +5VDC (PDX2-090T-5A)
Multi Voltage +8~+35VDC (PDX2-090T-8A )
Power Consumption
20W (Max.)
Operating
Temperature
0 ~ +50℃( 32 ~ +122℉) /
-20~+60℃( -4 ~ +140℉) Optional & CPU down to
800MHz (-1)
Storage Temp.
-30 ~ +70℃( 14 ~ +158℉)

3
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Dimensions
236.6 x 146 x 35mm (9.31 x 5.75 x 1.38 inches)
Weight
790g
Front Panel
Protection
IP 65
Certification
CE / FCC / VCCI / Vibration / Shock
LCD Specifications
Display Type
9” TFT LCD
Backlight Unit
LED
Display Resolution
1024(W) x 600(H)
Brightness (cd/m2)
300 nits
Contrast Ratio
500 : 1
Display Color
262, 144
Pixel Pitch (mm)
190.5 (H) x 189 (V)
Viewing Angle
Vertical 120o,
Horizontal 140o
Backlight Lifetime
18,000 hrs
Touchscreen
Type1
Analog Resistive
Resolution
Continuous
Transmittance
80%
Controller
PS / 2 interface
Software Driver
Linux, Win CE, Win XP, Win 7, Windows Embedded
Standard
Durability
1 million

4
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
Type2
Projected Capacitive Touch Screen (Optional)
Resolution
25ppi (Min.)
Transparency
86% ± 2%
Accuracy
Within 2.5mm each target
Surface Hardness
≧7H (Pressure：0.5N/45°)

5
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
1.3 Inspection standard for TFT-LCD Panel
Table 1-2 Inspection Standard
DEFECT TYPE
LIMIT
Note
VISUAL
DEFECT
INTER
NAL
SPOT
φ＜0.15mm
Ignore
Note1
0.15mm≦φ≦0.5mm
N≦4
0.5mm＜φ
N=0
FIBER
0.03mm<W≦0.1mm, L≦
5mm
N≦3
Note1
1.0mm＜W, 1.5mm＜L
N=0
POLARIZER
BUBBLE
φ＜0.15mm
Ignore
Note1
0.15mm≦φ≦0.5mm
N≦2
0.5mm＜φ
N=0
Mura
It’ OK if mura is slight visible through 6%ND filter
ELECTRICAL
DEFECT
BRIGHT DOT
A Grade
B Grade
C
Area
O
Area
Total
C
Area
O
Area
Total
Note3
N≦0
N≦2
N≦2
N≦2
N≦3
N≦5
Note2
DARK DOT
N≦2
N≦3
N≦3
N≦3
N≦5
N≦8
TOTAL DOT
N≦4
N≦5
N≦6
N≦8
Note2
TWO ADJACENT DOT
N≦0
N≦1
pair
N≦1
pair
N≦1
pair
N≦1
pair
N≦1
pair
Note4
THREE OR MORE
ADJACENT DOT
NOT ALLOWED
LINE DEFECT
NOT ALLOWED
(1) One pixel consists of 3 sub-pixels, including R, G, and B dot.
(Sub-pixel = Dot)
(2) LITTLE BRIGHT DOT ACCEPTITABLE UNDER 6 % ND-Filter
(3) If require G0 grand (Total dot N≦0), please contact region sales.

6
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD

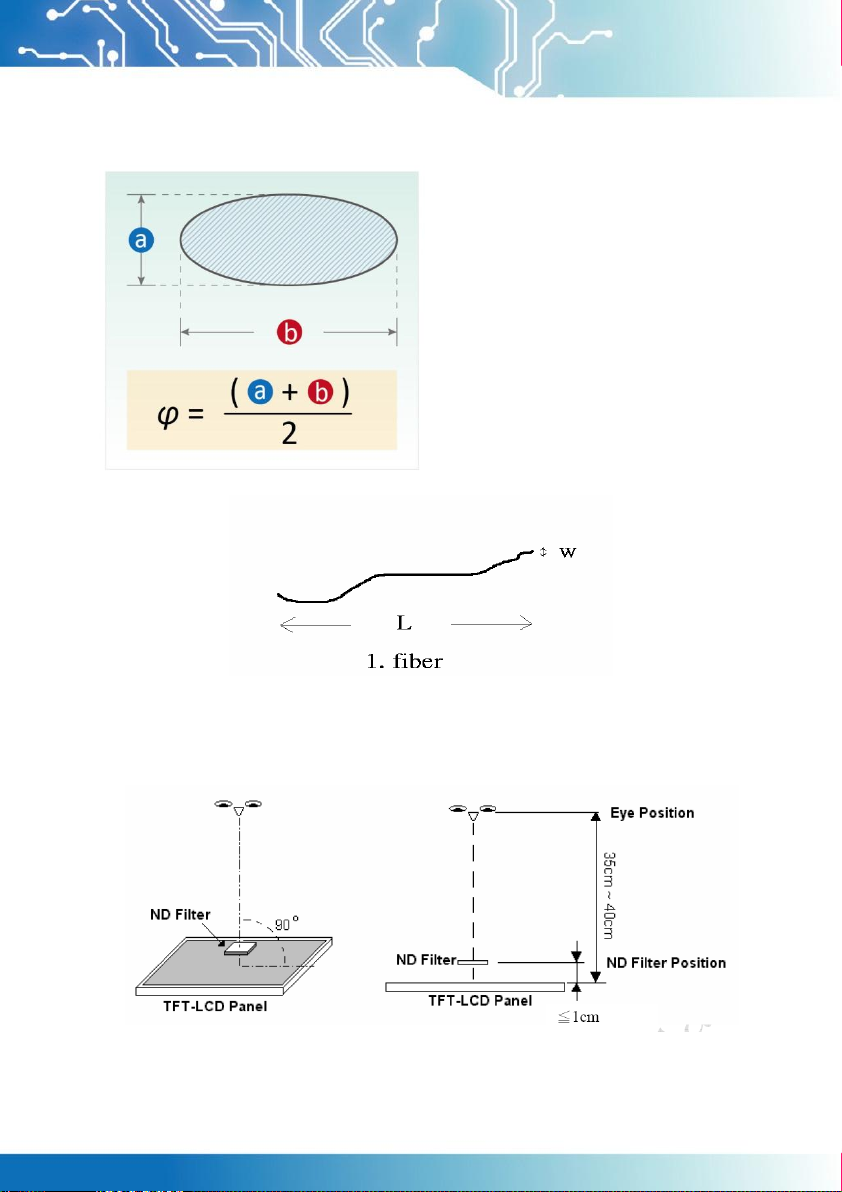

[Note 1] W : Width[mm], L : Length[mm], N : Number, φ: Average Diameter.
1. White / Black Spot
2. Polarizer Bubble
Fig 1-1
Fig 1-2
[Note 2] Bright dot is defined through 6% transmission ND Filter as following.
Fig 1-3

7
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
[Note 3]
C Area: Center of display area
O Area: Outer of display area
[Note 4]
Judge defect dot and adjacent dot as following. Allow below (as A, B, C and D
status) adjacent defect dots, including bright and dart adjacent dot. And they will
be counted 2 defect dots in total quantity.
R
R
G
G
R G
R
R
G
G
R G
R
R
G
G
R G
R
R
G
G
R G
R
R
G
G
R G
R
R
G
G
R G
R
RDefect Dot
Adjacent Dot
A
B
C
D
(1) The defects that are not defined above and considered to be problem shall
be reviewed and discussed by both parties.
Defects on the Black Matrix, out of Display area, are not considered as a defect or
counted.

8
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
[Note 5]
According to the technical information from LCD manufacturer, the image
retention may happen on LCD display if the static image is kept for a period of time
without any change. ICOP will suggest customers not to have static image on LCD
for over 4 hours without any image movement and also enable screensaver to
avoid image sticking issue if LCD displays need to be kept on for a long time.
Some Image retention issue will disappear when LCD display is turned off for
a period of time, but some image retention may be not reversible when LCD
encounters screen burn.
The following is LCD manufacturer’s test result for customers’ reference.
TEST ITEMS
CONDITIONS
NOTE
High Temperature Operation
70℃;240hrs
High Temperature Storage
80℃; 240hrs
High Temperature High Humidity
Operation
60℃; 90%RH ;240hrs
No condensation
Low Temperature Operation
-20℃; 240hrs
Backlight unit always turn
on
Low Temperature Storage
-30℃; 240hrs
Thermal Shock
–30℃(0.5hr) ~
80℃(0.5hr) ; 200 Cycles
Image Sticking
25℃; 4hrs
Note 5-1
MTBF
20,000Hrs
Note 5-1

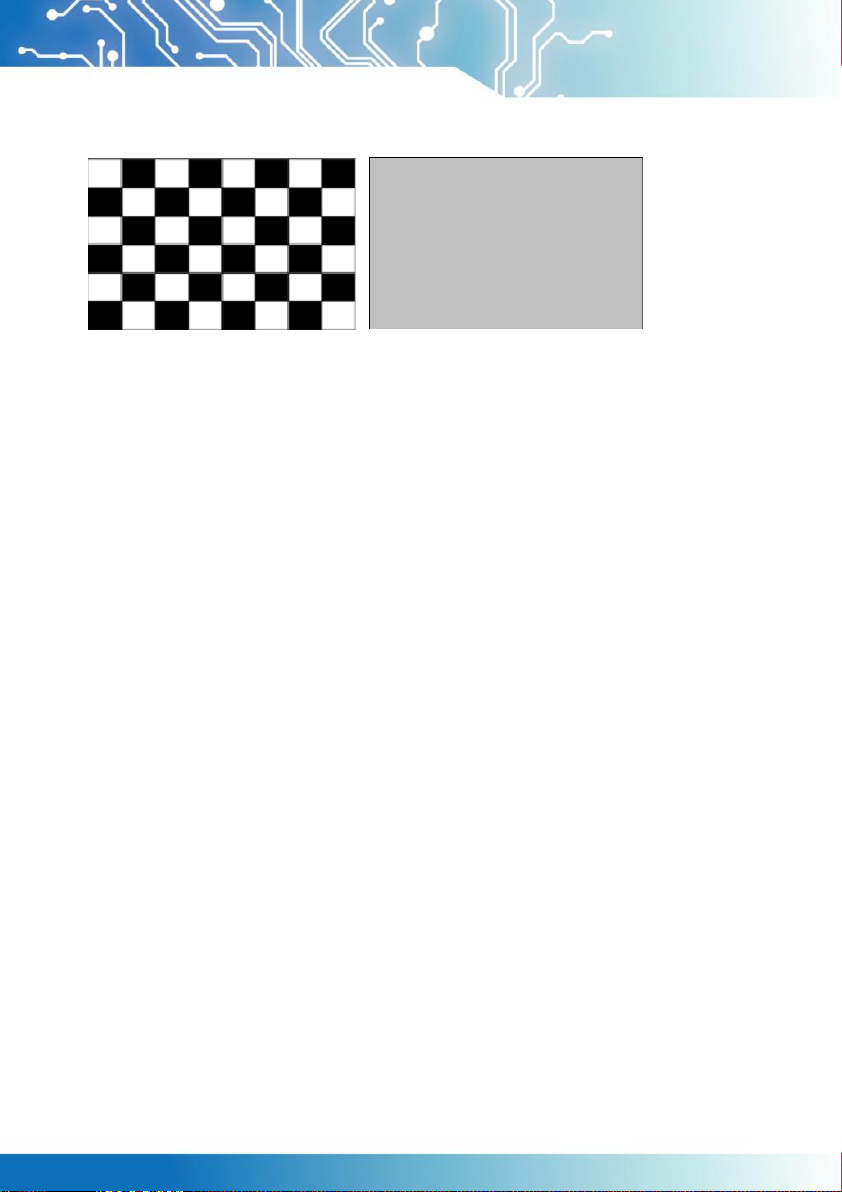

1. Condition of Image Sticking test：25 ℃± 2 ℃.
2. Operation with test pattern sustained for 4 hrs, then change to gray pattern
immediately.

9
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
3. After 5 mins, the mura must be disappeared completely.

10
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD

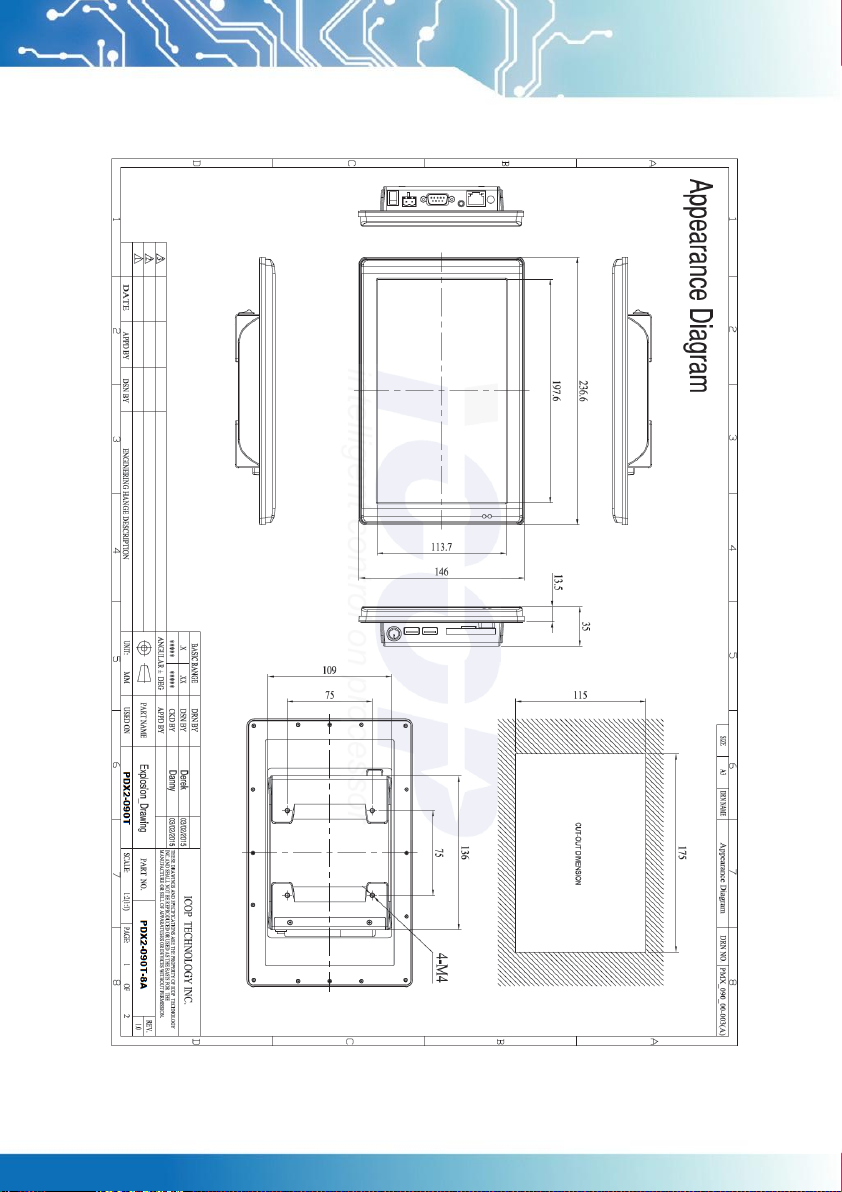

1.4 Product Dimension
Fig 1-4 Product Dimension

11
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD

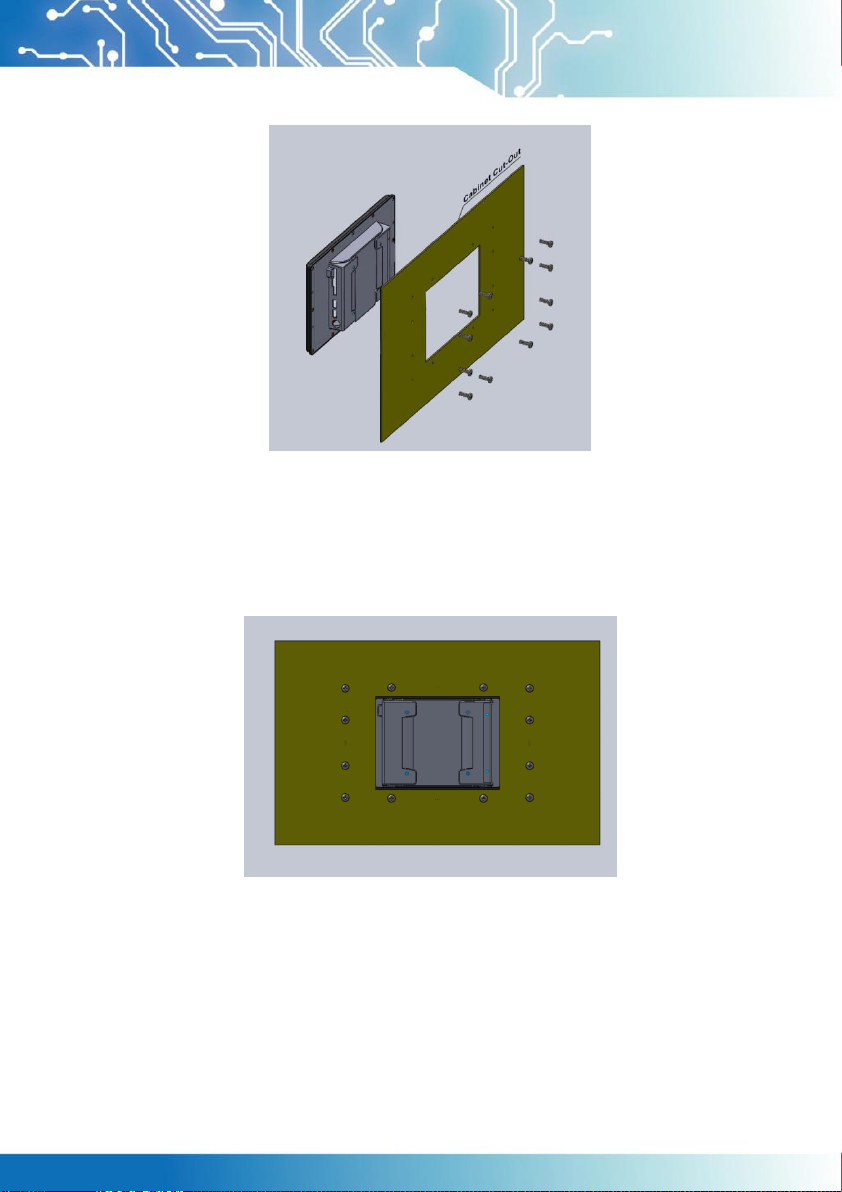

1.5 Panel Mounting Instruction
1. Cut a mounting hole in the panel. (Refer to PDX2‐090T Dimensions
on page 7) (Note 1)
2. Check and remove the twelve M3 screws in a diagonal pattern as
image below if necessary.
3. Place PDX2‐090T face‐down on a clean, flat surface.
4. Slide the panel cutout around the back of PDX2‐090T, until the panel
rests directly on the gasket. Make sure the screw holes align with the
screw holes on PDX2‐090T.
5. The screw size is M3*L (L=wall thickness + 6.0mm) (Note 2)
6. Insert all twelve M3 screws into the screw holes. (Note 2)
7. Finger-tighten the M3 screws. Finish tightening the M3 screws in a
diagonal pattern using an M3 screw driver (see the image as below);
maximum torque 1.18Nm (12 kgf‐cm).

12
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
Note 1:
It is strongly recommended that a professional machine shop cut the
mounting hole in the panel.
Note 2:
The length for all twelve M3 screws will be according to the thickness of
mounting panel. For example: The length of standard M3 screws for PDX2‐090T
is 6mm. If the thickness of your mounting panel is 3mm and washer thickness is
1mm, you have to use 10mm M3 screw.

13
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
1.6 Ordering Information
Table 1-3 Ordering Information
PART NUMBER
DESCRIPTION
PDX2-090T-5A
9”Panel PC w/1GB DDR2
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / RTP /
Power Adapter
PDX2-090T-8A
9”Panel PC w/1GB DDR2
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / RTP /
8-35 DC Support
PDX2-090T-5A-2G
9”Panel PC w/2GB DDR2
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / RTP /
Power Adapter
PDX2-090T-8A-2G
9”Panel PC w/2GB DDR2
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / RTP /
8-35 DC Support
PDX2-090T-P5A
9”Panel PC w/1GB DDR2
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / PCAP /
Power Adapter
PDX2-090T-P8A
9”Panel PC w/1GB DDR2
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / PCAP /
8-35 DC Support
PDX2-090T- P5A-2G
9”Panel PC w/2GB DDR2
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / PCAP /
Power Adapter
PDX2-090T- P8A-2G
9”Panel PC w/2GB DDR2
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / PCAP /
8-35 DC Support

14
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
PDX2-090T-5A-I
9”Panel PC w/1GB DDR2 / Wide Temp.
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / RTP /
Power Adapter
PDX2-090T-8A-I
9”Panel PC w/1GB DDR2 / Wide Temp.
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / RTP /
8-35 DC Support
PDX2-090T-5A-2G-I
9”Panel PC w/2GB DDR2 / Wide Temp.
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / RTP /
Power Adapter
PDX2-090T-8A-2G-I
9”Panel PC w/2GB DDR2 / Wide Temp.
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / RTP /
8-35 DC Support
PDX2-090T-P5A-I
9”Panel PC w/1GB DDR2 / Wide Temp.
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / PCAP /
Power Adapter
PDX2-090T-P8A-I
9”Panel PC w/1GB DDR2 / Wide Temp.
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / PCAP /
8-35 DC Support
PDX2-090T-P5A-2G-I
9”Panel PC w/2GB DDR2 / Wide Temp.
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / PCAP /
Power Adapter
PDX2-090T-P8A-2G-I
9”Panel PC w/2GB DDR2 / Wide Temp.
/ 2USB / Line-Out / LAN / COM / CF or MicroSD / PCAP /
8-35 DC Support

15
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
1.7 Packing List
Table 1-4 Packing List
PART NUMBER
PACKAGE
PDX2-090T-5A
PDX2-090T-5A
Power-20W-3PIN
PDX2-090T-8A
PDX2-090T-8A
PDX2-090T-5A-2G
PDX2-090T-5A-2G
Power-20W-3PIN
PDX2-090T-8A-2G
PDX2-090T-8A-2G
PDX2-090T-P5A
PDX2-090T-P5A
Power-20W-3PIN
PDX2-090T-P8A
PDX2-090T-P8A
PDX2-090T-P5A-2G
PDX2-090T-P5A-2G
Power-20W-3PIN
PDX2-090T-P8A-2G
PDX2-090T-P8A-2G
PDX2-090T-5A-I
PDX2-090T-5A-I
Power-20W-3PIN
PDX2-090T-8A-I
PDX2-090T-8A-I
PDX2-090T-5A-2G-I
PDX2-090T-5A-2G-I
Power-20W-3PIN
PDX2-090T-8A-2G-I
PDX2-090T-8A-2G-I
PDX2-090T-P5A-I
PDX2-090T-P5A-I
Power-20W-3PIN
PDX2-090T-P8A-I
PDX2-090T-P8A-I
PDX2-090T-P5A-2G-I
PDX2-090T-P5A-2G-I
Power-20W-3PIN
PDX2-090T-P8A-2G-I
PDX2-090T-P8A-2G-I
WLAN KIT (Optional)
(Can’t be used for PCAP version)
USB-WLAN-IPEX-KIT
WIRELESS-ANTENNA-157
WIRELESS-CABLE-150MM

16
PDX2-090T DM&P Vortex86DX2 Panel PC with 9” WSVGA TFT LCD
2.System Installation
2.1 CPU Board Outline
Fig 2-1 PDX2 CPU Board
