PN8M Panel PC Series with 9” TFT LCD
Model:
PN8M-090T-5A-N5GM / PN8M-090T-8A-N5GM
PN8M-090T-5A-B5GM / PN8M-090T-8A-B5GM
PN8M-090T-5A-N5GS / PN8M-090T-8A-N5GS
PN8M-090T-5A-B5GS / PN8M-090T-8A-B5GS
PN8M-090T-P5A-N5GM / PN8M-090T-P8A-N5GM
PN8M-090T-P5A-B5GM / PN8M-090T-P8A-B5GM
PN8M-090T-P5A-N5GS / PN8M-090T-P8A-N5GS
PN8M-090T-P5A-B5GS / PN8M-090T-P8A-B5GS
User’s Manual
(Revision 1.4A)

i
Revision
Date Version Description
2020/07/24 Version 1.0A Initial Release
2020/08/04 Version 1.1A Correct section 2.5, System Status LED
2021/02/01 Version 1.2A
Add section 4,
Yocto operating
instructions
2021/03/08 Version 1.3A
At section 2.4, remove the CF/MicroSD
cover as default
2021/09/15 Version 1.4A
Add Projected Capacitive Touch
Solution

ii
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
Copyright
The information in this manual is subject to change without notice for continuous
improvement in the product. All rights are reserved. The manufacturer assumes no
responsibility for any inaccuracies that may be contained in this document. And makes no
commitment to update or to keep current the information contained in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in
whole or in part, in any form or by any means without the prior written permission of the
ICOP Technology Inc.
Copyright 2021 ICOP Technology Inc.
Manual No. IUMPN8M090-01 Ver.1.4A Sep, 2021
Trademarks Acknowledgment
PN8MTM is the registered trademark of ICOP Technology Inc. Other brand names or
product names appearing in this document are the properties and registered trademarks
of their respective owners. All names mentioned herewith are served for identification
purpose only.
Safety Information
Read these Safety instructions carefully.
Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
Do not expose your Panel PC to rain or moisture, in order to prevent shock and fire
hazard.
Keep PN8M-090T away from humidity.
Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for
qualified personnel servicing.
Never touch un-insulated terminals or wire unless your power adaptor is
disconnected.
Locate your Panel PC as close as possible to the socket outline for easy access and to
avoid force caused by entangling of your arms with surrounding cables from the
Panel PC.
USB connectors are not supplied with Limited Power Sources.
If the equipment is not used for a long time, disconnect it from the power source to
avoid damage by transient overvoltage.
DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS (ENCASING)OF THIS PRODUCT.
PLEASE CONTACT YOUR DEALER FOR SERVICING FROM QUALIFIED TECHNICIAN.

iii
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
Table of Contents
Table of Contents ............................................................................................................iii
(1) General Information......................................................................................... 1
1.1 Product Description ....................................................................... 1
1.2 Product Specification ..................................................................... 2
1.3 Inspection standard for TFT-LCD Panel .......................................... 4
1.4 Product Dimension ........................................................................ 9
1.5 Panel Mounting Instruction ......................................................... 11
1.6 Ordering Information ................................................................... 13
1.7 Packing List................................................................................... 15
(2) System Installation ......................................................................................... 16
2.1 CPU Board Outline ....................................................................... 16
2.2 Connector Summary .................................................................... 17
2.3 Connector Pin Assignments ......................................................... 18
2.4 External I/O Overview.................................................................. 20
2.5 External I/O Pin Assignment ........................................................ 21
(3) The Settings for Normal and Developer Modes............................................. 24
(4) Yocto operating instructions .......................................................................... 26
4.1 Check storages contents .............................................................. 26
4.2 Set the default time zone............................................................. 28
4.3 Open Chromium browser ............................................................ 29
4.4 Setup volume of sound ................................................................ 30
4.5 Play MP4 video or MP3 music ..................................................... 31
4.6 Yocto Image Restore and Recipe.................................................. 33
Warranty........................................................................................................................ 34

1
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
(1) General Information
1.1 Product Description
PN8M-090T is an ultra-compact platform for the present demanding
embedded and productive applications. It has NXP i.MX8M Mini Cortex-A53 ARM
Quad Core which consumes only minimum power requirement when running at
1.6GHz, and up 4GB LPDDR4 memory provides faster data transfer rate. By using 9”
TFT LCD, PN8M-090T becomes the perfect choice for a limited budget. In
additional, the integrated Gigabit Ethernet port supplies the communication
capability which makes PN8M-090T can be more widely used when running Yocto
Linux and Android environments to become the perfect solution for system
integration.

2
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
1.2 Product Specification
Table 1-1 Product Specification
CPU Board Specifications
CPU i.MX8M Mini-1.6GHz Cortex-A53 ARM Quad-Core
Cache L2: 512KB Cache
Memory 1GB/2GB/4GB LPDDR4 onboard
Watchdog Timer Support 3 Watchdog Timer
LAN Integrated Gigabit Ethernet
Audio High Definition Audio
Internal Drives
8GB / 16GB / 32GB / 64GB of eMMC onboard
Micro SD slot (Like a card reader only)
I/O
RS-232 x 1
USB port (Ver2.0) x 2
RJ-45 Port x 1
Line-Out x 1
Mechanical & Environment
Power Requirement
Single Voltage +5VDC ( 5A )
Multi Voltage +8~+35VDC ( 8A )
Power Consumption 8W (Typ.)
Operating
Temperature
0 ~ +60℃( 32 ~ +140℉) /
-20~+70℃( -4 ~ +158℉) Optional (-I)
Storage Temp. -30 ~ +70℃( 14 ~ +158℉)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
Dimensions 236.6 x 146 x 35mm (9.31 x 5.75 x 1.38 inches)
Weight 840g

3
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
Front Panel
Protection
IP 65
Certification CE / FCC / VCCI / Vibration / Shock
LCD Specifications
Display Type 9” TFT LCD
Backlight Unit LED
Display Resolution 1024(W) x 600(H)
Brightness (cd/m2) 300 nits
Contrast Ratio 500 : 1
Display Color 262, 144
Active Area (mm) 196.61 (W) x 114.15 (H)
Viewing Angle
Vertical 120o,
Horizontal 140o
Backlight Lifetime 20,000 hrs
Touchscreen
Type1Analog Resistive
Resolution Continuous
Transmittance 80%
Controller USB interface
Software Driver Linux
Durability 1 million
Type2 Projected Capacitive Touch Screen (Optional)
Resolution 25ppi (Min.)
Transparency 86% ± 2%
Accuracy Within 2.5mm each target
Surface Hardness ≧7H (Pressure：0.5N/45°)

4
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
1.3 Inspection standard for TFT-LCD Panel
Table 1-2 Inspection Standard
DEFECT TYPE LIMIT Note
VISUAL
DEFECT
INTER
NAL
SPOT
φ＜0.15mm Ignore
Note1
0.15mm≦φ≦0.5mm N≦4
0.5mm＜φN=0
FIBER
0.03mm<W≦0.1mm, L≦
5mm N≦3
Note1
1.0mm＜W, 1.5mm＜L N=0
POLARIZER
BUBBLE
φ＜0.15mm Ignore
Note1
0.15mm≦φ≦0.5mm N≦2
0.5mm＜φN=0
Mura It’ OK if mura is slight visible through 6%ND filter
ELECTRICAL
DEFECT
BRIGHT DOT
A Grade B Grade
C
Area
O
Area Total C Area
O
Area Total Note3
N≦0 N≦2 N≦2 N≦2 N≦3 N≦5 Note2
DARK DOT N≦2 N≦3 N≦3 N≦3 N≦5 N≦8
TOTAL DOT N≦4 N≦5 N≦6 N≦8 Note2
TWO ADJACENT DOT N≦0 N≦1
pair
N≦1
pair
N≦1
pair
N≦1
pair
N≦1
pair Note4
THREE OR MORE
ADJACENT DOT NOT ALLOWED
LINE DEFECT NOT ALLOWED
(1) One pixel consists of 3 sub-pixels, including R, G, and B dot.
(Sub-pixel = Dot)
(2) LITTLE BRIGHT DOT ACCEPTITABLE UNDER 6 % ND-Filter
(3) If require G0 grand (Total dot N≦0), please contact region sales.

5
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
[Note 1] W : Width[mm], L : Length[mm], N : Number, φ: Average Diameter.
1. White / Black Spot
2. Polarizer Bubble
Fig 1-1
Fig 1-2
[Note 2] Bright dot is defined through 6% transmission ND Filter as following.
Fig 1-3

6
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
[Note 3]
C Area: Center of display area
O Area: Outer of display area
[Note 4]
Judge defect dot and adjacent dot as following. Allow below (as A, B, C and D
status) adjacent defect dots, including bright and dart adjacent dot. And they will
be counted 2 defect dots in total quantity.
R
R
G
G
Ｂ
Ｂ
R GＢ
R
R
G
G
Ｂ
Ｂ
R GＢ
R
R
G
G
Ｂ
Ｂ
R GＢ
R
R
G
G
Ｂ
Ｂ
R GＢ
R
R
G
G
Ｂ
Ｂ
RGＢ
R
R
G
G
Ｂ
Ｂ
R GＢ
R
RDefect Dot
Adjacent Dot
A
B
C
D
(1) The defects that are not defined above and considered to be problem shall
be reviewed and discussed by both parties.
Defects on the Black Matrix, out of Display area, are not considered as a defect or
counted.

7
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
[Note 5]
According to the technical information from LCD manufacturer, the image
retention may happen on LCD display if the static image is kept for a period of time
without any change. ICOP will suggest customers not to have static image on LCD
for over 4 hours without any image movement and also enable screensaver to
avoid image sticking issue if LCD displays need to be kept on for a long time.
Some Image retention issue will disappear when LCD display is turned off for
a period of time, but some image retention may be not reversible when LCD
encounters screen burn.
The following is LCD manufacturer’s test result for customers’ reference.
TEST ITEMS CONDITIONS NOTE
High Temperature Operation 70℃;240hrs
High Temperature Storage 80℃; 240hrs
High Temperature High Humidity
Operation
60℃; 90%RH ;240hrs No condensation
Low Temperature Operation -20℃; 240hrs
Backlight unit always turn
on
Low Temperature Storage -30℃; 240hrs
Thermal Shock
–30℃(0.5hr) ~
80℃(0.5hr) ; 200 Cycles
Image Sticking 25℃; 4hrs Note 5-1
MTBF 20,000Hrs
Note 5-1
1. Condition of Image Sticking test：25 ℃± 2 ℃.
2. Operation with test pattern sustained for 4 hrs, then change to gray pattern
immediately.

8
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
3. After 5 mins, the mura must be disappeared completely.

9
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD

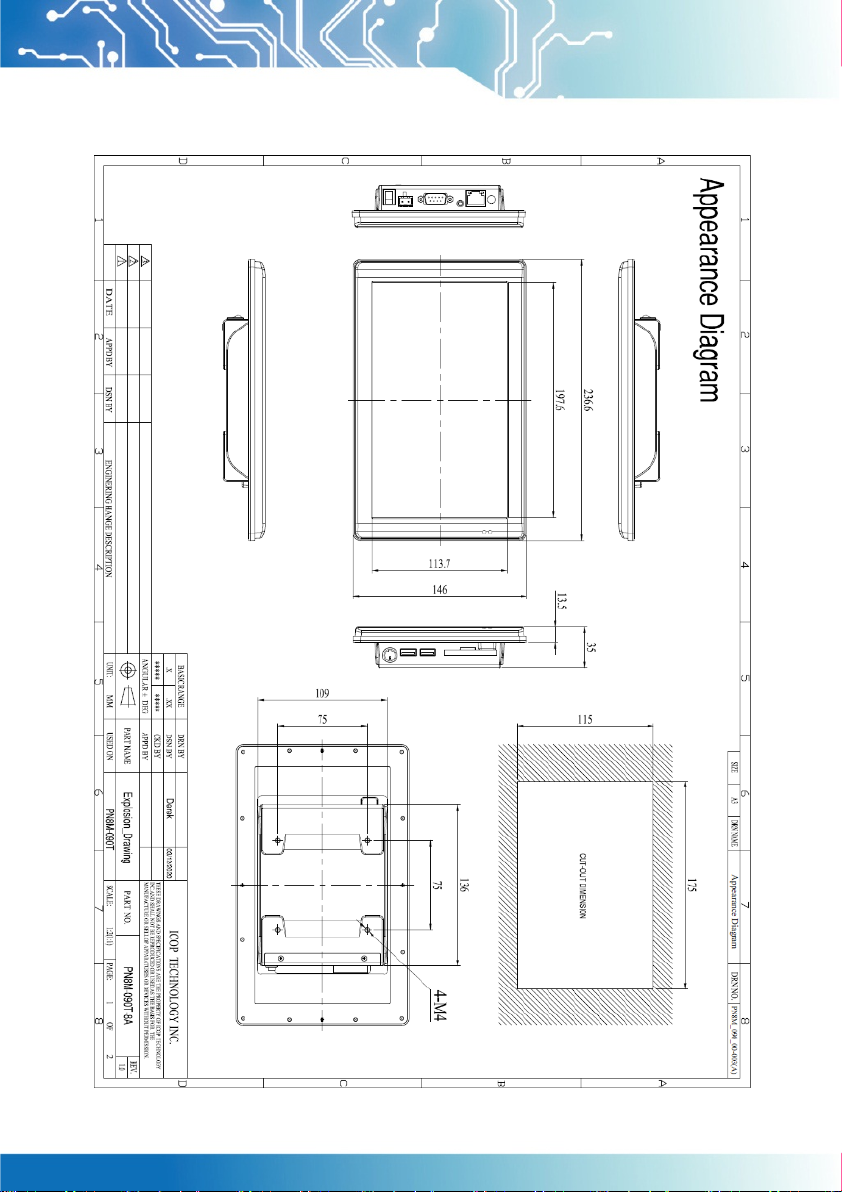

1.4 Product Dimension

10
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
Fig 1-4 Product Dimension

11
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
1.5 Panel Mounting Instruction
1. Cut a mounting hole in the panel. (Refer to PN8M-090T Dimensions
on page 7) (Note 1)
2. Check and remove the twelve M3 screws in a diagonal pattern as
image below if necessary.
3. Place PN8M-090T face-down on a clean, flat surface.
4. Slide the panel cutout around the back of PN8M-090T, until the
panel rests directly on the gasket. Make sure the screw holes align
with the screw holes on PN8M-090T.
5. The screw size is M3*L (L=wall thickness + 6.0mm) (Note 2)
6. Insert all twelve M3 screws into the screw holes. (Note 2)
7. Finger-tighten the M3 screws. Finish tightening the M3 screws in a
diagonal pattern using an M3 screw driver (see the image as below);
maximum torque 1.18Nm (12 kgf-cm).

12
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
Note 1:
It is strongly recommended that a professional machine shop cut the
mounting hole in the panel.
Note 2:
The length for all twelve M3 screws will be according to the thickness of
mounting panel. For example: The length of standard M3 screws for
PN8M-090T is 6mm. If the thickness of your mounting panel is 3mm and
washer thickness is 1mm, you have to use 10mm M3 screw.

13
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
1.6 Ordering Information
Product
Code
LCD
Size DC-Input Type BT&WLAN DRAM eMMC
Capacity eMMC Type Wide Temp.
PN8M 090T 5A N (No BT&WLAN) 4 (1GB) F (8GB) M (MLC) I (Wide Temp.)
8A B (With BT&WLAN) 5 (2GB) G (16GB) S (SLC)
P5A 6 (4GB) H (32GB)
P8A J (64GB)
1. Product Code：
PN8M：PN8M Series。
2. LCD Size：
090T：9”LCD with touchscreen。
3. DC-Input Type：
5A：Audio Line-out and Single DC5V Power Input with Resistive Touch Panel。
8A：Audio Line-out and Support DC8~35V Power Input with Resistive Touch Panel。
P5A：Audio Line-out and Single DC5V Power Input with 9” PCAP Touch Panel。
P8A：Audio Line-out and Support DC8~35V Power Input with 9” PCAP Touch Panel。
4. BT&WLAN：
N：No BT&WLAN。
B：With BT&WLAN。
5. DRAM Onboard：
4：1GB。
5：2GB。
6：4GB。(Build to order)
6. eMMC Capacity：
F：8GB。
G：16GB。
H：32GB。(Build to order)
J：64GB。(Build to order)
7. eMMC Type：
M：MLC。
S：SLC。
8. Wide Temp.：
I：Support Wide Temp. -20~+70℃。(Optional)
(Standard version doesn’t need to show this item.)
Table 1-3 Ordering Information

14
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
PART NUMBER DESCRIPTION
PN8M-090T-8A-B5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4,
16GB eMMC MLC, Wifi&BT and DC+8~35V
PN8M-090T-8A-N5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4,
16GB eMMC MLC and DC+8~35V
PN8M-090T-P8A-B5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4,
16GB eMMC MLC, PCAP, Wifi&BT and DC+8~35V
PN8M-090T-P8A-N5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4,
16GB eMMC MLC, PCAP and DC+8~35V
PN8M-090T-8A-B4FM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 1GB of LPDDR4,
8GB eMMC MLC, Wifi&BT and DC+8~35V
PN8M-090T-5A-N4FM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 1GB of LPDDR4,
8GB eMMC MLC and DC+8~35V
PN8M-090T-5A-B5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4,
16GB eMMC MLC, Wifi&BT and DC+5V
PN8M-090T-5A-N5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4,
16GB eMMC MLC and DC+5V
PN8M-090T-P5A-B5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4,
16GB eMMC MLC, PCAP, Wifi&BT and DC+5V
PN8M-090T-P5A-N5GM PN8M-090T with i.MX8M Mini (Quad Core 1.6GHz), 2GB of LPDDR4,
16GB eMMC MLC, PCAP and DC+5V
CABLE-MINIDIN8P-30 Software Programming CABLE for Developer
Please contact your region sales to get the more ordering part
numbers if they don’t list upon the table.

15
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
1.7 Packing List
Table 1-4 Packing List
PART NUMBER PACKAGE
PN8M-090T-8A-B5GM PN8M-090T-8A-B5GM WIRELESS-ANTENNA-157
PN8M-090T-8A-N5GM PN8M-090T-8A-N5GM
PN8M-090T-P8A-B5GM PN8M-090T-P8A-B5GM WIRELESS-ANTENNA-157
PN8M-090T-P8A-N5GM PN8M-090T-P8A-N5GM
PN8M-090T-8A-B4FM PN8M-090T-8A-B4FM WIRELESS-ANTENNA-157
PN8M-090T-5A-N4FM PN8M-090T-5A-N4FM
PN8M-090T-5A-B5GM PN8M-090T-5A-B5GM
Power-20W-3PIN-X & PowerHead-US/EU
WIRELESS-ANTENNA-157
PN8M-090T-5A-N5GM PN8M-090T-5A-N5GM Power-20W-3PIN-X & PowerHead-US/EU
PN8M-090T-P5A-B5GM PN8M-090T-P5A-B5GM
Power-20W-3PIN-X & PowerHead-US/EU
WIRELESS-ANTENNA-157
PN8M-090T-P5A-N5GM PN8M-090T-P5A-N5GM Power-20W-3PIN-X & PowerHead-US/EU

16
PN8M-090TPN8M Panel PC Series with 9” WSVGA TFT LCD
(2) System Installation
2.1 CPU Board Outline
Fig 2-1 PN8M CPU Board
