Icop PMX-057T-5A User manual

PMX-057T-5A / PMX-057T-8A
PMX-057T-5A-512 / PMX-057T-8A-512
DM&P Vortex86MX Panel PC
with 5.7” VGA TFT LCD
User’s Manual
(Revision 1.1A)

ii
Copyright
The information in this manual is subject to change without notice for continuous improvement in
the product. All rights are reserved. The manufacturer assumes no responsibility for any
inaccuracies that may be contained in this document. And makes no commitment to update or to
keep current the information contained in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part,
in any form or by any means without the prior written permission of the ICOP Technology Inc.
Copyright 2011 ICOP Technology Inc.
Manual No. IUMPMX057-01 Ver.1.1A Feb, 2012
Trademarks Acknowledgment
Vortex86MXis the registered trademark of ICOP Technology Inc. Other brand names or
product names appearing in this document are the properties and registered trademarks of their
respective owners. All names mentioned herewith are served for identification purpose only.
Safety Information
Read these Safety instructions carefully.
Make sure the voltage of the power source is correct before connecting the equipment to
the power outlet.
Do not expose your Panel PC to rain or moisture, in order to prevent shock and fire
hazard.
Keep PMX-057T away from humidity.
Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for
qualified personnel servicing.
Never touch un-insulated terminals or wire unless your power adaptor is disconnected.
Locate your Panel PC as close as possible to the socket outline for easy access and to
avoid force caused by entangling of your arms with surrounding cables from the Panel
PC.
USB connectors are not supplied with Limited Power Sources.
If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
DO NOTATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS
(ENCASING)OF THIS PRODUCT.PLEASE CONTACT YOUR DEALER FOR
SERVICING FROM QUALIFIED TECHNICIAN.

T a b l e o f C o n t e n t s
T a b l e o f C o n t e n t s .............................................................iii
C h a p t e r 1 General Information..…………………………………1
1.1 Product Description................................................ 1
1.2 Product Specifications............................................ 2
1.3 Inspection standard for TFT-LCD Panel ................. 4
1.4 Product Dimension..........................................7
1.5 Ordering Information .............................................. 8
1.6 Packing List............................................................ 8
C h a p t e r 2 System Installation................................................. 9
2.1 CPU Board Outline................................................. 9
2.2 Connector Summary ............................................ 10
2.3 Connector Pin Assignments ..................................11
2.4 External I/O Overview .......................................... 15
2.5 External I/O Pin Assignment................................. 16
2.6 System Mapping................................................... 18
2.7 Watchdog Timver ................................................. 21
C h a p t e r 3 Driver Installation…..………………………………..22
3.1 PMX-057T Development Note.............................. 23
3.2 BIOS Defaul Setting ............................................. 24
Warranty............................................................................................ 25

iv
This page is blank

PMX-057T DM&PVortex86MXPanel PC with 5.7” VGA TFT LCD
1
C h a p t e r 1
General Information
1.1 Product Description
PMX-057T is an ultra compact platform for the present demanding embedded and productive
applications. It has new Vortex86MX SoC CPU which consumes only minimum power
requirement when running at 1GHz, and DDR2 memory provides faster data transfer rate. By
using 5.7” TFT LCD, PMX-057T becomes the perfect choice for a limited budget. In additional,
the integrated 10/100M Ethernet port supplies the communication capability which makes
PMX-057T can be more widely used when running with DOS, Linux, Windows CE, and Windows
XP environment to become the perfect solution for system integration.
5.7” VGA TFT LCD
4-Wire Resistive Touch Panel
DM&P Vortex86MX SoC 1GHz
512MB/1GB DDR2 system memory
AMI BIOS
2 watchdog timer
Compact Flash Type I/II / Micro SD
10/100Mbps Ethernet
2 USB 2.0 (host)
1 RS-232/485/422 ports
Wi-Fi Optional
AudioOut
Single voltage +5V DC(5A Version)
Multi voltage +8~+35V DC(8A Version)
Fanless Design
Operating temperature range of 0°C to
+50°

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 2
1.2 Product Specification
CPU Board Specifications
CPU DM&P Vortex86MX 1GHz
Cache L1:16KB I-Cache, 16KB D-Cache
L2: 256KB Cache
BIOS AMI BIOS
Memory 512MB/1GB DDR2 onboard
Watchdog Timer Software programmable from 30.5u to 512 seconds x 2 sets
LAN Integrated 10/100M Ethernet
Audio HD Audio-Realtek ALC262 CODEC
Internal Drives Compact Flash Type I/II slot
Micro SD slot
I/O
RS-232/422/485 x 1
USB ports (Ver2.0) x 2
RJ-45 Port x 1
Mechanical & Environment
Power Requirement Single Voltage +5VDC ( 5A )
Multi Voltage +8~+35VDC ( 8A )
Power Consumption 1.5A@5VDC
Operating Temperature
0 ~ +50 ℃( 32 ~ +122 ℉)
Storage Temperature -10 ~ +60 ℃( 14 ~ +140 ℉)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
Dimensions 152 x 112 x 33mm (5.98 x 4.41 x 1.3 inches)
Weight 374g
Certification CE, FCC, VCCI, Vibration

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 3
LCD Specifications
Display Type 5.7” TFT LCD
Backlight Unit LED
Display Resolution 640(W) x 480(H)
Brightness (cd/m2) 500 nits
Contrast Ratio 300:1
Display Color 262,144
Dot Pitch (mm) 0.06 x 0.18
Viewing Angle Vertical 100o,
Horizontal 140o
Backlight Lifetime 25,000 hrs
Touchscreen
Type Analog Resistive
Resolution Continuous
Transmittance 80%
Controller PS/2 interface
Software Driver DOS/Linux/WinCE/WinXP
Durability 1 million

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 4
1.3 Inspection standard for TFT-LCD Panel
DEFECT TYPE LIMIT Note
VISUAL
DEFECT INTERNAL
SPOT
φ＜0.15mm Ignore
Note1
0.15mm≦φ≦0.5mm N≦4
0.5mm＜φN=0
FIBER 0.03mm<W≦0.1mm, L≦5mm N≦3 Note1
1.0mm＜W, 1.5mm＜L N=0
POLARIZER BUBBLE
φ＜0.15mm Ignore Note1
0.15mm≦φ≦0.5mm N≦2
0.5mm＜φN=0
Mura It’ OK if mura is slight visible through 6%ND filter
ELECTRICAL
DEFECT
BRIGHT DOT
A Grade B Grade
C Area
O Area
Total
C Area O Area Total
Note3
N≦0
N≦2
N≦2
N≦2 N≦3 N≦5
Note2
DARK DOT N≦2
N≦3
N≦3
N≦3 N≦5 N≦8
TOTAL DOT N≦4 N≦5 N≦6 N≦8
Note2
TWO ADJACENT DOT N≦0
N≦1
pair
N≦1
pair
N≦1
pair
N≦1
pair
N≦1
pair Note4
THREE OR MORE
ADJACENT DOT NOT ALLOWED
LINE DEFECT NOT ALLOWED
(1) One pixel consists of 3 sub-pixels, including R,G, and B dot.(Sub-pixel = Dot)
(2) LITTLE BRIGHT DOT ACCEPTITABLE UNDER 6 % ND-Filter
(3) If require G0 grand (Total dot N≦0), please contact region sales.

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 5
[Note1] W : Width[mm], L : Length[mm], N : Number, φ: Average Diameter
[Note2] Bright dot is defined through 6% transmission ND Filter as following.

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 6
[Note3]
C Area: Center of display area
C Area: Outer of display area
[Note4]

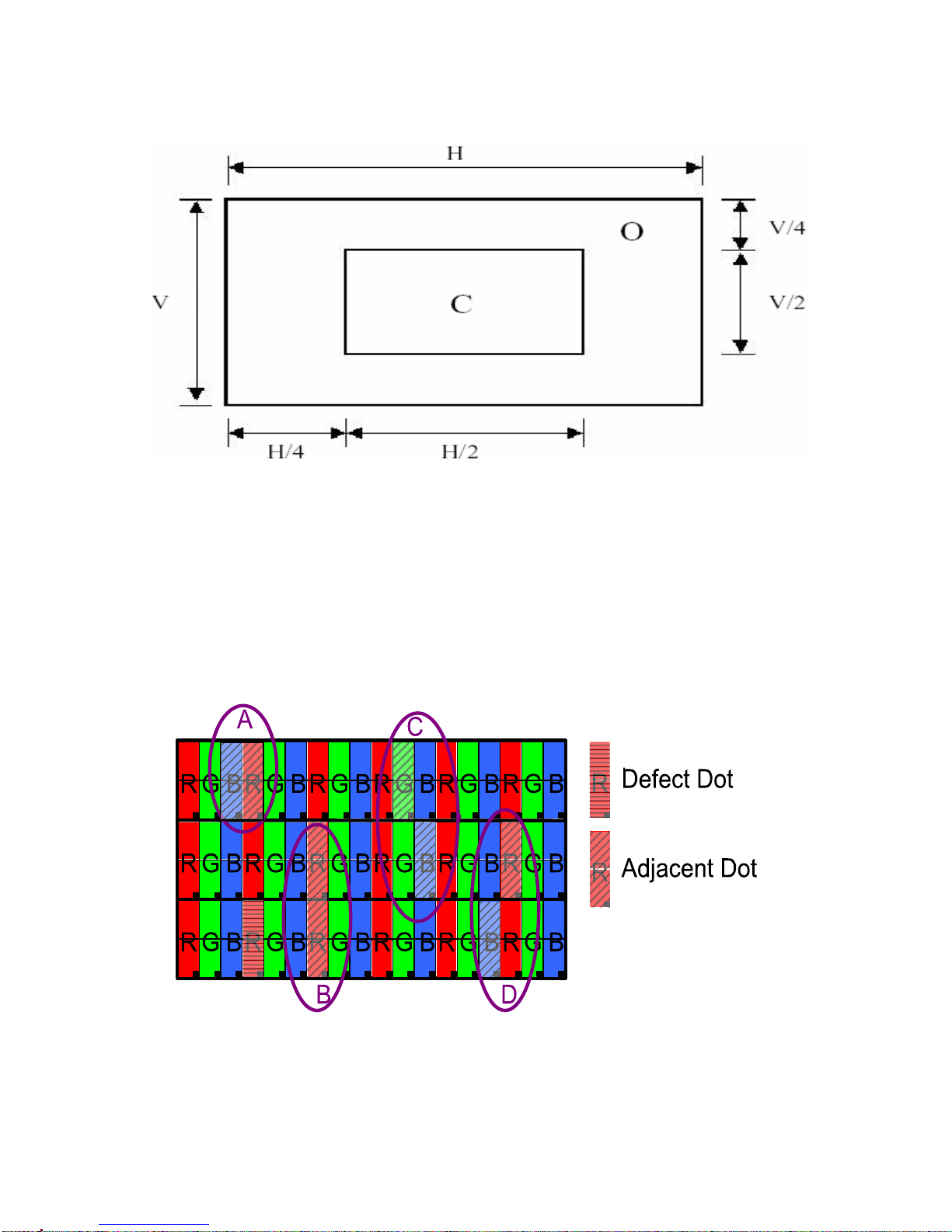

Judge defect dot and adjacent dot as following. Allow below (as A, B, C and D status) adjacent
defect dots, including bright and dart adjacent dot. And they will be counted 2 defect dots in total
quantity.
(1) The defects that are not defined above and considered to be problem shall be reviewed and
discussed by both parties.
(2) Defects on the Black Matrix, out of Display area, are not considered as a defect or counted.

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 7
1.4 Product Dimension

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 8
1.5 Ordering Information
Part Number Description
PMX-057T-5A 5.7” Panel PC w/1GB
DDR2/2USB/Line-Out/LAN/COM/CF/MicroSD/Power Adapter
PMX-057T-8A 5.7” Panel PC w/1GB
DDR2/2USB/Line-Out/LAN/COM/CF/MicroSD/8-35 DC support
1.6 Packing List
Part Number Package
PMX-057T-5A PMX-057T-5A
Power-20W-3PIN
PMX-057T-8A PMX-057T-8A
PMX-057T-5A-512 PMX-057T-5A-512
Power-20W-3PIN
PMX-057T-8A-512 PMX-057T-8A-512
WLAN KIT (Optional) USB-WLAN-GD-202
WIRELESS-ANTENNA-157
WIRELESS-CABLE-150MM

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 9
C h a p t e r 2
System Installation
2.1 CPU Board Outline

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 10
2.2 Connector Summary
Summary Table
Nbr Description Type of Connections Pin nbrs.
J1 CF Master/Slave Switch
Slide Switch On/OFF
J3 USB External USB Connector 6-pin
J4 USB External USB Connector 6-pin
J5 USB (Touchscreen) 2.0mm 5-pin wafer 5-pin
J8 PS/2 Keyboard 2.54mm 5-pin box header 5-pin
J9 PS/2Keyboard/Mouse External Mini DIN Socket 6-pin
J10 COM2(RS232/422/485)
External D-Sub Male Connector 9-pin
J14 VGA 2.0mm 10-pin box header 10-pin
J15 LCD 0.5mm FPC/FFC Connector 40-pin
J18 Micro SD Card Socket Micro SD socket
J23 Audio Line-Out 1.25mm Phone Jack
J24 Audio Mic-In 2.0mm 4-pin wafer 4-pin
J25 COM3 (TX, RX) 1.25mm 3-pin wafer 3-pin
J26 COM4 (TX, RX 1.25mm 3-pin wafer 3-pin
J30 SOM CPU Board Socket
SOM CPU Board Socket 200-pin
J31 4-Wires Touch connector
1.25mm 4-pin wafer 4-pin
J32 USB (Wi-Fi Optional) Internal USB Connector 6-pin
RJ45 Ethernet External RJ45 Connector 8-pin
PWR Power Connector (5A) External Mini DIN Socket 3-pin
PWR Power Connector (8A) External Power Plug 2-pin
CF1 CF Card Socket CF Type I/II Socket

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 11
2.3 Connector Pin Assignments
J1: CF Master/Slave Switch
J3: USB
Pin # Signal Name
Pin # Signal Name
1 VCC 2 USBD2-
3 USBD2+ 4 GND
5 GND 6 GND
J4: USB
Pin # Signal Name
Pin # Signal Name
1 VCC 2 USBD3-
3 USBD3+ 4 GND
5 GND 6 GND
J5: USB (Optional)
Pin # Signal Name
1 VCC
2 USBD1-
3 USBD1+
4 GND
5 GND
J8: PS/2 Keyboard
Pin # Signal Name
Pin # Signal Name
1 KBCLK 2 KBDAT
3 NC 4 GND
5 VCC
J9: PS/2 Keyboard/Mouse
Pin # Signal Name
Pin # Signal Name
1 KBCLK 2 MSCLK
Pin # Signal Name
On Master
OFF Slave

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 12
3 GND 4 KBDATA
5 MSDAT
A
6 VCC
7 GND 8 GND
9 GND
J10: COM1 RS232/422/485 (Change setting by BIOS)
Pin # Signal Name Pin #
Signal Name
1 DCD1/ 422TX- / RS485- 2 RXD1 / 422TX+ / RS485+
3 TXD1 / 422RX+ 4 DTR1 / 422RX-
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1
J14: VGA
Pin # Signal
Name Pin # Signal Name
1 R OUT 2 GND
3 G OUT 4 GND
5 B OUT 6 GND
7 HSYNC 8 GND
9 VSYNCD 10 GND
J15: LCD
Pin # Signal Name
1 3.3V
2 3.3V
3 HSYNC
4 5V
5 5V
6 5V
7 3.3V
8 VSYNC
9 DE
10 GND
11 GND
12 GPIOB

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 13
13 B5
14 B4
15 B3
16 GND
17 B2
18 B1
19 B0
20 GND
21 G5
22 G4
23 G3
24 GND
25 G2
26 G1
27 G0
28 GND
29 R5
30 R4
31 R3
32 GND
33 R2
34 R1
35 R0
36 GND
37 GND
38 CLK
39 GND
40 L/R
J24: MIC-IN
Pin # Signal Name
1 MICVREF
2 GND
3 GND
4 MIC-IN
J25: COM3 (TX, RX)
Pin # Signal Name

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 14
1 GND
2 TXD3
3 RXD3
J26: COM4 (TX, RX)
Pin # Signal Name
1 GND
2 TXD4
3 RXD4
J31: 4-Wires Touch connector
Pin # Signal Name
1 Y-
2 X-
3 Y+
4 X+
J32: USB (WiFi Optional)
Pin # Signal Name
Pin # Signal Name
1 VCC 2 USBD2-
3 USBD2+ 4 GND
5 GND 6 GND
PWR: Power Connector (5A)
Pin # Signal Name
1 +5V
2 GND
3 NC
4 GND
PWR: Power Connector (8A)
Pin # Signal Name
1 + 8 ~ 35V
2 GND

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 15
2.4 External I/O Overview
(Note1: Wireless is optional)
(Note2: COM1 RS232/422/485 is selected by BIOS setting)
PMX-057T-8A/ PMX-057T-8A-512
PMX-057T-5A/ PMX-057T-5A-512

PMX-057T DM&PVortex86MXPanelPCwith5.7”VGATFTLCD 16
2.5 External I/O Pin Assignment
Power Switch
Pin # Status
| ON
O OFF
Power Connector (5A)
Pin # Signal Name
1 +5V
2 GND
3 NC
Power Connector (8A)
Pin # Signal Name
1 +8 ~ 35V
2 GND
J10: COM1 RS232/422/485 (Change setting by BIOS)
Pin # Signal Name Pin # Signal Name
1 DCD1/422TX-/RS485-
2 RXD1/422TX+/RS485+
3 TXD1 / 422RX+ 4 DTR1 / 422RX-
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1
