IEI Technology IVS-110 User manual

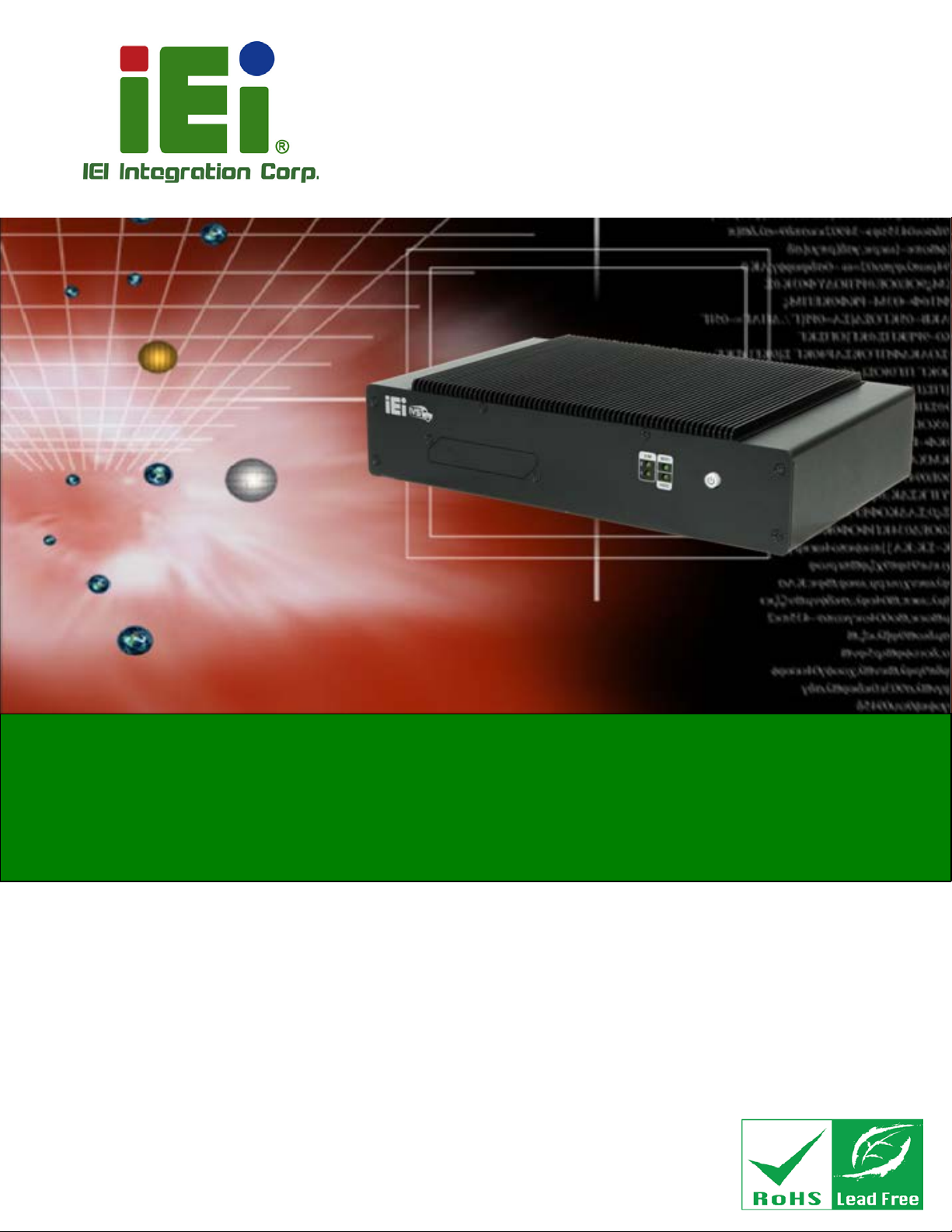

IVS-110 Embedded System
Page i
User Manual
eIVS-110 Embedded System
MODEL:MODEL:
IVS-110
IEI Fanless Embedded System with Intel® Atom® x7-E39xx
Processor, 4 GB DDR3L, RS-232/422/485, OBD-II,
On-board GPS, HDMI, VGA, Dual SIM Slot, RoHS Compliant,
Rev. 1.00 – January 31, 2018

IVS-110 Embedded System
