IEI Technology WAFER-ULT-i1 User manual

3.5" SBC supports Intel® 22nm 4th / 14nm 5th Generation Mobile

Core™ i7/i5/i3 and Celeron® on-board Processor (ULT),

VGA, LVDS, iDP, Dual GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, Audio,

iRIS-1010 and RoHS

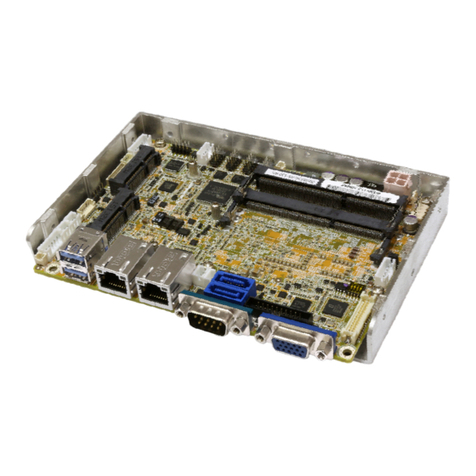

WAFER-ULT-i1

WAFER-ULT2-i1

Quick Installation Guide

Version 1.11

March 2018

Package List

WAFER-ULT-i1/WAFER-ULT2-i1 package includes the following items:

1 x WAFER-ULT-i1/WAFER-ULT2-i1 single board computer with

enclosure heatsink

2 x SATA with 5V output cable kit

1 x Audio cable

1 x Dual-port USB 2.0 cable

1 x Power cable

1 x QIG

Specifications

CPU:

≫Intel® 5th generation mobile ULT on-board SoC

Intel® Core™ i7-5650U (2.2GHz, dual-core, 4MB cache,

TDP=15W)

Intel® Core™ i5-5350U (1.8GHz, dual-core, 3MB cache,

TDP=15W)

Intel® Core™ i3-5010U (2.1GHz, dual-core, 3MB cache,

TDP=15W)

Intel® Celeron® processor 3765U (1.9GHz, dual-core, 2MB

cache, TDP=15W)

≫Intel® 4th generation mobile ULT on-board SoC

Intel® Core™ i7-4650U (1.7GHz, dual-core, 4MB cache,

TDP=15W)

Intel® Core™ i5-4300U (1.9GHz, dual-core, 3MB cache,

TDP=15W)

Intel® Core™ i3-4010U (1.7GHz, dual-core, 3MB cache,

TDP=15W)

Intel® Celeron® processor 2980U (1.6GHz, dual-core, 2MB

cache, TDP=15W)

Memory:

Two 204-pin 1600/1333 MHz dual-channel unbuffered DDR3L

SDRAM SO-DIMMs support up to 16 GB

BIOS: UEFI BIOS

Graphics:

≫Intel® 5th generation mobile ULT on-board SoC

Intel® HD Graphics Gen 8 supports DX11.1, OpenGL 4.2 and

OpenCL 1.2 Full MPEG2, VC1, AVC decode

≫Intel® 4th generation mobile ULT on-board SoC

Intel® HD Graphics Gen 7.5 supports DX11.1, OpenGL 4.2

and OpenCL1.2 Full MPEG2, VC1, AVC decode

Display Output:

Triple independent display

VGA (up to 2560x1600@60Hz)

18/24-bit dual-channel LVDS by CH7511B DP to LVDS

converter (up to 1920x1200@60Hz)

iDP interface for HDMI, LVDS, VGA, DVI, DP

(up to 3840x2160@60 Hz)

Ethernet:

GbE1: Intel® I218LM PHY with Intel® AMT 9.0 support

GbE2: Intel® I210-AT PCIe controller with NCSI support

Super IO: Fintek F81866

Extemal I/O Interfaces:

1 x RS-232

2 x USB 3.0

Internal I/O Interfaces:

1 x KB/MS (1x6 pin)

1 x RS-422/485 (1x4 pin, P=2.0)

2 x RS-232 (2x5 pin, P=2.0)

2 x SATA 6Gb/s with 5V power connector (no RAID)

2 x USB 2.0 (2x4 pin, P=2.0)

iRIS Remote Management Module:1 x iRIS-1010 slot

Expansion:

1 x Full-size/half-size PCIe Mini card slot (mSATA support)

Audio:

1 x Analog audio (2x5 pin)

Front Panel:

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED:

2 x LAN LED (1x2 pin)

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector:

1 x System smart fan (1x4 pin)

Watchdog Timer:

Software programmable, supports 1~255 sec. system reset

Power Supply:

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption:

[email protected] (Intel® Core™ i5-4300U CPU with two 8GB

1600MHz DDR3L memory)

Operating Temperature: -10°C ~ 60°C

Storage Temperature: -20°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146 mm x 102 mm

Weight (GW/NW): 600 g/250 g

Ordering Information

WAFER-ULT-i1-i7-R11:

3.5" SBC with Intel® 22nm 4th Generation ULT Mobile Core™

i7-4650U processor (ULT), VGA, LVDS, iDP, Dual GbE, USB 3.0,

PCIe Mini, SATA 6Gb/s, iRIS-1010 and RoHS

WAFER-ULT-i1-i5-R11:

3.5" SBC with Intel® 22nm 4th Gen ULT Mobile Core™ i5-4300U

processor (ULT), VGA, LVDS, iDP, Dual GbE, USB 3.0, PCIe Mini,
