iLive ITB105B User manual
Bluetooth 19.5" HD Soundbar
User’s Guide for Model ITB105B v1204-01
For the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com
2
Safety Instructions & Warnings
Important Safety Instructions
• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
• Do not defeat the safety purpose of the polarized or ground-
ing - type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades
and a third grounding prong. e wide blade or the third
prong are provided for your safety. When the provided plug
does not t into your outlet, consult an electrician for replace-
ment of the obsolete outlet.
• Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
• Only use attachments/accessories specied by the manu-
facturer.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket,
or table specied by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
FCC Warnings
-
-
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Warning
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
-
-
-
Warning
Customer Support: 1-888-999-4215 3
Safety Instructions & Warnings
Additional Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
Avis: AFIN DE PRÉVENIR LES CHOCS ÉLÉCTRIQUES,
FAITES CORRESPONDRE LA FICHE BLANCHE DE LA
PRISE À LA FENTE LARGE, INSÉREZ TOTALEMENT.
• WARNING: To reduce the risk of re or electric shock,
do not expose this apparatus to rain, moisture, dripping,
or splashing.
Avis: Pour réduire le risque d'incendie ou de choc élec-
trique, n'exposez pas cet appareil à la pluie ou l'humidité ou
aux éclaboussures.
CaUTiOn
-
Avis: L’utilisation de commande ou l’exécution de procé-
dures autres que celles spéciées ici peuvent aboutir à une
exposition à des radiations dangereuses.
• WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Avis: Des changements ou des modications sur ce produit
non expressément approuvés par la partie responsable de
la conformité peut annuler le droit de l’utilisateur d’utiliser
cet équipement.
• WARNING: Do not place this unit directly onto furniture
surfaces with any type of so, porous, or sensitive nish. As
with any rubber compound made with oils, the feet could
cause marks or staining where the feet reside. We recom-
mend using a protective barrier such as a cloth or a piece of
glass between the unit and the surface to reduce the risk of
damage and/or staining.
Avis: Ne placez pas cette unité directement sur des surfaces
de meubles dont la nition serait douce, poreuse ou sensible.
Car, comme tout composé caoutchouc a base d’huiles, les
pieds pourraient laisser des tracs ou des taches à l’endroit ou
ils sont posés. Nous recommandons d’utiliser une protection
comme un linge ou un morceau de verre entre l’unité et la
surface pour réduire le risque de dégât et/ou de tache.
• WARNING: Use of this unit near uorescent lighting may
cause interference regarding use of the remote. If the unit is
displaying erratic behavior move away from any uorescent
lighting, as it may be the cause.
Avis: L’utilisation de cette unité en présence de lumières u-
orescentes peut causer des interférences lors de l’utilisation
de la télécommande. En cas de dysfonctionnement, éteignez
les sources de lumière uorescentes, car celles-ci pourraient
en être la cause.
• CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
AVIS: Un danger d’explosion est présent lorsque les piles
sont remplacées de manière incorrecte. Remplacez seulement
les piles par des piles de type équivalent.
• WARNING: ere is a danger of explosion if you attempt
to charge standard Alkaline batteries in the unit. Only use
rechargeable NiMH batteries.
AVIS: Charger des piles alcalines dans l’unité peut causer
une explosion. Utilisez seulement des piles rechargeables
NiMH.
• WARNING: e remote control’s button cell battery contains
mercury. Do not put in the trash, instead recycle or dispose of
as hazardous waste.
AVIS: Les piles boutons de la télécommande contiennent
du mercure. Ne les jetez pas à la corbeille, recyclez-les ou
disposez-les comme des déchets dangereux.
• WARNING: Lithium batteries, like all rechargeable batter-
ies, are recyclable and should be recycled or disposed of in
normal household waste. Contact your local government for
disposal or recycling practices in your area. ey should never
be incinerated since they might explode.
AVIS: Les piles Lithium ion, comme toutes les autres piles
rechargeables, sont recyclables et doivent être etées avec vos
déchets ménagers. Contactez votre municipalité pour obtenir
des conseils sur les moyens de disposition et de recyclage
dans votre région. N’incinérez pas vos piles, car celles-ci
peuvent exploser.
• WARNING: Shock hazard - Do Not Open.
AVIS: Risque de choc électrique - ne pas ouvrir
Attention et de marquage des informations est situé sur le
paneau arrière ou inférieur de l’unité.
Objets remplis de liquides, comme des vases, ne doivent pas
être placés sur l’appareil.
-
La prise du secteur est utilisé pour déconnecter le système.
La prise du secteur ne doit pas être obstruée ou doit être
facilement accessible pendant son utilisation. Pour être
complètement déconnecté de l’alimentation d’entrée, la prise
doit être débranchée du secteur.
Les piles ne doivent pas être exposées à de forte chaleur,
tel qu’à la lumière du soleil, au feu ou autres choses de
semblable.
Ce produit est livré avec une pile pièce / touche. Si la pile
pièce / bouton est avalé, il peut causer des brûlures internes
graves et peut conduire à la mort.
Gardez les piles neuves et d’occasion à partir des enfants. Si
le compartiment de la batterie ne pas fermer correctement,
cesser d’utiliser le produit et garder loin des enfants.
Si vous pensez que les batteries peuvent avoir été avalé ou
placé à l’intérieur d’une partie du corps, consulter immédi-
atement un médecin.
Ne pas mélanger vieilles et nouvelles batteries.
Remplacer complètement toutes les piles par des neuves.
Ne mélangez pas des piles alcalines, standard (carbone-zinc)
ou rechargeables (Ni-Cd, Ni-MH, etc) batteries.
Piles doivent être recyclées ou éliminées selon les directives
étatiques et locales.
4
Table of Contents
Unboxing Your HD Soundbar � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
Features & Specications
Includes
Setup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
Power
Remote Battery
Orientation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6-7
Speaker Rear Inputs
Speaker Controls (Left Side)
Remote Layout
Indicator Lights
Audio Inputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �8-9
Using the Stereo RCA Inputs to Connect to a Computer
Using the Stereo RCA Inputs to Connect to a Television or Other Device
Using the Optical Input
Audio Inputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Using the Line In
Bluetooth� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
Pairing a Bluetooth Device for the First Time
Playing Audio Wirelessly
Company Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Contact Information
Warranty
International Support
Green Initiative
Customer Support: 1-888-999-4215 5
Includes
• Remote control:
requires a CR2025 battery (pre-installed)
• RCA to 3.5mm line in
• RCA to 3.5mm (female) cable
• AC/DC power adapter
• Wall-mount hardware and instructions
Features & Specications
• 19.5" length
• Supports Bluetooth v2.1
• Supports Enhanced Data Rate (EDR)
• Supports profile A2DP (Advanced Audio
Distribution Profile)
• Wireless range: 33 feet
• Digital volume control
• Full-function remote
• Optical digital audio input
• 3.5mm audio input
• RCA stereo audio inputs
• LED source indicators
• LED power indicator
• Wall mountable
LITHIUM BATTERY
CR 2025
3V
Out
Slide
Remote Battery
Remote control: requires one CR2025 coin/button cell battery (included).
Power
Plug the small end of the power cord into the DC Input on the back of the speaker, and the large plug into a
standard wall outlet.
Unboxing Your HD Soundbar
Setup
6
POWER
SOURCE
PAIR
LINE IN
VOL
VOL
Speaker Controls (Left Side)
Speaker Rear Inputs
Orientation
Stereo RCA Audio
Inputs (AUX IN)
Optical Input
DC Power Input
Power
Press to power
the unit on or off.
Source
Press to switch
between Optical,
Line In, AUX, and
Bluetooth modes.
Volume
Press to adjust the
volume up or down.
Pair
Press and hold to
begin pairing to a
Bluetooth device.
Line In
Customer Support: 1-888-999-4215 7

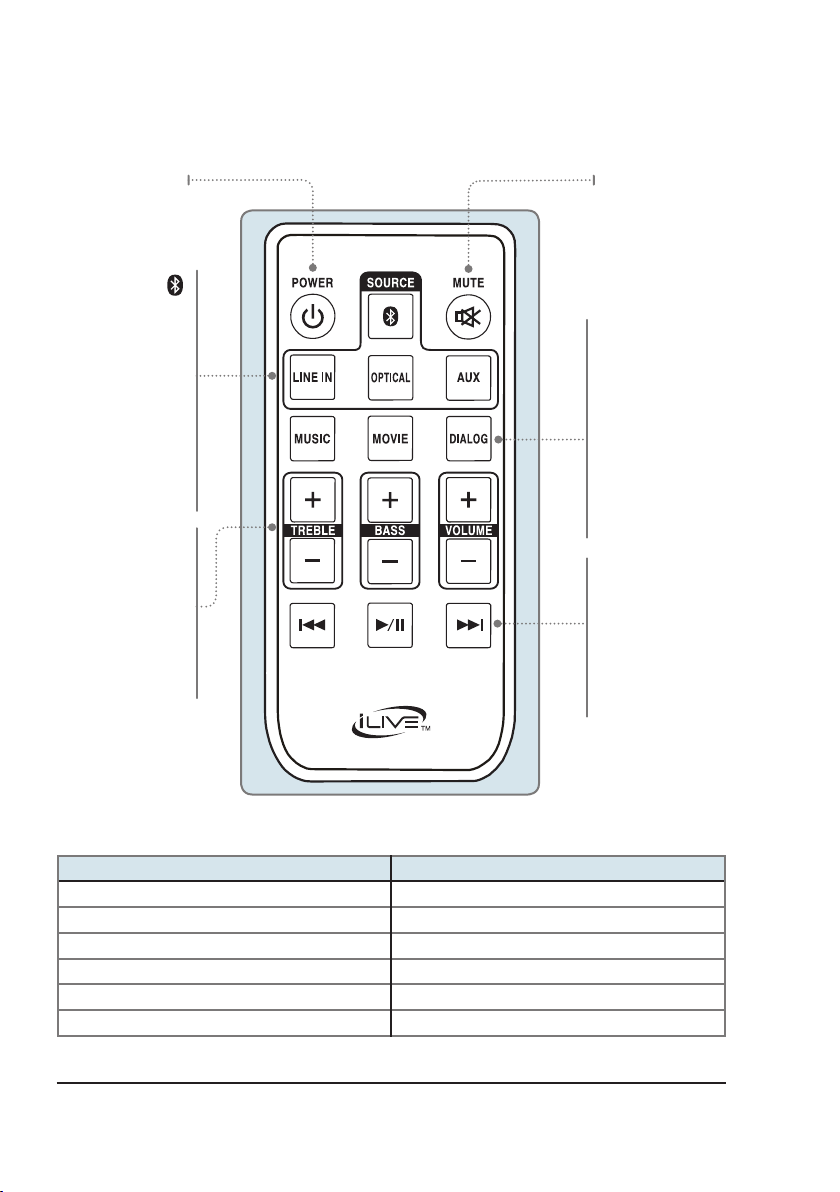

Remote Layout
Power
Press to turn
the unit on or off.
Mute
Press to mute
the volume.
Press to switch
to Bluetooth Mode.
Line In
Press to switch
to Line In mode.
Optical
Press to switch
to Optical mode.
AUX
Press to switch
to Aux In mode.
Music
Press to switch to
the EQ optimized
for music.
Movie
Press to switch to
the EQ optimized
for movie sound.
Dialog
Press to switch to
the EQ optimized
for dialog.
Treble
Press to adjust the
treble up or down.
Bass
Press to adjust the
bass up or down
Volume
Press to adjust
the volume.
Skip Back/Fwd
In bluetooth mode,
press to skip the
selected track.
Play/Pause
In bluetooth mode,
press to play or
pause the selected
track.
Indicator Lights
STATUS INDICATOR
Power Off Red Light
Optical Mode Amber Light
Aux In Mode White Light
Line In Mode Green Light
Bluetooth Pairing Flashing Blue Light
Bluetooth Connected Blue Light
8
Audio Inputs
Using the Stereo RCA Inputs to Connect to a Computer
When connecting two products using an RCA Cable, match the colored ports on the unit (red/white) with the same
colored connection on the cables.
1. Connect the Male 3.5mm to RCA Cable (included) to the 3.5mm Audio Input on the computer, and the
Aux In (RCA) Stereo Inputs located on the back of the soundbar.
2. Press the Power button to power on the unit.
3. Press the Source button repeatedly to enter AUX Mode, indicated by a white light.
4. Audio played through the computer will now be heard through the speakers.
Using the Stereo RCA Inputs to Connect to a Television or Other Device
When connecting two products using an RCA Cable, match the colored ports on the unit (red/white) with the same
colored connection on the cables.
1. Connect the Male 3.5mm to RCA Cable (included) to the Female 3.5mm to RCA Cable (included).
2. Connect the conjoined cables to the Aux In (RCA) Stereo Inputs located on the television or device and the
back of the soundbar.
3. Press the Power button to power on the unit.
4. Press the Source button repeatedly to enter AUX Mode, indicated by a white light.
5. Audio played through the television or device will now be heard through the speakers.
Using the Optical Input
You will need: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (not included)
1. Connect the Digital Optical Audio Cable to the optical output on the audio source and to the Optical Input
on the speaker bar.
2. Press the Power button to power the unit on.
3. Press the Source button repeatedly to switch to SPDIF Mode, indicated by a amber light.
4. Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical
Audio and are turned On.
5. Audio from the connected audio source will now be played through the speakers.
Important tips for optical audio:
Use the correct toslink cable and make sure that it is firmly seated in both source and sound bar sockets.
Optical output is activated on the source (they should see a red light emitting from the toslink socket).
It may be labeled SPDIF in the setting menu of the source.
The optical output is set to output PCM and not Dolby Digital.
Customer Support: 1-888-999-4215 9
Using the Stereo RCA Inputs to Connect to a Computer - Rear View
Using the Stereo RCA Inputs to Connect to a Television or Other Device - Rear View
Using the Optical Input - Rear View
MALE FEMALE
10
Side View
POWER
SOURCE
PAIR
LINE IN
VOL
VOL
Using the Line In
3.5 mm audio input cable not included.
1. Plug one end of a 3.5 mm audio input cable into the Line In on the unit and plug the other end of the cable
into the audio output/headphone output on an MP3 Player or other audio source.
2. Press the Power button to power the unit on.
3. Press the Source button repeatedly to enter Line In Mode, indicated by a green light.
4. Audio played through the connected device will now be heard through the speakers.
Audio Inputs
Customer Support: 1-888-999-4215 11
Pairing a Bluetooth Device for the First Time
1. Power on the unit by pressing the Power button.
2. Press the button on the remote to switch to Bluetooth Mode, indicated by a slowly flashing blue light.
You can also press the Source button on the side of the unit.
3. Press and hold the Pair button on the side of the unit.
The pairing indicator will flash blue quickly. When pairing, remain within 3 feet of the unit.
4. Use the controls on your Bluetooth device to select ITB105 in your Bluetooth settings to pair.
If your device requests a password, enter the default password 0 0 0 0 .
Refer to the user’s manual for your specific device for instructions on pairing and connecting Bluetooth devices.
5. When successfully paired and connected, a beep will issue from the unit and the Pairing Indicator will
display a solid blue light.
After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the
device. If your device should become unpaired or you find it is unable to connect, repeat the above steps.
Playing Audio Wirelessly
1. After pairing to a bluetooth device, use the controls on the connected Bluetooth Device to select a track.
2. Play, pause or skip a selected track using the controls on the connected Bluetooth Device or the
soundbar's remote.
3. Audio played through the connected Bluetooth device will now be heard through the speakers.
Bluetooth
12
Green Initiative
Our Environmental Commitment to "Protect for Today and Sustain for
Tomorrow". On a continual basis DPI, Inc. is making efforts to sustain the
environment and improve the recyclability of its products and packaging.
Focusing on “protecting for today and sustaining for tomorrow” DPI,
Inc. has committed to reducing packaging size, increasing the usage of
recyclable plastics, and ensuring that packaging and manuals are made
with up to 85% recycled material. In addition to material consideration,
DPI, Inc. has also focused on the finer details that positively impact the
environment such as employing the usage of soy-based inks.
DPI, Inc. also ensures that the factories that produce the company’s wide
variety of consumer electronics adhere to environmentally friendly air and
water restrictions. This is yet another example that every step of the way
DPI, Inc. is making efforts to lessen any impact on the environment.
In 2011 DPI, Inc. also began conversations with Energy Star in order
to ensure that the consumer electronics being produced meet high
standards of energy efficiency. The ultimate goal is keeping energy costs
for consumers low while providing quality, feature-rich products.
International Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit
the support section at: www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas
frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des
questions fréquemment posées, consultez la rubrique d’assistance sur: www.iLiveElectronics.com
Contact Information
Website: www.iLiveElectronics.com
Phone Support: 1-888-999-4215
Warranty
For Warranty Information and the most up-to-date version of this User’s Guide, go to:
www.iLiveElectronics.com
Company Information
Protect for Today
Sustain for Tomorrow
Made
Green
Copyright © 2015 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property
of their respective owners. Specifications are subject to change without notice.
Table of contents
Other iLive Speakers System manuals
iLive
iLive 1407-0603-09 User manual
iLive
iLive ITB183B v859-04 User manual
iLive
iLive ISBW2113B User manual
iLive
iLive ITB183B v1325-02 User manual
iLive
iLive iHMD8816DT-E1 User manual
iLive
iLive IT153B User manual
iLive
iLive ITP231B User manual
iLive
iLive ITB404 User manual
iLive
iLive IT302B User manual
iLive
iLive ITB474B User manual
iLive
iLive v859-02 User manual
iLive
iLive IT 123 User manual
iLive
iLive ITB400 User manual
iLive
iLive ITB037SO User manual
iLive
iLive PLATINUM IHB26B User manual
iLive
iLive ITB259 User manual
iLive
iLive SR215W User manual
iLive
iLive ITB490B User manual
iLive
iLive IHB23B User manual
iLive
iLive IKB318S User manual
