iLive ITB474B User manual

Bluetooth HD Soundbar
with Detachable Wireless Speakers
User’s Guide for Model ITB474B v1146-01
For the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com

2
Warnings and Precautions
FCC Warnings
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Additional Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of re or electric shock, do
not expose this apparatus to rain, moisture, dripping, or
splashing.
Avis: Pour réduire le risque d’incendie ou de choc élec-
trique, ne pas exposer cet appareil sous la pluie et l’humidité.
• CAUTION: Use of controls or adjustments or performance of
procedures other than those specied may result in hazardous
radiation exposure.
• WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
• WARNING: Do not place this unit directly onto furniture
surfaces with any type of so, porous, or sensitive nish. As
with any rubber compound made with oils, the feet could
cause marks or staining where the feet reside. We recom-
mend using a protective barrier such as a cloth or a piece of
glass between the unit and the surface to reduce the risk of
damage and/or staining.
• WARNING: Use of this unit near uorescent lighting may
cause interference regarding use of the remote. If the unit is
displaying erratic behavior move away from any uorescent
lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
AVIS: Danger d’explosion si les piles sont remplacées de façon
incorrect. Remplacer les piles seulement par le même type de
pile ou l’équivalent.
• WARNING: ere is a danger of explosion if you attempt
to charge standard Alkaline batteries in the unit. Only use
rechargeable NiMH batteries.
• WARNING: e remote control’s button cell battery contains
mercury. Do not put in the trash, instead recycle or dispose of
as hazardous waste.
• WARNING: Lithium batteries, like all rechargeable batter-
ies, are recyclable and should be recycled or disposed of in
normal household waste. Contact your local government for
disposal or recycling practices in your area. ey should never
be incinerated since they might explode.
• WARNING: Shock hazard - Do Not Open.
AVIS: Risque de choc électrique - ne pas ouvrir
• Caution and marking information is located at the rear or
bottom of the apparatus.
Attention et de marquage des informations est situé sur le
paneau arrière ou inférieur de l’unité.
• Objects lled with liquids, such as vases, shall not be placed
on the apparatus.
Objets remplis de liquides, comme des vases, ne doivent pas
être placés sur l’appareil.
• Mains plug is used as disconnect device and it should remain
readily operable during intended use. In order to discon-
nect the apparatus from the mains completely, the mains
plug should be disconnected form the mains socket outlet
completely.
La prise du secteur est utilisé pour déconnecter le système.
La prise du secteur ne doit pas être obstruée ou doit être
facilement accessible pendant son utilisation. Pour être
complètement déconnecté de l’alimentation d’entrée, la prise
doit être débranchée du secteur.
• Battery shall not be exposed to excessive heat such as
sunshine, re or the like.
Les piles ne doivent pas être exposées à de forte chaleur,
tel qu’à la lumière du soleil, au feu ou autres choses de
semblable.
• This product is supplied with a coin/button cell battery. If
the coin/button cell battery is swallowed, it can cause severe
internal burns and can lead to death.
Ce produit est livré avec une pile pièce / touche. Si la pile
pièce / bouton est avalé, il peut causer des brûlures internes
graves et peut conduire à la mort.
• Keep new and used batteries away from children. If the
battery compartment does not close securely, stop using the
product and keep it away from children.
Gardez les piles neuves et d’occasion à partir des enfants. Si
le compartiment de la batterie ne pas fermer correctement,
cesser d’utiliser le produit et garder loin des enfants.
• If you think batteries might have been swallowed or placed
inside any part of the body, seek immediate medical attention.
Si vous pensez que les batteries peuvent avoir été avalé ou
placé à l’intérieur d’une partie du corps, consulter immédi-
atement un médecin.
• Do not mix old and new batteries.
Ne pas mélanger vieilles et nouvelles batteries.
• Completely replace all old batteries with new ones.
Remplacer complètement toutes les piles par des neuves.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
Ne mélangez pas des piles alcalines, standard (carbone-zinc)
ou rechargeables (Ni-Cd, Ni-MH, etc) batteries.
• Batteries should be recycled or disposed of as per state and
local guidelines.
Piles doivent être recyclées ou éliminées selon les directives
étatiques et locales.

Customer Support: 1-888-999-4215
3
Table of Contents
Unboxing Your HD Soundbar � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �4
Features & Specications
Includes
Setup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �4
Power
Indicator Lights
Remote Battery
Orientation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5-6
Speaker Inputs (Rear)
Speaker Controls (Front)
Remote Layout
Audio Inputs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7-8
Using the Stereo RCA Inputs
Using the Stereo RCA Inputs and the Subwoofer Output Together
Using the Optical Input
Using the Line In
Using the Optical Input - Rear View
Using the Line In - Side View
Bluetooth� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �9
Pairing a Bluetooth Device for the First Time
Playing Audio Wirelessly
The Satellite Speakers � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10-11
The Satellite Speakers
Satellite Speaker Indicator Lights
Powering On the Satellite Speakers
Re-Connecting the Satellite Speakers
Charging the Satellite Speakers
Satellite Speakers (Left/Right)
Main Speaker Dock (Left)
Company Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Contact Information
International Support
Green Initiative
Warranty

4
Includes
• Remote control with 2 AAA batteries
• RCA stereo audio cable
• Wall-mount hardware and instructions
• AC/DC power adapter
Remote Battery
Requires two AAA batteries (included).
Power
Plug the small end of the power cord into the
DC Input on the back of the speaker, and the
large plug into a standard wall outlet.
Indicator Lights
Unboxing Your HD Soundbar
Setup
Features & Specications
• 4 channel sound
• Supports Bluetooth
• Supports profile A2DP (Advanced Audio
Distribution Profile)
• 2.4GHz wireless speakers
• Detachable satellite speakers with built-in
lithium battery
• Digital volume control
• Remote
• Optical digital audio input
• 3.5mm audio input
• RCA stereo audio inputs
• LED pairing indicator
• LED source indicators
• Wall mountable
• Cloth speaker grill
STATUS INDICATOR
Power Off No Light
Line In Mode Green Light
Optical Mode Amber Light
Aux In Mode White Light
Bluetooth Pairing Flashing Blue Light
Bluetooth Connected Blue Light

Customer Support: 1-888-999-4215
5
Speaker Controls (Front)
Speaker Inputs (Rear)
Orientation
Stereo RCA Audio
Inputs (AUX IN)
Optical Input
DC Power Input
Power
Press to power
the unit on or off.
Source
Press to switch
between Optical,
Line In, AUX, and
Bluetooth modes.
Source Indicator
Lights
Pairing
Press to begin
pairing to a
Bluetooth device.
Volume
Press to adjust
the volume up
or down.

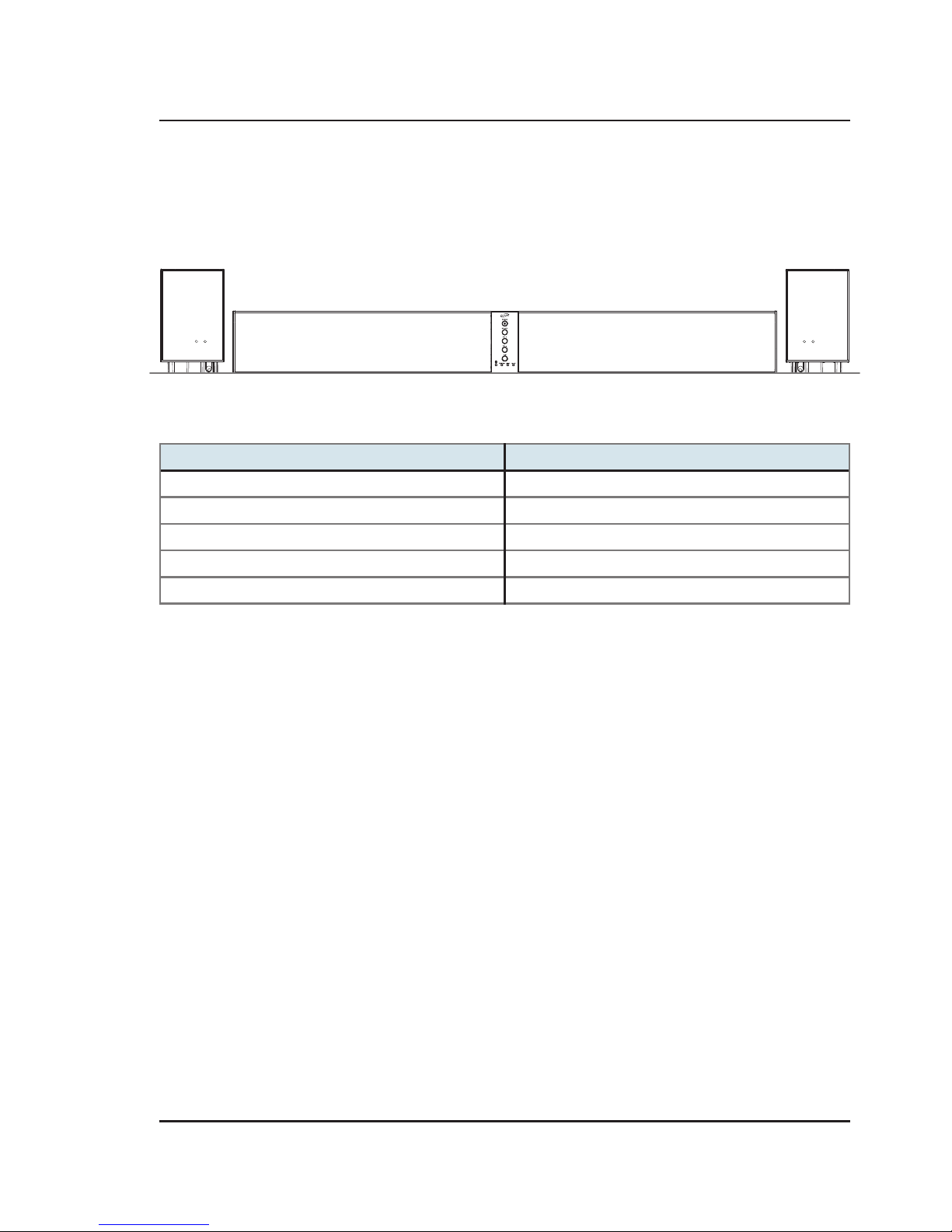

Subwoofer Output
Line In

6
Remote Layout
Power
Press to turn
the unit on or off.
Mute
Press to mute the volume.
Press to switch
to Bluetooth Mode.
Line
Press to switch
to Line In mode.
Optical
Press to switch
to Optical mode.
AUX
Press to switch
to Aux In mode.
Music
Press to switch to the
EQ optimized for music.
Movie
Press to switch to the
EQ optimized for movies.
Dialog
Press to switch to the
EQ optimized for dialogue.
Skip
In Bluetooth mode,
press to skip forward
or back one track.
Play/Pause
In Bluetooth mode,
press to play or
pause a track.
Volume +/-
Press to adjust
the volume.
Treble
Press to adjust the treble
up or down.
Bass
Press to adjust the bass
up or down.
Satellite Speakers:
ON/OFF
Press to power the
satellite speakers
on or off.
Volume -/+
Press to adjust the
volume of the satellite
speakers up or down.

Customer Support: 1-888-999-4215
7

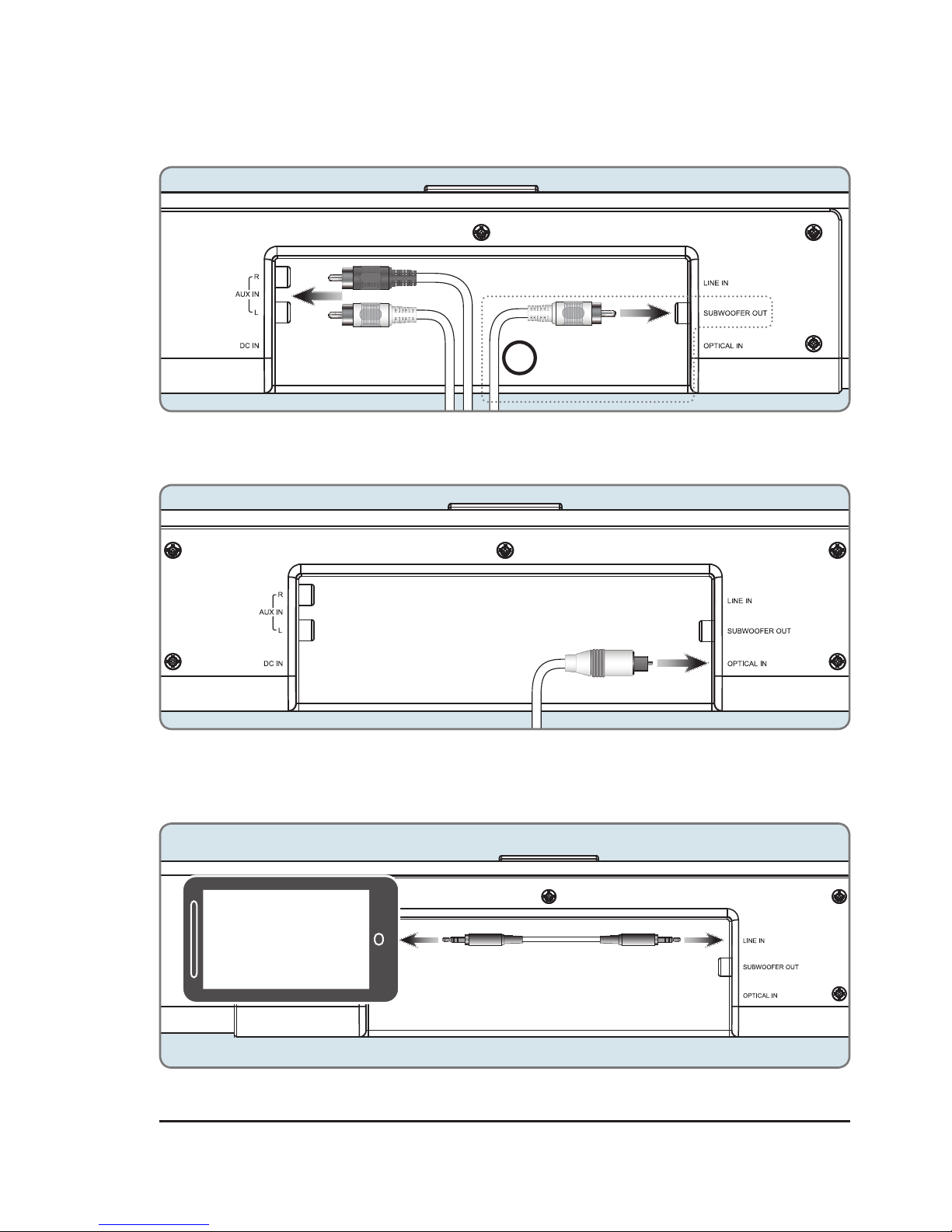

Audio Inputs
Using the Stereo RCA Inputs
When connecting two products using an RCA cable, match the colored ports with the same colored connection.
1. Connect the RCA cables to the RCA Stereo Inputs located on the back of the unit, and to the audio outputs
on the television.
2. Press the Power button to power on the unit.
3. Press the Source button to select AUX In, indicated by a white light.
4. Audio played through the television will now be heard through the speakers.
Using the Stereo RCA Inputs and the Subwoofer Output Together
The unit can be used with a detached subwoofer by using another RCA cable to connect the two.
1. With the main stereo RCA cables connected, use another RCA cable to connect an external subwoofer to the
Subwoofer Output.
2. When audio is played through any source, the speaker will automatically use the connected subwoofer.
Using the Optical Input
You will need: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (not included)
1. Connect the Digital Optical Audio Cable to the optical output on the audio source and to the Optical Input
on the speaker bar.
2. Press the Power button to power the unit on.
3. Press the Source button to select Optical In, indicated by a amber light.
4. Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical
Audio and are turned On.
5. Audio from the connected audio source will now be played through the speakers.
Using the Line In
3.5 mm audio input cable not included.
1. Plug one end of a 3.5 mm audio input cable into the Line In on the unit. and plug the other end of the cable
into the audio output/headphone output on an MP3 Player or other audio source.
2. Press the Power button to power the unit on.
3. Press the Source button to select Line In, indicated by a green light.
4. Audio played through the connected device will now be heard through the speakers. Use the controls on the
connected device to play, pause, or skip selected tracks.
IMPORTANT TIPS FOR OPTICAL AUDIO:
• Use the correct toslink cable and make sure that it is firmly seated in both source and sound bar sockets.
• Optical output is activated on the source (they should see a red light emitting from the toslink socket).
It may be labeled SPDIF in the setting menu of the source.
• The optical output is set to output PCM and not Dolby Digital.

8
Using the Stereo RCA Inputs - Rear View
Only use if connecting
a detached subwoofer
Using the Optical Input - Rear View
Using the Line In - Side View
!

Customer Support: 1-888-999-4215
9
Pairing a Bluetooth Device for the First Time
1. Power on the unit by pressing the Power button.
2. Press the button on the remote to switch to Bluetooth Mode, indicated by a slowly flashing blue light.
3. Press the Pair button on the unit.
The pairing indicator will flash blue quickly. When pairing, remain within 3 feet of the unit.
4. Using the native controls on your Bluetooth device, select the ITB474 in your Bluetooth settings to pair.
If your device requests a password, enter the default password 0 0 0 0 .
Refer to the user’s manual for your specific device for instructions on pairing and connecting Bluetooth devices.
5. When successfully paired and connected, a beep will issue from the unit and the Pairing Indicator will
display a solid blue light.
After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the
device. If your device should become unpaired or you find it is unable to connect, repeat the above steps.
Playing Audio Wirelessly
1. After pairing to a bluetooth device, use the native controls on the connected Bluetooth Device to
select a track.
2. Play, pause or skip a selected track using the native controls on the connected Bluetooth Device or the
controls on the speaker's remote.
3. Audio played through the connected Bluetooth device will now be heard through the speakers.
Bluetooth

10
The Satellite Speakers
The Satellite Speakers
This unit is equipped with two detachable speakers that may be used to create a surround sound effect and lend an
extra dimension to your listening experience. From the remote control, the speakers can be powered on or off, and
change their volume independently of the main speaker. The satellite speakers can wirelessly play music or sound
anywhere in a 33 ft area of the main unit.
Re-Connecting the Satellite Speakers
If your satellite speakers lose their wireless connection to the main speaker unit for any reason, press and hold the
Connect button on the satellite speaker for one second and release, then perform the same operation on the main
speaker unit (see diagram on the next page). The green indicator light on the front of the satellite speaker will blink
quickly, then become solid as the connection is re-established.
Charging the Satellite Speakers
The satellite speakers are powered by internal lithium batteries and must be recharged after extended periods of
use. To charge the satellite speakers, simply dock them with the main speaker unit, or use a Micro-USB cord (not
included) to connect the Micro-USB charging port on the satellite speaker to a power source. A red light on the
front of the speakers will indicate the speaker is charging. The initial charge time for the speakers is 6 hours.
Powering On the Satellite Speakers
The satellite speakers must first be powered on manually by turning the Power Switch on the speakers to On (see
adjoining diagram). They should already be wirelessly connected to the main speaker and will be ready to play
sound whenever you choose.
Satellite Speaker Indicator Lights
STATUS INDICATOR
Paired to Main Speaker Solid Green Light
Pairing to Main Speaker Quickly Flashing Green Light
Battery Low Flashing Red Light
Battery Charging Solid Red Light
Battery Charged No Light

Customer Support: 1-888-999-4215
11
CONNECT
L
R
RIGHT SPEAKER COVERLEFT SPEAKER COVER
CONNECT
DC IN
DC IN
OFF ON
OFF ON
Satellite Speakers (Left/Right)
Main Speaker Dock (Left)
Power Plug
Power Plug
Docking Coupling
Docking Housing
Power Switch
Connect Button
Micro-USB
Charging Port
Connect Button

12
Green Initiative
Our Environmental Commitment to "Protect for Today and Sustain for
Tomorrow". On a continual basis DPI, Inc. is making efforts to sustain the
environment and improve the recyclability of its products and packaging.
Focusing on “protecting for today and sustaining for tomorrow” DPI,
Inc. has committed to reducing packaging size, increasing the usage of
recyclable plastics, and ensuring that packaging and manuals are made
with up to 85% recycled material. In addition to material consideration,
DPI, Inc. has also focused on the finer details that positively impact the
environment such as employing the usage of soy-based inks.
DPI, Inc. also ensures that the factories that produce the company’s wide
variety of consumer electronics adhere to environmentally friendly air and
water restrictions. This is yet another example that every step of the way
DPI, Inc. is making efforts to lessen any impact on the environment.
In 2011 DPI, Inc. also began conversations with Energy Star in order
to ensure that the consumer electronics being produced meet high
standards of energy efficiency. The ultimate goal is keeping energy costs
for consumers low while providing quality, feature-rich products.
International Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit
the support section at: www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas
frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des
questions fréquemment posées, consultez la rubrique d’assistance sur: www.iLiveElectronics.com
Contact Information
Website: www.iLiveElectronics.com
Email Support: [email protected]
Email Parts: [email protected]
Phone Support: 1-888-999-4215
Warranty
For Warranty Information and the most up-to-date version of this User’s Guide, go to:
www.iLiveElectronics.com
Company Information
Protect for Today
Sustain for Tomorrow
Made
Green
Copyright © 2014 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of
their respective owners. Specifications are subject to change without notice.
