Impex Marcy MWB-765 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MWB 765
Retain This
Manual for
Reference
08-10-05
OWNER'S
MANUAL
MARCY BENCH W/LAT BAR
MWB -765
IMPEX INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]

_____________________________________________________
TABLE OF CONTENTS
BEFORE YOU BEGIN....................................................................................……….. 1
IMPORTANT SAFETY NOTICE.....................................................................……….. 2
HARDWARE IDENTIFIER.....….....................................................................……….. 3
ASSEMBLY INSTRUCTIONS.........................................................................……….. 4
EXPLODED DIAGRAM……….........................................................................………..10
PARTS LIST…………………………………………………………………………………..11
WARRANTY.................................................................................................…………. 12
ORDERING PARTS.......................................................................................…………12
BEFORE YOU BEGIN
Thank you for selecting the MARCY MWB 765 BENCH by IMPEX FITNESS
PRODUCTS. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call
our TOLL-FREE customer service number. Our Customer Service Agents
will provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[email protected]m

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

HARDWARE PACK
3

ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.
NOTE: It is strongly recommended two or more people assembling this machine to avoid
possible injury.

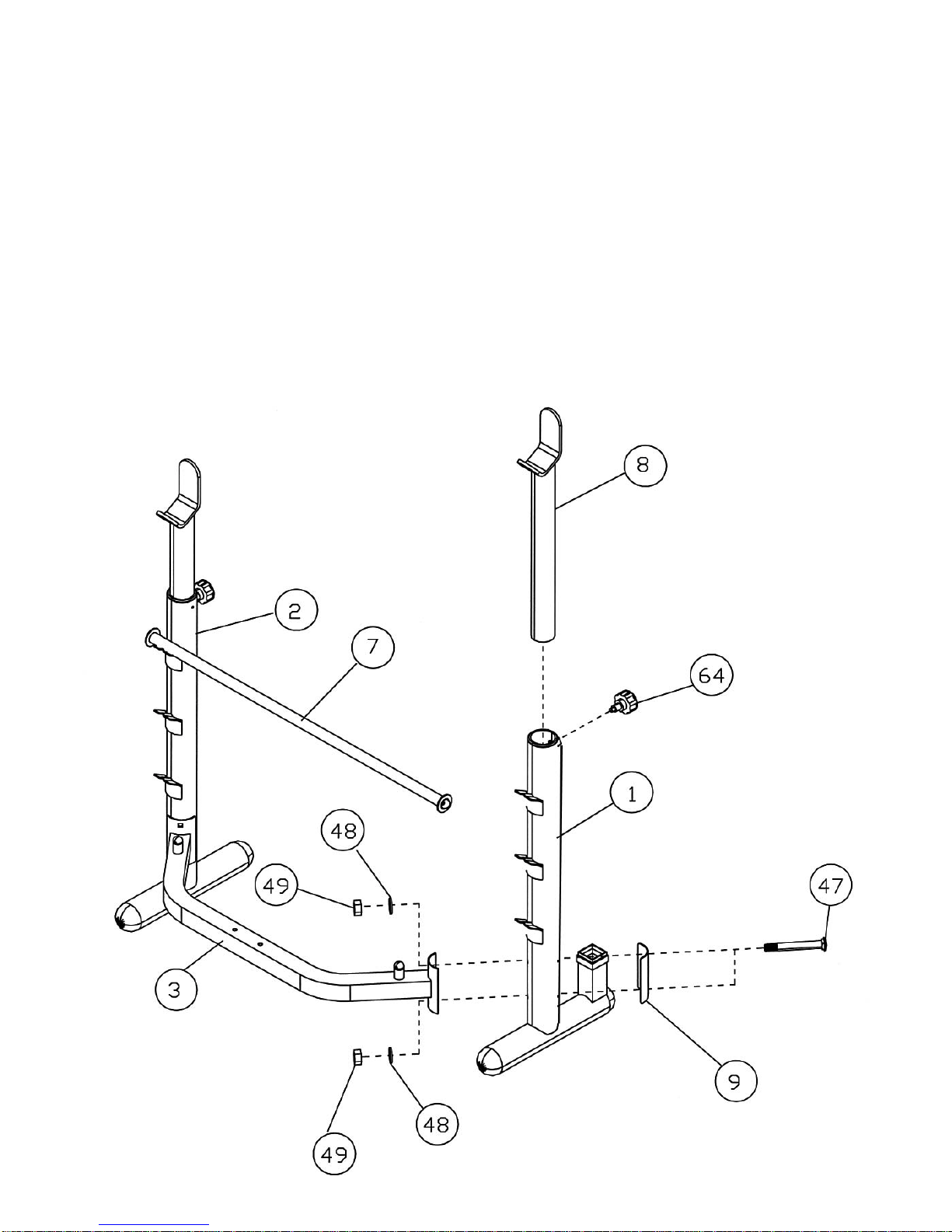

STEP 1 (See Diagram 1)
A.) Connect the Left & Right Upright Beams (#1) & (#2) by the Cross Brace (#3) in the mid-span.
Align the holes then secure each end of Cross Brace with one Bent Bracket (#9), two M10 x 3
¾” Carriage Bolts (#47), ∅¾” Washers (#48), and M10 Aircraft Nuts (#49).
B.) Insert two Crutches (#8) into the top opening on the Upright Beams. Secure them with two
Lock Knobs (#64) through selected hole to obtain desired height of the Support.
C.)Place Backrest Adjustment Bar (#7) between the two Upright Beams on the selected bar
holder to obtain desired incline of Backrest. DIAGRAM 1
4

STEP 2 (See Diagram 2)
A.) Attach the Leg Developer Holder (#5) to the Front Base (#6). Secure it with three M10 x 5/8”
Allen Bolts (#52) and ∅¾” Washers (#48).
B.) Attach the Leg Developer Holder (#5) to the front of the Main Seat Support (#4). Secure it
with one M10 x 2 ½” Carriage Bolt (#60) from the top, two M10 x 2 ¾” Carriage Bolts (#51)
from the side, three ∅¾” Washers (#48) and three M10 Aircraft Nuts (#49).
C.)Attach the Rear of the Main Seat Support (#4) to the Cross Brace (#3). Secure it with one
Bracket (#10), two M10 x 2 ¾” Carriage Bolts (#51), two ∅¾” Washers (#48), and two M10
Aircraft Nuts (#49).
DIAGRAM 2
5

STEP 3 (See Diagram 3)
A.) Attach the Leg Developer (#19) to the Leg Developer Holder (#5). Secure it with an Axle
(#35), two ∅¾” Washers (#48), and two M10 x 5/8” Allen Bolts (#52).
B.) Insert one M8 x 2 1/8” Allen Bolt (#62) through the hole on the Lat Bar Frame (#15) and
secure it with a M8 Aircraft Nut (#63).
C.) Slide the Weight Holder (#16) onto the Lat Bar Frame. Insert the Lat Bat Frame into the top
opening on the Leg Developer Holder. Use the Lock Knob (#31) to secure the Lat Bar.
DIAGRAM 3
6

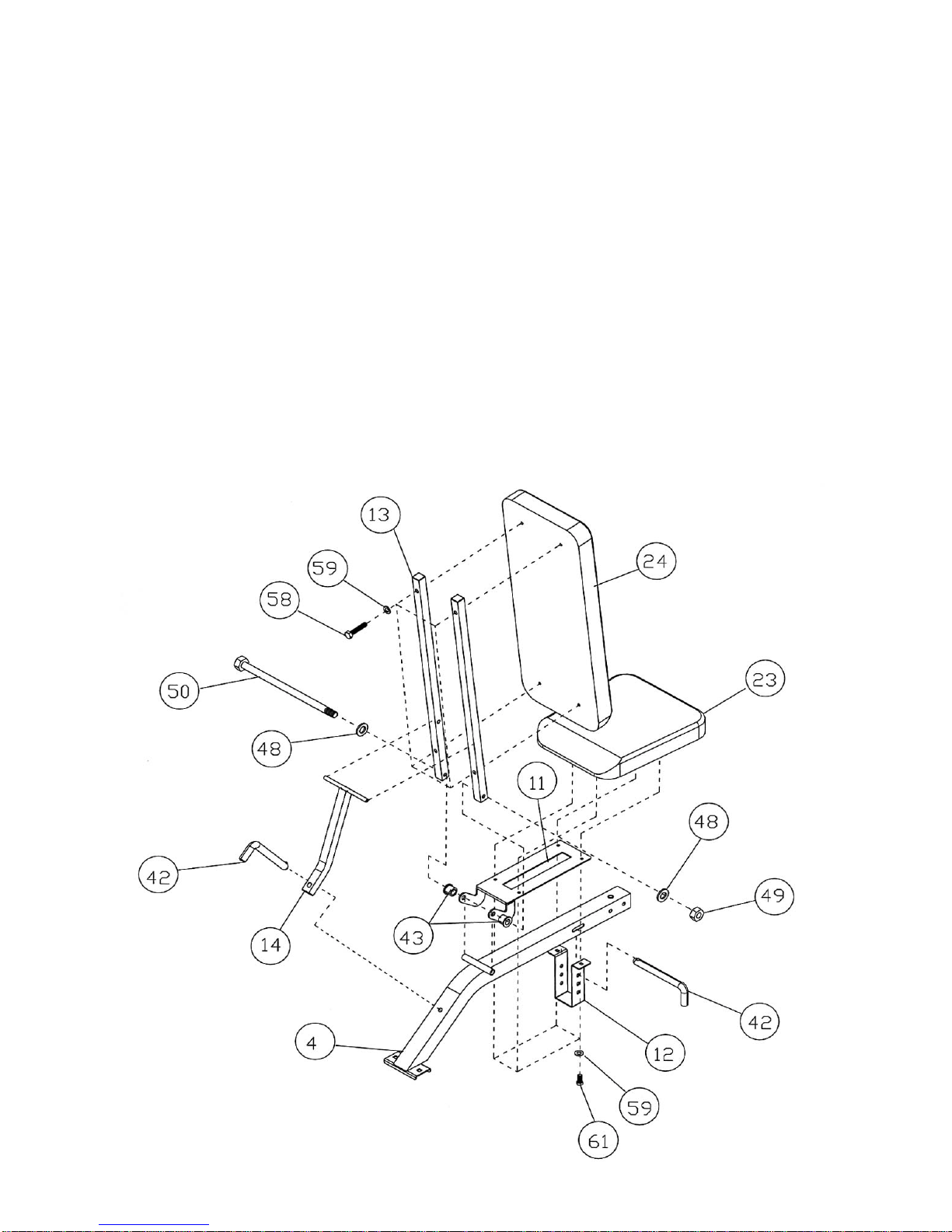

STEP 4 (See Diagram 4)
A.) Attach the hole-side of the Seat Bracket (#11) to the pivot on the Main Seat Support (#4).
Push two ∅5/8” Bushings (#43) into the holes on the Pivot.
B.) Attach the Backrest Supports (#13) to the Pivot. Secure it with one M10 x 7 ¼” Hex Bolt
(#50), two ∅¾” Washers (#48), and one M10 Aircraft Nut (#49). Do not tighten the Nut and
Bolt yet. Place the Backrest Incline Support (#14) in between the two Backrest Supports.
Securely tighten the Bolt (#50) and Nut (#49).
C.)Place the Backrest Board (#24) onto the Backrest Supports. Secure it with four M6 x 1 3/8”
Hex Bolts (#58) and ∅½” Washers (#59).
D.)Place the Seat Pad (#23) onto the Seat Bracket. Secure the two back holes on the Seat with
two M6 x 5/8” Allen Bolts (#61) and ∅½” Washers (#59). Secure the two front holes on the
Seat with a Seat Incline Adjustment (#12), two M6 x 5/8” Allen Bolts (#61) and two ∅½”
Washers (#59). Insert a 4” L-shaped Pin (#42) into the selected hole on the Seat Incline
Adjustment to hold the desired seat incline.
E.) When using the Uprights to do squat exercise, lift the Backrest Board to vertical position and
secure it with a 4” L-shaped Pin (#42). NOTE: The vertical support is not designed to sustain
any weight. The only purpose is to get the Backrest Board out the user’s way when doing
squat. DIAGRAM 4
7

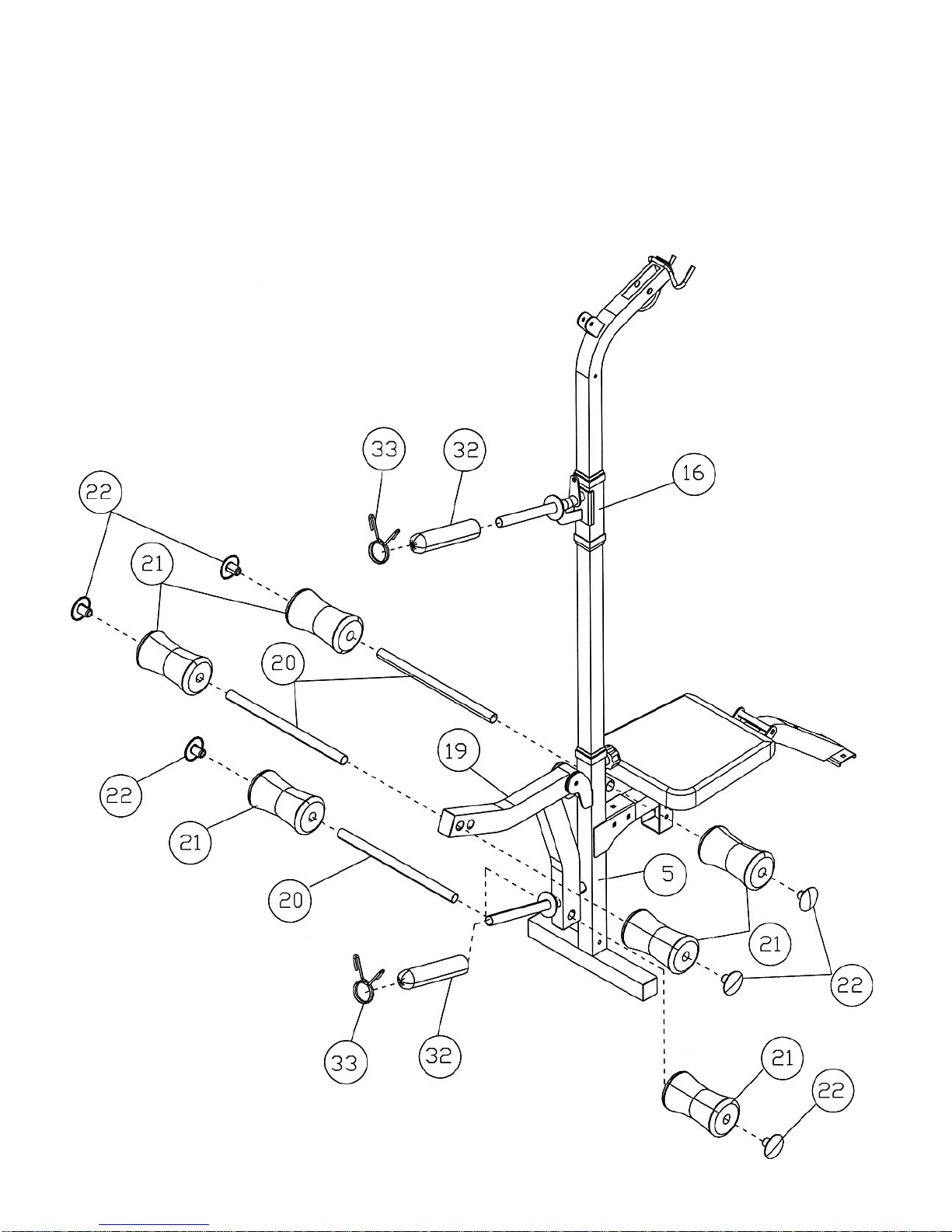

STEP 5 (See Diagram 5)
A.) Insert one Foam Roll Tube (#20) halfway through the hole on the Leg Developer Holder
(#5). Insert two Foam Roll Tubes (#20) halfway through the holes on the Leg Developer
(#19). Push six Foam Rolls (#21) onto the Tubes from both ends. Plug six Foam Roll
End Caps (#22) into the ends.
B.) Attach the two Olympic Sleeves (#32) to the weight post on Leg Developer (#19) and
Weight Holder (#16). Attach one Spring Clip (#33) to each Olympic Sleeve.
DIAGRAM 5
8

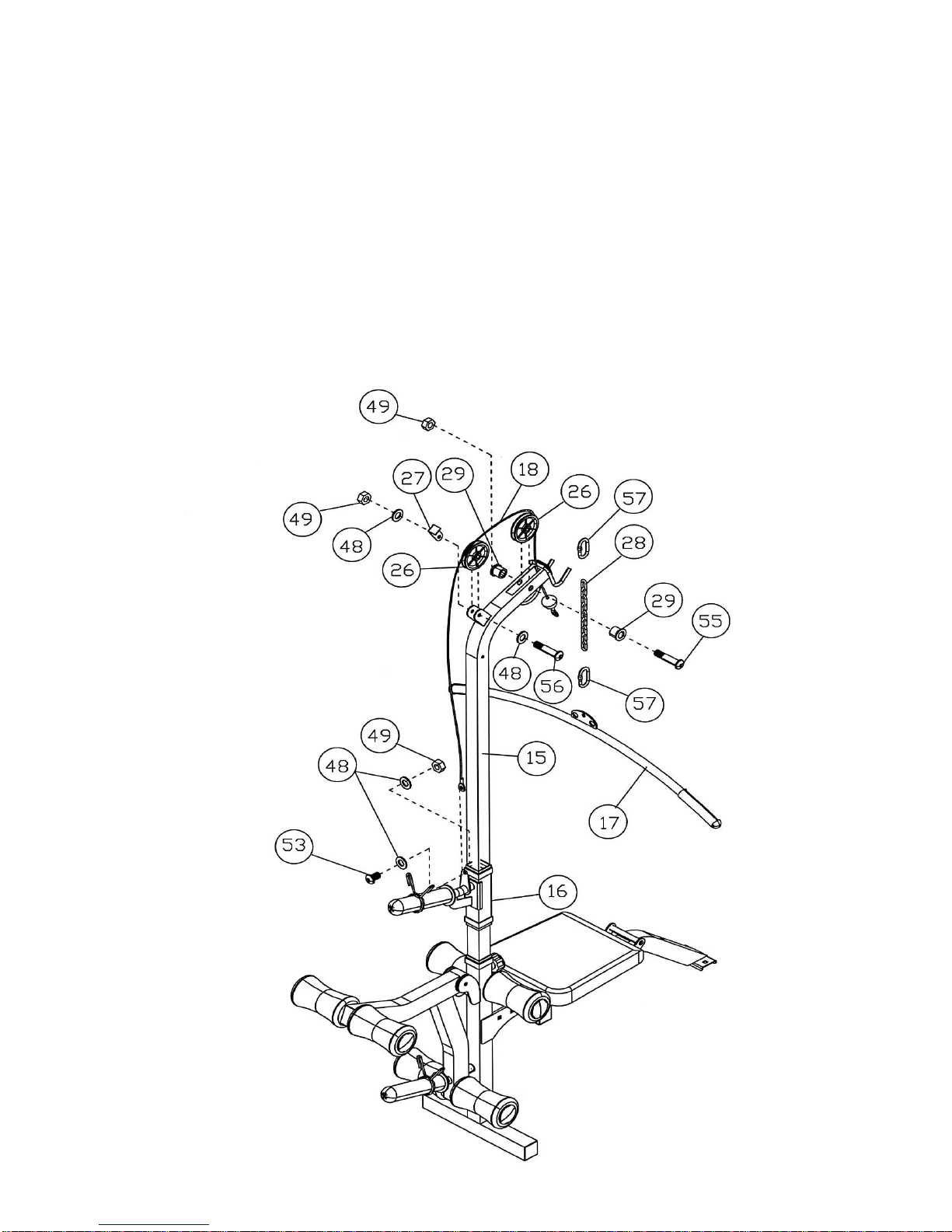

STEP 6 (See Diagram 6)
A.) Attach the ball end of the Cable (#18) to a Pulley (#26). Place the Pulley in the open slot
on top of the Lat Bar Frame (#15). Secure the Pulley with one M10 x 2 3/8” Allen Bolt
(#55), two Pulley Bushings (#29), and one M10 Aircraft Nut (#49).
B.) Draw the Cable over the Pulley to the open bracket on the Lat Bar Frame. Attach a Pulley
to the bracket. Secure it with one M10 x 2” Allen Bolt (#56), one L-shaped Pulley Cover
(#27), two ∅¾” Washers (#48), and one M10 Aircraft Nut (#49).
C.)Draw the Cable over the Pulley then downward to the Weight Holder (#16). Secure the tip
of the Cable to the Weight Holder with one M10 x 1” Allen Bolt (#53), two ∅¾” Washers
(#48), and one M10 Aircraft Nut (#49).
D.)Connect the Lat Bar (#17) by using a C-clip (#57) to the Chain (#28). Adjust the length of
Chain to obtain the desired height of the Lat Bar exercise. Then connect the Chain to the
Cable (#18) with a C-clip (#57). DIAGRAM 6
9

10

PARTS LIST
KEY NO. DESCRIPTION Q’ty
1 Left Upright Beam 1
2 Right Upright Beam 1
3 Cross Brace 1
4 Main Seat Support 1
5 Leg Developer Holder 1
6 Front Base 1
7 Backrest Adjustment Bar 1
8 Crutch 2
9 Bent Bracket 2
10 Bracket 1
11 Seat Bracket 1
12 Seat Incline Adjustment 1
13 Backrest Support 2
14 Backrest Incline Support 1
15 Lat Bar Frame 1
16 Weight Holder 1
17 Lat Bar 1
18 Cable 1
19 Leg Developer 1
20 Foam Roll Tube 3
21 Foam Roll 6
22 Foam Roll End Cap 6
23 Seat Pad 1
24 Backrest Board 1
25 Lat Bar Grip 2
26 Pulley 2
27 L-shaped Pulley Cover 1
28 Chain 1
29 Pulley Bushing 2
30 2” Sleeve 4
31 Lock Knob 1
32 Olympic Sleeve 2
33 Spring Clip 2
34 1 5/8” x 2 3/8” End Cap 2
35 Axle 1
36 Axle Bushing 2
37 ∅1” End Cap 1
38 ∅1” Cone-shaped End Cap 2
39 1” Square End Cap 3
40 ∅3” Cone-shaped End Cap 4
41 ∅1 1/8” Cone-shaped End Cap 2
42 4” L-shaped Pin 2
43 ∅5/8” Bushing 2
44 2” Square End Cap 2
45 ∅3” Sleeve 2
46 Philips Screw 2
47 M10 x 3 ¾” Carriage Bolt 4
48 ∅¾” Washer 20
49 M10 Aircraft Nut 13
50 M10 x 7 ¼” Hex Bolt 1
11
51 M10 x 2 ¾” Carriage Bolt 4
52 M10 x 5/8” Allen Bolt 5
53 M10 x 1” Allen Bolt 1
54 1 ¾” Square End Cap 1
55 M10 x 2 3/8” Allen Bolt 1
56 M10 x 2” Allen Bolt 1
57 C-clip 2
58 M6 x 1 3/8” Hex Bolt 4
59 ∅½” Washer 8
60 M10 x 2 ½” Carriage Bolt 1
61 M6 x 5/8” Allen Bolt 4
62 M8 x 2 1/8” Allen Bolt 1
63 M8 Aircraft Nut 1
64 Lock Knob 2

IMPEX INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material,
under normal use and service conditions, for a period of two years on the Frame from the date of
purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this
Warranty is limited to replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to
IMPEX must be prepaid by the customer. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or
abnormal usage or repairs not provided by an IMPEX authorized service center or for products
used for commercial or rental purposes. No other warranty beyond that specifically set forth
above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or
in connection with the use or performance of the product or other damages with respect to any
economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of
removal, installation or other consequential damages or whatsoever natures. Some states do not
allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above
limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied
warranties of merchantability or fitness for a particular purpose is limited in its scope and duration
to the terms set forth herein. Some states do not allow limitations on how long an implied
warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state
to state. Register on-line at www.impex-fitness.com
IMPEX INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-
999-8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific
standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
12
